Product Type	Corded Impact Wrench
Brand	Silverline
Model	593128
Supply Voltage	230 V ~, 50 Hz
Power	400 W
No-load Speed	3,200 rpm
Impact Frequency	0 to 4,000 impacts/min
Drive Size	1/2" Square (12.7 mm)
Max Torque	350 Nm
Power Cable Length	2 m
Protection Class	II (Double Insulation)
Protection Rating	IP20
Weight	2.37 kg
Sound Pressure Level	98.2 dB(A)
Sound Power Level	109.2 dB(A)
Vibration Value	16.85 m/s²
Warranty	3 years (upon registration)
Included Accessories	4 sockets 1/2"
Main Functions	Tightening and loosening bolts/nuts
Maintenance	Cleaning with damp cloth, lubrication, brush replacement

Frequently Asked Questions - 593128 SILVERLINE

How to reverse the rotation direction of the impact wrench?

Use the rotation direction switch located on the tool. Push it to the right for counterclockwise, to the left for clockwise direction.

What is the maximum torque of this tool?

The maximum torque is 350 Nm, sufficient for tightening or loosening most bolts and nuts.

What protective equipment should I wear?

Always wear safety glasses, hearing protection, and suitable gloves. A dust mask is recommended in dusty environments.

How to install a socket on the tool?

Push the socket onto the 1/2" square drive until it clicks. To remove it, simply pull it off.

Can the tool be used in the rain?

No, the tool is IP20 rated and must not be exposed to rain or moisture to avoid electric shock hazards.

How to clean and maintain the impact wrench?

Unplug the tool, clean with a damp cloth and mild detergent. Lubricate moving parts with a suitable spray. Have worn carbon brushes replaced by a professional.

What is the maximum impact frequency?

The impact frequency can reach 4,000 impacts per minute.

Is the warranty 3 years?

Yes, subject to product registration on silverlinetools.com within 30 days of purchase. The warranty covers material and manufacturing defects.

How to adjust the tightening torque?

This tool does not have built-in torque adjustment. Use a torque wrench (not included) to check the final torque and avoid over-tightening.

What to do if the tool no longer starts?

First check the power supply and cable. If carbon brushes are worn, have them replaced at an authorized service center. Contact Silverline support at ([phone].

USER MANUAL 593128 SILVERLINE

400W Electric Wrench

Silverline electric drill putter with black handle and metallic body (no visible text or symbols)

English ......04

Français ......08

Deutsch......12

Español......16

Italiano ......20

Nederlands ......24

Polski ......28

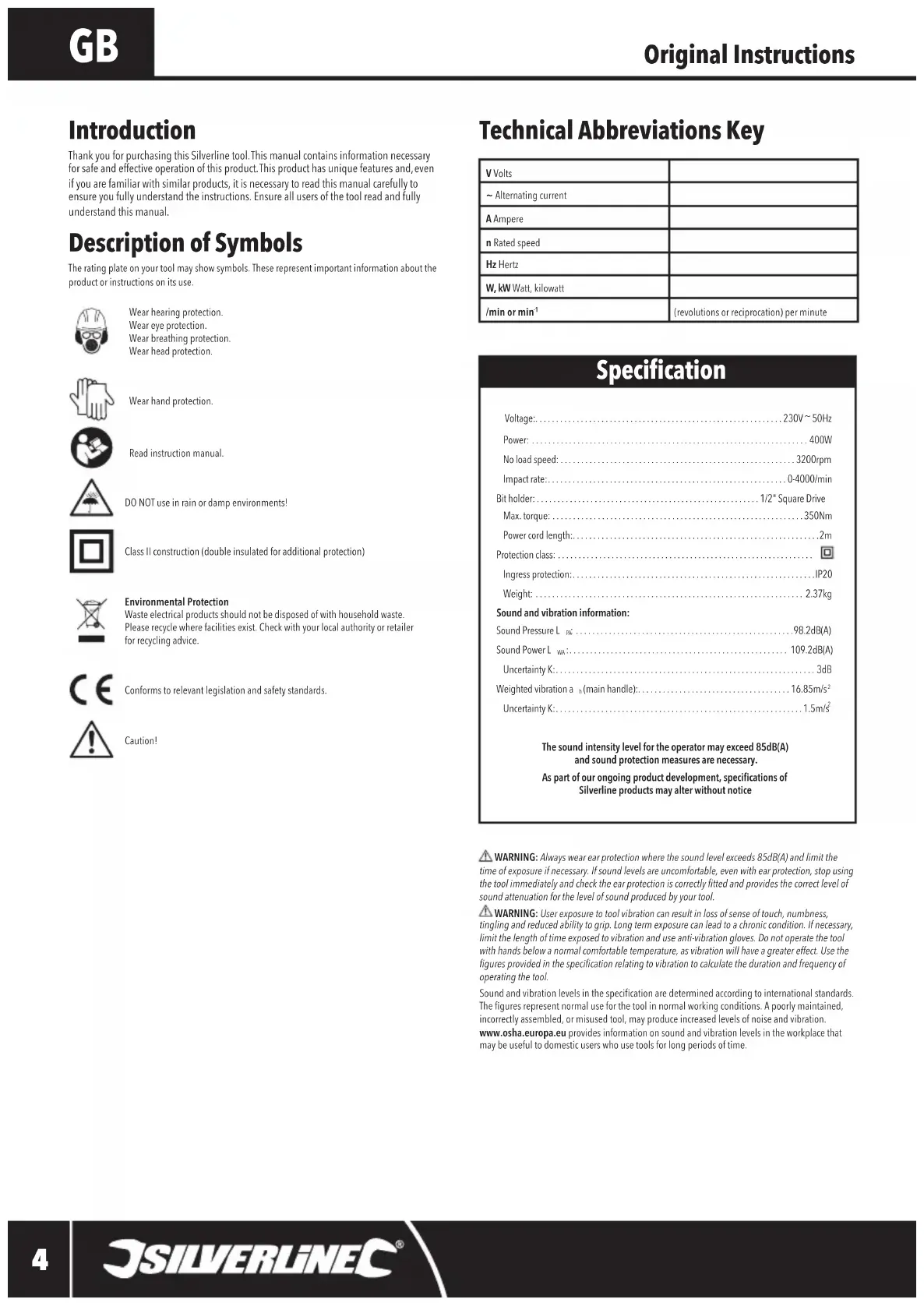

Introduction

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Wear head protection.

Wear hand protection.

Read instruction manual.

DO NOT use in rain or damp environments!

Class II construction (double insulated for additional protection)

Environmental Protection

Waste electrical products should not be disposed of with household waste.

Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Conforms to relevant legislation and safety standards.

Caution!

Technical Abbreviations Key

V Volts
~ Alternating current
A Ampere
n Rated speed
Hz Hertz
W, kW Watt, kilowatt
/min or min ^1	(revolutions or reciprocation) per minute

Specification

Voltage: 230V\~50Hz

Power: 400W

No load speed: 3200rpm

Impact rate: 0 4000/min

Bit holder: 1/2" Square Drive

Max. torque: 350Nm

Power cord length: 2m

Protection class:

Ingress protection: IP20

Weight 2.37kg

Sound and vibration information:

Sound Pressure L = 98.2dB(A)

Sound Power L 109.2dB(A)

Uncertainty K: 3dB

Weighted vibration a _h (main handle): 16.85m/s ^2

Uncertainty K: 1.5m/s ^2

The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

As part of our ongoing product development, specifications of Silverline products may alter without notice

⚠ WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration.

www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

General Safety

⚠ WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.

WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents.
d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or the battery pack from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Impact Wrench Safety

• Hold the power tool by insulated gripping surfaces only when performing tasks where the tool bit comes within close proximity or may contact hidden wiring. Fasteners or cutting accessories contacting a "live" power source may make exposed metal parts of the power tools "live" and could give the operator an electric shock.
• Hold the tool with a firm grip. Impact wrenches can provide instantaneous high levels of torque whilst driving fasteners, that could easily be transferred to the operator.
• Use the auxiliary handle/s, if provided. Loss of control can cause harm to the operator.
• Always ensure the workpiece is secured. A properly secured workpiece using a vice or other clamping equipment is held more secure than by hand.
• Always wait until the machine has come to a complete stop before setting the tool down. The tool insert can jam leading to a loss of control over the power tool.
• Never use the tool if the mains cable is damaged. Do not touch the damaged cable or pull the mains plug from the socket when the cable is damaged. Turn off the tool at the mains then disconnect. Damaged cables increase the risk of electric shock.

Product Familiarisation

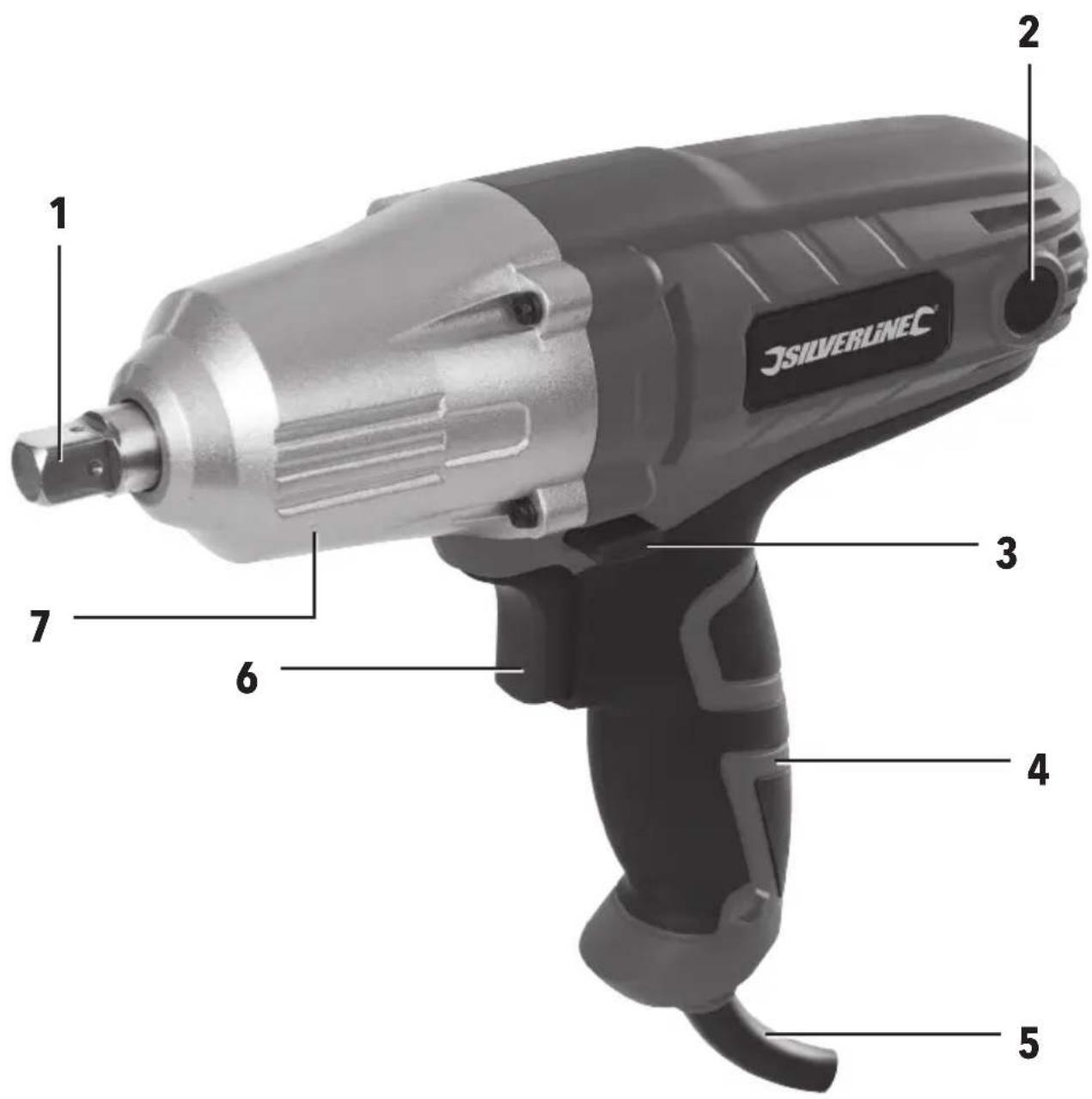

1 1/2" Square Drive

2 Brush Access Cover

3 Forward/Reverse Selector

4 Handle

5 Mains Cord

6 ON/OFF Trigger

7 Transmission Casing

Accessories (not shown):

- 4 x 1/2" Drive Sockets

Intended Use

Mains-powered impact wrench for loosening or tightening nuts and bolts within its high torque parameters.

Unpacking Your Tool

• Carefully unpack and inspect your new tool. Familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

⚠ WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments.

Socket installation

• Push the desired socket bit on to the 1/2" Square Drive (1), until it 'clicks' into place
• To remove the socket bit from the 1/2" Square Drive; pull the socket bit away from the tool

Operation

⚠ WARNING: ALWAYS wear eye protection, adequate respiratory and hearing protection, as well as suitable gloves, when working with this tool.

Direction selector

- Pressing the Forward/Reverse Selector (3) into the right position drives the 1/2" Square Drive (1) in the anticlockwise direction

- Pressing the Forward/Reverse Selector into the left position drives the 1/2" Square Drive in the clockwise direction

Tightening & loosening

• Plug the impact wrench into the mains power socket
• Squeeze the ON/OFF Trigger (6) slowly to drive the 1/2" Square Drive (1). Applying more pressure to the trigger feeds more power to the tool
• Allow the hammer mechanism to act on the fastener for a short duration when loosening/tightening; maximum torque is reached after few hammer actions
  • Always hand-tighten fasteners as much as possible before applying the impact wrench
• Be careful not to overtighten fasteners using this tool - always adjust the final torque value using a torque wrench (not included)
  WARNING: The Transmission Casing (7) may become too hot to touch. Prolonged hammer action will cause the internal mechanism to heat up. Allow the motor and gearing to cool by taking intermittent breaks.
• See the table below for the maximum torque values of each bolt/nut type; refer to this table if the workpiece does not have manufacturer specific values.

Bolt/nut size	Grade 4.8	Grade 8.8	Grade 9.8	Grade 10.9	Grade 12.9
M6 6 Nm	11 Nm 13.3 Nm	17 Nm 19 Nm
M8 15 Nm	28 Nm 32.3 Nm	40 Nm 47 Nm
M10 29 Nm	55 Nm 64.1 Nm	80 Nm 95 Nm
M12 50 Nm	95 Nm 111.8 Nm	140 Nm 165 Nm
M16 125 Nm	240 Nm 277 Nm	350 Nm 400 Nm
M20 240 Nm	475 Nm n/a	75 Nm 800 Nm
M24 425 Nm	650 Nm n/a	150 Nm 1350 Nm

Note: The values above are advisory and should not be adhered to in all circumstances. The values are for the bolt/nut only, and do not suggest that these clamping values are suitable for the component being fastened.

Accessories

- A range of accessories and consumables – including Socket Set 1/2" Drive Metric 10pce, Socket Set 1/2" Drive Deep Metric 7pce, and Socket Set 1/2" Drive Metric 7pce – is available from your Silverline stockist. Spare parts can be obtained from toolsparesonline.com

Maintenance

WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.

General inspection

• Regularly check that all the fixing screws are tight
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool

Cleaning

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the tool's service life. Clean the body of your tool with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
• Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents
• Never use caustic agents to clean plastic parts

Lubrication

- Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant

Brushes

• Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
- If you suspect that the brushes may be worn, have them replaced at an authorised Silverline service centre

Contact

For technical or repair service advice, please contact the helpline on ([phone]

Web: silverlinetools.com/en-GB/Support

Address:

Powerbox

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Storage

- Store this tool carefully in a secure, dry place out of the reach of children

Disposal

Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on the correct way to dispose of power tools

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

- Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline

Declares that:

This declaration has been issued under the sole responsibility of the manufacturer.

The object of the declaration is in conformity with the relevant Union harmonisation Legislation.

Identification code: 593128

Description: 400W Electric Wrench

Conforms to the following directives and standards:

• Machinery Directive 2006/42/EC

• EMC Directive 2014/30/EU

• RoHS Directive 2011/65/EU

• EN 62841-1:2015

• EN 62841-2-2:2014

• EN 55014-1:2006+A1:2009+A2:2011

• EN 55014-2:2015

• EN 61000-3-2:2014

• EN 61000-3-3:2013

Notified body: Bureau Veritas

The technical documentation is kept by: Silverline

Date: 27/02/2019

Signed:

Mr Darrell Morris

Managing Director

Name and address of the manufacturer:

Powerbox International Limited, Company No. 06897059. Registered address: Powerbox.

Boundary Way, Lufton Trading Estate, Yeovil, Somerset, BA22 8HZ, United Kingdom.

Introduction

• Directive relative aux machines 2006/42/CE

Silverline Tools Service Centre

PO Box 2988

Yeovil

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

Silverline electric drill putter with black handle and metallic body (no visible text or symbols)

GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
