949611 - Drill SILVERLINE - Free user manual and instructions
Find the device manual for free 949611 SILVERLINE in PDF.
| Product type | Cordless SDS hammer drill |
| Brand | Silverline |
| Model | 949611 |
| Dimensions (L x W x H) | 250 x 77 x 222 mm |
| Weight | 1.8 kg |
| Power supply | Li-ion 18V, 4Ah battery |
| Charger | Input 230V~50Hz, output 22V=2.4A, charging time 2h |
| No-load speed | 0-900 min⁻¹ |
| Impact rate | 0-4300 impacts/min |
| Impact energy | 1.1 J |
| Chuck type | SDS-Plus |
| Drilling capacity (concrete) | 12 mm |
| Drilling capacity (wood) | 16 mm |
| Drilling capacity (steel) | 8 mm |
| Operating modes | Drilling, hammer drilling, screwdriving |
| Sound pressure level | 73.4 dB(A) |
| Sound power level | 93.4 dB(A) |
| Vibration (hammer mode) | 5.31 m/s² |
| Protection class | II (double insulation) |
| Protection rating | IPX0 |
| Maintenance and cleaning | Disconnect battery before cleaning; use a dry cloth or compressed air; lubricate moving parts |
| Safety | Wear hearing, eye, respiratory protection and anti-vibration gloves |
| Spare parts and repairability | Accessories available at Silverline dealer or at toolsparesonline.com; repair by authorized service center |
| Warranty | 3 years (registration within 30 days at silverlinetools.com) |
Frequently Asked Questions - 949611 SILVERLINE
User questions about 949611 SILVERLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Drill in PDF format for free! Find your manual 949611 - SILVERLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 949611 by SILVERLINE.
USER MANUAL 949611 SILVERLINE

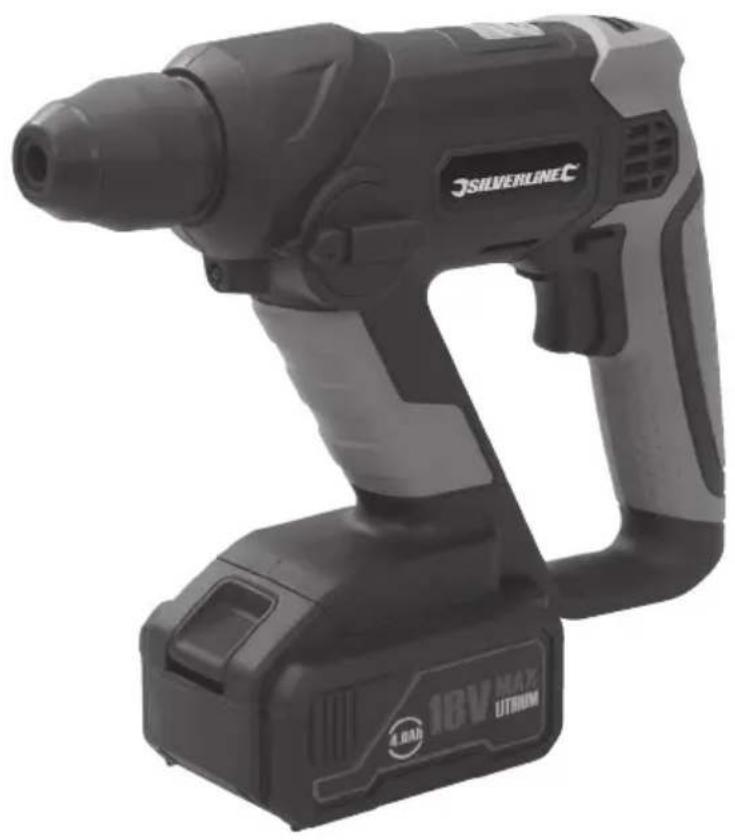

18V SDS Plus Hammer Drill
FR Perceuse à percussion SDS Plus 18 V
DE SDS-Plus-Schlagbohrmaschine, 18V
ES Taladro percutor SDS Plus 18 V
IT Trapano a percussione 18V SDS Plus
NL 18 V SDS Plus klopboormachine
PL Wiertarka SDS Plus 18 V
Register online: silverlinetools.com
Fig.1
Fig. II
Fig. III
Fig. IV
Fig. V
English 06
Français 14
Deutsch. 22
Espanol............30
Italiano .38
Nederlands .46
Polski .54
Introduction
Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.
Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Wear head protection.
Wear hand protection
Read instruction manual.
Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!
Class II construction (double insulated for additional protection)
Class III construction (separated or safety extra-low voltage)
Environmental Protection
Waste electrical products and batteries, including Li-ion batteries, should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Conforms to relevant legislation and safety standards.
Caution!
Li-ion battery cells are recyclable and should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice
Li-ion
For indoors use only (battery charger and PSU)
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Technical Abbreviations Key
| V Volts | |
| ~, a.c. Alternating current | |
| A, mA Ampere, milli-Amp | |
| Ah Amp hours (battery capacity) | |
| n0 | No load speed |
| Hz Hertz | |
| = = | Direct current |
| W, kW Watt, kilowatt | |
| min-1 | Operations per minute |
| dB(A) Decibel sound level (A weighted) | |
| m/s2Metres per second squared (vibration | magnitude) |
| J Joule |
Specification
No load speed: 0-900min
Impact rate: 0-4300bpm
Impact energy: 1.1J
Chuck type: SDS plus
Max drilling capacity:Concrete: 12mm
Wood: 16mm
Steel: 8mm
Protection class:
Ingress protection: IPX0
Dimensions (L x W x H): 250 x 77 x 222mm
Weight: 1.8kg
Battery:
Cell type: Liion
Voltage: 18V
Capacity: 4.0Ah
Charger: Input power. 230V-50Hz 1.2A
Output power: 22V-2.4A
Charging time: 2 hours
Cord length: 1.8m
Protection class:
Ingress protection: .IPX0
As part of our ongoing product development, specifications of Silverline products may alter without notice.
Sound and vibration information:
Sound pressure L 73.4dB(A)
Sound power 93.4dB(A)
Uncertainty K: 3dB
Weighted Vibration ah (Hammer mode). 5.31 m/s²
Uncertainty 1.5m/s2
The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.
The sound intensity level for the operator may exceed 85dB(A) and sound protection measure are necessary.
WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.
WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.
Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www. osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.
General Power Tool SafetyWarnings
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.
d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 130^ may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
6) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers.
Hammer Drill Safety
WARNING!
- Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
- Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
- Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock
IMPORTANT: If you suspect or discover asbestos is present in any area you are working in, seek professional advice immediately. Removal of asbestos should be done by a licensed contractor. Contact the HSE in the UK (www.hse.gov.uk) or your national health and safety authority in your country for further information about dealing with asbestos. European Directive 2009/148/EC provides additional information related to exposure to asbestos at work.
a) DO NOT allow anyone under the age of 18 years to use this tool. Ensure that operators are qualified and familiar with the operating and safety instructions.
b) Use personal protective equipment (PPE) including safety glasses and protective clothing.
c) Wear respiratory protection suitable for the work being undertaken. A minimum rating of FFP2 is recommended.
d) If operating the tool causes discomfort in any way, stop immediately and review your method of use.
e) Wear suitable protective anti-vibration gloves that are non-fabric or coated fabric to prevent loose strands of material catching in the rotating drill bit. Discard gloves immediately if material is visibly frayed.
f) Hammer drills produce a very high level of vibration when operating in hammer mode. Frequent breaks are advised.
g) Use metal and voltage detectors to locate concealed electric, water or gas lines. Avoid touching live components or conductors.
h) Extension cable reels used with this tool must be completely unwound. Minimum conductor cross section: 1.0mm2.
i) When using this tool outdoors fit a RCD (GFCI in USA and Canada) to the mains connection. Ensure any extension cables used are suitable for outdoor use with water-resistant connections.
j) Ensure that the drill bit is securely fixed in the chuck. Insecure drill bits can be ejected from the machine causing a hazard.
k) Ensure that the lighting is adequate.
I) Ensure that the drill bit is in contact with the workpiece prior to starting up the tool.
m) Before drilling, check that there is sufficient clearance for the drill bit under the workpiece.
n) Use both hands when operating this tool.
o) DO NOT put pressure on the tool; to do so would shorten its service life.
p) Drill bits get hot during operation; allow to cool prior to handling them.
q) NEVER use your hands to remove sawdust, chips or waste close by the bit.
r) If you are interrupted when operating the drill, complete the process and switch off before looking up.
s) Where possible, use clamps or a vice to hold your work.
t) ALWAYS disconnect the hammer drill from the electric supply before changing a drill bit.
u) Examine the chuck regularly for signs of wear or damage. Have damaged parts repaired by a qualified service centre.
v) ALWAYS wait until the drill has come to a complete stop before putting it down.
w) On completion of the work, disconnect the tool from the power source and remove bit from the machine.
x) Periodically check all nuts, bolts and other fixings and tighten where necessary.
y) Even when this tool is used as prescribed it is not possible to eliminate all residual risk factors. If you are in any doubt as to the safe use of this tool, do not use it.
Battery Charger Safety
Use the Battery Charger correctly
Refer to the section of this manual relating to use of the Battery Charger (13) before attempting to charge the Battery (8)
- Do not attempt to use the charger with any batteries other than those supplied. Keep your battery charger clean; foreign objects or dirt may cause a short or block air vents. Failure to follow these instructions may cause overheating or fire
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
- Examine the battery charger regularly for damage, especially the cord, plug and enclosure. If the battery charger is damaged, it must not be used until it has been repaired
Children should be supervised to ensure that they do not play with the appliance
WARNING: Do not attempt to recharge non-rechargeable batteries.
Battery Safety
WARNING: Li-ion batteries, if incorrectly used, stored or charged are a fire, burn and explosion hazard.
- Keep the battery out of reach of children
Only charge Li-ion batteries designed specifically for this charger
Only use Li-ion batteries provided with this product or specifically designed to be compatible - Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fire
- When not in use batteries should be stored at room temperature (approximately 20^ )
- Ensure battery contacts cannot accidentally short in storage. Keep batteries clean; foreign objects or dirt may cause a short. Keep away from other metal objects, for example paperclips, coins, keys, nails and screws
- Under abusive conditions, liquid may be ejected from the battery. This liquid may cause skin irritation or burns. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help
- Do not open, disassemble, crush, heat above 60^ or incinerate. Do not dispose of in fire or similar
- Do not get batteries wet or immerse in water
Battery & charger safety features
The Battery and Charger are fitted with a number of safety features which may be triggered during charging or operation:
Over-charge protection: Charger automatically switches off when the Battery has reached full charge capacity, protecting the internal components of the battery
Over-discharge protection: Prevents the Battery from discharging beyond the recommended lowest safety voltage
- Over-heat protection: Sensor switches off if the Battery becomes too hot during operation. This can happen if the tool is overloaded or being used for extended periods of time. Up to 30 minutes cooling time may be required depending on the ambient temperature
- Overload protection: Battery temporarily stops if it is overloaded or the maximum current draw is exceeded, protecting the internal components. The Battery will resume normal operation when the current draw returns to a normal safe level. This may take a few seconds
- Short circuit protection: The Battery will stop working immediately if a short circuit occurs, this prevents damage to the Battery or tool

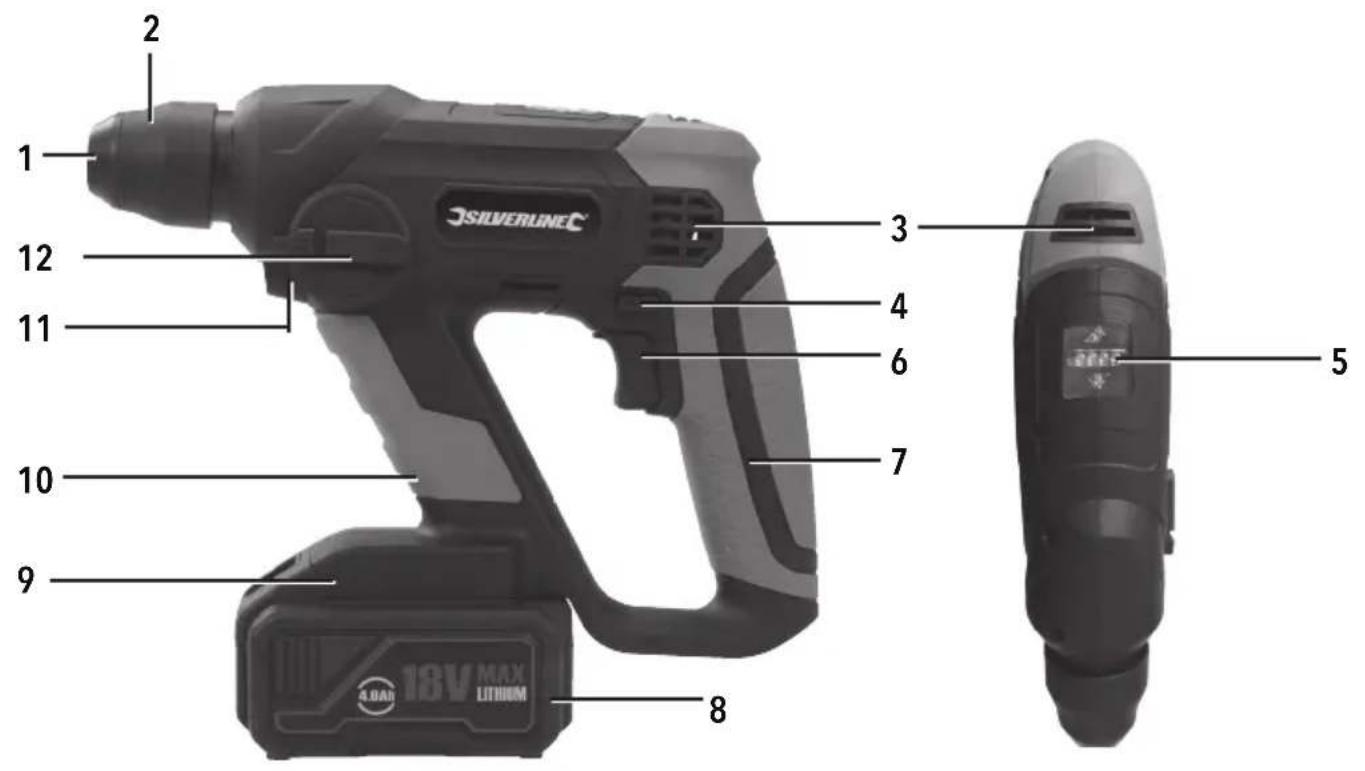

Product Familiarisation

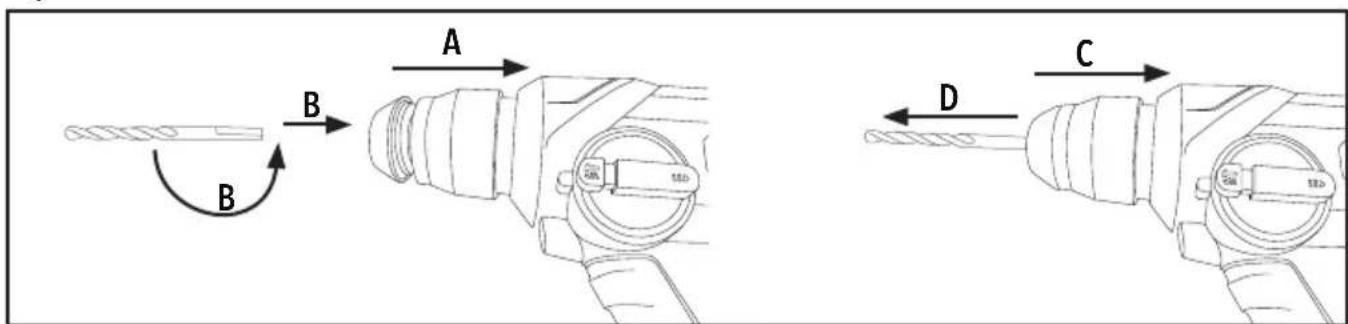

- Chuck
- huck Sleeve
- Air Vents

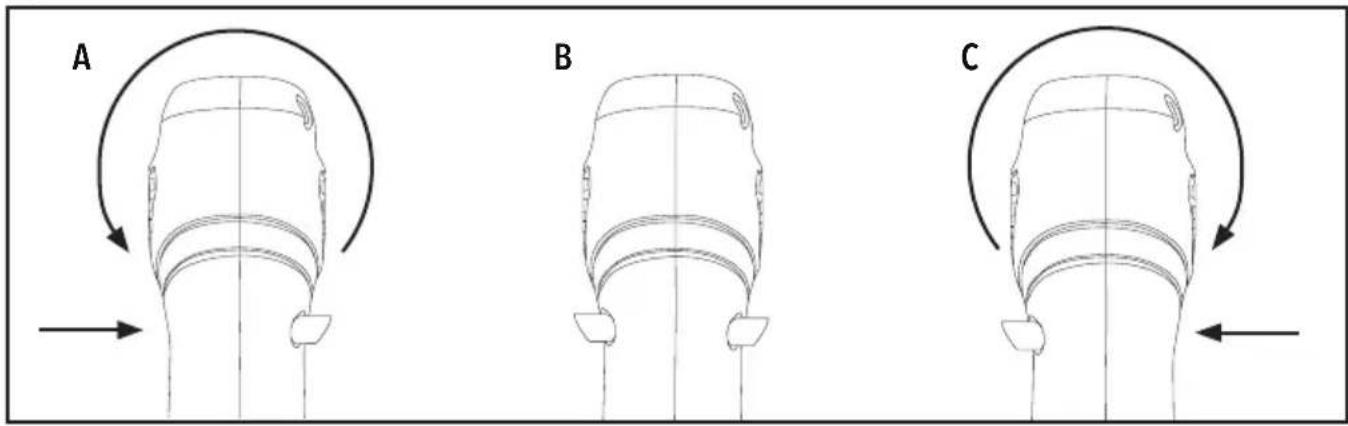

- Direction Switch
- Indicator Lights
- N/OFF Trigger Switch
- Main Handle
- Battery
- Battery Mount
- Auxiliary Handle
- Work Light

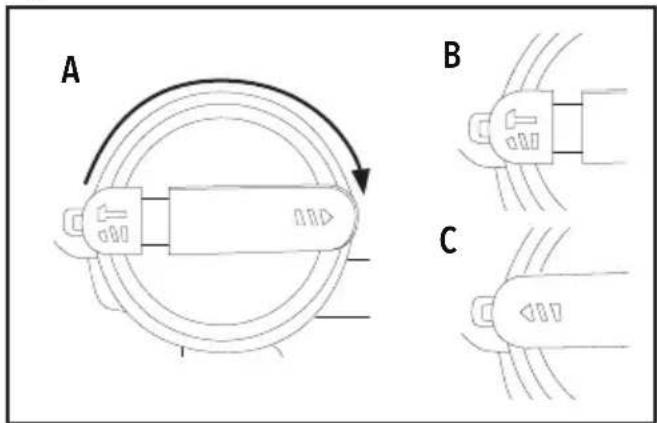

- Mode Selection Dial

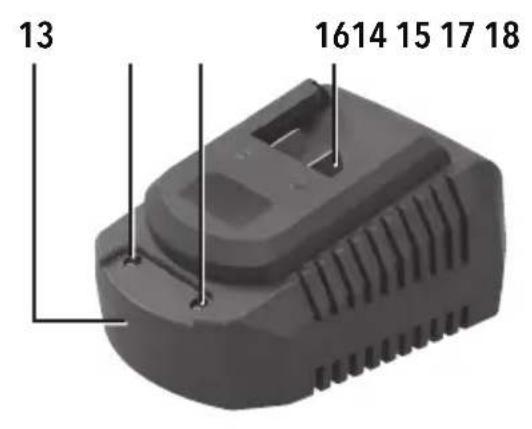

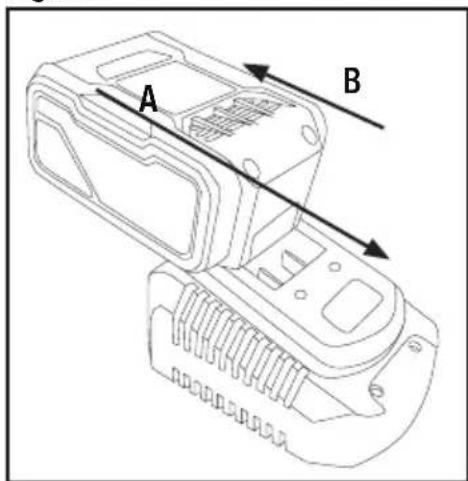

- Battery Charger
- Red LED
- Green LED
- Charger Terminals

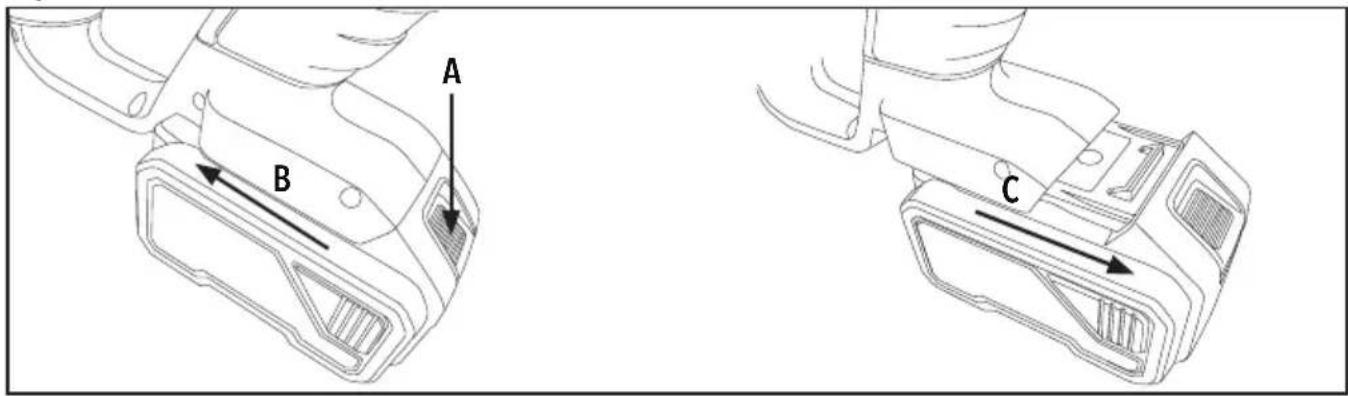

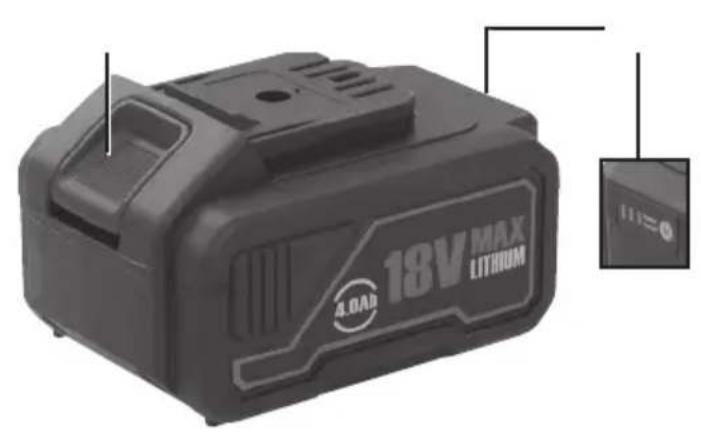

- Battery Release
- Battery Charge Indicator
Intended Use
Battery-powered SDS drill with two modes: hammer and conventional drilling. For hammer drilling in concrete, brick and stone and conventional drilling in wood, metal, ceramic and plastic. Also suitable for screwdriving.
The tool must ONLY be used for its intended purpose. Any use other than those mentioned in this manual will be considered a case of misuse. The operator, and not the manufacturer, shall be liable for any damage or injury resulting from such cases of misuse. The manufacturer shall not be liable for any modifications made to the tool, nor for any damage resulting from such modifications.
Unpacking Your Tool
- Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions
- Ensure all parts of the product are present and in good condition
If any parts are missing or damaged, have such parts replaced before attempting to use this product
Before Use
Removing the Battery
To remove the Battery (8), press the Battery Release (17) and slide the Battery out of the Battery Mount (9)(Fig. 1(a-b)).
Installing a charged Battery
- To fit a charged Battery (8), slide it into the Battery Mount (9) (Fig. 1(c))
Note: The Battery will fit only in one direction. If the Battery does not slide into the Battery Mount easily, do not force it. Instead, pull the Battery out of the Battery Mount again, check for correct position, and try again gently. - Push the Battery into the Battery Mount until it locks into place securely
Setting up the Charger
- If inserted, remove the Battery (8) from the Battery Charger (13)(Fig. II(b))
- Connect the Battery Charger to the mains power supply
Note: The Green LED (15) on the Battery Charger will illuminate to indicate that the Charger is powered.
WARNING: The Battery Charger is designed for indoor use only and must not be exposed to moisture and rain.
Charging the Battery
WARNING: Failure to follow the correct procedure when charging the Battery (8) will result in permanent damage.
Note: Normal charging time is 2 hours for a recently fully-discharged Battery, but if the Battery has been left in a discharged state for some time, it may take extended time to charge.
- Slide a discharged or partially discharged Battery onto the Battery Charger (13)(Fig. II(a))
Note: Make sure the Battery and Battery Charger are lined up correctly. If the Battery does not slide onto the Battery Charger easily, don't force it. Instead, remove the Battery, then check that the top of the Battery and the Battery Charger slot are clean and undamaged and that the Charger Terminals (16) are not bent. - Once charging commences, only the Red LED (14) will illuminate
Note: If the Red LED is not constantly illuminated after an uncharged Battery is inserted into the Charger, the Battery or Charger may be faulty. Check the Battery is fully inserted in the Battery Charger. If the fault persists do not use and contact your authorised Silverline distributor. - When the Battery is fully-charged, only the Green LED (15) will be illuminated
Battery Charge Level
The Battery has a built-in Battery Charge Indicator (18). Pressing on the button to the right will indicate the charge level. The number of bars that illuminate when the button is pressed indicate the charge level; 1 bar indicating a low charge, 3 bars indicating a full charge.
IMPORTANT: Be aware that at a low charge level the tool may stop operating while in use. This may be dangerous. Always ensure the Battery has a good charge level.
Notes about battery charging
IMPORTANT: Batteries capacity shortens over time. Always adhere to the correct handling and charging instructions in the manual. If the battery does not hold charge or working time is shortened, purchase a genuine Silverline replacement.
- The battery should be charged at ambient temperatures between 10^ and 40^ (ideally around 20^ )
After charging, allow 15 minutes for the battery to cool before use - Ensure that the charger is disconnected from the mains supply after use, and is stored correctly
- Do not leave batteries on charge for extended periods and never store batteries on charge
- The charger monitors battery temperature and voltage while charging. Remove the battery once charging has been completed to maximise charge cycles of the battery and not waste power
- Batteries can become faulty over time, individual cells in the battery can fail, and the battery could short. The charger will not charge faulty batteries. Use another battery, if possible, to check correct functionality of the charger and purchase a replacement battery if a faulty battery is indicated
- Do not store Lithium-ion battery packs in a discharged state long term. This can damage the cells. For long-term storage, store batteries in a high charge state disconnected from the power tool
- The capacity of batteries will reduce over time. After 100 charge cycles, the battery's operation time and the performance will slightly reduce. This decline will continue until the battery has minimal capacity after 500 charge cycles. This is normal and not a fault with the battery pack
Fitting a drill bit
WARNING: ALWAYS ensure that the tool is switched OFF and the battery removed, before fitting or removing drill bits.
WARNING: ALWAYS wear suitable cut-proof gloves when handling drill bits.
WARNING: ONLY fit drill bits that are in perfect condition. Blunt, bent, and cracked drill bits should be discarded
1. Pull the Chuck Sleeve (2) backward (Fig. III(a))
2. Insert the drill bit, apply light pressure and twist until it locates correctly in the SDS slot (Fig. III (b))
3. To remove the drill bit, pull the Chuck Sleeve back and remove the drill bit (Fig. III (c-d))
Note: This tool features an SDS Plus chuck and requires an adaptor (sold separately) if you wish to use conventional drill or driver bits.
Operation
WARNING: ALWAYS wear appropriate safety equipment. Use of this tool requires eye protection, gloves, ear defenders, and good quality respiratory protection.
WARNING: Ensure you have read and understood the Safety and Before Use sections of this manual before using this tool.
Switching ON & OFF
- Hold the tool securely by the Main Handle (7) and Auxiliary Handle (10).
- Select the direction of rotation using the Direction Switch (4)
- Press the ON/OFF Trigger Switch (6) to switch on the power tool
- Release the switch to switch off the power tool
Adjust Rotational Speed
The rotational speed is controlled via the ON/OFF Trigger Switch (6).
- To increase rotational speed, increase pressure on the ON/OFF Trigger Switch
- To decrease rotational speed, decrease pressure on the ON/OFF Trigger Switch
Direction control
With the Chuck(1) pointing away from you, push the Direction Switch (4) to the right for forward rotation (Fig. IV (a)). Push the Direction Switch to the left for reverse rotation (Fig. IV (c)). When the Direction Switch is set to the central point (Fig. IV (b)) the drill will not operate.
When the tool is ON, the Indicator Lights (5) on the top of the drill indicate which direction has been set. The arrow pointing towards the Chuck (1) indicates leftward rotation. The arrow pointing away from the Chuck indicates a rightward rotation (reverse).
Mode setting
To turn the Mode Selection Dial (12) push in the button and twist (Fig. V(a))
To set the drill for hammer drilling in concrete or stone, turn the Mode Selection Dial so that the hammer drill symbol aligns with the indicator (Fig.V(b))
- To set the drill for conventional drilling or driving without impact in wood, metal, ceramic and plastic, turn the Mode Selector Dial so that the drill symbol aligns with the indicator (Fig. V(c))
Drilling
- When using the drill ensure workpieces are secure. Clamp small pieces in place to prevent slipping
To ensure accuracy, mark the intended hole position using a hammer and centre punch - Only apply moderate pressure to the drill bit, ensuring efficient cutting and prolonged drill bit life
Always use a drill bit appropriate to the material and application - If debris blocks the drill hole, run the drill slowly and remove the bit from the hole. Repeat until the hole is clear of debris before continuing
- Ensure that the Air Vents (3) remain clean and uncovered throughout operation
Drilling wood
WARNING: The dust produced from working with some materials can be toxic. Beech, oak, mahogany and teak natural woods, man-made composite woods and some surface treatments, including paint with lead, are toxic. Lead-based paint is common in buildings built before 1960. Always wear suitable respiratory protection; for example, a respirator face mask. Use a dust extraction system or regularly vacuum the work area to prevent the build-up of dust. In addition, vacuum the work area after the work has been completed. Most dust is a fire hazard. Overhead work surfaces have an increased safety risk for dust.
- Select drill mode with the Mode Selection Dial (12) (Fig. V(c))
- Ensure that drill bits are suitable for wood, and are within the maximum capacity of this power tool (see 'Specification')
Drilling metal
- Select drill mode with the Mode Selection Dial (12) (Fig. V (c))
- Ensure that drill bits are suitable for the grade of metal being drilled and are within the maximum capacity of the tool (see 'Specification')
WARNING: The drill bit and the workpiece will become very hot when drilling metal. DO NOT
touch the drill bit and never allow it to come into contact with combustible materials when hot.
Always use a suitable lubricant or cutting fluid, and drill at appropriate speeds.
- Use a countersink bit to remove sharp burrs from the hole, preventing cuts and other kinds of injury
Hammer drilling
- Select the hammer drill mode using the Mode Selection Dial (12) (Fig. V(b))
- Always use a masonry drill bit, preferably a TCT masonry bit, when drilling into walls, stone or concrete
Using the work light
The Work Light (11) will automatically function when the tool is switched ON and OFF using the ON/OFF Trigger Switch (6).
Accessories
- A full range of accessories including battery packs, chargers, bits and chuck adaptors are available from your Silverline stockist
- Spare parts can be obtained from toolsparesonline.com
Maintenance
WARNING: Always disconnect the tool from the power supply, before cleaning or carrying out maintenance.
General inspection
Regularly check that all the fixing screws are tight. They may vibrate loose over time
Regularly check the condition of the Battery for cracks and other defects.
- Inspect the battery contacts, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool
Lubrication
- Lubricate all moving parts with a suitable lubricant spray, at regular intervals
Cleaning
WARNING:ALWAYS wear protective equipment including eye protection and gloves when cleaning this tool.
- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device's service life
Clean the body of your tool with a soft brush, or dry cloth - Never use caustic agents to clean plastic parts. If dry cleaning is not sufficient, a mild detergent on a damp cloth is recommended
Water must never come into contact with the tool
- Ensure the tool is thoroughly dry before using it
If available, use clean, dry, compressed air to blow through the ventilation holes (where applicable)
Brushes
Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
If you suspect that the brushes may be worn, have them replaced at an authorised service centre
Contact
For technical or repair service advice, please contact the helpline on (+44) 1935 382 222
Web:silverlinetools.com/en-GB/Support
UK Address:
Toolstream Ltd.
Boundary Way
Luffton Trading Estate
Yeovil, Somerset
BA22 8HZ, United Kingdom
EU Address:
Toolstream B.V.
De Keten
000
5651GJ
Eindhoven, Netherlands
Storage
- Store this tool carefully in a secure, dry place out of the reach of children
- For long term storage, remove batteries and store separately
Disposal
Li-ion batteries should not be disposed of with household waste. If you do not know of a Li-ion battery recycling centre in your area, contact your local authority or original dealer for advice on disposal of Li-ion batteries.
Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.
- Do not dispose of power tools, batteries or other waste electrical and electronic equipment (WEEE), with household waste
- Contact your local waste disposal authority for information on the correct way to dispose of power tools and batteries
Troubleshooting
| Problem Possible cause Solution | ||
| Red LED (14) does not illuminate and Battery (8) not charging | Battery not fully seated Clean Battery and Battery Charger contacts | |
| Battery Charger (13) not powered Recheck mains connection | ||
| Battery has low capacity Battery not being fully charged | Charge the Battery until Red LED is extinguished | |
| Battery has been charged over 300 times and capacity has started to reduce | This is normal for batteries. Contact your Silverline dealer to purchase a replacement battery | |
| Drill cannot be switched 'ON' (ON/OFF Trigger Switch (6) does not move) | The Direction Switch (4) may be in the middle ('locked') position | Slide the Direction Switch either to the left or right |
| Drill does not start when ON/OFF Trigger Switch is pressed | Battery completely discharged Recharge Battery or replace with a fully charged battery | |
| Defective Battery Replace Battery | ||
| Drill defective Contact your Silverline dealer or authorised service centre | ||
| Screws do not reach deep enough into the workpiece | Low battery voltage Recharge Battery or replace with a fully charged battery | |
| Drilling performance poor with masonry Hammer mode | not selected Enable hammer mode | |
| Drill bit tip worn or damaged Replace SDS Plus drill bit | ||
| Very dense material | Drilling speed will be slow in such material. A smaller pilot drill can be drilled first to speed up the drilling process | |
| Slow rotation speed or no rotation plus possible visible sparking from motor vents | Carbon brushes worn Contact an authorised service centre to have the carbon brushes replaced | |
| Bits not fitting easily into Chuck (1) | Debris and dirt getting into Chuck | Clean out by positioning Chuck downwards and vacuuming while operating the Chuck as if to insert bits. |
| Wrong bit type | Select either an SDS drill bit or conventional drill bit with SDS bit adaptor | |
| Slow rotation speed | Tool is overheating | Run the tool under no load for 30secs to cool the motor. Inspect and clean the ventilation slots |
| Drill is uncomfortable to use due to vibration | Tool is being used for too long at one time | Take frequent breaks and read the sections in this manual regarding vibration |
Silverline Tools Guarantee
This Silverline product comes with a 3 year guarantee
Register this product at www.silverinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-
- Your personal details
Details of the product and purchase information
Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.
If this product develops a fault after the 30 day period, return it to:
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.
Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.
All work will be carried out by Silverline Tools or its authorized repair agents.
The repair or replacement of the product will not extend the period of guarantee
Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.
The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered:
The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.
If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.
Use of this product in the EU.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.
Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
Battery Guarantee
Silverline batteries are guaranteed for 30 days. If a defect occurs on a registered battery during the term of the Battery Guarantee, due to material or manufacturing fault, then Silverline will replace it free of charge. This guarantee does not apply to commercial use nor does it extend to normal wear and tear or damage as a result of accident, abuse or misuse.
Introduction
Site web:www.silverline.com/fei-FR/Support
Adresse (GB):
Toolstream Ltd.
Boundary Way
Lufton Trading Estate
Yeovil, Somerset
