938778 - Saw SILVERLINE - Free user manual and instructions
Find the device manual for free 938778 SILVERLINE in PDF.
| Brand | Silverline |
| Model | 938778 |
| Product type | Cordless circular saw |
| Rated voltage | 18 V |
| No-load speed | 3400 min⁻¹ |
| Blade diameter | 115 mm |
| Blade bore | 9.5 mm |
| Blade included | 24 teeth, Ø115 mm |
| Cutting capacity at 90° | 42 mm |
| Cutting capacity at 45° | 28 mm |
| Bevel adjustment | 0° to 45° |
| Adjustable cutting depth | Yes |
| Protection class | II (double insulation) |
| Protection index | IPX0 |
| Battery type | Li-ion, 18 V, 2 Ah |
| Charging time | 1 hour |
| Charger | Input 230 V~, 50 Hz, 1.2 A; Output 22 V=, 2.4 A |
| Sound pressure | 87 dB(A) |
| Sound power | 98 dB(A) |
| Vibration level | 1.3 m/s² |
| Usage | Cutting wood, panels, wood-based materials |
| Additional functions | Laser guide, plunge cutting |
| Power supply | Battery (cordless) |
| Maintenance | Clean with dry cloth, lubricate moving parts |
| Safety | PPE mandatory, integrated guards (blade guard, lock) |
| Warranty | 3 years (upon registration within 30 days) |
Frequently Asked Questions - 938778 SILVERLINE
User questions about 938778 SILVERLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Saw in PDF format for free! Find your manual 938778 - SILVERLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 938778 by SILVERLINE.
USER MANUAL 938778 SILVERLINE

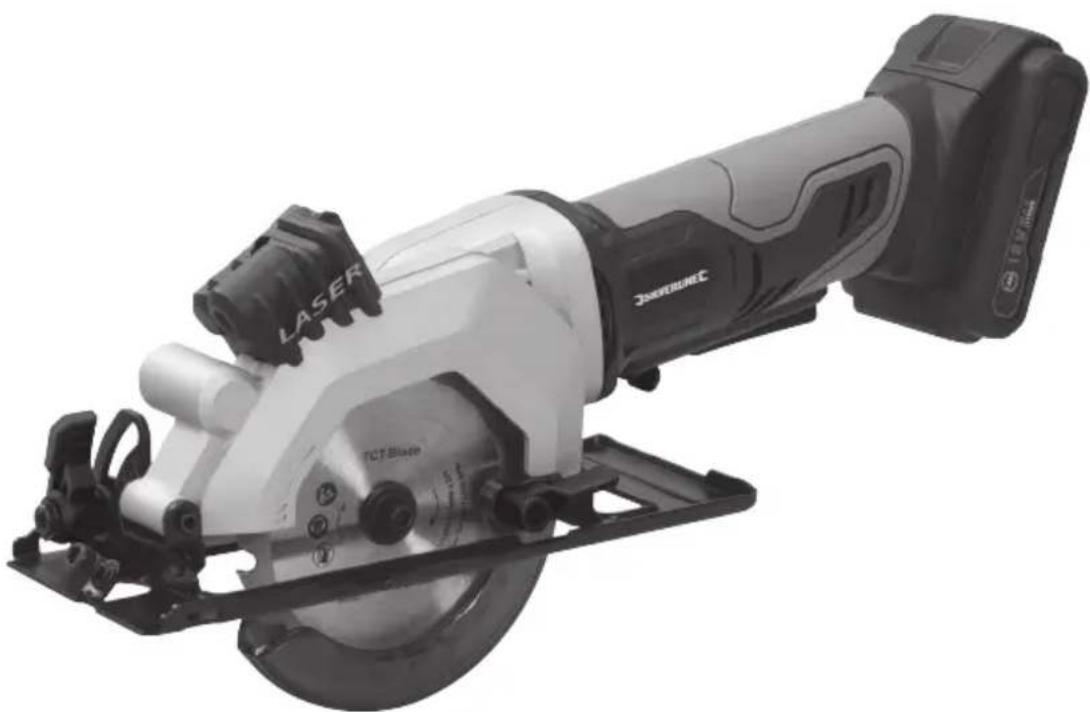

18V Mini Circular Saw 115mm
FR Mini-scie circulaire 115mm 18V
DE Akku-Handkreissage 18 V, 115 mm
ES Mini sierra circular 115mm 18V
IT Mini sega circolare 18V 115 mm
NL 18V accu handcirkelzaag 115 mm
PL Mini pilarka tarczowa 18 V, 115 mm
Register online: silverlinetools.com
English .09
Français 16
Deutsch. 24
Espanol. 32
Italiano .40
Nederlands .48
Polski .56
Fig.1
Fig.II
Fig.Ill
Fig.1V
Fig.V
Fig.VI
Fig.VII
Fig.VIII
Introduction
Thank you for purchasing this Silverline product. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the product read and fully understand this manual. Keep these instructions with the product for future reference.
Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
Wear hearing protection.
Wear eye protection
Wear breathing protection.
Wear head protection.
Wear hand protection.
WARNING-To reduce the risk of injury, user must read instruction manual
Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!
Class II construction (double insulated for additional protection)
Class III construction (separated or safety extra-low voltage)
Environmental Protection
Waste electrical products and batteries, including Li-ion batteries, should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Conforms to relevant legislation and safety standards.
Caution!
Li-ion battery cells are recyclable and should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice
For indoors use only (battery charger and PSU)
Environmental Protection
Waste electrical products should not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Technical Abbreviations Key
| V Volts | |
| ~, a.c. Alternating current | |
| A, mA Ampere, milli-Amp | |
| Ah Amp hours (battery capacity) | |
| no | No load speed |
| Hz Hertz | |
| - | Direct current |
| W, kW Watt, kilowatt | |
| min-1 | Operations per minute |
| dB(A) Decibel sound level (A weighted) | |
| m/s2 | Metres per second squared (vibration magnitude) |
Specification
Voltage: 18V
No load speed: 3400min
Blade diameter: 115mm
Blade Kerf. 2.0mm
Blade bore diameter: 9.5mm
Supplied blade: 24T
Bevel adjustment: 0.45
Cutting capacity at 90^ 42mm
Cutting capacity at 45^ 28mm
Protection class:
Ingress protection: IPX0
Dimensions (L x W x H): 435 x 115 x 145mm
Weight: 2.1 kg
Battery:
Cell type: Li-ion
Voltage: 18V
Capaity: 2Ah
Charger: Input power: 230V~50Hz,1.2A
Output power. 22V,24A
Charging time: 1 hour
Cord length: 1.8m
Protection class:
Ingress protection: IPX0
As part of our ongoing product development, specifications of Silverline products may alter without notice.
Sound and vibration information:
Sound pressure 87dB(A)
Sound power L. 98dB(A)
Uncertainty K. 3dB
Weighted Vibration a. 1.3m/s
Uncertainty K. 1.5m/3
The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.
WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.
WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.
Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www. osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.
General Power Tool SafetyWarnings
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1)Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.
d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related
hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Battery tool use and care
6) Service
a) Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b) Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e) Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f) Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 131^ may cause explosion.
g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers.
Circular Saw SafetyWarnings
Cutting procedures
a) DANGER: Keep hands away from cutting area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both hands are holding the saw, they cannot be cut by the blade.
b) Do not reach underneath the workpiece. The guard cannot protect you from the blade below the workpiece.
c) Adjust the cutting depth to the thickness of the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.
d) Never hold piece being cut in your hands or across your leg. Secure the workpiece to a stable platform. It is important to support the work properly to minimise body exposure, blade binding, or loss of control.
e) Hold the power tool by insulated gripping surfaces only, when performing an operation where the cutting tool may contact hidden wiring or its own cord. Contact with a "live" wire will also make exposed metal parts of the power tool "live" and could give the operator an electric shock.
f) When ripping, always use a rip fence or straight edge guide. This improves the accuracy of cut and reduces the chance of blade binding.
g) Always use blades with correct size and shape (diamond versus round) of arbour holes. Blades that do not match the mounting hardware of the saw will run eccentrically, causing loss of control.
h) Never use damaged or incorrect blade washers or bolts. The blade washers and bolt were specially designed for your saw, for optimum performance and safety of operation.
i) Even when this tool is used as prescribed it is not possible to eliminate all residual risk factors. If you are in any doubt as to the safe use of this tool, do not use it.
Further safety instructions for all saws
Kickback Causes and RelatedWarnings:
- kickback is a sudden reaction to a pinched, bound or misaligned saw blade, causing an uncontrolled saw to lift up and out of the workpiece toward the operator;
- when the blade is pinched or bound tightly by the kerf closing down, the blade stalls and the motor reaction drives the unit rapidly back toward the operator;
- if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade to climb out of the kerf and jump back toward the operator
Kickback is the result of saw misuse and/or incorrect operating procedures or conditions and can be avoided by taking precautions as follows:
a) Maintain a firm grip on the saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade. Kickback could cause the saw to jump backwards, but kickback forces can be controlled by the operator, if proper precautions are taken.
b) When the blade is binding, or when interrupting a cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.
c) When restarting a saw in the workpiece, centre the saw blade in the kerf and check that the saw teeth are not engaged into the material. If saw blade is binding, it may walk up or kickback from the workpiece as the saw is restarted.
d) Support large panels to minimise the risk of blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be placed under the panel on both sides, near the line of cut and near the edge of the panel
e) Do not use dull or damaged blades. Unsharpened or improperly set blades produce narrow kerf causing excessive friction, blade binding and kickback.
f) Blade depth and bevel adjusting locking levers must be tight and secure before making a cut. If blade adjustment shifts while cutting, it may cause binding and kickback.
g) Use extra caution when sawing into existing walls or other blind areas. The protruding blade may cut objects that can cause kickback.
Lower guard function
a) Check the lower guard before each use and do not use if it does not close freely, ensuring that the blade does not touch any part of the guard or tool in all angles and depths of cut. Never clamp or tie the lower guard in the open position.
b) Check the operation of the lower guard spring. If the guard and the spring are not operating correctly, they must be serviced before use. The lower guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) The lower guard should be retracted manually only for special cuts such as 'plunge cuts' and 'compound cuts.' Raise the lower guard by the retracting handle and as soon as the blade enters the material, the lower guard must be released. For all other sawing, the lower guard should operate automatically.
d) Ensure that the lower guard is covering the blade before placing the saw down. An unprotected, coasting blade will cause the saw to 'propel backwards', cutting whatever is in its path. Be aware of the time it takes for the blade to stop after the switch is released. Do not use abrasive wheels, doing so will void the warranty.
Guard function
a) Check guard for proper closing before each use. Do not operate the saw if guard does not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is exposed. If saw is accidentally dropped, guard may be bent. Check to make sure that guard moves freely and does not touch the blade or any other part, in all angles and depths of cut.
b) Check the operation and condition of the guard return spring. If the guard and the spring are not operating properly, they must be serviced before use. Guard may operate sluggishly due to damaged parts, gummy deposits, or a build-up of debris.
c) Assure that the base plate of the saw will not shift while performing the "plunge cut" when the blade bevel setting is not at 90^ . Blade shifting sideways will cause binding and likely kick back.
d) Always observe that the guard is covering the blade before placing saw down on bench or floor. An unprotected, coasting blade will cause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after switch is released.
Additional Circular Saw Safety
- Do not allow anyone under the age of 18 years to operate this saw
- When operating the saw, use safety equipment including safety goggles or shield, ear protection, dust mask and protective clothing including safety gloves
- Hand-held power tools may produce vibration. Vibration can cause disease. Gloves may help to maintain good blood circulation in the fingers. Hand-held tools should not be used for long periods without a break
- Whenever possible, use a vacuum dust extraction system to control dust/waste
- Do not attempt to cut material thicker than detailed in the Specifications section of this manual
- Adjust the cutting depth to the thickness of the workpiece i.e. less than a full tooth of the blade should be visible below the workpiece
- Ensure that work is correctly supported. Large panels may sag under their own weight and bind the saw blade. Supports must be placed under the panel on both sides, close to the line of cut and near the edge of the panel
- Ensure all supports and power cables are completely clear of the cutting path
- Always secure the workpiece to a stable platform, ensuring body exposure is minimised, avoiding blade binding, or loss of control
Always stand at an angle to the tool when operating - Be aware that the blade will project from the underside of the workpiece
- Do not reach beneath the workpiece where the guard cannot protect you from the blade
Note the direction of rotation of the motor and the blade - Inspect the workpiece and remove all nails and other embedded objects prior to starting work
- Do not attempt to cut material that contains embedded objects unless you know that the cutting tool fitted to your machine is suitable for the job
- Do not apply any sideways or twisting force to the blade whilst cutting
- If a cut does not extend to the edge of the workpiece, or if the blade binds in the cut, allow the blade to come to a complete stop and lift the saw out of the workpiece
- Do not attempt to free a jammed blade before first disconnecting the machine from power
- Do not move the saw backwards at any time whilst cutting
- Beware of projected waste. In some situations, waste material may be projected at speed from the cutting tool. It is the user's responsibility to ensure that other people in the work area are protected from the possibility of projected waste
- If you are interrupted when operating the saw, complete the process and switch off before diverting your attention
- Periodically check that all nuts, bolts and other fixings have not loosened, tighten where necessary
Avoid blade overheating
- Always check the condition of the blade prior to any cutting operations. Ensure the blade is sharp and is the correct type of blade for the material. If the blade is blunt, replace or have professionally sharpened (if applicable)
- During cutting operations, run the tool without load for 15-20 second intervals to ensure the air cools the blade
- Take extra care when cutting hardwood. Harder materials generate more resistance and more heat on the blade and motor, so ensure more frequent air cooling intervals are applied

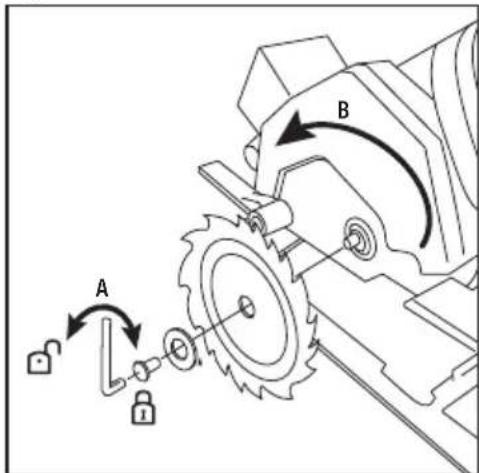

Fitting cutting tools
- Ensure cutting tools are correctly and securely fitted and check that wrenches / adjusters are removed prior to use
- Only use cutting tools recommended for your machine
- Do not attempt to modify cutting tools
- Ensure blades are sharp, in good condition and correctly fitted
- Do not attempt to sharpen blades that are not suitable for sharpening, these may include specially hardened blades or blades made from hardened alloys typically containing tungsten
- Blades that can be sharpened should be sharpened only according to the blade manufacturer's instructions. These may include a limited number of times the blade can be sharpened
- Sharpened blades should be more thoroughly inspected before use and replaced immediately if there is any doubt about their condition and suitability for use
- In the event blades encounter an embedded object in use that the blades are not suitable for, blades should be replaced immediately
- Cutting tools and workpieces may become hot in use. Do not attempt to change tools until they have been allowed to cool completely
Control of dust and swarf
- Do not allow dust or swarf to build up. Sawdust is a fire hazard, and some metal swarf is explosive
- Be especially careful when cutting wood and metal. Sparks from metal cutting are a common cause of wood dust fires
- Where possible, use a dust extraction system to ensure a safer working environment
WARNING: The dust produced from working with some materials can be toxic. Beech, oak, mahogany and teak natural woods, man-made composite woods and some surface treatments, including paint with lead, are toxic. Lead-based paint is common in buildings built before 1960. Always wear suitable respiratory protection; for example, a respirator face mask. Use a dust extraction system or regularly vacuum the work area to prevent the build-up of dust. In addition, vacuum the work area after the work has been completed. Most dust is a fire hazard. Overhead work surfaces have an increased safety risk for dust.
Battery and Charger Safety
Use the Battery Charger correctly
Refer to the section of this manual relating to use of the Battery Charger (26) before attempting to charge the Battery (10)
- Do not attempt to use the Battery Charger with any batteries other than those supplied.
- Keep your Battery Charger clean, foreign objects or dirt may cause a short or block air vents. Failure to follow these instructions may cause overheating or fire
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard
Examine the Battery Charger regularly for damage, especially the cord, plug and enclosure. If the Battery Charger is damaged, it must not be used until it has been repaired
Children should be supervised to ensure that they do not play with the appliance
WARNING: Do not attempt to recharge non-rechargeable batteries.
Battery Safety
WARNING: Li-ion batteries, if incorrectly used, stored or charged are a fire, burn and explosion hazard.
- Keep the battery out of reach of children
Only charge Li-ion batteries designed specifically for this charger
Only use Li-ion batteries provided with this product or specifically designed to be compatible
Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fire
- When not in use batteries should be stored at room temperature (approximately 20^ )
- Ensure battery contacts cannot accidentally short in storage. Keep batteries clean; foreign objects or dirt may cause a short. Keep away from other metal objects, for example paperclips, coins, keys, nails and screws
Under abusive conditions, liquid may be ejected from the battery. This liquid may cause skin irritation or burns. Avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, seek medical help
- Do not open, disassemble, crush, heat above 60^ C or incinerate. Do not dispose of in fire or similar
- Do not get batteries wet or immerse in water
Battery & charger safety features
The Battery and Charger are fitted with a number of safety features which may be triggered during charging or operation:
Over charge protection: Charger automatically switches off when the Battery has reached full charge capacity, protecting the internal components of the battery
Over-discharge protection: Prevents the Battery from discharging beyond the recommended lowest safety voltage
Over-heat protection: Sensor switches off if the Battery becomes too hot during operation. This can happen if the tool is overloaded or being used for extended periods of time. Up to 30 minutes cooling time may be required depending on the ambient temperature
- Overload protection: Battery temporarily stops if it is overloaded or the maximum current draw is exceeded, protecting the internal components. The Battery will resume normal operation when the current draw returns to a normal safe level. This may take a few seconds
- Short circuit protection: The Battery will stop working immediately if a short circuit occurs, this prevents damage to the Battery or tool

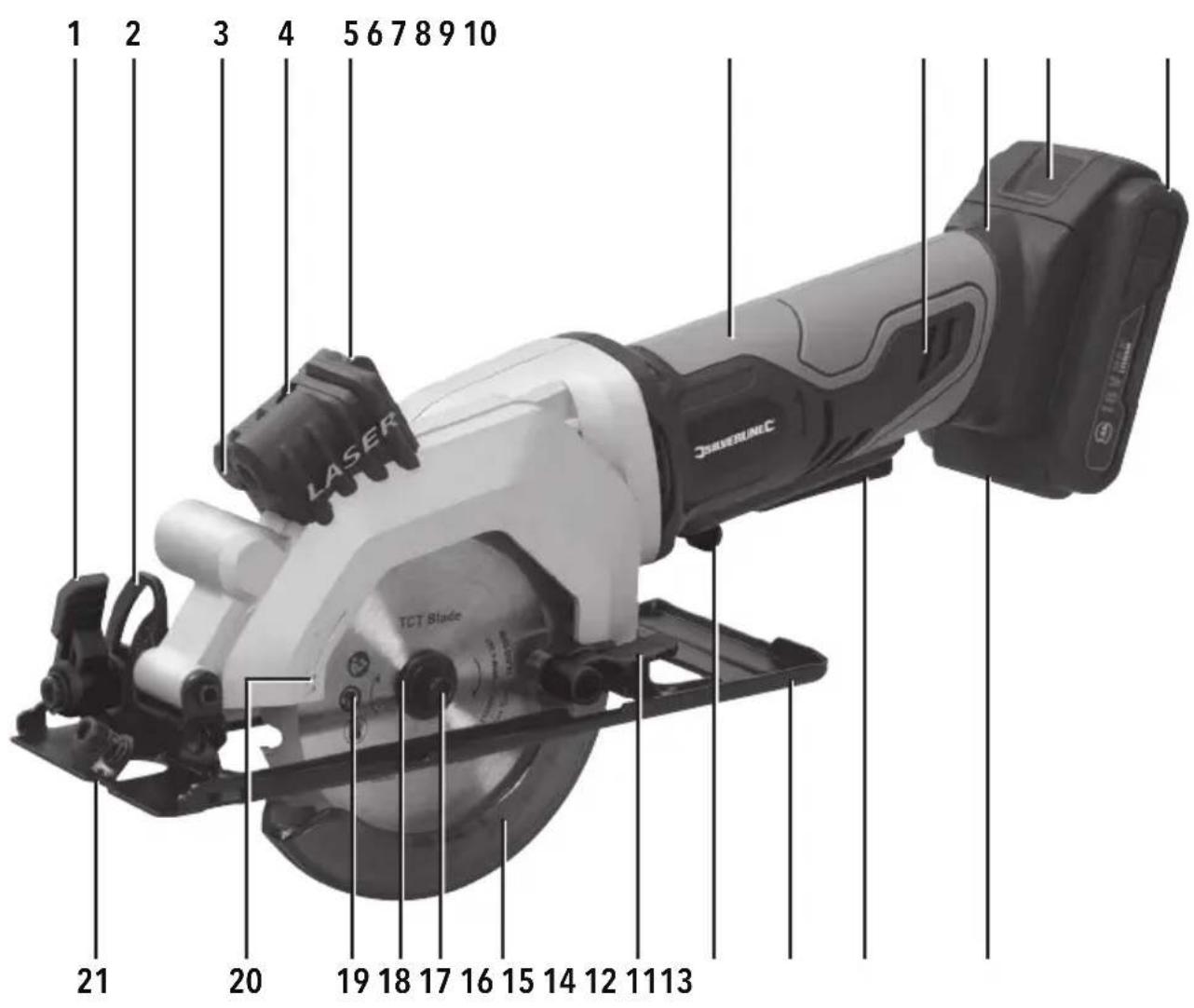

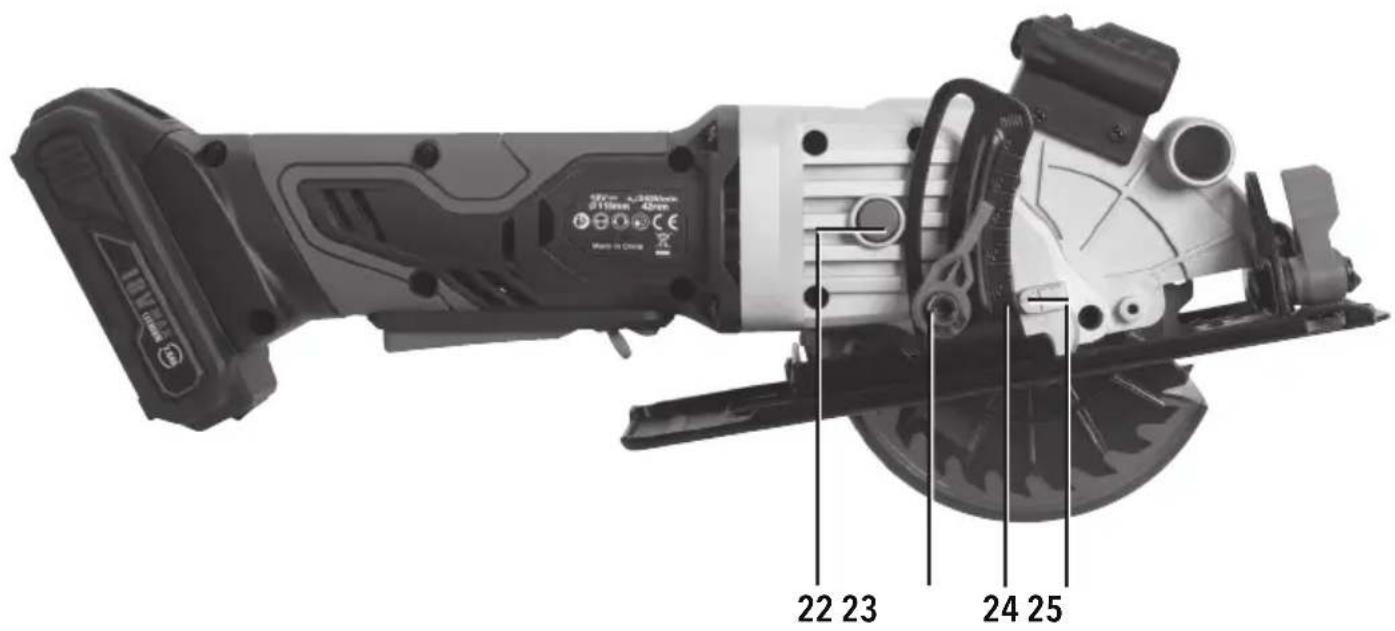

Product Familiarisation
| 1 | Bevel Angle Lever |
| 2 | Bevel Angle Guide |
| 3 | Laser |
| 4 | Laser Battery Cover |
| 5 | Laser ON/OFF Switch |
| 6 | Main Handle |
| 7 | Motor Vents |
| 8 | Battery Mount |
| 9 | Battery Release |
| 10 | Battery |
| 11 | Battery Charge Indicator |
| 12 | ON/OFF Switch |
| 13 | Base Plate |
| 14 | Switch Lock |
| 15 | Guard Retraction Lever |
| 16 | Blade Guard |
| 17 | Blade Securing Bolt |
| 18 | Blade Securing Flange |
| 19 | Blade |
| 20 | Blade Direction Indicator |
| 21 | Guide Notch |
| 22 | Spindle Lock Button |
| 23 | Depth Locking Lever |
| 24 | Cutting Depth Guide |
| 25 | Depth Guide Indicator |

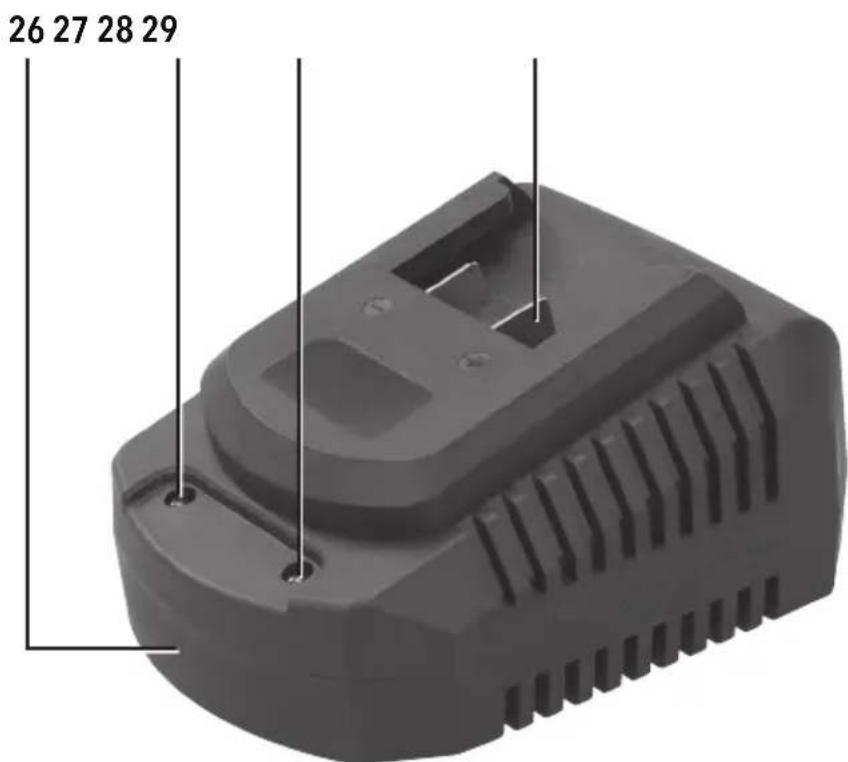

| 26 | Battery Charger |
| 27 | Red LED |
| 28 | Green LED |
| 29 | Charger Terminals |
Intended Use
Hand-held, battery powered, mini circular saw for cross, rip and bevel cutting of hard and softwood timber and wood based sheet material. Suitable for creating pocket/plunge cuts when used by a skilled operator.
The tool must ONLY be used for its intended purpose. Any use other than those mentioned in this manual will be considered a case of misuse. The operator, and not the manufacturer, shall be liable for any damage or injury resulting from such cases of misuse. The manufacturer shall not be liable for any modifications made to the tool, nor for any damage resulting from such modifications.
Unpacking Your Tool
Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions
- Ensure all parts of the product are present and in good condition
If any parts are missing or damaged, have such parts replaced before attempting to use this product
Before Use
WARNING: ALWAYS remove the battery before attaching or changing any accessories, or making any adjustments.

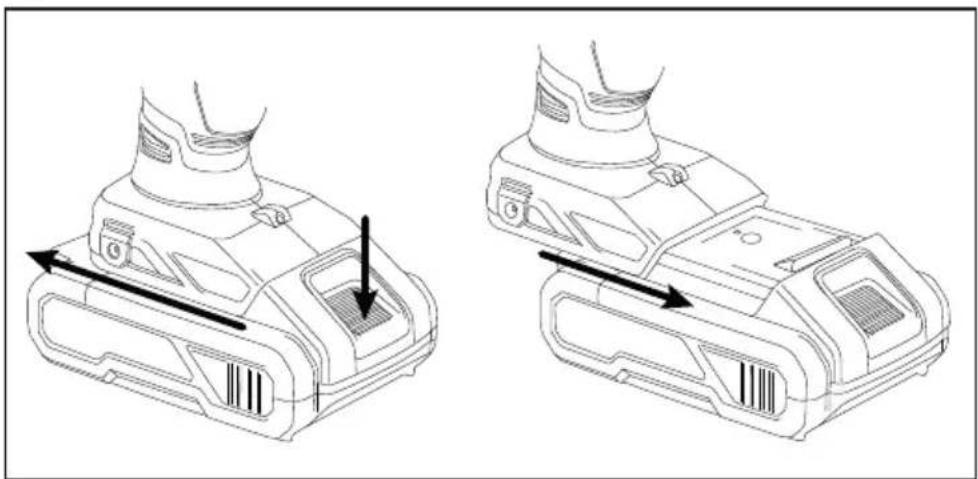

Removing the Battery
To remove the Battery (10), press the Battery Release (9) and slide the Battery out of the Battery Mount (8) (Fig. 1(a-b))
Installing a charged Battery
- To fit a charged Battery (10), slide it into the Battery Mount (8) (Fig. 1(c))
Note: The Battery will fit only in one direction, which is determined by its shape and the design of the Battery Mount. However, if the Battery does not slide into the Battery Mount easily, do not force it. Instead, pull the Battery out of the Battery Mount again, check for correct position, and try again gently.
- Push the Battery into the Battery Mount until it locks into place securely
Setting up the Charger
-
If fitted, remove the Battery (10) from the Battery Charger (26) (Fig. II(b))
-
Connect the Battery Charger to the mains power supply
Note: The Green LED (28 on the Battery Charger will illuminate to indicate that the Charger is powered.
WARNING: The Battery Charger is designed for indoor use only and must not be exposed to moisture and rain.

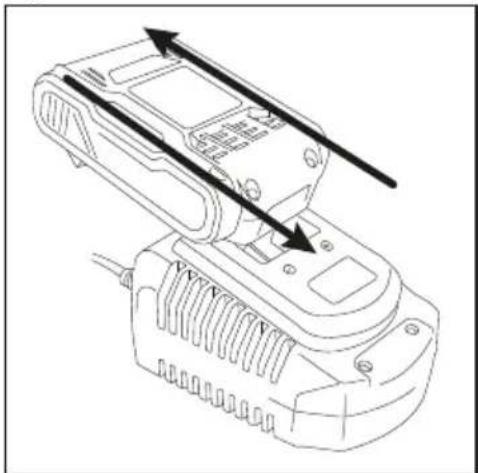

Charging the Battery
WARNING: Failure to follow the correct procedure when charging the Battery (10) will result in permanent damage.
Note: Normal charging time is 1 hour for a recently fully-discharged battery, but if the Battery has been left in a discharged state for some time, it may take extended time to charge.
- Slide a discharged or partially discharged Battery onto the Battery Charger (26) (Fig. II (a))
Note: Make sure the Battery and Battery Charger are lined up correctly. If the Battery does not slide onto the Battery Charger easily, don't force it. Instead, remove the Battery, then check that the top of the Battery and the Battery Charger slot are clean and undamaged and that the Charger Terminals (29) are not bent.
- Once charging commences, only the Red LED (27) will illuminate
Note: If the Red LED is not constantly illuminated after an uncharged Battery is inserted into the Charger, the Battery or Charger may be faulty. Recheck the Battery is fully inserted in the Battery Charger. If the fault persists do not use and contact your authorised Silverline distributor.
- When the Battery is fully-charged, only the Green LED (28) will be illuminated
Battery Charge Level
The Battery has a built-in Battery Charge Indicator (11). Pressing on the button to the right will indicate the charge level. The number of bars that illuminate when the button is pressed indicate the charge level; 1 bar indicating a low charge, 3 bars indicating a full charge.
IMPORTANT: When a low charge level is indicated, be aware the tool may stop operating while in use. This may be dangerous. It is recommended to always ensure the Battery has a good charge level.
Notes about battery charging
IMPORTANT: Batteries are an expendable supply whose capacity shortens over time. Always adhere to the correct handling and charging instructions in the manual. If the battery does not hold charge or working time is shortened, purchase a genuine Silverline replacement.
The battery should be charged at ambient temperatures between 10^ and 40^ (ideally around 20^ )
After charging, allow 15 minutes for the battery to cool before use
- Ensure that the charger is disconnected from the mains supply after use, and is stored correctly
- Do not leave batteries on charge for extended periods and never store batteries on charge
- The charger monitors battery temperature and voltage while charging. Remove the battery once charging has been completed to maximise charge cycles of the battery and not waste power
- Batteries can become faulty over time, individual cells in the battery can fail, and the battery could short. The charger will not charge faulty batteries. Use another battery, if possible, to check correct functionality of the charger and purchase a replacement battery if a faulty battery is indicated
- Do not store Lithium-ion battery packs in a discharged state long term. This can damage the Lithium-ion cells. For long-term storage, store batteries in a high charge state disconnected from the power tool
- The capacity of batteries will reduce over time. After 100 charge cycles, the battery's operation time and the performance will slightly reduce. This decline will continue until the battery has minimal capacity after 500 charge cycles. This is normal and not a fault with the battery pack
Fitting a blade
WARNING: ALWAYS ensure that the tool is switched OFF and the battery removed, before fitting or removing saw blades.
WARNING: ALWAYS wear suitable cut-proof gloves when handling saw blades
WARNING: ONLY fit blades that are in perfect condition. Blunt, bent, and cracked blades should be discarded
IMPORTANT: ALWAYS use the correct blade type for the material to be cut (refer to the blade manufacturer's guidelines before use)
- Push and hold the Spindle Lock Button (22) inwards
- Turn the Blade (19) by hand until you feel the spindle lock engage
- Unscrew the Blade Securing Bolt(17) CLOCKWISE, using a 5mm hex key (Fig. III (a))
Note: The Blade Securing Bolt has a left-hand thread and as such operates in the opposite direction to conventional right-hand threads
- Release the Spindle Lock Button and remove the Blade Securing Bolt and washer, and the Blade Securing Flange (18)
- Use the Guard Retraction Lever (15) to rotate the Blade Guard (16) out of the way (Fig. III(b)), and remove the Blade
Note: There is a secondary flange located on the spindle that is exposed when the blade is removed (Fig. III (c)). Ensure this remains in place and is located correctly before fitting the new blade.
- Fit the new Blade, ensuring the direction arrow on the Blade matches the direction indicated by the Blade Direction Indicator (20)
- Refit the Blade Securing Flange, ensuring a form-fit to the flattened part of the spindle, and refit the Blade Securing Bolt and washer
- Press and hold the Spindle Lock Button, and tighten the Blade Securing Bolt using a 5mm hex key
- Release the Spindle Lock Button and ensure the Blade is secure before use

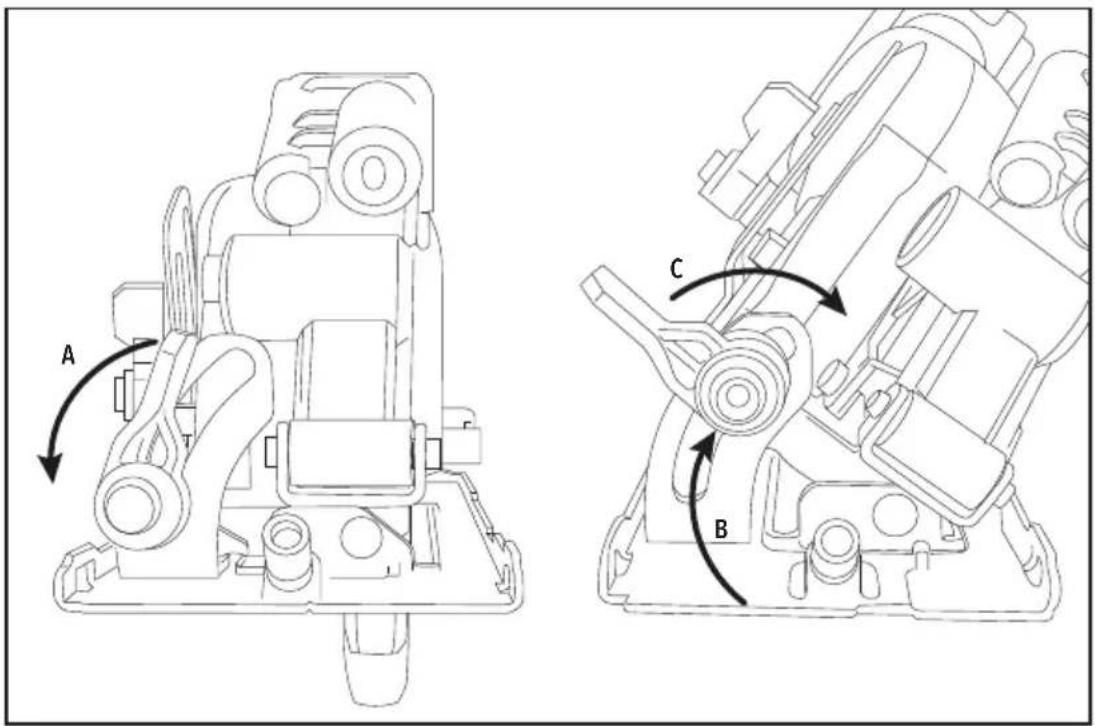

Adjusting the bevel angle
Refer to Fig. IV
- Loosen the Bevel Angle Lever (1). The Base Plate (13) will now be free to pivot
- Select the angle required (0.45^) , using the Bevel Angle Guide (2)
- Tighten the Bevel Angle Lever
Note: To ensure accuracy, the angle between the Blade and the Base Plate should be checked using a suitable protractor.

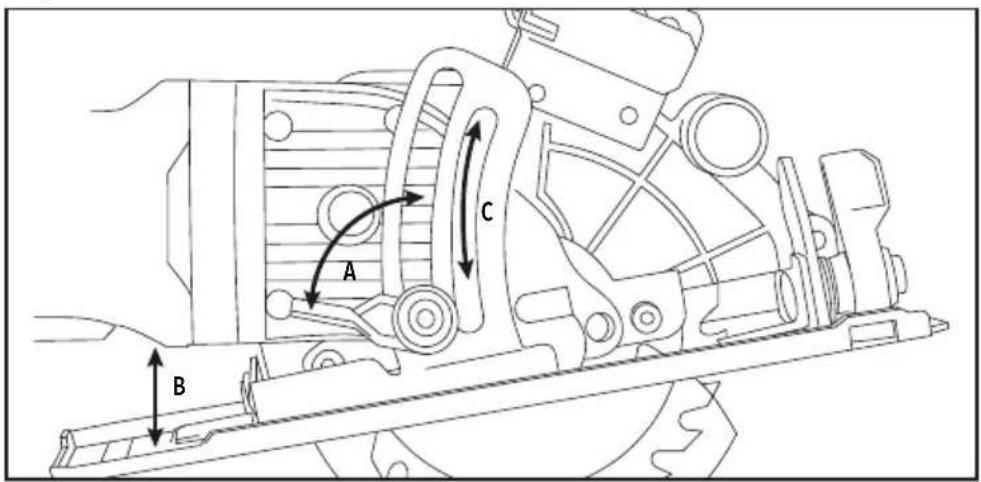

Adjusting the cutting depth
Refer to Fig. V
- Loosen the Depth Locking Lever (23) by turning it clockwise. The Base Plate (13) is now free to adjust to the required cutting depth
- Adjust the Base Plate to the required depth using the scale on the Cutting Depth Guide (24)
- Tighten the Depth Locking Lever firmly, to lock the Base Plate into position
Note: When set correctly, less than a full tooth of the Blade should be visible below the workpiece
Replacing the laser batteries.
The Laser (3) users 2 x LR44 button batteries.
- Undo the screw on top of the Laser Battery Cover (4)
- Remove the Laser Battery Cover
- Remove the batteries
Note: Make a note of the orientation of the batteries in relation to the plus and minus terminals
4. Insert new replacement batteries
5. Replace the Battery Cover and secure using the screw
Operation
WARNING: ALWAYS wear appropriate safety equipment. Use of this tool requires eye protection, gloves, ear defenders, and good quality respiratory protection.
WARNING: Ensure you have read and understood the Safety and Before Use sections of this manual before using this tool.

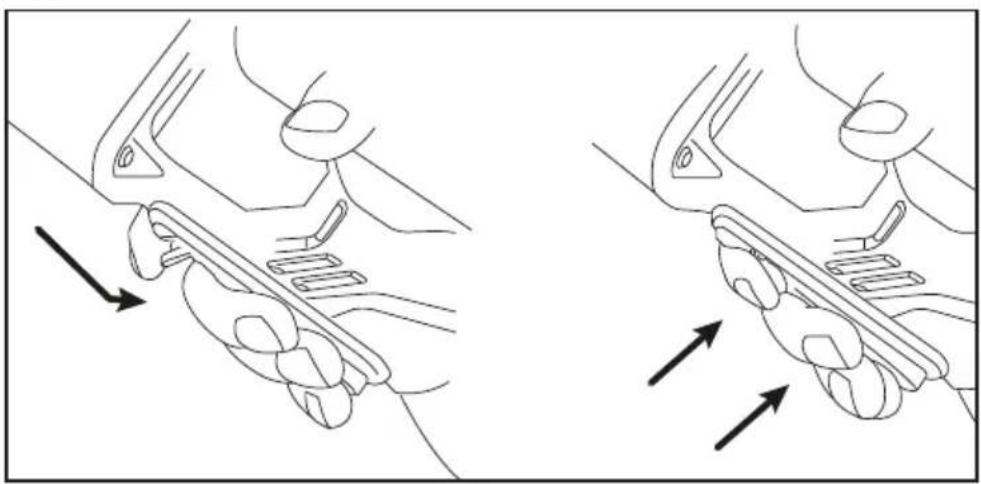

Switching ON & OFF
- Hold the tool securely by the Main Handle (6)
- Ensure the tool is not in contact with the workpiece before switching ON
- Press and hold the Switch Lock (14)(Fig. VI)
- Squeeze the ON/OFF Switch (12) to start the tool (Fig. VI).
- Release the ON/OFF Switch to stop the tool

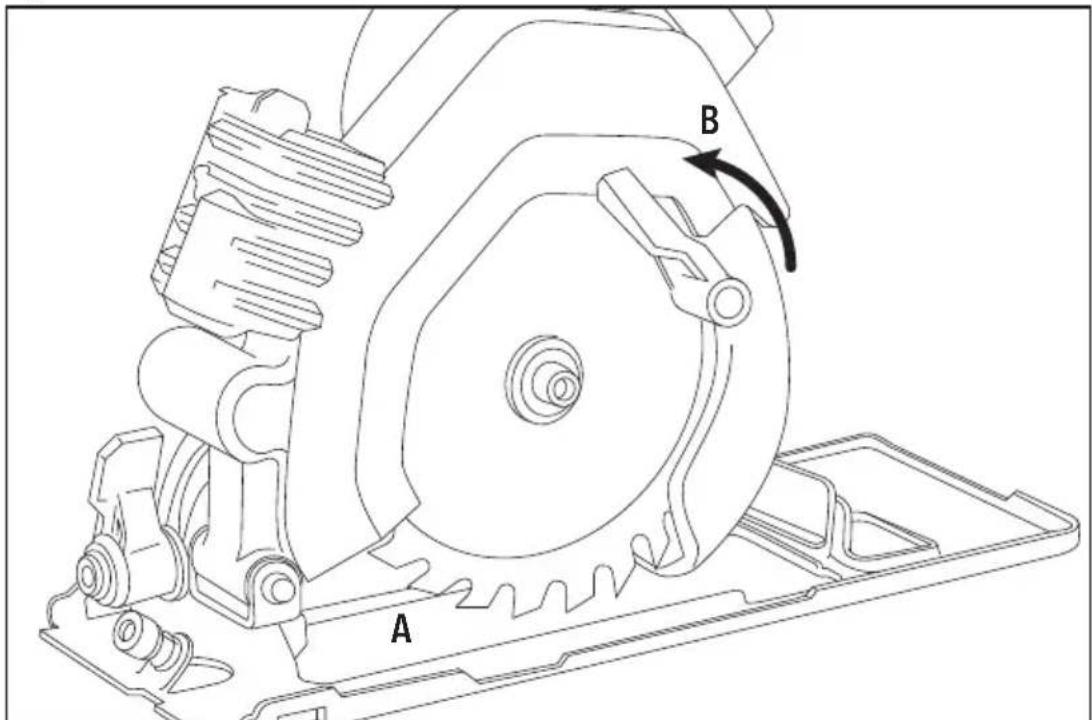

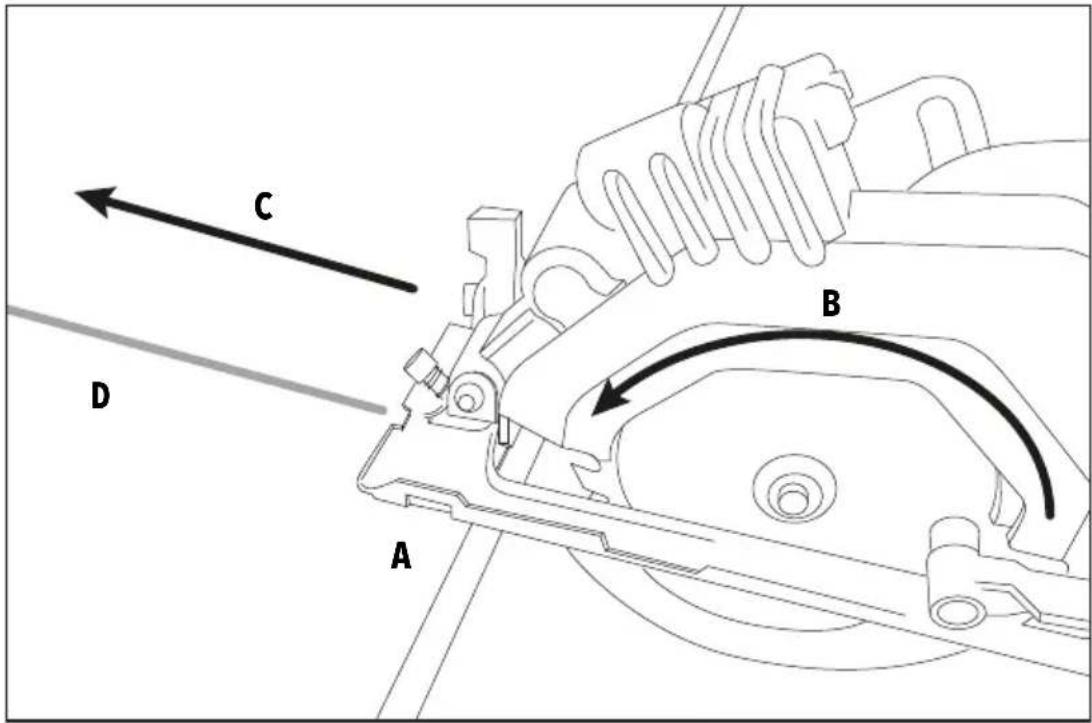

Making a cut
WARNING: Use ONLY enough pressure to keep the saw cutting. NEVER force the saw; allow the Blade (19) and the saw to do the work. Use of excessive pressure that causes bending or twisting of the Blade may cause the Blade to break.
1. Hold the saw securely and rest the front edge of the Base Plate (13) on the edge of the workpiece (Fig. VII(a))
2. Check that the Blade is not in contact with the workpiece, or any other object
3. Switch the tool ON and allow to reach full speed
4. Retract the Blade Guard (16)(Fig. VII (b)) just enough to allow the blade to engage with the workpiece
5. Move the saw forward until the blade starts cutting, then release the Blade Guard
6. Push the saw smoothly forward, across the workpiece (Fig. VII (c))
7. Maintain a steady movement and keep the Base Plate pressed against the workpiece NOTE: The front edge of the Base Plate features a Guide Notch (21). For normal cutting align the notch marked '0" with the intended cutting line; for 45^ bevel cutting align the notch marked 4 5^ with the cutting line.
8. Allow the Blade to pass through the material and release the ON/OFF Switch (12).
WARNING: If the cut does not reach the edge of the workpiece, release the ON/OFF Switch and allow the Blade to stop moving before lifting out of the cut.
WARNING: Remove the Battery (10) and Blade when the tool is to be left unattended.
Making a plunge cut
WARNING: Plunge cutting is an advanced technique with higher risk. Only attempt plunge cuts when you are competent and experienced with this technique. These instructions are given as a guide only.
WARNING: ONLY attempt the plunge cutting procedure in soft materials such as wood, plasterboard and similar materials. DO NOT attempt plunge cuts in metal or hard materials. ONLY use blades specifically designed for plunge cutting. If in doubt, refer to the blade manufacturer's instructions.
WARNING: Inspect both sides of the surface you are planning on plunge cutting into. Ensure there are no foreign objects on the underneath, or objects that could be damaged. Be aware of hidden pipework and cables when plunge cutting into drywalls, ceilings or floorboards. If pipes or cables may be present, switch OFF all electrical circuit breakers and shut off water and gas supplies at the relevant mains valves.
WARNING: Blindly plunge cutting into walls, floors and ceilings may lead to serious injury and substantial property damage.
1. Mark out the cutting line
2. Adjust the Base Plate (13) to the required depth
3. Position the front of the Base Plate on the workpiece so that the Blade (19) is in line with the cutting line (Fig.VIII(a))
4. Ensure the Blade is clear of the workpiece
5. Hold the tool securely, ensuring you always have full control
6. Switch the tool ON and allow the Blade to reach full speed
7. Adjust the Blade Guard (16) to enable the Blade to contact the workpiece (Fig. VIII (b))
8. Pivot the saw on the tip of the Base Plate until the Blade contacts the workpiece (Fig. VIII (c))
9. Release the Blade Guard
10. Continue to pivot slowly, until the Blade has fully penetrated the thickness of the workpiece
11. Once the face of the Base Plate is flat against the workpiece, continue to make the cut
Using the laser
The Laser (3) indicates the position of the cut by projecting a bright red line onto the workpiece. Keeping the laser light in-line with the cut mark will ensure an accurate cut.
- Mark up the workpiece to be cut
- Switch ON the Laser using the Laser ON/OFF Switch (5)
- Align the Laser beam with the cut mark (Fig. VII (d))
- Make the cut, keeping the Laser beam in-line with the cut mark
- Turn the Laser OFF
Accessories
A full range of accessories including circular saw blades, straight edges and rip-cut guides, is available from your Silverline stockist
- Spare parts can be obtained from toolsparesonline.com
Maintenance
WARNING: Always disconnect the tool from the power supply, before cleaning or carrying out maintenance.
General inspection
Regularly check that all the fixing screws are tight. They may vibrate loose over time
- Repairs should be carried out by an authorised Silverline service centre.
Lubrication
- Lubricate all moving parts with a suitable lubricant spray, at regular intervals
Cleaning
WARNING: ALWAYS wear protective equipment including eye protection and gloves when cleaning this tool.
- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device's service life
Clean the body of your tool with a soft brush, or dry cloth
- Never use caustic agents to clean plastic parts. If dry cleaning is not sufficient, a mild detergent on a damp cloth is recommended
Water must never come into contact with the tool
- Ensure the tool is thoroughly dry before using it
If available, use clean, dry, compressed air to blow through the ventilation holes (where applicable)
Brushes
Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
If you suspect that the brushes may be worn, have them replaced at an authorised service centre
Contact
For technical or repair service advice, please contact the helpline on (+44) 1935 382 222
Web: silverlinetools.com/en-GB/Support
UK Address:
Toolstream Ltd.
Boundary Way
Lufton Trading Estate
Yeovil, Somerset
BA22 8HZ, United Kingdom
EU Address:
Toolstream B.V.
De Keten
00004
5651GJ
Eindhoven, Netherlands
Storage
- Store this tool carefully in a secure, dry place out of the reach of children
- For long-term storage, remove batteries and store separately
Disposal
Li-ion batteries should not be disposed of with household waste. If you do not know of a li-ion battery recycling centre in your area, contact your local authority or original dealer for advice on disposal of li-ion batteries.
Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.
- Do not dispose of power tools, batteries or other waste electrical and electronic equipment (WEEE), with household waste
- Contact your local waste disposal authority for information on the correct way to dispose of power tools and batteries
| Problem Possible cause | Solution | |
| No function when ON/OFF Switch (12) is operated | Switch Lock engaged Press and hold the Switch Lock before pressing the ON/OFF Switch | |
| Battery (10) completely discharged Recharge Battery or replace with a fully charged battery | ||
| Defective Battery Replace Battery | ||
| Defective ON/OFF Switch | Have the ON/OFF Switch replaced by an authorised Silverline service centre | |
| Carbon brushes worn | Have the carbon brushes replaced by an authorised Silverline service centre | |
| Faulty tool Contact authorised Silverline service centre for repair | ||
| Slow cutting performance | Saw Blade (19) not suitable for the material being cut Fit compatible saw Blade | |
| Saw Blade blunt Fit new saw Blade | ||
| Saw Blade blunts quickly | Saw Blade not suitable for the material being cut Fit compatible saw Blade | |
| Too much pressure exerted on to the tool Use less pressure whilst moving the tool | ||
| No cutting fluid/cooling agent used when cutting metal | Use a suitable cutting fluid when cutting metal | |
Silverline Tools Guarantee
This Silverline product comes with a 3 year guarantee
Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:
- Your personal details
Details of the product and purchase information
Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.
If this product develops a fault after the 30 day period, return it to:
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.
Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.
All work will be carried out by Silverline Tools or its authorized repair agents.
The repair or replacement of the product will not extend the period of guarantee
Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.
The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered:
The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.
If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.
Use of this product in the EU.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.
Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
Battery Guarantee
Silverline batteries are guaranteed for 30 days. If a defect occurs on a registered battery during the term of the Battery Guarantee, due to material or manufacturing fault, then Silverline will replace it free of charge. This guarantee does not apply to commercial use nor does it extend to normal wear and tear or damage as a result of accident, abuse or misuse.
Introduction
Toolstream Ltd. Toolstream B.V.
Boundary Way De Keten
Lufton Trading Estate 00004
Yeovil, Somerset 5651 GJ
Silverline Tools Service Centre
PO Box 2988
Yeovil
Toolstream Ltd. Toolstream B.V.
Boundary Way De Keten
Lufton Trading Estate 00004
Yeovil, Somerset 5651 GJ
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GB
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GB
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
