USER MANUAL 815969 SILVERLINE

Jaserem 710 W 3SILVERLUNEC

Collection of eight black-and-white safety and compliance symbols including helmet, hand gesture, cloud, warning triangle, circle, exclamation mark, warning triangle, and cross symbol.

silverlinetools.com

1 2 3 11 10 9 8 7 6 12 5 4 SILVERLINEC

13 14 15

English ......04

Français ......10

Deutsch......16

Español......22

Italiano ......28

Nederlands ......34

Polski ......40

Introduction

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Wear head protection.

Wear hand protection.

Read instruction manual.

LASER Warning!

Conforms to relevant legislation and safety standards

Double insulated for additional protection

Caution!

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice

Technical Abbreviations Key

V Volts
~,AC Alternating current
A, mA Ampere, milli-Amp
n0 No load speed
n Rated speed
° Degrees
Hz Hertz
W, kW Watt, kilowatt
/min or min ^1	Operations per minute
dB(A) Decibel sound level (A weighted)
m/s ^2	Metres per second squared (vibration magnitude)

Specification

Voltage 230-240V\~, 50Hz

Power 710W

No load speed....0-3000min ^1

Bevel range....45° (left and right)

Blade type....T-shank

Protection class.

Ingress protection IP20

Length of power cable....2.5m

Weight....2.2kg

Max Cutting Capacities

Wood: 80mm

Steel: 10mm

Aluminium: 10mm

As part of our ongoing product development, specifications of Silverline products may alter without notice.

Sound and vibration information:

Sound pressure L 94dB(A)

Sound power L 105dB(A)

Uncertainty K: 3dB

Weighted vibration a

Cutting wood: 13.96m/s ^2

Cutting metal sheet: 6.68m/s²

Uncertainty K: 1.5m/s

The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

Carefully read and understand this manual and any label attached to the tool before use. Keep these instructions with the product for future reference. Ensure all persons who use this product are fully acquainted with this manual.

Even when used as prescribed it is not possible to eliminate all residual risk factors. Use with caution. If you are at all unsure of the correct and safe manner in which to use this tool, do not attempt to use it.

General Safety

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.

b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.

c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.

c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.

f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.

d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.

d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.

e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.

h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Jigsaw Safety

WARNING: Before connecting a tool to a power source (mains switch power point receptacle, outlet etc.) be sure that the voltage supply is the same as that specified on the nameplate of the tool. A power source with a voltage greater than that specified for the tool can result in serious injury to the user, and damage to the tool. If in doubt, do not plug in the tool. Using a power source with a voltage less than the nameplate rating is harmful to the motor.

For safety relating to protective clothing/equipment and general health hazards relating to power tools; refer to General and Electrical Safety sections in this manual

- Do not let anyone below 18 years of age operate this jigsaw

- Ensure there is adequate lighting

- Rags, cloths, cord and string etc should not be left around the work area

- Keep the area free of tripping hazards

- Inspect the workpiece and remove all embedded objects before starting work

- Support or clamp the workpiece to avoid vibration, and ensure a good cut

- See specification section of this manual for the correct type of blade. Incorrect blades may not be secured correctly, causing a safety hazardw

- Only use blades that are in good condition

- To avoid the possibility of an electric shock, always hold the saw using the insulated handles

- If you are interrupted when operating the saw, complete the process and switch off before looking up

- Keep your hands away from the underside of the workpiece

- Ensure that an appropriate blade is used for the material being cut

- Ensure all supports and power cables are completely clear of the cutting path

• Where guards exist, ensure they are in place

- Do not put pressure on the tool. Allow the blade to cut at its own pace. This will produce better results and maximise the service life of the tool

- Before cutting, check that there is sufficient clearance for the blade under the workpiece

• Always keep the shoe pressed against the workpiece

- Do not attempt to cut material thicker than detailed in the specifications section of this manual

- Do not force the blade to bend or twist whilst cutting

- If a cut does not extend to the edge of the workpiece, allow the blade to come to a complete stop before lifting it from the workpiece

- Do not use your hands to remove sawdust, chips or waste close by the blade

- Do not reach over the blade to remove waste or off-cuts

- Blades heat up during use. Allow to cool completely before handling

- If a blade jams, disconnect the machine from the power supply prior to releasing the blade

• Periodically check that all nuts, bolts and other fixings, tighten where necessary

Laser Safety

The laser used in this device is a Class 2 laser with maximum power of ≤ 1mW and a wavelength of 650nm.

These lasers do not normally present an optical hazard, although staring at the beam may cause flash blindness.

WARNING: Avoid direct eye contact.

A hazard may exist if you deliberately stare into the beam, please observe all safety rules as follows:

• The laser shall be used and maintained in accordance with the manufacturer's instructions
• DO NOT switch on the laser light until the tool is ready to cut
• Never aim the beam at any person, and particularly not into the eyes of any person or animal, or any object other than the workpiece
• Always ensure the laser beam is aimed at a sturdy workpiece without reflective surfaces. i.e. wood or rough-coated surfaces are acceptable. Reflective sheet steel or similar is not suitable for laser use as the reflective surface could direct the beam back at the operator
• DD NOT change the laser light assembly. Repairs must only be carried out by the laser manufacturer or an authorised agent. Do NOT exchange with a different type of laser

WARNING: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure.

Please refer to the relevant EN standards, EN60825-1/A1:2002 for more information on Lasers.

Cutting Tool Safety

Use the correct cutting tool

- Ensure the cutting tool is suitable for the job. Do not assume a tool is suitable without checking the product literature before use

Protect your eyes

• Always wear appropriate eye protection when using cutting tools

- Spectacles are not designed to offer any protection when using this product; normal lenses are not impact resistant and could shatter

Protect your hearing

• Always wear suitable hearing protection when tool noise exceeds 85dB

Protect your breathing

- Ensure that yourself, and others around you, wear suitable dust masks

Be aware of others around you

- It is the responsibility of the user to ensure that other people in the vicinity of the work area are not exposed to dangerous noise or dust and are also provided with suitable protective equipment

Hidden objects

• Inspect the workpiece and remove all nails and other embedded objects before cutting
• Do not attempt to cut material that contains embedded objects unless you know that the cutting tool fitted to your machine is suitable for the job
• Walls may conceal wiring and piping, car body panels may conceal fuel lines, and long grass may conceal stones and glass. Always check the work area thoroughly before proceeding

Beware of projected waste

- In some situations, waste material may be projected at speed from the cutting tool. It is the user's responsibility to ensure that other people in the work area are protected from the possibility of projected waste

Fitting cutting tools

- Ensure cutting tools are correctly and securely fitted and check that wrenches / adjusters are removed prior to use

- Only use cutting tools recommended for your machine

- Do not attempt to modify cutting tools

Beware of heat

- Cutting tools and workpieces may become hot in use. Do not attempt to change tools until they have been allowed to cool completely

Control dust / swarf

• Do not allow dust or swarf to build up. Sawdust is a fire hazard, and some metal swarf is explosive
• Be especially careful when cutting wood and metal. Sparks from metal cutting are a common cause of wood dust fires
• Where possible, use a dust extraction system to ensure a safer working environment

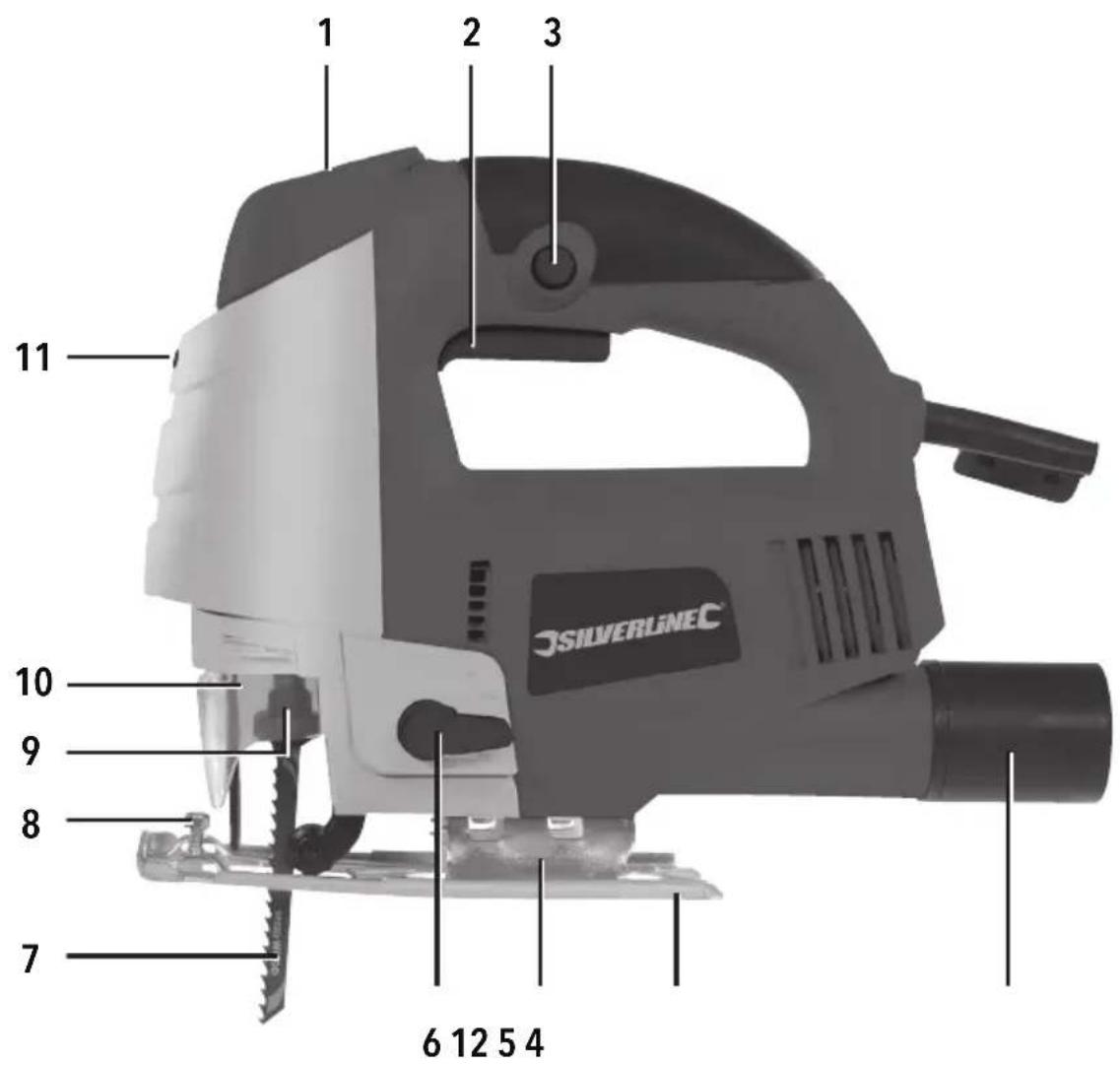

Product Familiarisation

1 Speed Control Dial

2 ON/OFF Trigger Switch

3 Lock-On Button

4 Dust Extraction Port (shown with adaptor fitted)

5 Shoe

6 Pendulum Action Selector

7 Blade

8 Guide Locking Screws

9 Blade Locking Lever

10 Guard

11 Laser Switch

12 Level Locking Screws

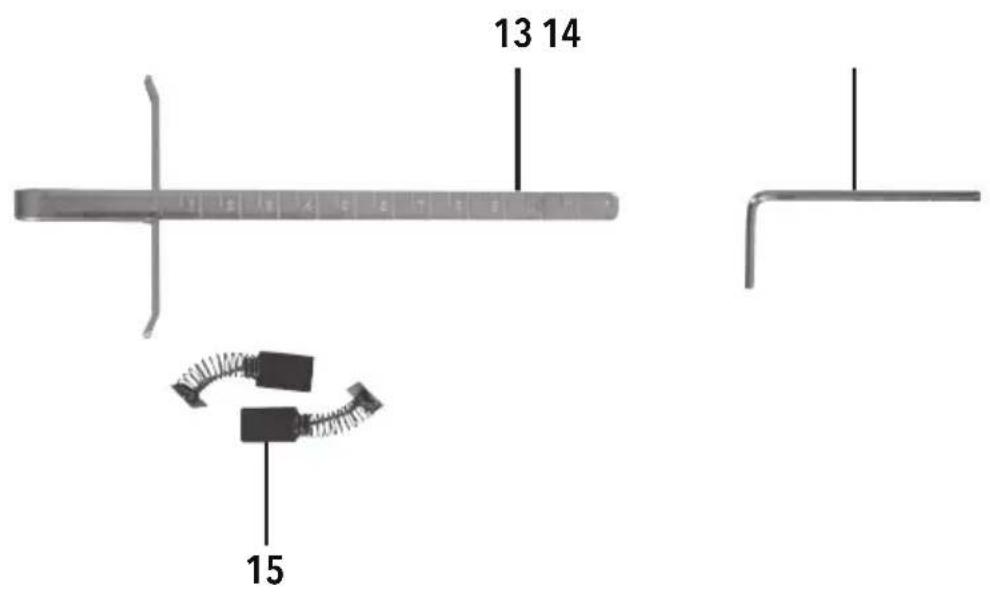

13 Parallel Guide Fence

14 Flex Key

15 Spare Carbon Brushes

Intended Use

Variable speed, pendulum action, laser guided jigsaw for light to medium duty cutting tasks for wood, plastic and thin sheet metal (when using appropriate blades).

Unpacking Your Tool

• Carefully unpack and inspect your tool. Fully familiarise yourself with all its features and functions
• Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool

Before Use

WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments.

Fitting a blade

• Always check that a suitable blade is selected for the job that is to be done (refer to the blade manufacturers information before use)
• Only fit blades that are in perfect condition. Blunt, bent and cracked blades should be discarded
  • Invert the jigsaw, lift the Guard (10)
• Pull forward the Blade Lock Lever (9) and insert the blade, so that it rests against the guide roller. Note: ALWAYS apply a lubricant between the blade and the roller, if you plan on cutting metal or other hard materials.
• Release the Blade Locking Lever (9) and pull firmly on the blade to make sure it is secure

Connecting to a dust extraction system

• This jigsaw is equipped with a Dust Extraction Port (4). Connecting the tool to a vacuum cleaner or workshop dust extraction system is the preferred method of dust extraction
• If vacuum dust extraction is unavailable, you must fit a generic dust bag (not included)

WARNING: Take extra care when cutting some woods—beech, oak, mahogany, teak—because the dust produced is toxic and can cause extreme reactions. Always wear appropriate respiratory protection.

WARNING: DO NOT use a dust bag when cutting metal. Hot metal particles and sparks could ignite residual wood dust, or cause the bag to catch fire. Always connect the jigsaw to a workshop dust extraction system when cutting metal. Always clean the tool THOROUGHLY when switching from cutting wood to cutting metal, and vice versa.

Setting the pendulum action

Note: This jigsaw features a pendulum cutting function. Pendulum action enables more efficient cutting.

1. For fast cutting and thick material, set the Pendulum Action Selector (6) to a high number

2. For fine cutting and thin material, set the Pendulum Action Selector to a low number

Note: Practise using different pendulum settings to achieve the best finish for your material.

Setting the bevel angle

Note: This jigsaw is equipped with a tilting Shoe (5). This allows bevel cuts to be made up to 45° to the left or right-hand side.

1. To alter the angle of the Shoe, invert the jigsaw and loosen the Bevel Locking Screws (11) with the Hex Key (14). The Shoe is now free to pivot

2. Adjust the Shoe to the required angle and then tighten the Bevel Locking Screws

Note: Ensure the Shoe is secured firmly in position prior to use.

Setting the cutting speed

• To alter the cutting speed, rotate the Speed Control Dial (1). A high number indicates a high cutting speed
  • Always set the machine speed to suit the material being cut
• For soft materials use a high cutting speed
• For hard materials use a low cutting speed. If cutting metal, use a suitable coolant/cutting fluid

Operation

WARNING: Always wear eye protection, an adequate dust mask, hearing protection and suitable gloves, when working with this tool.

Note: Before you use your jigsaw, it is recommended that you practise on scrap material. The settings of the tool are crucial to achieving a good quality finish, and your work could easily be damaged by using an incorrect setting.

Handling your jigsaw

• Ensure that work will not move whilst being cut. Use clamps where appropriate
• Always ensure that the ON/OFF Trigger Switch (2) and Lock-On Button (3) are NOT engaged before connecting the saw to the power supply
• Always hold the jigsaw securely using the handle provided. Keep hands well away from all moving parts
• For some tasks it may be preferable to lock the machine in the 'on' position. To do this, squeeze the ON/OFF Trigger Switch (2) and depress the Lock-On Button (3). The machine will now continue to run until the trigger switch is squeezed and released

WARNING: Allow the motor and blade to come to a complete stop before placing the tool down. Always unplug the tool if it is to be left unattended.

Using the laser light

WARNING: NEVER look directly into the beam. Never direct the beam. Never direct the beam towards other people. The beam should only be aimed towards solid, non-reflective materials. DO NOT switch the laser ON until the saw is positioned against the workpiece.

1. To switch ON the laser, press the Laser Switch (11)
   Note: The laser line indicates the line of cut that will be made if the saw is moved forward in a straight line.
2. To switch OFF the laser, press the Laser Switch (11) again

Making a cut

Note: Always wear appropriate safety equipment. Use of this tool requires eye protection, gloves, ear defenders, and good quality respiratory protection.

1. Hold the jigsaw securely and rest the front edge of the Shoe (5) on the edge of the workpiece
2. If starting a cut away from the edge of the workpiece, drill a pilot hole large enough for the blade to pass through, where you wish to start the cut
3. Check that the blade is not in contact with the workpiece, or any other object
4. Start the machine by pressing the ON/OFF Trigger Switch (2)
5. Allow the motor to reach full speed, and smoothly push the jigsaw forwards across the workpiece
6. Maintain a steady movement, and ensure that the Shoe (5) is kept pressed against the work. Ensure that the power lead is kept well away from the front of the saw as the cut is made
7. Allow the blade to pass through the material, then release the trigger switch. Alternatively, if the cut does not reach the edge of the workpiece, release the trigger switch and allow the blade to stop moving before lifting out of the cut
8. Do not place the machine down until the motor and blade have completely stopped

Using the parallel guide fence

• When working parallel to an edge, use the Parallel Guide Fence (13)
• The guide fence locates in the front of the Shoe (5) and is secured by tightening the Guide Locking Screws (8) with the Hex Key (14)

- To follow an edge, simply make a cut, whilst keeping the vertical foot of the guide fence pressed against the edge to be followed

Metal cutting

• Always use a suitable coolant/cutting oil when cutting metal. Failure to do so will cause significant blade wear
• A continuous line of grease can be applied to the underneath of the workpiece, instead of applying a a coolant from above
• Apply lubricant or cutting oil between the blade and roller when cutting metal or other hard materials. Failure to do so will shorten the service life of your blade and roller

Accessories

• A wide range of accessories, including blades for different kinds of materials and cuts, is available from your Silverline stockist
• Spare parts can be obtained at toolsparesonline.com

Maintenance

⚠ WARNING: Always disconnect the device from the power supply before carrying out any maintenance or cleaning.

General inspection

• Regularly check that all the fixing screws are tight. They may vibrate loose over time
• Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool

Cleaning

- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life. Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes

Lubrication

- Regularly apply a suitable lubricant between the roller and the blade

Brushes

• Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
- If you suspect that the brushes may be worn, have them replaced at an authorised Silverline service centre

Note: One pair of Spare Carbon Brushes (15) is supplied with this jigsaw.

Contact

For technical or repair service advice, please contact the helpline on ([phone]

Web: silverlinetools.com/en-GB/Support

Address:

Toolstream Ltd

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Storage

- Store this tool carefully in a secure, dry place out of the reach of children

Disposal

Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

• Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste
• Contact your local waste disposal authority for information on the correct way to dispose of power tools

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

- Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

Introduction

Silverline Tools Service Centre

PO Box 2988

Yeovil

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

WAARSCHUWING: VERMIJD DIRECT OOGCONTACT.

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

Exterior view of a Juggler electric shaver with visible screwdriver and mounting base (no text or symbols)

GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
