BrandYAMAHA
ModelDM105
Microphone typeDynamic
Polar patternUnidirectional
Frequency response60 Hz - 15,000 Hz
Sensitivity-54 dB ± 3 dB (0 dB = 1 V/Pa, 1 kHz)
Output impedance500 Ω ± 30% (1 kHz)
ConnectorXLR-M (3-pin)
Included cable5 m, with XLR-F connector and 6.3 mm plug
Dimensions (microphone only)ø51 × 169 mm
Weight (microphone only)220 g
Power supplyNone (passive dynamic microphone)
Care and cleaningDry, clean cloth. Do not use chemical solvents.
SafetyDo not expose to rain or moisture. Keep out of reach of children. Do not disassemble.
Supplied accessories5 m microphone cable
CompatibilityConnects to any device with XLR microphone input or 6.3 mm jack

Frequently Asked Questions - DM105 YAMAHA

How to connect the DM105 microphone to an amplifier?
Before connecting, make sure the microphone and amplifier are turned off. Plug the XLR-M connector of the microphone into the XLR-F socket of the cable, then the 6.3 mm jack plug into the amplifier input. Reduce the volume before connecting.
Why does my microphone produce feedback (Larsen effect)?
Feedback (Larsen effect) is avoided by reducing the volume, not pointing the microphone at the speaker, and keeping sufficient distance between the microphone and speaker. Do not cover the microphone grille with your hand.
What does the proximity effect mean on the DM105?
The proximity effect is an increase in low frequencies when the microphone is placed close to the sound source. This allows for richer, warmer bass.
How to clean the DM105 microphone?
Use a dry, clean cloth. Never use chemical solvents as they may damage the finish.
What are the usage precautions for the DM105?
Avoid extreme temperatures, moisture, dust, and shocks. Do not pull the cable, do not disassemble the microphone. Keep out of reach of children.
How to disconnect the microphone cable?
To disconnect, press the latch while pulling the connector to separate it from the microphone. Never pull the cable itself.
What is the polar pattern of the DM105?
The DM105 has a unidirectional polar pattern, meaning it picks up sound mainly from the front, reducing side and rear noise.
Can I repair the DM105 microphone myself?
No, the microphone components are precision parts. Do not attempt any modifications or repairs; consult a qualified Yamaha technician.
How to set the ON/OFF switch on the microphone?
Set the switch to ON during use and OFF after use to save batteries (although the microphone is passive, the switch is for service).
What to do if the microphone produces no sound?
Check that the microphone is turned on (switch ON), the cable is properly connected at both ends, and the amplifier volume is sufficient. Ensure the input is compatible (XLR or jack).

User questions about DM105 YAMAHA

0 question about this device. Answer the ones you know or ask your own.

Ask a new question about this device

The email remains private: it is only used to notify you if someone responds to your question.

No questions yet. Be the first to ask one.

Download the instructions for your Microphone in PDF format for free! Find your manual DM105 - YAMAHA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. DM105 by YAMAHA.

USER MANUAL DM105 YAMAHA

C
Diagram illustrating wireless signal detection using microphones and a device, with prohibition signs indicating no detectable signals.

D
Electrical circuit diagrams showing two configurations: one with a coil, connected to a terminal block and another with a potentiometer labeled 'HOT'.

3
YAMAHA DM105 - 3

line | Frequency (Hz) | Power (dBV / Pa) | | -------------- | ---------------- | | 20 | -70 | | 50 | -65 | | 100 | -60 | | 200 | -55 | | 500 | -50 | | 1k | -50 | | 2k | -50 | | 5k | -50 | | 10k | -50 | | 20k | -50 | | 5000 | -45 | | 10000 | -40 | | 20000 | -35 | | 50000 | -30 | | 100000 | -25 | | 200000 | -20 | | 500000 | -15 | | 1000000 | -10 | | 2000000 | -5 | | 5000000 | 0 | | 10000000 | 5 | | 20000000 | 10 | | 50000000 | 15 | | 100000000 | 20 | | 200000000 | 25 | | 500000000 | 30 | | 1000000000 | 35 | | 2000000000 | 40 | | 5000000000 | 45 | | 10000000000 | 50 | | 20000000000 | 55 | | 50000000000 | 60 | | 10000000000 | 65 | | 20000000000 | 70 | | 50000000000 | 75 | | 10000000000 | 80 | | 20000000000 | 85 | | 5000000000 | 90 | | 1M | -75 | | 1M | -78 | | 1M | -82 | | 1M | -85 | | 1M | -88 | | 1M | -92 | | 1M | -95 | | 1M | -98 | | 1M | -1.2 | | 1M | -1.5 | | 1M | -1.8 | | 1M | -2.2 | | 1M | -2.6 | | 1M | -3.1 | | 1M | -3.6 | | 1M | -4.2 | | 1M | -4.8 | | 1M | -5.4 | | 1M | -6.1 | | 1M | -6.8 | | 1M | -7.6 | | 1M | -8.4 | | 1M | -9.2 | | 1M | -1.3 | | 1M | -1.6 | | 1M | -1.9 | | 1M | -2.3 | | 1M | -2.8 | | 1M | -3.4 | | 1M | -4.1 | | 1M | -4.9 | | 1M | -5.8 | | 1M | -6.7 | | 1M | -7.7 | | 1M | -8.8 | | 1M | -9.9 | | 1M | -1.4 | | 1M | -1.7 | | 1M | -2.1 | | 1M | -2.7 | | 1M | -3.4 | | 1M | -4.2 | | 1M | -5.1 | | 1M | -6.1 | | 1M | -7.2 | | 1M | -8.3 | | 1M | -9.4 | | 1M | -1.3 | | 1M | -1.6 | | 1M | -1.9 | | 1M | -2.4 | | 1M | -3.1 | | 1M | -3.9 | | 1M | -4.8 | | 1M | -5.8 | | 1M | -6.9 | | 1M | -8.1 | | 1M | -9.3 | | 1M | -1.3 | | 1M | -1.6 | | 1M | -2.1 | | 1M | -2.9 | | 1M | -3.9 | | 1M | -4.9 | | 1M | -6.1 | | 1M | -7.2 | | 1M | -8.3 | | 1M | -9.4 | | 2M | -75 | | 2M | -78 | | 2M | -82 | | 2M | -86 | | 2M | -91 | | 2M | -99 | | 2M | -1.3 | | 2M | -1.6 | | 2M | -2.1 | | 2M | -2.9 | | 2M | -3.9 | | 2M | -4.9 | | 2M | -6.1 | | 2M | -7.2 | | 2M | -8.3 | | 2M | -9.4 | | 2M | -1.3 | | 2M | -1.6 | | 2M | -2.1 | | 2M | -2.9 | | 2M | -3.9 | | 2M | -4.9 | | 2M | -6.1 | | 2M | -7.2 | | 3M | -75 | | 3M | -78 | | 3M | -83 | | 3M | -88 | | 3M | -96 | | 3M | -1.3 | | 3M | -1.6 | | 3M | -2.1 | | 3M | -2.9 | | 3M | -3.9 | | 3M | -4.9 | | 3M | -6.1 | | 3M | -7.2 | | 3M | -8.3 | | 3M | -9.4 | | 3M | -1.3 | | 3M | -1.6 | | 3M | -2.1 | | 3M | -2.9 | | 3M | -3.9 | | 3M | -4.9 | | 3M | -6.1 | | 3M | -7.2 | | 3M | -8.3 | | 3M | -9.4 | | | M | -75 | | M | -78 | | M | -83 | | M | -88 | | M | -96 | | M | -1.3 | | M | -1.6 | | M | -2.1 | | M | -2.9 | | M | -3.9 | | M | -4.9 | | M | -6.1 | | M | -7.2 | | M | -8.3 | | M | -9.4 | | | M | -1.3 | | M | -1.6 | | M | -2.1 | | M | -2.9 | | M | -3.9 | | M | -4.9 | | M | -6.1 | | M | -7.2 | | M | -8.3 | | | M |-9.4 | |

YAMAHA DM105 - 4

radar | Angle | Value (dB) | |-------|------------| | 0° | -10 | | 30° | -5 | | 60° | 0 | | 90° | 5 | | 120° | 10 | | 150° | 5 | | 180° | 0 | | 210° | -5 | | 240° | -10 | | 270° | -5 | | 300° | 0 | | 330° | -5 |

English

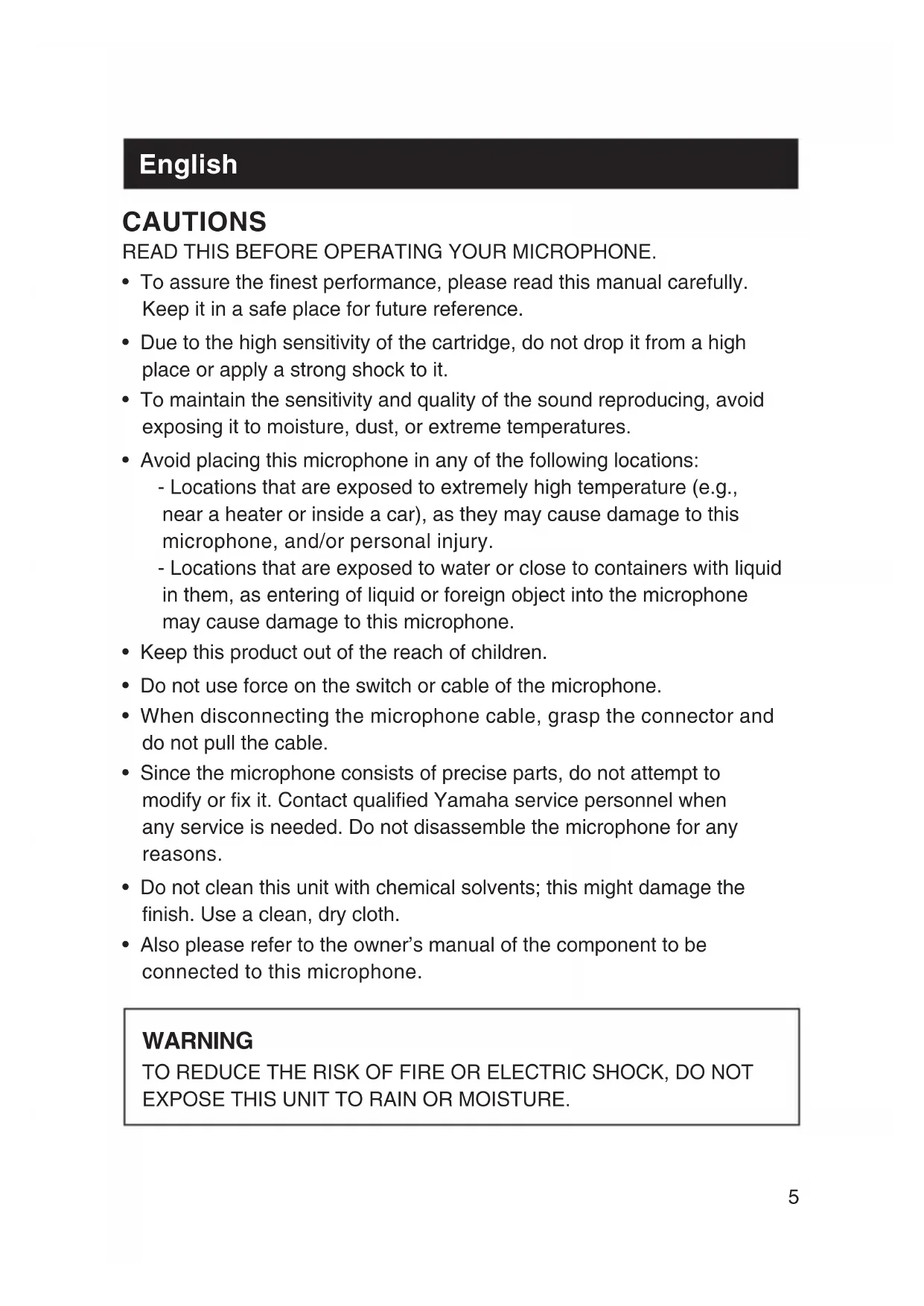

CAUTIONS

READ THIS BEFORE OPERATING YOUR MICROPHONE.

  • To assure the finest performance, please read this manual carefully. Keep it in a safe place for future reference.
  • Due to the high sensitivity of the cartridge, do not drop it from a high place or apply a strong shock to it.

  • To maintain the sensitivity and quality of the sound reproducing, avoid exposing it to moisture, dust, or extreme temperatures.

  • Avoid placing this microphone in any of the following locations:

  • Locations that are exposed to extremely high temperature (e.g., near a heater or inside a car), as they may cause damage to this microphone, and/or personal injury.

  • Locations that are exposed to water or close to containers with liquid in them, as entering of liquid or foreign object into the microphone may cause damage to this microphone.

  • Keep this product out of the reach of children.

  • Do not use force on the switch or cable of the microphone.
  • When disconnecting the microphone cable, grasp the connector and do not pull the cable.
  • Since the microphone consists of precise parts, do not attempt to modify or fix it. Contact qualified Yamaha service personnel when any service is needed. Do not disassemble the microphone for any reasons.
  • Do not clean this unit with chemical solvents; this might damage the finish. Use a clean, dry cloth.
  • Also please refer to the owner's manual of the component to be connected to this microphone.

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.

A Connecting and Disconnecting the Microphone Cable

  • Before making the connection, make sure that the microphone and the component (e.g., amplifier) are switched off.
  • Insert the connector into the microphone socket. Align the key on the connector with the groove in the microphone, and then push the connector into the microphone until it clicks.
  • Lower the volume of the component (e.g., amplifier) before connecting the microphone.
  • To disconnect the cable from the microphone, pull the connector away from the microphone while depressing the latch lock.

B How to Use

  • Set the switch to ON when using the microphone, and set it to OFF when not in use.
  • When using the microphone, do not cover any part of the grille with your hand to ensure sound quality.

C Hints

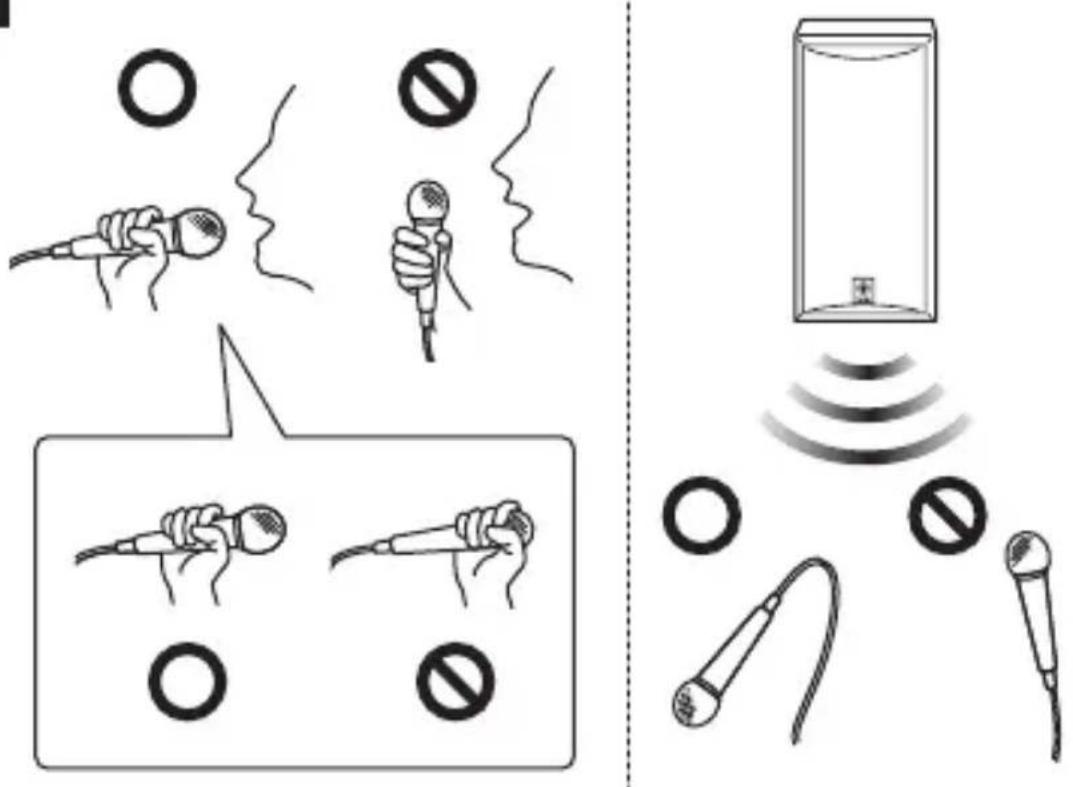

• In order to prevent howling:

  • Lower the volume.
  • Place this microphone so that it is not pointed to the speaker and that there is a sufficient distance between the microphone and the speaker.
  • Do not cover the lower part of the grille with your hand.

- Positioning the microphone close to the sound source causes the so-called proximity effect (a boost in the low-frequency response). This phenomenon can be used to create a richer and warmer bass sound.

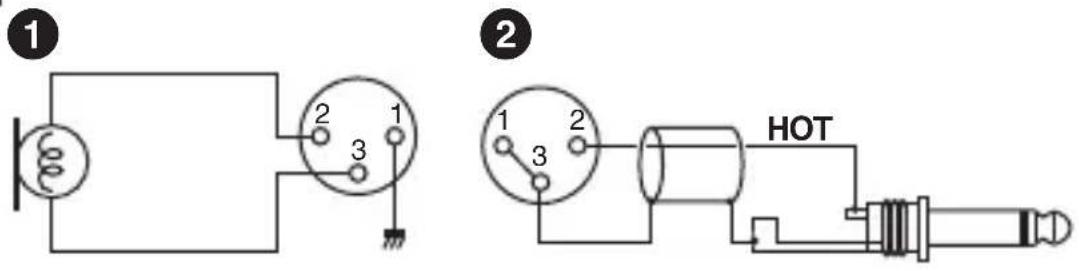

D 1 2 Wiring

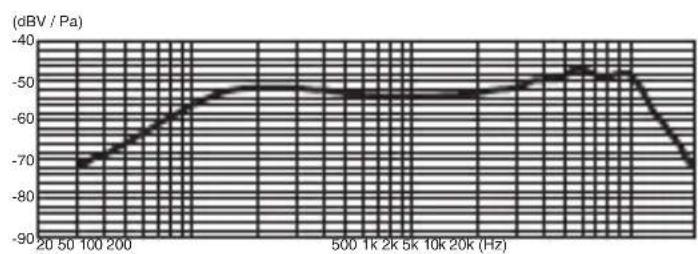

③ Frequency Response

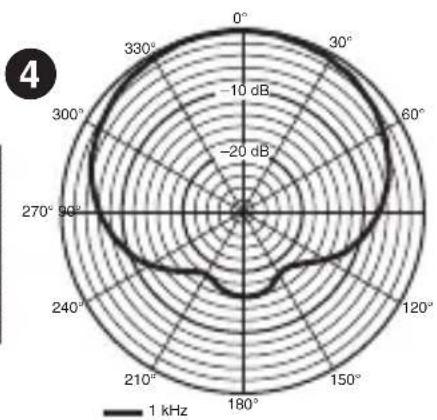

4 Polar Pattern

Specifications

Type Dynamic Microphone
Polar Pattern Unidirectional
Frequency Response 60 Hz – 15,000 Hz
Sensitivity / 2.83 V, 1 m -54 dB ± 3 dB (0 dB = 1 V/Pa, 1 kHz)
Output Impedance 500 Ω ± 30 % (1 kHz)
Connector 3-pin XLR-M type
Cable ø6 mm × 5 m with XLR-F typeconnector and 6.3 mm plug
Dimensions (Microphone only) (max. diameter × length)ø51 × 169 mm (2 × 6-5/8 in)
Weight (Microphone only) 220 g (7.80 oz.)

* Specifications are subject to change without notice.
