Product type	Buffer tank for heating system
Brand	Nibe
Model	UKV 20300
Capacity	98 liters
Weight	31 kg
Maximum operating pressure	6 bar (0.6 MPa)
Operating temperature	+4 °C to +95 °C
Tank material	Steel
Insulation	Polyurethane
Outer coating	White powder-coated sheet metal with resistant plastic ends
Hydraulic connections	4 internal G1" connections (XL1, XL2, XL8, XL9)
Mounting	Vertical wall mounting, bracket supplied
Main functions	Volume increase, temperature peak reduction, improved flow, hydraulic decoupling
Maintenance	Inspect the safety valve 4 times a year; contact the installer for general maintenance
Safety	Mandatory safety valve (max pressure 6 bar), tilted overflow pipe and frost-free
Spare parts	Use exclusively NIBE parts
Repairability	Intervention by a qualified professional; indicate the serial number (14 digits) and installation date
General information	Compliant with directive 2014/68/EU; do not dispose with household waste
Serial number	Above the product (14 digits)

Frequently Asked Questions - UKV 20300 Nibe

What is the capacity of the UKV 20300 buffer tank?

The UKV 20300 buffer tank has a capacity of 98 liters.

What maximum pressure can the UKV 20300 withstand?

The maximum operating pressure is 6 bar (0.6 MPa).

What hydraulic connections are available?

The unit has 4 internal G1" connections: XL1 (heating flow), XL2 (heating return), XL8 (heat pump flow) and XL9 (heat pump return).

How to maintain the safety valve?

The safety valve should be inspected about 4 times a year. Open it manually and check that water flows into the overflow pipe. If not, replace it.

Can I install the UKV 20300 myself?

Installation must be carried out by a qualified professional in accordance with current standards.

What are the exact dimensions of the UKV 20300?

Dimensions are not specified in the manual, but the weight is 31 kg and the volume is 98 liters.

What to do in case of malfunction?

Contact your installer, providing the serial number (14 digits) and installation date. Use only NIBE spare parts.

How to fill the buffer tank?

Purge the tank by loosening the XL1 connection, fill through the drain valve until only water flows from XL1, then close.

What is the operating temperature?

The operating temperature is between +4 °C and +95 °C.

Where to find the serial number?

The serial number is located above the product. It consists of 14 digits.

USER MANUAL UKV 20300 Nibe

This manual describes installation and service procedures for implementation by specialists.

The manual must be left with the customer.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning an user maintenance shall not be made by children without supervision.

This is an original manual. It may not be translated without the approval of NIBE. Rights to make any design or technical modifications are reserved.

©NIBE 2023.

SERIAL NUMBER

The serial number can be found on top of the product.

Caution

Always give the product's serial number when reporting a fault.

RECOVERY

Leave the disposal of the packaging to the installer who installed the product or to special waste stations.

Do not dispose of used products with normal

household waste. It must be disposed of at a special waste collection or dealer who provides this type of service.

Improper disposal of the product by the user results in administrative penalties in accordance with current legislation.

SYMBOLS

Explanation of symbols that may be present in this manual.

NOTE

This symbol indicates danger to person or machine.

Caution

This symbol indicates important information about what you should consider when installing or servicing the installation.

MARKING

Explanation of symbols that may be present on the product's label(s).

GENERAL

UKV 100 is designed and manufactured according sound engineering practice in order to ensure safe usage.

INSPECTION OF THE INSTALLATION

Current regulations require the heating installation to be inspected before it is commissioned. The inspection must be carried out by a suitably qualified person.

✓				DateSignatu
Heating medium (page 14)
	Shut o valves
	Safety valve

For the User

MAINTENANCE

The safety valve in the system where the accumulator tank is installed must be inspected regularly (about four times a year) to prevent blockages.

To inspect the valve, open the safety valve manually and check that water ows through the overow pipe. If this does not happen then the safety valve is defective and must be replaced.

SERVICE

For service, contact the installer. Serial number (PZ3) (14 digits) and installation date should always be stated.

Only replacement parts supplied by NIBE may be used.

For the Installer

GENERAL

UKV 100 has several dierent areas of use.

UKV 100 can be used during external control of the heating system. The heat pump then charges UKV 100 with oating or xed condensing. The external control function controls the heat distribution from UKV 100 to the consumer.

If the ow to the heating system can be restricted using radiator thermostats, for example, install a UKV 100 as an intermediate tank. This ensures a secure ow for the heat pump.

UKV 100 also allows a greater ow to the heating system than across the heat pump.

In some installations, so-called heating clicks occur as a result of movements during changes in temperature. To eliminate temporary changes in temperature, and thereby prevent heating clicks, install a UKV 100 after the heating installation.

UKV 100 can also be used to increase the system volume and thereby prevent malfunctions.

The accumulator tank consists of a condensation-insulated steel vessel with polyurethane insulation. Outer cladding in white, powder-coated sheet metal with ends of durable plastic.

The accumulator tank is designed and manufactured for maximum cut-o pressure of 6 bar.

The working temperature is +4 to +95^ .

TRANSPORT

UKV 100 should be transported and stored in the dry.

ASSEMBLY

The accumulator tank must be installed in a dry area at a temperature that does not drop below 0^ (frost-free).

MOUNTING

UKV 100 has to be installed vertically suspended on the wall. First install the enclosed mounting bracket on the wall, then suspend UKV 100 from the bracket.

SUPPLIED COMPONENTS

Suspension bracket.

All connections (including connections or holes that are used) must be insulated to minimise energy losses.

DOCKINGS

NOTE

These are outline diagrams. Actual installations must be planned according to applicable standards.

Volume increase as well as reduction of spikes

A UKV 100 is installed as a volume increaser in those cases the accumulator tank by loosening the connection where the system volume in the climate system is below (XL1) at the top of the accumulator tank. the minimum recommended volume for the heat pump. 2. Fill the vessel through the drain valve.

Volume and ow increaser and reduction in heat spikes

A UKV 100 is installed as a volume and ow increaser in those cases where the system volume in the climate system is below the minimum recommended volume for the heat pump and/or the ow is restricted without control.

Volume increase as well as reduction of heat spikes

A UKV 100 is installed as a volume increaser in those cases where the system volume in the climate system is below the minimum recommended volume for the heat pump.

PIPE INSTALLATION

Ripe installation must be carried out in accordance with current norms and directives.

The drain valve is installed on the heating system's return line (XL2).

The system where UKV 100 is installed must be supplied with a safety valve of max. 6 bar (0.6 MPa).

The overow pipe must be the same size as the safety valve's. Route the overow pipe from the safety valve, sloping along its entire length, and ensure that it is frost- atof and well supported. The mouth of the overow pipe must be visible and not placed close to electrical components.

Ensure that incoming water is clean.

If uncertain, contact a plumber alternatively see applicable standards.

FILLING

Fill the accumulator tank as follows:

Case: vent the accumulator tank by loosening the connection to LW (XL1) at the top of the accumulator tank.

1. Fill the vessel through the drain valve.

2. When only water comes out of the connection (XL1) (an air-water mixture emerges initially), the connection can be closed and the accumulator tank is lled.

Technical data

DIMENSIONS

UKV 100

TECHNICAL SPECIFICATIONS

		UKV100M
		98litreVolume
		31kgNet weight
		0.6 / 6MPa/barMax
	°CMax:4open &5ng tempera
Part No.		088 207

ENERGY LABELLING

Supplier		NIBE
Model		UKV-100
Eciency class 1		C
Heat loss	W	60
Volume	I	98

1 Scale for the product's eciency class A+ to F.

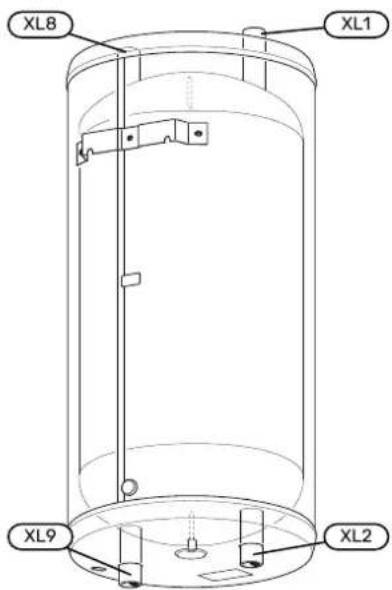

PIPE CONNECTIONS
UKV 100

PIPE DIMENSIONS

Connection
		G1" intSupply line, heating systemXL1
		G1" int.Return line, heating systemXL2
		G1" int.Docking from heat pumpXL8
		G1" int.Docking to heat pumpXL9
