USER MANUAL 04067 Maxxmee

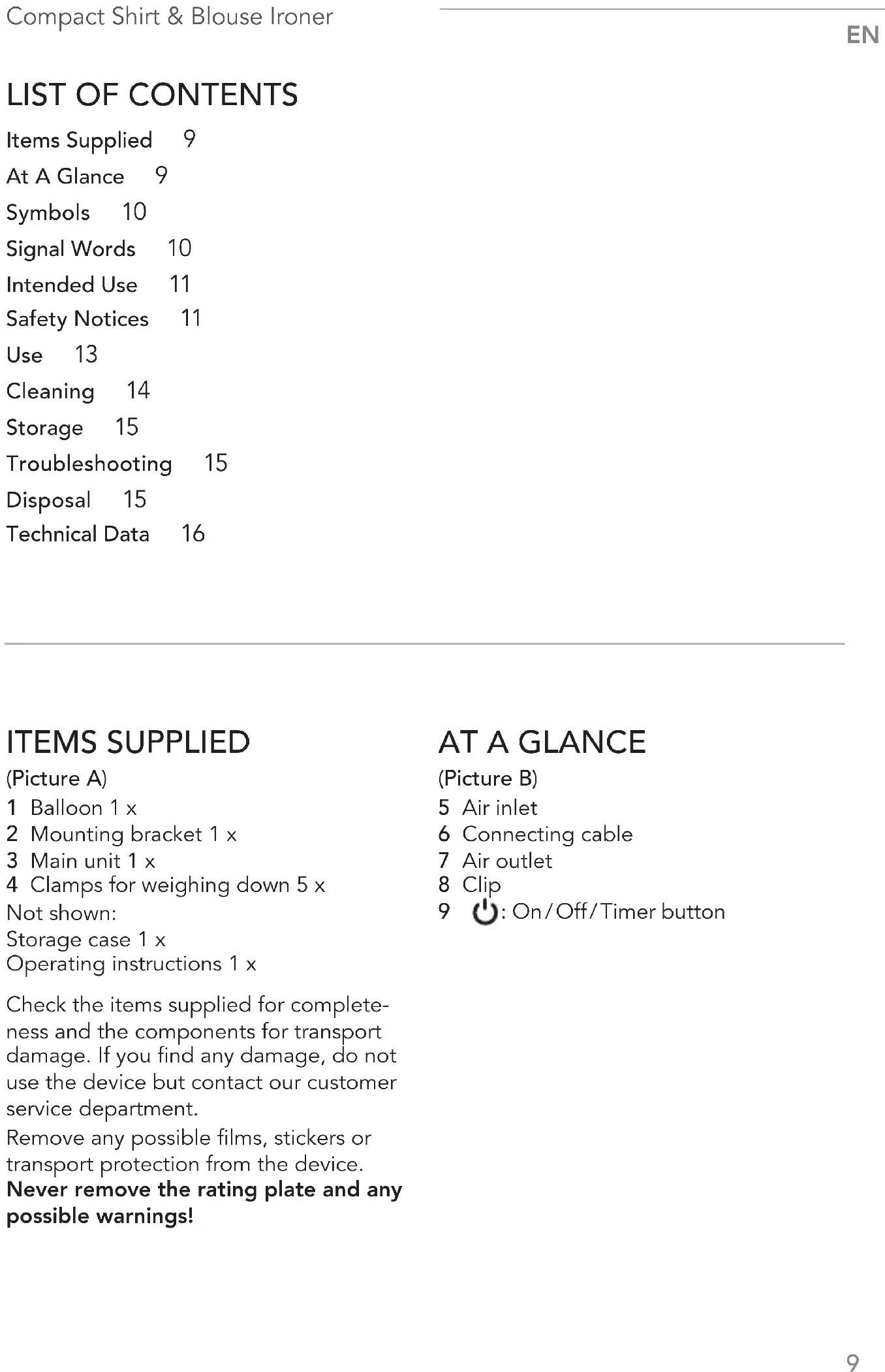

1 Balloon 1 x
2 Mounting bracket 1 x
3 Main unit 1 x
4 Clamps for weighing down 5 x

Not shown:

Storage case 1 x

Operating instructions 1 x

Check the items supplied for completeness and the components for transport damage. If you find any damage, do not use the device but contact our customer service department.

Remove any possible films, stickers or transport protection from the device.

Never remove the rating plate and any possible warnings!

AT A GLANCE

(Picture B)

5 Air inlet
6 Connecting cable
7 Air outlet
8 Clip
9 ⏻: On/Off/Timer button

Dear Customer,

We are delighted that you have chosen the MAXXMEE Compact Shirt & Blouse Ironer. With this device you can smooth and dry your wardrobe fully automatically and effortlessly in just a few minutes. The device is very easy to use and there is no need for any complicated set-up. The space-saving device is simply hung on the nearest door, the shirt or blouse is pulled onto the balloon, weighed down with the clamps and off you go! Scarcely bigger than a hair dryer, the MAXXMEE Compact Shirt & Blouse Ironer fits in any drawer or travel bag. Ideal for small apartments and hotel rooms. It is suitable for shirts, blouses, T-shirts and jumpers that are suitable for tumble drying. If you have any questions about the device and about spare parts/accessories, contact the customer service department via our website: www.dspro.de/kundenservice

We hope you have a lot of fun with your MAXXMEE Compact Shirt & Blouse Ironer.

Information About the Operating Instructions

Before using the device for the first time, please read through these operating instructions carefully and keep them for future reference and other users. They form an integral part of the device. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with.

SYMBOLS

Danger symbols: These symbols indicate possible dangers. Read the associated safety notices carefully and follow them.

Supplementary information

Read the operating instructions before use!

Caution: hot surfaces!

Protection class II

Alternating voltage

WARNING: Do not use this device near a bathtub, shower or any vessel containing water.

SIGNAL WORDS

Signal words indicate hazards if the associated notices are not followed.

DANGER – high risk, results in serious injury or death

WARNING – medium risk, may result in serious injury or death

CAUTION – low risk, may result in minor or moderate injury

NOTICE – may result in risk of damage to material

INTENDED USE

This device is intended to be used to dry and press textiles which are suitable for tumble drying and ironing. It is not suitable for delicate textiles (e.g. wool or similar) which shrink or could be damaged by heat.
■ The device is for personal use only and is not intended for commercial applications.

■ Use the device only for the specified purpose and as described in the operating instructions. Any other use is deemed to be improper.
■ The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear.

SAFETY NOTICES

WARNING: Note all safety notices, instructions, illustrations and technical data provided with this device. Failure to follow the safety notices and instructions may result in electric shock, fire and / or injuries.

This device may be used by children aged 8 and over and by people with reduced physical, sensory or mental abilities or a lack of experience and/or knowledge if they are supervised or have received instruction on how to use the device safely and have understood the dangers resulting from failure to comply with the relevant safety precautions.
■ Children must not play with the device.
■ Cleaning and user maintenance must not be carried out by children without supervision.

■ The device and its connecting cable must be kept out of the reach of children who are younger than 8 while the device is in use.

■ WARNING: To prevent any danger to very young children, it is recommended that this device should be installed in such a way that the bottom edge of the balloon or the item of clothing is at least 600 mm above the ground.

WARNING: Only ever use the device to dry textiles which have been washed in water.

WARNING: Do not use this device near a bathtub, shower or any vessel containing water.

CAUTION: hot surface! The device and accessories (incl. the clamps) will get hot during use. You should therefore not touch them during or shortly after use.

■ The device must always be switched off and disconnected from the mains power when it is not being used or before cleaning it.

■ The device must not be left unattended while it is connected to the mains power supply.

- Do not make any modifications to the device. Do not replace the connecting cable yourself. If the device or the connecting cable are damaged, they must be replaced by the manufacturer, customer service department or a similarly qualified person (e.g. specialist workshop) in order to avoid any hazards.

- Allow the device to cool down completely before it is cleaned or stored away.

DANGER – Danger of Electric Shock

■ Use and store the device only in closed rooms.
■ Do not operate or store the device in rooms with high humidity.
■ Never immerse the device and the connecting cable in water or other liquids and ensure that they cannot fall into water or become wet.
If the device falls into water while it is connected to the mains power, pull the mains plug out of the plug socket immediately. Only after this should you retrieve the device from the water. Have it checked in a specialist workshop before using it again.
■ Never touch the device and the connecting cable with wet hands when the device is connected to the mains power.

WARNING – Danger of Fire

■ Do not operate the device in the vicinity of combustible material.
■ Never cover up the ventilation openings of the main unit and do not insert any objects into them.

WARNING – Danger of Injury

- Keep children and animals away from the packaging material. There is a danger of suffocation.

■ Make sure that the connecting cable is always kept out of the reach of young children and animals. There is a danger of strangulation.

■ Lay the connecting cable in such a way that it does not present a trip hazard.

NOTICE – Risk of Damage to Material and Property

■ Steam may rise during operation. For this reason, do not place the device under equipment containing electrical components.
■ Make sure that the connecting cable is not squashed, bent or laid over sharp edges and does not come into contact with hot surfaces.
■ Disconnect the device from the mains power if a fault occurs or in a thunderstorm.
■ When you disconnect the device from the mains power, always pull on the mains plug and never the mains cable.
■ Never pull or carry the device by the connecting cable.
■ Use only original accessories from the manufacturer in order to guarantee that there is no interference that may prevent the device from working and to avoid possible damage.
■ Never place heavy objects on the device or the connecting cable.
■ Use and store the device at room temperature, do not expose it to extreme temperatures or temperature fluctuations.
■ Protect the device from other heat sources, naked flames, persistent moisture and impacts.

USE

Please Note!

■ Only connect the device to a plug socket that is properly installed. The plug socket must also be readily accessible after connection so that the connection to the mains can quickly be isolated. The mains voltage must match the rating plate of the device.
- Do not connect the device along with other consumers (with a high wattage) to a multiple socket in order to prevent overloading and a possible short circuit (fire).
■ Do not use any extension cables more than 3 m long or cable extension reels.
■ Always switch off the device first before the plug is pulled out of the plug socket. One exception is when the device has fallen into water or in the event of a fault.
The device is intended primarily for machine-spun laundry. Do not use the device to press either dry laundry or completely sodden laundry. If hand-washed or non-machine-spun laundry is to be pressed, thoroughly wring it out and allow it to dry first.

Set-Up

1. Hang the mounting bracket (2) on a door (up to 4 cm thick, close to a plug socket) (Picture C).
2. Fold down the middle piece of the mounting bracket as far as it will go (Picture D).
3. Place the main unit (3) on the mounting bracket (Picture E).
4. Fix the connecting cable (6) to the mounting bracket so that it does not touch the hot device (Picture F).
5. Fold down the two clips (8) of the main unit (Picture G).

EN

1. Plug the connecting cable into the plug socket.
2. Hang the balloon (1), with its zip fastener at the front, on the clip and close the zip fastener (Picture H). Make sure that the balloon is pulled over the end piece of the main unit.

Ironing

1. Pull the damp item of clothing onto the balloon (Picture I). Important! The sleeves of the balloon must be placed in the sleeves of the item of clothing until they poke out at the ends. They must fit properly in the sleeves of the item of clothing and not be twisted or scrunched up.
2. If the item of clothing has buttons, close them (also on the sleeves).
3. Spread the clamps (4) along the bottom of the item of clothing (Picture J): two at the back and three at the front (one at the front in the middle on the button strip). This weighs it down and ensures it will not go out of shape when the balloon is inflated.
4. Press the button (9) to switch on the device (Picture K). The pressing time is set to 15 minutes after switch-on. However, the length of time can vary depending on the textile type and level of moisture. We recommend that you start with a shorter time and extend it if necessary.

For conventional, spun shirts (1200 spins), an ironing time of 15 minutes is generally enough. For damper or thicker textiles (e.g. flannel shirts), it may be necessary to increase the time to 30 or 45 minutes.

1. Press the button repeatedly to increase the pressing time in 15-minute increments (15/30/45 minutes).

The control lamp next to the minute indicator shows the chosen pressing time.

1. Once the balloon has inflated, straighten out the item of clothing and smooth it down again.
2. When the set time elapses, the device switches off automatically. However, the device can be switched off manually at any time by pressing the button repeatedly.
3. Allow the item of clothing and the clamps to cool down slightly, then they can be removed.

Wide-apart buttons may result in the button strip crimping slightly during pressing. Here it is advisable to smooth down the button strip again by hand immediately after the pressing process.

1. Pull the mains plug out of the plug socket and allow the device to cool down completely.

CLEANING

Please Note!

■ Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the device. These may damage the surfaces.

Wipe off any dirt from the device and accessories (including the balloon (1)) with a damp cloth and a little mild cleaning agent if required. Allow all parts to dry completely before storing them away.

STORAGE

1. Detach the balloon from the main unit (3) and flip up the clips (8).
2. Remove the main unit a from the mounting bracket (2).
3. Remove the mounting bracket from the door and fold it up.
4. Store all parts in the storage case which is also supplied.
5. Store the storage case in a cool and dry place which is protected from sunlight and is not accessible to children or animals.

TROUBLESHOOTING

If the device does not work properly, check whether you are able to rectify the problem yourself. If the problem cannot be solved with the steps below, contact the customer service department.

Do not attempt to repair an electrical device yourself!

The device does not work.

The mains plug is not inserted in the plug socket correctly.

▶ Correct the fit of the mains plug.

The plug socket is defective.

▶ Try another plug socket.

There is no mains voltage.

▶ Check the fuse of the electrical distributor (fuse box).

Unusual noises

The air inlet (5) is covered.

▶ Free up the air inlet.

The device switches off before the set time has elapsed.

The air inlet (5) is covered.

▶ Free up the air inlet.

The device is overloaded.

▶ Switch off the device and pull the mains plug out of the plug socket. Allow the device to cool down. Then start operating it again.

An odour is produced during use

You might notice a slight odour caused by production residues the first time you use the device. However, this is harmless and will cease as you use the device.

▶ Make sure that the room is well ventilated!

DISPOSAL

Dispose of the packaging material in an environmentally friendly manner so that it can be recycled.

This device is governed by the European Directive 2012/19/EU on waste electrical and electronic equipment (WEEE). Do not dispose of this device as normal domestic waste, but rather in an environmentally friendly manner via an officially approved waste disposal company.

TECHNICAL DATA

Article number: 04067

Model number: KB-6026

Power supply: 220 - 240V\~ 50/60Hz

Power: 1000W

Protection class: II

Type of protection: IPX1

Max. load: 2.5 kg

ID of operating instructions: Z 04067 M DS V2 1120 md

All rights reserved.
