USER MANUAL Chop n Slice Maxxmee

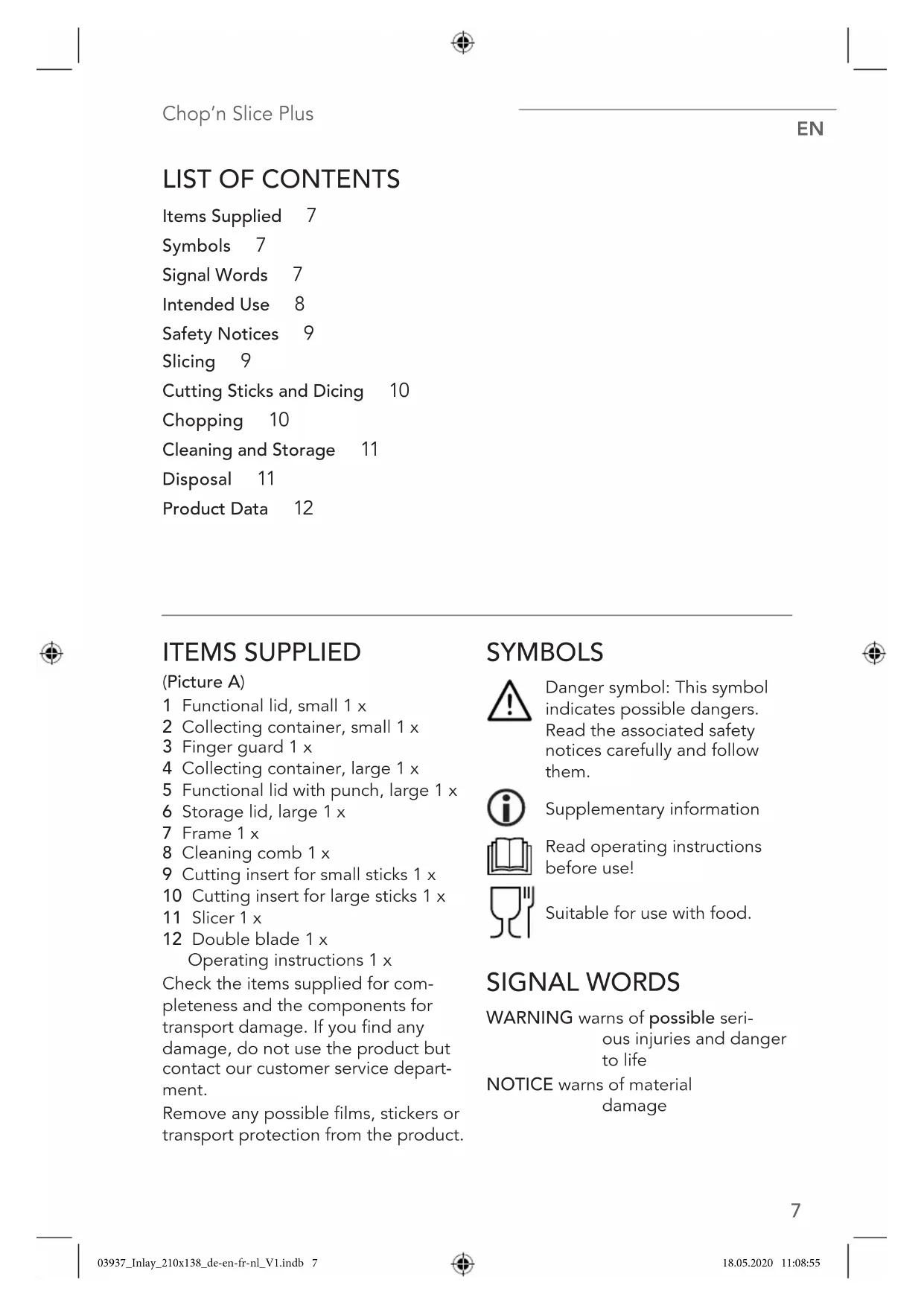

Items Supplied 7 Symbols 7 Signal Words 7 Intended Use 8 Safety Notices 9 Slicing 9 Cutting Sticks and Dicing 10 Chopping 10 Cleaning and Storage 11 Disposal 11 Product Data 12 ITEMS SUPPLIED (Picture A) 1 Functional lid, small 1 x 2 Collecting container, small 1 x 3 Finger guard 1 x 4 Collecting container, large 1 x 5 Functional lid with punch, large 1 x 6 Storage lid, large 1 x 7 Frame 1 x 8 Cleaning comb 1 x 9 Cutting insert for small sticks 1 x 10 Cutting insert for large sticks 1 x 11 Slicer 1 x 12 Double blade 1 x Operating instructions 1 x Check the items supplied for com- pleteness and the components for transport damage. If you find any damage, do not use the product but contact our customer service depart- ment. Remove any possible films, stickers or transport protection from the product. SYMBOLS Danger symbol: This symbol indicates possible dangers. Read the associated safety notices carefully and follow them. Supplementary information Read operating instructions before use! Suitable for use with food. SIGNAL WORDS WARNING warns of possible seri- ous injuries and danger to life NOTICE warns of material damage 03937_Inlay_210x138_de-en-fr-nl_V1.indb 703937_Inlay_210x138_de-en-fr-nl_V1.indb 7 18.05.2020 11:08:5518.05.2020 11:08:55EN

INTENDED USE ■ The product is intended to be used to chop up food. ■ It is not suitable for frozen food. ■ All accessories are unsuitable for use in the microwave, the oven or the freezer compartment. ■ The product is for personal use only and is not intended for com- mercial applications. ■ Use the product only for the spec- ified purpose and as described in the operating instructions. Any other use is deemed to be improper. ■ The warranty does not cover faults caused by incorrect handling, damage or attempted repairs. The same applies to normal wear and tear. Dear Customer, We are delighted that you have chosen the MAXXMEE Chop‘n Slice Plus. Quickly slice up a cucumber, dice cheese, chop onions or create a delicious dip – all you now need to do all these various things is the MAXXMEE Chop‘n Slice Plus. Insert the food and then, depending on what result you want, flip shut, turn or slice and that’s it! This means finger food for a party, a delicious spread for dinner and much more can be prepared very easily and quickly. Particularly practical: the inserts can be exchanged quickly with a click system. You can im- mediately put your food in a cool place because the collecting containers with the respective lids can be used directly for storage. If you have any questions about the product and about spare parts/accessories, contact the customer service department via our website: www.dspro.de/kundenservice We hope you have a lot of fun with your MAXXMEE Chop‘n Slice Plus. Information About the Operating Instructions Before using the product for the first time, please read through these operat- ing instructions carefully and keep them for future reference and other users. They form an integral part of the product. The manufacturer and importer do not accept any liability if the information in these operating instructions is not complied with. 03937_Inlay_210x138_de-en-fr-nl_V1.indb 803937_Inlay_210x138_de-en-fr-nl_V1.indb 8 18.05.2020 11:08:5518.05.2020 11:08:55Chop’n Slice Plus

SAFETY NOTICES WARNING – Danger of Injury ■ Keep children and animals away from the packaging material. There is a danger of suffocation. ■ The blades of the inserts are sharp. Be careful when removing and inserting the inserts! There is a danger of cuts. ■ Use and store the product only out of the reach of children and animals. Improper use can lead to injuries. ■ Children must be supervised to ensure that they do not play with the product. ■ The product should only be used if it has been fully and correctly assembled. Check that all compo- nents fit securely before using the product. ■ Keep items of clothing such as scarves, shawls, ties and long hair away from the product during use. ■ There may still be some produc- tion residues on the product. You should therefore clean it thorough- ly before you first use it (see the “Cleaning and Storage” chapter). NOTICE – Risk of Damage to Material and Property ■ Do not expose the product to any extreme temperatures, temper- ature fluctuations or prolonged direct sunlight. ■ Protect the product from: impacts, fire and heat sources. ■ Do not place heavy objects on the product. ■ Use only original accessories from the manufacturer in order to guaran- tee that there is no interference that may prevent the product from work- ing and to avoid possible damage. SLICING Please Note! ■ Never slice smaller items of food without the finger guard. There is a danger of cuts! ■ Move the finger guard on the side rails of the slicer. It must not come into contact with the blades. Otherwise they or the finger guard could be damaged. Accessories required:

• Collecting container, large(4)

• Finger guard(3) The slicer is suitable for quickly pro- ducing fruit and vegetable slices of equal thickness.

1. Place the frame on the collecting

container (PictureB).

2. Insert the slicer into the frame

(PictureC). The chopping acces- sory (see the “Chopping” chapter) must not be used.

3. Wash the food, peel and remove

any cores if necessary.

4. Skewer the food onto the finger

Larger food items, e.g. cucum- bers, can initially be chopped up without the finger guard until it is of an appropriate size for this.

5. Hold the collecting container se-

curely with one hand and use your other hand to move the food back and forth on the slicer (PictureD). As you do this, gradually push down the grip of the finger guard. The chopped food drops into the collecting container. 03937_Inlay_210x138_de-en-fr-nl_V1.indb 903937_Inlay_210x138_de-en-fr-nl_V1.indb 9 18.05.2020 11:08:5518.05.2020 11:08:55EN

the way down to push out the rest of the food.

7. Take the frame off the collecting

8. Take the food out of the collecting

container or keep it in there. To do this, seal the collecting container with the storage lid(6) (PictureE).

DICING Please Note! ■ Only cut food by pressing down the functional lid! Do not attempt to push it through a cutting insert with your hand. There is a danger of injury. Accessories required:

• Collecting container, large(4)

• Cutting insert for small or large sticks(9 or 10) The lattice inserts are used to cut thick or thin sticks, e.g. for making chips.

To dice cubes, first cut sticks, then place them horizontally on the cutting insert and press them through.

1. Place the frame on the collecting

container (PictureB).

2. Hold the functional lid vertically at

a 90° angle to the frame and press on the two holders on the frame (PictureF).

3. Place the cutting insert you want

into the square opening in the frame (PictureG).

4. Wash the food, peel and remove

any cores if necessary. Cut larger pieces of food in half.

5. Place the food on the cutting in-

sert (with the flat side facing down if it has been cut in half).

6. Flip the functional lid down to-

wards the frame swiftly and firmly, and repeat if necessary. Do not apply force! The chopped food drops into the collecting container.

7. After cutting up, remove the frame

with the functional lid from the collecting container.

8. Take the food out of the collecting

container or keep it in there. To do this, seal the collecting container with the storage lid(6) (PictureE). CHOPPING Accessories required:

• Collecting container, small(2) These accessories are ideal for chop- ping onions, garlic, radishes, herbs and many other things into small pieces. But you can also use them to mix up dips or similar things.

1. Place the double blade on the pin

on the bottom of the collecting container (PictureH).

2. Cut the food into pieces if neces-

sary and place it in the collecting container. Make sure that the dou- ble blade remains on the pin.

the functional lid must rest on the collecting container without any gaps. Twist the functional lid back and forth slightly if necessary.

4. Use one hand to hold the collect-

ing container firmly and use your other hand to hold the functional lid firmly.

5. Twist the functional lid and col-

lecting container back and forth in opposite directions to chop up the food (PictureI). Tilt the product to the sides from time to time so that it is chopped up evenly.

7. Take the food out of the collecting

container or keep it in there. Fi- nally, seal the collecting container shut with the functional lid (without the double blade). CLEANING AND STORAGE Please Note! ■ Do not use any sharp or abrasive cleaning agents or cleaning pads to clean the product. These may damage the surfaces. Clean all used accessories after each use to prevent the formation of germs.

• Take apart the used accessories and clean them with detergent and warm water. Although they can be cleaned in the dishwasher, frequent cleaning of the blades in the dishwasher may impair their sharpness. It is therefore recom- mended that they are rinsed by hand.

• Remove food residues on the punch on the large functional lid(5) with the cleaning comb(8).

• Allow all parts to dry completely or dry them with a tea towel before storing them away.

• Apart from the finger guard(3) and the storage lid(6), all acces- sories can be stored in the large collecting container(4). To do this, the slicer(11) is placed right at the bottom. The cleaning comb is clamped into the holder in the large functional lid (PictureJ).

• Store the product in a cool and dry place protected from dust and direct sunlight out of the reach of children and animals.

Some types of fruit and vegetables, e.g beetroot, may stain the plastic parts. This is normal and quite safe and does not constitute grounds for warranty claims. DISPOSAL Dispose of the packaging material in an environmentally friendly manner so that it can be recycled. The product should also be disposed of in an environ- mentally friendly way if it is no longer going to be used. 03937_Inlay_210x138_de-en-fr-nl_V1.indb 1103937_Inlay_210x138_de-en-fr-nl_V1.indb 11 18.05.2020 11:08:5518.05.2020 11:08:55EN
