Product type	LCD projector
Brand	Yaber
Model	Y30
Native resolution	1920 x 1080 pixels
Light source	LED
Projection distance	1.5 - 5.5 m
Image size	45 - 200 inches
Aspect ratio	16:9 / 4:3
Keystone correction	Vertical and horizontal ±45° (4 corners)
Power supply	110-240 V ~ 50/60 Hz
Weight	2.9 kg
Video inputs	HDMI x2, VGA, AV, USB x2
Audio output	Audio Out
Supported video formats	MPG, AVI, TS, MOV, MKV, DAT, MP4
Included accessories	HDMI cables, VGA, AV, remote control, cloth, lens cover
Installation	Flat, dry surface, away from dust and moisture
Cleaning	Unplug, damp cloth, blower for lens
Safety	Do not open, do not expose to water, sufficient ventilation
Warranty	3 years
Features	Multilingual OSD menu, X/Y zoom, transparency, firmware update

Frequently Asked Questions - Y30 Yaber

How to turn on the Yaber Y30 projector?

Plug in the power cable, press the main switch (the light turns red), then press the power button on the projector or remote to switch to on mode (green light).

How to connect an Android smartphone to the projector?

Check that your smartphone supports MHL function. Use an MHL-HDMI cable (not included) to connect the phone to the projector, then select the 'HDMI' source.

How to correct a keystone image?

Press 'M' to open the menu, go to 'Keystone adjustment', then adjust vertically and/or horizontally from -50 to +50 using the directional keys and OK button.

What to do if the image is blurry?

Check the focus by turning the lens ring. Make sure the projection distance is appropriate (1.5 to 5.5 m) and that the lens is clean.

The remote control does not work, what to do?

Check that the batteries are installed correctly (AA type, not included) and that there is no obstacle between the remote and the IR receiver of the projector. Replace the batteries if necessary.

How to set the menu language?

Press 'M', go to 'OPTION' then 'OSD Language'. Select 'French' or another language among the 20 available, then confirm with 'OK'.

Can I use the projector on the ceiling?

Yes, but installation must be done by a qualified technician. Use a suitable ceiling mount (not included) with M4 x 10 mm screws. Open the 4 buttons at the back of the projector to attach the mount.

How to clean the projector lens?

Unplug the projector. Use a blower to remove dust, then a soft cloth or special lens paper. Do not scratch or use solvents.

Why does the projector turn off by itself?

Check if the auto-off timer is enabled in the menu. Make sure the power plug is properly connected and that ventilation is not obstructed.

How to connect a soundbar?

Use the included AV cable to connect the audio output of the projector to the input of the soundbar. In the 'Sound' menu, set 'Output' to 'Line' so that sound comes only from the soundbar.

USER MANUAL Y30 Yaber

Woohoo! Your projector is already in your hands! Let's get started!

Do you have any questions on how it works? Please read this manual thoroughly before using the projector.

Are you satisfied with your projector? If you have any issues, email your order number and description of your issue to:[e-mail]. Send your email ASAP, as we want to fix your issues the first time you have them.

Customers sometimes can experience some confusion when using the projector. Rather than trying to communicate directly with us, many buyers instead just leave a review on the product page. However, most negative reviews are caused by non-standardized use rather than a defect in the product itself.

Actually, many problems can be easily solved by setting, such as no signal, no sound, cannot connect with WiFi etc. We promise all the projectors have been carefully checked and packaged before shipping.

Therefore, if you have any questions, please contact us and give us an opportunity to improve. We guarantee that we will provide you more satisfactory solution.

Thanks for your understanding!

Best regards,

YABER TEAM

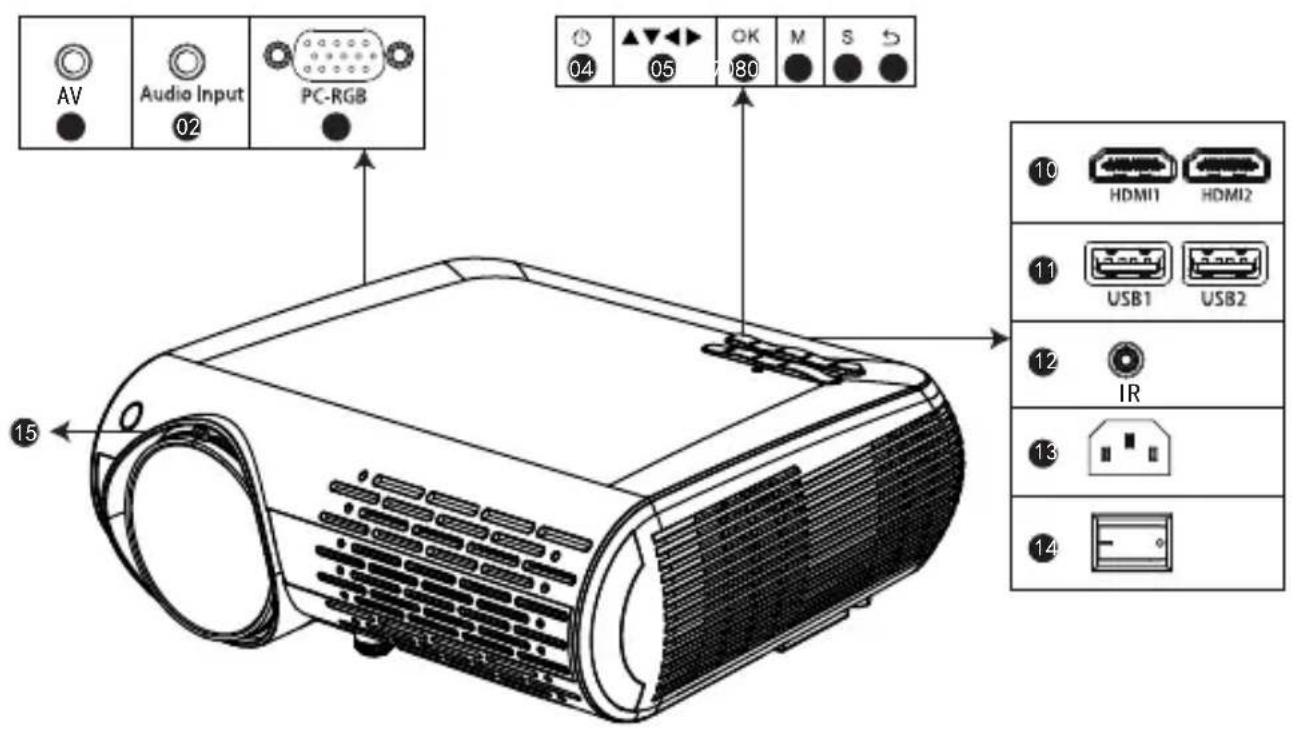

Product description

01(AV) Audio input

09 back button

02 Audio output

10 HDMI 1 / HDMI 2 input button

03 VGA input connector

11 USB1 / USB1 input button

04 power supply

12 remote control receivers

05 arrow keys

13 current consumption (10 - 240 V)

06 OK button

14 main switch

07 Menu button

15 Rotating lens to adjust sharpness

08 source button

Notes: Please refer to the actual projector, the photo is illustrative onl

1080P Full hd projector Y30
Imaging System: LCD	Power:110-240V~50/60HZ
Light source: LED	Resolution:1080P Full HD
Color: 16.7M full color	Interface Input: HDMI*2/VGA/AV/USB*2/AUDIO IN
Projection distance: 1.5-5.5m	Output interface : audio out
Projection size: 45"-200"	Projection size: 45"-200"
Aspect Ratio: 16:9/ 4:3	Projector wight:2.9kg

Remote controller

1. Power button: Switch the standby mode to use
2. Mute key:Turns the projector sound on or off
3. Flip key: turn the image upside down
   4/5/6/7. Rewind key: Fast forward / backward / previous / next track
4. Play Pause Button: Play / Pause
   9/10/11/12. arrows: Parameters of the menu mode used to fix the projector
5. OK button: OK
6. Menu Button: To call or exit the projector main menu
7. Signal selection key: To change the signal source
   16.Exit function key:Exit
   17/18. Volume keys: volume up / volume down

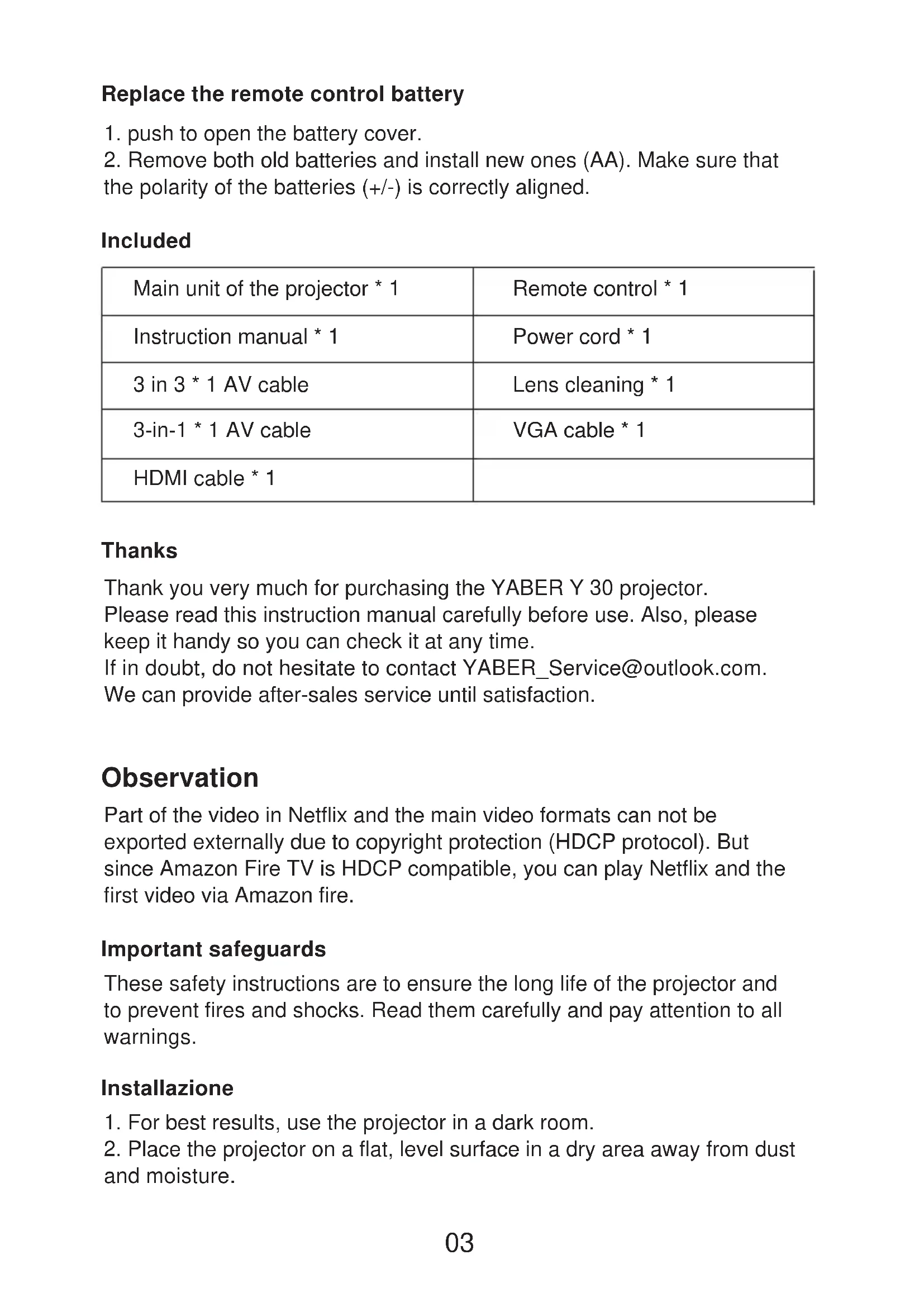

Replace the remote control battery

1. push to open the battery cover.
2. Remove both old batteries and install new ones (AA). Make sure that the polarity of the batteries (+/-) is correctly aligned.

Included

Main unit of the projector * 1	Remote control * 1
Instruction manual * 1	Power cord * 1
3 in 3 * 1 AV cable	Lens cleaning * 1
3-in-1 * 1 AV cable	VGA cable * 1
HDMI cable * 1

Thanks

Thank you very much for purchasing the YABER Y 30 projector.

Please read this instruction manual carefully before use. Also, please keep it handy so you can check it at any time.

If in doubt, do not hesitate to contact [e-mail].

We can provide after-sales service until satisfaction.

Observation

Part of the video in Netflix and the main video formats can not be exported externally due to copyright protection (HDCP protocol). But since Amazon Fire TV is HDCP compatible, you can play Netflix and the first video via Amazon fire.

Important safeguards

These safety instructions are to ensure the long life of the projector and to prevent fires and shocks. Read them carefully and pay attention to all warnings.

Installazione

1. For best results, use the projector in a dark room.

2. Place the projector on a flat, level surface in a dry area away from dust and moisture.

3. Exposure to direct sunlight, smoke or steam may damage internal components.

4. Handle the projector carefully. Falling or shaking can damage internal components.
5. Do not place heavy objects on top of the projector.

Supply

1. The projector is designed to operate with a 110 - 240V 50 / 60Hz AC adapter. Ensure that the power supply meets this requirement before attempting to use the projector.
2. Handle the power cord carefully and avoid bending it too much. A damaged cord can cause electric shock or fire.
3. If the projector will not be used for a long time, unplug the power cord from the outlet.

Cleaning

1. Unplug the projector before cleaning it.
2. Periodically clean the cabinet with a damp cloth. If it is very dirty, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinners.
3. Use a blower or lens paper to clean the lens and be careful not to scratch or damage the lens.

FAQ

1. At the time of switching on, the indicative light does not work

①. The power supply may not be well connected
②. Check the overheating protection system

1. Pressing the power button on the remote control does not turn on the projector

①. The remote control batteries are empty
②. The signal between the remote control and the IR sensor is obstructed
③. Strong direct light on the IR sensor?

1. No image on the screen

①. Is the channel setting correct?
②. Is there an input signal?
③. Is the input cable inserted correctly or is it in the wrong position?
④. In PC mode the refresh rate is >75kHz ?

1. The image works but there is no sound

①. Are the input cables connected correctly?
②. Volume at minimum or silent
③. Check that the audio format of the video is in the supported list

1. Turns off automatically after being turned on for a while

①. Is there a barrier around the fan?
②. Small or large voltage fluctuations
③. Check the overheating protection system

1. I can not find devices connected with hard drives or flash drives

①. Re-insert the device
②. Check if the device is working

1. Unable to play video

①. Is the video format correct?
(2) The file is corrupted?
③. The device is damaged

Connection device

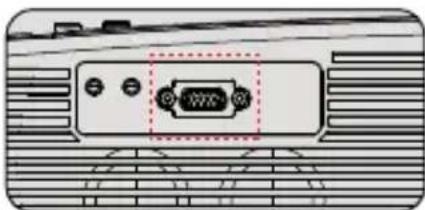

1 Connecting a PC

1.Use the supplied VGA cable to connect the PC to the projector.
2. Turn on the projector and the computer.

• NOTE: You can also connect an HDMI cable, remember that VGA connections do not transmit audio, so the sound will be output from the computer. If you connect an HDMI cable, the audio will be output to the projector.

2. Connecting a smartphone

Connect a phone with Android system:

(Note: check if your Android phone supports MHL function.) MHL-HDMI cable not included)

1. Connect the projector and the Android smartphone with the MHL-HDMI cable.
2. Choose the signal source: "HDMI"

Connecting an iPhone:

1. Connect the projector and iPhone with Lightning to HDMI cable (not included)
2. Choose the signal source: "HDMI"

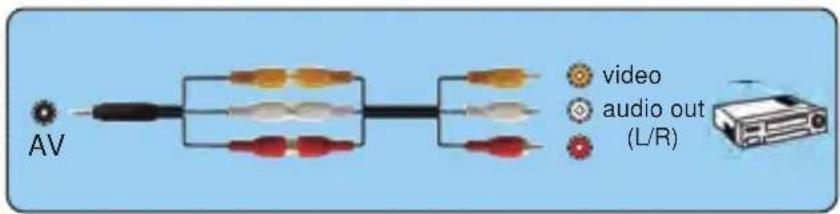

3 Connecting a DVD player

1. Use the supplied AV cable to connect the DVD player to the projector.
2. Turn on the projector and DVD player.

If your player has an HDMI output, it is best to use it over the analog (AV) option. Audio output must be configured from the DVD player menu if external speakers are installed.

4. Connect the soundbar

1.Use the supplied AV cable to connect the soundbar to the projector.
2. Turn on the projector and the sound bar.

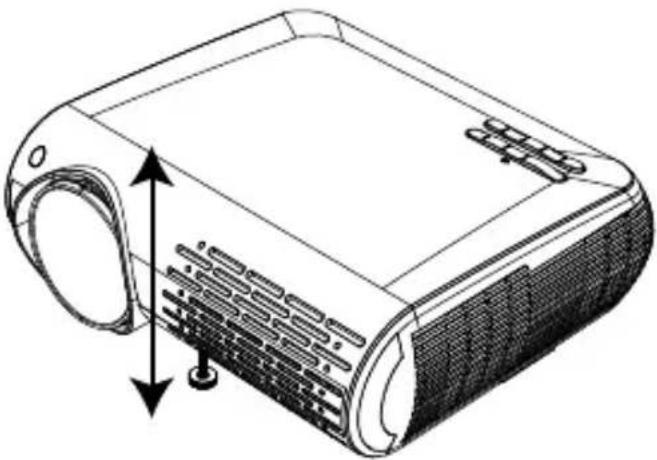

Adjust the tilt base

1. Press and hold the tilt button on the back of the projector.

1. Lift the front edge of the projector to the desired height, turn the presser foot and release the button to lock the tilt base to the position it deems appropriate.

Please purchase the projector stands and some 10 mm M4 screws.

Open the 4 buttons on the back of the projector and use the M4 * 10mm screws to hang the projector on the stand.

Starting the projector

Turn on the projector by connecting the supplied power cord to the outlet, and then pressing the main power switch. The projector will go into standby mode and the power indicator will light red.

Only after pressing the "POWER" button on the projector or remote control will the power indicator turn green and the projector will become ready to use.

select the signal source:

press the "S" button on the remote control or the projector and choose between: "AV", "PC-RGB", "HDMI 1", "HDMI 2", "USB".

1. Adjust the image size to get the best image size by moving the projector back and forth, then use the focus ring to get the best focus.

Select the language menu

Language menu you have to select it when you turn on the projector for the first time, you will see the interface in English. You can select one of the menu languages: German, French, Italian, Spanish, Japanese and so on.

Please follow these steps:

1. Press the "M" button and find the "OPTION" interface, then find the "OSD Language English".

2. Press the ENTER button to execute the selection.

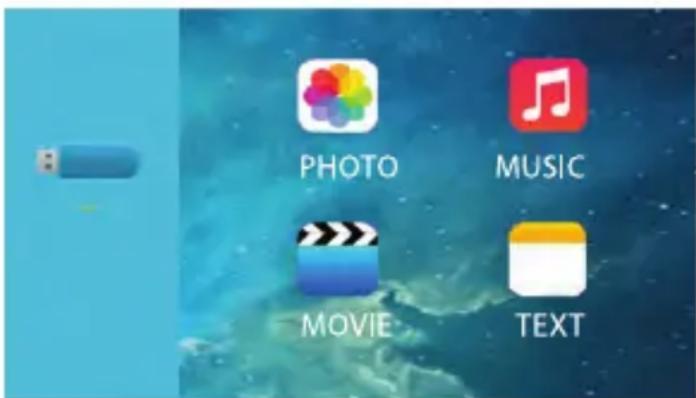

Setting the main menu:

press the "M" button on the projector or remote control, there are 4 menu options: "Picture", "sound", "time", "option"

PICTURE MENU

PICTURE Menu included Function
Picture Mode	Standard, Soft, User, Dynamic	4 image modes
Color Temperature	Medium, Warm, User, Cool	Adjusts the color temperature
Aspect Ratio	Auto/ 4:3/ 16:9	Aspect Ratio lets you configure how images are displayed.
X_ZOOM	+1~50	Riduci dall'asse X.
Y_ZOOM	+1~50	Ridimensiona dall'asse Y.
Noise Reduction Low	Off, Low, Middle, High, Default	Trapezoidal adjustment
Projective Mode	Front	Cast, rear projection
4D Keyetone Correction	Vertical:-50~50, Horizon:-50~50	Keystone adjustment

Important function

there are two ways to correct the trapezoid: "vertical" and "horizontal", you can directly use the remote control for trapezoidal correction.

1. vertical adjustment range: -50 +50 . When the vertical coefficient is gradually increased upward, the top of the projected screen gradually becomes smaller; When the vertical coefficient is gradually lowered, the lower part of the projected screen gradually becomes smaller.
2. horizontal adjustment range: -50 +50 , when the horizontal coefficient is gradually increased upward, the left side of the projected screen does not change, the right side of the screen gradually remains and the left side of the screen does not change; When the horizontal coefficient is gradually lowered, the left side of the screen is gradually reduced, the right side of the screen constant.

1.1 "Vertical". Range: -50 +50

If the projection image is tilted vertically, as shown in (1), press the "M" button on the remote control, select "Trapezoidal Adjustment", then press the "OK" button and set the vertical value to "+" until to achieve the projection effect (2).

If the projection image is tilted vertically, as shown in (3), press the "M" button on the remote control, select "Keystone adjustment", then press the "OK" button and set the vertical value to "-", until to achieve the projection effect (4).

1.2 "Horizon". Range: -50 ~ +50

If the projection image is tilted horizontally, as shown in (5), press the "M" key on the remote control, select "Keystone adjustment", then press the "OK" button and set the horizon value to "+" ", Reach the projection effect (6).

If the projection image is tilted horizontally, as shown in (7), press the "M" button on the remote control, select "Keystone adjustment", press the "OK" button and set the horizon value to "-", Reach the projection effect (8).

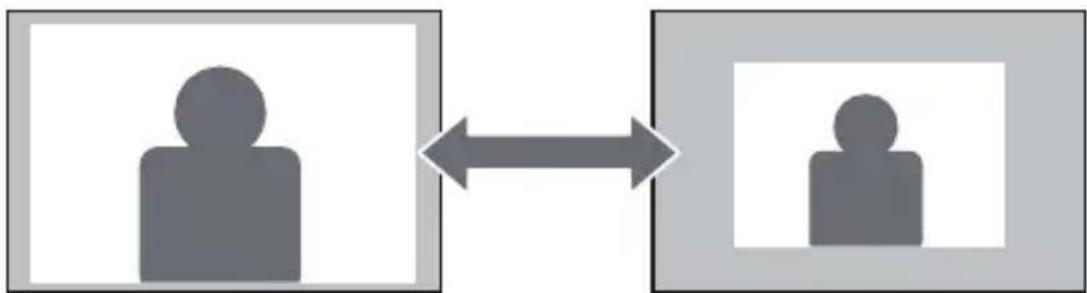

When playing back an image or video, if you want to change the size of the projected image or video, you can use the remote control to select the next option and adjust the projection size:

1) Click "X_ZOOM" to adjust the horizontal size of the projection.
2) Click "Y_ZOOM" to adjust the vertical of the projection.

You can reduce the original height and width provided by the video source up to 50% .

Menu Sound

Sound Mode Menu included Function
Blance	-50~50	Adjusting the balance
Auto Volume	On, Off	Automatic volume adjustment
Surround Sound	Off, SRS ,TraSurround XT,Surround	Automatische Lautstärkeanpassung
EQ	OFF, SRS TruuSurround XT,Surround	Sstereo setting
Sound Surround	120Hz,500Hz,1.5KHz, 5KHz, 10KHz	Hz setting
Fonte sound	Normal, Line, Sound box	Setting the connection of external devices.

Tips:

(Note: if you connect an external speaker for audio output, pay attention to the following instructions).

A: Normal: in this mode, all devices can output a sound
B:Sound box: in this mode, only the projector emits a sound
C: Line: in this mode, the projector will not emit any sound

Option Menu

OPTION Menu included Function
OSD Language English	English, France, Italian, Spanish20 several languages	Choose a language
Restore Factory Default	reset	Whether to update the software
Blending	Off, Low, Middle, High	Adjust the sound quality
HDMI CEC	HDMI CEC, HDMI ARC, Auto Standby,Device control, Device List	Adjust the transparency of the menu.
OSD Duration	Off, 5Sec, 10Sec, 15Sec	Via, 5 seconds, 10 seconds,15 seconds, duration of the menu
Software Update(USB)	Update software	Update software
High Fan Speed (ON, OFF)	ON, OFF	Adjust sound quality

You can reduce noise by changing the fan speed

1) High fan speed OFF
2) High fan speed activated

Projector-to-wall distance projected screen size

Distance	Screen size
1.5m	45”
1.6m	60”
2.4m	80”
3.2m	20”
4.0m	160”
5.5m	200”

Thank you very much for purchasing the YABER Y 30 projector.

Please read this instruction manual carefully before use. Also, please keep it handy so you can check it at any time.

If in doubt, do not hesitate to contact [e-mail].

We can provide after-sales service until satisfaction.

Précautions

1. Bouton Pause de lecture: Lecture/Pause

[e-mail].

FAQ

Pas de son

Format audio: MP3, WMA, AAC

Format d'image: JPG, JPEG, BMP, PNG.

4/5/6/7. Tasto rewind:
