Product type	LCD Projector
Brand	Yaber
Model	V2
Native resolution	1080 x 720 pixels
Light source	LED
Projection distance	1.05 m to 4.39 m
Image size (diagonal)	33" (0.84 m) to 150" (3.81 m)
Keystone correction	Manual, ±15°
Focus	Manual
Aspect ratio	4:3, 16:9, Auto
Projection modes	Front, rear, ceiling front, ceiling rear
Connectivity	HDMI, VGA, AV, USB, USB-T, headphone jack
Wireless functions	Screen mirroring (WiFi and USB-T)
Supported video formats	AVI, MP4, MKV, FLV, MOV, RMVB, 3GP, MPEG1, MPEG2, XVID
Supported audio formats	AAC, MP2, MP3, PC-M, FLAC, WMA, AC3
Supported image formats	BMP, JPG, PNG, GIF
Power supply	AC 100-240 V, 50/60 Hz
Weight	Approximately 1 kg (2.2 lb)
Package contents	Projector, remote control (batteries not included), HDMI cable, 3-in-1 AV cable, power cable, cleaning cloth, foot screws
Care and cleaning	Unplug before cleaning; use a damp cloth; avoid solvents and strong detergents
Safety tips	Avoid moisture, heat, shock; do not block vents; disconnect when not in use for extended periods
Installation	Flat, dry surface; dark room recommended; ceiling mount available (not included)
Support	Technical support by email: [e-mail]; YouTube channel for tutorials

Frequently Asked Questions - V2 Yaber

The projector displays 'No Signal'. What to do?

Press the 'Source' button on the remote control or panel, then select the correct input source (HDMI, VGA, AV, USB, Screen Mirror). Make sure the connected device is turned on and the cable is properly connected.

The projected image is blurry. How to improve it?

Adjust the manual focus ring on the lens. If the image remains blurry, adjust the projection distance. Note that slight blurriness at the edges is normal.

The image is keystone distorted. How to correct it?

Use the manual keystone correction wheel (KEYS) located on the projector. Turn it until you get a rectangular shape. If not enough, reduce the vertical height of the projector relative to the center of the screen.

How to connect my smartphone for screen mirroring?

Select 'Screen Mirror' in the source menu. For iOS: connect to WiFi 'RKcast-xxxxx' (password 12345678), then start AirPlay. For Android: use the 'Wireless projection' function or connect via the USB-T port with an original USB cable.

Why is there no sound with the VGA connection?

The VGA cable only transmits video signal. For sound, connect an external speaker to the projector's audio output or use an HDMI cable that carries both audio and video.

Netflix or Amazon Prime videos do not display in screen mirroring?

Due to copyright protection (DRM), platforms like Netflix, Amazon Prime Video, and Hulu are not supported in screen mirroring. Use an external device (e.g., Chromecast) or an HDMI connection.

How to update the projector firmware?

Download the update file to a USB drive, insert it into the projector's USB port, go to Menu > OPTION > USB Update and follow the on-screen instructions.

The remote control does not work. What to do?

Check that the AAA batteries are installed correctly (batteries not included). Point the remote at the projector's IR receiver. If the problem persists, contact Yaber support.

The projector does not turn on?

Make sure the power cable is plugged into a 100-240 V power outlet. Press the power button. If the indicator remains off, check the fuse or contact support.

What is the warranty of the Yaber V2?

Yaber offers professional lifetime support by email ([e-mail]). For manufacturing defects, please contact after-sales service with your order number.

USER MANUAL V2 Yaber

Line drawing of a projector device with front panel and internal components (no text or symbols)

INSTRUCTION MANUAL

YABER V2

Language

EN 01-23

DE 24-45

FR 46-67

IT 68-90

ES 91-112

JP 113-134

YABER Lifetime Professional Support

Dear Customer,

Woohoo! Your projector is already in your hands! Let's get started!

Do you have any questions on how it works? Please read this manual thoroughly before using the projector. Are you satisfied with your projector? If you have any issues, email your order number and description of your issue to: [e-mail]. Send your email ASAP, as we want to fix your issues the first time you have them.

Customers sometimes can experience some confusion when using the projector. Rather than trying to communicate directly with us, many buyers instead just leave a review on the product page. However, most negative reviews are caused by non-standardized use rather than a defect in the product itself. Actually, many problems can be easily solved by setting, such as no signal, no sound etc. We promise all the projectors have been carefully checked and packaged before shipping.

Therefore, if you have any questions, please contact us and give us an opportunity to improve. We guarantee that we will provide you more satisfactory solution.

Thanks for your understanding!

Best regards,

YABER TEAM

Product Packing List

•V2 Projector * 1

●3-in-1 AV Cable * 1

- Support Base*1

●Power Cord * 1

- HDMI Cable * 1

- Remote Control * 1

- Instruction Manual * 1

- Lens Cleaning * 1

(Batteries not included)

Some video tutorials please refer to YABER's YouTube channel: https://www.youtube.com/channel/UCcU4wy4vPRQa_uNcolDd2hA

Product Description

01 02 04 03 06 05 07 08

09 10 11 2 AV USB-T USB MD VISA 14 15

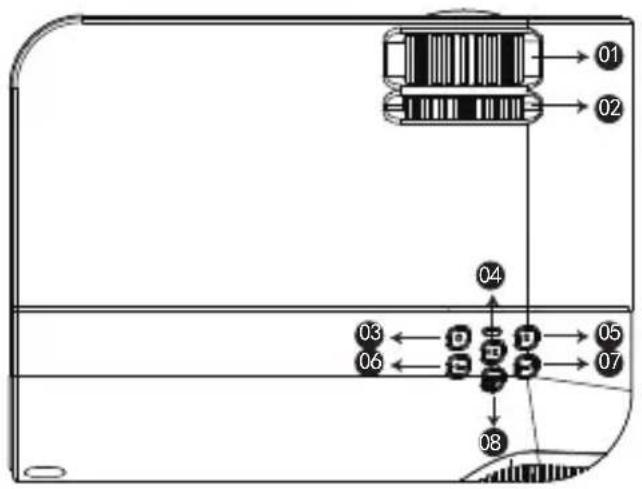

01.Focus Ring

1. Keystone Ring

03.Power

04.OK

05.Source

06.Left Move

07.Right Move

08.Return

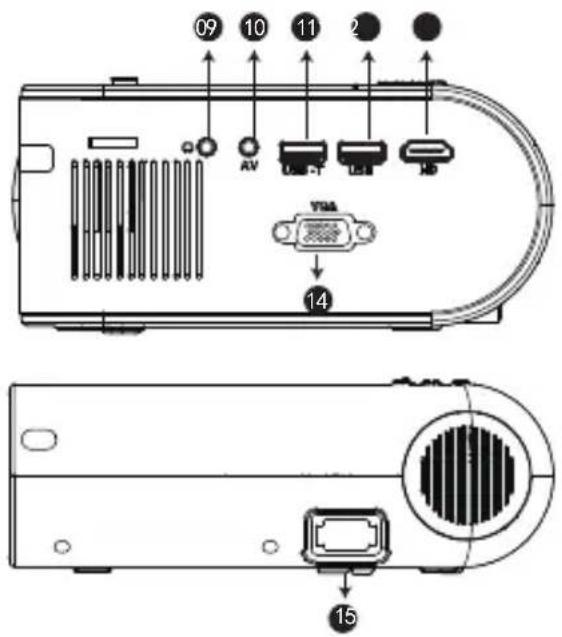

09.Earphone Port

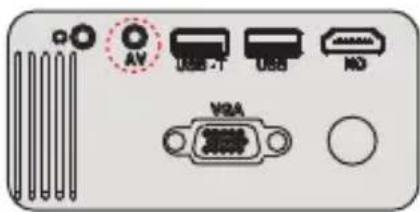

10.AV Port

11.USB-T

12.USB

13.HDMI

14.VGA

15.Power Cable Port

	Name	Description

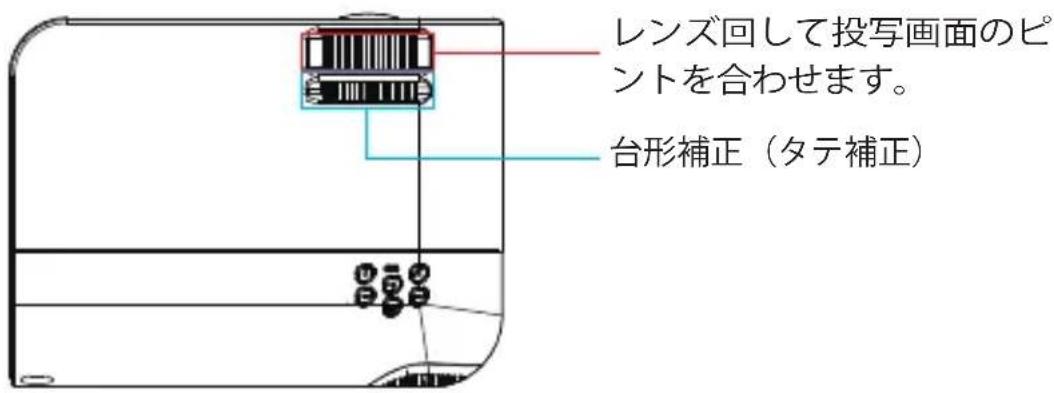

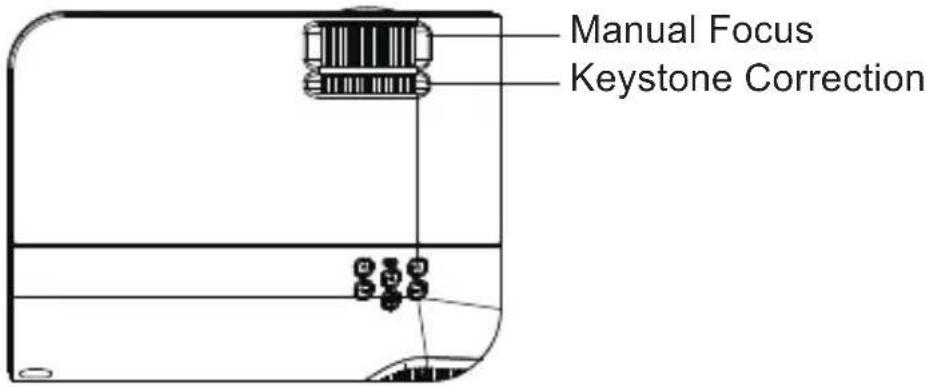

01	Focus Ring	Adjust the focus ring to get the clearest image.

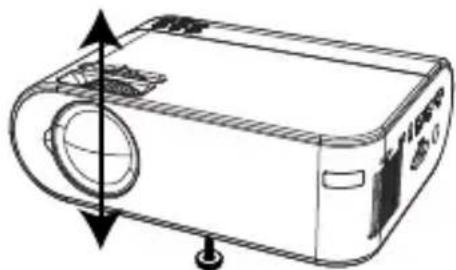

02	Keystone Correction	Adjust the keystone ring to get a rectangle shape.
03	Power	This button can lead the projector to working/ standby mode.
04	OK	Confirm

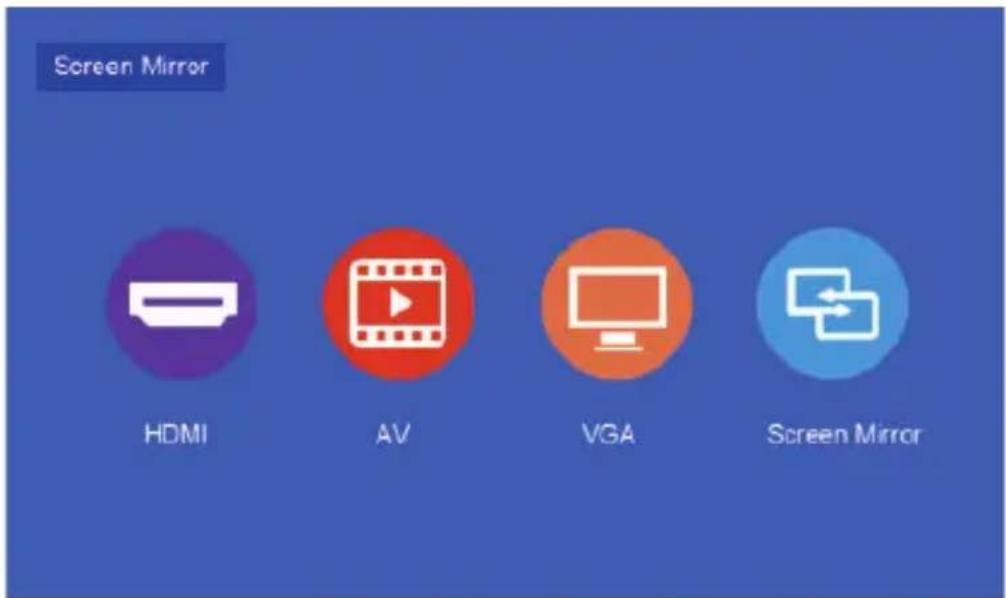

05	Source	Choose Source (Screen Mirror,PC-RGB,HDMI, USB, AV,etc.)
06	Left Move	Left Move
07	Right Move	Right Move
08	Return	Back
09	Earphone Port	Earphone port
10	AV Port	Audio input
11	USB-T	Wired screen mirroring port (With Original USB cable)
12	USB	USB port
13	HDMI	HDMI input
14	VGA	VGA input
15	Power Cable Port	Plug the power cable

Pictures shown are for illustration purpose only. Actual product may vary due to product enhancement.

Projector Specification

INative Resolution	1080*720p	Recommended Projection Distance	7-10 ft
Display Technology	LCD	Minimum Projection Distance	3 ft
Light Source	LED	Keystone Correction	±15°Manual
Display Colors	16.7M Full Color	Power Voltage	AC 100-240V
Aspect Ratio	4:3/16:9/auto	Projection Method	Front/ Rear /Ceiling
Projector Weight	2.2lb	Focus	Manual Operation
Picture File	bmp./jpg/png/gif	Audio File	AAC/MP2/MP3/PC-M/FLAC/WMA/AC3
Video File	AVI/ MP4/ MKV/ FLV/ MOV/ RMVB/ 3GP/ MPEG1/MPEG2/ XVID (WMV NOT Suported)
Port	AV, USB, USB-T, HDMI, VGA

Remote control
    note right of A (Batteries not included)

Replace the remote control battery

1. Push to open the battery cover.
2. Remove both old batteries and install new ones (AA). Make sure that the polarity of the batteries (+/-) is correctly aligned.

Thanks

Thank you very much for purchasing the YABER V2 projector. Please read this instruction manual carefully before use. Also, please keep it handy so you can check it at any time. If in doubt, do not hesitate to contact [e-mail]. We can provide after-sales service until satisfaction.

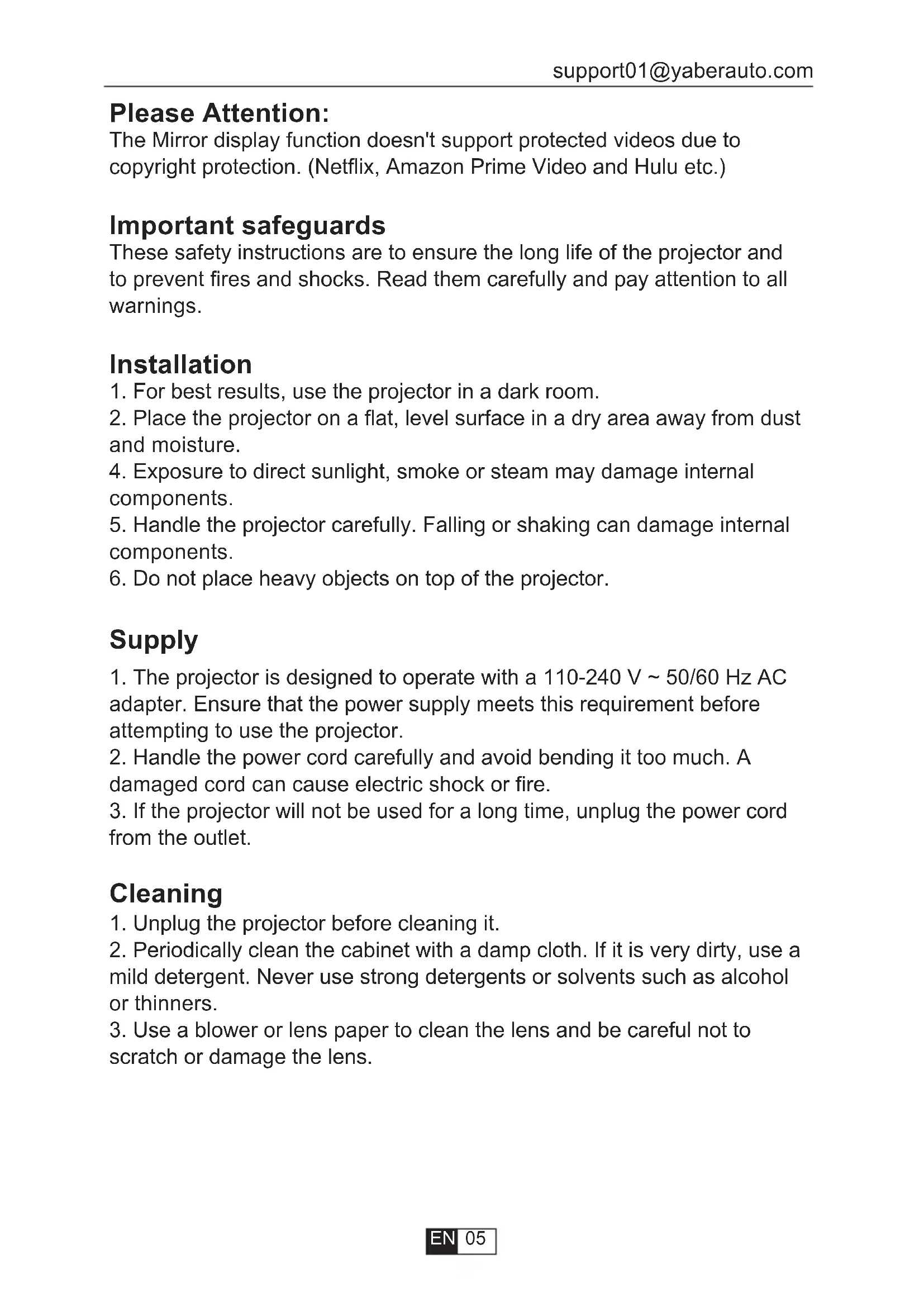

Please Attention:

The Mirror display function doesn't support protected videos due to copyright protection. (Netflix, Amazon Prime Video and Hulu etc.)

Important safeguards

These safety instructions are to ensure the long life of the projector and to prevent fires and shocks. Read them carefully and pay attention to all warnings.

Installation

1. For best results, use the projector in a dark room.
2. Place the projector on a flat, level surface in a dry area away from dust and moisture.
3. Exposure to direct sunlight, smoke or steam may damage internal components.
4. Handle the projector carefully. Falling or shaking can damage internal components.
5. Do not place heavy objects on top of the projector.

Supply

1. The projector is designed to operate with a 110-240 V \~ 50/60 Hz AC adapter. Ensure that the power supply meets this requirement before attempting to use the projector.
2. Handle the power cord carefully and avoid bending it too much. A damaged cord can cause electric shock or fire.
3. If the projector will not be used for a long time, unplug the power cord from the outlet.

Cleaning

1. Unplug the projector before cleaning it.
2. Periodically clean the cabinet with a damp cloth. If it is very dirty, use a mild detergent. Never use strong detergents or solvents such as alcohol or thinners.
3. Use a blower or lens paper to clean the lens and be careful not to scratch or damage the lens.

FAQ

1. At the time of switching on, the indicative light does not work

①. The power supply may not be well connected
②. Check the overheating protection system

1. Pressing the power button on the remote control does not turn on the projector

①. The remote control batteries are empty
②. The signal between the remote control and the IR sensor is obstructed
③. Strong direct light on the IR sensor?

1. No image on the screen

①. Is the channel setting correct?
②. Is there an input signal?
③. Is the input cable inserted correctly or is it in the wrong position?
④. In PC mode the refresh rate is>75KHz?

1. The image works but there is no sound

①. Are the input cables connected correctly?
②. Volume at minimum or silent
③. Check that the audio format of the video is in the supported list

1. Turns off automatically after being turned on for a while

①. Is there a barrier around the fan?
②. Small or large voltage fluctuations
③. Check the overheating protection system

1. I can not find devices connected with hard drives or flash drives

①. Re-insert the device
②. Check if the device is working

1. Unable to play video

①. Is the video format correct?
②. The file is corrupted?
③. The device is damaged

Screen Mirroring Methods

Warming Tips:

The fluency of screen mirroring with wireless connection will be affected by the network environment. A bandwidth of 100Mbit or more is recommended when using screen mirroring.
② Make sure your mobile device is close to the projector when using wireless connection. A distance within 1 meter is recommended.
3 Some mobile devices may not support screen mirroring due to the compatibility.
4 Any questions, please feel free to contact YABER via [e-mail]

Screen Mirror HDMI AV VGA Screen Mirror

File OK Cancel Apple Xiaomi Huawei Huawei Xiaomi Huawei Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Xiaomi Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung Samsung

At first, turn on the projector, press the "source" bottom on the remote, then it will shows "Input Source" option on the projection image. Choose the "Screen Mirroring", then press "OK" you will get this menu:

Wireless Projection Method

1. For iOS Users

Method 1: IP-Use Your Home WIFI Network

Step 1

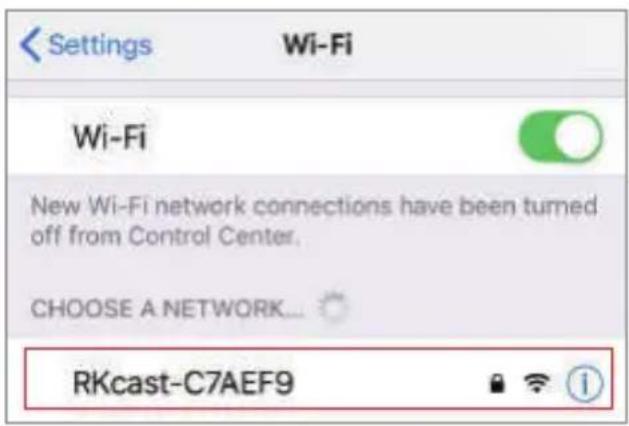

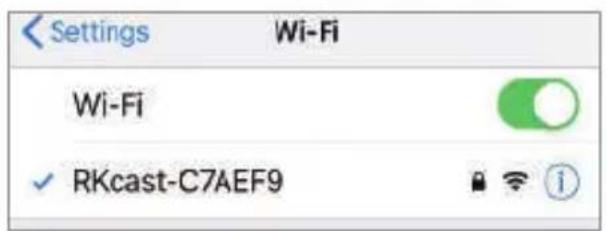

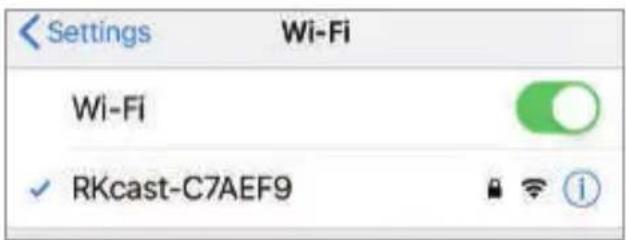

On your iOS device, tap [Settings] -[Wi-Fi] -Turn [Wi-Fi] ON. Available networks are shown.

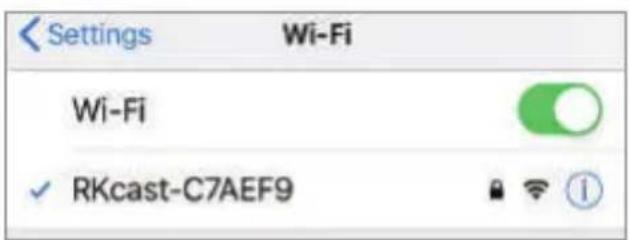

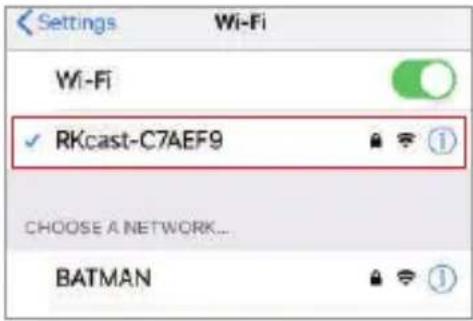

Choose the WiFi name like [RKcast-xxxxxx], Connect it and enter the password [12345678] which is on the Projector's menu.

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

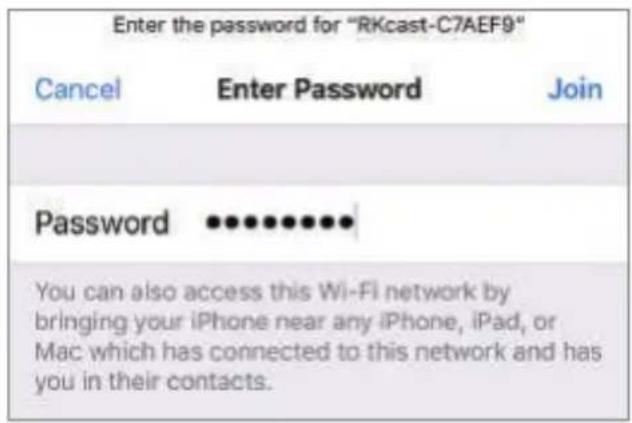

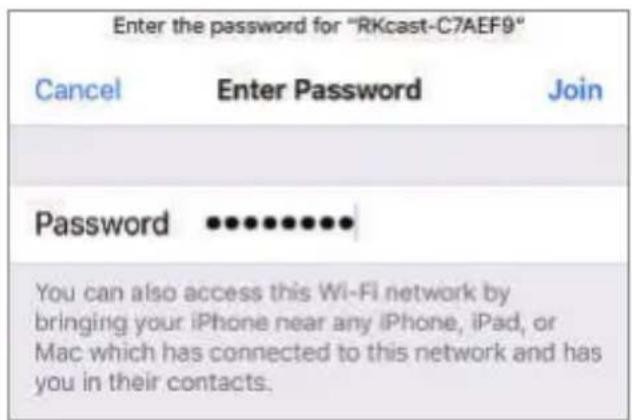

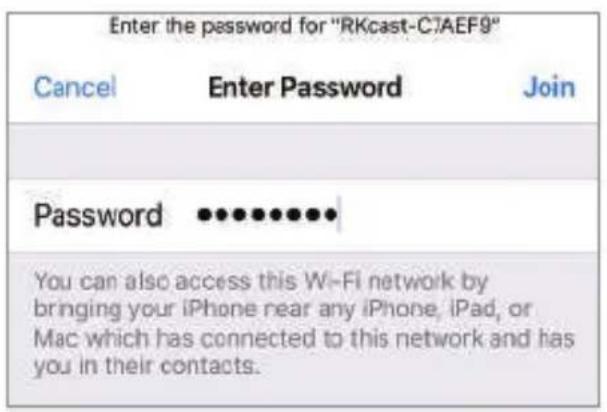

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

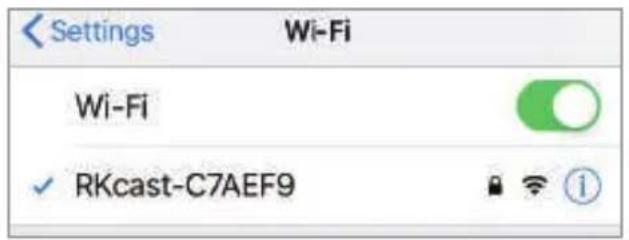

Settings Wi-Fi Wi-Fi RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connection

Note: After connecting, if "No Internet Connection" is displayed, please ignore it because it will not affect the use.

Step 2

① Go to Safari--Enter "192.168.49.1"

Notes Mail Safari P GabilBro...

192.168.49.1 Safari cannot open the page because the network connection was lost.

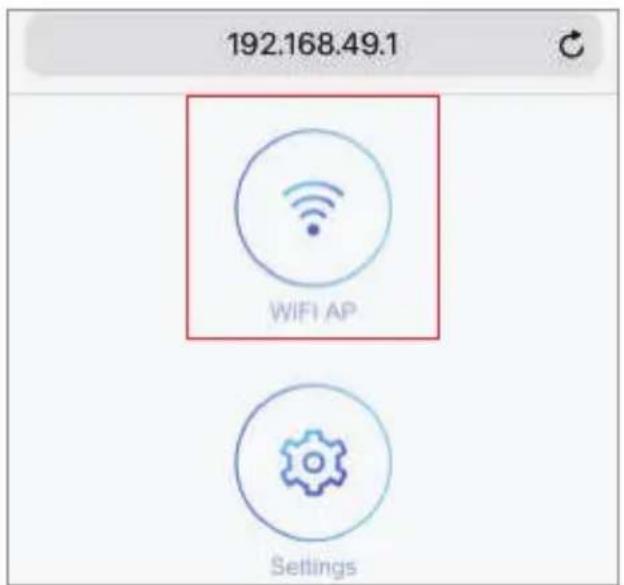

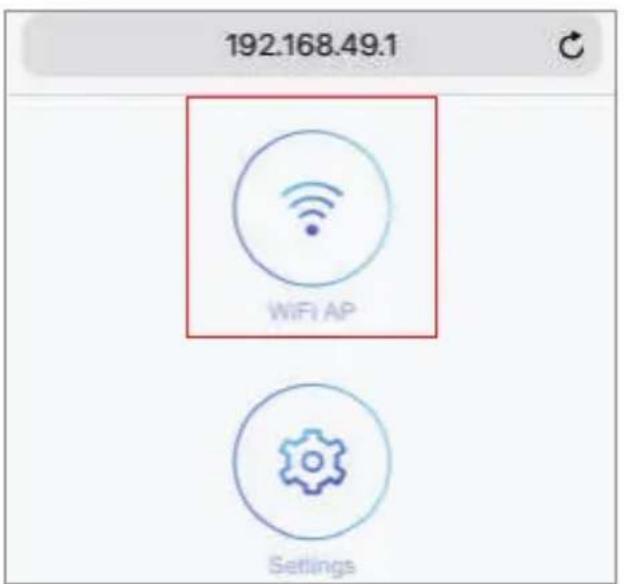

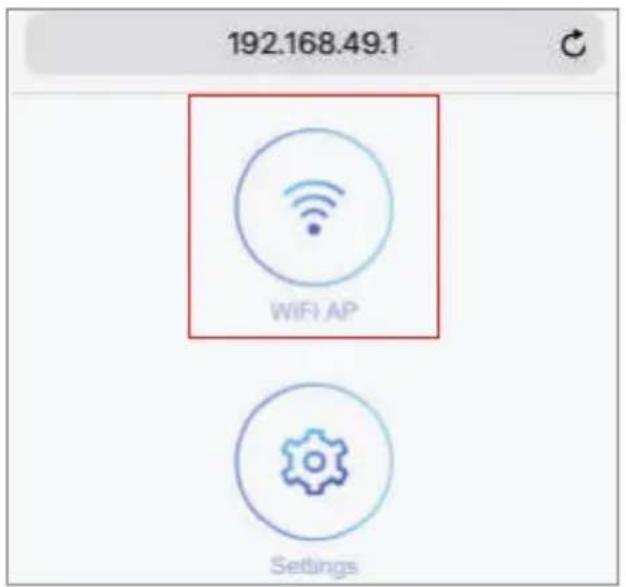

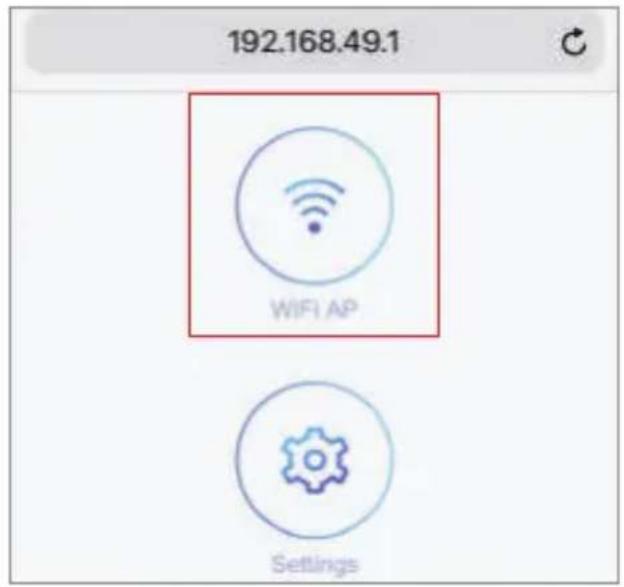

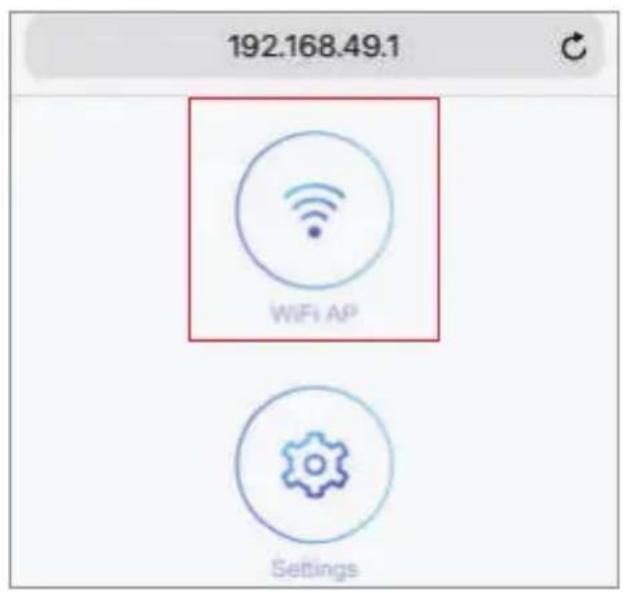

192.168.49.1 WiFi AP Settings

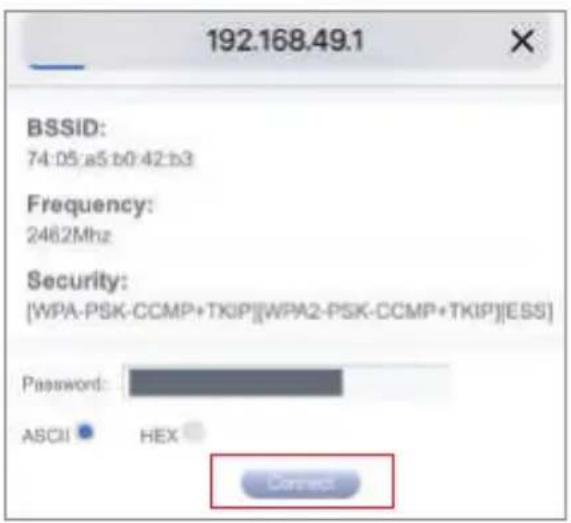

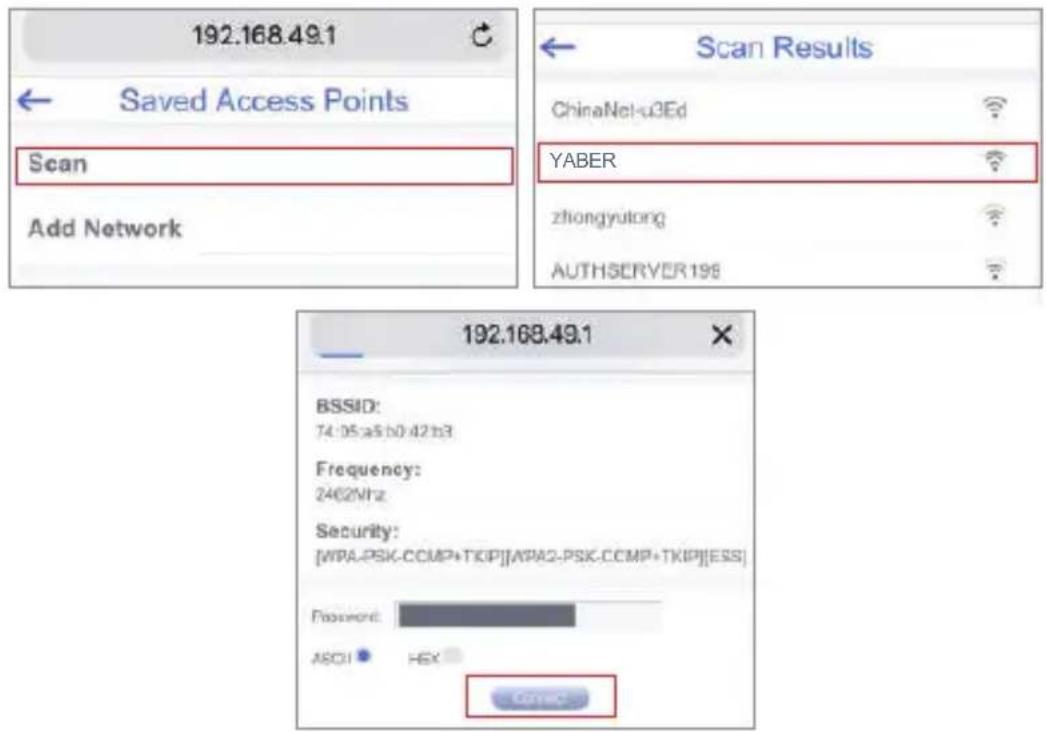

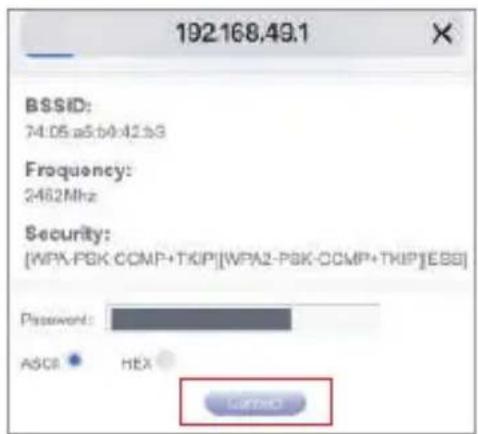

②Tap WiFi AP -- Scan-- Select your WIFI--enter your WiFi's password--Tap Connect

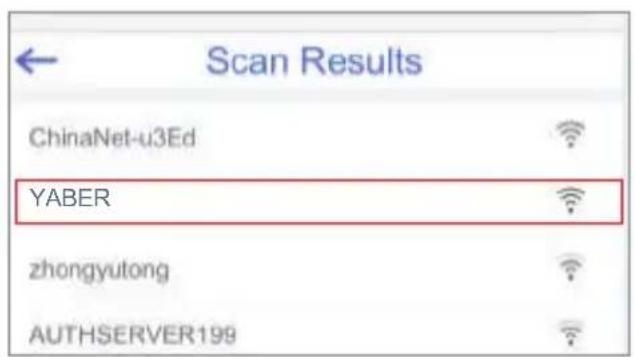

192.168.49.1 ← Saved Access Points Scan Add Network Scan Results ChinaNet-u3Ed YABER zhongyutong AUTHSERVER198 192.168.49.1 BSSID: 74:05:a5:b0:d2:b3 Frequency: 2462Nhz Security: [MPA-PSK-COMP+TKIP][APA2-PSK-COMP+TKIP][ESS] Password: ASCII HEX Close

Step 3

Open Control Center- Tap the Screen Mirroring button-Connect [RKcast-xxxxxx]

① Open control center.

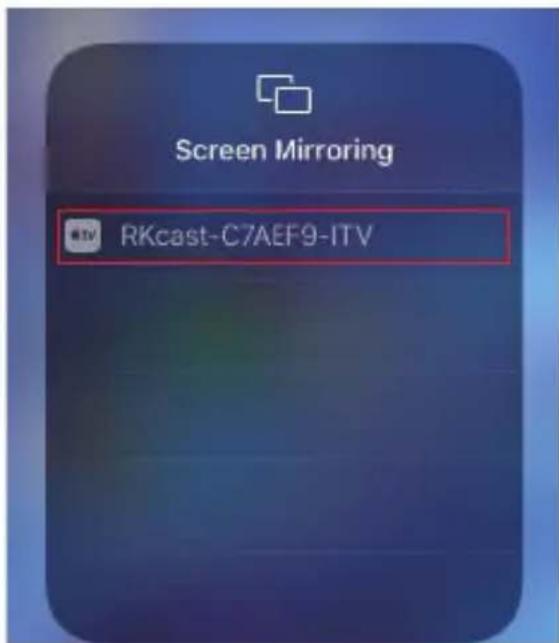

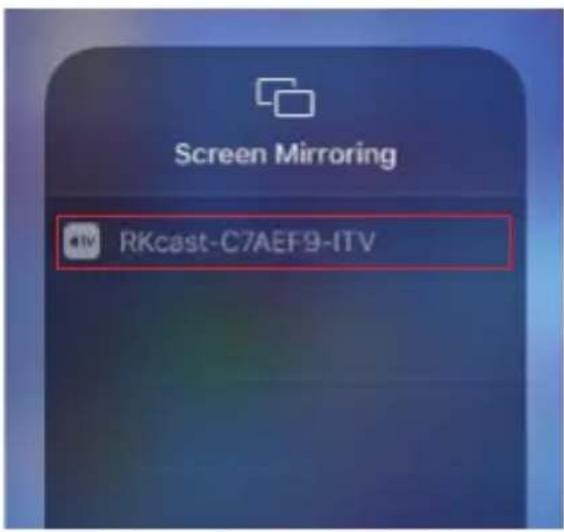

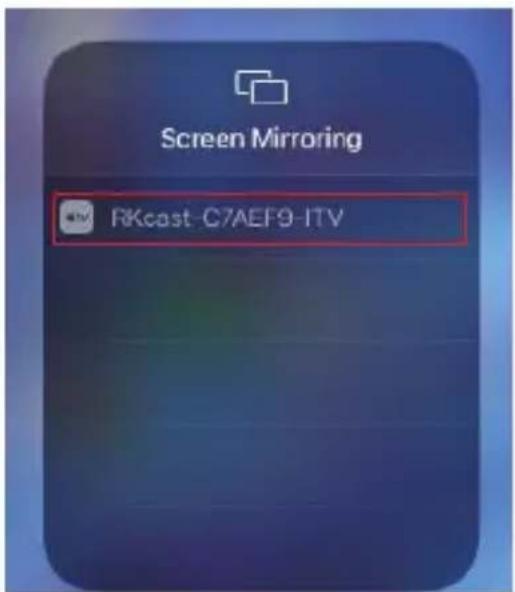

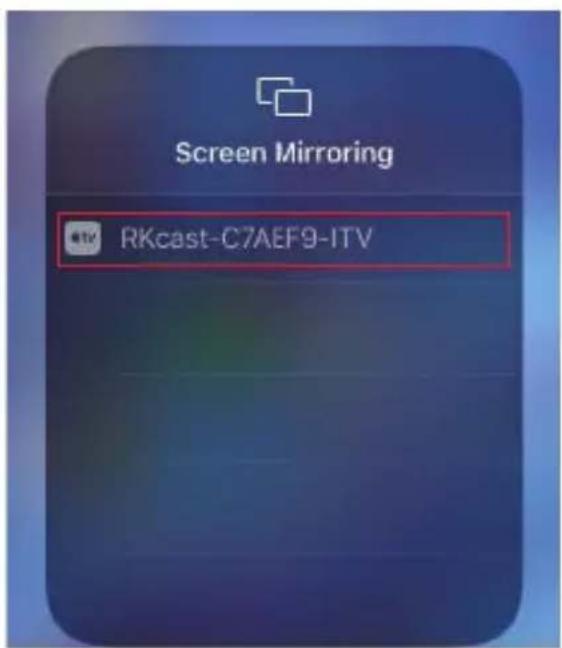

② Tap on Screen Mirroring-Select the Device name [RKcast-xxxxxx]

Music Screen Mirroring Screen Mirroring RKcast-C7AEF9-ITV

Method 2: AP-Use cellular network from your mobile phone card.

Step 1

On your iOS device, tap [Settings] -[Wi-Fi] -Turn [Wi-Fi] ON. Available networks are shown.

Choose the WiFi name like [RKcast-xxxxxx], Connect it and enter the password [12345678] which is on the Projector's menu.

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

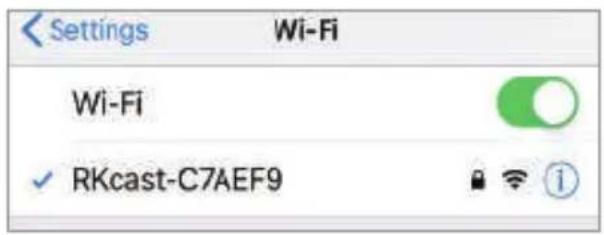

Settings Wi-Fi Wi-Fi ✓ RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connection

Note: After connecting, if "No Internet Connection" is displayed, please ignore it because it will not affect the use.

Step 2

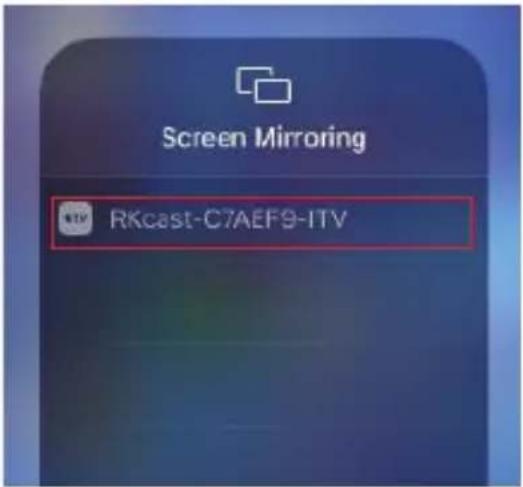

Open Control Center- Tap the Screen Mirroring button-Connect [RKcast-xxxxxx]

① Open control center.
② Tap on Screen Mirroring-Select the Device name [RKcast-xxxxx]

Music Screen Mirroring

Screen Mirroring RKcast-C7AEF9-ITV

2. For Android Users

Method 1: IP-Use Your Home WIFI Network

Step 1

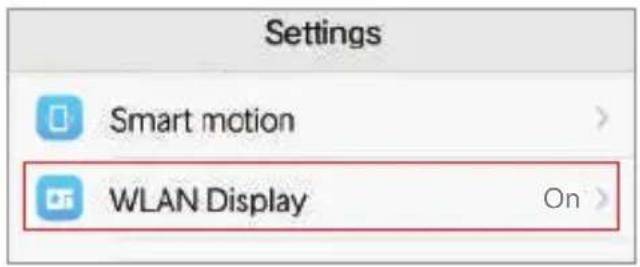

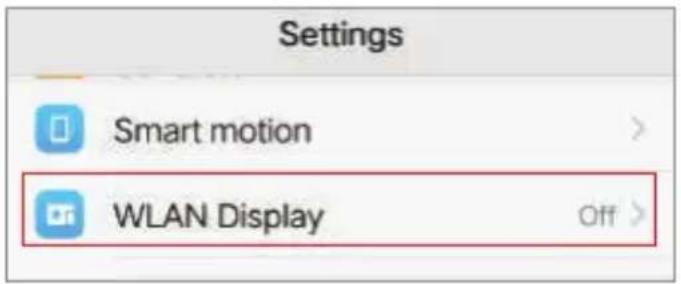

On your Android device, tap [Settings] -[WLAN Display] -Turn [Wi-Fi] ON. Available networks are shown.

Settings Smart motion WLAN Display On

Note: different brands of Android phones have different operations for select WLAN Display, please refer to your phone's manual.

Step 2

Choose your home WiFi name (Ex. YABER), Connect it and enter your password [XXXXXXXX].

WLAN Display WLAN Display Search for displays Device list YABER

Step 3

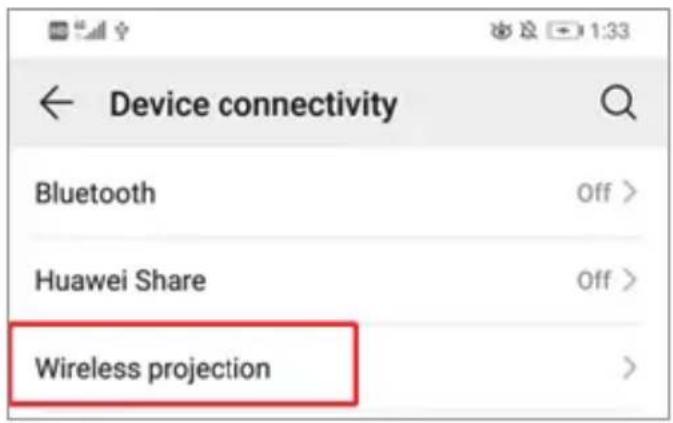

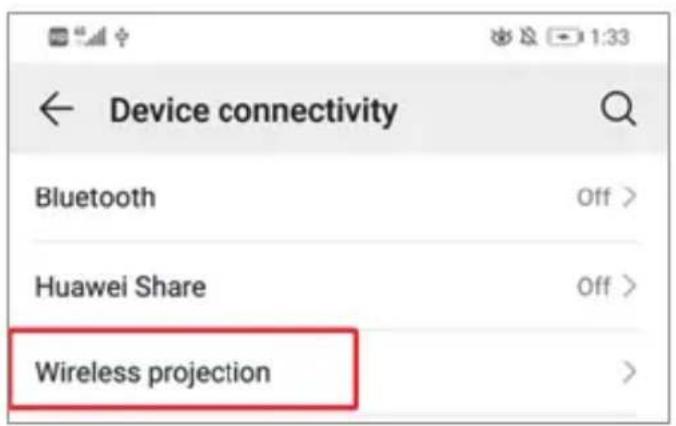

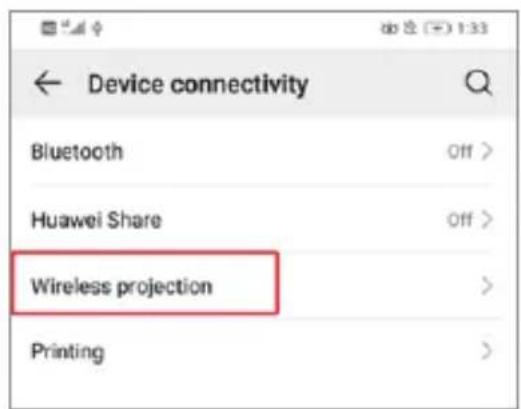

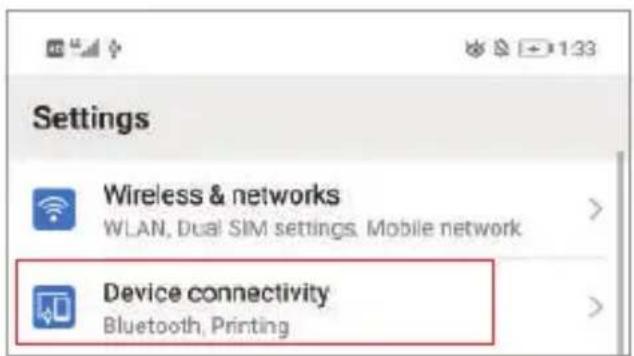

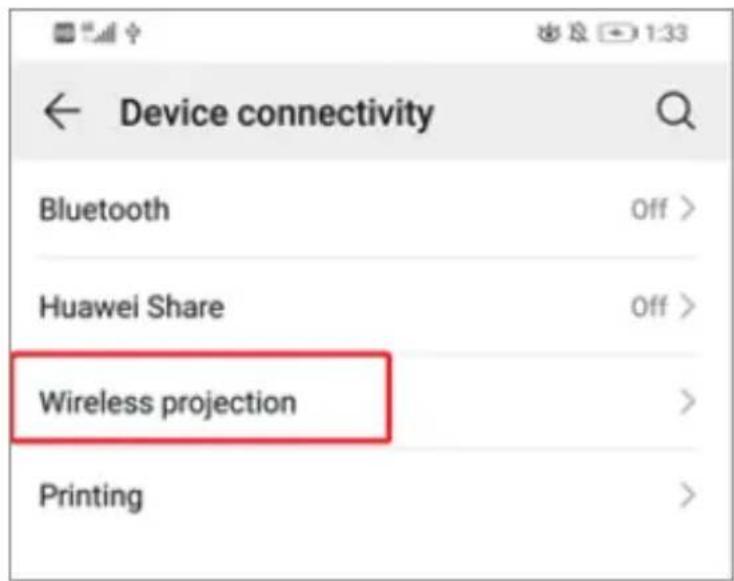

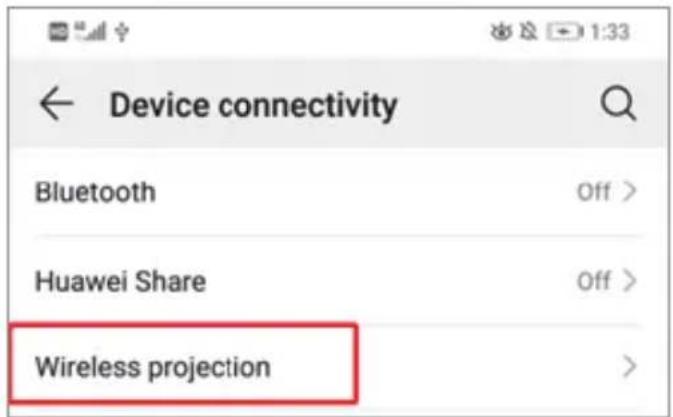

Tap [Settings] - [Device connectivity] - Turn [Wireless projection] ON

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

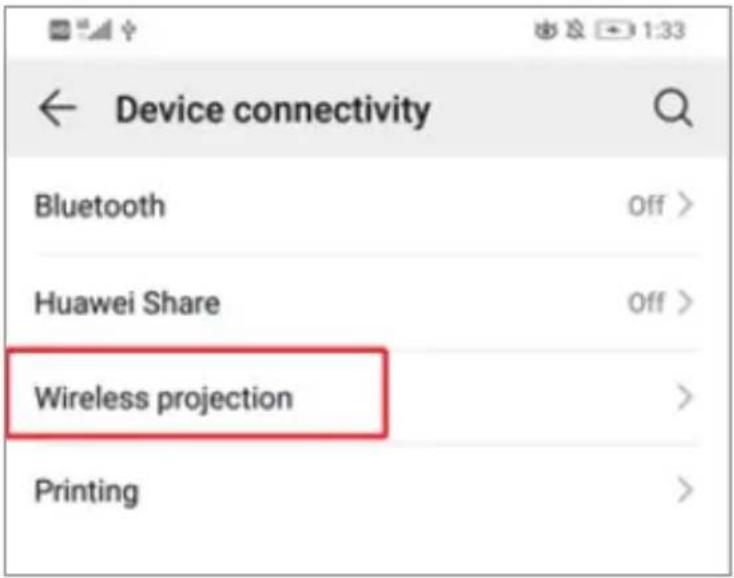

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection >

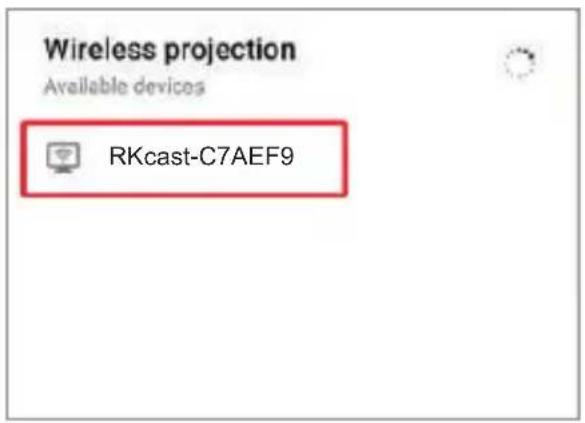

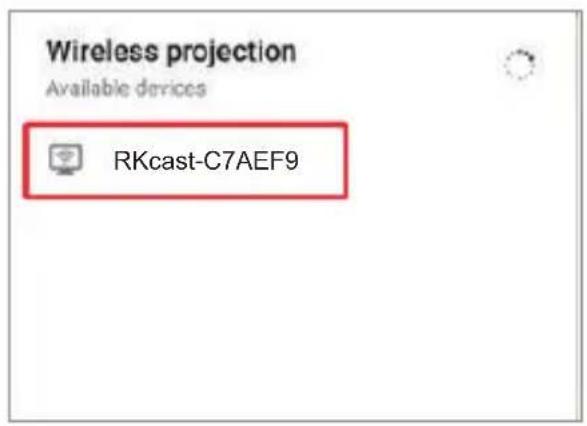

Wireless projection Available devices RKcast-C7AEF9

Method 2: AP-Use cellular network from your mobile phone card.

Step 1

On your Android device, tap [Settings] -[WLAN Display] -Turn [Wi-Fi] ON. Available networks are shown.

Settings Smart motion WLAN Display Off >

Note: different brands of Android phones have different operations for select WLAN Display, please refer to the phone's manual.

Step 2

Choose the WiFi name like [RKcast-xxxxx], Connect it and enter the password [12345678] which is on the Projector's menu.

WLAN Display WLAN Display Search for displays Device list RKcast-C7AEF9

Step 3

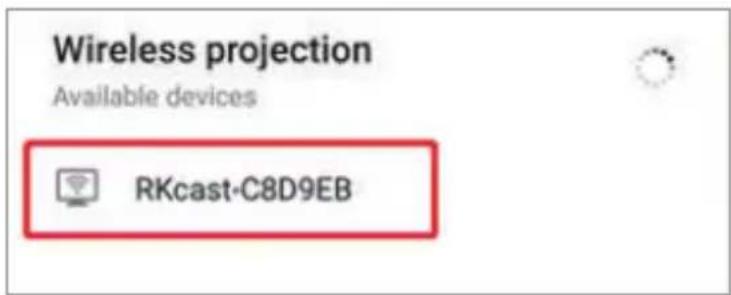

Tap [Settings] -[Device connectivity] -Turn [Wireless projection] ON-Select the projector name like [RKcast-xxxxxx]

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection Printing >

Wireless projection Available devices RKcast-C8D9EB

Wired Screen mirroring (With Original USB cable)

For IOS

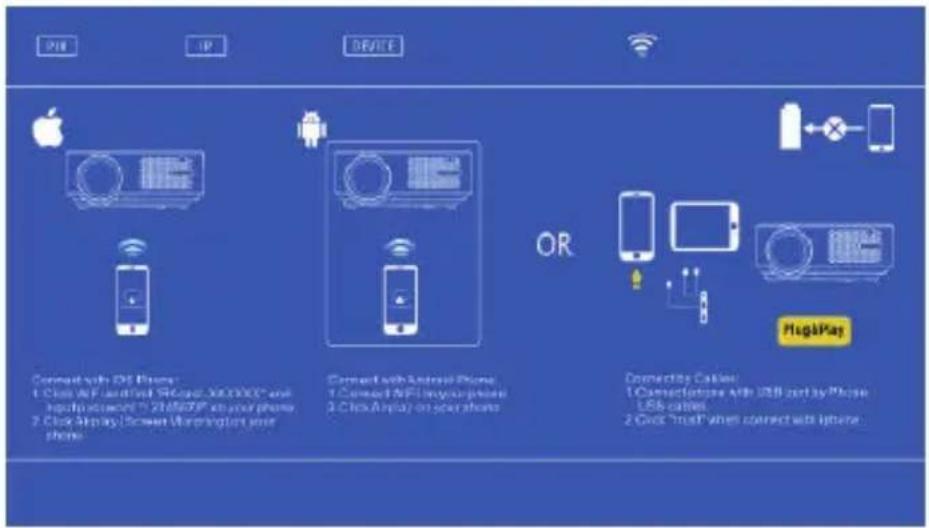

1. Turn on the projector -- Press the "S" button on the remote -- "Input Source" -- Select "Screen Mirroring" -- Press the "OK" button.

PUB IP DEVICE OR Connect with iOS Phone: 1. Class Wi-Fi card/3.9GHz, 30000C* and high penetration* 21680F* all your phone 2. Click Ship by Screen Washington your phone. Connect with Android Phone: 1. Connect WiFi on your phone 2. Click Apache on your phone Connect via Caller: 1. Connect via USB card by Phone USB carder 2. Click 'trust' when connects with iPhone PlugPlay

1. Plug the original cable of your IOS equipment to the USB-T Port.
2. Show with "Do you trust this equipment?", tap "Trust".

For Android

1. Turn on the projector -- Press the "S" button on the remote -- "Input Source" -- Select "Screen Mirroring" -- Press the "OK" button.
2. Plug the original cable of your Android equipment to the USB-T Port.
3. On the "Do you allow debugging via USB?" Prompt, tap "OK".
4. After a while, Android screen will be displayed on the projector.

Warming Tips:

1 The USB cable MUST be the ORIGINAL cable or the cable which can transfer the data, otherwise screen mirroring may fail. You can plug the cable into your laptop to check the availability of transferring the data.
2 Some mobile devices may not support screen mirroring due to the compatibility.
3 Some Android mobile devices may only transfer the display without audio due too the protocol restrictions.

PROJECTOR CONNECTIONS

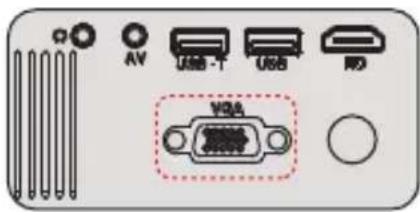

1. Connecting to the Computer

Using the HDMI or VGA cable to connect with projector.

(An HDMI connection is recommended for projecting movies, videos, and other files which need to be HD.)

(1)Turn on your computer and the projector;
(2)Connect the HDMI/VGA cable to your computer's HDMI/VGA port;
(3)Connect the other end to any available HDMI/VGA port on your projector;
(4)Press the "Source" button to enter the interface of Input Source;
(5)Select HDMI/ PC-RGB source to project any files on your computer;

(6)On your laptop, hold down the keyboard keys ☑ Win + P to change your display mode:

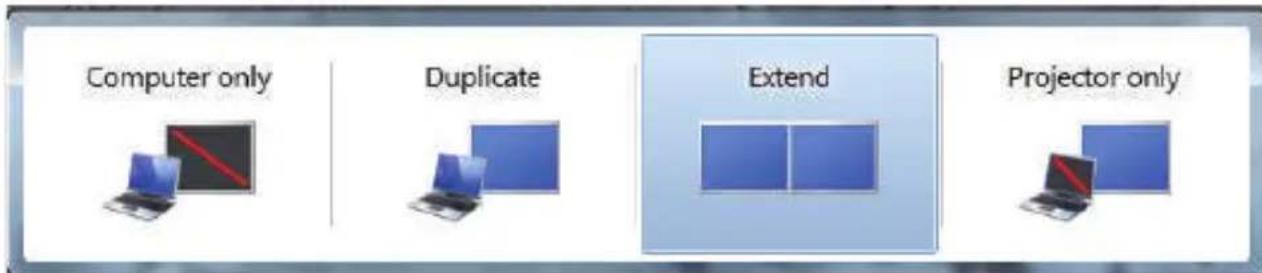

Computer only Duplicate Extend Projector only

Computer only: is the default option – only displays on the main monitor.

Duplicate: makes all of the monitors display the same thing duplicating the desktop on each monitor.

Extend: makes all of your monitors act like one big monitor extending the desktop across all of them

Projector only: Displays only on the secondary monitor like a projector

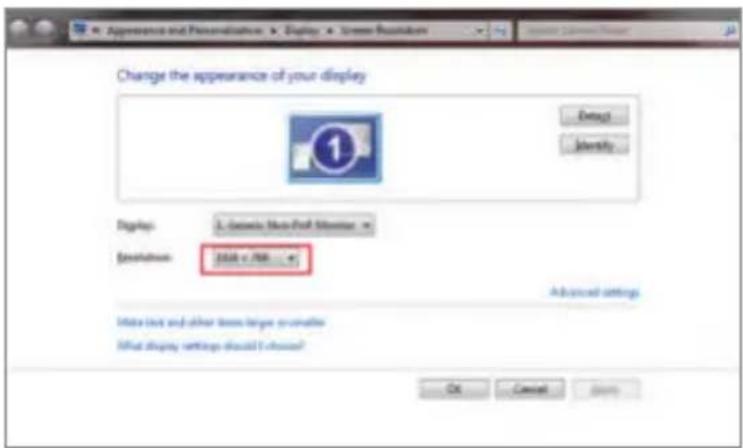

(7)You can change your screen resolution:

Choose Start→Control Panel→Appearance and Personalization → Adjust Screen Resolution

Appearance and Personalization: Display Screen Bookstore Change the appearance of your display Display: A. generic Non-Port Monitor Formatize: 2016e-098...w Advanced settings Note list and other items target coordinates What display settings should be chosen? OK Cancel Apply

(Note: VGA connection can only transmit analog signal of video not audio. An external speaker is required when the device is connected via VGA cable.)

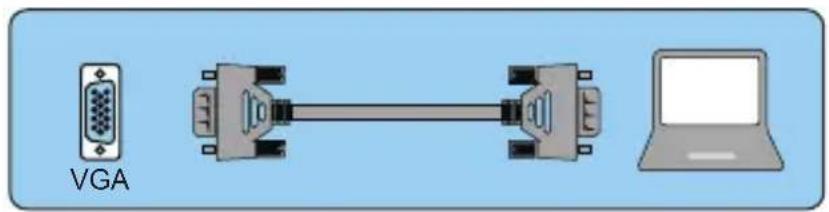

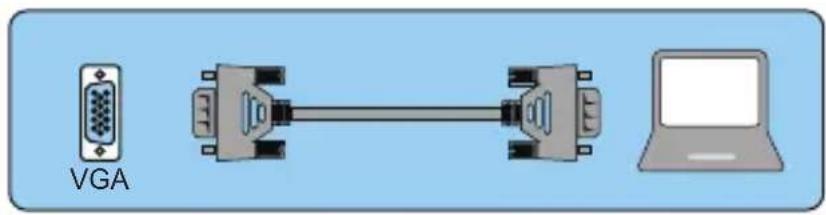

AV USB-T USB RD VGA

Diagram showing VGA, audio jack, and laptop connected in a line (no text or symbols on components)

2. Connecting a DVD player

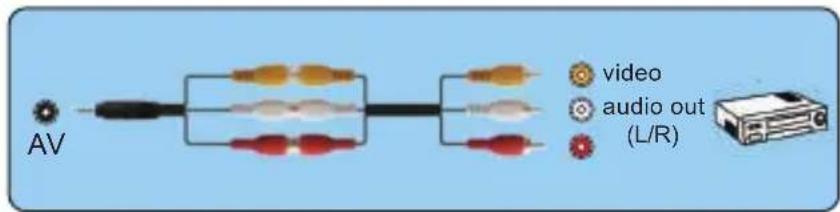

1. Use the supplied AV cable to connect the DVD player to the projector.

2. Turn on the projector and DVD player.

If your player has an HDMI output, it is best to use it over the analog (AV) option. Audio output must be configured from the DVD player menu if external speakers are installed.

AV USB-T USB MD VGA

AV video audio out (L/R)

(3-in-3 AV cable not included)

3. Connect the soundbar

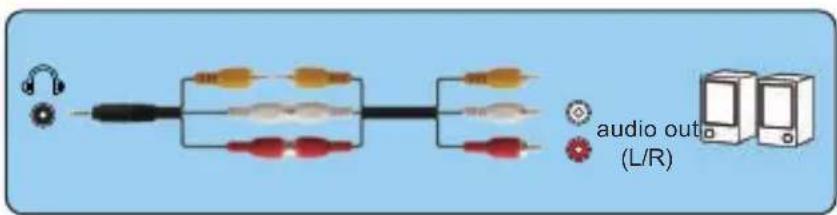

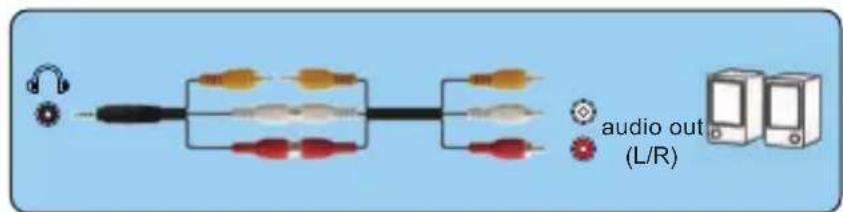

1. Use the supplied AV cable to connect the soundbar to the projector.
2. Turn on the projector and the sound bar.

AV USB -T USB WD VGA

audio out (L/R)

(3-in-3 AV cable not included)

Adjust the Tilt Base and Hang Ceiling

Adjust the tilt base:

Install the screws (included in the package) to place ①, lift the front edge of the projector to the desired height, turn the presser foot and release the button to lock the tilt base to the appropriate position.

Hang ceiling:

Please purchase the projector stand and M5 screw additionally.

Install the projector stand to place ①, and hang the projector on the ceiling.

( Note: You can install the Tripod Stand to the place ① )

Technical diagram of a device rear panel with labeled component (①) and internal features

STARTING PROJECTOR

Turn on the projector

1. Install two AAA batteries in the remote control before using.

2. Press the Power key on the remote or panel, the indicator light will turn red.

3. Remove the lens cover of the projector, the lamp will start working 2 seconds later, when an image is projected on the screen the machine is working smoothly. If the first projection screen is not the start up screen, press the "S" button on the remote and select USB source.

4. Adjust the keystone ring to get a rectangle shape.

5. Adjust the focus ring or rotate the lens of the projector to get the best image performance. (If it is still blurry, please try to adjust the projection distance.)

6. If you connect other devices, be sure to select the corresponding source. If you do not select the correct source, the projector will not be able to detect the signal.

7. Press the Menu button on the remote control to enter the OSD Language to set your preferred language;

Turn off the projector

1. Press the Power button when the projector is in use, this will cause it to switch to standby mode.
2. When the projector switch into standby mode, the light will blink red.

Keystone and Focus

If the projected image is in a trapezoidal shape, it can be resolved by Keystone correction. ( Do Manual Keystone Correction )

Manual Focus Keystone Correction

Note: If the Keystone correction fail to resolve image shape, please reduce the vertical height of the projector in relation to the center of the screen.

Three gray geometric shapes with arrows indicating transformation from a trapezoid to a rectangle, then to a trapezoid (no text or symbols)

The projected image may be blurry or difficult to see, this is due to lack of Focus adjustment with the lens, please follow the processes below to adjust the Focus. ( Do Manual Focus, find the most sharpness picture on the screen )

Note: It is normal when sharpness in the central, blur in the edge.

Setting the Main Menu:

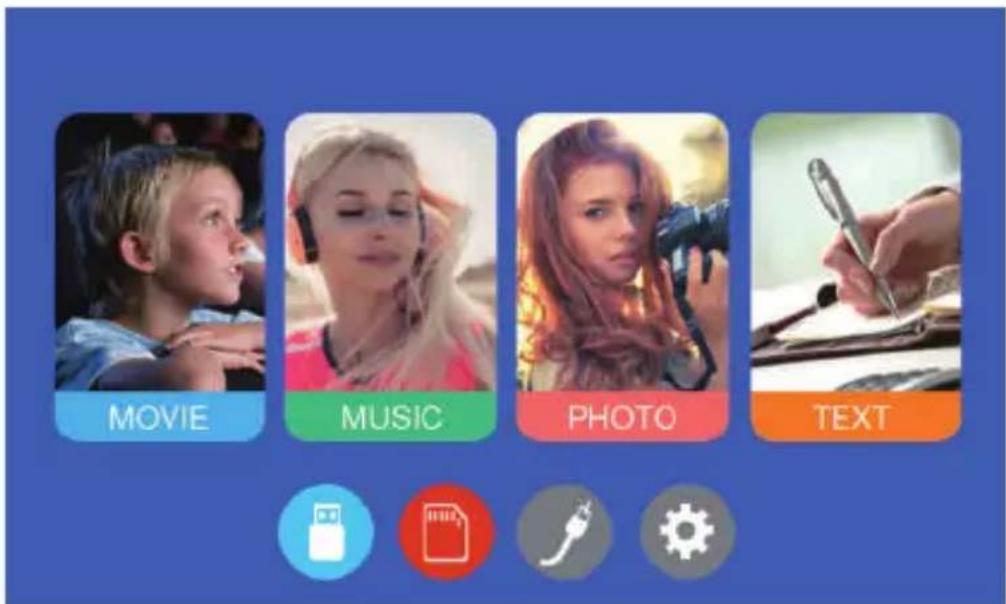

The projector's normal start up screen is as follows. If the first projection screen is not this one, press the “ ➕ ” button on the remote control to select USB source.

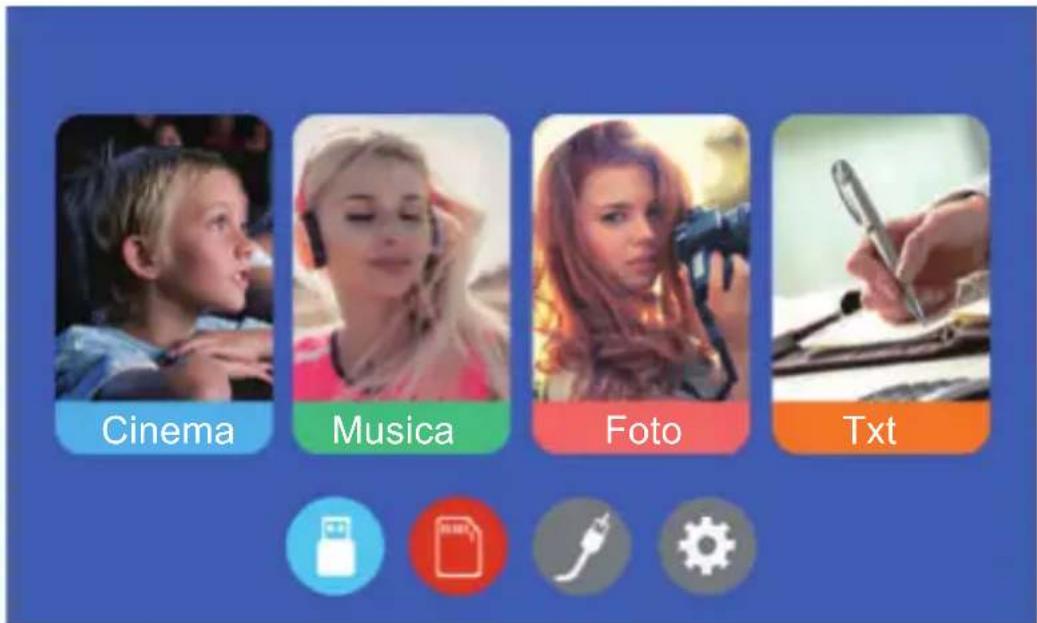

MOVIE MUSIC PHOTO TEXT

Select the Input Source

When the "No Signal" prompt appears, you need to select the input source:

1. Press the “☐” button on the remote control to select the desired signal, then press the OK button on the remote control.
2. Once the signal is detected, the selected source information will be displayed on the screen after a few seconds.

Screen Mirror HDMI AV VGA Screen Mirror

Menu Setting Method

1. Press the “☐” on the remote, then the menu picture will display on screen.

Or you need to select the “ ” key on the projector to enter the 4 menus without the remote control

1. Press“◀/▶”key, the menu will move to “PICTURE”>“SOUND”>“TIME”>“OPTION”.
2. Select the adjust interface, use "▲/▼" key to choose the wanted item.
3. Press "OK" or "◀/▶" to adjust the item parameter.

PICTURE MENU

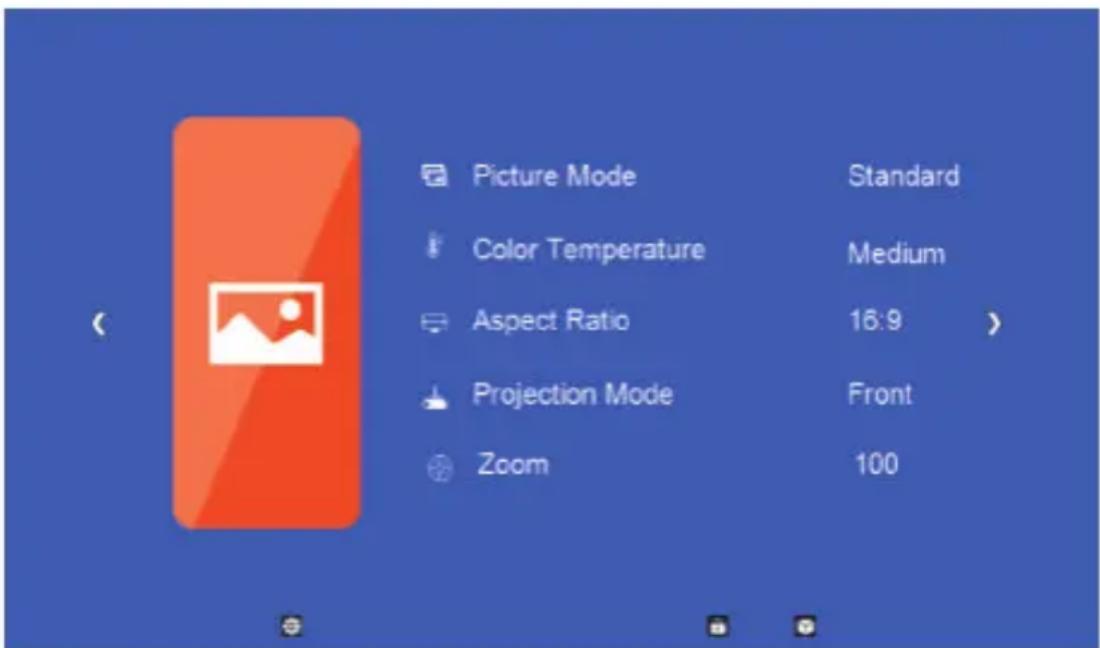

Picture Mode Color Temperature Aspect Ratio Projection Mode Zoom Standard Medium 16:9 Front 100

PICTURE MENU MODE FUNCTION
Picture Mode Standard, Soft, User, Vivid		Switch among the image mode
Color Temperature	Medium, Warm, User, Cool	Switch among the color temperature mode
Aspect Ratio	Auto/ 4:3/ 16:9	Set up the aspect ratio of the image.
Projection Mode	Front/Rear on Desk, Front/ Rear on Ceiling	Set up the projection mode
ZOOM	75%-100%	Reduce the screen size from to -25%

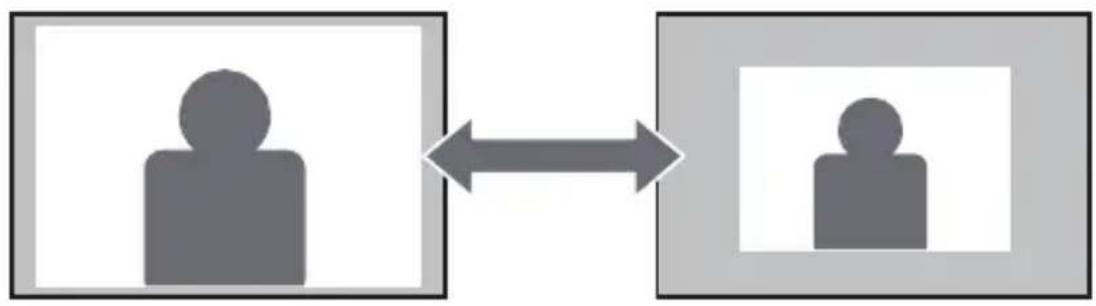

When playing an image or video, if you want to reduce the size of the projected image or video, you can use the remote control to select the ZOOM to adjust the projection size:

You can reduce the height and width of original size up to -25%.


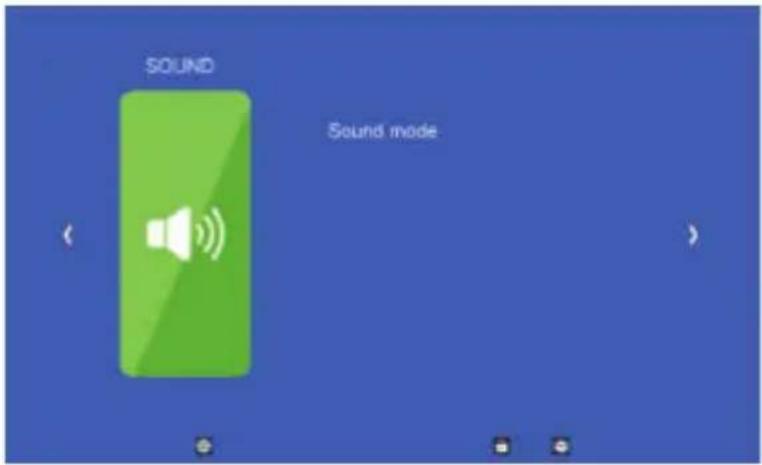

SOUND MEMU

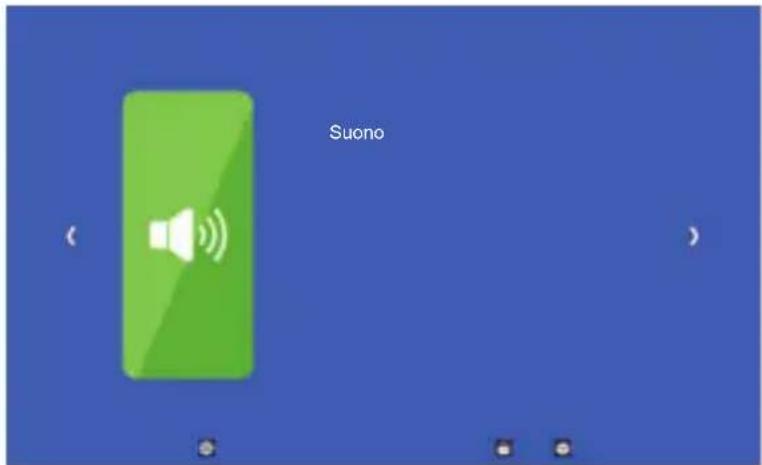

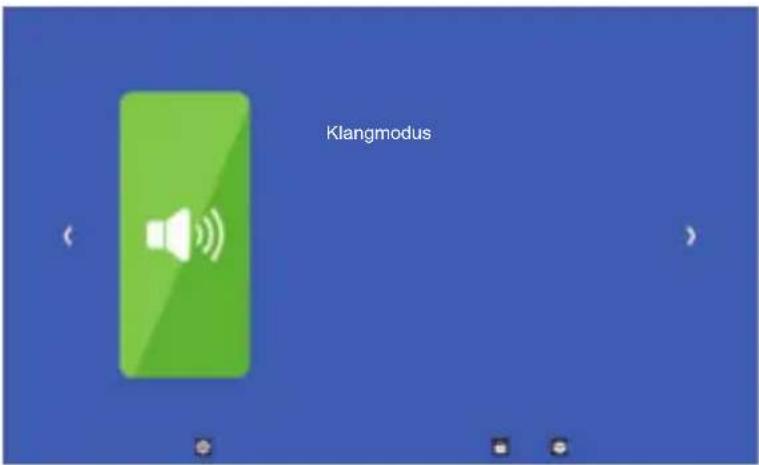

SOUND Sound mode

SOUND MENU	MODE FUNCTION
Sound Mode	User,Standard,Music,Movie,Sports	Set up the sound mode

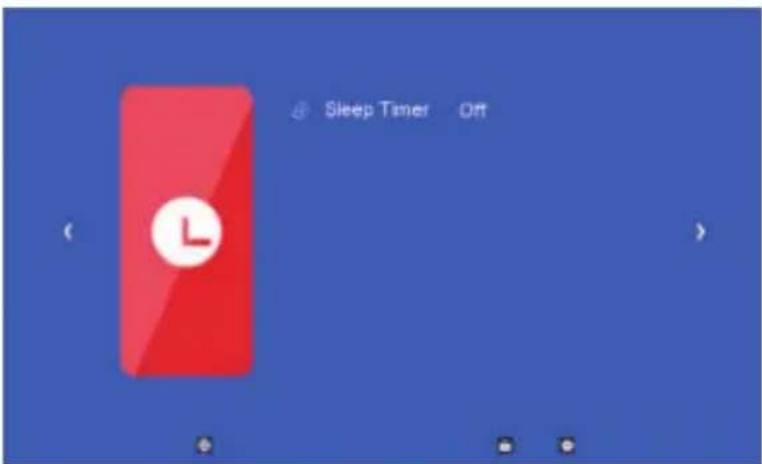

TIME MENU

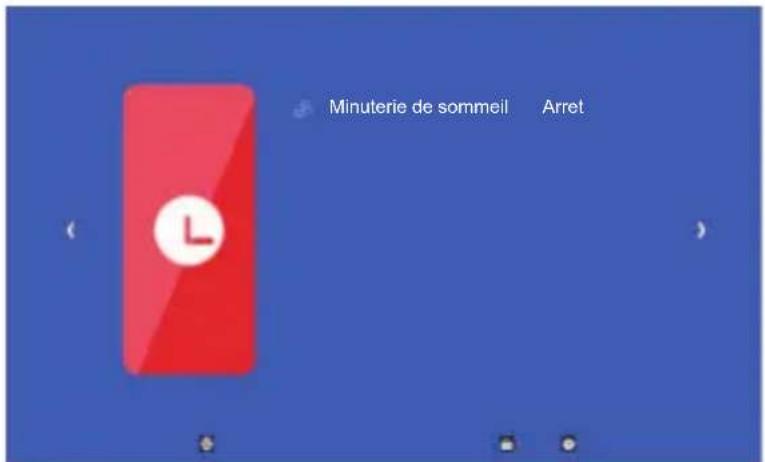

Sleep Timer Off

SOUND MENU	MODE FUNCTION
Sleep Timer	Off/10min/20/min,etc.	Shut off the projector after a set amount of time.

OPTION MENU

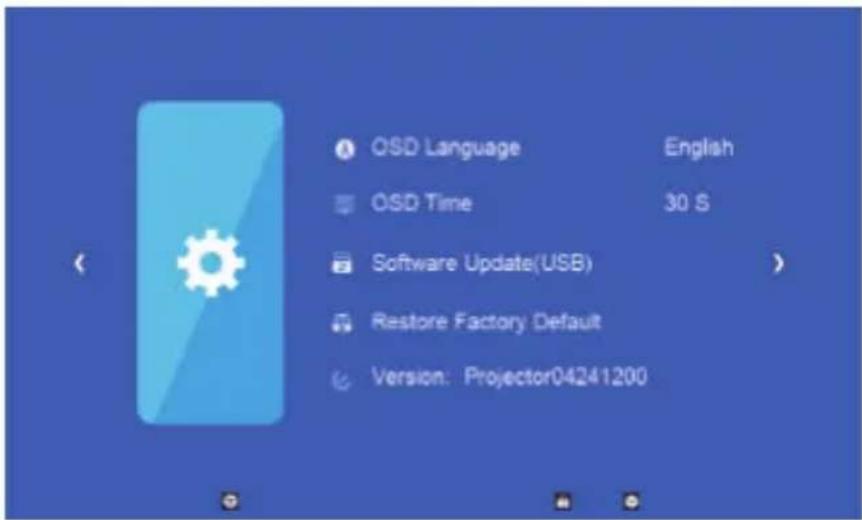

OSD Language English OSD Time 30 S Software Update(USB) Restore Factory Default Version: Projector04241200

OPTION MEMU MODE FUNCTION
OSD Language	English, France, Italian, Spanish,etc.	Set up the language displayed in the operation interface
OSD Time	Off, 5Sec, 10Sec, 15Sec	Adjust the duration of keeping the menu interface
Software Update(USB)	Update software	Update the projector's software version
Restore Factory Default		Reset the projector
Version		Show the version

Projection Distance and Size

Please follow the data in chart below, to adjust the image size and the distance. (Aspect Ratio: 16 : 9, Default)

Distance (ft.)	Screen Size
3.4	33"
5.9	60"
7.8	80"
9.7	100"
11.6	120"
14.4	150"

The image size depends on the distance between projector and screen, there may be 3% deviation among above listed data. Different settings cause various distances.

Thank you very much for purchasing the YABER V2 projector.

Please read this instruction manual carefully before use. Also, please keep it handy so you can check it at any time.

If you have any problem, please feel free to contact us

(Email: [e-mail]), we will always try to offer you a satisfactory solution.

Technical diagram of a device rear panel with labeled component (①) and internal features

Three gray geometric shapes with arrow indicators, no text or symbols present

Computer only Duplicate Extend Projector only

Change the appearance of your display: Display: 3. Immune Non-PoT Motion Exclusion: 104 x 360 Advanced settings: Make test and other devices target or whether What display settings should be used? OK Cancel Apply

AV USB -T USB MD VGA

VGA

AV video audio out (L/R)

AV USB -T USB MD VGA

audio out (L/R)

PRICE PRICE ORDER Apple iPhone Connected AR: DC Phone 1. Connected to the iPhone 20000000000000000000000000000000000000000000000000000000000000000000000000 Connected with Windows Phone 1. Connected to the iPhone 25 GHz delivers 2. Connect to the iPhone 25 GHz delivers in your phone OR Connect to Windows Phone 1. Connected to the iPhone 25 GHz delivers in your phone Google App Store 1. Connected to the iPhone 25 GHz delivers in your phone Google App Store 1. Connected to the iPhone 25 GHz delivers in your phone

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

Settings Wi-Fi Wi-Fi ✓ RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connection

192.168.49.1 Safari cannot open the page because the network connection was lost.

192.168.49.1 WIFI AP Settings

192.168.49.1 ← Saved Access Points Scan Add Network

Scan Results ChinaNet-u3Ed YABER zhongyulong AUTHSERVER199

192.168.49.1 RSSID: T4:05:a5:b0:42:b3 Frequency: 2/62MPa Security: {WPA-PSK-CCMP+TKIP}[WPA2-PSK-CCMP+TKIP][ESS] Password: ASCII HEX

Schritt 3

Music Screen Mirroring

Screen Mirroring TV RKcast-C7AEF9-ITV

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

Settings Wi-Fi Wi-Fi ✓ RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connections

Music Screen Mirroring

Screen Mirroring #TV RKcast-C7AEF9-ITV

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection >

Wireless projection Available devices RKcast-C7AEF9

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection Printing >

Wireless projection Available devices RKcast-C8D9EB

OR Connect with iOS Phone 1. Click Wi-Fi and 3G86-XXXXXX" and inputphone "214507E" on your phone. 2. Click Airplay screen Wi-Fi on your phone. Connect with Android Phone 1. Connect Wi-Fi on your phone 2. Click Airplay on your phone. Connect with Gables 1. Connect Gables With USB port by iPhone USB cables. 2. Click that when connect with Google

Sound-Menü

Klangmodus

Technical diagram of a device component with a circular inset showing internal structure and a labeled part (15), no readable text or symbols present.

Technical diagram of a device rear panel with labeled component (①) and internal features

PROJECTEUR DE DÉPART

Three gray geometric shapes with arrow indicators, no text or symbols present

Computer only Duplicate Extend Projector only

Appearance and Presentation: Display + Screen Promotion Change the appearance of your display Display: S. Generic Macro-Prot Monitor Resolution: 2004 + 300 Advanced settings: Selected and other devices target or smaller What display settings should choose? OK Cancel Apply

Diagram showing VGA, two connected audio/video cables, and a laptop (no text or symbols on components)

AV USB -1 USB MD VGA

AV video audio out (L/R)

audio out (L/R)

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

Settings Wi-Fi Wi-Fi ✓ RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connection

192.168.49.1 Safari cannot open the page because the network connection was lost.

192.168.49.1 WiFi AP Settings

192.168.49.1 ← Saved Access Points Scan Add Network

Scan Results ChinaNet-u3Ed YABER zhongyutong AUTHSERVER199

192.168.49.1 BSSID: 74:05 a5 b0 42:b3 Frequency: 2462Mhz Security: [WPA-PSK-CCMP+TKIP][WPA2-PSK-CCMP+TKIP][ESS] Password: ASCII HEX Connect

Étape 3

Music Screen Mirroring

Screen Mirroring 41V RKcast-C7AEF9-ITV

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

Settings Wi-Fi Wi-Fi ✓ RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connection

Music Screen Mirroring

Screen Mirroring RKcast-C7AEF9-ITV

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection >

Wireless projection Available devices RKcast-C7AEF9

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection Printing

Wireless projection Available devices RKcast-C8D9EB

OR Connect with iOS Phone: 1. Click WiFi connected iOS bus, 300000* and input processed, 1.216M/F via your phone 2. Click Apple or Power Ordering on your phone. Connect with Android Phone: 1. Connect WiFi via your phone 2. Click Display on your phone. Connecting Eats: 1. Connect store with USB port by Phone USB names: 2. Click Smart when correct with ignore PlayPlay

MENU SON

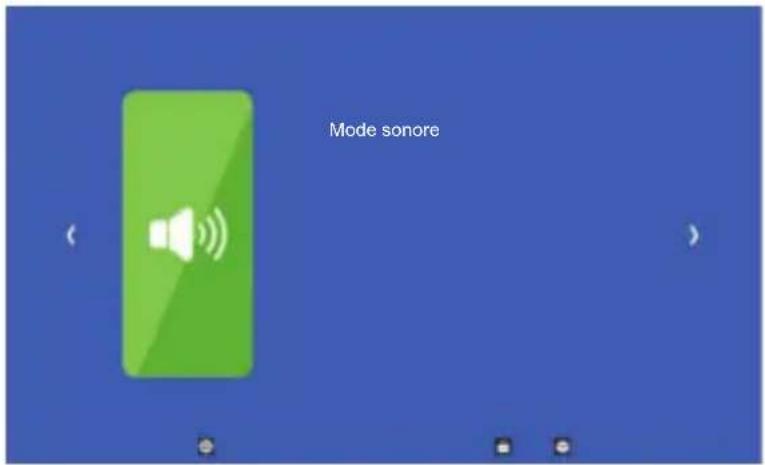

Mode sonore

SOUND MENU MODE FONCTION
Mode sonore	Standard/ MUSIQUE/ VIDO / Sport/ Utilisateur	Configurer le mode sonore

MENU HEURE

Product Packing List

Projector Specification

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

Settings Wi-Fi Wi-Fi RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connection

192.168.49.1 Safari cannot open the page because the network connection was lost.

192.168.49.1 WIFI AP Settings

Music Screen Mirroring Screen Mirroring RKcast-C7AEF9-ITV

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

Settings Wi-Fi Wi-Fi ✓ RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connection

Music Screen Mirroring

Screen Mirroring RKcast-C7AEF9-ITV

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection >

Wireless projection Available devices RKcast-C7AEF9

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection > Printing >

Wireless projection Available devices RKcast-C8D9EB

iOS IP DEVICE Apple Connect with iOS Phone: 1. Click WiFi connected 9 iPhone, 200000" and multiposition" 216M28" anyser phone, 2. Click Array/Screen Monitoring as your phone. OR Connect with Android Phone: 1. Connect WiFi on your phone 2. Click Array or your phone. Domestic Cable: 1. Connect phone with USB port by iPhone USB cable; 2. Click Trust when connected with iPhone. PlugPlay

Computer only Duplicate Extend Projector only

Appearance and Personalization ▶ Display ▶ Screen Definition Change the appearance of your display Display: 3. Generic Non-Port Initiative ▶ Displacement: 500 + 100 mm Advanced settings Make text and other items design or variation What display settings should be chosen? OK Cancel Apply

AV USB -T USB MD VGA

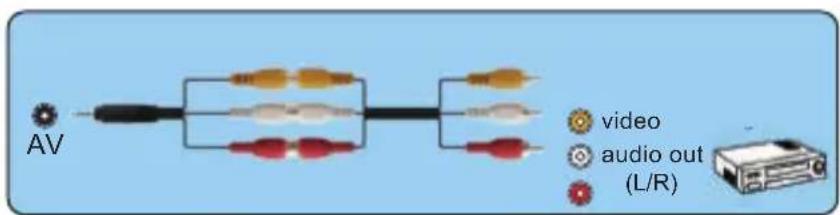

AV video audio out (L/R)

3. Collega la soundbar

audio out (L/R)

Technical diagram of a device rear panel with labeled component (①) and internal features

Three gray geometric shapes with arrows indicating transformation from a trapezoid to a rectangle to a trapezoid (no text or symbols)

The projector's normal start up screen is as follows. If the first projection screen is not this one, press the “ ➕ ” button on the remote control to select USB source.

Cinema Musica Foto Txt

Suono Menù

Suono

Projector Specification

USB 2 TORT OR Google Air and iPhone 1. Open Windows 50% (PS) wireless network and 4. Open Windows 50% (PS) wireless network and 6. Open Windows 50% (PS) wireless network and 8. Open Windows 50% (PS) wireless network and 9. Open Windows 50% (PS) wireless network and 10. Open Windows 50% (PS) wireless network and 11. Open Windows 50% (PS) wireless network and 12. Open Windows 50% (PS) wireless network and 13. Open Windows 50% (PS) wireless network and 14. Open Windows 50% (PS) wireless network and 15. Open Windows 50% (PS) wireless network and 16. Open Windows 50% (PS) wireless network and 17. Open Windows 50% (PS) wireless network and 18. Open Windows 50% (PS) wireless network and 19. Open Windows 50% (PS) wireless network and 20. Open Windows 50% (PS) wireless network and 21. Open Windows 50% (PS) wireless network and 22. Open Windows 50% (PS) wireless network and 23. Open Windows 50% (PS) wireless network and 24. Open Windows 50% (PS) wireless network and 25. Open Windows 50% (PS) wireless network and 26. Open Windows 50% (PS) wireless network and 27. Open Windows 50% (PS) wireless network and 28. Open Windows 50% (PS) wireless network and 29. Open Windows 50% (PS) wireless network and 30. Open Windows 50% (PS) wireless network and 31. Open Windows 50% (PS) wireless network and 32. Open Windows 50% (PS) wireless network and 33. Open Windows 50% (PS) wireless network and 34. Open Windows 50% (PS) wireless network and 35. Open Windows 50% (PS) wireless network and 36. Open Windows 50% (PS) wireless network and 37. Open Windows 50% (PS) wireless network and 38. Open Windows 50% (PS) wireless network and 39. Open Windows 50% (PS) wireless network and 40. Open Windows 50% (PS) wireless network and 41. Open Windows 50% (PS) wireless network and 42. Open Windows 50% (PS) wireless network and 43. Open Windows 50% (PS) wireless network and 44. Open Windows 50% (PS) wireless network and 45. Open Windows 50% (PS) wireless network and 46. Open Windows 50% (PS) wireless network and 47. Open Windows 50% (PS) wireless network and 48. Open Windows 50% (PS) wireless network and 49. Open Windows 50% (PS) wireless network and 50. Open Windows 50% (PS) wireless network and

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

Settings Wi-Fi Wi-Fi ✓ RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connection

192.168.49.1 Safari cannot open the page because the network connection was lost.

192.168.49.1 WIFI AP Settings

② Toque WiFi AP--Buscar--Seleccione su WIFI--ingrese la contraseña de su WiFi--Toque Conectar

192.168.49.1 ← Saved Access Points Scan Add Network Scan Results ChinaNet-u3Ed YABER zhongyutong AUTHSERVER199

192168.49.1 BSSID: 74.05.a5.b0.x2.b3 Frequency: 2462MHz Security: [WPA-PSK-COMP+TKIP][WPA2-PSK-COMP+TKIP][ESG] Password: ASCII HEX Connect

Paso 3

Abrir el Centro de control - Toque el botón Screen Mirroring - Conectar [RKcast-xxxxxx]

Music Screen Mirroring

Screen Mirroring RKcast-C7AEF0-ITV

Settings Wi-Fi Wi-Fi New Wi-Fi network connections have been turned off from Control Center. CHOOSE A NETWORK... RKcast-C7AEF9

Enter the password for "RKcast-C7AEF9" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

Settings Wi-Fi Wi-Fi RKcast-C7AEF9

WLAN RKcast-C7AEF9 No Internet Connections

Music Screen Mirroring

Screen Mirroring Rikast-C7AEF9-ITV

2. Para Dispositivo Android

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection

Wireless projection Available devices RKcast-C7AEF9

Settings Wireless & networks WLAN, Dual SIM settings, Mobile network Device connectivity Bluetooth, Printing

Device connectivity Bluetooth Off > Huawei Share Off > Wireless projection > Printing >

Wireless projection Available devices RKcast-C8D9EB

PN IP DEVICE Connect with iOS Phone: 1. Click Wi-Fi and hit "Phone=XXXXXX" and most password "2365678" on your phone, 2. Click Airplay (Screen/Amming) on your phones. OR Connect with Android Phone: 1. Connect Wi-Fi on your phone, 2. Click Airplay on your phone. Connect by Cables: 1. Connected phone with UDB port by iPhone USB cables 2. Click "Just" after connected withphone. Plug$Play

Computer only Duplicate Extend Projector only

Appearance and Presentation ▲ Display ▲ Screen Boundary Change the appearance of your display Display: L. Generic Image-Prism Display Resolution: 0000 x 1000 All output settings Value list and other lines target software What display settings should be chosen? OK Cancel Apply

AV USB +1 USB M2 VGA

AV video audio out (L/R)

AV USB +1 USB MD VGA

audio out (L/R)

Technical diagram of a device casing with labeled component (①) and internal features

PROYECTOR DE ARRANQUE

Three gray geometric shapes with arrows indicating transformation from a trapezoid to a rectangle (no text or symbols)


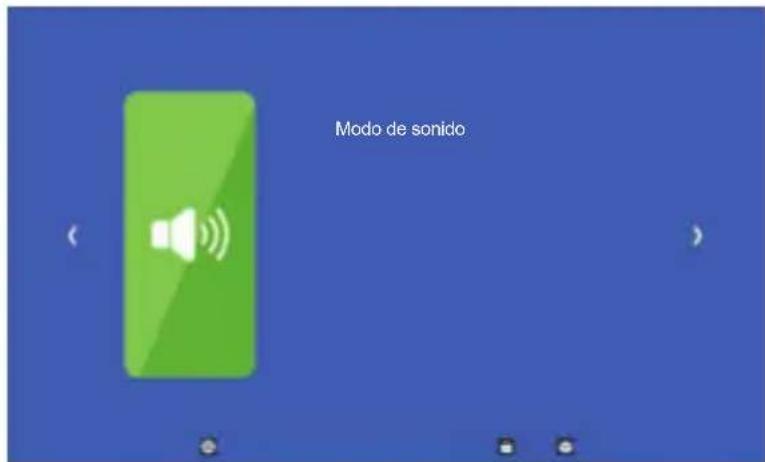

MENÚ de SONIDO

Technical diagram of a device rear panel with labeled component (①) and internal features

PIN IP DEVICE Connect with iOS Phone: 1. Click WiFi and first "RKcast-XXXXXX" and Irust passwords "1 Z14/5678" on your phone. 2. Click Airplay (Screen Mirroring) on your phone. OR Connect with Android Phone: 1. Connect WiFi on your phone. 2. Click Airplay on your phone. Plug&Play Connect by Caps: 1. Connect phone with USB port by iPhone USB cables. 2. GPS "brier" when connect with ignore.

スクリンミラーリング 方法

Enter the password for "RKcost-C7AEF0" Cancel Enter Password Join Password ●●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and has you in their contacts.

Settings Wi-Fi Wi-Fi RKcast-C7AEF9 Choose A NETWORK... BATMAN

Enter the password for "Recast-C7AEP9" Cancel Enter Password Join Password ●●●●●●● You can also access this Wi-Fi network by bringing your iPhone near any iPhone, iPad, or Mac which has connected to this network and hes you in their contacts.

Settings Wi-Fi Wi-Fi RKcast-C7AEF9 Choose A NETWORK... BATMAN

192.168.49.1 Safari cannot open the page because the network connection was lost.

192.168.49.1 WiFi AP Settings

AV USB-T USB DIS VISA

AV 別売り video audio out (L/R)

Line drawing of a projector with a vertical screw and circular base (no text or symbols)

Technical diagram of a device rear panel with labeled component (①) and internal features

投写イメージの調整

画像の台形歪みの補正と明瞭さの微調整

2.1 台形補正（タテ補正）

Three gray geometric shapes with arrows indicating transformation or comparison (no text or symbols)

Line drawing of a projector with a circular lens and control panel (no text or symbols)

Line drawing of a projector with bidirectional arrow indicating left and right motion (no text or symbols)
