Cordless Plunge Cut Saw INSTRUCTION MANUAL 9

Overall length 346 mm Rated voltage D.C. 36 V Net weight 4.4 - 5.1 kg

• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi- est combination are shown in the table. Applicable battery cartridge and charger Batterycartridge BL1815N / BL1820B / BL1830B / BL1840B / BL1850B / BL1860B Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF / DC18SH / DC18WC

• Someofthebatterycartridgesandchargerslistedabovemaynotbeavailabledependingonyourregionof residence.

WARNING: Only use the battery cartridges and chargers listed above.Useofanyotherbatterycartridges

andchargersmaycauseinjuryand/orre. Intended use Thetoolisspeciallyintendedforperformingplunge cuts. The tool is also intended for rip and cross cuts in wood. If the tool is equipped with proper circular saw blade, the tool can be used for sawing aluminum, plas- tic, mineral contained plastic, and similar materials. Noise ThetypicalA-weightednoiseleveldeterminedaccord- ing to EN62841-2-5: Model DSP600 Soundpressurelevel(L

WARNING: Wear ear protection.

WARNING: The noise emission during actual

use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Vibration Thevibrationtotalvalue(tri-axialvectorsum)deter- mined according to EN62841-2-5: Model DSP600 Work mode: cutting wood Vibrationemission(a h,W ):2.5m/s

Work mode: cutting metal Vibrationemission(a h,M ):2.5m/s

Model DSP601 Work mode: cutting wood Vibrationemission(a h,W ):2.5m/s

Work mode: cutting metal Vibrationemission(a h,M ):2.5m/s

NOTE:Thedeclaredvibrationtotalvalue(s)hasbeen measured in accordance with a standard test method andmaybeusedforcomparingonetoolwithanother. NOTE:Thedeclaredvibrationtotalvalue(s)mayalso beusedinapreliminaryassessmentofexposure.

WARNING: The vibration emission during

actual use of the power tool can di󰀨er from the declared value(s) depending on the ways in which the tool is used especially what kind of workpiece is processed.

WARNING: Be sure to identify safety mea-

sures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched o󰀨 and when it is running idle in addition to the trigger time). Declarations of Conformity For European countries only TheDeclarationsofconformityareincludedinAnnexA to this instruction manual. SAFETY WARNINGS General power tool safety warnings WARNING Read all safety warnings, instruc- tions, illustrations and specications provided with this power tool. Failure to follow all instructions listed belowmayresultinelectricshock,reand/orserious injury. Save all warnings and instruc- tions for future reference. Theterm"powertool"inthewarningsreferstoyour mains-operated(corded)powertoolorbattery-operated (cordless)powertool. Cordless circular saw safety warnings Cutting procedures

DANGER: Keep hands away from cutting

area and the blade. Keep your second hand on auxiliary handle, or motor housing. If both handsareholdingthesaw,theycannotbecutby the blade.

2. Do not reach underneath the workpiece. The

guardcannotprotectyoufromthebladebelowthe workpiece.

3. Adjust the cutting depth to the thickness of

the workpiece. Less than a full tooth of the blade teeth should be visible below the workpiece.

4. Never hold the workpiece in your hands or

across your leg while cutting. Secure the workpiece to a stable platform. It is important to supporttheworkproperlytominimisebodyexpo- sure, blade binding, or loss of control. ►Fig.1

5. Hold the power tool by insulated gripping

surfaces, when performing an operation where the cutting tool may contact hidden wiring. Contact with a “live” wire will also make exposed metal parts of the power tool “live” and could give the operator an electric shock.

6. When ripping, always use a rip fence or

straight edge guide.Thisimprovestheaccuracy of cut and reduces the chance of blade binding.

7. Always use blades with correct size and shape

(diamond versus round) of arbour holes. Blades that do not match the mounting hardware ofthesawwillruno󰀨-centre,causinglossof control.

8. Never use damaged or incorrect blade wash-

ers or bolt. The blade washers and bolt were speciallydesignedforyoursaw,foroptimum performanceandsafetyofoperation. Kickback causes and related warnings — kickback is a sudden reaction to a pinched, jammedormisalignedsawblade,causingan uncontrolled saw to lift up and out of the workpiece toward the operator; — whenthebladeispinchedorjammedtightlybythe kerf closing down, the blade stalls and the motor reactiondrivestheunitrapidlybacktowardthe operator; — if the blade becomes twisted or misaligned in the cut, the teeth at the back edge of the blade can dig into the top surface of the wood causing the blade toclimboutofthekerfandjumpbacktowardthe operator. Kickbackistheresultofsawmisuseand/orincorrect operating procedures or conditions and can be avoided bytakingproperprecautionsasgivenbelow.

1. Maintain a rm grip with both hands on the

saw and position your arms to resist kickback forces. Position your body to either side of the blade, but not in line with the blade.Kickback couldcausethesawtojumpbackwards,but kickbackforcescanbecontrolledbytheoperator, if proper precautions are taken.

2. When blade is binding, or when interrupting a

cut for any reason, release the trigger and hold the saw motionless in the material until the blade comes to a complete stop. Never attempt to remove the saw from the work or pull the saw backward while the blade is in motion or kickback may occur. Investigate and take corrective actions to eliminate the cause of blade binding.

3. When restarting a saw in the workpiece, centre

the saw blade in the kerf so that the saw teeth are not engaged into the material. If a saw blade binds,itmaywalkuporkickbackfromthework- piece as the saw is restarted.

4. Support large panels to minimise the risk of

blade pinching and kickback. Large panels tend to sag under their own weight. Supports must be11 ENGLISH placed under the panel on both sides, near the line of cut and near the edge of the panel. ►Fig.2 ►Fig.3

5. Do not use dull or damaged blades.

Unsharpenedorimproperlysetbladesproduce narrow kerf causing excessive friction, blade binding and kickback.

6. Blade depth and bevel adjusting locking levers

must be tight and secure before making the cut.Ifbladeadjustmentshiftswhilecutting,itmay cause binding and kickback.

7. Use extra caution when sawing into existing

walls or other blind areas. The protruding blade maycutobjectsthatcancausekickback.

8. ALWAYS hold the tool rmly with both hands.

NEVER place your hand, leg or any part of your body under the tool base or behind the saw, especially when making cross-cuts. If kickback occurs,thesawcouldeasilyjumpbackwardsover yourhand,leadingtoseriouspersonalinjury. ►Fig.4

9. Never force the saw. Push the saw forward at a

speed so that the blade cuts without slowing. Forcing the saw can cause uneven cuts, loss of accuracy,andpossiblekickback. Guard function

1. Check the guard for proper closing before

each use. Do not operate the saw if the guard does not move freely and enclose the blade instantly. Never clamp or tie the guard so that the blade is exposed.Ifthesawisaccidentally dropped,theguardmaybebent.Checktomake surethattheguardmovesfreelyanddoesnot touchthebladeoranyotherpart,inallanglesand depths of cut.

2. Check the operation and condition of the

guard return spring. If the guard and the spring are not operating properly, they must be ser- viced before use.Theguardmayoperateslug- gishlyduetodamagedparts,gummydeposits,or a build-up of debris.

3. Assure that the base plate of the saw will not

shift while performing a “plunge cut”. Blade shiftingsidewayswillcausebindingandlikelykick back.

4. Always observe that the guard is covering the

blade before placing the saw down on bench or oor.Anunprotected,coastingbladewillcause the saw to walk backwards, cutting whatever is in its path. Be aware of the time it takes for the blade to stop after the switch is released. Additional safety warnings

1. Use extra caution when cutting damp wood,

pressure treated lumber, or wood containing knots. Maintain smooth advancement of tool with- out decrease in blade speed to avoid overheating the blade tips and if cutting plastics, to avoid melt- ing the plastic.

2. Do not attempt to remove cut material when

blade is moving. Wait until blade stops before grasping cut material.Bladescoastafterturno󰀨.

3. Avoid cutting nails. Inspect for and remove all

nails from lumber before cutting.

4. Place the wider portion of the saw base on

that part of the workpiece which is solidly supported, not on the section that will fall o󰀨 when the cut is made. If the workpiece is short or small, clamp it down. DO NOT TRY TO HOLD SHORT PIECES BY HAND! ►Fig.5

5. Before setting the tool down after completing a

cut, be sure that the guard has closed and the blade has come to a complete stop.

6. Never attempt to saw with the circular saw

held upside down in a vise. This is extremely dangerous and can lead to serious accidents. ►Fig.6

7. Some material contains chemicals which may

be toxic. Take caution to prevent dust inhala- tion and skin contact. Follow material supplier safety data.

8. Do not stop the blades by lateral pressure on

9. Do not use any abrasive wheels.

10. Only use the saw blade with the diameter that

is marked on the tool or specied in the man- ual.Useofanincorrectlysizedblademaya󰀨ect the proper guarding of the blade or guard opera- tionwhichcouldresultinseriouspersonalinjury.

11. Keep blade sharp and clean. Gum and wood

pitch hardened on blades slows saw and increasespotentialforkickback.Keepbladeclean byrstremovingitfromtool,thencleaningitwith gum and pitch remover, hot water or kerosene. Never use gasoline.

13. Always use the saw blade intended for cutting

the material that you are going to cut.

14. Only use the saw blades that are marked with

a speed equal or higher than the speed marked on the tool.

15. (For European countries only)

Always use the blade which conforms to EN847-1, if intended for wood and analogous materials. SAVE THESE INSTRUCTIONS.

WARNING: DO NOT let comfort or familiarity

with product (gained from repeated use) replace strict adherence to safety rules for the subject product. MISUSE or failure to follow the safety rules stated in this instruction manual may cause serious personal injury. Important safety instructions for battery cartridge

1. Before using battery cartridge, read all instruc-

tions and cautionary markings on (1) battery charger, (2) battery, and (3) product using battery.

2. Do not disassemble or tamper with the battery

cartridge.Itmayresultinare,excessiveheat, or explosion.12 ENGLISH

3. If operating time has become excessively

shorter, stop operating immediately. It may result in a risk of overheating, possible burns and even an explosion.

4. If electrolyte gets into your eyes, rinse them

out with clear water and seek medical atten- tion right away. It may result in loss of your eyesight.

5. Do not short the battery cartridge:

(1) Do not touch the terminals with any con- ductive material. (2) Avoid storing battery cartridge in a con- tainer with other metal objects such as nails, coins, etc. (3) Do not expose battery cartridge to water or rain. A battery short can cause a large current ow, overheating, possible burns and even a breakdown.

6. Do not store and use the tool and battery car-

tridge in locations where the temperature may reach or exceed 50 °C (122 °F).

7. Do not incinerate the battery cartridge even if

it is severely damaged or is completely worn out. The battery cartridge can explode in a re.

8. Do not nail, cut, crush, throw, drop the battery

cartridge, or hit against a hard object to the battery cartridge.Suchconductmayresultina re,excessiveheat,orexplosion.

9. Do not use a damaged battery.

10. The contained lithium-ion batteries are subject

to the Dangerous Goods Legislation require- ments. Forcommercialtransportse.g.bythirdparties, forwarding agents, special requirement on pack- aging and labeling must be observed. For preparation of the item being shipped, consult- inganexpertforhazardousmaterialisrequired. Pleasealsoobservepossiblymoredetailed national regulations. Tapeormasko󰀨opencontactsandpackupthe batteryinsuchamannerthatitcannotmove around in the packaging.

11. When disposing the battery cartridge, remove

it from the tool and dispose of it in a safe place. Follow your local regulations relating to disposal of battery.

12. Use the batteries only with the products

specied by Makita. Installing the batteries to non-compliantproductsmayresultinare,exces- siveheat,explosion,orleakofelectrolyte.

13. If the tool is not used for a long period of time,

the battery must be removed from the tool.

14. During and after use, the battery cartridge may

take on heat which can cause burns or low temperature burns. Pay attention to the han- dling of hot battery cartridges.

15. Do not touch the terminal of the tool imme-

diately after use as it may get hot enough to cause burns.

16. Do not allow chips, dust, or soil stuck into

the terminals, holes, and grooves of the bat- tery cartridge.Itmaycauseheating,catching re,burstandmalfunctionofthetoolorbattery cartridge,resultinginburnsorpersonalinjury.

17. Unless the tool supports the use near

high-voltage electrical power lines, do not use the battery cartridge near high-voltage electri- cal power lines.Itmayresultinamalfunctionor breakdownofthetoolorbatterycartridge.

18. Keep the battery away from children.

SAVE THESE INSTRUCTIONS. CAUTION: Only use genuine Makita batteries. Use of non-genuine Makita batteries, or batteries that havebeenaltered,mayresultinthebatterybursting causingres,personalinjuryanddamage.Itwill alsovoidtheMakitawarrantyfortheMakitatooland charger. Tips for maintaining maximum battery life

1. Charge the battery cartridge before completely

discharged. Always stop tool operation and charge the battery cartridge when you notice less tool power.

2. Never recharge a fully charged battery car-

tridge. Overcharging shortens the battery service life.

3. Charge the battery cartridge with room tem-

perature at 10 °C - 40 °C (50 °F - 104 °F). Let a hot battery cartridge cool down before charging it.

4. When not using the battery cartridge, remove

it from the tool or the charger.

5. Charge the battery cartridge if you do not use

it for a long period (more than six months). Important safety instructions for wireless unit

1. Do not disassemble or tamper with the wire-

2. Keep the wireless unit away from young chil-

dren. If accidentally swallowed, seek medical attention immediately.

3. Use the wireless unit only with Makita tools.

4. Do not expose the wireless unit to rain or wet

5. Do not use the wireless unit in places where

the temperature exceeds 50 °C (122 °F).

6. Do not operate the wireless unit in places

where medical instruments, such as heart pace makers are nearby.

7. Do not operate the wireless unit in places

where automated devices are nearby. If oper- ated,automateddevicesmaydevelopmalfunction or error.

8. Do not operate the wireless unit in places

under high temperature or places where static electricity or electrical noise could be generated.

9. The wireless unit can produce electromagnetic

elds (EMF) but they are not harmful to the user.

10. The wireless unit is an accurate instrument. Be

careful not to drop or strike the wireless unit.13 ENGLISH

11. Avoid touching the terminal of the wireless

unit with bare hands or metallic materials.

12. Always remove the battery on the product

when installing the wireless unit into it.

13. When opening the lid of the slot, avoid the

place where dust and water may come into the slot. Always keep the inlet of the slot clean.

on the wireless unit too hard and/or press the button with an object with a sharp edge.

17. Do not remove the wireless unit from the slot

while the power is being supplied to the tool. Doingsomaycauseamalfunctionofthewireless unit.

18. Do not remove the sticker on the wireless unit.

19. Do not put any sticker on the wireless unit.

20. Do not leave the wireless unit in a place where

static electricity or electrical noise could be generated.

21. Do not leave the wireless unit in a place sub-

ject to high heat, such as a car sitting in the sun.

22. Do not leave the wireless unit in a dusty or

powdery place or in a place corrosive gas could be generated.

23. Sudden change of the temperature may bedew

the wireless unit. Do not use the wireless unit until the dew is completely dried.

24. When cleaning the wireless unit, gently wipe

with a dry soft cloth. Do not use benzine, thin- ner, conductive grease or the like.

25. When storing the wireless unit, keep it in the

supplied case or a static-free container.

26. Do not insert any devices other than Makita

wireless unit into the slot on the tool.

damaged. SAVE THESE INSTRUCTIONS. FUNCTIONAL DESCRIPTION CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before adjusting or checking function on the tool. Installing or removing battery cartridge CAUTION: Always switch o󰀨 the tool before installing or removing of the battery cartridge. CAUTION: Hold the tool and the battery car- tridge rmly when installing or removing battery cartridge.Failuretoholdthetoolandthebattery cartridgermlymaycausethemtoslipo󰀨yourhands andresultindamagetothetoolandbatterycartridge andapersonalinjury. Toinstallthebatterycartridge,alignthetongueonthe batterycartridgewiththegrooveinthehousingandslip itintoplace.Insertitallthewayuntilitlocksinplace withalittleclick.Ifyoucanseetheredindicatoras showninthegure,itisnotlockedcompletely. Toremovethebatterycartridge,slideitfromthetool while sliding the button on the front of the cartridge. ►Fig.7: 1. Red indicator 2. Button 3.Batterycartridge CAUTION: Always install the battery cartridge fully until the red indicator cannot be seen. If not, itmayaccidentallyfalloutofthetool,causinginjuryto youorsomeonearoundyou. CAUTION: Do not install the battery cartridge forcibly.Ifthecartridgedoesnotslideineasily,itis notbeinginsertedcorrectly. NOTE:Thetooldoesnotworkwithonlyonebattery cartridge. Tool / battery protection system Thetoolisequippedwithatool/batteryprotectionsys- tem.Thissystemautomaticallycutso󰀨powertothe motortoextendtoolandbatterylife.Thetoolwillauto- maticallystopduringoperationifthetoolorbatteryis placed under one of the following conditions. Overload protection When the tool is operated in a manner that causes it to drawanabnormallyhighcurrent,thetoolautomatically stops.Inthissituation,turnthetoolo󰀨andstopthe application that caused the tool to become overloaded. Then turn the tool on to restart. Overheat protection When the tool is overheated, the tool stops automati- cally,andthebatteryindicatorblinkabout60seconds. In this situation, let the tool cool down before turning the tool on again. On Blinking Overdischarge protection Whenthebatterycapacitybecomeslow,thetoolstops automatically.Iftheproductdoesnotoperateeven when the switches are operated, remove the batteries14 ENGLISH from the tool and charge the batteries. Indicating the remaining battery capacity ►Fig.8: 1.Batteryindicator(forupperbattery)

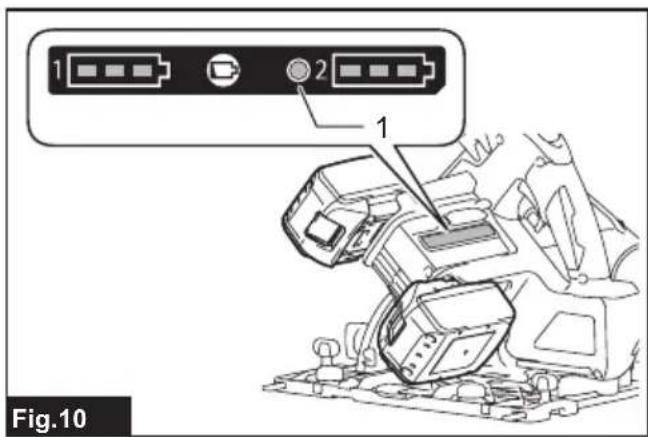

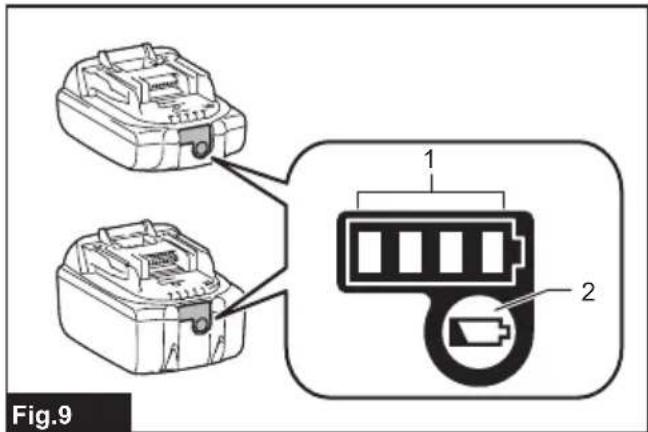

2. Check button 3.Batteryindicator(forlower

battery) Pressthecheckbuttontoindicatetheremainingbattery capacities.Thebatteryindicatorscorrespondtoeach battery. Battery indicator status Remaining battery capacity On O󰀨 Blinking 50% to 100% 20% to 50% 0% to 20% Charge the battery Indicating the remaining battery capacity Only for battery cartridges with the indicator Pressthecheckbuttononthebatterycartridgetoindi- catetheremainingbatterycapacity.Theindicatorlamps light up for a few seconds. ►Fig.9: 1. Indicator lamps 2. Check button Indicator lamps Remaining capacity Lighted O󰀨 Blinking 75% to 100% 50% to 75% 25% to 50% 0% to 25% Charge the battery. Thebattery mayhave malfunctioned. NOTE: Depending on the conditions of use and the ambienttemperature,theindicationmaydi󰀨erslightly fromtheactualcapacity. NOTE:Therst(farleft)indicatorlampwillblinkwhen thebatteryprotectionsystemworks. Automatic speed change function NOTE:Automaticspeedchangefunctionisonly availablewhenthespeedadjustingdialisin5. This tool has "high speed mode" and "high torque mode". Thetoolautomaticallychangestheoperationmode depending on the work load. When the work load is low, the tool will run in the "high speed mode" for quicker cutting operation. When the work load is high, the tool will run in the "high torque mode" for powerful cutting operation. ►Fig.10: 1. Mode indicator The mode indicator lights up in green when the tool is running in "high torque mode". If the tool is operated with excessive load, the mode indicator will blink in green. The mode indicator stops blinkingandthenlightsuporturnso󰀨ifyoureducethe load on the tool. Mode indicator status Operation mode On O󰀨 Blinking High speed mode High torque mode Overload alert Adjusting depth of cut CAUTION: After adjusting the depth of cut, always tighten the clamping screw securely. Loosen the clamping screw on the depth guide and move the blade lower limit stopper to the desired depth onthescaleplate.Atthedesireddepthofcut,tighten theclampingscrewrmly. For cleaner, safer cuts, set cut depth so that no more thanonebladetoothprojectsbelowworkpiece.Using proper cut depth helps to reduce potential for danger- ousKICKBACKSwhichcancausepersonalinjury. ►Fig.11: 1. Blade lower limit stopper 2. Clamping screw Quick stop button for 2 to 3 mm depth of cut when using guide rail (optional accessory) This tool has the quick stop button for 2 to 3 mm depth of cut on the gear housing aside the rear handle when using guide rail. This is used when avoiding splinter on15 ENGLISH the workpiece in the cut. Make a pass of the 2 to 3 mm rstcutandthenmakeanotherpassofusualcut. ►Fig.12: 1. Quick stop button To obtain the 2 to 3 mm depth of cut, push in the quick stop button toward the saw blade. This is convenient for avoiding splinter on the workpiece. To release the depth of cut from this position for free depthofcut,justpullthebuttonback. Bevel cutting Loosen the clamping screws. Set for the desired angle bytiltingaccordingly,thentightentheclampingscrews securely. ►Fig.13: 1. Clamping screw 2. Bevel scale plate ►Fig.14: 1.Subbase(Optionalaccessory)

Positive stopper The positive stopper is useful for setting the designated anglequickly.Turnthepositivestoppersothatthe arrow on it points 22.5°. Loosen the clamping screws in front and back. Then tilt the blade until it stops and secure the base with the clamping screws. ►Fig.15: 1. Positive stopper 2. Clamping screw 48°-bevel cutting To perform 48°-bevel cutting, loosen the clamping screwsandfullytiltthelevertowardthedirectionofthe arrowinthegure.Thensetthebevelangleto48°and tighten the clamping screws. ►Fig.16: 1. Lever -1°-bevel cutting To perform -1°-bevel cutting, loosen the clamping screws and press the levers toward the direction of the arrowinthegure.Thensetthebevelangleto-1°and tighten the clamping screws. ►Fig.17: 1. Lever Sighting ►Fig.18: 1. Base The cutting line varies depending on the cutting angle andwhetheryouusetheguiderail(optionalaccessory). When using the tool without guide rail Forstraightcuts,aligntheApositiononthefrontofthe basewithyourcuttingline.For45°bevelcuts,alignthe B position with it. When using the tool with guide rail Forbothstraightcutsand45°bevelcuts,alwaysalign theApositiononthefrontofthebasewithyourcutting line. Switch action

WARNING: Before installing the battery car-

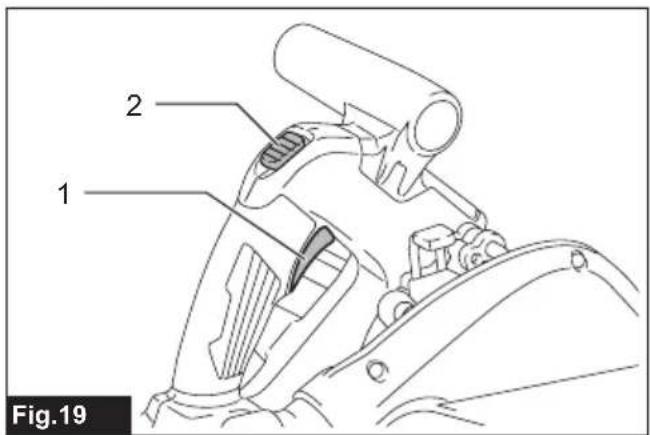

tridge into the tool, always check to see that the switch trigger actuates properly and returns to the "OFF" position when released.

WARNING: NEVER defeat the lock-o󰀨 button

by taping down or some other means.Aswitchwith anegatedlock-o󰀨buttonmayresultinunintentional operationandseriouspersonalinjury.

CAUTION: The speed adjusting dial is not for using low speed rated saw blades but for obtaining a speed which is suitable to material of workpiece. Use only saw blades which are rated for at least the maximum no load speed stated in the SPECIFICATIONS. NOTICE: The speed adjusting dial can be turned only as far as 5 and back to 1. Do not force it past 5 or 1, or the speed adjusting function may no longer work. Electronic function Thetoolsequippedwithelectronicfunctionareeasyto operate because of the following features.16 ENGLISH Overload protector Whenthetoolisoverloadedandcurrentowsabove acertainlevel,thetoolautomaticallystopstoprotect motor. Constant speed control Electronic speed control for obtaining constant speed. Possibletogetnenish,becausetherotatingspeedis kept constant even under load condition. Soft start feature Soft start because of suppressed starting shock. ASSEMBLY CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before carrying out any work on the tool. Hex wrench storage When not in use, store the hex wrench as shown in the guretokeepitfrombeinglost. ►Fig.21: 1. Hex wrench Removing or installing circular saw blade CAUTION: Be sure the circular saw blade is installed with teeth pointing up at the front of the tool. CAUTION: Use only the Makita wrench to install or remove the circular saw blade. To remove the circular saw blade:

1. Depressthelock-o󰀨buttonandlowerthehandle

a little. Turn the locking lever and lower the handle until thelockpintsinthehole. ►Fig.22: 1.Lock-o󰀨button2. Locking lever 3. Lock pin 4. Hole for lock pin

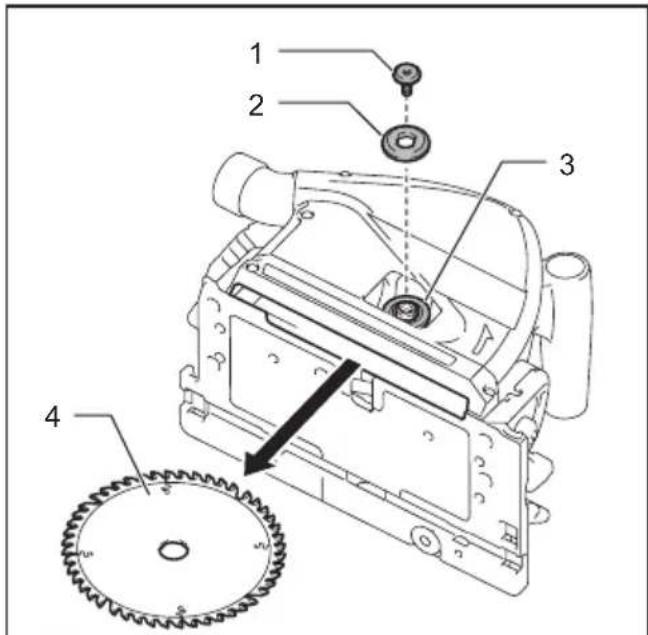

4. Circular saw blade

WARNING: If the inner ange is removed, be

sure to install it on the spindle. When installing, choose a correct side on which protrusion ts into the saw blade hole perfectly. Mounting the blade on the wrong side can result in the dangerous vibration. To install the circular saw blade, follow the removal procedureinreverse.Depressthelock-o󰀨buttonto release the lock pin from the hole.

WARNING: BE SURE TO TIGHTEN THE HEX

BOLT SECURELY. Also be careful not to tighten the bolt forcibly. Slipping your hand from the hex wrench can cause a personal injury. Blade guard cleaning When changing the circular saw blade, make sure to also clean the blade guard of accumulated sawdust as discussedintheMaintenancesection.Suche󰀨ortsdo not replace the need to check guard operation before each use. Connecting a vacuum cleaner Optional accessory Whenyouwishtoperformcleancuttingoperation, connectaMakitavacuumcleanertoyourtool.Connect ahoseofthevacuumcleanertothedustnozzleusing thefrontcu󰀨24. ►Fig.25: 1. Hose of the vacuum cleaner 2.Frontcu󰀨 24 3.Dustnozzle OPERATION CAUTION: Be sure to move the tool forward in a straight line gently. Forcing or twisting the tool will result in overheating the motor and dangerous kickback,possiblycausingsevereinjury. CAUTION: Never approach any part of your body under the tool base when section cutting, especially at starting. Doing so may cause seri- ous personal injuries. The blade is exposed under the tool base. NOTE:Whenthebatterycartridgetemperatureis low,thetoolmaynotworktoitsfullcapacity.Atthis time,forexample,usethetoolforalight-dutycutfor awhileuntilthebatterycartridgewarmsupashigh as room temperature. Then, the tool can work to its fullcapacity. Section cutting (ordinary sawing) ►Fig.26 Holdthetoolrmly.Thetoolisprovidedwithbothafront grip and rear handle. Use both to best grasp the tool. Ifbothhandsareholdingsaw,theycannotbecutby the circular saw blade. Set the base on the workpiece tobecutwithoutthecircularsawblademakingany contact.Thenpushinthelock-o󰀨buttonandpullthe switch trigger. Wait until the circular saw blade attains fullspeed.Nowpressdownthesawheadslowlytothe presetdepthofcutandsimplymovethetoolforward overtheworkpiecesurface,keepingitatandadvanc- ingsmoothlyuntilthesawingiscompleted. Togetcleancuts,keepyoursawinglinestraightand yourspeedofadvanceuniform.Ifthecutfailstoprop- erlyfollowyourintendedcutline,donotattempttoturn orforcethetoolbacktothecutline.Doingsomaybind the circular saw blade and lead to dangerous kickback andpossibleseriousinjury.Releasetheswitch,wait17 ENGLISH for the circular saw blade to stop and then withdraw the tool. Realign the tool on new cut line, and start cutagain.Attempttoavoidpositioningwhichexposes operatortochipsandwooddustbeingejectedfromthe saw.Useeyeprotectiontohelpavoidinjury. Guide rail Optional accessory Place the tool on the rear end of guide rail. Turn two adjustingscrewsonthetoolbasesothatthetoolslides smoothlywithoutaclatter.Holdboththefrontgripand rearhandleofthetoolrmly.Turnonthetool,press down the tool to the preset cutting depth and cut the splinterguard along the full length with a stroke. Now the edge of the splinterguard corresponds to the cutting edge. ►Fig.27: 1.Adjustingscrews When bevel cutting with the guide rail, use the slide lever to prevent the tool from falling over. Move the slide lever on the tool base in the direction of arrow so that it engages the undercut groove in the guide rail. ►Fig.28: 1. Slide lever Sub base (Guide rule) Optional accessory Byusingthesubbaseasaguiderule,youcanperform extra-accurate straight cuts. Loosen the clamping screws and slide the sub base out from the tool then insert it upside down. ►Fig.29: 1. Clamping screw 2. Sub base Simplyslidethefenceofthesubbasesnuglyagainst the side of the workpiece and secure it in position with the clamping screws. It also makes repeated cuts of uniform width possible. ►Fig.30: 1. Clamping screw 2. Sub base Plunge cutting (Cutting-out)

WARNING: To avoid a kickback, be sure to

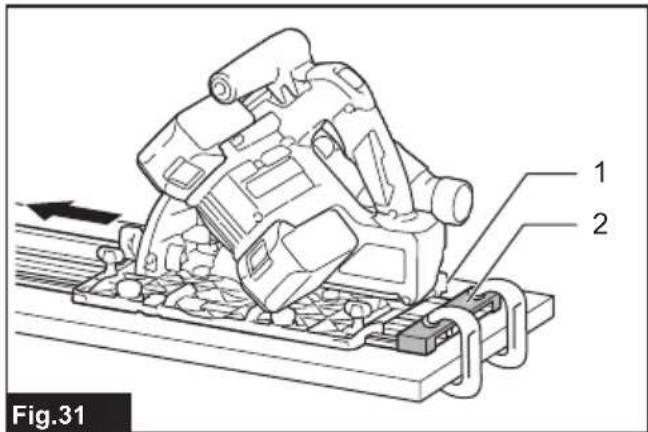

observe the following instructions. ►Fig.31: 1. Rear edge of tool base 2. Fixed stop When using the tool without guide rail, place the tool on the workpiece with the rear edge of tool base against a xedstoporequivalentwhichisdevisedbyanoperator. When using the tool with guide rail, place the tool on the guiderailwiththerearedgeoftoolbaseagainstaxed stop or equivalent which is clamped on the guide rail. Holdthetoolrmlywithonehandonthefrontgripand theotheronthetoolhandle.Thenpushinthelock-o󰀨 button and turn the tool on and wait until the blade attainsfullspeed.Nowpressdownthesawheadslowly tothepresetdepthofcutandsimplymovethetool forward to the desired plunge position. NOTE: The markings on the side of the blade guard show the front and rear cutting points of the saw blade at the maximum cutting depth when using the guide rail. ►Fig.32: 1. Front cutting point 2. Rear cutting point Guide device Optional accessory Use of the bevel guide allows exact miter cuts with anglesandttingworks. Useoftheclampensuresrmholdofworkpieceonthe table. WIRELESS ACTIVATION FUNCTION For DSP601 only What you can do with the wireless activation function The wireless activation function enables clean and com- fortableoperation.Byconnectingasupportedvacuum cleanertothetool,youcanrunthevacuumcleaner automaticallyalongwiththeswitchoperationofthetool. ►Fig.33 To use the wireless activation function, prepare follow- ing items:

• Awirelessunit(optionalaccessory)

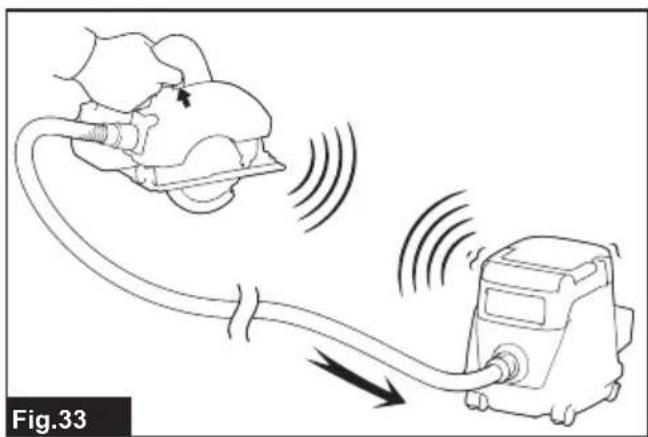

• Avacuumcleanerwhichsupportsthewireless activation function The overview of the wireless activation function setting is as follows. Refer to each section for detail procedures.

1. Installing the wireless unit

2. Tool registration for the vacuum cleaner

3. Starting the wireless activation function

Installing the wireless unit Optional accessory CAUTION: Place the tool on a at and stable surface when installing the wireless unit. NOTICE: Clean the dust and dirt on the tool before installing the wireless unit. Dust or dirt maycausemalfunctionifitcomesintotheslotofthe wireless unit. NOTICE: To prevent the malfunction caused by static, touch a static discharging material, such as a metal part of the tool, before picking up the wireless unit. NOTICE: When installing the wireless unit, always be sure that the wireless unit is inserted in the correct direction and the lid is completely closed.

2. Insert the wireless unit to the slot and then close

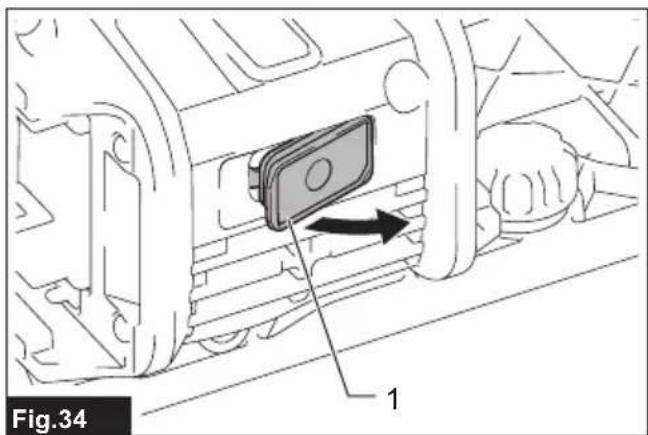

the lid. Wheninsertingthewirelessunit,aligntheprojections with the recessed portions on the slot.18 ENGLISH ►Fig.35: 1. Wireless unit 2.Projection3. Lid

Whenremovingthewirelessunit,openthelidslowly. The hooks on the back of the lid will lift the wireless unit asyoupullupthelid. ►Fig.36: 1. Wireless unit 2. Hook 3. Lid Afterremovingthewirelessunit,keepitinthesupplied case or a static-free container. NOTICE: Always use the hooks on the back of the lid when removing the wireless unit. If the hooks do not catch the wireless unit, close the lid completelyandopenitslowlyagain. Tool registration for the vacuum cleaner NOTE:AMakitavacuumcleanersupportingthe wireless activation function is required for the tool registration. NOTE: Finish installing the wireless unit to the tool before starting the tool registration. NOTE: During the tool registration, do not pull the switch trigger or turn on the power switch on the vacuum cleaner. NOTE: Refer to the instruction manual of the vacuum cleaner, too. Ifyouwishtoactivatethevacuumcleaneralongwith theswitchoperationofthetool,nishthetoolregistra- tion beforehand.

1. Install the batteries to the vacuum cleaner and the

3. Press the wireless activation button on the vac-

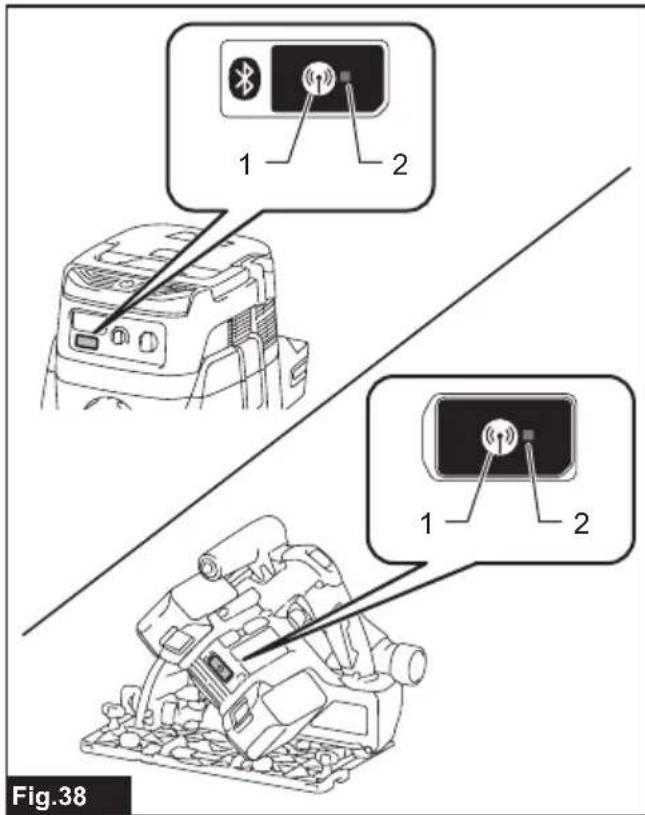

uum cleaner for 3 seconds until the wireless activation lampblinksingreen.Andthenpressthewirelessacti- vationbuttononthetoolinthesameway. ►Fig.38: 1. Wireless activation button 2. Wireless activation lamp If the vacuum cleaner and the tool are linked success- fully,thewirelessactivationlampswilllightupingreen for 2 seconds and start blinking in blue. NOTE:Thewirelessactivationlampsnishblinking in green after 20 seconds elapsed. Press the wireless activation button on the tool while the wireless acti- vation lamp on the cleaner is blinking. If the wireless activation lamp does not blink in green, push the wire- lessactivationbuttonbrieyandholditdownagain. NOTE: When performing two or more tool registra- tionsforonevacuumcleaner,nishthetoolregistra- tiononebyone. Starting the wireless activation function NOTE: Finish the tool registration for the vacuum cleaner prior to the wireless activation. NOTE: Refer to the instruction manual of the vacuum cleaner, too. Afterregisteringatooltothevacuumcleaner,thevac- uumcleanerwillautomaticallyrunalongwiththeswitch operation of the tool.

1. Install the wireless unit to the tool.

2. Connect the hose of the vacuum cleaner with the

5. Turn on the tool. Check if the vacuum cleaner runs

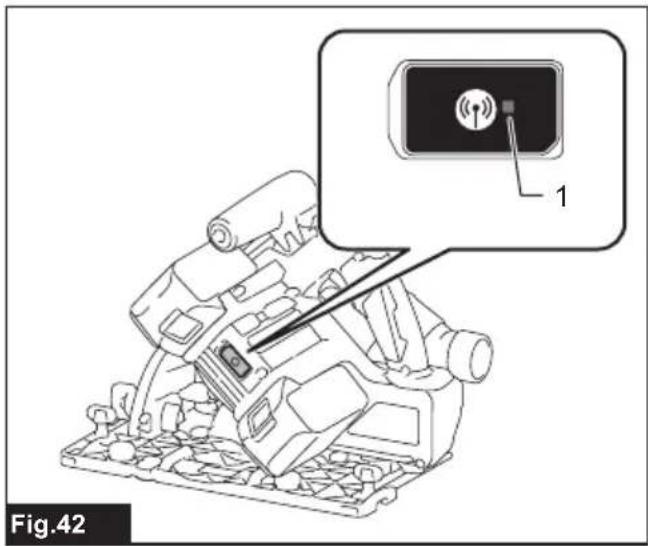

while the tool is operating. To stop the wireless activation of the vacuum cleaner, push the wireless activation button on the tool. NOTE: The wireless activation lamp on the tool will stop blinking in blue when there is no operation for 2hours.Inthiscase,setthestand-byswitchonthe vacuumcleanerto"AUTO"andpushthewireless activation button on the tool again. NOTE:Thevacuumcleanerstarts/stopswithadelay. There is a time lag when the vacuum cleaner detects a switch operation of the tool. NOTE: The transmission distance of the wireless unit mayvarydependingonthelocationandsurrounding circumstances. NOTE: When two or more tools are registered to onevacuumcleaner,thevacuumcleanermaystart runningevenifyoudonotturnonyourtoolbecause another user is using the wireless activation function. Description of the wireless activation lamp status ►Fig.42: 1. Wireless activation lamp The wireless activation lamp shows the status of the wireless activation function. Refer to the table below for the meaning of the lamp status.19 ENGLISH Status Wireless activation lamp Description Color

Blinking Duration Standby Blue 2 hours The wireless activation of the vacuum cleaner is available. The lampwillautomaticallyturno󰀨whennooperationisperformed for 2 hours. When the tool is running. The wireless activation of the vacuum cleaner is available and the tool is running. Tool registration Green 20 seconds Readyforthetoolregistration.Waitingfortheregistrationbythe vacuum cleaner. 2 seconds Thetoolregistrationhasbeennished.Thewirelessactivation lamp will start blinking in blue. Cancelling tool registration Red 20 seconds Readyforthecancellationofthetoolregistration.Waitingforthe cancellationbythevacuumcleaner. 2 seconds Thecancellationofthetoolregistrationhasbeennished.The wireless activation lamp will start blinking in blue. Others Red 3 seconds The power is supplied to the wireless unit and the wireless activa- tion function is starting up. O󰀨 - - The wireless activation of the vacuum cleaner is stopped. Cancelling tool registration for the vacuum cleaner Perform the following procedure when cancelling the tool registration for the vacuum cleaner.

1. Install the batteries to the vacuum cleaner and the

3. Press the wireless activation button on the vac-

uum cleaner for 6 seconds. The wireless activation lampblinksingreenandthenbecomered.Afterthat, press the wireless activation button on the tool in the sameway. ►Fig.44: 1. Wireless activation button 2. Wireless activation lamp Ifthecancellationisperformedsuccessfully,thewire- less activation lamps will light up in red for 2 seconds and start blinking in blue. NOTE:Thewirelessactivationlampsnishblinkingin red after 20 seconds elapsed. Press the wireless acti- vation button on the tool while the wireless activation lamp on the cleaner is blinking. If the wireless acti- vation lamp does not blink in red, push the wireless activationbuttonbrieyandholditdownagain. Troubleshooting for wireless activation function Beforeaskingforrepairs,conductyourowninspectionrst.Ifyoundaproblemthatisnotexplainedinthemanual, donotattempttodismantlethetool.Instead,askMakitaAuthorizedServiceCenters,alwaysusingMakitareplace- ment parts for repairs. State of abnormality Probable cause (malfunction) Remedy The wireless activation lamp does not light/blink. The wireless unit is not installed into the tool. Thewirelessunitisimproperlyinstalled into the tool. Installthewirelessunitcorrectly. The terminal of the wireless unit and/or theslotisdirty. Gentlywipeo󰀨dustanddirtontheterminalofthe wireless unit and clean the slot. The wireless activation button on the tool has not been pushed. Push the wireless activation button on the tool briey. Thestand-byswitchonthevacuum cleanerisnotsetto"AUTO". Setthestand-byswitchonthevacuumcleanerto "AUTO". Nopowersupply Supplythepowertothetoolandthevacuum cleaner.20 ENGLISH State of abnormality Probable cause (malfunction) Remedy Cannotnishtoolregistration/can- cellingtoolregistrationsuccessfully. The wireless unit is not installed into the tool. Thewirelessunitisimproperlyinstalled into the tool. Installthewirelessunitcorrectly. The terminal of the wireless unit and/or theslotisdirty. Gentlywipeo󰀨dustanddirtontheterminalofthe wireless unit and clean the slot. Thestand-byswitchonthevacuum cleanerisnotsetto"AUTO". Setthestand-byswitchonthevacuumcleanerto "AUTO". Nopowersupply Supplythepowertothetoolandthevacuum cleaner. Incorrect operation Pushthewirelessactivationbuttonbrieyand perform the tool registration/cancellation procedures again. Thetoolandvacuumcleanerareaway fromeachother(outofthetransmission range). Get the tool and vacuum cleaner closer to each other. The maximum transmission distance is approximately10mhoweveritmayvaryaccording to the circumstances. Beforenishingthetoolregistration/ cancellation; - the switch of the tool is turned on or; - the power button on the vacuum cleaner is turned on. Pushthewirelessactivationbuttonbrieyand perform the tool registration/cancellation procedures again. The tool registration procedures for the tool or vacuum cleaner have not nished. Perform the tool registration procedures for both the tool and the vacuum cleaner at the same timing. Radiodisturbancebyotherappliances whichgeneratehigh-intensityradio waves. Keepthetoolandvacuumcleanerawayfromthe appliances such as Wi-Fi devices and microwave ovens. The vacuum cleaner does not run along with the switch operation of the tool. The wireless unit is not installed into the tool. Thewirelessunitisimproperlyinstalled into the tool. Installthewirelessunitcorrectly. The terminal of the wireless unit and/or theslotisdirty. Gentlywipeo󰀨dustanddirtontheterminalofthe wireless unit and clean the slot. The wireless activation button on the tool has not been pushed. Pushthewirelessactivationbuttonbrieyandmake sure that the wireless activation lamp is blinking in blue. Thestand-byswitchonthevacuum cleanerisnotsetto"AUTO". Setthestand-byswitchonthevacuumcleanerto "AUTO". More than 10 tools are registered to the vacuum cleaner. Perform the tool registration again. If more than 10 tools are registered to the vacuum cleaner, the tool registered earliest will be cancelled automatically. The vacuum cleaner erased all tool registrations. Perform the tool registration again. Nopowersupply Supplythepowertothetoolandthevacuum cleaner. Thetoolandvacuumcleanerareaway fromeachother(outofthetransmission range). Get the tool and vacuum cleaner closer each other. The maximum transmission distance is approxi- mately10mhoweveritmayvaryaccordingtothe circumstances. Radiodisturbancebyotherappliances whichgeneratehigh-intensityradio waves. Keepthetoolandvacuumcleanerawayfromthe appliances such as Wi-Fi devices and microwave ovens. The vacuum cleaner runs while the tool is not operating. Other users are using the wireless activation of the vacuum cleaner with their tools. Turno󰀨thewirelessactivationbuttonoftheother tools or cancel the tool registration of the other tools.21 ENGLISH MAINTENANCE CAUTION: Always be sure that the tool is switched o󰀨 and the battery cartridge is removed before attempting to perform inspection or maintenance. CAUTION: Clean out the guard to ensure there is no accumulated sawdust which may impede the operation of the guarding system.A dirtyguardingsystemmaylimittheproperoperation whichcouldresultinseriouspersonalinjury.The moste󰀨ectivewaytoaccomplishthiscleaningiswith compressed air. If the dust is being blown out of the guard, be sure the proper eye and breathing protection is used. NOTICE: Never use gasoline, benzine, thinner, alcohol or the like. Discoloration, deformation or cracks may result. Adjusting 0°-cut and 45°-cut accuracy NOTICE: Do not engage the levers for -1° bevel angle when adjusting 0°-cut accuracy. NOTICE: Do not engage the lever for 48° bevel angle when adjusting 45°-cut accuracy. Theseadjustmentshavebeenmadeatthefactory. Butiftheyareo󰀨,youcanadjustthemasthefollowing procedures.

1. Slightlyloosentheclampingscrewsonthefront

and rear of the tool.

3. Tighten the clamping screws and make a test cut.

TomaintainproductSAFETYandRELIABILITY, repairs,anyothermaintenanceoradjustmentshould beperformedbyMakitaAuthorizedorFactoryService Centers,alwaysusingMakitareplacementparts. OPTIONAL ACCESSORIES CAUTION: These accessories or attachments are recommended for use with your Makita tool specied in this manual.Theuseofanyother accessories or attachments might present a risk of injurytopersons.Onlyuseaccessoryorattachment for its stated purpose. Ifyouneedanyassistanceformoredetailsregard- ingtheseaccessories,askyourlocalMakitaService Center.

WAARSCHUWING: ZORG ERVOOR DAT U
