USER MANUAL DVM902 VELLEMAN

CAT II 700 V / CAT IV 600 V

USER MANUAL 3

HANDLEIDING 18

MODE D'EMPLOI 33

MANUAL DEL USUARIO 48

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

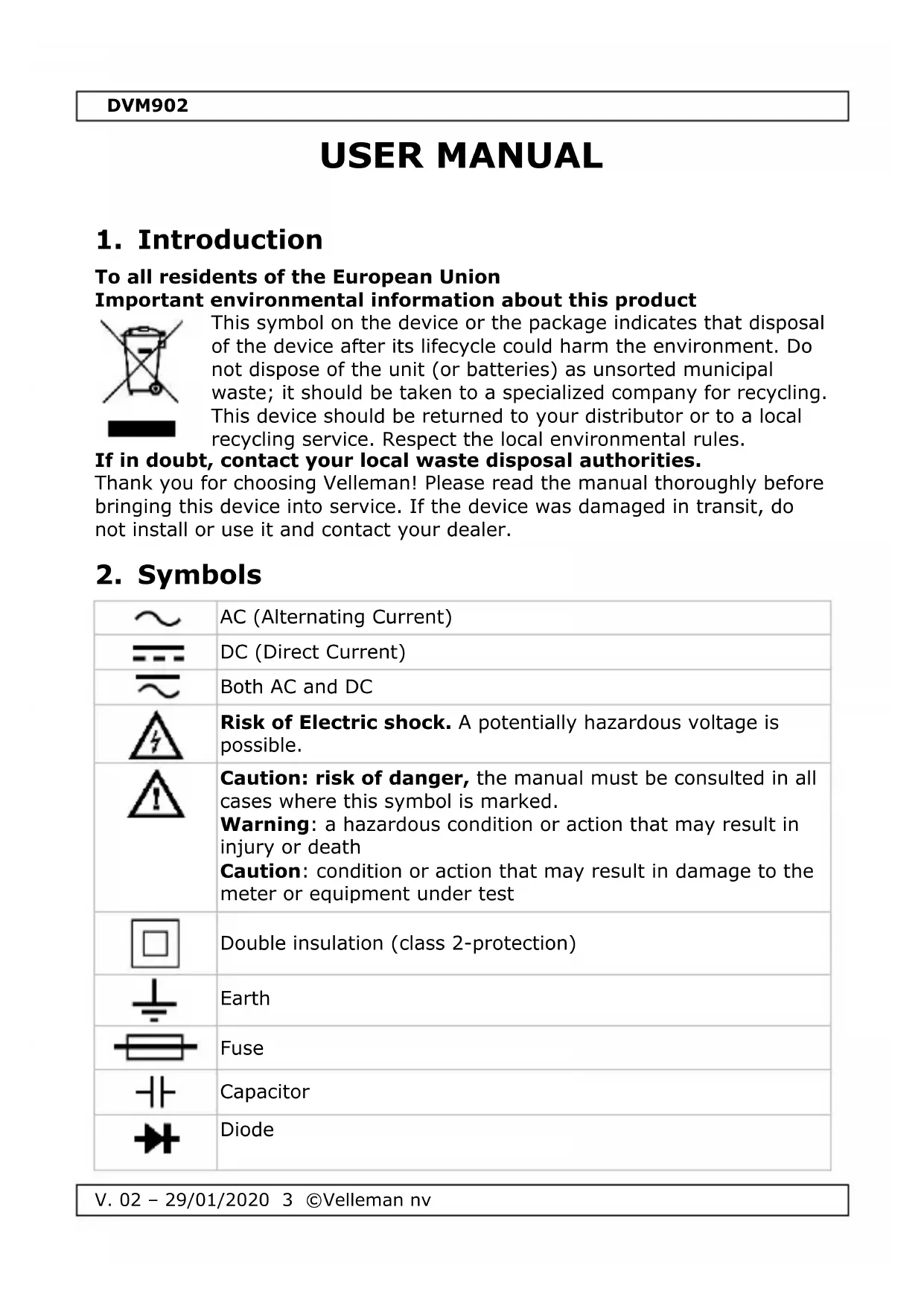

1. Symbols

~	AC (Alternating Current)
=	DC (Direct Current)
~	Both AC and DC
4	Risk of Electric shock. A potentially hazardous voltage is possible.
A	Caution: risk of danger, the manual must be consulted in all cases where this symbol is marked. Warning: a hazardous condition or action that may result in injury or death Caution: condition or action that may result in damage to the meter or equipment under test
	Double insulation (class 2-protection)
	Earth
	Fuse
+	Capacitor
	Diode

DVM902

Continuity

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

This symbol indicates: Read instructions Not reading the instructions and manual can lead to damage, injury or death.

This symbol indicates: Danger A hazardous condition or action that may result in injury or death.

This symbol indicates: Risk of danger/damage Risk of a hazardous condition or action that may result in damage, injury or death.

This symbol indicates: Attention; important information Ignoring this information can lead to hazardous situations.

WARNING: To avoid electrical shock always disconnect the test leads prior to opening the housing. To prevent fire hazards, only use fuses with the same ratings as specified in this manual. Remark: refer to the warning on the battery compartment.

Avoid cold, heat and large temperature fluctuations. When the unit is moved from a cold to a warm location, leave it switched off until it has reached room temperature. This to avoid condensation and measuring errors.

Protect this device from shocks and abuse. Avoid brute force when operating.

Pollution degree 2-device. For indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids. Not for industrial use. Refer to §8 Pollution degree.

DVM902

A	Keep the device away from children and unauthorised users.
4	Risk of electric shock during operation. Be very careful when measuring live circuits.
1	There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
A	This is an installation category CAT IV measuring instrument. Refer to §7 Overvoltage/installation category.
	Read this addendum and the manual thoroughly. Familiarise yourself with the functions of the device before actually using it.
A	All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
1	Only use the device for its intended purpose. Using the device in an unauthorized way will void the warranty. Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

4. Maintenance

There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.

Before performing any maintenance activities, disconnect the test leads from the jacks.

For instructions on replacing battery or fuse, refer to §11 Battery and fuse replacement.

Do not apply abrasives or solvents to the meter. Use a damp cloth and mild detergent for cleaning purposes.

5. During Use

Risk of electric shock during operation. Be very careful when measuring live circuits.

• If the equipment is used in a manner not specified by the manufacturer, the protection provided by the equipment may be impaired.
• Never exceed the limit value for protection. This limit value is listed separately in the specifications for each range of measurement.
• Do not touch unused terminals when the meter is linked to a circuit which is being tested.

DVM902

• Never use the meter with CAT II installations when measuring voltages that might exceed the safety margin of 600V above earth ground.
• Never use the meter with CAT IV installations when measuring voltages that might exceed the safety margin of 300V above earth ground.
• Set the range selector at its highest position if the intensity of the charge to be measured is unknown beforehand.
• Disconnect the test leads from the tested circuit before rotating the range selector in order to change functions.
• When carrying out measurements on a TV set or switching power circuits, always remember that the meter may be damaged by any high amplitude voltage pulses at test points.
• Always be careful when working with voltages above 60 VDC or 30 VAC rms. Keep your fingers behind the probe barriers at all times during measurement.
• Never perform resistance, diode or continuity measurements on live circuits. Make sure all capacitors in the circuit are depleted.

6. General Description

Refer to the illustration on page 2 of this manual:

1. Display 3 1 / 2 digits, 7 segments, LCD
2. Function buttons
3. Rotary switch
4. "15A" jack Insert the red test lead in this connector in order to measure a max. current of 15 A.
5. "VΩHz" jack Insert the red (positive) test lead in this connector to measure voltage, resistance and frequency.
6. "COM" jack Insert the black (negative) test lead.
7. "μAmA" jack Insert the red (positive) test lead in this connector to measure current (except 15 A).

7. Overvoltage/Installation Category

DMMs are categorized depending on the risk and severity of transient overvoltage that might occur at the point of test. Transients are short-lived bursts of energy induced in a system, e.g. caused by lightning strike on a power line.

DVM902

The existing categories according EN 61010-1 are:

CAT I	A CAT I-rated meter is suitable for measurements on protected electronic circuits that are not directly connected to mains power, e.g. electronics circuits, control signals...
CAT II	A CAT II-rated meter is suitable for measurements in CAT I- environments and mono-phase appliances that are connected to the mains by means of a plug and circuits in a normal domestic environment, provided that the circuit is at least 10 m apart from a CAT III- or 20 m apart from a CAT IV-environment. E.g. household appliances, portable tools...
CAT III	A CAT III-rated meter is suitable for measurements in CAT I- and CAT II-environments, as well as for measurements on (fixed) mono- or poly-phased appliances which are at least 10 m apart from of a CAT IV-environment, and for measurements in or on distribution level equipment (fuse boxes, lighting circuits, electric ovens).
CAT IV	A CAT IV-rated meter is suitable for measuring in CAT I-, CAT II- and CAT III-environments as well as on the primary supply level. Note that for all measurements on equipment for which the supply cables run outdoors (either overhead or underground) a CAT IV meter must be used.

Warning:

This device was designed in accordance with EN 61010-1 installation category CAT II 700 V and CAT IV 600 V. This implies that certain restrictions in use apply that are related to voltages and voltage peaks which can occur within the environment of use. Refer to the table above.

This device is only suitable for measurements up to 700 V in CAT II and up to 600 V in CAT IV

8. Pollution Degree

IEC 61010-1 specifies different types of pollution environments, for which different protective measures are necessary to ensure safety. Harsher environments require more protection, and the protection against the pollution which is to be found in a certain environment depends mainly on the insulation and the enclosure properties. The pollution degree rating of the DVM indicates in which environment the device may be used.

Pollution degree 1

No pollution or only dry, nonconductive pollution occurs. The pollution has no influence. (only to be found in hermetically sealed enclosures)

DVM902

Pollution degree 2	Only nonconductive pollution occurs. Occasionally, temporary conductivity caused by condensation is to be expected. (home and office environments fall under this category)
Pollution degree 3	Conductive pollution occurs, or dry nonconductive pollution occurs that becomes conductive due to condensation that is to be expected. (industrial environments and environments exposed to outside air - but not in contact with precipitation)
Pollution degree 4	The pollution generates persistent conductivity caused by conductive dust or by rain or snow. (exposed outdoor environments and environments where high humidity levels or high concentrations of fine particles occur)

Warning: This device was designed in accordance with EN 61010-1 pollution degree 2. This implies that certain restrictions in use apply that are related to pollution which can occur within the environment of use. Refer to the table above.

This device is only suitable for measurements in Pollution degree class 2 environments.

9. Specifications

This device is not calibrated when purchased!

Regulations concerning environment of use:

Use this meter only for measurements in CAT I, CAT II, CAT III and CAT IV environments (see §7).

Use this meter only in a pollution degree 2 environment (see §8).

Ideal working conditions include:

temperature: 0^ to 40^ (32°F to 104°F)

relative humidity: max. 80% RH

altitude: max. 2000 m (6560 ft)

voltage. 700 V

fuse protection

F0.8 A/1000 VDC, 6.75 x 33 mm

F15 A/1000 VDC, 6.75 x 33 mm

power supply 1x3.7V (incl.)

display LCD, 6000 counts

ranging mode . auto/manual

continuity buzzer. yes

diode test. yes

low-battery indication yes

data hold. yes

backlight yes

DVM902

auto power-off yes
dimensions 190 x 100 x 40 mm
weight (with battery) 320 g

storage environment

temperature -20 ^ C to 60^
humidity < 90 % RH

test lead probe.......CAT II 700 V / CAT IV 600 V, 15 A; L = 90 cm

IP rating.. IP20

9.1 DC VOLTAGE

Δ	Do not measure circuits that may contain voltages > 700 VDC or > 700 VAC
range	resolution	accuracy
600 mV	0.1 mV	± (0.5 % + 2)
6 V	1 mV
60 V	10 mV
600 V	100 mV
700 V	1 V	± (0.8 % + 2)

Overload protection: 700 V DC or AC rms

Impedance: 10 MΩ

9.2 AC VOLTAGE

Δ	Do not measure circuits that may contain voltages > 700 VDC or > 700 VAC
range	resolution	accuracy
6 V	1 mV	± (0.8 % + 3)
60 V	10 mV
600 V	100 mV
700 V	1 V	± (1.2 % + 3)

AC true RMS

Frequency range: 40 Hz-2 kHz

Overload protection: 700 V DC or AC rms

Impedance: 10 MΩ

9.3 DC CURRENT

Δ	Do not measure circuits that may contain voltages > 700 VDC or > 700 VAC
range	resolution	accuracy
6 mA	1 μA	± (1.2 % + 2)
60 mA	10 μA
600 mA	100 μA
15 A	1 mA	± (2.0 % + 3)

Overload protection: F0.8 A/700 V fuse, F15 A/700 V fuse

Continuous testing maximum steady-state current of 1 A

9.4 AC CURRENT

Δ	Do not measure circuits that may contain voltages > 700 VDC or > 700 VAC
range	resolution	accuracy
6 mA	1 μA	± (1.5 % + 3)
60 mA	10 μA
600 mA	100 μA
15 A	10 mA	± (2.5 % + 5)

AC true RMS

Frequency range: 40 Hz-2 kHz

Overload protection: F0.8 A/700 V fuse, F15 A/700 V fuse

Continuous testing maximum steady-state current of 1 A

9.5 RESISTANCE

Δ	Do not conduct resistance measurements on live circuits
range	resolution	accuracy
600 Ω	0.1 Ω	± (1.0 % + 3)
6 kΩ	1 Ω	± (1.0 % + 2)
60 kΩ	10 Ω
6 MΩ	1 kΩ
60 MΩ	10 kΩ	± (1.5 % + 3)

Overload protection: 700 V DC or AC rms

9.6 CAPACITANCE

Δ	Do not conduct capacitance measurements on live circuits
range	resolution	accuracy
9.999 nF	1 pF	± (3.0 % + 10)
99.99 nF	10 pF	± (2.5 % + 5)
999.9 nF	100 pF
9.999 μF	1 nF
99.99 μF	10 nF	± (5.0 % + 10)
999.9 μF	100 nF	± (10.0 % + 20)
9.999 mF	1 μF
99.99 mF	10 μF

Overload protection: 700 V DC or AC rms

9.7 DIODE AND CONTINUITY

Δ	Do not conduct diode or continuity measurements on live circuits
range	description	test condition
	display reads the approximate forward voltage of the diode	forward DC current ± 1.5 mA reversed DC voltage ± 4 V
	built-in buzzer sounds if resistance < 50 Ω	open-circuit voltage ± 2 V

Overload protection: 700 V DC or AC rms

9.8 FREQUENCY

Do not conduct frequency measurements on live circuits
range	resolution	accuracy
9.999 Hz	0.001 Hz	± (0.1 % + 5)
99.99 Hz	0.01 Hz
999.9 Hz	0.1 Hz
9.999 kHz	1 Hz
99.99 kHz	10 Hz
999.9 kHz	100 Hz
9.999 MHz	1 Hz

Sensitivity: sine wave 0.6 V rms, 1.5 V rms for 9.999 MHz

Overload protection: 700 V DC or AC rms

9.9 DUTY CYCLE

0.1-99%: ± (2.0% + 2), frequency < 10 kHz

Sensitivity: sine wave 0.6 V rms

Overload protection: 700 V DC or AC rms

9.10 TEMPERATURE

range	accuracy		resolution
°C/°F	-20 to 150 °C	± (3 °C + 1)	1 °C/1 °F
	-4 to 302 °F	± (5 °F + 2)
	151 to 1000 °C	± (3 % + 2)
	303 to 1832 °F	± (3 % + 3)

NiCr-NiSi sensor

Overload protection: 700 V DC or AC rms

9.11 NON-CONTACT AC VOLTAGE DETECTION (NCV)

Test voltage range: 90-1000 V AC rms

The built-in buzzer will sound when live voltage is detected.

10. Operation

10.1 DC + AC VOLTAGE MEASUREMENT

Do not measure circuits that may contain voltages >700 VDC or >700 VAC

Use extreme caution when measuring voltages higher than 60 VDC or 30 VAC rms.

Always place your fingers behind the protective edges of the test probes while measuring!

1. Set the rotary switch in the desired "mV" or "v" position.
2. Connect the red test lead to the "VΩHz" jack and the black lead to the "COM" jack.
3. Press SELECT to choose the "DC" or "AC" measurement.
4. Connect the test leads to the source being measured.
5. Read the voltage value and the polarity of the red test lead on the LCD display.
6. On the AC range, press "Hz/%" to measure frequency or duty cycle.

Notes

• If the range is not known beforehand, set the selector switch to a high range and lower gradually.
  An OVER-RANGE is indicated by OL or -OL. Set to a higher range.
• The maximum input voltage is 700 V rms.

10.2 DC CURRENT MEASUREMENT

Do not measure circuits that may contain voltages >700 VDC or >700 VAC

Use extreme caution when measuring voltages higher than 60 VDC or 30 VAC rms.

Always place your fingers behind the protective edges of the test probes while measuring!

1. Set the rotary switch in the desired " A一^ , "mA" or "A" position.
2. Connect the red test lead to the "μAmA" jack and the black test lead to the "COM" jack (switch the red lead to the "15A" jack for measurements between 600 mA and 15 A).
3. Press SELECT to choose the "DC" or "AC" measurement.
4. Open the circuit in which the current is to be measured and connect the test leads to the circuit IN SERIES.
5. Read the current value and the polarity of the red lead connection on the LCD display.

DVM902

1. On the AC range, press "Hz/%" to measure frequency or duty cycle.

10.3 RESISTANCE MEASUREMENT

Do not conduct resistance measurements on live circuits. Make sure all capacitors in the circuit are depleted.

1. Set the rotary switch in the desired position.
2. Connect the red test lead to the "VΩHz" jack and the black test lead to the "COM" jack.
3. Connect the test leads to the resistor to be measured and read the LCD display.

10.4 CAPACITANCE MEASUREMENT

Do not conduct capacitance measurements on live circuits. Make sure all capacitors in the circuit are depleted.

1. Connect the red test lead to the "VΩHz" jack and the black test lead to the "COM" jack.
2. Set the rotary switch in the appropriate " " range position.
3. Connect the test leads to the source to be measured and read the LCD display.

10.5 DIODE AND CONTINUITY TEST

Do not conduct diode or continuity measurements on live circuits.
Make sure all capacitors in the circuit are depleted.

1. Connect the red test lead to the "VΩHz" jack and the black one to the "COM" jack.
2. Set the selector switch to the desired position.
3. Press SELECT to choose the diode or audible continuity measurement.
4. For measuring the diode, connect the red test lead to the anode of the diode to be tested and the black test lead to the cathode of the diode. The approx. forward voltage drop of the diode will be displayed. For measuring continuity, connect the test leads to two points of the circuit to be tested. If continuity exists, the built-in buzzer will sound.

10.6 FREQUENCY AND DUTY CYCLE MEASUREMENT

Do not conduct frequency or continuity measurements on live circuits. Make sure all capacitors in the circuit are depleted.

1. Set the rotary switch in the "Hz" position.
2. Connect the red test lead to the "VΩHz" jack and the black one to the "COM" jack.
3. Press "Hz/%" to choose the frequency or duty cycle measurement.
4. Connect the test leads to the source to be measured and read the LCD display.

10.7 TEMPERATURE MEASUREMENT

1. Connect the red banana plug to the "VΩHz" jack and the black one to "COM".
2. Set the rotary switch in the "°C/°F" position.
3. Press SELECT to choose the ^ C or ^ F measurement.
4. Put the probe into the field to be measured and read the LCD display.

10.8 NCV DETECTION

1. Set the rotary switch to the "NCV" position.
2. Hold the appliance so that its top is vertically and horizontally centered and contacting the conductor. When live voltage ≥ 90 V AC rms, the built-in buzzer will sound.

NOTES

1. Even without buzzer sounds, voltage may still exist. Do not rely solely on non-contact voltage detection to determine the presence of voltage. Detection operation may be subject to socket design, insulation thickness and different type and other factors.
2. When the meter input terminals detect voltage, due to the influence of present voltage, the voltage sensing indicator may also light.
3. Keep the appliance away from electrical noise sources during tests, i.e. fluorescent and dimmable lights, motors, etc. These sources may trigger NCV detection and invalidate the test.

10.9 DATA HOLD

In any range, press HOLD to lock the display value. The DH sign will appear on the display. Press again to exit.

10.10 MAX/MIN HOLD

Press MAX/MIN to lock the min or max value. Keep pressed for 2 seconds to unlock.

10.11 RELATIVE MEASUREMENT

Press REL to measure the relative value. The auto range mode can be changed to manual. Press it again to exit. This function is non effective on the Hz / % measurement.

11. Battery and Fuse Replacement

▲	WARNING: To avoid electrical shock always disconnect the test leads prior to opening the housing. To prevent fire hazards, only use fuses with the same ratings as specified in this manual. Remark: refer to the warning on the battery compartment
○	There are no user-serviceable parts inside the device. Refer to an authorized dealer for service and/or spare parts.
△	Disconnect the test leads from the test points and remove the test leads from the measuring terminals before replacing the batteries or fuses.

• When" " is displayed, the battery should be replaced.
• Fuses rarely need replacement and blown fuses almost always result from human error.

To replace the battery:

• Switch off the meter.
• Remove the screw at the back of the case and gently open the housing.
• Remove the old battery and insert a new one.
• Close the housing and fasten the screw.

Battery: 1 × 3.7 ~V , make sure to respect the polarity

Fuses: F0.8 A/1000 V, 6.75 x 33 mm, F15 A/1000 V, 6.75 x 33 mm
Make sure the meter is closed tight and put the protective edge back in place before using the meter.

12. Troubleshooting

If the device acts abnormal while measuring, this means that the internal fuse is defective.

Keep in mind that a low battery level could lead to incorrect measurements. Replace the battery on a regular basis.

(Tip: the reduced luminosity of the backlight/LCD display indicates a low battery level.)

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.VELLEMAN.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

Beveiling against overbelasting: zekering F0.8 A/700 V, zekering

F15 A/700 V

Beveiling against overbelasting: 700 V DC of AC rms

9.6 CAPACITEIT

Δ	Voer geen capaciteitsmetingen UIT in circuits waarop spanning aanwezig is
bereik	resolutie	nauwkeurigheid
9.999 nF	1 pF	± (3.0 % + 10)
99.99 nF	10 pF	± (2.5 % + 5)
999.9 nF	100 pF
9.999 μF	1 nF
99.99 μF	10 nF	± (5.0 % + 10)
999.9 μF	100 nF	± (10.0 % + 20)
9.999 mF	1 μF
99.99 mF	10 μF

Beveiling gegen overbelasting: 700 V DC of AC rms

10.3 WEERSTANDSMETING

```c index IP ..... IP20

9.1 TENSION CC

10.1 MESURER LA TENSION CC + CA

10.1 MEDIR LA TENSION DC Y AC

9.11 WYKRYWANE BEZDOTYKOWE NAPIECIA (NCV) AC

Zakres mierzonego napiecia: 90-1000 V AC rms

altitude: max. 2000 m (6560 ft)

voltagem 700 V

proteção do fusível

F0.8 A/1000 VDC, 6.75 x 33 mm

F15 A/1000 VDC, 6.75 x 33 mm

10.3 MEDICAO DA RESISTÊNCIA

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.

• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;

• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);

• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....:

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);

• damage resulting from an inappropriate packing and shipping of the article;

• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.

• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.

• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.

• Repairs occurring after warranty expiration are subject to shipping costs.

• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

NL
