Product Type	Air Compressor
Brand	Senco
Model	PC1251
Dimensions (W x D x H)	49 x 49 x 76 cm
Net Weight	37.5 kg
Power Supply	230 V / 12 A / 50 Hz, single phase
Motor Power	2.5 HP (1.9 kW)
Tank Capacity	20 liters
Maximum Pressure	9 bar
Cut-Out Pressure	9 bar
Cut-In Pressure	7 bar
Air Displacement	271 L/min (9.53 CFM)
Air Delivery at 6 bar	164 L/min (5.79 CFM)
Pump Type	1 cylinder, 1 stage, oil lubrication
Recommended Oil	SENCO PC0344
Air Intake Filter	Filter cartridge, cleanable with soapy water
Safety	Safety valve, motor thermal protection, on/off switch
Included Accessories	Pressure regulator, pressure gauges, quick coupler, drain valve
Warranty	1 year (parts and labor)
Regular Maintenance	Daily tank draining, oil level check, filter cleaning

Frequently Asked Questions - PC1251 Senco

How to start the Senco PC1251 compressor?

Make sure the switch is on OFF (0), plug the device into a properly grounded outlet, then set the switch to ON (1). The compressor will start and stop automatically at cut-out pressure (9 bar).

What oil to use for the PC1251 compressor?

Use only SENCO PC0344 compressor oil. The oil level must be checked daily and should be between the min and max marks on the dipstick.

How to drain water from the air tank?

After each use, reduce the tank pressure to below 0.7 bar by operating a pneumatic tool or pulling the safety valve ring. Then open the drain valve located under the tank to remove all moisture. Close it securely afterwards.

Why does the motor not start?

Check: the power supply (cord plugged in, fuse, circuit breaker), the switch in ON (1) position, and the thermal overload (let the motor cool down and reset it). If the problem persists, contact Senco customer service.

What working pressure can I use?

The compressor provides a maximum pressure of 9 bar. Adjust the output pressure using the regulator (turn clockwise to increase). Never exceed the maximum pressure of connected accessories.

How to clean the air filter?

Remove the filter and wash it with warm soapy water. Rinse thoroughly and let it dry completely before reinstalling. Never operate the compressor without the filter.

What to do if the safety valve leaks?

A leak from the safety valve usually indicates a pressure switch defect. Immediately stop the compressor and have the pressure switch replaced by an authorized technician.

Can I use an extension cord?

Senco advises against using extension cords. If necessary, use a cord of adequate gauge (at least 12 AWG up to 7.5 m, 10 AWG up to 30 m) with a grounding plug.

How to maintain the compressor to extend its life?

Perform the following: drain the tank after each use, check oil level daily, clean the air filter monthly, and inspect hoses and fittings for leaks. Follow the maintenance intervals in the manual.

The tank is rusty, what to do?

Never attempt to repair or weld a tank damaged or perforated by rust. The tank must be replaced immediately to avoid any risk of bursting. Contact an authorized Senco repair center.

USER MANUAL PC1251 Senco

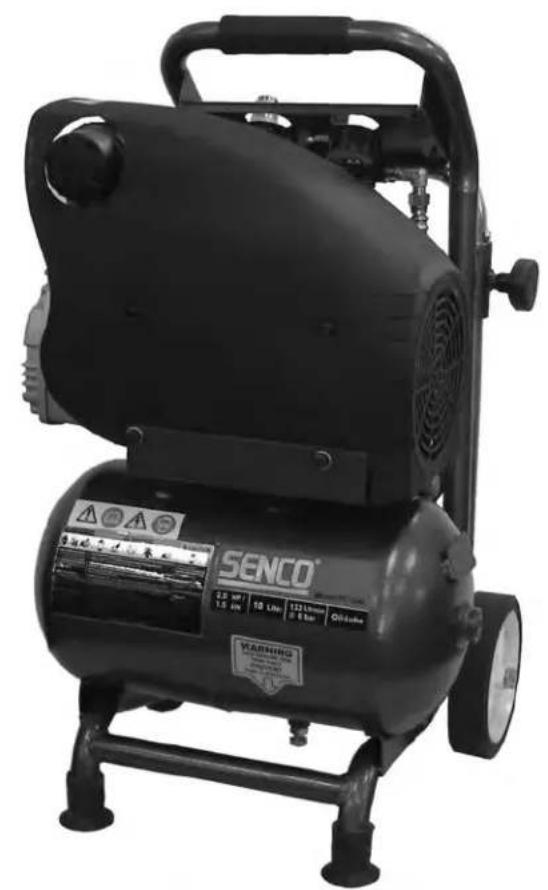

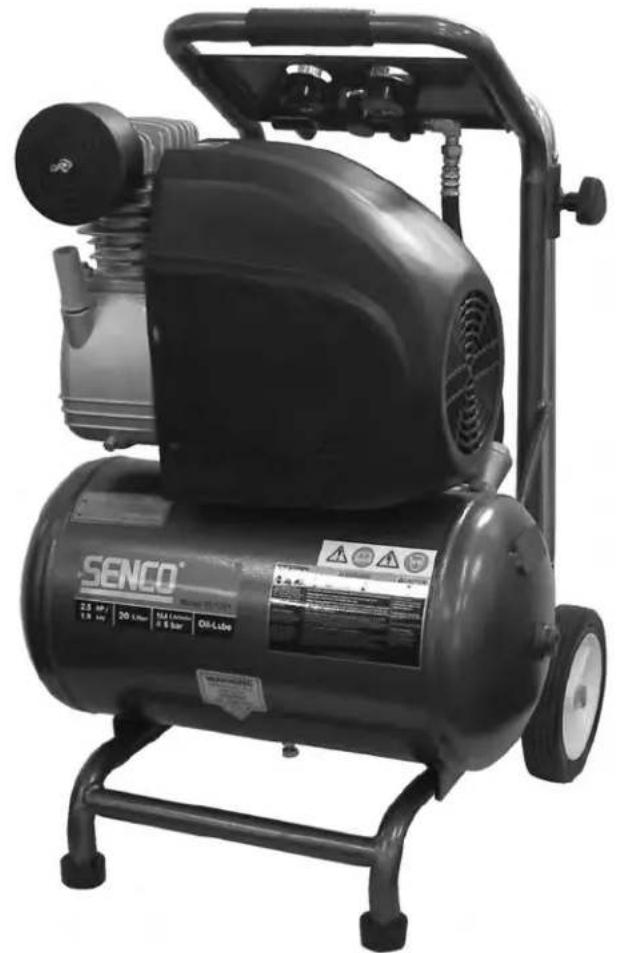

Electric Air Compressor PC1249 & PC1251

Operating Instructions

2010 by Verpa-Senco BV

PC1249 & PC1251 Rev. 06-08-2014

Warnings for the safe use of this compressor are included in this manual.

Read and understand this manual.

TABLE OF CONTENTS

INTRODUCTION 3

SAFETY ALERT 3

INSPECTION 3

SAFETYWARNINGS 4

ELECTRICAL. 4

EXPLOSION OR FIRE 5

BURSTING 5

BREATHING 6

BURNS 6

FLYING OBJECTS 6

MOVING PARTS 7

NEGLIGENCE 7

AIR COMPRESSOR DAMAGE 7

COMPRESSOR FEATURES 8

PREPARATION 10

INITIAL SET-UP 10

LOCATION 10

ELECTRICAL. 10

OPERATION 11

PRE-START CHECKLIST 11

START-UP 11

SHUTDOWN 11

MAINTENANCE 11

TROUBLESHOOTING 12-14

SPECIFICATIONS 15

WARRANTY 16

INTRODUCTION

Congratulations on the purchase of your new SENCO Air Compressor! You can be assured your SENCO Air Compressor was constructed with the highest level of precision and accuracy. Each component has been rigorously tested by technicians to ensure the quality, endurance and performance of this air compressor.

This operator's manual was compiled for your benefit. By reading and following the simple safety, installation and operation, and maintenance steps described in this manual, you will receive years of troublefree operation from your new SENCO Air Compressor. The contents of this manual are based on the latest product information available at the time of publication. The manufacturer reserves the right to make changes in price, color, materials equipment, specifications or models at any time without notice.

SAFETY ALERT!

A DANGER, WARNING or CAUTION safety warning will be surrounded by a SAFET Y ALERT BOX. This box is used to designate and emphasize SafetyWarnings that must be followed when operating this air compressor. Accompanying the safety warnings are Signal Words which designate the degree or level of hazard seriousness. The Signal Words used in this manual are as follows:

DANGER: Indicates an imminently hazardous situation which, if not avoided, WILL result in death or serious injury.

WARNING: Indicates a potentially hazardous situation which, if not avoided, COULD result in death or serious injury.

CAUTION: Indicates a potentially hazardous situation which, if not avoided MAY result in minor or moderate injury or damage to the air compressor.

The symbols set to the left of this paragraph are Safety Alert Symbols. These symbols are used to call attention to items or procedures that could be dangerous to you or other persons using this equipment.

ALWAYS PROVIDE A COPY OF THIS MANUAL TO ANYONE USING THIS EQUIPMENT. READ ALL INSTRUCTIONS IN THIS MANUAL AND ANY INSTRUCTIONS SUPPLIED BY MANUFACTURERS OF SUPPORTING EQUIPMENT BEFORE OPERATING THIS AIR COMPRESSOR AND ESPECIALLY POINT OUT THE SAFETY WARNINGS TO PREVENT THE POSSIBILITY OF PERSONAL INJURY TO THE OPERATOR.

INSPECTION

Unbox the air compressor and write in the serial number in the space provided below. Inspect for signs of obvious or concealed freight damage. Be sure that all damaged parts are replaced and any mechanical problems are corrected prior to the operation of the air compressor.

SERIAL NUMBER

Please have the following information available for all service calls:

1. Model Number
2. Serial Number
3. Date and Place of Purchase

HAZARD	POTENTIAL CONSEQUENCE	PREVENTION
RISK OF ELECTRIC SHOCK OR ELECTROCUTION	Serious injury or death could occur if the air compressor is not properly grounded. Your air compressor is powered by electricity and may cause electric shock or electrocution if not used properly.	Make sure the air compressor is plugged into a properly grounded outlet which provides correct voltage and adequate fuse protection.
	Electrical shock may occur from electrical cord.	Check power cord for signs of crushing, cutting or heat damage. Replace faulty cord before use.
		Keep all connections dry and off the ground. Do not allow electrical cords to lay in water or in such a position where water could come in contact with them. Do not touch plug with wet hands.
		Do not pull on the electrical cord to disconnect from the outlet.
	Electrical shock may occur if air compressor is not operated properly.	Never operate air compressor in wet conditions or outdoors when it is raining.
		Never operate air compressor with safety guards/covers removed or damaged.
	Serious injury or death may occur if electrical repairs are attempted by unqualified persons.	Any electrical wiring or repairs performed on this air compressor should be done by Authorized Service Personnel in accordance with National and Local electrical codes.
		Before opening any electrical enclosure, always shut off the air compressor, relieve pressure and unplug the air compressor from the power source. Allow air compressor to cool down. Never assume the air compressor is safe to work on just because it is not operating. It could restart at any time!

SAFETYWARNINGS
READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR

HAZARD	POTENTIAL CONSEQUENCE	PREVENTION
RISK OF EXPLOSION OR FIRE	Serious injury or death may occur from normal electrical sparks in motor and pressure switch.	Always operate air compressor in a well ventilated area free of flammable vapors, combustible dust, gases or other combustible materials. If spraying flammable material, locate the air compressor at least 6 meters away from the spray area. (An additional hose may be required.)
	Serious injury may occur if any air compressor ventilation openings are restricted, causing the air compressor to overheat and start on fire.	Never place objects against or on top of air compressor. Operate air compressor at least 30cm away from any wall or obstruction that would restrict proper ventilation.
RISK OF BURSTING	Serious injury or death may occur from an air tank explosion if air tanks are not properly maintained.	Drain air tank daily or after each use to prevent moisture buildup in the air tank. If air tank develops a leak, replace the air tank immediately. Never repair, weld or make modifications to the air tank or its attachments. Never make adjustments to the factory set pressures. Never exceed manufacturers maximum allowable pressure rating of attachments. Because of extreme heat, do not use plastic pipe or lead tin soldered joints for a discharge line. Never use air compressor to inflate small, low pressure objects such as toys. All hoses and fittings shall be suitable for site use at the maximum allowable working pressure of the portable compressor.

SAFETYWARNINGS
READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR

HAZARD	POTENTIAL CONSEQUENCE	PREVENTION
RISK TO BREATHING	Serious injury or death could occur from inhaling compressed air. The air stream may contain carbon monoxide, toxic vapors or solid particles. Sprayed materials such as paint, paint solvents, paint remover, insecticides, weed killers, etc. contain harmful vapors and poisons.	Never inhale air from the air compressor either directly or from a breathing device connected to the air compressor. Operate air compressor only in a well ventilated area. Follow all safety instructions provided with the materials you are spraying. Use of a respirator may be required when working with some materials.
RISK OF BURNS	Serious injury could occur from touching exposed metal parts. These areas can remain hot for some time after the air compressor is shutdown.	Never allow any part of your body or other materials to make contact with any exposed metal parts on the air compressor, motor, or pipework.
RISK OF FLYING OBJECTS	Soft tissue damage can occur from the compressed air stream.	Always wear OSHA required Z87 safety glasses to shield the eyes from flying debris. Never point the air stream at any part of your body, anyone else or animals. Never leave pressurized air compressor unattended. Shut off air compressor and relieve pressure before attempting maintenance, attaching tools or accessories.
EYE PROTECTION MUST BE WORN	Serious injury can occur from loose debris being propelled at a high speed from the compressed air stream.	Always maintain a safe distance from people and animals while operating the air compressor. Do not move the air compressor while air tank is under pressure. Do not attempt to move the air compressor by pulling on the hose.

SAFETYWARNINGS
READ ALL SAFETY WARNINGS BEFORE USING AIR COMPRESSOR

HAZARD	POTENTIAL CONSEQUENCE	PREVENTION
RISK FROM MOVING PARTS WARNING: UNIT MAY START WITHOUT WARNING	Risk of bodily injury from moving parts. This air compressor cycles automatically when the pressure switch is in the On/Auto position.	Always turn off air compressor when not in use. Bleed pressure from the air hose and unplug from electrical outlet before performing maintenance. All repairs to the air compressor should be made by an Authorized Service person. Never assume the air compressor is safe to work on just because it is not operating. It could restart at any time! Do not operate without protective covers/guards. Replace damaged covers/guards before using the air compressor.
	Risk of injury from negligent use.
RISK FROM NEGLIGENCE		Never allow children or adolescents to operate this air compressor! Stay alert-watch what you are doing. Do not operate the air compressor when fatigued or under the influence of alcohol or drugs. Know how to stop the air compressor. Be thoroughly familiar with controls.
RISK OF AIR COMPRESSOR DAMAGE	Risk of major repair.	Do not operate air compressor without an air filter. Do not operate air compressor in a corrosive environment. Always operate the air compressor in a stable, secure position to prevent air compressor from falling. Follow all maintenance instructions listed in this manual. Do not operate air compressor prior to adding oil.

! SAVE THESE INSTRUCTIONS !

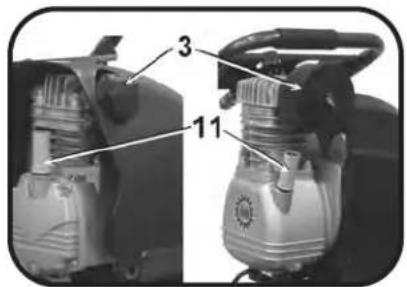

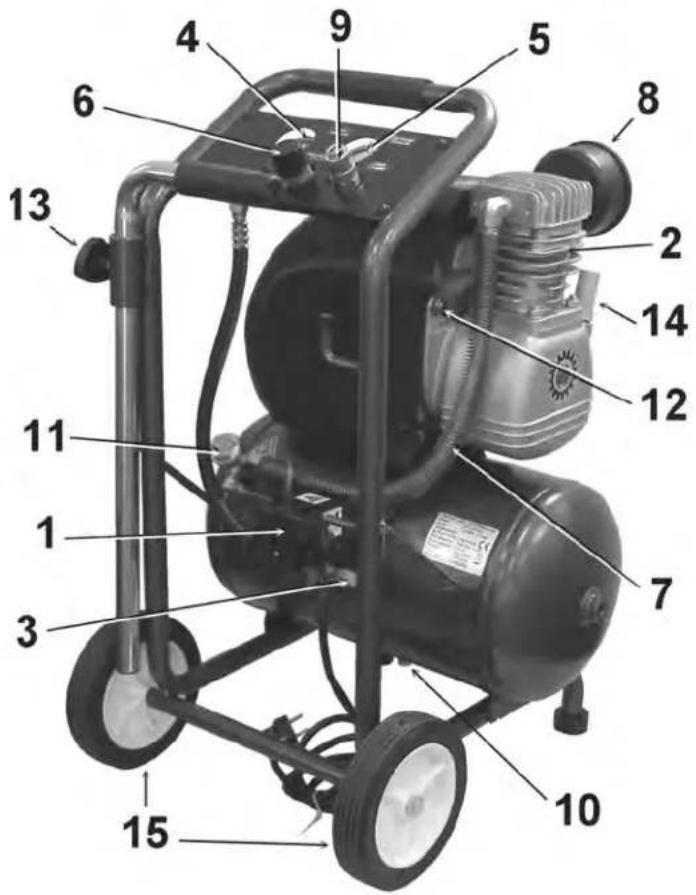

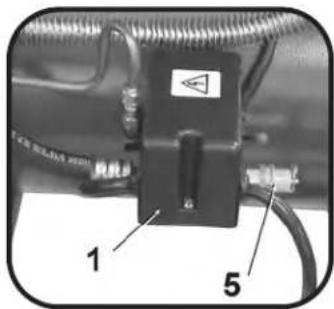

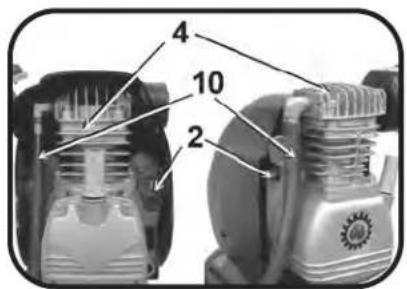

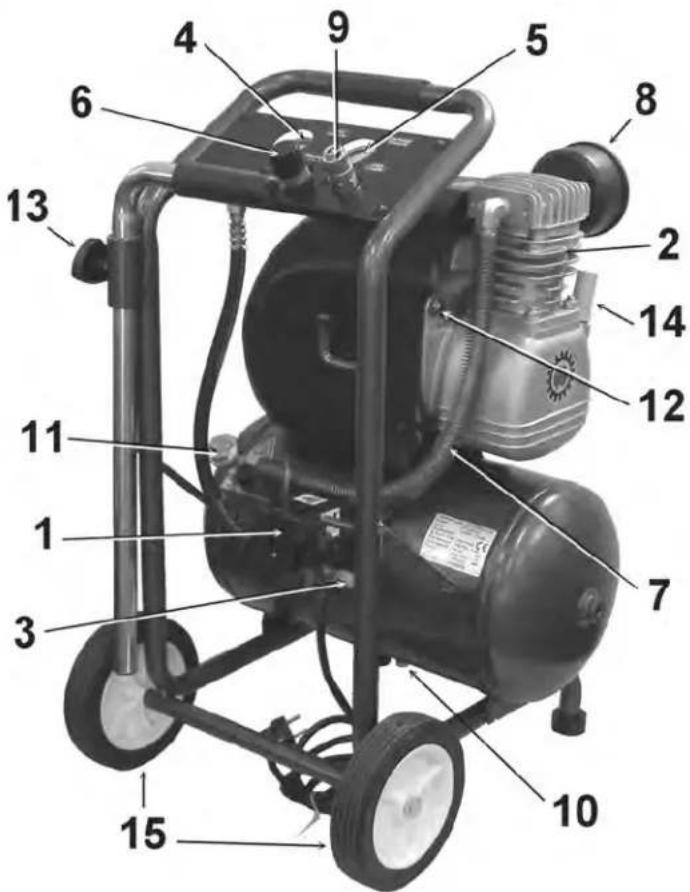

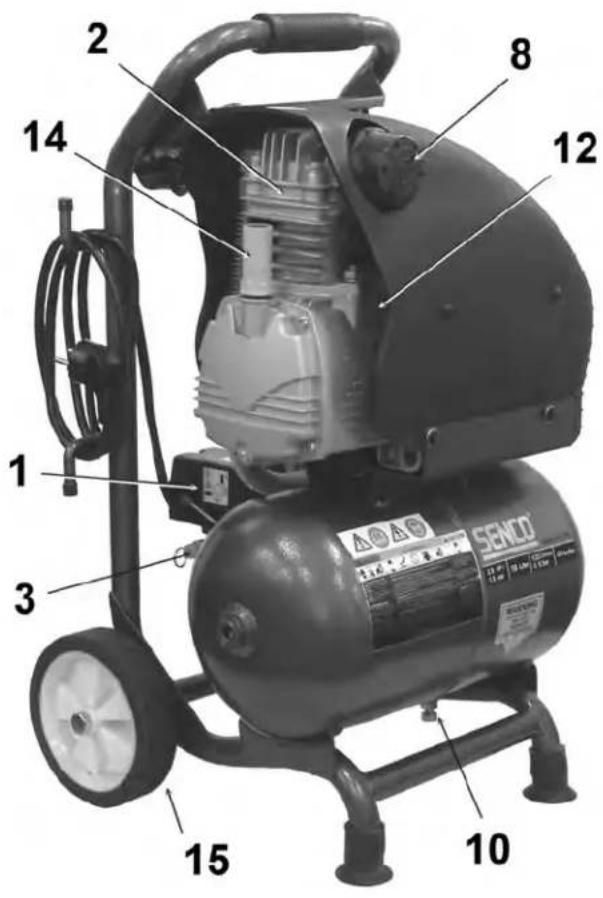

COMPRESSOR FEATURES

Model:PC1249

Model:PC1251

1. Motor/Pressure Switch
2. Air Compressor Pump
3. Safety Relief Valve
4. Tank Pressure Gauge
5. Outlet Pressure Gauge
6. Pressure Regulator
7. Discharge Liner
8. Air filter
9. Quick Disconnector
10. Tank Drain Valve
11. Cold start Valve
12. Overload / reset
13. Adjustment Screw for telescope handle
14. Dipstick
15. Wheels (2)

COMPRESSOR FEATURES

1) MOTOR/PRESSURE SWITCH: This switch is used to start or stop the air compressor. Moving the switch to the On (1) position will provide automatic power to the pressure switch which will allow the motor to start when the air tank pressure is below the factory set cut-in pressure. When in the On (1), the pressure switch stops the motor when the air tank pressure reaches the factor set cut-out pressure. For safety purposes, this switch also has a pressure release valve located on the side of the switch designed to automatically release compressed air from the air compressor pump head and its discharge line when the air compressor reaches cut-out pressure or is shut off. This allows the motor to restart freely. Moving the switch to the Off position will remove power from the pressure switch and stop the air compressor.
2) MOTOR THERMAL OVERLOAD: The electric motor has a thermal overload protector. If the motor overheats for any reason, the thermal overload will cut off power, thus preventing the motor from being damaged. Wait until the motor is cool. Motor also has a magnetic breaker. Reset switch if it is tripped.
3) AIR INTAKE FILTER: This filter is designed to clean air coming into the pump. To ensure the pump continually receives a clean, cool, dry air supply this filter must always be clean and ventilation opening free from obstructions. The filter can be removed for cleaning by using warm, soapy water. Rinse the filter and air dry.
4) AIR COMPRESSOR PUMP: To compress air, the piston moves up and down in the cylinder. On the downstroke, air is drawn in through the air intake valve while the exhaust valve remains closed. On the upstroke, air is compressed, the intake valve closes and compressed air is forced out through the exhaust valve, into the discharge line, through the check valve and into the air tank.
5) SAFETY RELIEF VALVE: This valve is designed to prevent system failures by relieving pressure from the system when the compressed air reaches a predetermined level. The valve is preset by the manufacturer and must not be modified in any way. To verify the valve is working properly, pull on the ring. Air pressure should escape. When the ring is released, it will reseat.

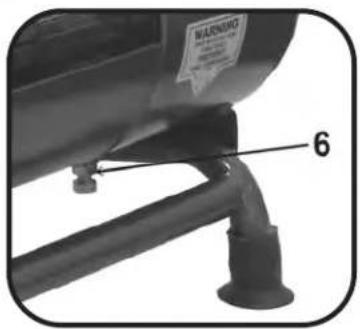

6) AIR TANK DRAIN VALVE: The drain valve is used to remove moisture from the air tank(s) after the air compressor is shut off. NEVER attempt to open the drain valve when more than 0.7 bar of air pressure is in the air tank! To open the drain valve, turn the knob counterclockwise. Tilt tank to ensure that all condensation drains through valve.

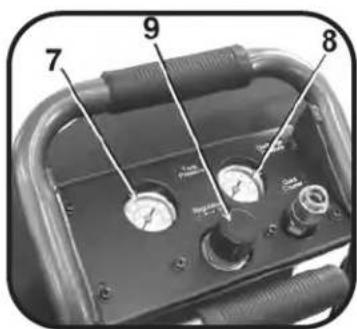

7) AIR TANK PRESSURE GAUGE: The air tank pressure gauge indicates the reserve air pressure in the air tank (s).
8) OUTLET PRESSURE GAUGE: The outlet pressure gauge indicates the air pressure available at the outlet side of the regulator. This pressure is controlled by the regulator and is always less or equal to the air tank pressure.
9) PRESSURE REGULATOR: The air pressure coming from the air tank is controlled by the regulator knob. Turn the pressure regulation knob clockwise to increase discharge pressure, and counterclockwise to decrease discharge pressure.
10) DISCHARGE LINE: Please note that the discharge line is very hot. HOT SURFACES: Do not remove protective shroud. High temperature after sustained use.
11) DIPSTICK: The dipstick will measure the amount of oil in the pump. Oil level should be checked on a daily basis to ensure that it is between the minimum and maximum notch. Air escaping from the vent is normal.

PREPARATION

INITIAL SET-UP:

1. Read safety warnings before setting-up air compressor.
2. Add entire contents of oil from enclosed bottle prior to starting compressor
3. Ensure the oil level is above the minimum notch and below the maximum notch on the dipstick. If low, add compressor pump oil.

LOCATION:

CAUTION In order to avoid damaging the air compressor, do not incline the air compressor transversely or longitudinally more than 10^ .

1. Place air compressor at least 30~cm away from obstacles that may prevent proper ventilation.

Do not place air compressor in an area:

-where there is evidence of oil or gas leaks.
-where flammable gas vapors or materials may be present.

WARNING

Serious injury or death may occur if electrical sparks from motor and pressure switch are come in contact with flammable vapors, combustible dust, gases or other gas combustible materials. When using the air compressor for spray painting, place the compressor as far away I from the work area as possible, using extra air hoses instead of union cords.

-where air temperatures fall below 0^ or exceed 40^ .

-where extremely dirty air or water could be drawn into the air compressor.

ELECTRICAL:

DANGER

Improper connection of the equipment-grounding conductor can result in a risk of shock or electrocution. Check with a qualified electrician or service personnel to be in doubt as to whether the outlet is properly grounded. Do not use any type of wire with this product. If repair or replacement of the cord or plug is necessary, do not use the grounding wire to either flat blade terminal. The wire with insulation having a surface that is green with or without yellow stripes is the grounding wire.

WARNING

This product must be grounded. If there should be a malfunction or breakdown, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment

grounding conductor and a grounding type plug. The plug must be plugged into appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

1. SENCO® DOES NOT RECOMMEND THE USE OF EXTENSION CORDS as this can create power loss and overheating of the motor. Use of an additional air hose is recommended rather than an extension cord. If use of an extension cord is unavoidable, it should be plugged into a GFCI found in circuit boxes or protected receptacles. When using an extension cord, observe the following:

Cable Length Wire Gauge

Up to 8 meters 12 AWG

Up to 30 meters

Up to 50 meters

Up to 75 meters

10 AWG

8 AWG

6 AWG

Use only 3-blade extension cords that have 3-blade grounding-type plugs and 3-slot cord connectors that will accept the plug from the product. Use only extension cords having an electrical rating not less than the rating of the product. Do not use damaged extension cords. Examine extension cord before using and replace if damaged. Do not abuse extension cord and do not yank on any cord to disconnect. Keep cord away from heat and sharp edges. Always shut off the air compressor switch before removing the plug from the receptacle.

OPERATION

PRE-START CHECKLIST:

1. Remove any moisture in the air compressor air tank. Remove excessive pressure with an air tool, then open the air tank drain valve in the bottom of the air tank. Close tightly when drained.

WARNING: Risk of bodily injury. NEVER attempt to open the drain valve when more than 0.7 bar of air pressure is in the air tank!

1. Make sure the air compressor Motor Switch is in the OFF (0) position.
2. Make sure all safety valves are working correctly.
3. Make sure all guards and covers are in place and securely mounted.

START-UP:

1. Ensure the lever on the pressure switch box is in the OFF (0) position.
2. Plug the power cord into a grounded outlet.
3. Move the lever on the pressure switch box to the On (1) position.
4. AUTO OPERATION: The ON position will allow the air compressor to START building up pressure in the air tanks and STOP when correct pressure is achieved. When pressure drops with usage, the air compressor will START building up pressure again.
5. Set pressure by adjusting the pressure regulator knob counterclockwise for less pressure and clockwise for more pressure.
6. If you notice any unusual noise or vibration, stop the air compressor and refer to Troubleshooting .

SHUTDOWN:

1. To stop the air compressor, move the lever on the pressure switch box to the OFF (0) position. NEVER stop the air compressor by unplugging it from the power source. This could result in risk of electrocution.
2. Drain air from the air tank by releasing air with an attached air tool or by pulling on the safety relief valve ring.
3. Once pressure in the air tanks register under 0.7 bar, open the drain valve under each air tank to drain any moisture.
4. Allow the air compressor to cool down.
5. Wipe air compressor clean and store in a safe, non-freezing area.

MAINTENANCE

Read the instruction manual before performing maintenance. The following procedures must be performed when stopping the air compressor for maintenance or service.

1. Turn off air compressor.

WARNING: Never assume the air compressor is safe to work on just because it is not operating. It could restart at any time!

1. Disconnect cord from main power supply.
2. Open all drains.
3. Wait for the air compressor to cool before starting service.

MAINTENANCE CHART

PROCEDURE	DAILY	WEEKLY	MONTHLY	200 HOURS
Check pump oil level	X
Oil leak inspection	X
Drain condensation in air tank(s)	X
Check for unusual noise/vibration	X
Check for air leaks	X
Inspect air filter		X
Clean exterior of compressor		X
Check safety relief valve			X
Change pump oil*				X
Replace air filter				X

*The pump oil must be changed after the first 50 hours of operation and every 200 hours or 3 months, whichever comes first. Recommended non-detergent straight weights.

TROUBLESHOOTING

Symptom 1. Motor will not run or restart.

Power cord not plugged in.

Plug cord into grounded outlet.

Motor/Pressure switch in OFF (0) position.

Move switch to ON (1) position.

Motor thermal overload switch has tripped.

Turn air compressor off, wait until motor is cool, then check motor circuit breaker.

Fuse blown or circuit breaker has tripped.

Replace fuse or reset circuit breaker.

Check for proper fuse amperage.

Check for low voltage conditions.

Disconnect any other electrical appliances from circuit or operate air compressor on its own branch circuit.

Wrong gauge wire or length of extension cord.

Check chart on page #10 for proper gauge wire and cord length.

Air tank pressure exceeds motor/ pressure switch cut-in pressure.

Motor will start automatically when air tank pressure drops below cut-in pressure of motor/pressure switch.

Pressure release valve on motor/ pressure switch has not unloaded pump head pressure.

Bleed the line by moving the switch to the Off (0) position.

Defective motor, motor capacitor, motor/ pressure switch, or check valve.

Contact Senco Customer Service.

Symptom 2. When in the Start/Stop option, motor runs continuously.

PROBABLE CAUSE

Motor/Pressure switch does not shut off motor when air compressor reaches cut-out pressure and safety relief valve activates.

REMEDY

Move the motor/pressure switch to the Off (0) position If the motor doesn't shutoff, unplug the air compressor. If the electrical contacts are welded together, replace the pressure switch.

Air compressor is incorrectly sized.

Limit the air pressure to the capacity of the air compressor. Either use a smaller tool or a larger air compressor.

Symptom 3. Air continues to leak at motor/pressure switch release valve after motor stops.

PROBABLE CAUSE

REMEDY

The check valve is stuck open.

Remove, clean or replace.

TROUBLESHOOTING

Symptom 4. Air continues to leak at motor/pressure switch release valve while motor is running.

PROBABLE CAUSE

Defective motor/pressure switch.

REMEDY

Replace.

Symptom 5. Air leaks from safety relief valve.

PROBABLE CAUSE

Possible defective safety relief valve.

REMEDY

Operate safety relief valve manually by pulling on ring. If it still leaks, it should be replaced.

Excessive air tank pressure.

Defective motor/pressure switch. Replace.

Symptom 6. Air leaks at fittings.

PROBABLE CAUSE

Fittings are not tight enough.

REMEDY

Tighten fittings where air can be heard escaping. Check fittings with soapy water solution. Do not overtighten.

Symptom 7. Air leak in air tank.

PROBABLE CAUSE

Defective or rusted air tank.

REMEDY

Air tank must be replaced. Do not attempt to repair air tank! Do not weld, repair or make modifications.

Symptom 8. Air blowing from inlet filter.

PROBABLE CAUSE

Damaged inlet (reed) valve.

REMEDY

Contact SENCO Customer Service

Symptom 9. Insufficient pressure at air tool or accessory.

PROBABLE CAUSE

Pressure regulator knob not turned to high enough pressure or defective pressure regulator.

REMEDY

Adjust pressure regulator knob to proper setting or replace.

Restricted air intake filter.

Clean.

Air leaks.

Check for leaks and repair.

Air compressor is not large enough for air requirement.

Check the accessory air requirement. If it is higher than the CFM or pressure supply of the air compressor, you need a larger air compressor.

TROUBLESHOOTING

Symptom 10. Air compressor not making enough air.

PROBABLE CAUSE

Restricted air intake filter.

Defective (reed) valve.

REMEDY

Clean.

Drain air tank and measure pump up time. Compare to specifications. If lower, remove pump head and inspect valve plate, clean or replace.

Symptom 11. Moisture in discharge air.

PROBABLE CAUSE

Condensation in air tank caused by high level of atmospheric humidity or air compressor is not run long enough.

REMEDY

Drain air tank after every use. Drain air tank more often in humid weather and use an air line filter.

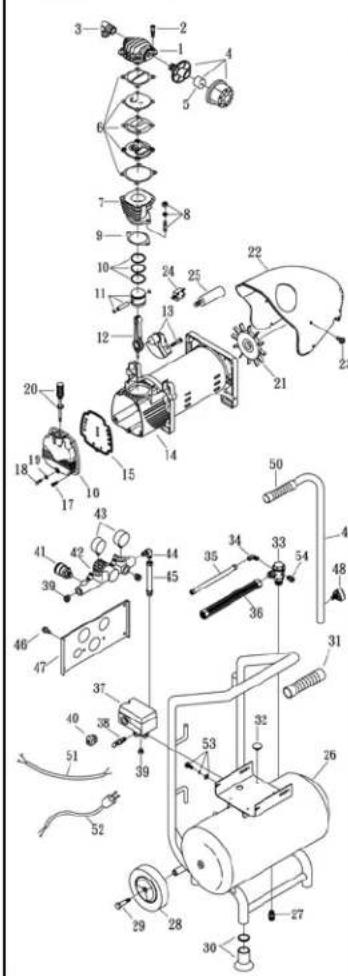

MODEL:PC1249

PI再速

SPARE PARTS LIST

REF. NO.	DESCRIPTION	PART NO.	QTY.
1	Cylinder head	3101061	1
2	Allen bolt set	3801-M06*040V	4
3	Exhaust elbow	2N06-C3T03H	1
4	Air filter	2140023ARS	1
5	Filter element	2142017	1
6	In. & Ex. valve assembly	3813-AC0747	1
7	Cylinder	3201066	1
8	Double head screw set	3811-008-A	2
9	Cylinder gasket	2C04-615	1
10	Piston ring set	3832-47N	1
11	Piston set	3831-47	1
12	Rod	2315055X	1
13	Crankshaft & balancer	3304081	1
14	Motor set	388-XB2006	1
15	Front cover gasket	2G07-610A	1
16	Front cover	33309024	1
17	Bolt	2B02-FMS*015	4
18	Bolt	2B02-FMS*035	1
19	O-ring	2N52-P06	1
20	Dipstick set	2339008ARS	1
21	Cooling fan	2336037-2	1
22	Shroud	2428014RS	1
23	Bolt	2B02-FMS*010WB	4
24	Circuit breaker	2E25-10AS	1
25	Running capacitor	2E27-E30S45X45	1
26	Air tank	3401C020	1
27	Drain valve	2405012	1
28	Tank wheel	2402015RS	1
29	Tank wheel bolt	2418001RS	2
30	Rubber pad set	2433006-ARS	2
31	Rubber grip	2432126RS	1
32	Feet block	2439016	4
33	Check valve	2414037X	1
34	In loading tube	2N06-C1T02H	1
35	Unloading tube set	3B2-02*170F	1
36	Exhaust tube set	3B2-03*420	1
37	Pressure switch	2E21-EA266APS	1
38	Pressure relief valve	2406018CE	1
39	Plug	2B14-ST02E	3
40	Strain relief bushing	2E04-610	3
41	Quick coupler	07S1-/M-ERS	1
42	Regulator with manifold	2408012RS	1
43	Pressure gauge	2D12-15V14AR	2
44	Elbow	2N06-C2T02SRS	1
45	Tube	2T06-C26RS	1
46	Bolt	2B02-FMS*010WB	6
47	Panel	3420072	1
48	Bolt	2B44-FM08*018RS	1
49	Grip	3432072	1
50	Rubber grip	243204RS	1
51	Cable	2E02-C3C0502YZT	1
52	Power cable	2E01-629	1
53	Hexagon bolt set	3B00-SM06*020YW	4
54	Auto relief valve	2409010	1

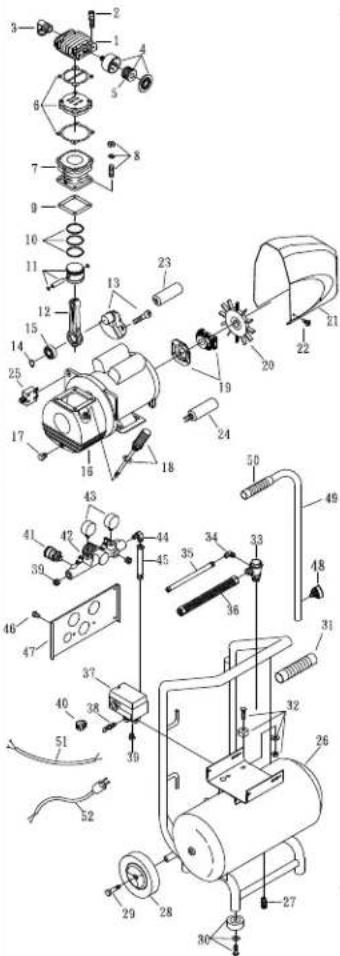

MODEL:PC1251

SPARE PARTS LIST

MEL NO.	DESCRIPTION	PART NO.	QTY.
1	Cylinder head	3101042	1
2	Allen bolt set	3B01-M05*040V	4
3	Exhaust elbow	2N06-040T4H	1
4	Air filter set	214001A	1
5	Filter element	2142013	1
6	Inlet&Exhaust valve assembly	3B13-K5051	1
7	Cylinder	3291003	1
8	Double head screw set	3B11-008-A	4
9	Cylinder gasket	2G04-002	1
10	Piston ring set	3B32-51N	1
11	Piston set	3B31-51N	1
12	Rod	2315002	1
13	Crankshaft & balancer	3304062	1
14	Retainer	2N42-S20	1
15	Bearing	2N35-6204	1
16	Motor set	3B8-XB1206C	1
17	Oil draining plug	2N33-001	1
18	Dipstick set	2339008A	1
19	Centrifugal switch set	2E24-14062P	1
20	Cooling fan	2336037-2	1
21	Shroud	2428010	1
22	Bolt	2B02-FMS*010WB	4
23	Starting capacitor	2E24-309F250V	1
24	Running capacitor	2E27-050F250V	1
25	Circuit breaker	2E25-10A	1
26	Air tank	3401C030	1
27	Drain valve	2405012	1
28	Tank wheel	2402051	2
29	Tank wheel bolt	2418001	2
30	Rubber pad set	2433013A	2
31	Rubber grip	2432102	1
32	Motor foot bolt set	3B08-FW08*30-A	4
33	Check valve	2414025	1
34	Exhaust elbow	2N06-01T02H	1
35	Unloading tube	3B2-024T70F	1
36	Exhaust tube	3B2-044F470	1
37	Pressure switch	2E21-BA266AB	1
38	Pressure relief valve	2406018CE	1
39	Plug	2B14-STW2E	3
40	Strain relief bushing	2B04-010	3
41	Quick coupler	0751/AN-E	1
42	Exhaust manifold	2408012	1
43	Pressure gauge	2D12-15V15KS	2
44	Exhaust elbow	2N06-02T02S	1
45	Tube	2T06-029	1
46	Bolt	2P02-FWS*010WB	6
47	Panel	3420055	1
48	Bolt	2B44-FN08*010H	1
49	Grip	3432073	1
50	Rubber grip	2432004	1
51	Cable	2E22-ZC30502YZT	1
52	Power cable	2B01-029	1

SPECIFICATIONS

Model #	PC1249	PC1251
Motor
Horsepower	2.0 HP / 1.5 KW	2.5 HP / 1.9 KW
Voltage	230V	230V
Amperage	10A	12A
Hz.	50	50
Phase	Single	Single
RPM	2850	2850
Compressor Pump
Number of Cylinders	1	1
Compressor Stage	1	1
Lubrication	Oil-lube	Oil-lube
Oil Type	SENCO PC0344	SENCO PC0344
Crankcase	Aluminium	Aluminium
Bearings	Ball	Ball
Cylinder	Aluminium/Steel	Aluminium/Steel Sleeve
Valves	Reed-Single	Reed-Single
Head	Aluminium	Aluminium
Filter	Canister	Canister
Motor/Pressure Switch Setting
Cut-out	9 Bar	9 Bar
Cut-in	7 Bar	7 Bar
Control	On (1) / Off (0)	On (1) / Off (0)
Air tank
Capacity	10 liter	20 liter
Performance
Air Displacement L/min	203 L/min (7.06 CFM)	271 L/min (9.53 CFM)
Air flow @ 6 bar L/min	133 L/min (4.69 CFM)	164 L/min (5.79 CFM)
Maximum Pressure	9 Bar	9 Bar
Pump-up time: 0-9 Bar	50 sec.	41 sec.
Recovery time: 7-9 bar	10 sec.	9 sec.
Weight
Net.	27 kg	37.5 kg
Dimensions
Basic L x W x H	39x36x68cm	49x49x76cm
Tires
Tire Type	Rubber	Rubber

Measured sound power level [dB]

88 dBA

88 dBA

Guaranteed sound power level [dB]

90 dBA

90 dBA

SENCO COMPRESSOR AND PARTS WARRANTY

This compressor has been designed and constructed using the highest standards of material and workmanship.

COMPRESSOR WARRANTY:

The length of this guarantee is 1 year from date of purchase by the original retail purchaser. During this period, Senco Products, Inc., will repair or replace at Senco's option, any original part or parts for the original retail purchaser. This will be done free of charge, provided the parts are determined defective in materials or workmanship upon examination by a Senco Authorized Warranty Service Center, with the exceptions and exclusions described below. Any replacement part provided will carry a warranty for the balance of the period of warranty applicable to the part it replaces. When repair or replacement of parts or compressor is necessary, the original retail purchaser returns the complete compressor or part, with transportation prepaid, to the nearest Senco Authorized Warranty Service Center, with purchase receipt or other positive proof that the part or compressor is within the warranty period.

Senco warrants all parts of your Senco air compressor to be free from defects in materials and workmanship during the following periods:

Defective parts not subject to normal wear and tear will be repaired or replaced, at our (Senco s) option, during warranty period. In any event, reimbursement is limited to the purchase price paid.

EXCLUSIONS:

1. This warranty does not cover parts damaged due to normal wear, misapplication, misuse, accidents, operation at other than recommended speeds or voltage (electric units only), improper storage, or damages resulting during shipping.
2. Deviation from operating instructions, specifications, and maintenance schedules.
3. Labor charges, loss or damage resulting from improper operation, maintenance or repairs made by person(s) other than a Senco Authorized Warranty Service Center.
4. The use of other than genuine Senco Repair Parts will void warranty.

This warranty is contingent upon proper use of the compressor by purchaser and does not cover:

(A) Abnormal conditions, accident, neglect, misuse or improper storage of the unit.
(B) Deviation from operating or maintenance instructions.
(C) Modifications not authorized by Senco.
(D) Repairs or maintenance (other than routine air tank draining required by your operating and maintenance manual) made by persons other than Senco or its authorized agents.
(E) Freight damage.

THIS WARRANTY IS THE ONLY WARRANTY ON THIS COMPRESSOR, AND ALL OTHER WARRANTYES, WHETHER ORAL, WRITTEN, EXPRESS, OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE EXCLUDING. BUYER S OR USER'S REMEDIES ARE SOLELY AND EXCLUSIVELY AS STATED ABOVE. SENCO PRODUCTS, INC. SHALL IN NO EVENT BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL, INDIRECT, OR SPECIAL DAMAGES. IN NO EVENT, WHETHER AS A RESULT OF A BREACH OF CONTRACT, WARRANTY, TORT (INCLUDING NEGLIGENCE) OR OTHERWISE, SHALL SENCO S LIABILITY EXCEED THE PRICE OF THE COMPRESSOR WHICH HAS GIVEN RISE TO THE CLAIM OR LIABILITY. ANY LIABILITY CONNECTED WITH THE USE OF THIS COMPRESSOR SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD SPECIFIED ABOVE.

Replacement of Compressor Due to Natural Disaster

Senco will also replace any compressor destroyed by an Act of God such as flood, earthquake, hurricane or other disaster resulting only from the forces of nature. Such a claim will be honored provided that such original retail purchaser had previously submitted a completed warranty registration card, and then submits proof of ownership and an acceptable statement describing such Act of God documented by an insurance carrier, police department, or other official governmental source.

SENCO

2010 by Verpa-Senco BV

PC1249 & PC1251 5HY

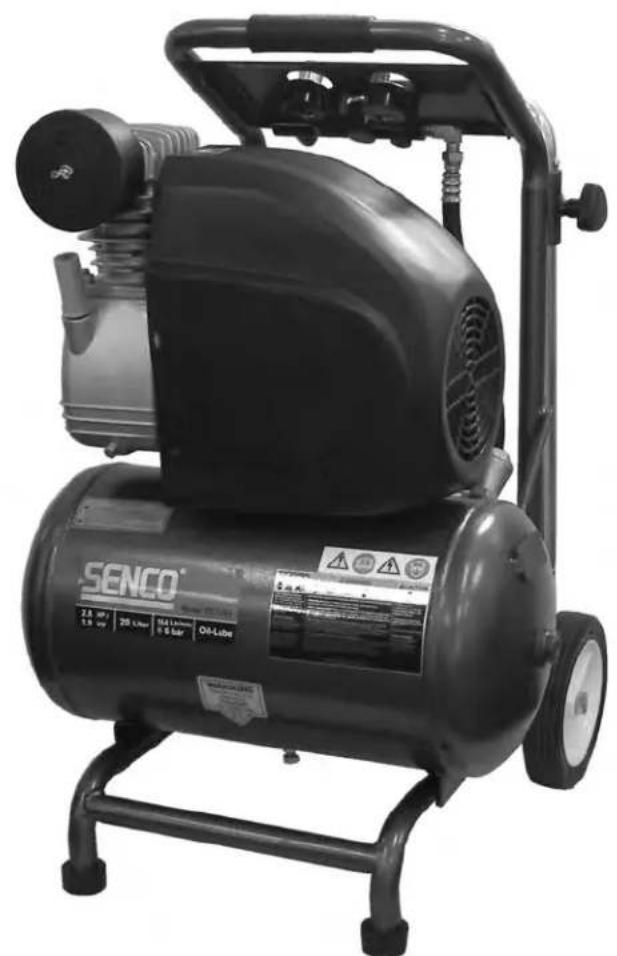

Gardez always uses a distance of at least 100 meters to reach the destination.
Gardez always uses a distance of at least 100 meters to reach the destination.
Gardez always uses a distance of at least 100 meters to reach the destination.
Gardez always uses a distance of at least 100 meters to reach the destination.
Gardez always uses a distance of at least 100 meters to reach the destination.
Gardez always uses a distance of at least 100 meters to reach thedestination.

MISES EN GARDE DE SECURITE

LISEZ TOUTES LES MISES EN GARDE DE SECURITE AVANT D'UTILISER LE

COMPRESSEUR D'AIR

CONSERVEZ CES INSTRUCTIONS!

CARACTERISTIQUES DU COMPRESSEUR

Model:PC1249

Model:PC1251

PROCEDURE	DAILY	WEEKLY	MONTHLY	200 HOURS
Check pump oil level X
Oil leak inspection X
Drain condensation in air tank(s) X
Check for unusual noise/vibration X
Check for air leaks X
Inspect air filter X
Clean exterior of compressor X
Check safety relief valve X
Change pump oil*				X
Replace air filter				X

*The pump oil must be changed after the first 50 hours of operation and every 200 hours or 3 months, whichever comes first. Recommended non-detergent straight weights.

DéPANNAGE

Limits the pressure of the air to a constant rate. Use this limit to measure the amount of pressure in the air. Limit the pressure to a constant rate.

Measured sound power level [dB] 88 dB

88 dBA

Guaranteed sound power level [dB]

90 dBA

90 dBA

GARANTIE SENCO POUR LE COMPRESSEUR ET LES PIECES

2010 by Verpa-Senco BV

PC1249 & PC1251 5HYH

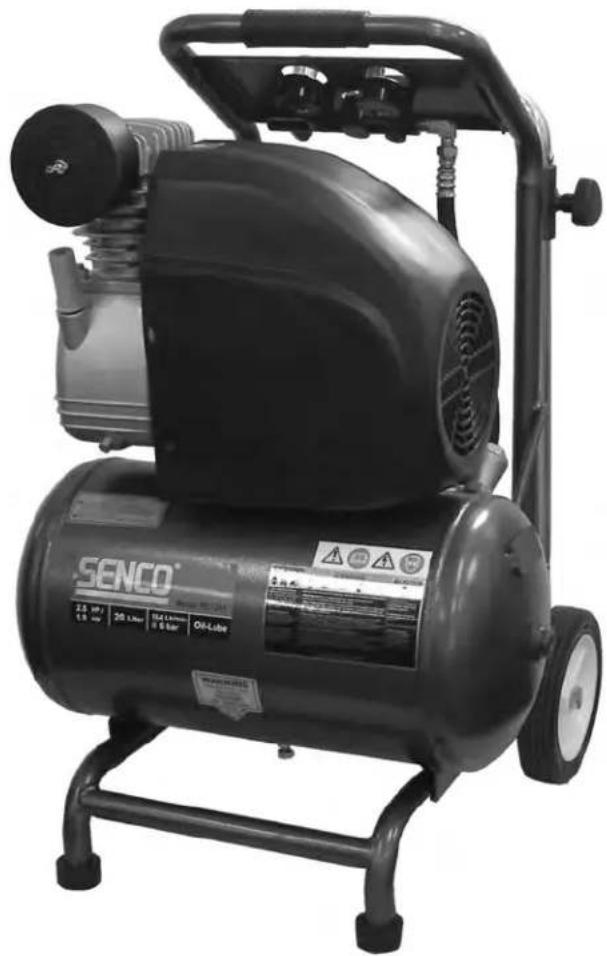

INDICE

INTRODUCCION 3

PROCEDURE DAILY WEEKLY MONTHLY 200 HOURS
Check pump oil level X
Oil leak inspection X
Drain condensation in air tank(s) X
Check for unusual noise/vibration X
Check for air leaks X
Inspect air filter X
Clean exterior of compressor X
Check safety relief valve X
Change pump oil*				X
Replace air filter				X

*The pump oil must be changed after the first 50 hours of operation and every 200 hours or 3 months, whichever comes first. Recommended non-detergent straight weights.

Measured sound power level [dB] 88 dBA 88 dBA

Guaranteed sound power level [dB] 90 dBA 90 dBA

GARANTIA SENO PARA EL COMPRESOR Y LAS PIEZAS

2010 by Verpa-Senco BV

PC1249 & PC1251 5HYH

PROCEDURE	DAILY	WEEKLY	MONTHLY	200 HOURS
Check pump oil level X
Oil leak inspection X
Drain condensation in air tank(s)	X
Check for unusual noise/vibration	X
Check for air leaks	X
Inspect air filter		X
Clean exterior of compressor		X
Check safety relief valve			X
Change pump oil*				X
Replace air filter				X

Measured sound power level [dB]
Guaranteed sound power level [dB]
88 dBA 88 dBA 90 dBA 90 dBA

SENCO KOMPRESSOR OG RESERVEDELSGARANTI

2010 by Verpa-Senco BV

PC1249 & PC1251 5HY00000000

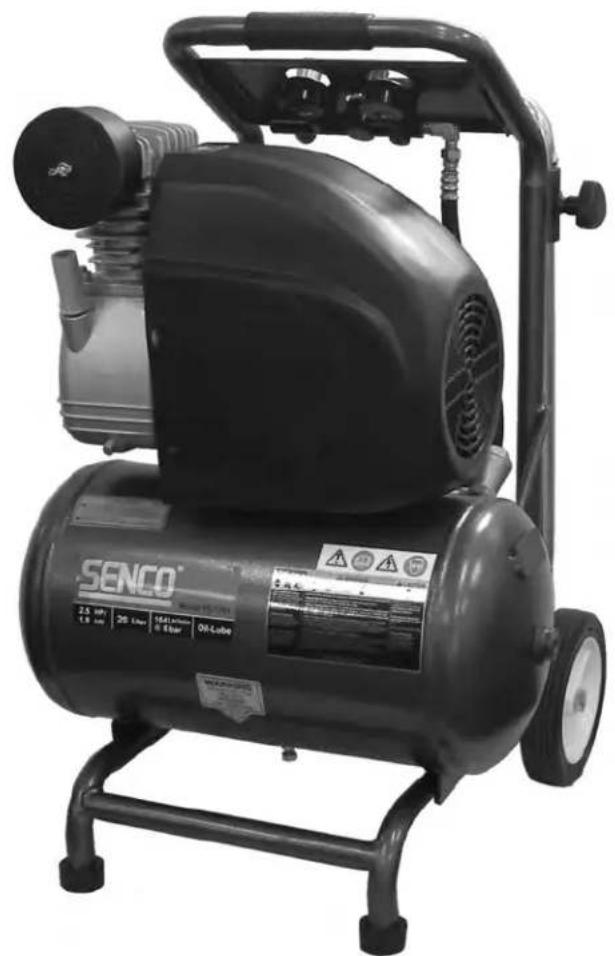

Measured sound power level [dB]
Guaranteed sound power level [dB]
88 dBA 90 dBA
88 dBA 90 dBA

TAKUU SENCO-KOMPRESSORILLE JA OSILLE

2010 by Verpa-Senco BV

PC1249 & PC1251 5HY

is 50m 8AWG

bis 75 m 6 AWG

PROCEDURE DAILY WEEKLY MONTHLY 200 HOURS
Check pump oil level X
Oil leak inspection X
Drain condensation in air tank(s) X
Check for unusual noise/vibration	X
Check for air leaks	X
Inspect air filter		X
Clean exterior of compressor		X
Check safety relief valve			X
Change pump oil*				X
Replace air filter				X

Measured sound power level [dB] 88 dBA 88 dBA
Guaranteed sound power level [dB] 90 dBA 90 dBA

SENCO-KOMPRESSOR- UND -TEILEGARANTIE

2010 by Verpa-Senco BV

PC1249 & PC1251 5HY

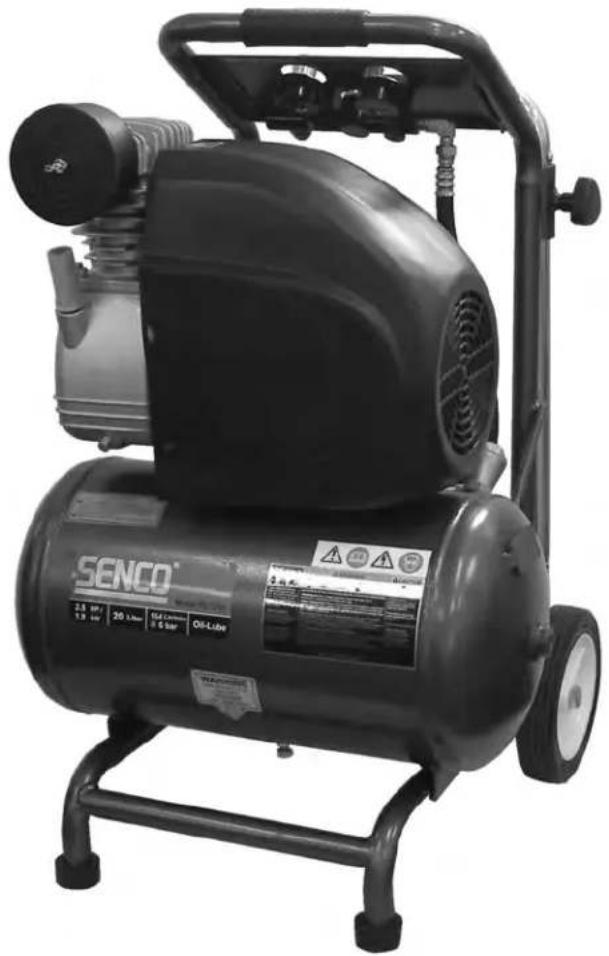

Measured sound power level [dB]

88 dBA

88 dBA

Guaranteed sound power level [dB]

90 dBA

90 dBA

GWARANCJA NA SPREZARKE I CZESCI FIRMY SENCO

2010 by Verpa-Senco BV

PC1249 & PC1251 5HY

INLEDAnde INSTALLATION:

PROCEDURE	DAILY	WEEKLY	MONTHLY	200 HOURS
Check pump oil level X
Oil leak inspection X
Drain condensation in air tank(s) X
Check for unusual noise/vibration X
Check for air leaks X
Inspect air filter X
Clean exterior of compressor X
Check safety relief valve			X
Change pump oil*				X
Replace air filter				X

Measured sound power level [dB]

88 dBA 88 dBA

Guaranteed sound power level [dB]

90 dBA 90 dBA

SENCO KOMPRESSOR-OCH RESERVDELSGARANTI

2010 by Verpa-Senco BV

PC1249 & PC1251 5HY

VEILIGHEIDSWAARSCHUWINGEN. 4

ELEKTRICITEIT. 4

EXPLOSIE OF VUUR 5

BARSTEN. 5

INADEMEN. 6

BRANDWONDEN. 6

VLIEGENDE VOORWERPEN 6

BEWEGENDE ONDERDELEN 7

NALATIGHEID. 7

SCHADE AAN LUCHTCOMPRESSOR. 7

COMPRESSORKENMERKEN. 8

VOORBEREIDING. 10

EERSTE INSTELLING. 10

LOCATIE 10

ELEKTRICITEIT. 10

BEDIENING. 11

CONTROLELIJST V R START. 11

OPSTARTEN. 11

UITSCHAKELEN. 11

ONDERHOUD. 11

PROBLEMEN OPLOSSEN 12-14

SPECIFICATIONS. 15

GARANTIE. 16

INLEIDING

VEILIGHEIDSWAARSCHUWINGEN

LEES ALLE VEILIGHEIDSWAARSCHUWINGEN VOORDAT

DE LUCHTCOMPRESSOR WORDT GEBRUIKT

GEVAAR

RISICO VAN ELEKTRISCHE

SCHOKKEN OF

ELEKTROCUTIE

POTENTILLE GEVOLGEN

PROCEDURE DAILY WEEKLY MONTHLY 200 HOURS
Check pump oil level X
Oil leak inspection X
Drain condensation in air tank(s) X
Check for unusual noise/vibration X
Check for air leaks X
Inspect air filter		X
Clean exterior of compressor		X
Check safety relief valve			X
Change pump oil*				X
Replace air filter				X

Measured sound power level [dB]

88 dBA

88 dBA

Guaranteed sound power level [dB]

90 dBA

90 dBA

GARANTIE VOOR SENCO-COMPRESSOR EN ONDERDELEN
