HERZLICHEN GLÜCKWUNSCH!
Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference.
IMPORTANT SAFETY INSTRUCTIONS. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.
1.
Caution! Hot surface! Risk of burning! Do not touch the product's hot surfaces. Heat rises from the product during use.
- This product can be used by children aged from 8 years and above if they are being supervised or have been instructed concerning the usage of the product in a safe way and if they understand the hazards involved.
- Children shall not play with the product.
- Cleaning and user maintenance shall not be carried out by children unless they are older than 8 years and supervised.
- Keep the product and its power supply cord out of reach of children aged less than 8 years.
- This product can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are being supervised or have been given instruction concerning use of the product in a safe way and understand the hazards involved.
- The product is designed for the preparation of normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include staff kitchens in shops, offices, agricultural and other small businesses or for use by guests at bed-and-breakfast establishments, small hotels and similar residential facilities.
- Do not overfill the product. Boiling water may spurt out.
- Warning! Never open the lid while the water is boiling.
- Use the product only with the base provided.
- The product must not be immersed in water or other fluids for cleaning.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or a similarly qualified person in order to avoid a hazards.
-
Warning! Avoid spillage on the connector.
-
Caution! The heating element surface is subject to residual heat after use.
-
Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
-
Follow the instructions in the chapter Cleaning and care.
-
Read this user manual thoroughly before first use and pass it on with the product. Pay attention to the warnings on the product and in this user manual. It contains important information for your safety as well as for the use and maintenance of the equipment.
-
Use the product only for its intended purpose and with recommended accessories and components. Improper use or wrong operation may lead to hazards.
-
Never leave the product unsupervised while it is switched on.
-
Do not place any objects on top of the product.
-
Never immerse electrical parts of the product in water or other fluids during cleaning or operation. Never hold the product under running water.
-
Do not under any circumstances attempt to repair the product yourself (e.g. damaged power cord, product has been dropped, etc.). For servicing and repairs, please consult an authorised service agent.
-
The mains voltage must match the information on the rating label of the product.
-
Only unplugging from the power socket can separate the product completely from the mains. Please be sure that the power plug is in operable condition.
-
Avoid damages to the power cord that may be caused by kinks or contact with sharp corners.
-
Keep this product including power cord and power plug away from all heat sources such as ovens, hot plates and other heat-producing products/objects.
-
Only unplug from the power socket by the plug itself. Do not pull on the cord.
-
Unplug the product ..
- when the product is not being used,
- in case of malfunctions,
- before attaching / detaching accessories and
- before cleaning the product.
-
Use this product in dry indoor areas only and never outdoors.
-
Place the product on a flat, sturdy and slip-resistant surface.
-
Never use, expose or put the product / its electr. components near to:
- direct sunlight and dust;
- fire (fireplace, grill, candles), water (water splashes, vases, bath tube) or heavy moisture.
-
This product is not intended for commercial use. It is designed for household use only.
-
Risk of burns! Avoid contact with hot surfaces and escaping steam. Hold the product only by the handle.
-
Always leave sufficient space around the product. Boiling water can cause serious scalding.
INTENDED USE
This appliance is only intended for rice cooking. Any other use may result in damage to product or injuries.
The Imtron GmbH assumes no liability for damage to the product, for property damage or for personal injury due to careless or improper usage of the product, or usage of product which does not meet the manufacturer's specified purpose.
EN
10

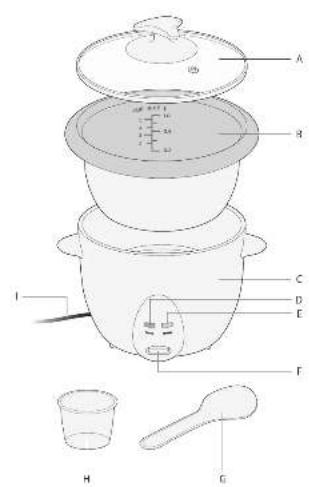

CONTROLS AND COMPONENTS
A. Glass lid
B. Rice pot
C. Rice cooker
D. Indicator light COOK
E. Keep warm indicator light WARM
F. Power/function switch
G. Rice spoon
H. Measuring cup
1. Power cord with plug
DELIVERY CONTENTS
1 x Rice cooker
1 x Measuring cup
1 x Rice spoon
1 x User manual
1 x Warranty card
BEFORE FIRST TIME USE
- Remove the product and accessories carefully from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.
- Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.
• After unpacking, please refer to chapter Cleaning and care.
COOKING RICE
Note:
- Add at least 2 measuring cups of rice into the rice cooker. Less rice can lead to bad cooking results.
- Follow the following rice-water ratio:
| Rice Water fill to CUP marking |
| 2 measuring cups 2 | |
| 3 measuring cups 3 | |
| 4 measuring cups 4 | |
| 5 measuring cups 5 | |
- Depending on the type of rice, the amount of water can be changed. Vary the amount of water according to your experience and taste.
1 Fill the desired amount of washed rice into the rice pot using the measuring cup, spread the rice evenly on the bottom and add the appropriate amount of water.
2 The water level must not exceed the top marking 5.
3 Set the rice pot in the rice cooker and put the glass lid on.
4 Connect the power plug to the mains.
5 Press the power/function switch down to start the cooking of the rice. The indicator light COOK turns on.
6 Once the rice is ready, the rice cooker automatically switches to the keep warm mode. The keep warm indicator light WARM turns on.
Note: The rice can be kept warm for several hours.
7 Open the rice cooker and remove the desired amount of rice using the rice spoon.
Note: The rice cooker can remain in the keep warm mode.
8 When finished, unplug the power cord and clean the unit. Please follow the chapter Cleaning and care.
CLEANING AND CARE
- Warning! Unplug the product and let it cool down completely before cleaning. Never immerse electrical parts of the product in water during cleaning or operation. Never hold the product under running water.
- Warning! When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning mechanisms and tools may scratch the surface(s).
9 Clean the product's exterior surfaces with a slightly damp cloth and then dry them thoroughly. Make sure that no water enters the interior of the device (for example, through the switch).
Clean the rice pot, glass lid and rice spoon with a soft cloth in warm rinse water. Remove stubborn stains with a mild detergent. Then dry. Do not use aggressive cleaning agents, hard metal brushes, scouring pads or sharp objects.
Alternative the measuring cup, rice spoon and glass lid can be washed in the dishwasher.
TECHNICAL DATA
Rated voltage: 220-240 V\~
Rated power : 336-400 W
Frequency : 50Hz
Protection class : I
Capacity : 1 Litre
DISPOSAL
Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information.
ES
ENHORABUENA
We provide a warranty for this device in according to the following conditions:
- In accordance with the conditions below (points 2-7) we will remove defects of the device free of charge, it they are evidently due to material and/or production errors, and if they are reported to us immediately after detection and within 24 months of delivery to the first end user.
- The warranty does not cover easily breakable parts such as glass, plastic or light bulbs. A warranty obligation is not triggered by minor deviations from the target conditions, which are not significant to the value and usability of the device, by damages due to chemical and electro-chemical effects of water, in general by abnormal environmental conditions or improper operating conditions, or if the device otherwise comes into contact with unsuitable substances. A warranty can also not be assumed if the defects on the device are due to transport damage which is not caused by us, improper installation and assembly, incorrect operation, non-household usage, a lack of maintenance or the non-observance of the operating or assembly instructions. Warranty claims are void if repairs or interventions are carried out by people who are not authorised by us to do so, or if our devices have been equipped with spare parts, supplements or accessories, which are not original parts and therefore cause a defect.
- The warranty service is performed by either repairing the defect parts or replacing them with non-defect parts, at our discretion. Devices which can be transported (e.g. in a car) and on which a warranty service is claimed within the scope of this warranty, are to be handed over or sent to our closest customer service office or our contracted customer service office. Repairs at the place of installation can only be requested for devices which are operated on site (stationary devices). The respective sales receipt stating the purchase and/or delivery date is to be submitted. Replaced parts become our property.
- If the rectification of the defect device is rejected by us or fails, we will provide a replacement of equal value and at no charge within the above-mentioned warranty period, at the request of the end user.
- Warranty services neither invoke an extension of the warranty period, nor start a new warranty period. The warranty period for built-in replacement parts ends with the warranty period for the whole device.
- Smart Devices: If your device is able to connect to the internet (so called smart device) security updates are not part of the scope of this warranty. For a certain period of time security updates for your smart device will be done automatically. If this period ends you will be informed by a general note. Afterwards security updates can be performed manually.
- This warranty extends to every country where this device is supplied by an authorised distributor.
-
Any other or further claims, in particular those regarding compensation for damage caused outside of the device are ruled out -provided liability is not obligatory by law.
-
We are furthermore liable without restrictions in accordance to legal requirements for damage covered by the liability scope of the Product Liability Act, as well as for damage caused by intentional and gross negligent contract violations plus fraudulent intent by us, our legal representatives or vicarious agents.
-
This warranty bond does not affect your legal warranty claims.
