USER MANUAL OFK 412 D OK

Folded Size = A5 OFK 411 D OFK 412 D

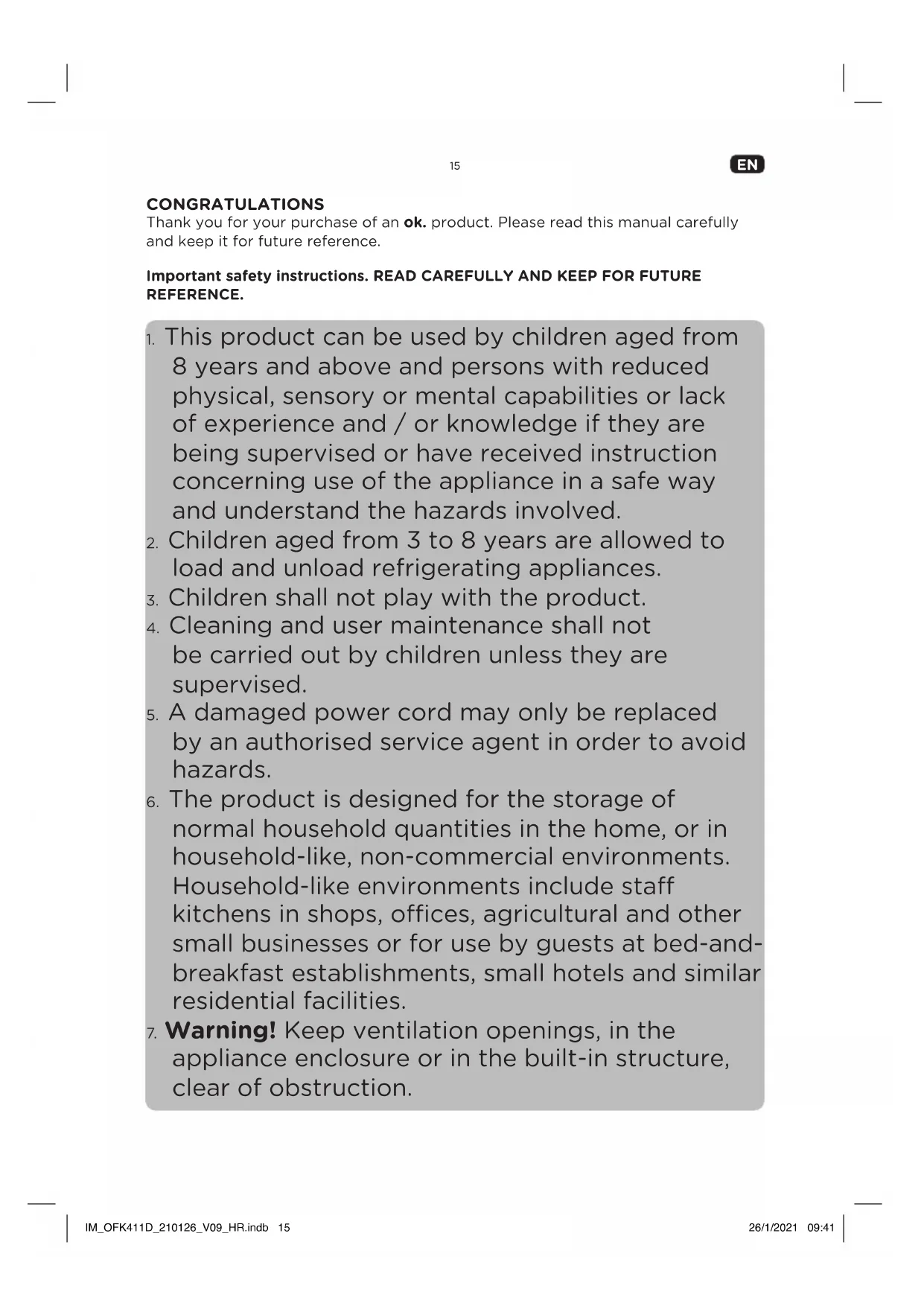

CONGRATULATIONS Thank you for your purchase of an ok. product. Please read this manual carefully and keep it for future reference. Important safety instructions. READ CAREFULLY AND KEEP FOR FUTURE REFERENCE.

1. This product can be used by children aged from

8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and / or knowledge if they are being supervised or have received instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children aged from 3 to 8 years are allowed to

load and unload refrigerating appliances.

3. Children shall not play with the product.

4. Cleaning and user maintenance shall not

be carried out by children unless they are supervised.

5. A damaged power cord may only be replaced

by an authorised service agent in order to avoid hazards.

6. The product is designed for the storage of

normal household quantities in the home, or in household-like, non-commercial environments. Household-like environments include sta kitchens in shops, oces, agricultural and other small businesses or for use by guests at bed-and- breakfast establishments, small hotels and similar residential facilities.

7. Warning! Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction. IM_OFK411D_210126_V09_HR.indb 15IM_OFK411D_210126_V09_HR.indb 15 26/1/2021 09:4126/1/2021 09:41Size = A5

8. Warning! Do not use mechanical devices or other

means to accelerate the defrosting process, other than those recommended by the manufacturer.

9. Warning! Do not damage the refrigerant circuit.

10. Warning! Do not use electrical appliances inside

the food storage compartments of the product, unless they are of the type recommended by the manufacturer.

11. Do not store explosive substances such as

aerosol cans with a flammable propellant in this product.

12. Follow the instructions in the chapter Cleaning

13. Warning! The refrigerant and insulation blowing

gas are flammable. When disposing of the product, do so only at an authorized waste disposal center or contact the service agent.

14. To avoid contamination of food, please respect

the following instructions: -Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. -Clean surfaces, that come into contact with food, as well as the accessible drainage systems on a regular basis. -Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food. -Two-star frozen-food compartments are suitable for storing pre-frozen food, storing or making ice-cream and making ice cubes. IM_OFK411D_210126_V09_HR.indb 16IM_OFK411D_210126_V09_HR.indb 16 26/1/2021 09:4126/1/2021 09:41EN

-One-, two- and three-star compartments are not suitable for the freezing of fresh food. -If the refrigerating appliance is left empty for long periods, switch o, defrost, clean, dry, and leave the door open to prevent mold from developing within the appliance.

15. Read this manual thoroughly before first use. It contains important information

for your safety as well as for the use and maintenance of the equipment.

16. Do not place any objects on top of the product.

17. Never immerse electrical parts of the product in water during cleaning or

operation. Never hold the product under running water.

18. Do not under any circumstances attempt to repair the product yourself. For

servicing and repairs, please consult an authorised service agent.

19. The mains voltage must match the information on the rating label of the

20. Only unplugging from the power socket can separate the product completely

21. Avoid damages to the power cord that may be caused by kinks or contact with

22. Keep this product including power cord and power plug away from all heat

sources such as ovens, hot plates and other heat-producing products/objects.

23. Only unplug from the power socket by the plug itself. Do not pull on the cord.

24. Unplug the product …

- when the product is not being used, - in case of malfunctions, - before attaching / detaching accessories and - before cleaning the product.

25. Use this product in dry indoor areas only and never outdoors.

26. This product is not intended for commercial use. It is designed for household

27. Make sure that electrical components, live parts and the power cord do not

28. Use accessories supplied with the device or recommended by the manufacturer

29. Do not cover the product while in use. Fire hazard!

30. Warning! When positioning the appliance, ensure the supply cord is not trapped

suppliers at the rear of the appliance.

32. Caution! Risk of fire! Flammable materials.

33. Warning! During using, service and disposal the appliance, please pay

attention to the symbol which is located on the rear of the appliance (rear panel or compressor).

34. It’s risk of fire warning symbol. There are flammable materials in the refrigerant

pipes and the compressor. Keep sources of fire and open flames away during using, service and disposal. IM_OFK411D_210126_V09_HR.indb 17IM_OFK411D_210126_V09_HR.indb 17 26/1/2021 09:4126/1/2021 09:41Size = A5

INTENDED USE This product is suitable for refrigerating and freezing food and beverages only. Any other use may damage the device or cause injuries. This product is not intended to be used as a built-in appliance. This refrigerant appliance is intended to be used at ambient temperatures ranging from 16°C to 38°C. The product is only intended to be used in private households and shall not be used for commercial purposes. The Imtron GmbH assumes no liability for damages to the product, for property damages or for personal injuries due to careless or improper usage of the product, or usage of the product which does not meet the manufacturer’s specified purpose.

WARRANTY AND SPARE PARTS

The warranty period of the product, as well as the applicable conditions of the warranty can be found in the warranty card provided with the product. The spare parts, which are listed in the corresponding ecodesign directive, can be obtained by contacting the customer service center, for a period of at least 7 years, respectively 10 years.

CONTROLS AND COMPONENTS

A. Temperature control B. Light C. Refrigerator interior D. Glass shelf (3 x) E. Vegetable compartment (fresh food compartment) F. Freezer G. Freezer drawers x 2 H. Power cord with plug (not shown)

I. Adjustable feet, front

J. Freezer door K. Bottle shelf L. Refrigerator door M. Door shelf x 2 DELIVERY CONTENTS 1 x Fridge and freezer combination 2 x Egg holder for 6 eggs each 1 x Ice cube tray 1 x User manual 1 x Warranty card ACCESSORIES

• 2 x egg holder for 6 eggs each (not shown)

• Ice cube tray (not shown)

• Carefully remove the product and accessories from the original packaging. It is recommended to keep the original packaging for storage. If you wish to dispose of the original packaging, please observe applicable legal provisions. Should you have any questions regarding proper disposal, contact your local waste management center.

• Inspect the delivery contents for completeness and damages. Should the delivery contents be incomplete or damaged, contact your sales outlet immediately.

• After unpacking, please refer to chapter Cleaning and care. Warning If the refrigerator has been stored, transported or tipped sideways during transport or installation, it must be upright for 12 hours before being connected to the mains. INSTALLATION Fig.

Place the unit on a level and stable surface. Keep the minimum distances to all sides. Fig.

Unevenness can be compensated with the adjustable front feet. Use a spirit level to ensure a correct, levelled positioning. Fig.

The refrigerator is equipped with three glass shelves which, if desired, can be removed by pulling them forward. The upper two glass shelves can be used at dierent heights. OPERATION Fig.

Plug the power plug into an appropriate mains socket outlet. Note: Allow the product to precool for about 2-3 hours before storing food in it. Setting the refrigerator temperature Fig.

Set the temperature with the temperature control. Levels 1-7 do not correspond to any particular temperature. In position 0 the appliance is switched o. The lower the setting, the higher the inner temperature. Note:

• To check the temperature, insert a commercially available thermometer into the device.

• The temperature in the unit depends on the ambient temperature and the setting of the temperature controller.

• Make sure the door of the product is properly closed and not blocked by food. IM_OFK411D_210126_V09_HR.indb 19IM_OFK411D_210126_V09_HR.indb 19 26/1/2021 09:4126/1/2021 09:41Size = A5

If the door is left open for more than 60 seconds the LED light will flash 3 times and then shine continuously for 5 seconds. This cycle will be repeated until the door is closed.

• If necessary, or if the premises require it, the mounting of the doors can be changed. To do this, follow below instructions in the given order.

• The following tools are required: - 10 mm wrench and Phillips screwdriver. Due to the uniqueness of the appropriate tools, those are not mentioned separately in the following instructions.

• For this work a dierent cover is needed, which is provided with the unit.

• For safety, remove the door trays to prevent them from being damaged. Top door

1. Loosen and remove the plastic caps left and right. Unscrew the upper hinge

plate. When unscrewing, be sure to hold the refrigerator door firmly, otherwise it will be damaged.

2. Pull out the door and place it on a soft and clean surface.

1. Hold the freezer door and remove the two screws on the middle hinge.

2. Pull the freezer door upwards and place it on a soft and clean surface.

3. Remove the two blind caps above the freezer compartment and the blind plug

on the top of the freezer door and insert them into the holes on the opposite sides. Refrigerator bottom Caution! Pull out the mains plug!

1. Tilt the refrigerator so you can work at the bottom or place the refrigerator fully

on its back. Make sure the back is placed on a soft and clean surface. Unscrew the screw on the left side. Loosen the screws and remove the lower hinge plate.

2. Remove the hinge pin counterpart with door stop on the bottom of the freezer

door. Fasten the supplied hinge pin counterpart with door stop to the opposite side.

3. Remove the hinge pin and the foot, turn the hing plate and screw in both parts

from the other side. Now screw the hinge plate with foot on the left side again. Screw in the single foot on the right side. Place the refrigerator back on its feet and readjust them if necessary, to ensure a levelled position. IM_OFK411D_210126_V09_HR.indb 20IM_OFK411D_210126_V09_HR.indb 20 26/1/2021 09:4126/1/2021 09:41EN

Mounting the door Caution! After you have placed the refrigerator upright on its feet, wait for 2 hours before you connect it to the mains to permit the cooling system to regain full capacity.

1. Place the freezer door on the lower hinge. Flip the middle hinge over, insert the

bolt into the hole on the top of the freezer door, and screw the hinge in place. Two plastic washers must sit on the bottom and one on top of the bolt. The pad between the hinge plate and the refrigerator must also be attached. The freezer door is now fixed. Check for correct function and fitting.

2. Remove the hinge pin counterpart with the door stop at the bottom of the

refrigerator door. Attach the supplied hinge pin counterpart with door stop to the opposite side. Remove the blind cap on the top of the refrigerator door and insert it into the hole on the opposite side.

3. Place the hole on the left side of the refrigerator door onto the middle hinge

pin and hold the door firmly. Insert the bolt of the upper hinge plate into the designated left hole on the top of the refrigerator door. Screw the upper hinge plate to the refrigerator. Check the correct function and the correct fit.

4. Clip the cover cap onto the upper hinge plate.

5. Attach the cap of the left side to the right side.

• Do not place the product in the vicinity of a heat source (radiator or kitchen stove, etc.).

• Ensure unobstructed air flow around the refrigerator and freezer.

• If a layer of ice has built, defrost the unit. A thick layer of ice aects the transmission of the cold, thus the energy consumption will be increased.

• When opening the door and taking out food, only open the door shortly. A shorter door opening time causes less ice to deposit on the freezer walls.

• Select the temperature regulator setting according to the filling amount of the product.

• Use drawers, baskets or shelves to store the food. If the energy of the product is used eciently, the energy consumption can be minimized.

• It’s advised not to remove all accessories, such as drawers, shelves balconies, as this might increase the energy consumption.

• Unplug the product before cleaning.

• When cleaning, never use solvents or abrasive materials, hard brushes, metallic or sharp objects. Solvents are harmful to human health and can attack plastic parts, while abrasive cleaning materials and tools may scratch the surface(s).

• Never use oil or grease on the door seal. This will make it porous over time.

• Do not use steam cleaning equipment. The steam may come in contact with electrical parts of the product, causing a short circuit.

• Clean the product’s exterior surfaces with a slightly damp cloth and then dry them thoroughly.

• Make sure that no water enters the product interior (for example, through the switch). IM_OFK411D_210126_V09_HR.indb 21IM_OFK411D_210126_V09_HR.indb 21 26/1/2021 09:4126/1/2021 09:41Size = A5

• Wipe the door seal with clean water only, and dry it thoroughly afterwards.

• Removable parts e.g. glass shelves, can be taken out for cleaning. DECOMMISSIONING If a longer break should occur during operation of the refrigerator, the following steps must be carried out:

• Clean the interior of the freezer compartment and let it dry.

• Carefully clean all the accessories (vegetable containers, door compartments, glass shelves, etc.)

• Let the door open to avoid the formation of unpleasant odors and mold. TECHNICAL DATA Voltage : 220 - 240 V~ Frequency : 50 Hz Rated current : 0.7 A Energy Consumption kWh/24h : 0.425 kWh kWh/year : 155 kWh Net capacity of refrigerator : 121 L Net capacity of freezer : 52 L Freezing capacity : 2.6 kg/24 h Ambient temperature : 16°C - 38°C Measurement : 500 x 560 x 1422 mm Depth with door open : 1060 mm Refrigerant : R600a (53 g) based on EN 62552: 2020 This product is intended to be used in climate classes from N to ST. Climate class Ambient temperature N +16 to +32 °C ST +16 to +38 °C Use the link https://eprel.ec.europa.eu/ to access the European product database (EPREL), in which more information about the product is saved. Type in the model identifer or the EPREL registration number 310565 or simply scan the QR-code on the energy label to access the model information. IM_OFK411D_210126_V09_HR.indb 22IM_OFK411D_210126_V09_HR.indb 22 26/1/2021 09:4126/1/2021 09:41EN

TROUBLESHOOTING If there are any problems during operation, please refer to the following table. If the problems cannot be solved as indicated under Solution or if spare parts for self- repair are necessary, please contact the service center. The respective hotlines are noted in the warranty card, provided with this product. Please note, that improper self-repair can lead to hazards as well as voidance of the warranty and should be refrained from, if in doubt. Problem Possible causes Solution Product does not work • Interrupted power supply • Check the power supply Temperature in the compartments is not low enough.

• The door is not closed firmly or it is opened to often

• Re-arrange the food so that the door can be closed firmly

• Open the door less frequently

• The ambient temperature is lower than 16 °C or higher than 38 °C

• The product is intended to be operated in an ambient temperature of 16 °C to 38 °C Water gathers in the lower part of the compartment

• The food comes in contact with the rear wall of the compartment

• Move away the food or container from the rear wall The interior lamp doesn’t shine

Storage of food and beverages

Area Recommended food and temperature setting

Fridge compartment (4°C)

• Storage of food for daily consumption, delicacies, yogurt, sauces, pickled vegetables, desserts

• Storage of meat, fish, sausages, fresh filled pasta, cooked foods, leftovers

Fruit and vegetable compartment (8°C)

Freezer (-18°C) Foods for long-term storage

• Top tray: Storage of frozen food and ice cream.

• Middle drawers: storage for raw meat, poultry, fish

• Bottom drawers: storage for frozen vegetables, chips How to store food and beverages for best preservation over the longest period, in order to avoid food waste? Fridge compartment

• Use containers made from recycled plastic, metal, aluminium and glass as well as plastic wrap to pack food.

• Liquids as well as foods that lead to odor formation or can easily spoil or that can transfer taste, should be covered.

• If only a small amount of food is to be stored, the use of the shelves above the fruit and vegetable compartment is recommended.

• Foods that give o a large amount of ethylene gas and those that are sensitive to them, such as fruits, vegetables and lettuce, must always be kept separately from one another or packaged in order not to shorten the storage time; For example, do not keep tomatoes with kiwi or cabbage together.

• Use the bottle holder to prevent bottles from tipping over.

• Do not store food too close to one another to allow sucient air circulation.

• The recommended temperature setting for the fridge compartment is 4°C. If set, foodstus can be usually stored for a few days. IM_OFK411D_210126_V09_HR.indb 24IM_OFK411D_210126_V09_HR.indb 24 26/1/2021 09:4126/1/2021 09:41EN

Recommendations when refrigerating food

• Store fresh and undamaged food. The quality and freshness will than be retained for longer.

• In the case of convenience products and bottled goods, do not exceed the sell-by date or use-by date specified by the manufacturer.

• To retain aroma, colour and freshness, pack or cover food well before placing it in the appliance. This will prevent flavours being transferred between foods and the plastic parts from becoming discoloured.

• Leave warm food and beverages to cool down before placing them in the refrigerator compartment. Freezer

• Ideal for storing frozen food, preparing ice cubes and freezing fresh food.

• If you only store small amounts of food in the freezer, it is recommended to use the coldest area in the freezer (corresponds to the middle area).

• The recommended temperature for the freezer compartment is -18°C.

• The storage period specified on the packaging is decisive for commercially available frozen products. Recommendations when freezing food

• Freeze larger quantities of food in the lower frozen food containers. This is where the food will freeze especially quickly and gently.

• Distribute food in the compartments or frozen food containers.

• Do not bring food which is to be frozen into contact with frozen food. If required, re-stack frozen food in the frozen food containers.

• Important for unrestricted air circulation in the appliance: push in frozen food containers up to the limit stop. Note: Storage of foods at the wrong temperature may lead to an increase of food waste. Storage times and temperature Note: Overlong storage or storage at inappropriate freezing temperatures may cause spoiled foods, which causes food waste, is inedible and may cause food poisoning. The minimum temperature in most cases should be -18°C or colder. Follow the maximum recommended storage times below:

• Stew, ice cream, sausages, bread: 2-6 months

• Fish, shrimp, lamb, meat: 4-8 months

• Vegetables, fruits, poultry, beef: 6-12 months DISPOSAL Do not dispose of this product as unsorted municipal waste. Return it to a designated collection point for the recycling of WEEE. By doing so, you will help to conserve resources and protect the environment. Contact your retailer or local authorities for more information. Refrigerants must be evacuated and disposed of by a qualified specialist in accordance with federal and local regulations before the appliance is scraped. IM_OFK411D_210126_V09_HR.indb 25IM_OFK411D_210126_V09_HR.indb 25 26/1/2021 09:4126/1/2021 09:4126 Size = A5
