USER MANUAL Buddy 30.3072.01 TFA

Thank you for choosing this instrument from TFA. Before you use this product

Please make sure you read the instruc- tion manual carefully.

The operating instructions are enclosed with the device or can be downloaded at www.tfa-dostmann.de/en/service/ downloads/instruction-manuals

This product should only be used as described within these instructions.

Following and respecting the instructions in your manual will prevent damage to your instru- ment and loss of your statutory rights arising from defects due to incorrect use.

Please take particular note of the safety advice!

Please keep this instruction manual safe for future reference.

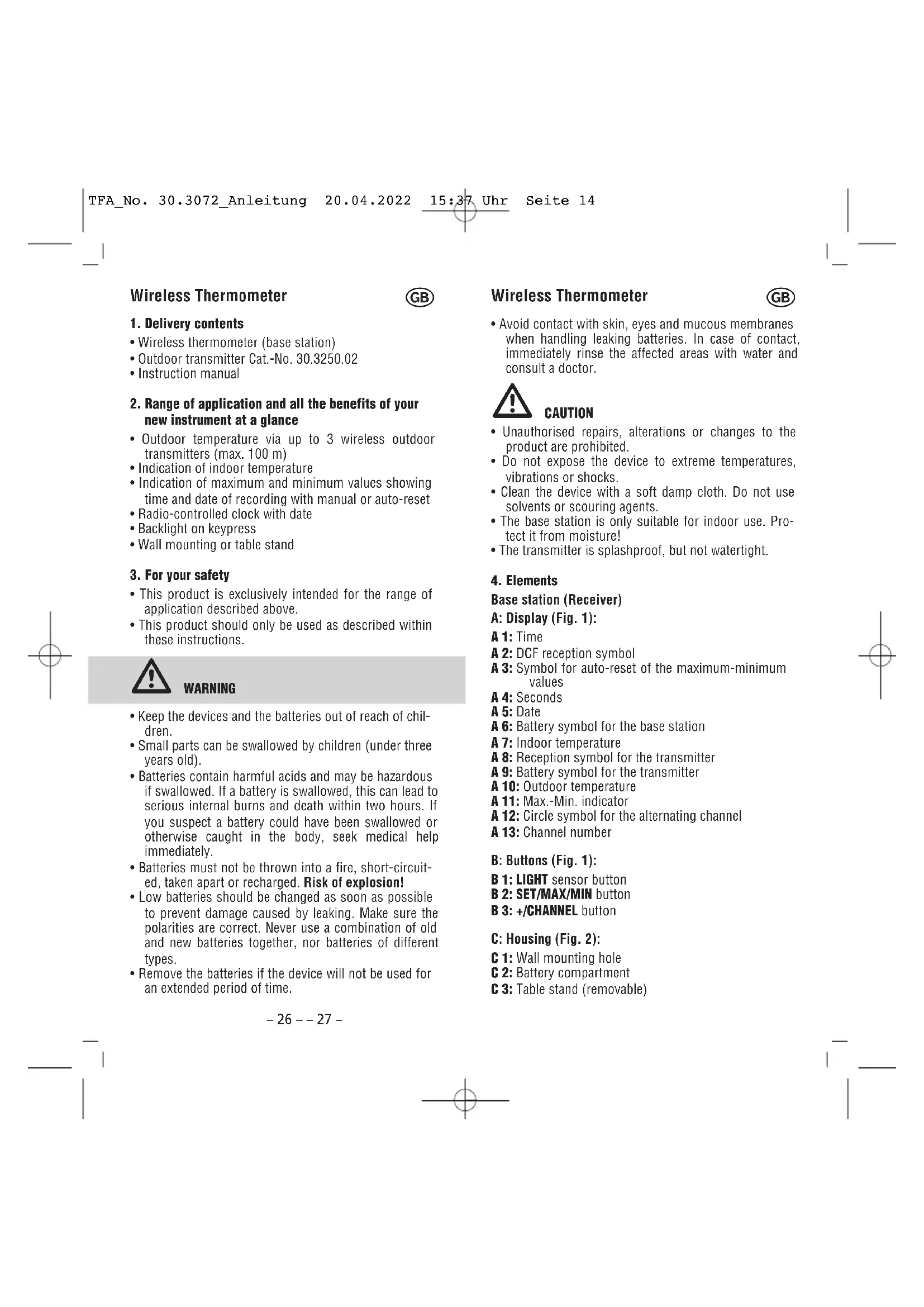

• Wireless thermometer (base station)

2. Range of application and all the benefits of your

new instrument at a glance

• Outdoor temperature via up to 3 wireless outdoor transmitters (max. 100 m)

• Indication of indoor temperature

• Indication of maximum and minimum values showing time and date of recording with manual or auto-reset

• Radio-controlled clock with date

• Backlight on keypress

• This product is exclusively intended for the range of application described above.

• This product should only be used as described within these instructions. WARNING

• Keep the devices and the batteries out of reach of chil- dren.

• Small parts can be swallowed by children (under three years old).

• Batteries contain harmful acids and may be hazardous if swallowed. If a battery is swallowed, this can lead to serious internal burns and death within two hours. If you suspect a battery could have been swallowed or otherwise caught in the body, seek medical help immediately.

• Batteries must not be thrown into a fire, short-circuit- ed, taken apart or recharged. Risk of explosion!

• Low batteries should be changed as soon as possible to prevent damage caused by leaking. Make sure the polarities are correct. Never use a combination of old and new batteries together, nor batteries of different types.

• Remove the batteries if the device will not be used for an extended period of time. Wireless Thermometer

• Avoid contact with skin, eyes and mucous membranes when handling leaking batteries. In case of contact, immediately rinse the affected areas with water and consult a doctor. CAUTION

• Unauthorised repairs, alterations or changes to the product are prohibited.

• Do not expose the device to extreme temperatures, vibrations or shocks.

• Clean the device with a soft damp cloth. Do not use solvents or scouring agents.

• The base station is only suitable for indoor use. Pro- tect it from moisture!

• The transmitter is splashproof, but not watertight.

Transmitter D: Display (Fig. 3): D 1: Channel 1,2,3 D 2: Transmission signal D 3: Battery symbol for the transmitter D 4: Outdoor temperature E: Housing (Fig. 4): E 1: Battery compartment E 2: Support for wall mounting or table standing E 3: Indentations for the holder for wall mounting F: Buttons in the battery compartment (Fig. 4): F 1: TX button F 2: 1 2 3 switch for channel selection

• Place the instruments on a table at a distance of about

1.5 meters from each other. Avoid being close to pos-

sible sources of interference such as electronic devices and radio equipment.

• Open the battery compartment of the transmitter and insert two new AA 1.5 V batteries, polarity as illustrat- ed. All LCD segments will be displayed for a short moment. The display shows the temperature. The switch is set to channel 1.

• Close the battery compartment.

• Remove the protective film from the base station dis- play.

• Open the battery compartment of the base station.

• Insert two new AA 1.5 V batteries, polarity as illustrat- ed. All LCD segments will be displayed for a short moment. The indoor temperature appears on the dis- play.

• Close the battery compartment.

5.2 Reception of outdoor transmitter

• The base station will scan the outdoor temperature and the reception symbol flashes.

• If the reception is successful, the outdoor temperature and the reception symbol appear steadily on the base station display. Wireless Thermometer

• If the reception of the outdoor temperature fails, “- -,-” remains on the display. Check the batteries and try it again.

• You can also activate the reception manually. Press and hold the +/CHANNEL button on the base station for three seconds. The reception symbol for the out- door transmitter will be flashing.

• Press the TX button in the transmitter's battery com- partment. The transmission of the outdoor data takes place immediately and if the reception is successful, the outdoor temperature appears on the base station display.

5.3 Reception of the DCF frequency signal

• After the reception of the outdoor values, the clock will now scan the DCF frequency signal and the DCF symbol flashes on the display.

• When the time code is successfully received after 3-10 minutes, the radio-controlled time, the date and the DCF symbol will be shown steadily on the display.

• The DCF reception always takes place at 1:00, 2:00 and 3:00 o'clock in the morning. If the signal is not successfully received, further attempts will be taken at 4:00 and 5:00 o'clock.

• If the clock cannot detect the DCF-signal (e.g. due to interference, transmitting distance, etc.), the time can be set manually.

• The clock will then work as a normal quartz clock (see: “Manual settings”). Note on radio-controlled time

The time is transmitted from an atomic clock near Frankfurt am Main by a DCF-77 (77.5 kHz) frequency signal with a range of about 1,500 km. Your radio-con- trolled clock receives the signal, converts it and always shows the exact time. The adjustment of Daylight Sav- ing Time and Standard Time is also automatic.

• During night-time, the atmospheric interference is usu- ally less severe. A single daily reception is adequate to keep the accuracy deviation under 1 second. In extreme cases, please place the unit close to a window to improve reception. TFA_No. 30.3072_Anleitung 20.04.2022 15:37 Uhr Seite 15– 30 – – 31 – Wireless Thermometer

• Press and hold the SET/MAX/MIN button for three seconds to enter the setting mode.

• The first adjustable value flashes on the display.

• Use the +/CHANNEL button to make the desired set- ting.

• Confirm with the SET/MAX/MIN button and go to the next setting.

• The sequence is shown as follows: – DCF reception ON/OFF (default: DCF ON) – Time zone -12/+12 (default: DCF 00H) – Hours, minutes – Year, month, day – Automatic reset of the maximum and minimum values ON/OFF (default: AUTO OFF MAX MIN)

• Press and hold the +/CHANNEL button in the respec- tive setting mode for quick setting. The device will automatically quit the setting mode if no button is pressed for 20 seconds.

• By default, the DCF reception is activated (DCF ON) and after successful reception of the DCF signal no manual time setting is necessary.

• Once the DCF time reception is deactivated (DCF OFF), the clock and date must be manually set. No time zone will appear.

• If the DCF reception is activated, the manually set time will be overwritten by the DCF time when the signal is received successfully.

6.1.2 Time zone setting

• In the setting mode you can make the time zone correction.

• The time zone correction is needed for countries where the DCF signal can be received but the time zone is dif- ferent from the DCF time (e.g. +1=one hour plus).

6.1.3 Automatic reset of the maximum and minimum

• In the setting mode you can activate (AUTO ON) or deactivate (AUTO OFF) the automatic reset of the maximum and minimum values. Wireless Thermometer

• If the automatic reset is activated, AUTO appears on the display besides the current time display.

• Press several times the SET/MAX/MIN button in nor- mal mode.

• You can now see the highest (MAX) and lowest values (MIN) since the last reset with time and date of recording.

• The sequence is shown as follows: indoor tempera- ture (MAX), indoor temperature (MIN), outdoor tem- perature (MAX), outdoor temperature (MIN).

• Press the SET/MAX/MIN button again to return to nor- mal mode.

• The device will automatically quit the MAX/MIN mode if no button is pressed.

• Press and hold the SET/MAX/MIN button while the highest or lowest values are displayed. The values will be deleted individually and reset to the current state. b) Automatic reset

• Provided that in the setting mode the automatic reset is activated (AUTO ON). The AUTO symbol appears on the display.

• All maximum and minimum values will be reset auto- matically every midnight at 0:00.

• An interim manual reset is still possible.

• Press the LIGHT sensor button. The backlight turns on for 8 seconds.

• Before the final installation, make sure that the meas- ured values are transmitted from the transmitter at the desired installation site to the base station.

• Do not use the base station in the vicinity of radiators, other sources of heat or in direct sunlight.

• Make sure to avoid the vicinity of any source of inter- ference such as computer screens, TV sets or solid metal objects. Within solid walls, especially ones with metal parts, the transmission range (max. 100 m) can be reduced considerably.

9. Battery replacement

• As soon as the corresponding battery symbol appears in the display, please change the batteries of the base station or transmitter

• Please note: When the batteries are changed, the con- tact between the outdoor transmitter and the base sta- tion must be restored – so always restart both devices or start a manual transmitter search.

10. Additional outdoor transmitters (optional)

• When having more than one external transmitter, select a different channel for each one with the 1/2/3 switch inside the transmitter's battery compartment. Insert two new AA 1.5 V batteries, polarity as illustrat- ed. Start the base station operation or the manual search for the outdoor transmitter:

• Choose the respective transmitter by pressing the +/CHANNEL button.

• Press and hold the +/CHANNEL button for three seconds. The last registered transmitter (channel) will be cancelled.

• Press the TX button in the corresponding transmitter's battery compartment. The transmission of the out- door data will take place immediately.

• The outdoor temperature and the channel number will be shown on the base station display. If you have installed more than one outdoor transmitter, press the +/CHANNEL button on the base station to change between the channels 1 to 3.

• You can also choose an alternating channel display. Press the +/CHANNEL button. After the last registered channel (1 to 3) a circle symbol will appear. To deacti- vate the function, press the +/CHANNEL button again. Wireless Thermometer

• Press the SET/MAX/MIN button several times to view the maximum and minimum values of the currently selected channel.

• After a successful installation close the outdoor trans- mitter's battery compartment carefully.

Problem Solution No indication on the ➜ Ensure the batteries' polari- base station or the ties are correct transmitter ➜ Change the batteries No transmitter ➜ No outdoor transmitter is reception installed Display “- -.-” ➜ Start manual search for the outdoor transmitter ➜ Check the outdoor trans- mitter's batteries (only use batteries/rechargeable batteries with 1.5V voltage!) ➜ Restart the outdoor trans- mitter and the base station according to the manual ➜ Choose another place for the transmitter and/or the base station ➜ Reduce the distance bet- ween the transmitter and the base station ➜ Check if there is any source of interference No DCF reception ➜ Activate (ON) the DCF reception in setting mode ➜ Wait for an attempt recep- tion during the night ➜ Change the location (interference!) ➜ Restart the device according to the manual ➜ Set the clock manually Incorrect indication ➜ Change the batteries If your device fails to work despite these measures, please contact the retailer where you purchased the product from for advice. TFA_No. 30.3072_Anleitung 20.04.2022 15:37 Uhr Seite 17– 34 – – 35 – Wireless Thermometer

This product and its packaging have been manufactured using high-grade materials and components which can be recycled and reused. This reduces waste and protects the environment. Dispose of the packaging in an environmentally friendly manner using the collection systems that have been set up. Disposal of the electrical device Remove non-permanently installed batteries and rechargeable batteries from the device and dispose of them separately. This product is labelled in accordance with the EU Waste Electrical and Electronic Equip- ment Directive (WEEE). This product must not be disposed of in ordi- nary household waste. As a consumer, you are required to take end-of-life devices to a designated collection point for the disposal of electrical and electronic equipment, in order to ensure environmentally-compatible dispos- al. The return service is free of charge. Observe the current regulations in place! Disposal of the batteries Never dispose of empty batteries and rechargeable batteries with ordinary house- hold waste. They contain pollutants which, if improperly disposed of, can harm the envi- ronment and human health. As a consumer, you are required by law to take them to your retail store or to an appropriate collection site depending on national or local regulations in order to protect the environment. The return service is free of charge. The symbols for the contained heavy metals are: Cd=cadmium, Hg=mercury, Pb=lead.

Base station Power consumption 2 x AA 1,5 V batteries (not included) We recommend Alkaline batteries Wireless Thermometer

No part of this manual may be reproduced without writtenconsent of TFA Dostmann. The technical data are correct atthe time of going to print and may change without priornotice. The latest technical data and information about thisproduct can be found in our homepage by simply enteringthe product number in the search box.EU Declaration of conformity Hereby, TFA Dostmann declares that the radio equipmenttype 30.3072 is in compliance with Directive 2014/53/EU.The full text of the EU declaration of conformity is available atthe following internet address: www.tfa-dostmann.de/service/downloads/cewww.tfa-dostmann.deE-Mail: [e-mail] Dostmann GmbH & Co.KG, Zum Ottersberg 12, 97877 Wertheim, Germany04/22 Thermomètre radio-piloté
