168 - Juicer ARIETE - Free user manual and instructions

Brand	Ariete
Model	168
Product type	Masticating juicer
Usage	Domestic use only
Power supply	Mains (check voltage before use)
Reversible rotation function	Yes (positions I and II to optimize extraction)
Safety lock	If the lid or cup is incorrectly installed, the appliance will not start
Motor protection	Automatic stop after 2 minutes of continuous operation; let it cool for at least 5 minutes before restarting
Filter material	Stainless steel with sharp blades
Included accessories	Pusher, cleaning brush, juice container, pulp container
Cleaning	Removable parts washable with warm soapy water; filter cleaned with brush; motor base wiped with a damp cloth
Dishwasher	Do not put the motor base or parts in the dishwasher
Juice storage	Maximum 24 hours in the refrigerator in a closed container
Repairs	Entrust exclusively to an Ariete authorized service center

Frequently Asked Questions - 168 ARIETE

Can I use the Ariete 168 juicer to chop nuts or chocolate?

No, this appliance is designed only for extracting juice from fruits and vegetables. Do not use it to chop other foods like nuts, ice cubes, or chocolate, as this could damage the appliance.

How to quickly clean the filter after use?

For easy cleaning, let the stainless steel filter soak in hot soapy water for 10 minutes, then clean it with the provided brush. Do not put it in the dishwasher.

What to do if the appliance does not start?

Check that all components are properly assembled: the lid (B) and the cup (F) must be correctly locked. If the motor does not turn even with the pusher set to 'I', the locking safety is active. Reassemble the appliance following the instructions.

How long can I run the appliance continuously?

The appliance is not designed for continuous use. Stop it after 2 minutes of operation and let it cool for at least 5 minutes before using it again. A motor protection device automatically cuts off the power if necessary.

Do I need to peel fruits before putting them in the juicer?

Yes, peel fruits with thick or inedible skin like melon, mango, or kiwi. Also remove pits and large seeds from fruits (oranges, peaches, apricots, etc.) before feeding them.

How to reverse the rotation direction for better extraction?

Use the start pusher (H) in position 'II' to reverse the rotation direction. Do not quickly switch from 'I' to 'II': stop for a few seconds in position 'O' before changing.

Can I put the parts in the dishwasher?

No, never put the motor base or other components in the dishwasher. Wash removable parts by hand with warm soapy water and wipe the base with a damp cloth.

How to store the prepared juice?

The juice can be stored in the refrigerator in a closed container, but it must be consumed within 24 hours because it contains no preservatives.

What to do if the cup (F) gets stuck on the motor base?

Press the start pusher (H) in position 'II' and hold it for 3 to 5 seconds. Repeat 2 to 3 times, then turn the cup to the left to remove it.

Can I use frozen fruits?

Yes, but they must be completely thawed before putting them in the juicer.

USER MANUAL 168 ARIETE

Line drawing of a mechanical device with a central knob and surrounding components (no text or symbols)

A B C D E F G O N H I M L

Illustration of a hand operating a mechanical device with a rotating base and shaft (no text or symbols)

Diagram of a hand holding a filter or grating device with a downward arrow indicating compression (no text or symbols present)

Diagram showing a hand placing a component into a multi-tiered container, with an arrow indicating process direction (no text or symbols present)

Illustration of a hand using a spiral tool to press or lift a cylindrical component, with a downward arrow indicating motion (no text or symbols)

Illustration of a hand pressing down on a mechanical component with a curved arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with a handle and base, no text or symbols present

Line drawing of a mechanical device interacting with a small table and cylindrical components (no text or symbols)

Illustration of a hand holding a cylindrical object with a downward arrow indicating a process or action (no text or symbols present)

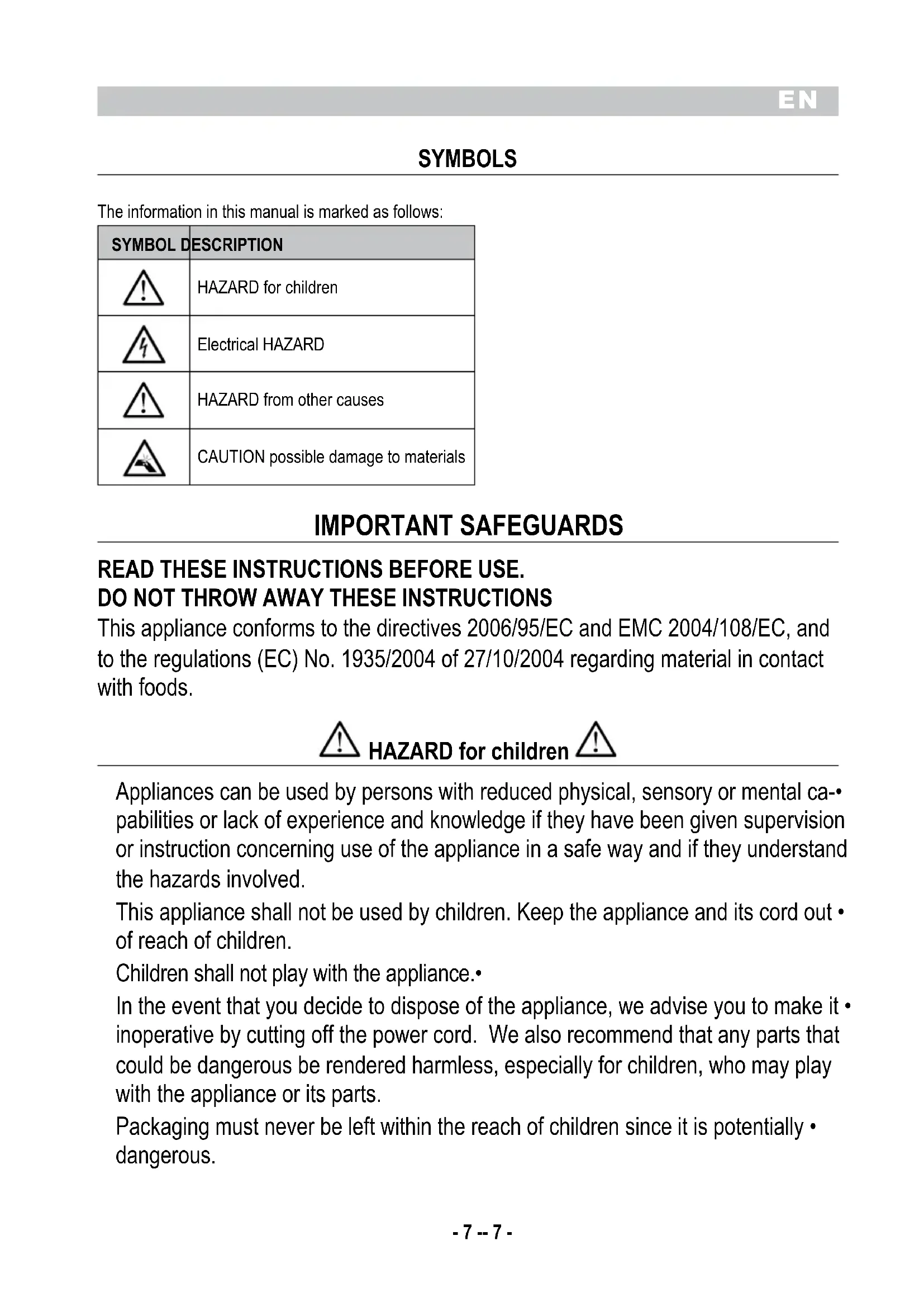

SIMBOLOGIA

The information in this manual is marked as follows:

SYMBOL	DESCRIPTION
	HAZARD for children
	Electrical HAZARD
	HAZARD from other causes
	CAUTION possible damage to materials

IMPORTANT SAFEGUARDS

READ THESE INSTRUCTIONS BEFORE USE.

DO NOT THROW AWAY THESE INSTRUCTIONS

This appliance conforms to the directives 2006/95/EC and EMC 2004/108/EC, and to the regulations (EC) No. 1935/2004 of 27/10/2004 regarding material in contact with foods.

HAZARD for children

Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

Children shall not play with the appliance.

In the event that you decide to dispose of the appliance, we advise you to make it • inoperative by cutting off the power cord. We also recommend that any parts that could be dangerous be rendered harmless, especially for children, who may play with the appliance or its parts.

Packaging must never be left within the reach of children since it is potentially - dangerous.

- To dispose of product correctly according to European Directive 2009/96/CE, please refer to and read the provided leaflet enclosed with the product.

Electrical HAZARD

Make sure that the voltage on the appliance rating plate corresponds to that of the • mains electricity.

- Never leave the appliance unattended when connected to the power supply; unplug it after every use.

Always make sure that your hands are thoroughly dry before using or adjusting the • switches on the appliance, or before touching the power plug or power connections.

Even when the appliance is not operating, unplug it from the power socket and • wait for moving parts to stop before inserting or removing individual parts or before cleaning.

The appliance is not designed for continuous operation. Allow the motor to cool down • after 2 minutes of uninterrupted operation.

Do not allow the power cord to dangle from the edge of the table or work surface. • Never place the power cord or the appliance on hot surfaces.

If using extension cords, they need to be suitable for the power of the appliance so as to prevent risks to the operator and for the safety of the environment. Unsuitable extension cords may lead to operating anomalies.

HAZARD from other causes

Never place the appliance on or close to sources of heat.

Always place the appliance on a flat, level surface during use.

Never leave the appliance exposed to the elements (rain, sun, etc....).

• Make sure that the power cord does not come into contact with hot surfaces.
• Never use the appliance in any way other than that described in this manual.

The juicer extracts juice from soft and peeled fruit and vegetables. Do not use the • appliance for crushing other foods such as chocolate, ice cubes, nuts, etc.

- Peel fruit with thick or non-edible skin (melons, mangos, kiwis, etc. ...).

Before proceeding to use the juicer, remove all stones and large seeds from the •

fruit (oranges, peaches, apricots, plums, cherries, etc...).

Fruit and vegetables need to be washed with care.

Never touch parts when they are moving and never place hands or kitchen utensils • inside the filling chute. Only use the special pusher (A).

Always use the pusher (A) to push the food into the juicer: never use fingers.

NEVER PLACE THE APPLIANCE BODY, PLUG OR POWER CORD IN WATER • OR OTHER LIQUIDS; ALWAYS WIPE CLEAN WITH A DAMP CLOTH.

Never use the appliance if the power cord or plug are damaged or if the appliance • itself is faulty; in this case, take it to your nearest Authorised Assistance Centre.

All repairs, including the replacement of the power cord must only be performed by the Ariete Assistance Centre or by Ariete authorised technicians so as to prevent all risks.

This appliance is designed for HOME USE ONLY and may not be used for commercial or industrial purposes.

CAUTION possible damage to materials

Never use the appliance if the filter (B) is damaged.

The use of non-original parts or parts which are not recommended by the manu-facturer can compromise the safety and performance of this appliance.

To unplug the appliance, grip the plug and remove it directly from the power socket. • Never pull the power cord to unplug the appliance.

Any changes to this product that have not been expressly authorised by the manu-facturer may lead to the user's guarantee being rendered null and void.

DESCRIPTION OF THE APPLIANCE

A Presser

B Lid

C Pressing screw

D Filter

E Filter support

F Bowl

G Juice dispense with closure cap

H I-O-II button

I Juice container

L Brush

B Motor base

N Pulp container

O Pulp ejecting spout

OPERATING INSTRUCTIONS

Appliance assembly

WARNING: After having removed the appliance from its package, before using it for the first time, thoroughly wash all parts that will come into contact with food using water and mild soap.

Put the motor base (M) onto a stable, flat surface. Make sure the surface is easily accessible.

Place the bowl (F) onto the base (M) and rotate it clockwise until a click is heard (Fig. 2).

Put the filter holder (E) into the bowl (F) (Fig. 3).

• Insert the filter (D) into the corresponding filter holder (E), making sure the two references on the bowl (F) and on the filter itself (D) are aligned (Fig. 4).
  Put the pressing screw (C) inside the filter (D), by rotating it until it is properly positioned in the filter (Fig. 5).
• Position the lid (B) onto the bowl (F) by ensuring it is properly inserted on the upper pin of the pressing screw (C). Rotate it anti-clockwise so that the side tab fits perfectly in the corresponding motor base slot (M) (Fig. 6).

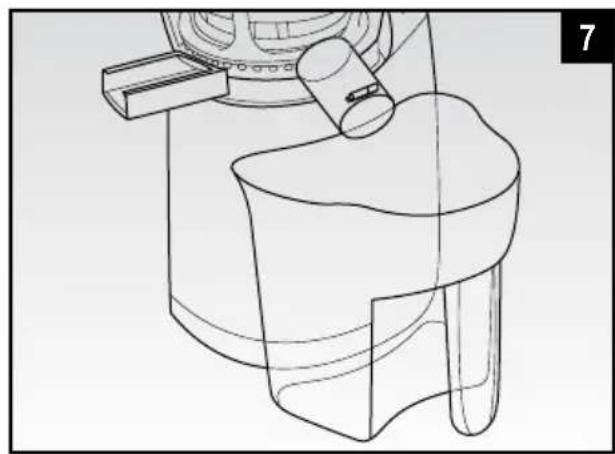

  Put the container (I) underneath the juice dispensing spout (G) (Fig. 7).
  Place the pulp container (N) underneath the ejecting spout (O) (Fig. 8).
• Put the food previously prepared into the related housing on the lid (B) and position the food presser (A) close to the housing itself (Fig. 9).

WARNING: The filter (D) has small sharp blades for chopping food. Be careful not to get hurt while removing or cleaning the filter.

Should the lid (B) and the bowl (F) be mounted improperly, the juicer does not start. In this case the motor does not run, even though the switching on button (H) is in "I" position. Make sure all components are properly mounted before use.

Switching on

Plug in appliance.

• Position the switching on dial (H) to "I". The motor start running. Open the cap on the juice dispensing spout (O).
• Let the food presser (A) slide in the corresponding housing on the lid (B) and slightly press to bring food towards the filter (D). Do not put too much food into the appliance and do not excessively press on the food presser (A).
• By rotating the switching on button (H) to "II", the motor changes direction of rotation for a better juice extraction.

ATTENTION: Do not press quickly the switching on button (H) from "I" to "II", but remain in "O" position for few seconds.

WARNING: This appliance is not designed to work in a continuous mode. Let the motor cool down after 2 minutes of continuous functioning.

Once having processed the first load of food, repeat the above steps to make some other juice, otherwise remove the • container.

To make sure the appliance goes on working properly, prevent the pulp container (N) from being overfilled. Empty the • container, if necessary:

√ Switch the appliance off, by bringing the switching on button (H) to "O, and then unplug it.
√ Carefully remove the pulp container (N) from under the related spout (O).
√ Carefully empty the pulp container (N) and place it back under the related spout (O).

NOTE: To make pulp container cleaning easier (N), put a plastic bag into the container itself. This operation is also useful to prevent the pulp from splashing out of the container rim.

- After use, switch the appliance off, close the cap on the juice dispensing spout (G), disconnect the power plug and remove the container (I) to serve the juice.

- Keep the juice in the fridge by covering the container (I).

WARNING: Use the juice in the fridge within 24 hours.

• Clean immediately after use

USE TIPS

It is recommended to always use fresh fruit and vegetable.

• Try to mix different kinds of fruit, e.g. apples, pears, oranges, pineapples, or vegetables, as tomatoes, celery, carrots, to obtain delicious and nourishing juices.
• When squeezing not very juicy fruit (e.g. banana), alternate with juicy fruit or vegetables to make extraction easier.
• In case of long herbs (e.g. wheat herb), cut them into 3 cm. long pieces to prevent them from twisting around the screw. In case of frozen fruit, completely defrost it in advance.
• In case of big amount of juice, it can be kept in the fridge in a close container but, as it contains no preservatives, consume it within 24 hours.

ATTENTION: The appliance is equipped with a motor protection system which switches it off after few minutes of continuous operation. When this interruption occurs, put the dial back to 0 and unplug the appliance to reset it. After few minutes (at least 5), plug the machine in again and restart it.

CLEANING AND MAINTENANCE

• To start preparing another juice, it is possible to clean the appliance quickly, when it is working, by pouring water into the lid (B), after having positioned a suitable container underneath the juice dispenser (G).
• After use, proceed with cleaning by removing all components, carrying out the assembly instruction above described in reverse order.

WARNING: Should the bowl (F) be locked and cannot be removed from the motor base (M), rotate the switching on button (H) to "II" by keeping it in this position for 3-5 seconds. Repeat these steps 2-3 times. Remove the bowl (F) by rotating it anticlockwise.

Use a clean and soft cloth only for cleaning the motor base (M).

The components may be cleaned using warm water and any dish detergent.

- It is recommended indeed to clean the stainless steel filter (D) under running water using the appropriate brush (L) supplied. Do not damage it.

WARNING: In order to make filter cleaning easier, after use, let it immersed in warm water with a little dish detergent for 10 minutes.

WARNING: Never put the motor base (M) or all components in the dishwasher.

ATTENTION: After cleaning, let it completely dry before mounting.
