MPE12T - Oven MPM - Free user manual and instructions

Brand	MPM
Model	MPE12T
Product type	Electric oven
Capacity	23 liters
Temperature range	100 °C to 230 °C (MAX)
Timer	0 to 60 minutes with audible signal
Cooking modes	Convection, top heat, bottom heat, top and bottom combined
Interior light	Yes, with heat-resistant bulb cover
Bulb type	G9 or E14, 15 W, 220-240 V AC
Power supply voltage	220-240 V AC
Housing material	Steel
Door	Double glazing with glass handle
Included accessories	Rack, tray, tray removal handle
Safety	Manual shut-off via timer, audible signal at end of cooking, regulating thermostat
Maintenance	Clean surfaces with a damp cloth; wash accessories by hand (not dishwasher safe)
Repairability	Bulb replacement possible by user
Non-slip feet	Yes

Frequently Asked Questions - MPE12T MPM

How to set the cooking time?

Turn the timer knob (2a) to the desired time from 0 to 60 minutes. The knob automatically returns to the '0' position as cooking progresses. You can stop it manually by turning it to '0'.

How to choose the cooking mode?

Use the selection knob (2c) to choose between convection, top heat, bottom heat, or top and bottom combined. The icons on the dial indicate each mode.

Is preheating necessary?

Preheating is not necessary for most dishes. If recommended, allow 8 to 10 minutes. The oven is ideal for delicate dishes like cakes or rare meats.

What accessories are included?

The oven comes with a rack, a tray, and a tray removal handle. Use these accessories to place food inside.

How to clean the oven after use?

Unplug the oven and let it cool. Clean the exterior and interior surfaces with a damp cloth. Wash the rack, tray, and handle in warm water with mild detergent, rinse and dry. Do not put them in the dishwasher.

Can I use aluminum foil?

Avoid placing paper, cardboard, or flammable materials in the oven. Aluminum foil can be used with caution, but it is not recommended to put it in direct contact with the heating elements.

What to do if the bulb no longer lights up?

Unplug the oven and let it cool. Unscrew the heat-resistant bulb cover (6), remove the old bulb (15 W, type G9 or E14, 220-240 V AC), install a new one, and screw the cover back on. Do not operate the oven without the cover.

What clearance should I leave around the oven?

Maintain a distance of at least 10 cm on the sides and 30 cm above the appliance. Place the oven on a flat, level, heat-resistant surface.

The oven emits a burning smell during first use, is this normal?

Yes, this is normal. The heating elements may emit some smoke or odor during the first preheat. Operate the oven at 230 °C for 15 minutes to remove production residues.

Can I leave the oven unattended?

No, never leave the appliance unattended while it is operating. Be especially vigilant around children and when removing hot dishes.

USER MANUAL MPE12T MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM/ appliances

Black countertop oven with control knobs and a glass door (no visible text or labels)

CZ NAVOD K OBSUZE
DE ULDILNUNGSANLLITUNG
EE KASJTUSJUI LND 16
EN USER MANUAL 22
ES MANUAL DL INSTRUCCIONES 26
FR MANUEL DE L'UTILISATEUR 35
HU HASZNÁLATI JTASÍTÁS 42
IT MANUALE D'USO 40
LT VARTOTOJO VADOVAS 55
LV UL TO AJA ROKASCRAMAIA 61
NL CCRUKERSI HANDLEDING 67
PL INSTRUKCJA OBSLUGI 74
RO MANUAL DE UTILIZARE 91
RU ИНСТРУКЦИЯ ПО ОБСЛУЖИВАЛИЮ 80
SK POUZVATELSKÁ PRÍRUCKA 95
UA ПОСИБНИК КОРИСТУВАЧА 122

MPM agd S.A.

Technical diagram of an oven with labeled parts and corresponding thermal and temperature readings

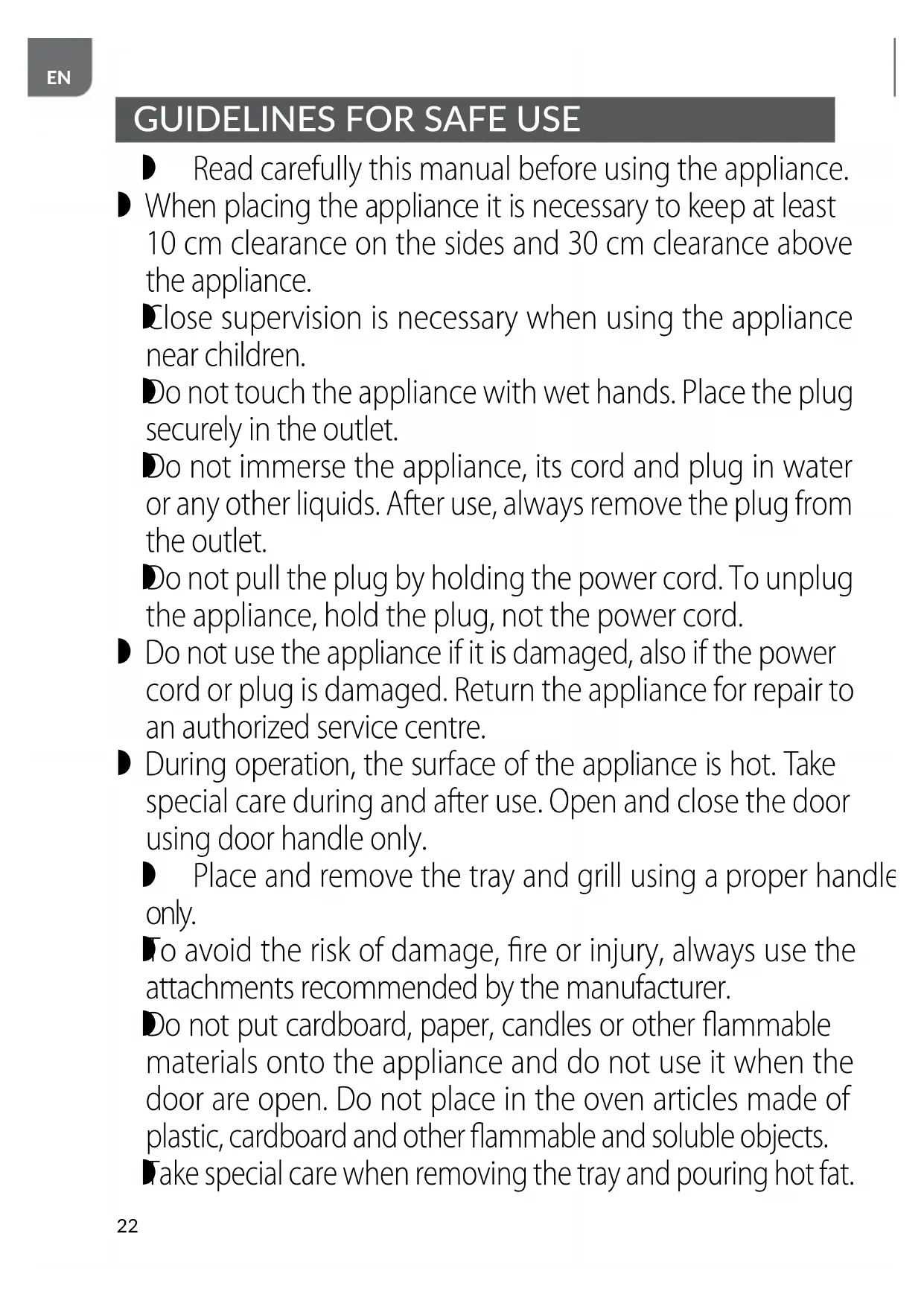

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

Read carefully this manual before using the appliance.

When placing the appliance it is necessary to keep at least 10 cm clearance on the sides and 30 cm clearance above the appliance.

Close supervision is necessary when using the appliance near children.

Do not touch the appliance with wet hands. Place the plug securely in the outlet.

Do not immerse the appliance, its cord and plug in water or any other liquids. After use, always remove the plug from the outlet.

Do not pull the plug by holding the power cord. To unplug the appliance, hold the plug, not the power cord.

Do not use the appliance if it is damaged, also if the power cord or plug is damaged. Return the appliance for repair to an authorized service centre.

During operation, the surface of the appliance is hot. Take special care during and after use. Open and close the door using door handle only.

Place and remove the tray and grill using a proper handle only.

To avoid the risk of damage, fire or injury, always use the attachments recommended by the manufacturer.

Do not put cardboard, paper, candles or other flammable materials onto the appliance and do not use it when the door are open. Do not place in the oven articles made of plastic, cardboard and other flammable and soluble objects.

Take special care when removing the tray and pouring hot fat.

Do not place heavy objects on the open door.

Do not leave the appliance switched on when unattended.

Do not splash water onto the window during or after use.

Do not place the appliance in vicinity of electric and gas cookers, and other heat sources, or in close proximity to electric fans, which may have effect on the temperature of the appliance.

The appliance shall be plugged to an outlet with a protective earth pin.

This appliance has been designed for domestic use only.

The appliance is not intended for use with external timers or separate remote control systems.

The appliance shall be placed on a surface which is resistant to high temperatures. Do not place on plastic, vinyl surfaces, varnished wood or other surfaces made of flammable materials.

This appliance is not intended for use by children under 8 years of age and individuals with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be carried out by children without supervision.

Store the appliance and its cord out of reach of children under 8 years of age.

Children should be supervised to ensure that they do not play with the appliance.

The temperature of surfaces may be higher when the appliance is in use.

Do not use the appliance outdoors.
Do not connect the power plug with wet hands.
Do not move the appliance during operation.
Do not place the cord over sharp edges and keep it away from hot surfaces.

Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

Use your appliance for cooking and heating your meal only. Do not use your appliance for unintended purposes (heating the room, for commercial purposes etc.). Ensure that the appliance is unplugged before replacing the lamp of your appliance to prevent a risk of electric shock.

Long term intense use of the appliance may require extra ventilation, for example, opening a window, or a better ventilation, such as increasing the mechanical ventilation level. Put curtains, tulles, paper or any flammable (ignitable) material away from the appliance before starting to use the appliance. Do not put ignitable or flammable materials on or in the appliance.

WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard!

NOTE! Hot surface!

DESCRIPTION OF THE APPLIANCE

1. Oven cover
2. Control panel

a. timer countdown knob
b. thermostat knob for baking temperature control
c. oven mode selection knob
d. oven control lamp

1. Double glazed door

2. Glass door handle

3. Backlit interior of the 23-litre oven
4. Lamp shade for the bulb backlighting the interior of the oven
5. Anti-slip feet
6. Oven rack
7. Tray
8. Tray and rack holders

DESCRIPTION OF THE CONTROL PANEL

BAKING TIME CONTROL

The (2a) knob can be used to set the baking time in the oven between 0 and 60 minutes. As baking progresses the knob will be moving to the "OFF" position. At any moment you can turn the knob to the "O" position forcing the oven to switch off.

The setting of the knob to the "OFF" position causes the oven to switch off without counting the time.

TEMPERATURE REGULATION

With the knob (2b) you can set the baking temperature in the oven between 100^ to over 230^ (MAX). After reaching the set temperature the oven's thermostat turns the heats on and off in order to maintain the set temperature.

OVEN MODE SELECTION KNOB

The appropriate icons on the knob (2c) signal the selection of the heat and air flow. Remember, however, to declare the time and temperature beforehand since selecting only the oven mode will not start the process of baking. Thanks to air circulation the heat is equally distributed in the oven.

Baking only with the bottom heat with the air flow function. This option can be applied to baking a pizza or dishes which require browning at the bottom.

Baking only with the top heat with the air flow function. Can be applied when the priority is baking of the top part of the dish.

Baking with both top and bottom heat with the air flow function. The dish is baked both on the top and bottom part.

BEFORE FIRST USE

1. Take out the oven from the box and remove all fillers, transport assisting materials and labels. Check the oven for any damages that might have occurred during transport. If you have any doubts contact the seller.

2. The oven must be placed on a level, flat, stable and dry surface that is resistant to high temperature. Keep appropriate distance around the oven Do not put and do not start the oven inside cabinets, shelves or other pieces of furniture.

3. Connect the oven to a grounded supply network and start it for 15 minutes on the highest temperature. This will help heat the oven and rid it of any factory smell. This heating process might generate slight smoke which will subside in further use.
4. Disconnect the oven, wait until it cools off and clean it and its accessories using guidelines provided in the "CLEANING AND MAINTENANCE" section.

USING THE OVEN

1. Place the dish on the tray (9) or on the rack (8) and slide them into the oven. When opening and closing the door (3) use the handle (4).

NOTE!!! Do not place in the oven any plastic or paper packaging, containers etc.

1. Connect the device to the mains (grounded).
2. Declare the appropriate baking time (2a), temperature (2b) and oven work mode (2c). The control lamp (2d) will light up which means that the oven is heating up.
3. Preheating of the oven is not needed. This will be useful when baking delicate dishes such as cakes or rare and medium-rare meats.
4. It is recommended to use the baking tray in the case of smaller food product such as those which will cause grease and water to fall down during baking.
5. After finishing the baking the countdown timer will give a sound signal - set the work mode knob (2c) to the OFF position. Disconnect the oven from the power source.

NOTE!!! To take out the product use the tray (10) and use kitchen gloves to avoid burns.

1. After the oven cools off clean it immediately according to the guidelines in the chapter "CLEANING AND MAINTENANCE".

PRACTICAL AND CULINARY ADVICE

1. Initial heating of the oven should last from 8 to 10 minutes if the dish requires it.
2. The time of baking can be changed depending on the ingredients of a given product, temperature, mass and the size of the portion. Set the time and temperature according to the guidelines the table below:

Dish Temperature (°C) Time of baking (minutes)
Cookies 170-180 25-30
Cake 170-190 30-40
Pâte 180-220 40-50
Muffins 160-180 30-40
Baked pasta 190-210 20-30
Fish	220-MAX 30-40
Lamb	220-MAX 90-120
Mutton 220-MAX 90-120
Veal 220-MAX 90-120
Turkey	220-MAX 45-55
Poultry	220-MAX 75-100

CLEANING AND MAINTENANCE

NOTE!!! Before starting the cleaning and maintenance disconnect the heater from the power network and wait until it cools off completely. Do not dip it in water or other liquids.

NOTE!!! Do not use abrasive substances or sharp tools to clean the oven, do not use aggressive detergents and solvents.

1. External and internal surfaces of the oven should be cleaned with a moist wipe and then wiped dry.
2. The tray and the holder for removing the tray should be cleaned in warm water with a delicate detergent, rinsed and left to dry. Do not clean the oven accessories in dishwashers.

3. If you need to exchange the light bulb follow the instructions below:

4. disconnect the oven from power network and wait until it cools off

5. unscrew the heat resistant light shade of the bulb (6)
6. remove the damaged bulb

Type G9 Lamp Type E14 Lamp

220-240 V, AC 15 W 15 W

220-240 V, AC

from the oven; depending on the type of bulb used (E14 or G9 with a power from 15 W) follow the instructions in the picture on the right do not throw the damaged bulb into the rubbish bin, dispose of it at the electro-waste collection point

-install a new bulb

-screw in the heat resistant light shade of the bulb (6)

NOTE!!! Do not start the oven without the heat resistant light shade of the light bulb.

TECHNICAL DATA

The technical parameters are indicated on the product rating plate.

Volume: 23 l

Length of the power cord: 1.10 m

CAUTION! MPM agd S.A. reserves the right to make technical changes.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components.

Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health. Used equipment should

be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
