USER MANUAL Marty Klimax Osann

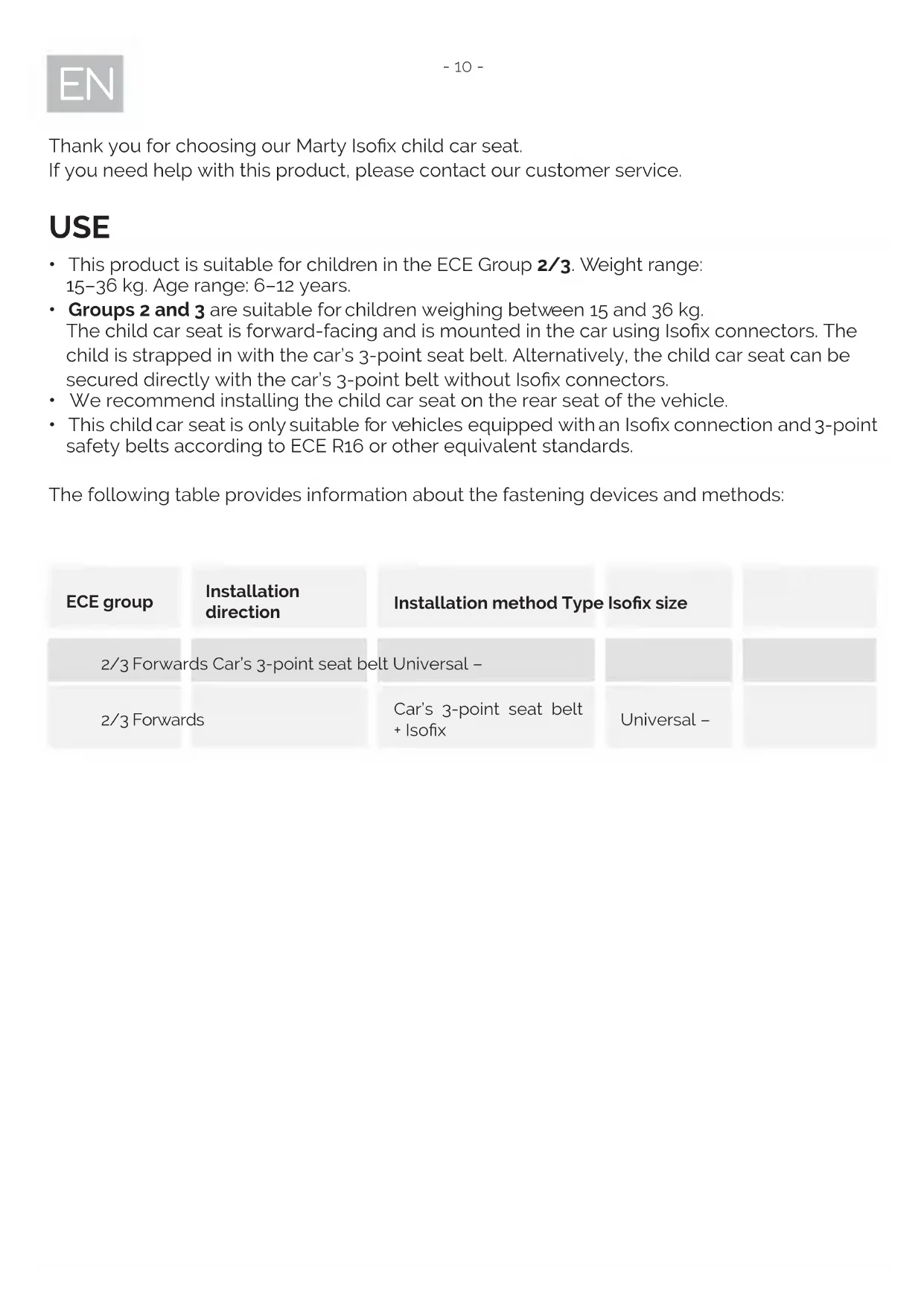

Thank you for choosing our Marty Isofix child car seat.

If you need help with this product, please contact our customer service.

USE

• This product is suitable for children in the ECE Group 2/3. Weight range: 15-36 kg. Age range: 6-12 years.
• Groups 2 and 3 are suitable for children weighing between 15 and 36kg . The child car seat is forward-facing and is mounted in the car using Isofix connectors. The child is strapped in with the car's 3-point seat belt. Alternatively, the child car seat can be secured directly with the car's 3-point belt without Isofix connectors.
  We recommend installing the child car seat on the rear seat of the vehicle.
• This child car seat is only suitable for vehicles equipped with an Isofix connection and 3-point safety belts according to ECE R16 or other equivalent standards.

The following table provides information about the fastening devices and methods:

ECE group	Installation direction	Installation method Type Isofix size
2/3 Forwards	Car's 3-point seat belt Universal -	Universal -
2/3 Forwards	Car's 3-point seat belt + Isofix	Universal -

WARNING

Installation with 3-point belt (ECE group 2/3, 15-36kg )

• This is a universal child restraint. It has been approved for general use in accordance with UN/ECE Regulation No. 44/04 and is, therefore, compatible with most vehicle seats.
• Correct installation can be expected if the vehicle manufacturer declares in the vehicle manual that the vehicle is suitable for the installation of a universal restraint device for children of the respective age group.
• This child restraint has been classified in the 'Universal' category under stricter conditions than previous versions that do not bear this label.
• It is only suitable for vehicles with fixed 3-point safety belts or 3-point safety belts with seat belt retractor, which correspond to the UN/ECE Regulation No. 16 (or an equivalent standard).
• If in doubt, ask the manufacturer of the child restraint or the retailer.

Installation with Isofix connectors & 3-point belt (ECE group 2/3,15-36kg )

• This is a universal child restraint. It has been approved for general use in accordance with UN/ECE Regulation No. 44/04 and is, therefore, compatible with most vehicle seats.
• The child restraint system fits in vehicles with seats that are marked as Isofix positions (for details see car operating instructions), which varies depending on the category of child seat and attachment.
• It is only suitable for vehicles with fixed 3-point safety belts or 3-point safety belts with seat belt retractor, which correspond to the UN/ECE Regulation No. 16 (or an equivalent standard).
• If in doubt, ask the manufacturer of the child restraint or the retailer.

WARNING

• Please read through these instructions carefully before use and keep them for subsequent reference, in order to guarantee the safety of your child. Non-compliance with the instructions in this manual may result in serious injuries to your child.
• The child car seat can be installed with the Isofix connectors and the 3-point seat belt or with just the car's 3-point seat belt in a forwards-facing direction.
• For the Isofix installation: Be sure to read the car manufacturer's manual.
• Do not use load-bearing contact points other than those described in the instructions and marked in the child restraint system.
• Do not use this child car seat at home. It has not been designed for use at home and should, therefore, only be used in a car.
• Do not leave your child unsupervised in the seat at any time.
• The child seat should be replaced if it is exposed to heavy impact during an accident.
• For safety reasons, the child car seat must be secured in the vehicle even when your child is not sitting in the child car seat.
• Always make sure that all belts that hold the seat holder to the vehicle are secure and that all belts that restrain the child are adjusted to the child's body. Please also ensure that the belts are not twisted.
• Items of luggage or other objects that could cause injury in the event of a collision must be properly secured.
• The rigid items and plastic parts of a child restraint system must be placed and installed so that they cannot get caught by a movable seat or a vehicle door during everyday use.
• It is important that low-lying belts hold the pelvis firmly in place. To avoid the risk of falling, your child should always be strapped in.
• It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system is also associated with risks.
• This child seat has been designed for newborns and children weighing up to 36kg . Never overload the child seat by transporting more than one child or additional loads in it.
• The child restraint system must not be used without the seat cover.
• The seat cover must not be replaced by a cover other than that recommended by the manufacturer as this seat cover is an important component of the restraint performance.

SEAT PARTS

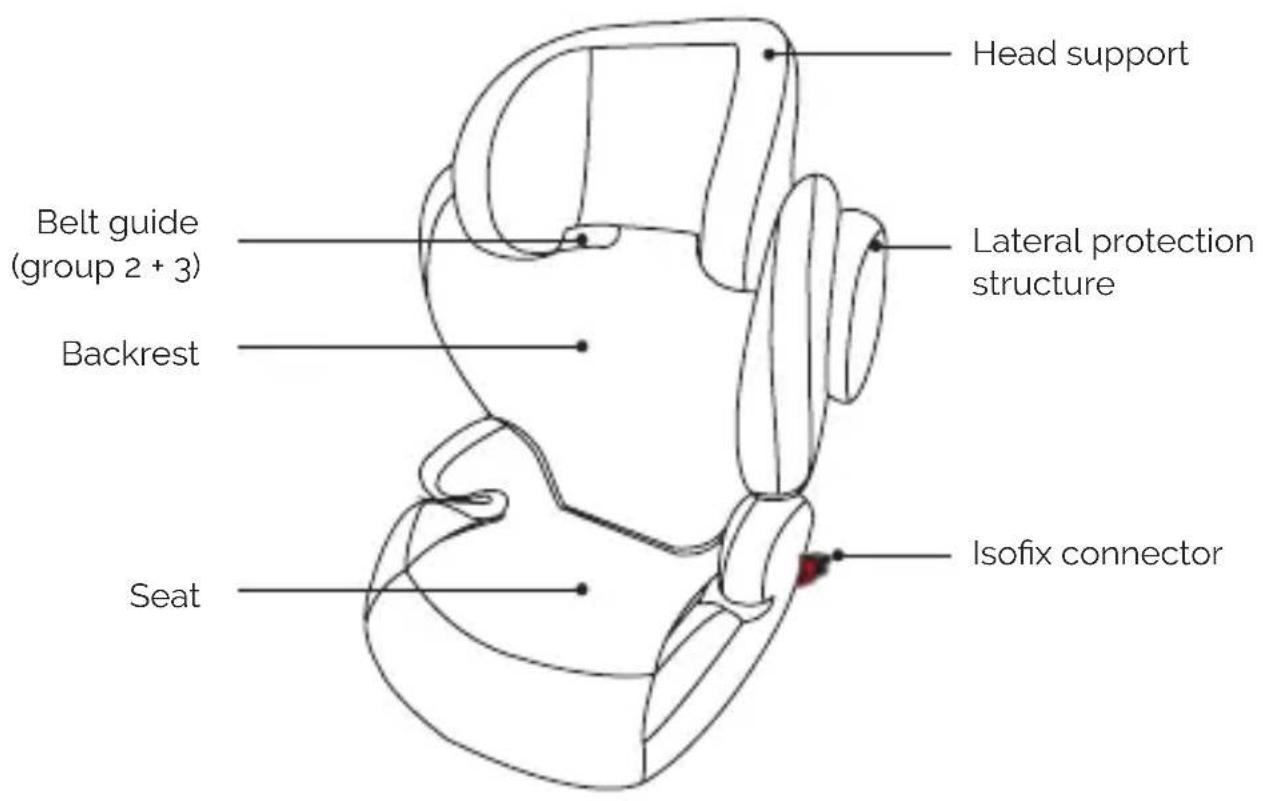

Front view

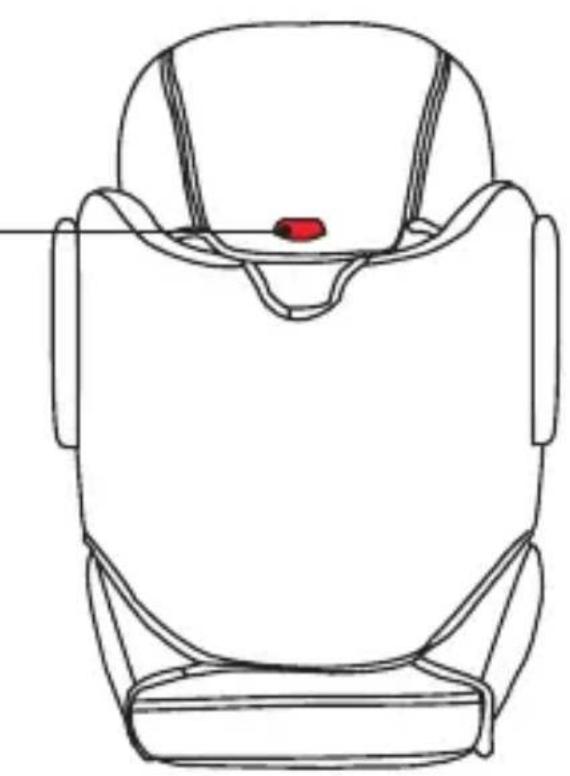

Rear view

Headrest adjustment

USE OF THE CHILD CAR SEAT

Adjusting the head support

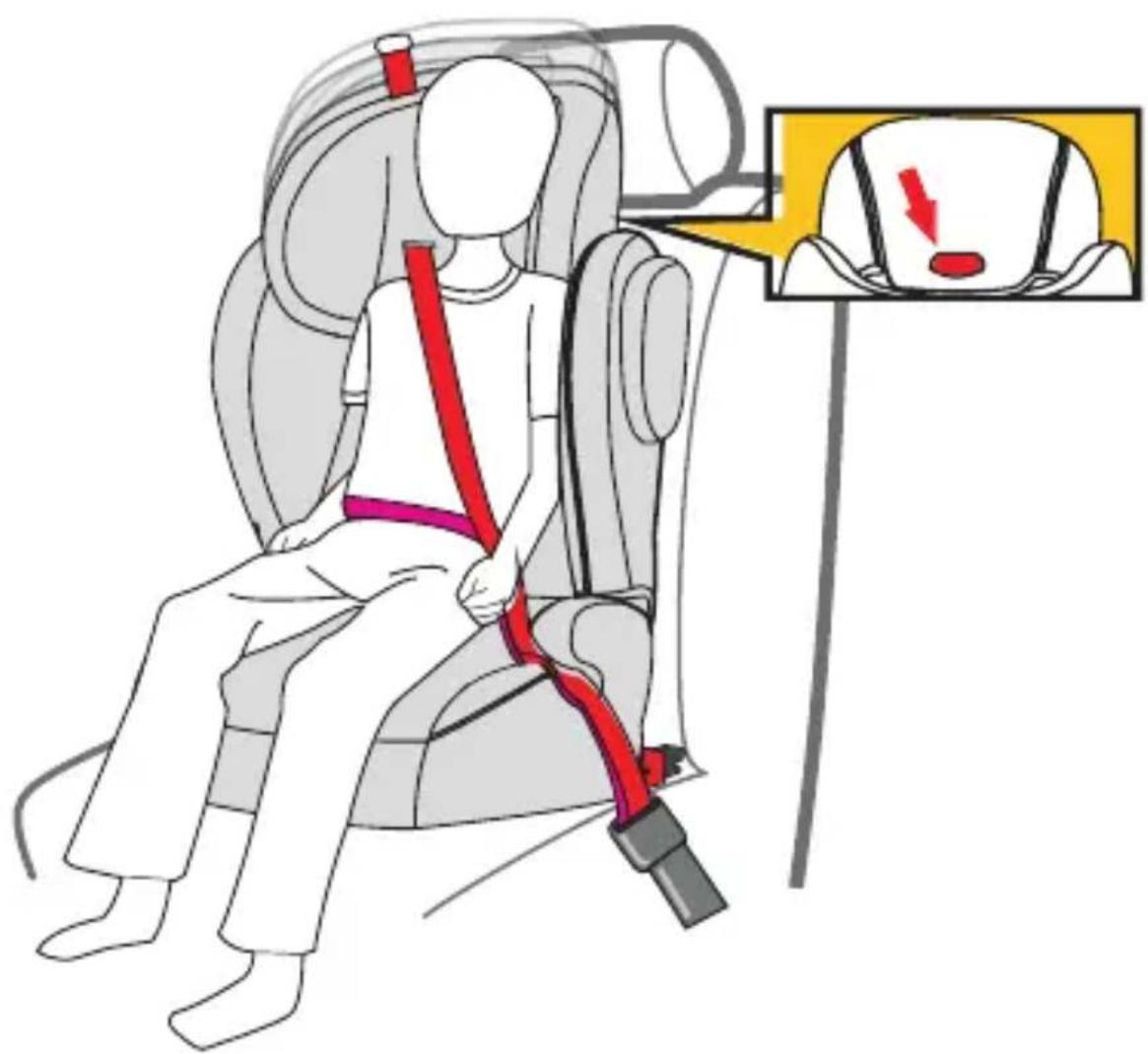

• Pull the lever on the back of the head support until it is set to the desired height.
• Pay attention to the correct height of the shoulder belts. These should emerge from the seat at the height of the child's shoulders.
• Release the lever and ensure that the headrest is locked in place.

Isofix connectors

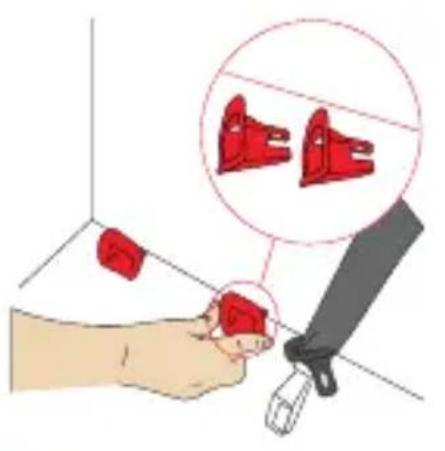

• Insert the insertion aids through the slit in the cushion between the backrest and seat and into the Isofix holders.
• When doing this, the flat side must be facing downward. This step is not necessary if the vehicle already has firmly installed insertion aids.

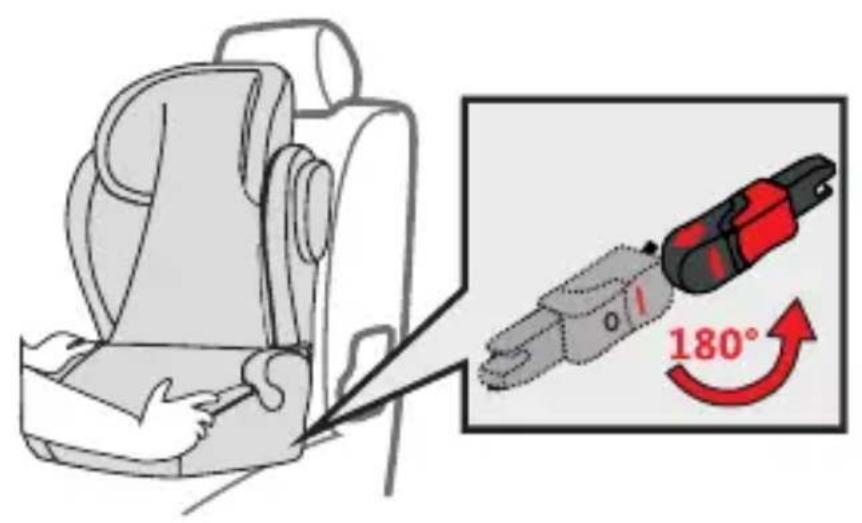

• Fold the Isofix connectors out 180^ .
• Slide the Isofix connectors into the insertion aids and press them in until you hear them lock in place.

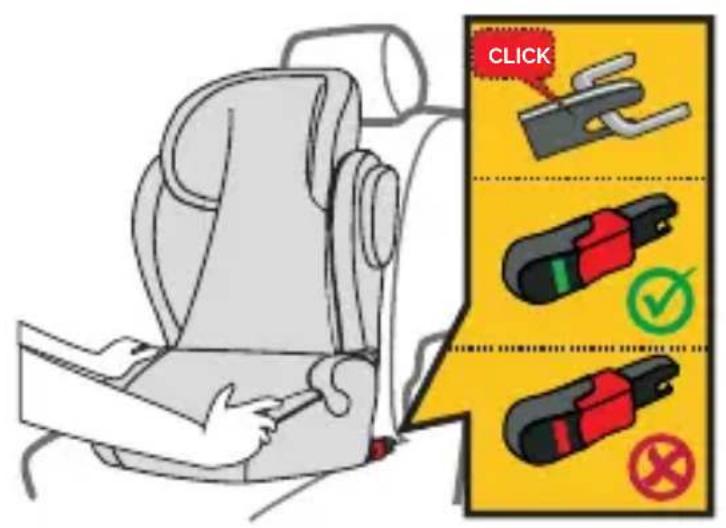

• The indicators on both sides change to green once the connections are in place.

INSTALLATION OF THE CHILD CAR SEAT

Group 2/3 (forward-facing)

(For children weighing 15-36 kg)

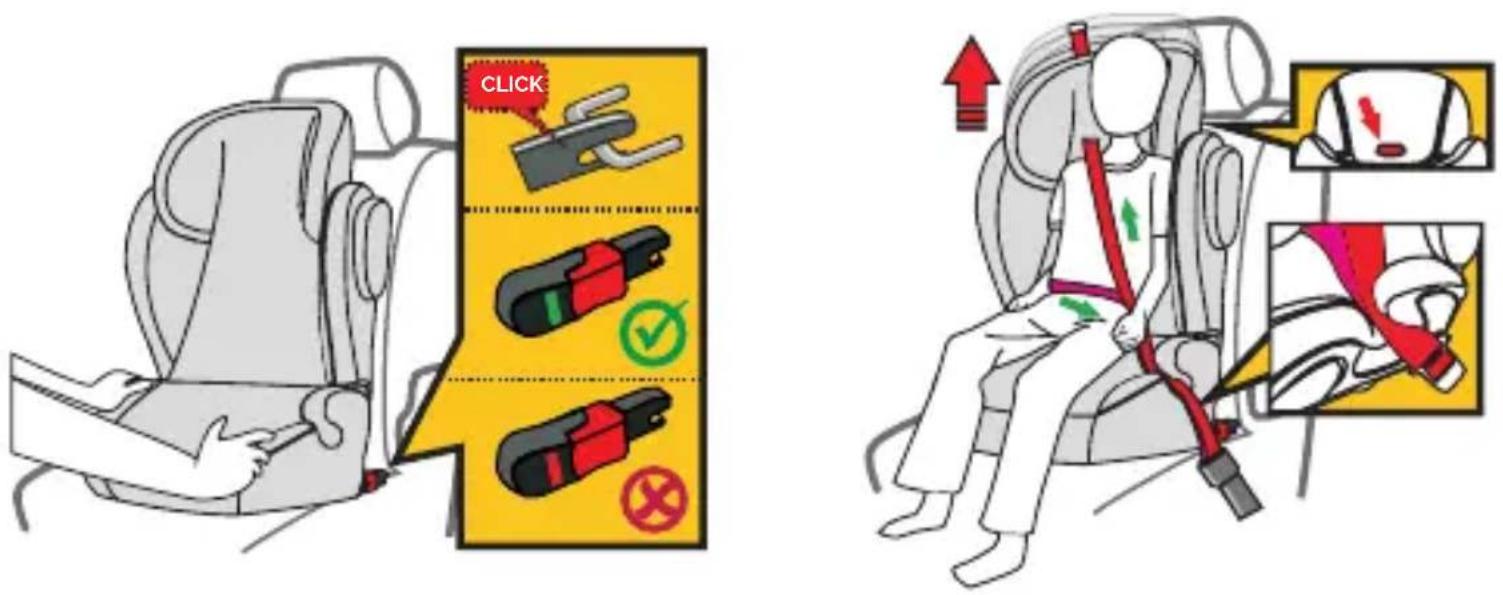

1. Fold the Isofix connectors out 180^ .
2. Guide the Isofix connectors to the Isofix connector pieces on the seat of the vehicle and ensure that they lock in position. Please ensure that both Isofix indicators are showing green.
3. Now thread the diagonal belt through the car's 3-point belt guide on the head support of the child car seat.
4. Put your child in the child car seat.
5. Adjust the height of the head support so that the child's head is completely positioned in the head support and the diagonal belt exits the belt guide at the child's shoulder height.
6. Thread the diagonal belt and the lap belt underneath the armrest and close the belt buckle of the car's 3-point belt again until you hear a click.
7. Pull the diagonal strap to tighten it. Ensure that the straps are not twisted.

Installation without Isofix:

Alternatively, the child car seat can also be installed in group 2/3 with just the 3-point belt. Connecting the seat with the Isofix connectors is not absolutely essential but is recommended.

CLEANING

This product has been developed taking into account safety, comfort and functionality. Please take the time to read these instructions carefully before using the product and store them in a safe place for future reference.

To guarantee long-term usage of your child car seat, do not use any solvents, abrasives or aggressive cleaning agents. Check the stability of the fabric and of the seams after each wash. When washing the fabric, the instructions on the label (see below) are to be carefully complied with.

Wash at 30^ delicate wash

Do NOT iron

Do NOT bleach

Do NOT dry clean

Tumble dry at a low temperature

MAINTENANCE

Regularly check the condition of the product for any damage. In the event of damage, do not use the product and keep it out of the reach of children.

In case of any issues, please contact Osann Customer Service on +49(0)7731 / 970077.

Optimal seating climate for little ones!

Our Klimax child car seat series stands out thanks to its genuine innovation: special technology provides pleasant cooling on hot summer days and a cosy, warm seat in winter.

What's more: As the first of its kind, our Klimax series opens up an entirely new chapter in seating comfort for children.

TABLE OF CONTENTS

01.Explanation of symbols 14
02. Safety information 14
03. Intended use 16
04. Scope of delivery 16
05.Using Klimax technology 17
06. Warranty
07. Troubleshooting 19
08. Disposal/environment 21
09. Technical data

01. EXPLANATION OF SYMBOLS

WARNING!

Safety information indicating a hazardous situation which, if not avoided, may result in death or serious injury.

CAUTION!

Safety information indicating a hazardous situation which, if not avoided, may result in minor or moderate injury.

ATTENTION!

Information referring to a situation which, if not avoided, may result in property damage.

NOTE

Supplementary information regarding the product's operation.

02. SAFETY INFORMATION

i NOTE

• The child car seat with Klimax technology is intended only for use in the car. The Klimax technology can be used in all cars equipped with a 12 V on-board power socket.
• Before using the child car seat with Klimax technology, please read the operating manual thoroughly and follow all the instructions regarding its safe and proper use.
• Should there be any visible signs of damage to the unit, it must no longer be used
• These operating instructions explain how to operate the Klimax technology. To install the child car seat properly in your car and for further relevant safety information, please read the separate operating manuals of the respective child car seat.
• When installing and operating the child car seat, ensure that airbags in the vehicle are in no way impaired or even covered (e.g. by the cable).
• The child car seat can, of course, be used without deploying the Klimax technology.
• The Klimax technology may be operated by adults only.

WARNING!

• Failure to observe this safety information can result in death or serious injury.
• Danger to life due to electric shock.
• Do not allow the unit and/or connection cable to come into contact with moisture or liquids, to avoid the risk of electric shock. Do not handle the unit with wet hands.
• Do not make any modifications to the child car seat. Do not remove any parts from the child car seat beyond those steps listed in these instructions under the item "Cleaning", as well as the usage instructions for the respective seat.
• Allow repairs to the child car seat, the connection plug or the connection cable to be carried out only by a specialist workshop or by the manufacturer. Improper (or otherwise attempted) repairs can lead to considerable damage and pose a genuine hazard.
• If any part of the connection plug gets stuck in the 12 V on-board voltage socket as a foreign object, it must be removed with insulated pliers or a similar tool. Always disconnect the vehicle battery before reaching into the 12 V on-board power socket. There is a risk of electric shock and short-circuiting of the car's electrics.
• Have repairs to the 12 V on-board power socket or the car's electrical system carried out by a specialist workshop only.
• Do not insert any pointed or metallic objects into the unit's openings.
• Do not use the Klimax technology if there are any visible signs of damage to the child car seat itself, the connection plug or the connection cable, if the child car seat has been dropped or if the child car seat has been involved in a traffic accident.
• Never leave your child unattended in the child car seat with Klimax technology. Never leave your child alone in the car when the outside temperature is high in summer or low in winter, respectively. Klimax technology does not guarantee protection against death attributable to extreme heat or cold.
  Children must be supervised at all times to ensure that they do not play with the child car seat.

CAUTION!

• Before commissioning, please ensure that the connection cable and plug are dry and clean.
• When laying the connection cable, please ensure that it is not crushed or chafed in any way.
• Always ensure to disconnect the child car seat from the power supply before any cleaning and maintenance work.
• Never use the child car seat with Klimax technology in conjunction with a cover other than the one supplied in the original packaging, to ensure air permeability.
• Do not cover the child car seat with Klimax technology – including the 12 V plug and connection cable – with additional blankets, covers or cushions. Keep the child car seat away from other sources of warmth, such as heating, seat heating or direct sunlight.

ATTENTION!

• Plug the connection plug only into a 12 V DC on-board power socket in your car that corresponds to the "Technical data" contained in these instructions.
• Never pull the connection plug out of the on-board power socket by the connection cable.
• Before using the child car seat with Klimax technology, please ensure that the ventilation openings on the child car seat are not covered up.
• Protect the child car seat and its connection cable - including the connection plug - from moisture.

03. INTENDED USE

Essentially, the child car seat with Klimax technology is intended for transporting a child in a car. Use in other means of transport (truck, bus, plane, boat) is not permitted.

These operating instructions explain how to operate the Klimax technology. To ensure the proper installation of the child car seat in your car and for further safety instructions relating to the child car seat, please read the separate operating instructions for the respective child car seat!

The Klimax technology can be used in all cars equipped with a 12 V on-board power socket.

04. SCOPE OF DELIVERY

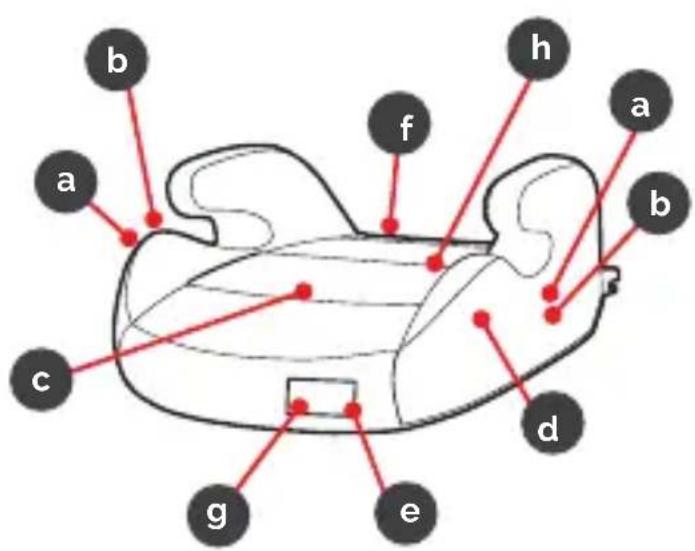

Illustrations of the seat booster and child car seat are for example purposes only.

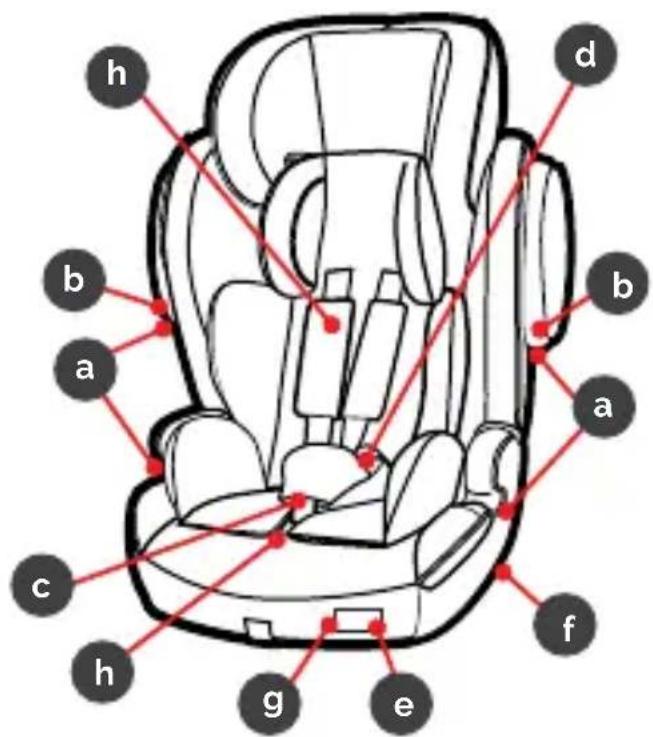

a Fan (seat booster 2 x)
b Fan casing
c Pressure sensor
d Temperature sensor (inside the body)
e Control circuit board (behind the display)
f 12 V plug with switch and connection cable
g Display
h Heating pad (1 x seat area)
i Operating instructions (without illustration)

a Fan (large child car seat 4 x)
Fan casing
Pressure sensor
d Temperature sensor (inside the body)
e Control circuit board (behind the display)
f 12 V plug with switch and connection cable
g Display
Heating pad (1 x seat area, 1 x back rest)
i Operating instructions (without illustration)

05. USING KLIMAX TECHNOLOGY

POWER SUPPLY

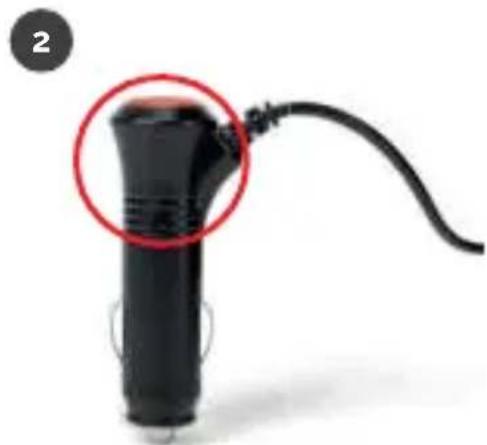

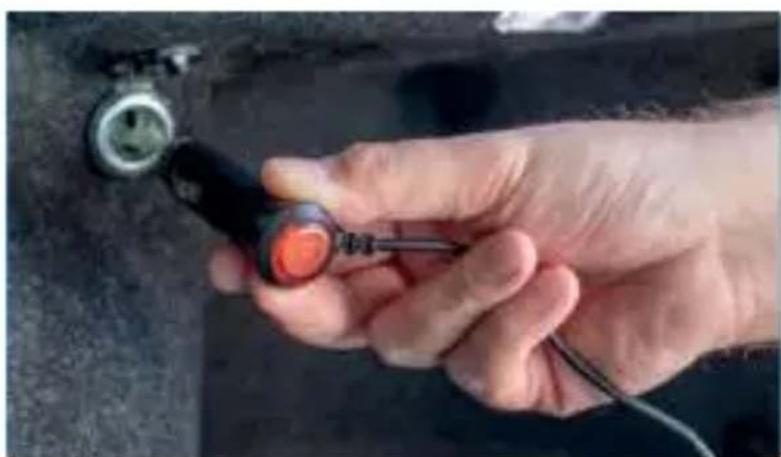

The power supply for the child car seat is provided by the 12 V on-board power socket in your car. This may be located in various places in your car (e.g. boot, centre armrest, cockpit).

Some 12 V on-board voltage sockets are supplied with power only when the car's ignition is switched on. Please be sure to check this first. To check, insert the plug into the 12 V on-board power socket in your car (1). You can switch the system on or off using the red button on the plug (2). (The red button illuminates = on, the red button does not illuminate = off).

Switch off the power supply manually when the child car seat (or Klimax technology respectively) is not in use, to prevent the display from lighting up continuously. The power supply for the Klimax technology switches off automatically after 30 minutes if no child is sitting in the child car seat or if no pressure is exerted on the pressure sensor.

KLIMAX TECHNOLOGY

As soon as the plug is inserted into the 12 V on-board power socket in your car and switched on using the red button, the system is ready for use.

The Klimax technology activates only when pressure is applied to the sensor in the seat.

ATTENTION: Use the child car seat only for transporting your child. Never use it to transport items that could activate the Klimax technology when the system is switched on.

The Klimax technology is fully automated. You do not need to adjust any settings other than switch on the system (as described above).

SUMMER COOLING

The integrated sensor measures the temperature inside the child car seat. If this temperature is above 30^ , the system is activated and removes the warm air, creating a cooling air circulation effect.

WINTER WARMING

When the integrated sensor measures a temperature of less than 5^ , however, the seat area is automatically heated until the inside of the seat has reached a temperature of 20^ .

DISPLAY

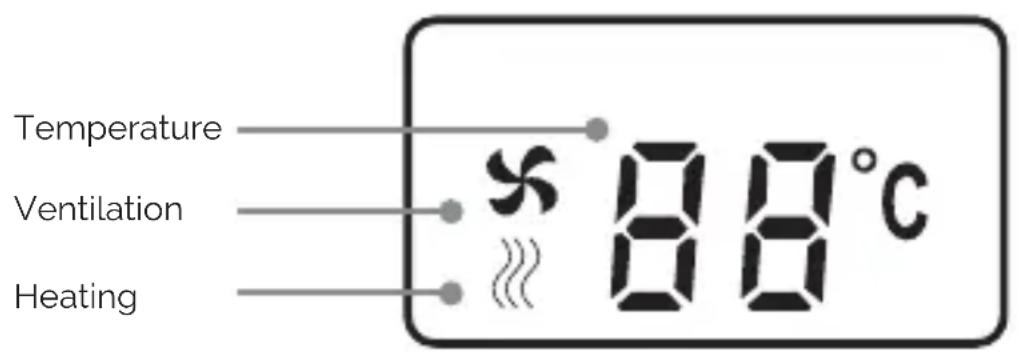

The display shows you the measured temperature inside the child car seat in degrees Celsius (°C). The function currently active is also displayed: Ventilation or heating.

CLEANING

You can clean the child car seat cover according to the washing instructions on the washing label, which is located on the cover itself.

Use a damp cloth to clean the plastic body. Thoroughly dry the cleaned areas to ensure that no moisture can damage the electronics. Do not use chemicals or abrasive cleaning agents.

06. WARRANTY

The statutory warranty period shall apply. If the product is defective, please contact your specialist retailer or the manufacturer.

You must submit the following documents when applying for any repair or warranty work to be undertaken:

• A copy of the invoice with date of purchase
• The reason for the complaint or a description of the defect

Please do not send the product for repair or warranty processing without prior consultation with your specialist retailer or the manufacturer.

07. TROUBLESHOOTING

Fault Possible cause Suggested solution

	12 V plug is not plugged in or not switched on	Insert the 12 V plug into the 12 V on-board power socket and switch it on.
The fans no longer work	12 V plug or connection cable is defective or otherwise damaged	Have the 12 V plug or connection cable replaced by an authorised service centre/manufacturer.
	Starting temperature not reached	The temperature measured by the sensor must be above 30°C for the fans to be activated. The pressure sensor must also be activated.
	A foreign object is blocking the fan	Please remove the foreign object. To do this, please first disconnect the 12 V plug from the 12 V on-board power socket.
	The fan, pressure sensor or temperature sensor is defective	Please have the fan, pressure sensor or temperature sensor replaced by an authorised service centre/the manufacturer.

Fault Possible cause Suggested solution

	12 V plug is not plugged in or not switched on	Insert the 12 V plug into the 12 V on-board power socket and switch it on.
	12 V plug or connection cable is defective or otherwise damaged	Have the 12 V plug or connection cable replaced by an authorised service centre/manufacturer.
The heating pad is not working	Starting temperature not reached	The temperature measured by the sensor must be below 5°C for the heating pad to be activated. The pressure sensor must also be activated.
	The heating pad, pressure sensor or temperature sensor is defective	Have the heating pad, pressure sensor or temperature sensor replaced by an authorised service centre/the manufacturer.
The display is not working	There is no power coming from the 12 V DC on-board power socket in your vehicle	Switch on the ignition and check that the 12 V plug is correctly inserted.
	The display or the pressure sensor is defective	Have the display, the control circuit board or the pressure sensor replaced by an authorised service centre/the manufacturer.
	12 V plug is not plugged in or not switched on	Insert the 12 V plug into the 12 V on-board power socket and switch it on.
	12 V plug or connection cable is defective or otherwise damaged	Have the 12 V plug or connection cable replaced by an authorised service centre/manufacturer.

08. DISPOSAL/ENVIRONMENT

Please recycle the child car seat and the packaging in an environmentally friendly manner.

ctrical appliances do not belong in household waste.

If you are no longer using the product, please dispose of it in an environmentally friendly manner and in accordance with local legislation. Information on waste collection points that accept discarded appliances free of charge can be obtained from your local or city council.

09. TECHNICAL DATA

Operating voltage/electricity consumption	Large child car seats with 4 fans: DC 12 V 2.2 A Seat booster with 2 fans: DC 12 V 1.1 A
Plug	12 V plug for 12 V on-board voltage sockets incl. 4.50 m connection cable
Fans	Brushless, DC 12 V 0.05 A, housing dimensions: 50 x 50 x 10.5 mm
Heating pad	Large child car seat: 2 units (1 x seat area, 1 x back rest); Seat booster: 1 unit (seat area); Maximum temperature: 35°C

C E RoHS

In the course of product improvements, we reserve the right to make technical and visual changes to the product.
