USER MANUAL Turai360 SL Osann

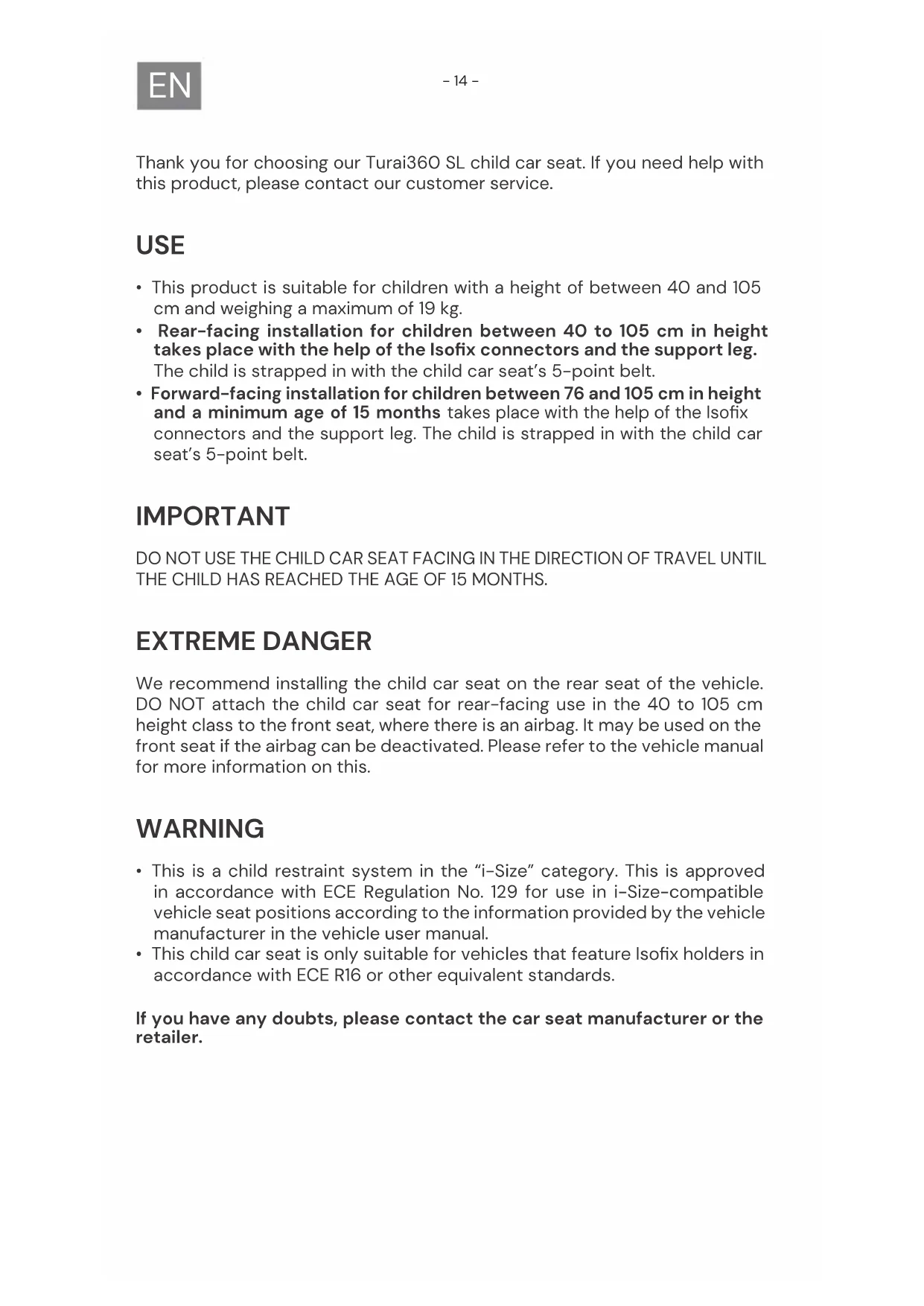

Thank you for choosing our Turai360 SL child car seat. If you need help with this product, please contact our customer service. USE

• This product is suitable for children with a height of between 40 and 105 cm and weighing a maximum of 19 kg.

• Rear-facing installation for children between 40 to 105 cm in height takes place with the help of the Isox connectors and the support leg. The child is strapped in with the child car seat’s 5-point belt.

• Forward-facing installation for children between 76 and 105 cm in height and a minimum age of 15 months takes place with the help of the Isox connectors and the support leg. The child is strapped in with the child car seat’s 5-point belt. IMPORTANT DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS. EXTREME DANGER We recommend installing the child car seat on the rear seat of the vehicle. DO NOT attach the child car seat for rear-facing use in the 40 to 105 cm height class to the front seat, where there is an airbag. It may be used on the front seat if the airbag can be deactivated. Please refer to the vehicle manual for more information on this. WARNING

• This is a child restraint system in the “i-Size” category. This is approved in accordance with ECE Regulation No. 129 for use in i-Size-compatible vehicle seat positions according to the information provided by the vehicle manufacturer in the vehicle user manual.

• This child car seat is only suitable for vehicles that feature Isox holders in accordance with ECE R16 or other equivalent standards. If you have any doubts, please contact the car seat manufacturer or the retailer.- 15 -

Size class Installation direction Installation Type Child safety device 40-105

Rear- facing Isox connectors & support leg i-Size Universal Isox 5-point seat- belt for the child seat 76-105

Forward- facing Isox connectors & support leg i-Size Universal Isox 5-point seat- belt for the child seat The following table provides information about the fastening devices and methods:

1. This only applies if the airbag

can be deactivated, Isox anchor points are available and the seat is recognised as i-Size-compatible in the vehicle manual.

2. This only applies if Isox connec-

tors are available and the seat is recognised as i-Size-compatible in the vehicle manual.- 16 -

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the manual. Non-compliance with the instructions in this manual may result in serious injuries to your child.

• The child seat can only be used with its own 5-point belt system for children who weigh under 19 kg and are less than 105 cm in height.

• The child seat CANNOT be used with its own 5-point belt system for children who weigh over 19 kg and are taller than 105 cm.

• The child seat can be installed rear-facing and forward-facing with the Isox connectors and the stand. Important: Do not install the child car seat in a forward-facing position until the child is at least 15 months old.

• For Isox installation: Be sure to read the car manufacturer’s manual.

• Do not use load-bearing contact points other than those described in the instructions and marked in the child restraint system.

• Do not use this child car seat at home. It has been designed exclusively for use in a car.

• Do not leave your child unsupervised in the seat at any time.

• Do not place the rear-facing child car seat on the front seat with an activated airbag. This could lead to serious injuries or death.

• The child seat must be replaced if it is exposed to heavy impact in an accident.

• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.

• Always make sure that all belts that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to t the child’s body. Ensure that the belts are not twisted.

• Items of luggage or other objects that could cause injury in the event of a collision must be properly secured.

• The rigid items and plastic parts of a child restraint system must be posi- tioned and installed so that they cannot get caught by a movable seat or a vehicle door.

• It is important that belts that sit low hold the child’s pelvis rmly in place. To avoid the risk of falling, your child should always be strapped in.

• It is dangerous to make changes or additions to the product without ap- proval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system is also associated with risks to the safety of your child.

• This child seat is designed for children weighing up to 19 kg. Never overload the child seat by transporting more than one child or additional loads in it.

• The child restraint system must not be used without the seat cover.

• The seat cover must not be replaced by a cover other than that recom- mended by the manufacturer, as this seat cover is an important component of the restraint performance.- 17 -

SEAT PARTS Front view Headrest Comfort insole Shoulder belt Central Belt adjustment Position lever Rotation lever Isox connector extension Seat bucket Head cushion Shoulder pad Isox station Isox insertion aid Side impact protector Support leg Seatbelt Seatbelt buckle pads Headrest setting Isox connector- 18 -

Setting the child car seat tilt angle

• Operate the position lever on the lower front of the seat bucket with one hand.

• Hold the seat bucket with your other hand and adjust the angle. The following seat positions are pos- sible: (Please see the label on the child car seat) Rear-facing, Body height 40-105 cm, 1 position (R) Forward-facing, Height 76-105 cm, at least 15 months old, 3 positions (1-3) Turning the child car seat

• To rotate the child car seat when in- stalled, operate the rotation lever at the front of the base station and rotate the child car seat to the rear-facing or forward-facing position.

• The forward-facing position is only suitable for children with a minimum age of 15 months and a minimum height of 76 cm. The rear-facing po- sition is designed for children from 40 to 105 cm tall and a maximum weight of 19 kg.

• The side position is only intended to facilitate the child’s entry. This position must not be used while driving. 123R- 19 -

• To loosen the belt, press the belt adjustment button in the seat area with one hand. Hold the belt buckle with the other hand and carefully loosen the attached straps.

• Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted. Opening/closing the belt

• To unlock the belt, press the but- ton on the belt buckle, pull out the buckle tongues and separate them.

• To lock the belt, rst, connect both tongues of the buckle and then in- sert them together into the belt buckle.- 20 -

Adjusting the head support

• Release the belt and pull the lever to adjust the headrest on the back of the child car seat. Move the headrest until it engages at the correct height.

• Make sure the shoulder straps are posi- tioned just above your child’s shoulders when they come out of the child car seat.

• Release the lever and ensure that the head support is engaged. RotationControl

• The RotationControl knob is a control aid and is intended to prevent premature forward-facing use of the child car seat.

• Please indicate on the RotationControl button (bottom of the child car seat) whether your child’s age is below or above 15 months.

• If your child is under 15 months old, you can only rotate the car seat to the rear-facing and side-facing positions. The forward-facing position is locked and cannot be used for children under 15 months.

• If your child is over 15 months old and over 76 cm tall, the car seat can also be used in the forward-facing position. The RotationControl knob must be turned for this to be possible.

• We recommend using the child car seat rear-facing for as long as possible, but at least until the child is 15 months old and 76 cm tall. < 15 M 40–105 cm > 15 M 76–105 cm Example illustration Underside of child seat < 15 M40–105 cm> 15 M76–105 cm- 21 -

• Push the insertion aids through the slot in the cushion between the backrest and seat into the Isox anchor points.

• When doing this, the at side of the in- sertion aids must be facing downwards. This step is not necessary if the vehicle already has xed insertion aids.

• Press the two lateral Isox connector buttons in order to extend the length of the Isox connectors.

• Push the Isox connectors into the in- sertion aids until you hear them click into place.

• Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isox indicators are switched to green. Support leg

• Fold out the support leg underneath the child car seat. For children under 105cm in height, the child car seat may only be used with the Isox support leg folded out together with the Isox connectors. Using the child car seat only with Isox connectors is not permitted.

• Press the button to adjust the height of the stand and extend the telescopic stand. Make sure that this is fully in con- tact with the footwell of your vehicle.

• Ensure that the indicator on the support leg is showing green.- 22 -

• The head cushion and comfort insert are designed for babies of a height of 40-60 cm.

• Please remove both inserts as soon as your child has exceeded the specied body size.- 23 -

1 . Set the age of your child on the RotationControl knob. 2 . Adjust the child car seat to the maximum reclining position and turn it so that it points to the circular seating position (R) in rearward facing orientation. 3 . Press the two lateral Isox connector buttons in order to extend the length of the Isox connectors. 4 . Fold out the support leg as described above. 5 . Guide the Isox connectors onto the Isox anchor points on the seat of the vehicle and ensure that they lock into position. 6 . Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Ensure that both Isox indicators are showing green. 7 . Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle. 8 . Ensure that the indicator on the support leg is switched to green. 9 . When placing your child in the child car seat, turn the car seat towards the car door for convenience. 10 . Unfasten the belt buckle on the child car seat and place the belts on the outside of the seat. 11 . Put your child in the child car seat. 12 . Adjust the height of the headrest as described above. 13 . Fasten the belt buckle again until you hear a click. 14 . Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted. 15 . Turn the seat into the rear-facing position. Check that the child car seat is locked in this position.- 24 -

forward facing IMPORTANT: DO NOT USE THE CHILD CAR SEAT IN THE DIRECTION OF TRAVEL UNTIL THE CHILD’S AGE IS GREATER THAN 15 MONTHS. 1 . Set the age of your child on the RotationControl knob. 2 . Press the two lateral Isox connector buttons in order to extend the length of the Isox connectors. 3 . Fold out the support leg as described above. 4 . Guide the Isox connectors onto the Isox anchor points on the seat of the vehicle and ensure that they lock into position. 5 . Push the child car seat in until it rests securely against the backrest of the seat of the vehicle. Ensure that both Isox indicators are switched to green. 6 . Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle. 7 . Ensure that the indicator on the support leg is showing green. 8 . When facing in the direction of travel, the child car seat offers three adjustable seat positions. 9 . When placing your child in the child car seat, turn the car seat towards the car door for convenience. 10 . Unfasten the belt buckle on the child car seat and place the belts on the outside of the seat. 11 . Put your child in the child car seat. 12 . Adjust the height of the headrest as described above. 13 . Fasten the belt buckle again until you hear a click. 14 . Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted. 15 . Turn the seat into the forward-facing position. Check that the child car seat is locked in this position.

CLEANING To guarantee the long-term usage of your child car seat, do not use any sol- vents, abrasives or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and of the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below). MAINTENANCE Regularly check the condition of the product for any damage. In the event of damage, do not use the product and keep it out of the reach of children. In case of any issues, please contact Osann customer service on [phone]. DO NOT bleach Tumble dry at low temperature Wash at 30 °C, delicate cycle DO NOT iron DO NOT dry clean
