USER MANUAL Hero360 SL Osann

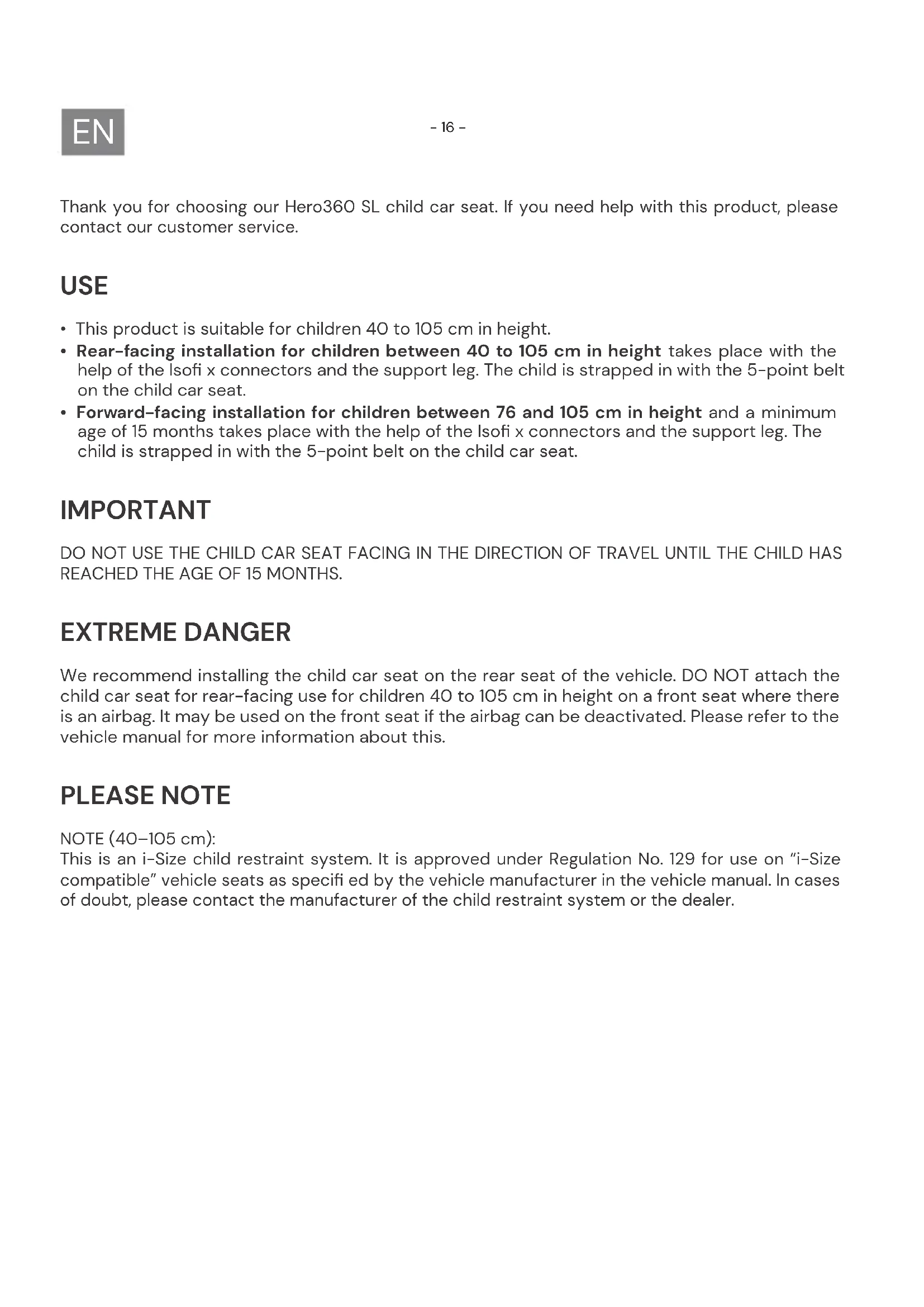

Thank you for choosing our Hero360 SL child car seat. If you need help with this product, please contact our customer service. USE

• This product is suitable for children 40 to 105 cm in height.

• Rear-facing installation for children between 40 to 105 cm in height takes place with the help of the Isofi x connectors and the support leg. The child is strapped in with the 5-point belt on the child car seat.

• Forward-facing installation for children between 76 and 105 cm in height and a minimum age of 15 months takes place with the help of the Isofi x connectors and the support leg. The child is strapped in with the 5-point belt on the child car seat. IMPORTANT DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS. EXTREME DANGER We recommend installing the child car seat on the rear seat of the vehicle. DO NOT attach the child car seat for rear-facing use for children 40 to 105 cm in height on a front seat where there is an airbag. It may be used on the front seat if the airbag can be deactivated. Please refer to the vehicle manual for more information about this. PLEASE NOTE NOTE (40–105 cm): This is an i-Size child restraint system. It is approved under Regulation No. 129 for use on “i-Size compatible” vehicle seats as specifi ed by the vehicle manufacturer in the vehicle manual. In cases of doubt, please contact the manufacturer of the child restraint system or the dealer.- 17 -

Height range Installation direction Installation Type Child safety device 40–105 cm Rear- facing Isofi x connectors & support leg i-Size 5-point seatbelt on the child seat 76–105 cm Forward- facing Isofi x connectors & support leg i-Size 5-point seatbelt on the child seat The following table provides information about the fastening devices and methods:

1. This only applies if the airbag can be deactivated, Isofi x

anchor points are available, and the seat is recognised as i-Size-compatible in the vehicle manual.

2. This only applies if Isofi x connectors are available and

the seat is recognised as i-Size-compatible in the ve- hicle manual. If you have any doubts, please contact the car seat manufacturer or the dealer.- 18 -

• Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the instructions. Non-compliance with the instructions in this manual may result in serious injuries to your child.

• The child seat can only be used with its own 5-point belt system for children who weigh under 18 kg and are less than 105 cm in height.

• The child seat CANNOT be used with its own 5-point belt system for children who weigh over 18 kg or are taller than 105 cm.

• The child seat can be installed rear-facing and forward-facing with the Isofi x connectors and the stand. When used with a support leg, the maximum height is 105 cm, and the maximum weight is 18 kg. Important: Do not install the child car seat in a forward-facing position until the child is at least 15 months old.

• For Isofi x installation: Be sure to read the car manufacturer’s manual.

• Do not use load-bearing contact points other than those described in the instructions and indicated in the child restraint system.

• Do not use this child car seat at home. It has been designed exclusively for use in a car.

• Do not leave your child unsupervised in the seat at any time.

• Do not place the rear-facing child car seat on the front seat with an activated airbag. This could lead to serious injuries or death.

• The child seat must be replaced if it is exposed to heavy impact in an accident.

• For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.

• Always make sure that all straps that attach the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to fi t the child’s body. Ensure that the belts are not twisted.

• Items of luggage and other objects that could cause injury in the event of a collision must be properly secured.

• The rigid elements and plastic parts of a child restraint system must be positioned and in- stalled so that they cannot become jammed by a movable seat or a vehicle door.

• It is important that belts that sit low hold the child’s pelvis fi rmly in place. Your child should always be fastened in to stop them from falling out.

• It is dangerous to make changes or additions to the product without approval from the re- sponsible authority. Non-compliance with the installation instructions provided by the manu- facturer of the child restraint system may also present risks to the safety of your child.

• This child seat is designed for children with a maximum height of 105 cm. Never overload the child seat by transporting more than one child or additional loads in it.

• The child restraint system must not be used without the seat cover.

• The seat cover must not be replaced by a cover other than that recommended by the manu- facturer, as this seat cover is an important component of the restraint system.- 19 -

Setting the child car seat tilt angle

• Operate the position lever on the lower front of the seat bucket with one hand.

• Hold the seat bucket with the other hand and adjust the angle. The following seat positions are possible: (Please see the label on the child car seat) Rear-facing, height 40–105 cm: 1 position (R) Forward-facing, height 76–105 cm, min. 15 months: 4 positions (1-4) Turning the child car seat

• To rotate the child car seat when it is installed, operate the rotation lever, which is also the le- ver for adjusting the seat position, and rotate the child car seat to the rear or forward-facing position.

• The forward-facing position is only suitable for children of a minimum age of 15 months and a minimum height of 76 cm. The rear-facing po- sition is designed for children from 40 to 105 cm in height with a maximum weight of 18 kg.

• The side position is only intended to facilitate the child’s entry. This position must not be used while driving. Position R- 21 -

• To loosen the belt, press the belt adjustment button in the seat area with one hand. Hold the belt buckle with the other hand and carefully loosen the attached straps.

• Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted. Opening/closing the belt

• To unlock the belt, press the button on the belt buckle, pull out the buckle tongues and sep- arate them.

• To lock the belt, fi rst, connect both tongues of the buckle and then insert them together into the belt buckle. Head cushion & comfort insert

• The head cushion and comfort insert are de- signed for babies with a body height of 40 - 75 cm.

• Please remove both inserts as soon as your child has exceeded the specifi ed body size.- 22 -

Adjusting the head support

• Release the belt and pull the lever to adjust the headrest on the back of the child car seat. Move the headrest until it engages at the cor- rect height.

• Make sure the shoulder straps are positioned just above your child’s shoulders when they come out of the child car seat.

• Release the lever and ensure that the head support is engaged. RotationControl

• The RotationControl knob is a control aid and is intended to prevent premature forward-facing use of the child car seat.

• Please indicate on the RotationControl button (bottom of the child car seat) whether your child’s age is below or above 15 months.

• If the child is under 15 months old, you can only rotate the child car seat into the rear-facing and side-facing position. The forward-facing position is locked and cannot be used for chil- dren under 15 months. To activate the knob for children under 15 months, you must fi rst turn the child car seat to the rear-facing position.

• If your child is over 15 months old and over 76 cm tall, the car seat can also be used in the forward-facing position. The RotationControl knob must be turned for this to be possible.

• We recommend using the child car seat rear-facing for as long as possible, but at least until the child is 15 months old and 76 cm tall. Example illustration Underside of child seat

Support leg for size class 40 - 105 cm

• Fold out the support leg underneath the child car seat. For children under 105cm in height, the child car seat may only be used with the Isofi x support leg folded out together with the Isofi x connectors.

• Pull up the support leg height adjustment knob and extend the telescopic support leg. Make sure that this is fully in contact with the foot- well of your vehicle.

• Ensure that the indicator on the support leg is showing green. Isofi x connectors

• Push the insertion aids through the slot in the cushion of the car seat between the backrest and seat into the Isofi x anchor points.

• When doing this, the fl at side of the insertion aids must be facing downwards. This step is not necessary if the vehicle already has fi xed insertion aids.

• Press the two side Isofi x connector buttons to extend the length of the Isofi x connectors.

• Push the Isofi x connectors into the insertion aids until you hear them click into place.

• Push the child car seat in until it rests securely against the backrest of the vehicle seat. En- sure that both Isofi x indicators have turned green.- 24 -

1 . Set the child car seat to the maximum reclining position and turn it until it is in rear-facing seat position R. 2 . Set the age of your child on the RotationControl knob. 3 . Press the two side Isofi x connector buttons to extend the length of the Isofi x connectors. 4 . Fold out the support leg as described above. 5 . Guide the Isofi x connectors onto the Isofi x anchor points on the vehicle seat and ensure that they lock into position. 6 . Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators are showing green. 7 . Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle. 8 . Ensure that the indicator on the support leg is switched to green. 9 . When placing your child in the child car seat, turn the car seat towards the car door for con- venience. 10 . Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat. 11 . Put your child in the child car seat. 12 . Adjust the height of the headrest as described above. 13 . Fasten the belt buckle again until you hear a click. 14 . Pull the front adjustment strap to tighten the belts. 15 . Ensure that the straps are not twisted. 16 . Turn the seat into the rear-facing position. Check that the child car seat is locked in this position.- 26 -

1 . Set the age of your child on the RotationControl knob. 2 . Press the two side Isofi x connector buttons to extend the length of the Isofi x connectors. 3 . Fold out the support leg as described above. 4 . Guide the Isofi x connectors onto the Isofi x anchor points on the vehicle seat and ensure that they lock into position. 5 . Push the child car seat in until it rests securely against the backrest of the vehicle seat. Ensure that both Isofi x indicators have turned green. 6 . Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle. 7 . Ensure that the indicator on the support leg is showing green. 8 . When facing in the direction of travel, the child car seat offers four adjustable seat positions. 9 . When placing your child in the child car seat, turn the car seat towards the car door for con- venience. 10 . Unfasten the belt buckle on the child car seat and place the belts over the outside of the seat. 11 . Put your child in the child car seat. 12 . Adjust the height of the headrest as described above. 13 . Fasten the belt buckle again until you hear a click. 14 . Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted. 15 . Turn the seat into the forward-facing position. Check that the child car seat is locked in this position.- 28 -

CLEANING To guarantee long-term use of your child car seat, do not use any solvents, abrasive cleaners or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below). MAINTENANCE Check the condition of the product for possible damage at regular intervals. In the event of damage, the child car seat must no longer be used and must be stored out of the reach of children. In case of any issues, please contact Osann customer service on [phone]. DO NOT bleach Tumble dry at low temperature Wash at 30°C, gentle wash cycle DO NOT iron DO NOT dry clean
