Product type	i-Size child car seat
Brand	Osann
Model	Niki Start M
Use	Children from 61 to 105 cm, max weight 18 kg
Installation positions	Rear-facing (61-105 cm) and forward-facing (76-105 cm, min 15 months)
Vehicle attachment	Isofix connectors + support leg
Child protection	Integrated 5-point harness
Seat rotation	Yes, with rotation lever and Rotation-Control button (anti-premature forward-facing use safety)
Headrest adjustment	Yes, lever at the back, multiple heights
Recline	1 rear-facing position, 4 forward-facing positions
Side protection	Foldable on both sides (use door side)
Approximate weight	8 kg
Dimensions (L x W x H)	44 x 45 x 60 cm (approx.)
Materials	Plastic, removable fabric
Cover care	Machine wash at 30°C (delicate cycle), tumble dry low, no bleach, no ironing, no dry cleaning
Frame cleaning	Soft cloth and soapy water, no solvents or abrasives
Certification	ECE Regulation No. 129 (i-Size)
Spare parts / accessories	Replacement cover recommended by manufacturer, Isofix insertion aids
Repairability	Contact Osann customer service if damaged (do not use if damaged)
Warranty	Not specified, contact Osann

Frequently Asked Questions - Niki Start M Osann

What is the maximum height and weight for using this car seat?

The Osann Niki Start M car seat is suitable for children from 61 to 105 cm and weighing up to 18 kg. It can be installed rear-facing (61-105 cm) or forward-facing (76-105 cm, minimum age 15 months).

How to install the seat in rear-facing position?

1. Set the Rotation-Control button to the child's age (under 15 months). 2. Put the seat in maximum recline position and rotate it to rear-facing (R). 3. Deploy the Isofix connectors and click them into the vehicle's Isofix anchors. 4. Press the seat against the seat back (green indicators). 5. Deploy the support leg and adjust it so it touches the floor (green indicator). 6. Place the child and fasten the 5-point harness.

When can I use the seat forward-facing?

Forward-facing use is allowed only if the child is at least 15 months old and measures at least 76 cm. The Rotation-Control button must be set to 'over 15 months' to unlock this position.

How to clean the seat cover?

The cover can be machine washed at 30°C (delicate cycle). Do not use bleach, do not iron, do not dry clean. Tumble drying is possible at low temperature. After washing, check the strength of the seams.

Can I use the seat in the front seat with airbag?

No, extreme danger in rear-facing position if the airbag is active. You can use it only if the passenger airbag is deactivated and the seat is i-Size compatible according to your vehicle manual.

How to adjust the headrest height?

Loosen the harness straps, then pull the adjustment lever at the back of the seat. Move the headrest to the desired height (the shoulder straps should come out just above the child's shoulders). Release the lever to lock.

What is the Rotation-Control button for?

The Rotation-Control button prevents premature forward-facing use. If the child is under 15 months, only rear-facing and side positions are available. If the child is over 15 months, you can activate it to allow forward-facing position.

What to do if the seat has been involved in an accident?

The car seat must be replaced after an accident, even if it appears intact. The stresses may compromise its safety. Contact Osann customer service for a new seat.

Is this seat compatible with all vehicles?

It is compatible with vehicles equipped with Isofix anchors compliant with ECE R16 or equivalent, and whose rear seats are listed as i-Size compatible in the vehicle manual. Consult your car manual.

How to unfasten and fasten the 5-point harness?

To unfasten: press the center button of the buckle and separate the tongues. To fasten: bring the two tongues together and insert them into the buckle until it clicks. Then pull the front adjustment strap to tighten the harness without twisting.

USER MANUAL Niki Start M Osann

Close-up of a smiling child wearing a black car seat with white directional arrows (no text or symbols on the subject)

Illustration of a baby car seat with a red arrow indicating the seat area (no text or symbols present)

Illustration of a car seat with motion arrows indicating movement, showing a red button on the seat (no text or symbols present)

Diagram of two mechanical clamping or bracketing mechanisms with red directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a down force applied to a seatbelt (no text or symbols present)

Illustration of a baby seat with red upward arrow indicating compression or lifting (no text or symbols)

RotationControl

Illustration of a baby car seat with a magnified inset showing the seat area (no text or symbols present)

15 M, 76–105 cm

Illustration of a baby car seat with seatbelt and seat, no text or symbols present

< 15 M, 61–105 cm

Standfuß

Diagram showing a lock mechanism with bidirectional arrow between two lock symbols (no text or labels)

Two gray cable buckle designs with red and green checkmarks indicating selection (no text or symbols)

Isofix-Konnektoren

Diagram showing two mechanical components with magnified views of their parts, no text or symbols present

Illustration of a baby car seat with red marking and a small red mark on the seat (no text or symbols)

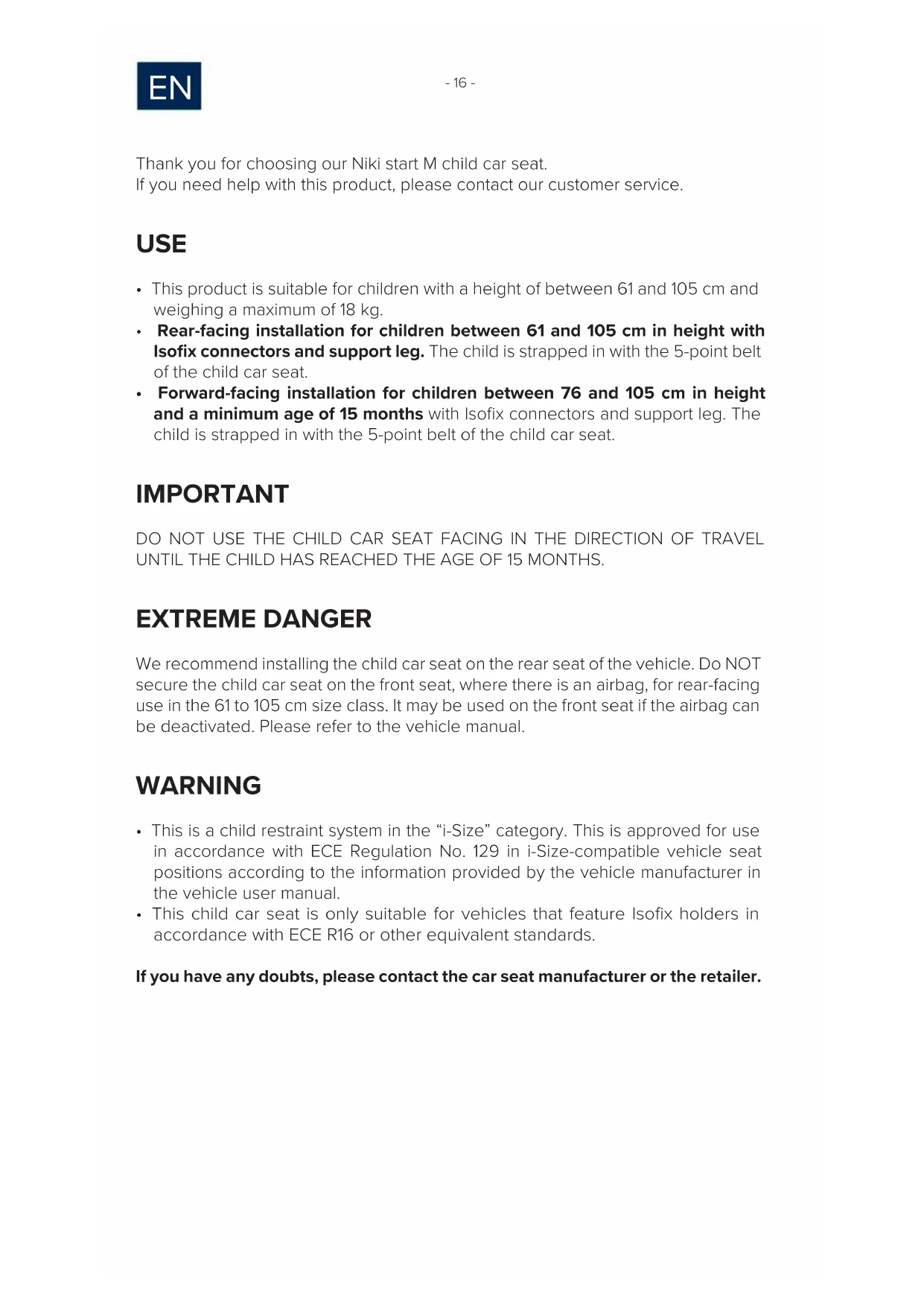

Thank you for choosing our Niki start M child car seat. If you need help with this product, please contact our customer service.

USE

• This product is suitable for children with a height of between 61 and 105cm and weighing a maximum of 18kg .
• Rear-facing installation for children between 61 and 105cm in height with Isofix connectors and support leg. The child is strapped in with the 5-point belt of the child car seat.
• Forward-facing installation for children between 76 and 105 cm in height and a minimum age of 15 months with Isofix connectors and support leg. The child is strapped in with the 5-point belt of the child car seat.

IMPORTANT

DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.

EXTREME DANGER

We recommend installing the child car seat on the rear seat of the vehicle. Do NOT secure the child car seat on the front seat, where there is an airbag, for rear-facing use in the 61 to 105 cm size class. It may be used on the front seat if the airbag can be deactivated. Please refer to the vehicle manual.

WARNING

• This is a child restraint system in the "i-Size" category. This is approved for use in accordance with ECE Regulation No. 129 in i-Size-compatible vehicle seat positions according to the information provided by the vehicle manufacturer in the vehicle user manual.
• This child car seat is only suitable for vehicles that feature Isofix holders in accordance with ECE R16 or other equivalent standards.

If you have any doubts, please contact the car seat manufacturer or the retailer.

1. Only if the airbag can be deactivated, Isofix connectors are available and the seat is recognised as i-Size-compatible in the vehicle manual.
2. Only if Isofix connectors are available and the seat is recognised as i-Size-compatible in the vehicle manual.

The following table provides information about the fastening devices and methods:

Size class	Installation direction	Installation Type		Child safety device
61–105 cm	Rearward facing	Isofix connectors & support leg	i-Size Universal Isofix	5-point car seatbelt
76–105 cm	Forward facing	Isofix connectors & support leg	i-Size Universal Isofix	5-point car seatbelt

WARNING

- Please read through these instructions carefully before use in order to guarantee the safety of your child. Retain the manual. Non-compliance with the instructions in this manual may result in serious injuries to your child.

- The child seat can only be used with its own 5-point belt system for children who weigh under 18 kg and are less than 105 cm in height.

- The child seat CANNOT be used with its own 5-point belt system for children who weigh over 18 kg and are taller than 105 cm.

- The child car seat can be installed in rear-facing and forward-facing positions with the Isofix connectors and the support leg. Important: Do not install forward-facing until the child is at least 15 months old.

- For Isofix installation: Be sure to read the car manufacturer's manual.

- Do not use load-bearing contact points other than those described in the instructions and marked in the child restraint system.

- Do not use this child car seat at home. It has been designed exclusively for use in a car.

- Do not leave your child unsupervised in the seat at any time.

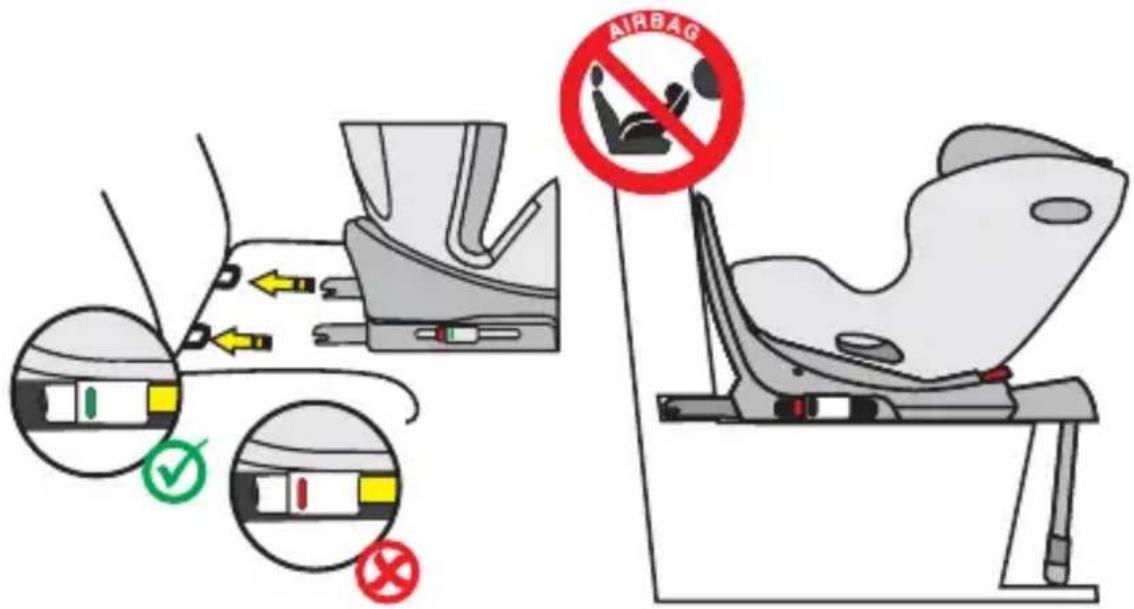

- Do not place the rear-facing child car seat on the front seat with an activated airbag. This could lead to serious injuries or death.

• The child seat must be replaced if it is exposed to heavy impact in an accident.

- For safety reasons, the child car seat must be secured in the vehicle even when there is no child sitting in the child car seat.

- Always make sure that all belts that hold the child car seat to the vehicle are secure and that all belts that restrain the child are adjusted to the child's body. Ensure that the belts are not twisted.

- Items of luggage or other objects that could cause injury in the event of a collision must be properly secured.

- The rigid items and plastic parts of a child restraint system must be positioned and installed so that they cannot get caught by a movable seat or a vehicle door.

- It is important that belts that sit low hold the child's pelvis firmly in place. To avoid the risk of falling, your child should always be strapped in.

- It is dangerous to make changes or additions to the product without approval from the responsible authority. Non-compliance with the installation instructions provided by the manufacturer of the child restraint system is also associated with risks to the safety of your child.

- This child seat has been designed for children weighing up to 18 kg. Never overload the child seat by transporting more than one child or additional loads in it.

• The child restraint system must not be used without the seat cover.

- The seat cover must not be replaced by a cover other than that recommended by the manufacturer, as this seat cover is an important component of the restraint performance.

SEAT PARTS

Front view

USE OF THE CHILD CAR SEAT

Setting the child car seat tilt angle

• Activate the angle adjustment lever on the lower front side of the seat bucket with one hand.
• Hold the seat bucket with your other hand and adjust the angle.

The following seat positions are possible: (Please see the label on the child car seat)

Rear-facing,

Height 61-105 cm:

1 position (R)

Forward-facing,

Height 76-105 cm,

min. 15 months:

4 positions (1 - 4)

Illustration of a baby car seat with a red arrow indicating the seat area (no text or symbols present)

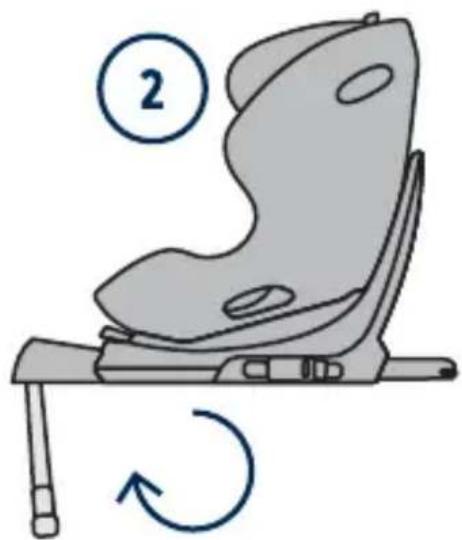

Turning the child car seat

• The child car seat has a rotation lever on both sides of the seat bucket. To rotate the child car seat when it is installed, press the rotation lever facing you and rotate the child car seat to the rear- or forward-facing position.
• The forward-facing position is only suitable for children at least 15 months old and 76 cm in height. The rear-facing position is for children from 61 - 105 cm in height and a maximum weight of 18 kg.

Illustration of a car seat with motion arrows and a magnified inset showing a red button (no text or symbols)

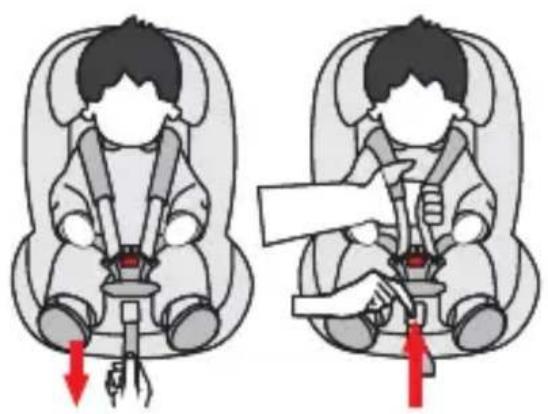

Adjusting the belt

• To loosen the belt, press the belt adjustment button in the seat area with one hand. Hold the belt buckle with the other hand and carefully loosen the attached straps.
• Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.

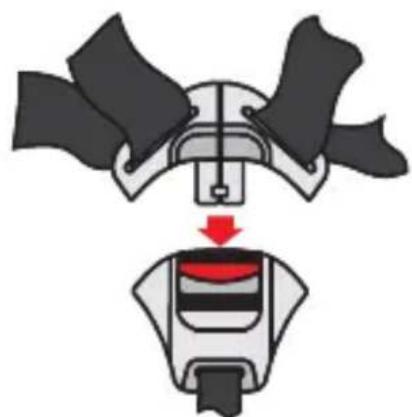

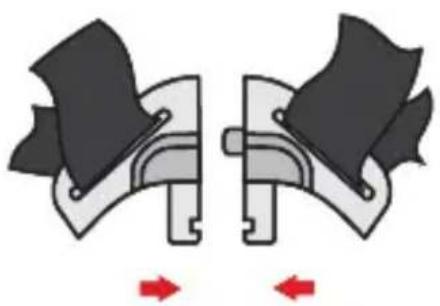

Opening/closing the belt

• To unlock the belt, press the button on the belt buckle, pull out the buckle tongues and separate them.
  • To lock the belt, first, connect both tongues of the buckle and then insert them together into the belt buckle.

Diagram of two mechanical clamping or bracketing mechanisms with red directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a down force applied to a seatbelt (no text or symbols present)

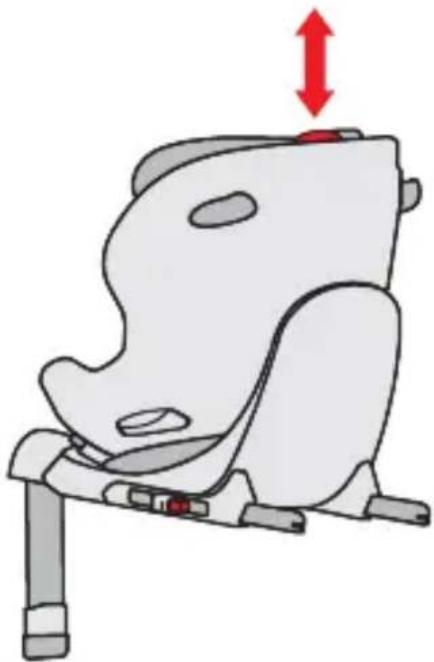

Adjusting the head support

• Release the belt and pull the lever to set the head support on the back of the child car seat. Move the headrest until it engages at the correct height.

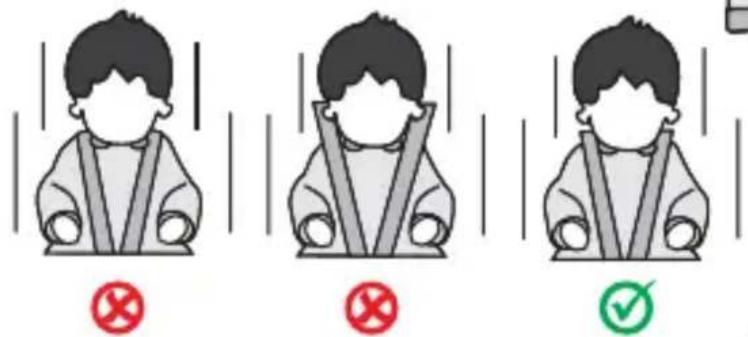

• Make sure the shoulder straps are positioned just above your child's shoulders when they come out of the child car seat.
• Release the lever and ensure that the head support is engaged.

Illustration of a baby seat with a red upward arrow indicating pressure or movement (no text or symbols)

Simple line drawing of a person wearing a vest and holding hands, with a red prohibition symbol below (no text or labels)

Illustration of a person wearing a seatbelt with a red prohibition symbol (no text or labels)

Simple line drawing of a person wearing a vest with a green checkmark icon (no text or symbols)

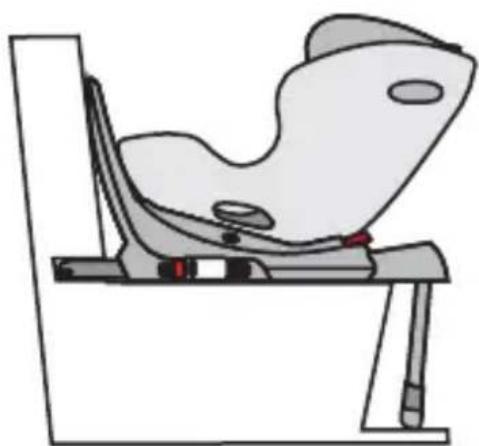

RotationControl

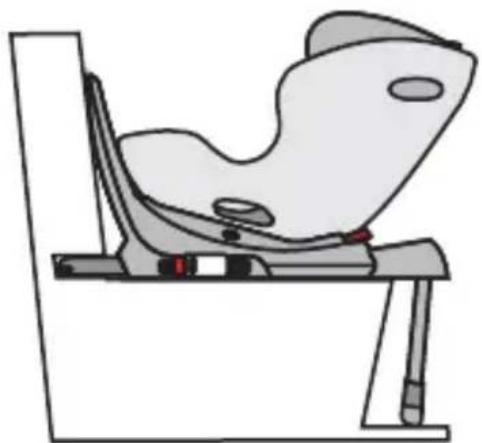

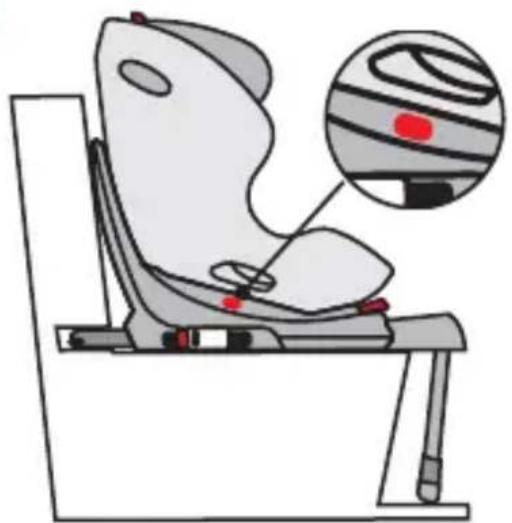

• The RotationControl knob is a control aid and is intended to prevent premature forward-facing use of the child car seat.
• Indicate on the RotationControl knob (on the side of the child car seat) whether your child is more than or less than 15 months old.
• If your child is under 15 months old, you can only rotate the car seat to the rear-facing and side-facing positions. The forward-facing position is locked and cannot be used for children under 15 months.
• If your child is over 15 months old and over 76 cm tall, the car seat can also be used in the forward-facing position. The Rotation-Control knob must be turned for this to be possible.
  • We recommend using the child car seat rear-facing for as long as possible, but at least until the child is 15 months old and 76 cm tall.

Illustration of a baby car seat with a magnified inset showing the seat area (no text or symbols present)

15 M, 76–105 cm

Illustration of a baby car seat with seatbelt and seat, no text or symbols present

< 15 M, 61–105 cm

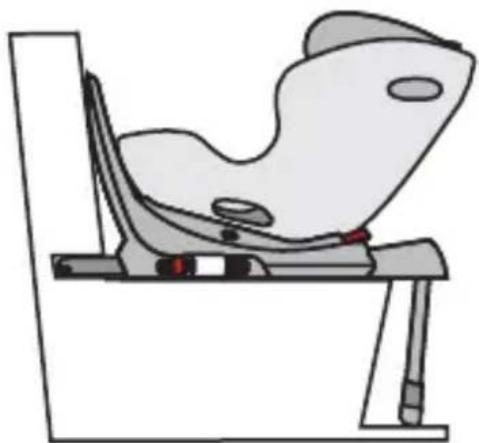

Support leg

• Fold out the support leg underneath the child car seat and slide it into the front slot. Ensure that the support leg is properly engaged in the front slot. For children under 105 cm in height, the child car seat may only be used with the Isofix support leg folded out together with the Isofix connectors. Using the child car seat only with Isofix connectors is not permitted.
• Pull up the support leg height adjustment knob and extend the telescopic support leg. Make sure that this is fully in contact with the footwell of your vehicle.
• Ensure that the indicator on the support leg is showing green.

Diagram showing a vertical stack of blocks with an open lock and bidirectional arrow between two stacked blocks (no text or symbols)

Two gray belt buckle symbols with red and green checkmarks below (no text or labels)

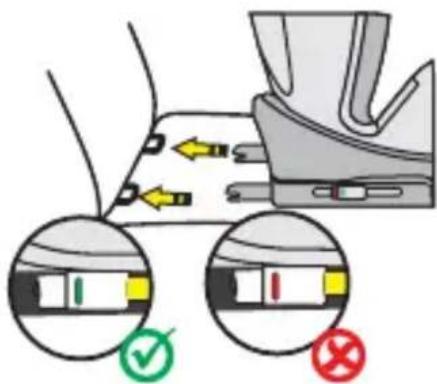

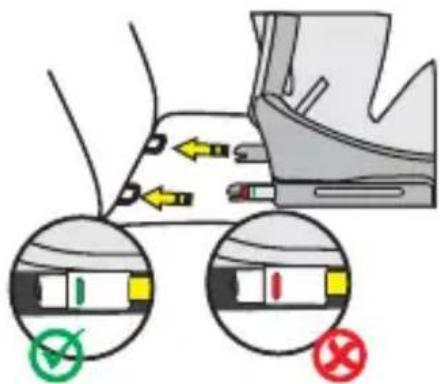

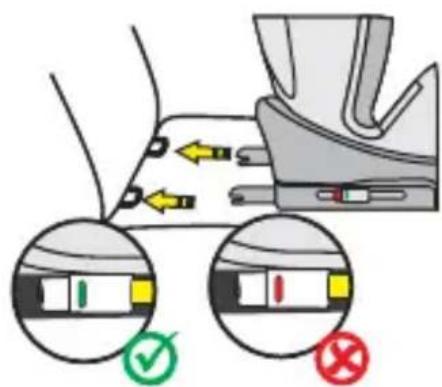

Isofix connectors

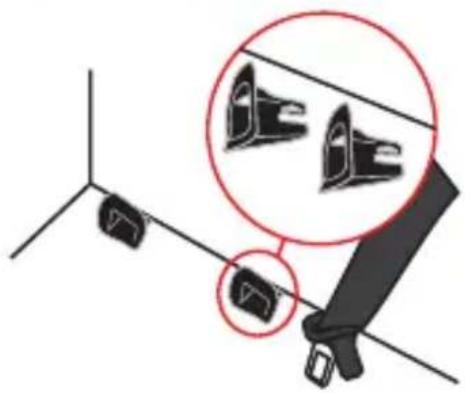

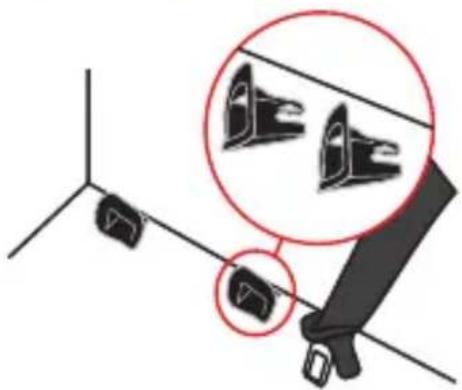

• Push the insertion aids through the slit in the cushion between the backrest and seat into the Isofix holders.
• When doing this, the flat side of the insertion aids must be facing downwards. This step is not necessary if the vehicle already has fixed insertion aids.
• Press the two lateral Isofix connector buttons in order to extend the length of the Isofix connectors.
• Push the Isofix connectors into the insertion aids until you hear them click into place.
• Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isofix indicators are switched to green.

Diagram showing two mechanical components with magnified views of their features (no text or symbols present)

Side impact protection

• There are fold-out side impact protectors on both sides of the child car seat.
- Fold out the protector on the car door side every time. The protector on the inside does not have to be folded out.
• To fold the protector in, pull it backwards and push it in gently.

Illustration of a baby car seat with red highlights and a downward arrow indicating pressure or stress (no text or symbols)

INSTALLATION OF THE CHILD CAR SEAT

1) Size class 61–105 cm, max. 18 kg, rear-facing

1. Set the age of your child on the RotationControl knob.

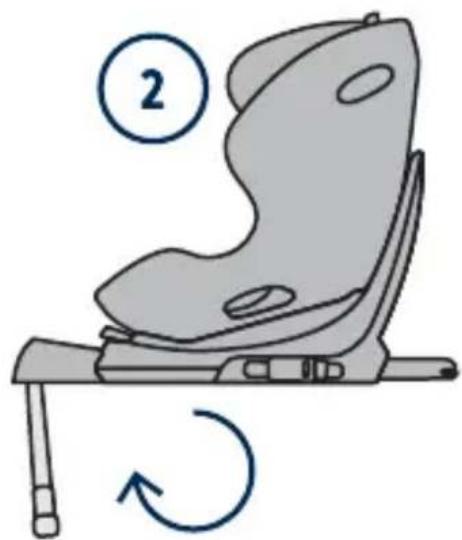

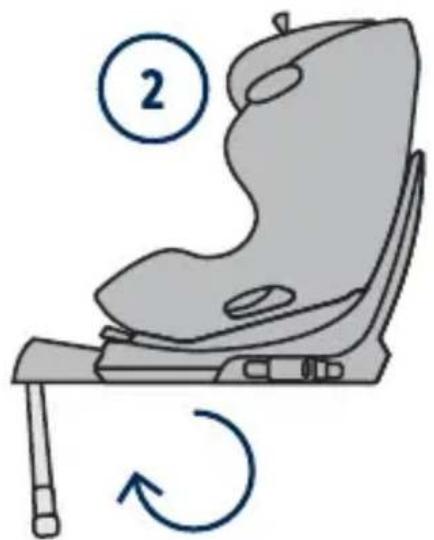

2. Set the child car seat to the maximum reclining position and turn it until it is in rear-facing seat position R.
3. Press the two lateral Isofix connector buttons to extend the Isofix connectors.
4. Fold out the support leg as described above.
5. Guide the Isofix connectors onto the Isofix holders on the seat of the vehicle and ensure that they lock in position.
6. Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isofix indicators are showing green.
7. Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle.
8. Ensure that the indicator on the support leg is switched to green.
9. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
10. Unfasten the belt buckle on the child car seat and place the belts on the outside of the seat.
11. Put your child in the child car seat.
12. Adjust the height of the head support as described above.
13. Fasten the belt buckle again until you hear a click.
14. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
15. Turn the seat into the rear-facing position. Check that the child car seat is locked in this position.

INSTALLATION OF THE CHILD CAR SEAT

2) Size class 76–105 cm, min. 15 months, max. 18 kg,

forward-facing

IMPORTANT: DO NOT USE THE CHILD CAR SEAT FACING IN THE DIRECTION OF TRAVEL UNTIL THE CHILD HAS REACHED THE AGE OF 15 MONTHS.

1. Set the age of your child on the RotationControl knob.
2. Press the two lateral Isofix connector buttons to extend the Isofix connectors.
3. Fold out the support leg as described above.
4. Guide the Isofix connectors onto the Isofix holders on the seat of the vehicle and ensure that they lock in position.
5. Push the child car seat in until it rests securely against the backrest of the car seat. Ensure that both Isofix indicators are switched to green.
6. Adjust the height of the support leg and ensure that this is fully in contact with the footwell of your vehicle.
7. Ensure that the indicator on the support leg is showing green.
8. When facing in the direction of travel, the child car seat offers four adjustable seat positions.
9. When placing your child in the child car seat, turn the car seat towards the car door for convenience.
10. Unfasten the belt buckle on the child car seat and place the belts on the outside of the seat.
11. Put your child in the child car seat.
12. Adjust the height of the head support as described above.
13. Fasten the belt buckle again until you hear a click.
14. Pull the front adjustment strap to tighten the belts. Ensure that the straps are not twisted.
15. Turn the seat into the forward-facing position. Check that the child car seat is locked in this position.

CLEANING

To guarantee long-term usage of your child car seat, do not use any solvents, abrasives or aggressive cleaning agents to clean the car seat. Check the stability of the fabric and of the seams after each wash. When washing the fabric, carefully follow the instructions on the label (see below).

Wash at 30 °C, delicate cycle

Do NOT iron

Do NOT bleach

Do NOT dry clean

Tumble dry at low temperature

MAINTENANCE

Regularly check the condition of the product for any damage. In the event of damage, do not use the product and keep it out of the reach of children.

In case of any issues, please contact

Osann Customer Service on +49 (0) 7731/970077.

Illustration of a baby car seat with a red arrow indicating the seat area (no text or symbols present)

Illustration of a car seat with motion arrows indicating movement, showing a red hand pressing down on the seat (no text or symbols present)

Diagram of two mechanical clamping or bracketing mechanisms with red directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a down force applied to a seatbelt (no text or symbols present)

Illustration of a baby seat with a red upward arrow indicating force or pressure (no text or symbols)

RotationControl

Illustration of a car seat with a magnified inset showing the seat area (no text or symbols present)

15 M, 76–105 cm

Illustration of a baby car seat with seatbelt and seat, mounted on a chair (no text or symbols)

< 15 M, 61–105 cm

Béquille

Diagram showing a lock mechanism with an open lock and bidirectional arrow (no text or symbols)

Two gray belt buckle symbols with red and green checkmarks indicating cancellation or rejection (no text or labels)

Connecteurs Isofix

Illustration of a car seat with a numbered label (1) and directional arrows indicating movement or force (no text or symbols on the diagram itself)

Diagram showing two mechanical components with magnified views of their surfaces (no text or symbols)

Illustration of a baby car seat with red marking and a lightning bolt on the seat (no text or symbols)

INSTALLATION DU SIÈGE AUTO POUR ENFANT

IMPORTANT : N'UTILISEZ PAS LE SIÈGE AUTO POUR ENFANT DANS LE SENS DE LA MARCHE, AVANT QUE L'ÂGE DE L'ENFANT N'AIT DÉPASSÉ 15 MOIS.

Illustration of a baby car seat with a red arrow indicating the seat area (no text or symbols present)

Illustration of a car seat with motion arrows indicating movement, showing a red hand pressing down on the seat (no text or symbols present)

Diagram of two mechanical clamping or bracketing mechanisms with red directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a down force applied to a seatbelt (no text or symbols present)

Illustration of a baby seat with a red upward arrow indicating pressure or movement (no text or symbols)

RotationControl

Illustration of a car seat with a magnified inset showing the seat area (no text or symbols present)

15 mesi, 76-105 cm

Illustration of a baby car seat with seatbelt and seat, no text or symbols present

<15 mesi, 61-105 cm

Base di sostegno

Diagram showing a vertical stack of blocks with an open lock and bidirectional arrow between two stacked blocks (no text or symbols)

Two gray car seatbelt buttons with red and green checkmarks indicating cancellation or rejection (no text or symbols on buttons)

Connettori Isofix

Illustration of a car seat with a numbered label (2) and rotation arrow, no text or symbols present.

Diagram showing two mechanical components with magnified views of their parts, no text or symbols present

Illustration of a baby car seat with red marking and a lightning bolt on the seat (no text or symbols)

INSTALLAZIONE DEL SEGGIOLINO AUTO PER BAMBINI

IMPORTANTE: NON UTILIZZARE IL SEGGIOLINO AUTO PER BAMBINI NELLA DIREZIONE DI MARCIA FINO A QUANDO IL BAMBINO NON ABBIA RAGGIUNTO I 15 MESI DI ETÀ.

Illustration of a baby car seat with a red arrow indicating the seat area (no text or symbols present)

Illustration of a car seat with motion arrows and a magnified inset showing a red button (no text or symbols)

Gordel instellen

Diagram of two mechanical clamping or bracketing mechanisms with red directional arrows indicating movement (no text or symbols)

Diagram of a seatbelt buckle with a red arrow indicating compression or disassembly (no text or symbols present)

Simple line drawing of a person wearing a vest with a red prohibition symbol below (no text or labels)

Illustration of a person wearing a seatbelt with a red prohibition symbol (no text or labels)

Illustration of a person wearing a vest with a green checkmark (no text or symbols)

Illustration of a baby seat with red directional arrows indicating upward movement (no text or symbols)

RotationControl

Illustration of a baby car seat with a magnified inset showing the seat area (no text or symbols present)

15 m, 76–105 cm

Illustration of a baby car seat with seatbelt and seat, no text or symbols present

< 15 m, 61–105 cm

Steunpoot

Diagram showing a lock mechanism with an ascending arrow and two separate lock icons (no text or symbols)

Two gray belt buckle designs with red and green checkmarks indicating selection or confirmation (no text or symbols)

Isofix-connectoren

Illustration of a car seat with a numbered label and rotation arrow (no text or symbols beyond labels)

Diagram showing two mechanical components with magnified views of their parts, no text or symbols present

Illustration of a baby car seat with red marking and a lightning bolt on the seat (no text or symbols)

MONTAGE VAN HET AUTOSTOELTJE

BELANGRIJK: GEBRUIK HET AUTOSTOELTJE NIET IN DE RIJRICHTING ALS HET KIND JONGER IS DAN 15 MAANDEN.

Illustration of a baby car seat with a red arrow indicating the seat area (no text or symbols present)

Illustration of a car seat with motion arrows and a magnified inset showing a red button (no text or symbols)

Ajustar el cinturón

Diagram of two mechanical clamping or bracketing mechanisms with red directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a down force applied to a seatbelt (no text or symbols present)

Illustration of a baby car seat with a red upward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a person sitting with hands on hips, no text or symbols present

Simple line drawing of a person wearing a seatbelt with a red prohibition symbol below (no text or labels)

Simple line drawing of a person wearing a vest with a green checkmark below (no text or symbols)

RotationControl

Illustration of a baby car seat with a magnified inset showing the seat area (no text or symbols present)

15 M, 76–105 cm

Illustration of a baby car seat with seatbelt and seatbelt (no text or symbols)

<15 M, 61–105 cm

Pie de apoyo

Diagram showing a lock mechanism with an open lock and bidirectional arrow (no text or symbols)

Two gray belt buckle designs with red and green checkmarks indicating selection or confirmation (no text or symbols)

Conectores Isofix

Illustration of a car seat with a numbered label (2) and a rotation arrow indicating clockwise motion (no text or symbols on the diagram itself)

Diagram showing two camera clips mounted on a bracket, with magnified insets highlighting the top view (no text or symbols present)

Protectores contra impactos laterales

Illustration of a baby car seat with red buttons and a small red head (no text or symbols)

IMPORTANTE: NO UTILICE EL ASIENTO INFANTIL EN EL SENTIDO DE LA MARCHA SI EL NIÑO AÚN NO HA CUMPLIDO 15 MESES.

Illustration of a baby car seat with a red arrow indicating the seat area (no text or symbols present)

Illustration of a car seat with motion arrows indicating movement, showing a red foot pressing down (no text or symbols)

Nastavení pásu

Diagram of two mechanical clamping or bracketing mechanisms with red directional arrows indicating motion (no text or symbols)

Diagram of a seatbelt buckle with a red arrow indicating compression or disassembly (no text or symbols present)

Illustration of a baby car seat with a red upward arrow indicating pressure or movement (no text or symbols present)

Simple line drawing of a person sitting with hands on hips, no text or symbols present

Simple line drawing of a person wearing a seatbelt with a red prohibition symbol below (no text or labels)

Simple line drawing of a person wearing a vest with a green checkmark icon below (no text or symbols)

Illustration of a baby car seat with a magnified inset showing the seat area (no text or symbols present)

15 M, 76–105 cm

Illustration of a baby car seat with seatbelt and seat, no text or symbols present

< 15 M, 61–105 cm

Opěrná patka

Diagram showing a vertical stack of blocks with an open lock and bidirectional arrow between two stacked blocks (no text or symbols)

Two gray car seatbelt buttons with red and green checkmarks below (no text or symbols on buttons)

Konektory Isofix

Diagram showing two mechanical components with magnified views of their features (no text or symbols present)

Illustration of a baby car seat with red marking and a small red object on the seat (no text or symbols)

MONTÁŽ DĚTSKÉ AUTOSEDAČKY

DŮLEŽITÉ: NEPOUŽÍVEJTE DĚTSKOU AUTOSEDAČKU VE SMĚRU JÍZDY, DOKUD VĚK DÍTĚTE NEPŘESÁHNE 15 MĚSÍCŮ.

Illustration of a baby car seat with a red arrow indicating the seat area (no text or symbols present)

Illustration of a car seat with motion arrows indicating movement, showing a red-handled seat being lifted (no text or symbols present)

Regulacja pasa

Diagram of two mechanical clamping or bracketing mechanisms with red directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a down force applied to a seatbelt (no text or symbols present)

Regulacja zagłówka

Illustration of a baby seat with a red upward arrow indicating force or pressure (no text or symbols)

Simple line drawing of a person wearing a vest with a red prohibition symbol below (no text or labels)

Illustration of a person wearing a V-neck top with a red prohibition symbol below (no text or labels)

Simple line drawing of a person wearing a vest with a green checkmark below (no text or symbols)

RotationControl (Kontrola obrotów)

Illustration of a baby car seat with a magnified inset showing the seat area (no text or symbols present)

15 mies., 76-105 cm

Illustration of a baby car seat with seatbelt and seatbelt (no text or symbols)

< 15 mies., 61-105 cm

Stopka

Diagram showing a vertical stack of boxes and an ascending lock icon with bidirectional arrow (no text or symbols)

Two gray belt buckle designs with red and green checkmarks indicating selection or confirmation (no text or symbols)

Łączniki ISOFIX

Diagram showing two mechanical components with magnified views of their surfaces (no text or symbols)

Illustration of a baby car seat with red marking and a lightning bolt on the seat (no text or symbols)

MONTAŻ FOTELIKA SAMOCHODOWEGO

WAŻNE: FOTELIKA DZIECIĘCEGO NIE NALEŻY UŻYWAĆ W POZYCJI PRZODEM DO KIERUNKU JAZDY, DOPÓKI DZIECKO NIE UKOŃCZY WIEKU 15 MIESIĘCY.

Illustration of a baby car seat with a red arrow indicating the seat area (no text or symbols present)

Illustration of a car seat with motion arrows and a magnified inset showing a red button (no text or symbols)

Nastavenie pásu

• Ak chcete pás uvol'nit', stlačte jednou rukou tlačidlo prestavenia pásu v oblasti sedačky. Druhou rukou držte zámok pásu a opatrne uvol'nite pripevnené pásy.
• Zatiahnite za prednú nastavovaciu sponu, aby ste pásy napli. Dbajte na to, aby sa remene nepretočili.

Otvorenie/zatvorenie pásu

Diagram of two mechanical clamping or bracketing mechanisms with red directional arrows indicating motion (no text or symbols)

Diagram showing a mechanical assembly with a down force applied to a seatbelt (no text or symbols present)

Simple line drawing of a person wearing a vest with hands on hips, no text or symbols present.

Illustration of a person wearing a seatbelt with a red prohibition symbol (no text or labels)

Illustration of a person wearing a vest with a green checkmark below (no text or symbols)

Illustration of a baby seat with a red upward arrow indicating pressure or movement (no text or symbols present)

RotationControl

Illustration of a car seat with highlighted seating area and magnified detail (no text or symbols)

15 M, 76 - 105 cm

Illustration of a baby car seat with seatbelt and seat, no text or symbols present

< 15 M, 61 – 105 cm

Oporná noha

Diagram showing a lock mechanism with an ascending arrow and a separate lock icon (no text or symbols)

Two gray belt buckle symbols with red and green checkmarks below (no text or labels)

Konektory Isofix

Illustration of a car seat with a numbered label (1) and directional arrows indicating movement or force (no text or symbols on the diagram itself)

Diagram showing two 3D objects on a vertical axis connected to a bracket, with one object highlighted in red circles (no text or symbols present)

Illustration of a baby car seat with red marking and a small red object on the seat (no text or symbols)

MONTÁŽ DETSKEJ AUTOSEDAČKY

1) Výšková kategória 61 – 105 cm, max. 18 kg, s orientáciou dozadu

DÔLEŽITÉ: DETSKÚ AUTOSEDAČKU NEPOUŽÍVAJTE V SMERE JAZDY, POKIAL' VEK DIĚTÁTA NEPREKROČIL 15 MESIACOV.
