USER MANUAL Brave 8 Akaso

What's In The Box 01
Your Brave 8 02
Getting Started 05
Overview Of Modes 07
Comprehensive Functions 08
Instructions 08
Camera Settings 09
Resolution Setting 11
Personalized Settings 12
Connecting To App 16
Playing Back Your Content 23
Connecting To Usb 23
Maintaining Your Camera 24
Maintaining Your Battery 24
Remote Button Operation Instructions 25
Accessories 27
Contact Us 28

Akaso Brave 8 - 1
AKASO Brave 8 x1

Akaso Brave 8 - 2
Camera Frame x1

Akaso Brave 8 - 3
Battery Charger X1

Akaso Brave 8 - 4
Battery x2

Akaso Brave 8 - 5
USB Cable x1

Akaso Brave 8 - 6
Remote Control x1

Akaso Brave 8 - 7
Remote Control Strip x 1

Akaso Brave 8 - 8
Spanner x1

Akaso Brave 8 - 9
Helmet Mount 1 x1

Akaso Brave 8 - 10
Helmet Mount 2 x1

Akaso Brave 8 - 11
Mount 1 x1

Akaso Brave 8 - 12
Mount 2 x1

Akaso Brave 8 - 13
Mount 3 x1

Akaso Brave 8 - 14
Mount 4 x1

Akaso Brave 8 - 15
Mount 5 x1

Akaso Brave 8 - 16
Mount 6 x1

Akaso Brave 8 - 17
Mount 7 x1

Akaso Brave 8 - 18
Handle Bar/ Pole Mount x 1

Akaso Brave 8 - 19
Bandage X4

Akaso Brave 8 - 20
Tether X5

Akaso Brave 8 - 21
Lens Cloth x1

Akaso Brave 8 - 22
Double-Sided Tape x 2

Akaso Brave 8 - 23
Quick Start Guide x1

Akaso Brave 8 - 24

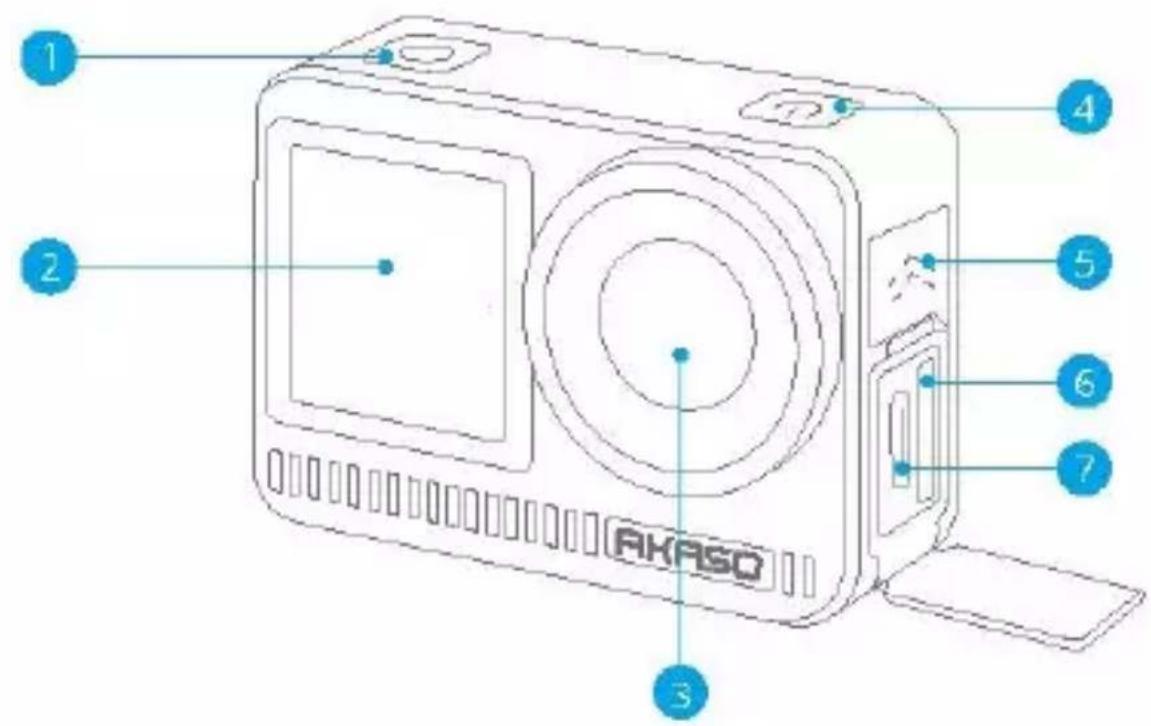

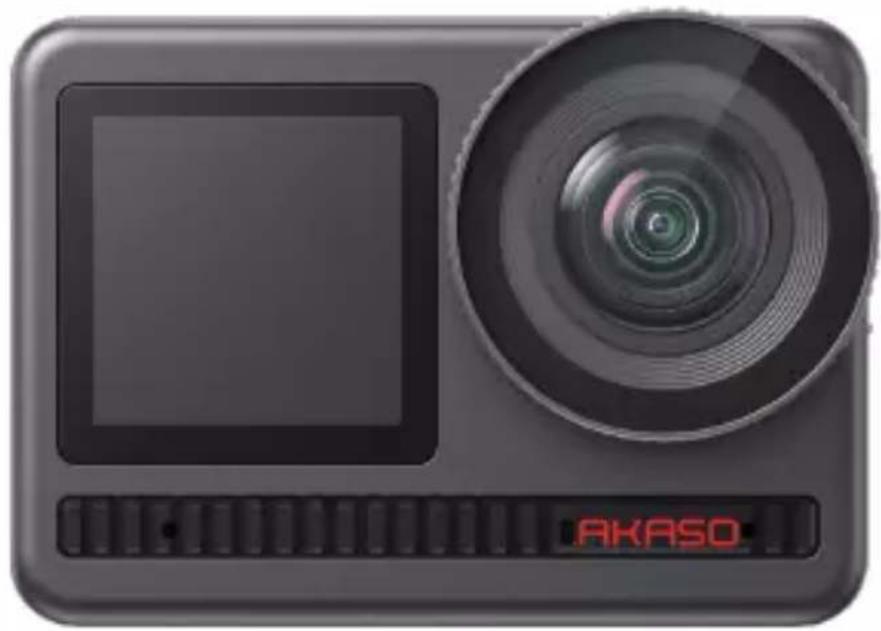

Akaso Brave 8 - 25

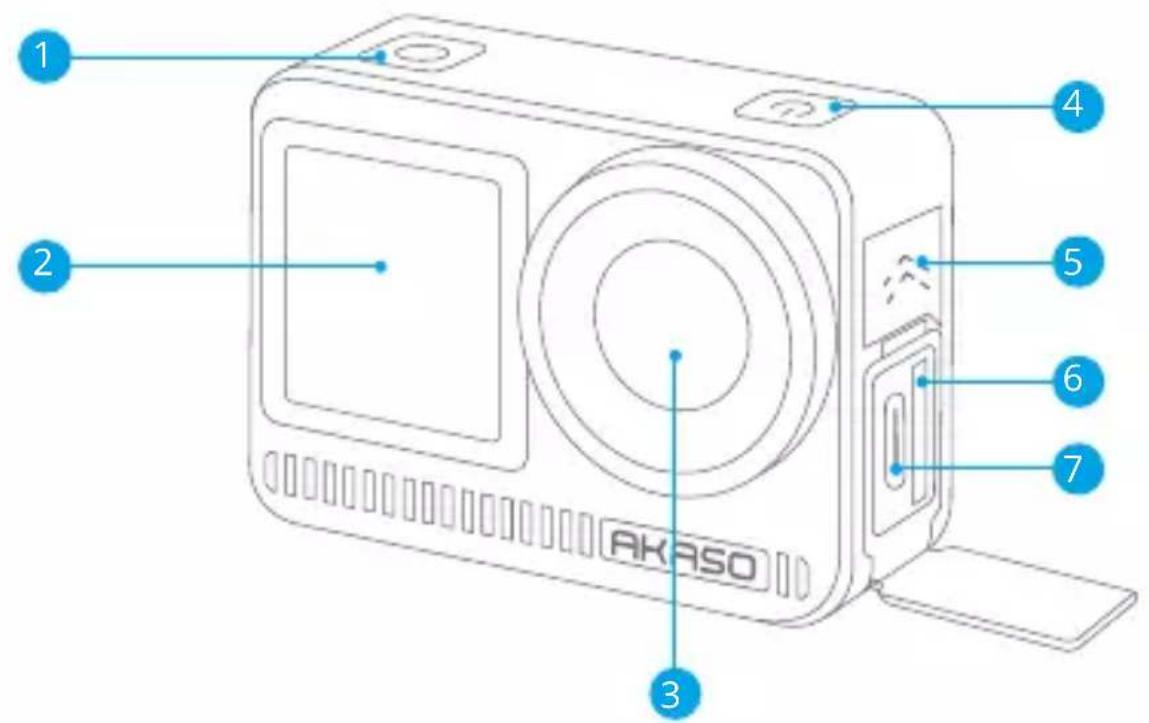

1 Shutter/Confirm Button
2 Front Screen
3 Lens
4 Power Button
5 Speaker
6 Memory Card Slot
7 USB-C Port

Akaso Brave 8 - 26

Akaso Brave 8 - 27

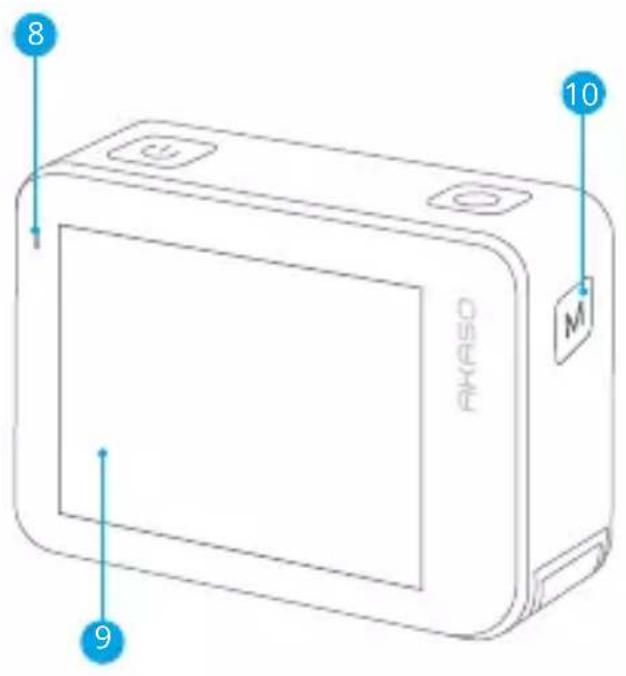

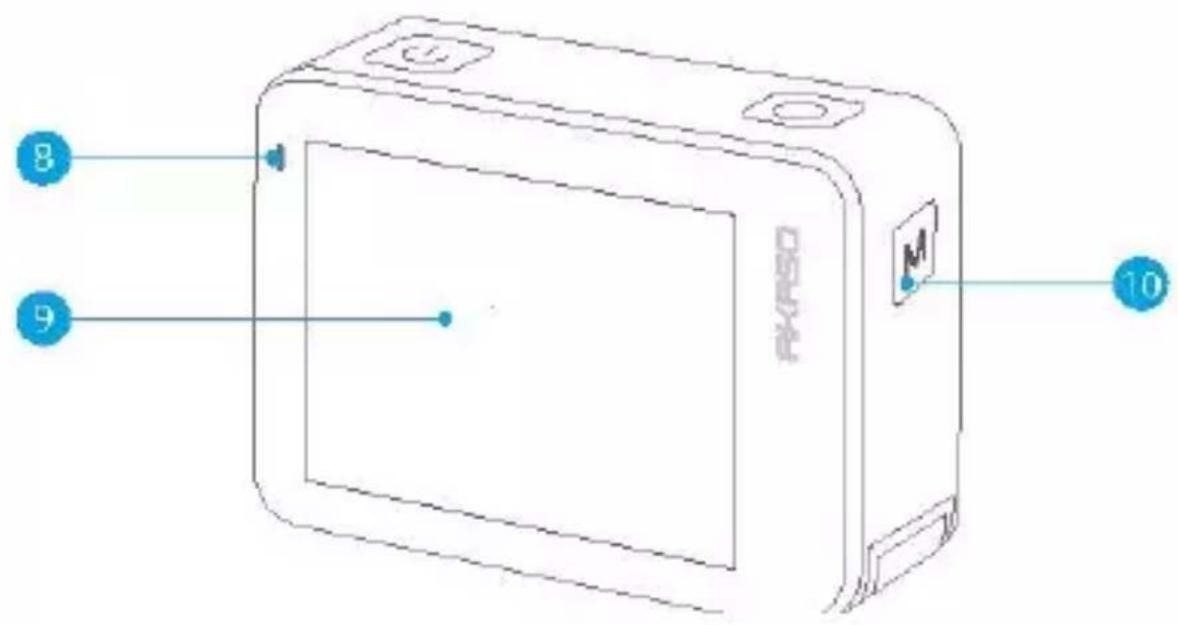

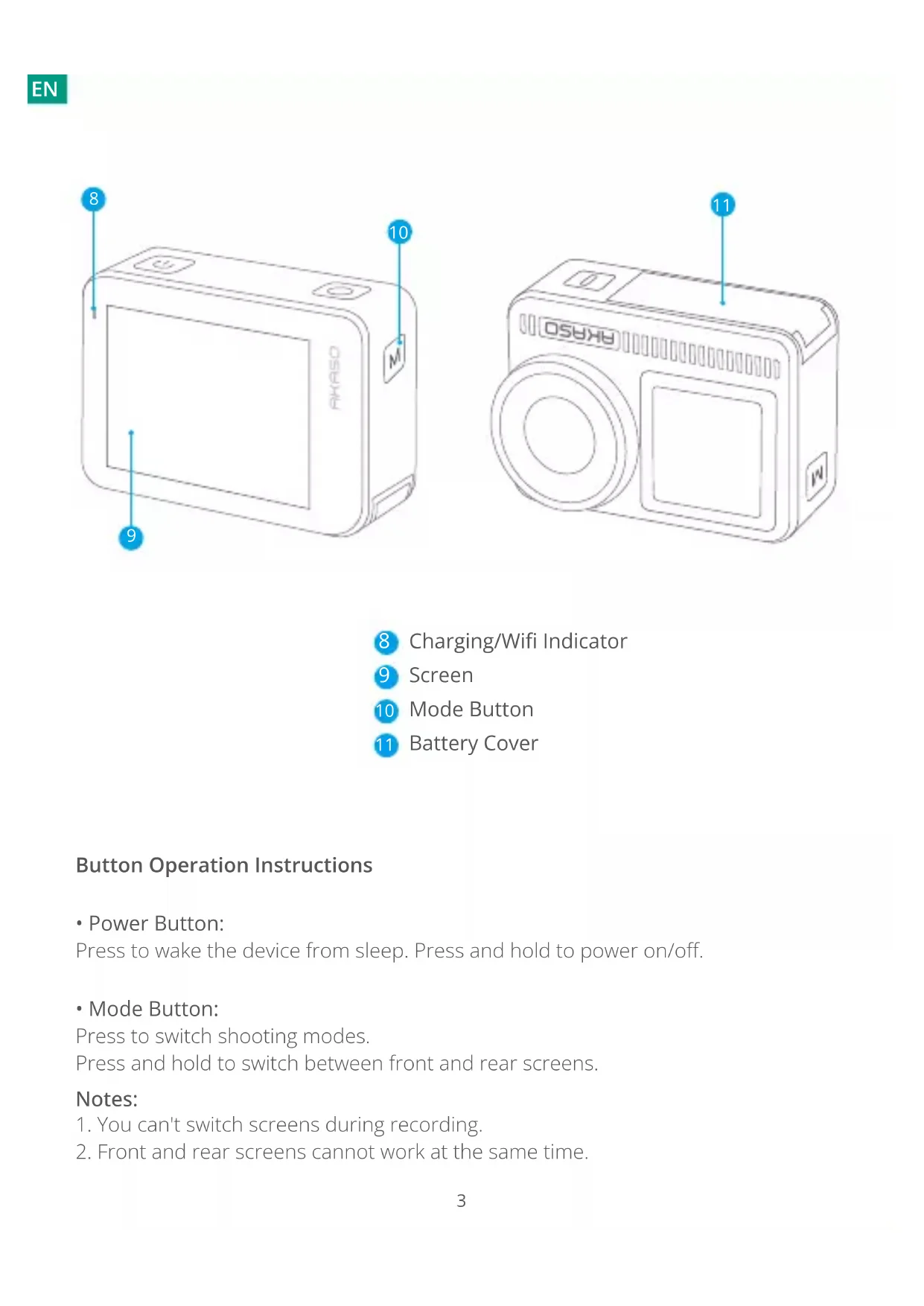

8 Charging/Wifi Indicator
9 Screen
10 Mode Button

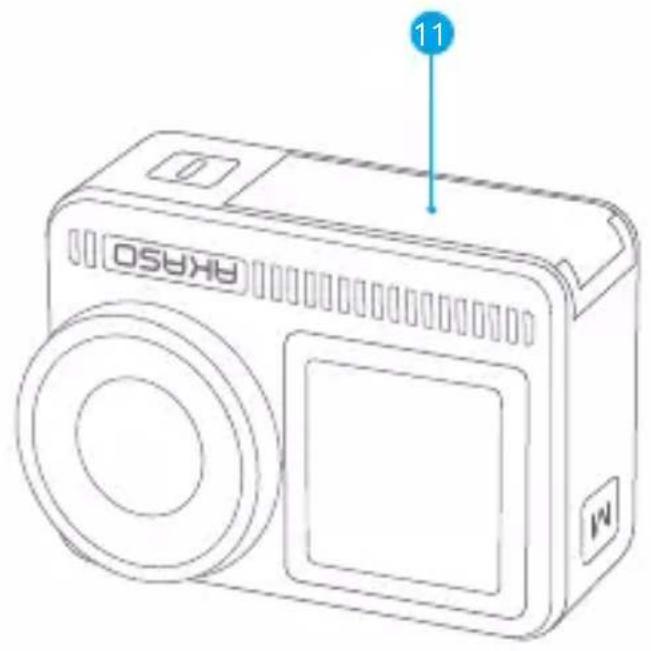

11 Battery Cover

Button Operation Instructions

  • Power Button:

Press to wake the device from sleep. Press and hold to power on/off.

Mode Button:

Press to switch shooting modes.

Press and hold to switch between front and rear screens.

Notes:

  1. You can't switch screens during recording.
  2. Front and rear screens cannot work at the same time.

Akaso Brave 8 - Notes: - 1

Akaso Brave 8 - Notes: - 2

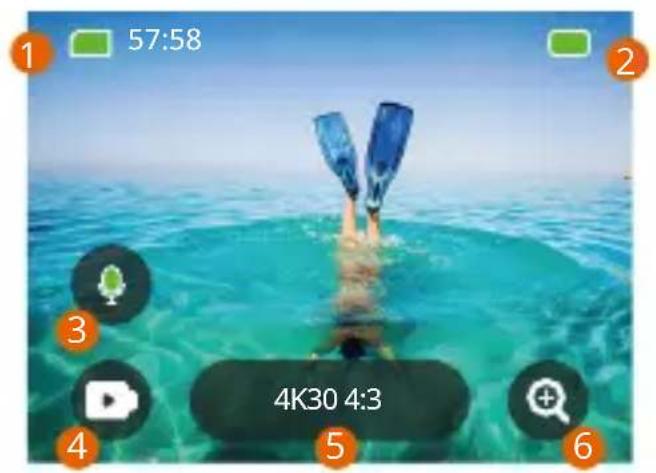

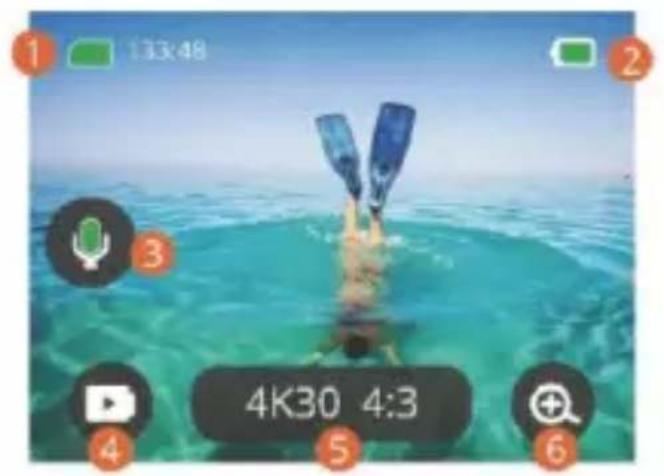

1. Memory Card Icon:

Displays remaining recording time/number of photos.

2. Battery Level:

Displays the percentage of battery.

3. Audio switch:

Turns on or off the sound when recording a video.

4. Photo Mode:

Switches modes or display the current mode.

5. Resolution Ratio:

Displays the current resolution ratio or set the resolution ratio.

6. Zoom:

Adjusts the shooting angle.

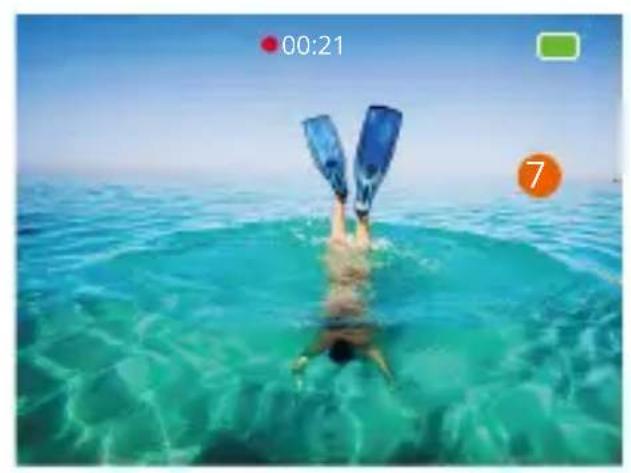

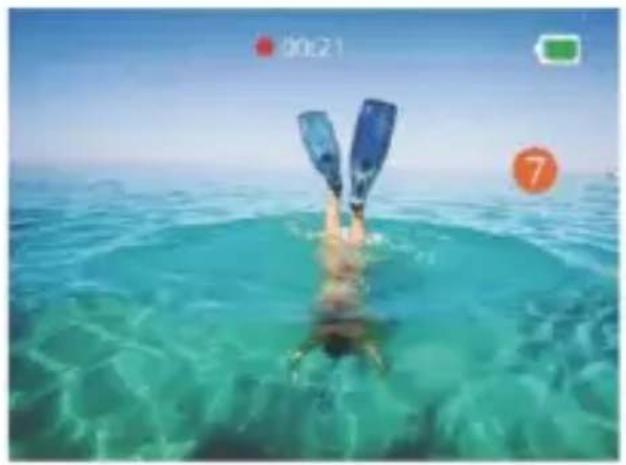

7. Photo Page:

Controls video shooting under Video mode.

Note: The camera will not record sounds when it is in the waterproof case.

GETTING STARTED

Welcome to your AKASO Brave 8. To capture videos and photos, you need a memory card (not included) that meets the following requirements.

Memory Card

1.U3.
2. Memory capacity up to 512GB.

Note:

  1. To keep your memory card in good condition, please format the memory card in the camera before using it. (Reformatting will delete all your data, so be sure to back up your photos and videos).
  2. The FAT32 format memory card will stop recording when the storage of each file exceeds 4GB and start to record again on a new file.

POWERING ON / OFF

To Power On:

Press and hold the power button for 3 seconds to turn on your camera.

To Power Off:

Press and hold the power button for 3 seconds again to turn off your camera.

Quick Start Guide

When you use the camera for the first time or each time you reset it, a quick start guide will display how to use the camera and settings. You can click "Skip" to ignore the guide.

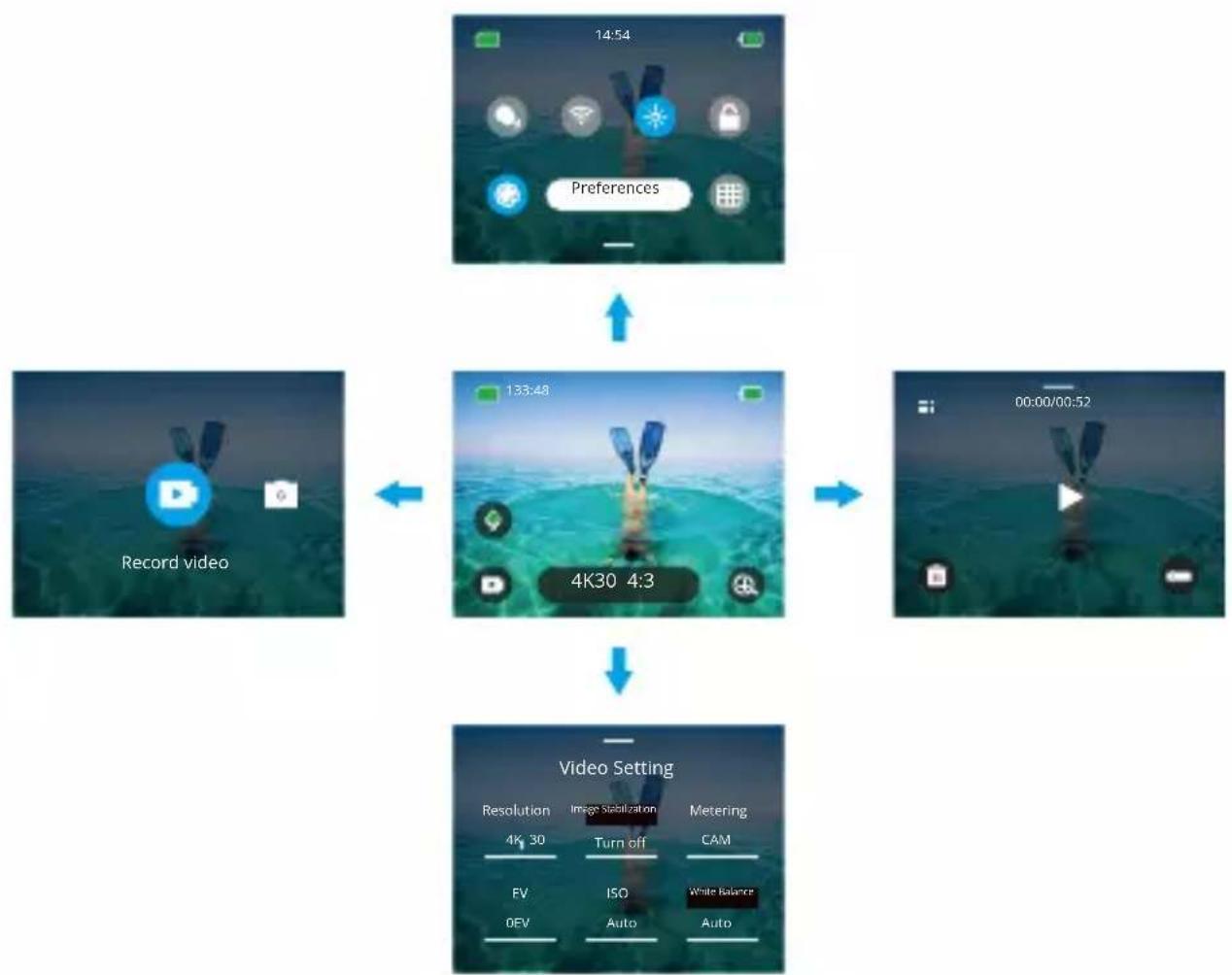

Operation Instructions

Swipe down to enter the quick menu.
Swipe up to the specification settings.
Swipe right to switch modes.

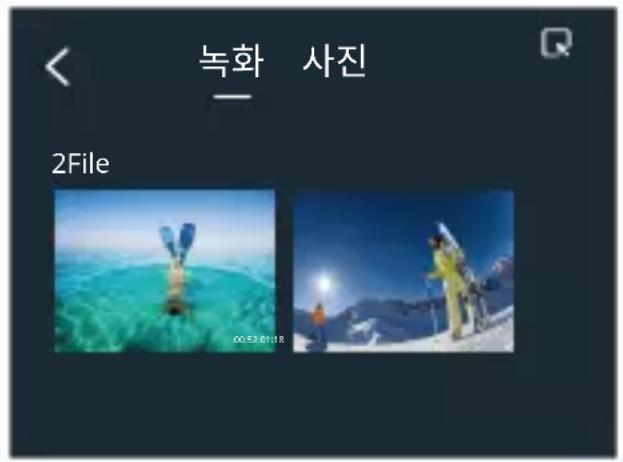

Swipe left to enter the playback page.

Akaso Brave 8 - Operation Instructions - 1

Mode Switching:

  1. When the camera is turned on, swipe right to switch modes.

  2. Tap the mode icon to enter the mode you choose.

- General Settings:

Swipe down to enter the quick menu, tap "Preferences" to enter the preferences page, then scroll down to General Settings and set up your Brave 8.

- Playback:

Swipe left to enter the playback page and to record videos, preview, or delete photos.

- Specification Settings:

Swipe up to the specification settings and choose options according to your needs.

OVERVIEW OF MODES

Swipe right to choose the following modes. Tap the mode icon to enter the mode you choose.

Video Mode

- Video Mode

Default mode: Video Mode

In Video Mode, press the Shutter button, the camera starts recording videos. Press the Shutter button again to stop recording.

Time-Lapse Video Mode

Time Lapse turns long events into short videos by taking a frame of the video at set intervals. This mode is deal for street scenes, art works and other extended activities.

Motion Time-Lapse Video Mode

It can shorten the video time and record super stable time-lapse videos when moving. Compare with the time-lapse mode, this function improves the anti-shake feature, but delivers relatively blurry videos.

- Slow Motion Video Mode

In Slow Motion Video Mode, the camera records video in high resolution and can slow down to 1/16, 1/8, or 1/4. For example, the camera achieves 16x super slow motion when you select 720P and set the multi-speed to 16x.

Photo Mode

- Photo Mode

In Photo Mode, press the Shutter button, the camera takes a photo. Or adjust the burst photo menu to take several photos at the same time. You can also adjust the countdown menu to take a timed selfie.

Time Lapse Photo Mode

Press the Shutter button. The camera will automatically start the countdown and continuously take photos at the specific interval till you press the Shutter button again.

COMPREHENSIVE FUNCTIONS

Image Stabilization Function

When this function is enabled, the camera can record smooth videos even in severe shakes. Turn on the camera, tap the resolution icon on the screen to set Image Stabilization. Options include Image Stabilization and SuperSmooth. Image Stabilization can be experienced directly on this device. To experience the SuperSmooth feature, however, you need to download a SuperSmooth video from the AKASO GO APP.

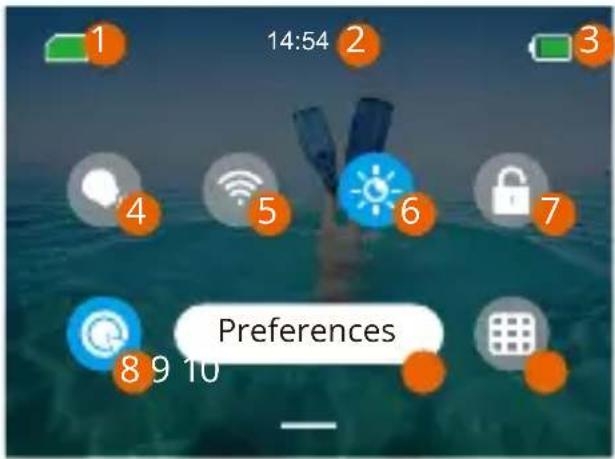

INSTRUCTIONS

Akaso Brave 8 - INSTRUCTIONS - 1

1 Memory Card Capacity
2 Time
3 Battery Level
Voice Control
5 Wifi

6 Screen Brightness (3 Levels)
7 Screen Lock
One Key Fast Shooting
9 Preferences
10 Grid

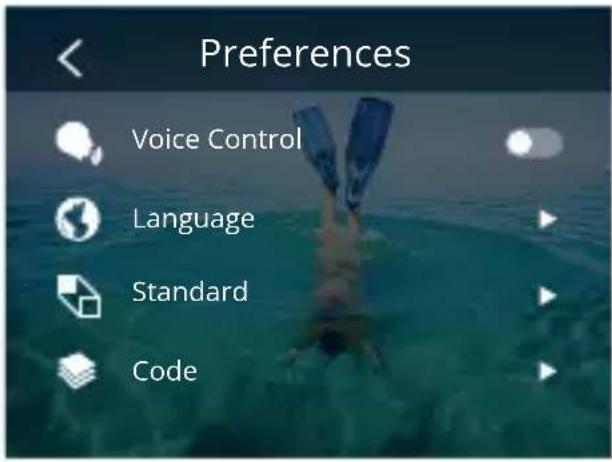

CAMERA SETTINGS

Akaso Brave 8 - CAMERA SETTINGS - 1

You can swipe down to General Settings and set up your camera. The settings are as follows:

Functions Specifications Note
Voice Control Power on /Power off (default) AKASO Video start AKASO Stop video AKASO Take photo AKASO Power off
Language Support 9 languages English/Deutsch/Frçais/ Espanol/ Italiano/日本語/简体中文/繁體中文 /韓國民
Standard NTSC (default)/PAL
Code H.264 (default)/H.265 If you choose H.265 for video encoding, the video volume will be reduced, but the power consumption will increase.
Wireless ConnectionOn/Off (default) | Connecting Device | Camera Information | Wifi Band-5G (default)/2.4G
Remote On/Off (default) Turn on this setting on the camera, then turn on the included remote, you can control your camera with the remote after successfully connecting them.
One Key Fast ShootingOn (default)/OffSwipe down to enter the quick menu, tap to turn on One Key Fast Shooting. Press and hold Shutter button when the camera is off, it will automatically turn on and start recording. (The recording parameters are the state saved in the last recording.) Press the Shutter button again, the camera will stop recording and shut down. If you don't need to use this function, just press and hold the Power button normally to start recording or press the again to turn it off.
Gyroscope On/Off (default)
General Setting
Screen Brightness0-100% Adjustable
Sound 0-100% Volume On (default)/Off- Key Tone | Beep Tone | Photo Beep ToneAdjustable
Indicator Light On (default)/Off
Video Sound On (default)/Off
Auto Power Off Never/2 Minutes/5 Minutes (default)/10 Minutes / 20 Minutes/30 Minutes
Screen Saver Never/15 seconds/30 seconds / 1 Minute (default)/ 2 Minutes/ 5 Minutes
Time Date DateYY/MM/DD Time: HH/MM (AM/PM/24 Hours)
Date Stamp On/Off (default)
Formatting Format Memory Card - Cancel/ Confirm | Memory Card Capacity
Factory Reset Cancel/Confirm
About Camera Information

RESOLUTION SETTING

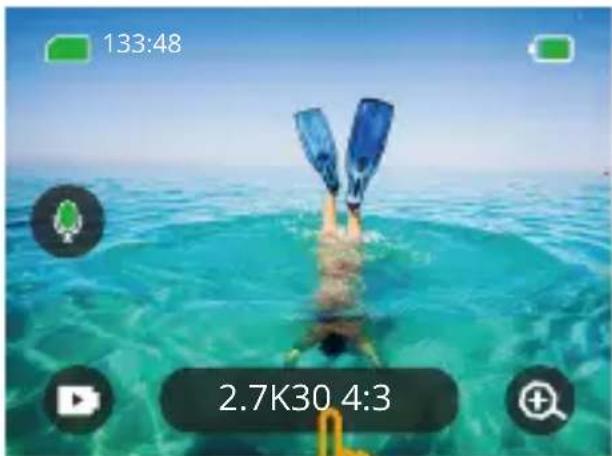

When the camera is turned on, tap the resolution icon on the screen to enter the home screen. You can adjust the resolution, image stabilization characteristics and time interval of the camera.

Akaso Brave 8 - RESOLUTION SETTING - 1

Akaso Brave 8 - RESOLUTION SETTING - 2

Video

Functions Specifications
Video ModeNTSC: 4K30 4:3/4K60 16:9/4K30 16:9/2.7K90 4:3/2.7K60 4:3/2.7K30 4:3/2.7K120 16:9/2.7K90 16:9/2.7K60 16:9/2.7K30 16:9/1440P180/ 1440P120/1440P90/1440P60/1440P30/1080P200/1080P120/ 1080P90/1080P60/1080P30 PAL: 4K25 4:3/4K50 16:9/4K25 16:9/2.7K75 4:3/2.7K50 4:3/2.7K25 4:3/ 2.7K100 16:9/2.7K75 16:9/2.7K50 16:9/2.7K25 16:9/1440P150/ 1440P100/1440P75/1440P50/1440P25/1080P200/1080P100/ 1080P75/1080P50/1080P25
Time Lapse Video ModeResolution ratio: 8K/4K4:3/4K16:9/2.7K4:3/2.7K16:9/1440P/1080P Time interval: 0.5s/1s/2s/5s/10s/30s/1min/2min/5min/10min/30min/1h
Motion Time- Lapse Video ModeResolution ratio: 4K 16:9/2.7K 4:3/2.7K 16:9/1440P/1080P Multiple speed: 2x/5x/10x/15x/30x
Slow Motion Video ModeResolution ratio: 2.7K/1440P/1080P/720P Multiple speed: 2x/4x/8x/16x
Image StabilizationOff / Image Stabilization / SuperSmooth

- Photo

Functions Specifications
Photo Mode48M/12M
Time Lapse Photo Mode48M/12M Time interval: 0.5s/1s/2s/5s/10s/30s/1 min/2min/5min/10min/30min/1h

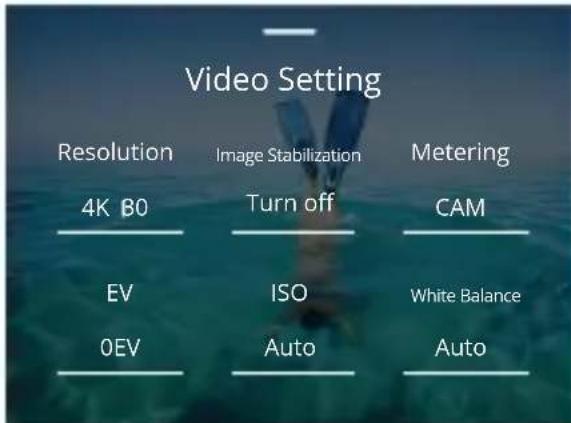

PERSONALIZED SETTINGS

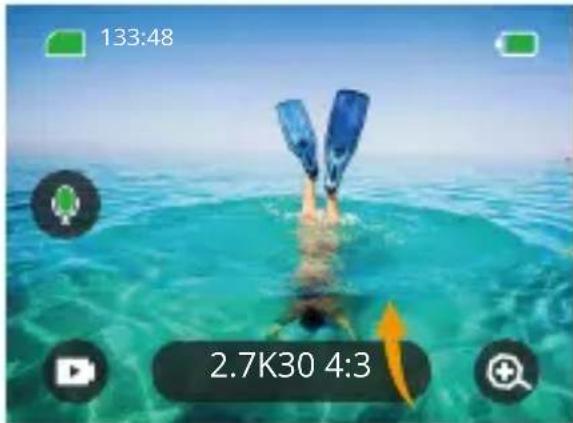

Swipe up to the specification settings of videos and photos. Specifications are as follows:

Akaso Brave 8 - PERSONALIZED SETTINGS - 1

Akaso Brave 8 - PERSONALIZED SETTINGS - 2

Video

FunctionsSpecificationsNote
Resolution Ratio4K30 4:3/4K60 16:9/4K30 16:9/2.7K904:3/2.7K60 4:3/2.7K30 4:3/2.7K12016:9/2.7K90 16:9/2.7K60 16:9/2.7K3016:9/1440P180/1440P120/1440P90/1440P60/1440P30/1080P200/1080P120/1080P90/1080P60/1080P30Video Mode
8K16:9/4K4:3/4K16:9/2.7K4:3/2.7K16:9/1440P/1080PTime interval: 0.5s/1s/2s/5s/10s/30s/1min/2min/5min/10min/30min/1hMotion Time-lapse multiple speed: 2x/5x/6x/10x/15x/30xTime Lapse Video Mode/Motion Time-Lapse Video Mode
Resolution ratio: 2.7K/1440P/1080P/720P Multiple speed: 2x/4x/8x/16xSlow Motion Video Mode
Image StabilizationOff/Normal/SuperSmooth Off: Turn off Video Stabilization. Normal: Basic video stabilization feature that will crop the field of view. SuperSmooth: Enhanced video stabilization feature that will crop the field of view. You need to download a SuperSmooth video from the APP to experience this feature.
Metering CAM/AM/CM/SM/AFMCAM(Center Average Metering): A metering mode that mainly bases the center of the screen and complements the surroundings. AM(Average Metering): Ametering mode that bases the whole screen. CM(Center Metering): A metering mode that bases the center of the screen. SM(Spot Metering): Ametering mode that bases the screen's specific position selected by the user. AFM(Al Face Metering): A dynamic metering mode that recognizes and bases the face in the screen.
EV 3.0EV/2.5EV/2.0EV/1.5EV/1.0EV/0.5EV/0EV/-0.5EV/-1.0EV/-1.5EV/-2.0EV/-2.5EV/-3.0EVSets the brightness of photos and videos.
ISO Auto/100/200/400/800/1600/3200/6400Sets ISO values of photos and videos.
White BalanceAuto/2300K/2800K/3200K/4000K/4500K/5000K/5500K/6000k/6500KSets the hue of photos and videos.
Sharpness 0/1/2/3/4/5/6 Controls the quality of details in your photos or videos.
Bit Rate HighMedium/Low Affects the file size and image quality. The lower the bite rate, the smaller the video file, and the lower the image quality, and vice versa.
Color Normal/Vivid Sets different colors.
Fragment Off/15S/30S/15S Loop/30S LoopFragment: Films a 15s or 30s video which can be easily offloaded to your phone and shared on social media. Loop Video: Continuously films a few sectional videos of 15s or 30s. When the memory card is full, the camera will automatically delete the earliest videos to guarantee the shooting.
Audio Stereo/HM Stereo: Records stereo audiobetter sound quality. HM(Human Mode): Records monophonic audio, and eliminates the background noises for clear human voice.
Dark Light ModeTurn off/Turn onBoosts the brightness by extending the exposure time. Not suitable for sport activities.
Distortion CorrectionTurn off/Turn on This function does not support resolutions of 4K30 4:3/4K60 16:9/2.7 K90 4:3/2.7K60 4:3/2.7K90 16:9/2.7 K120 16:9/1440P90/1440P120/1440P180/1080P 200/1080P120/1080P90. If you select the resolutions above, the function will be disabled.
  • Photo
Functions Specifications Note
Resolution Ratio48M/12M General
48M/12M Time interval: 0.5s/1s/2s/5s/10s/30s/1min/2min/5min/10min/30min/1hTime Lapse Photo Mode.
Metering CAM/AM/CM/SM/AFM
EV 3.0EV/2.5EV/2.0EV/1.5EV/1.0EV/0.5EV/0EV/-0.5EV/-1.0EV/-1.5EV/-2.0EV/-2.5EV/-3.0EVSets the brightness of photos and videos. The higher the value, the brighter the video or photo.
ISO Auto/100/200/400/800/1600 Sets ISO values of photos and videos.
Shutter Auto,5S,2S,1/125S,1/250S,1/500S,1/1000S,1/2000SSets the shutter time.
White BalanceAuto/2300K/2800K/3200K/4000K/4500K/5000K/5500K/6000k/6500KSets the hue of photos and videos.
Sharpness 0/1/2/3/4/5/6 Controls the quality of details in your photos or videos.
Color Normal/Vivid Sets different colors.
Self-Time Turn off/3seconds/5seconds/10seconds/30secondsGeneral
Image FormatJPG/JPG+RAWSets the output format for the image.
Number of Burst PhotoTurn off/3/5/8 Sets the number of burst photos. Press the Shutter button once, you can continuously take up to 8 photos. Note: Do not move the camera until the end of the burst shooting.

CONNECTING TO APP

To connect your camera to the AKASO GO APP, you need to connect the camera Wifi which is enabled by default only when you start up the camera. It will be turned off by default in other processes. If there is no connection within 5 minutes, the Wifi will be automatically turned off. If you do not connect the app within 5 minutes, it will be automatically disconnected. At this time, you can manually reconnect it.

  1. Turn on Wifi in one of the three ways:

① Turn on the camera by default.
② Tap the Wifi icon on the quick menu.
③ Turn on the wireless connection in the Settings.

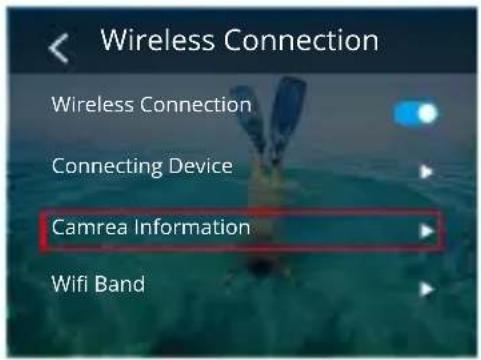

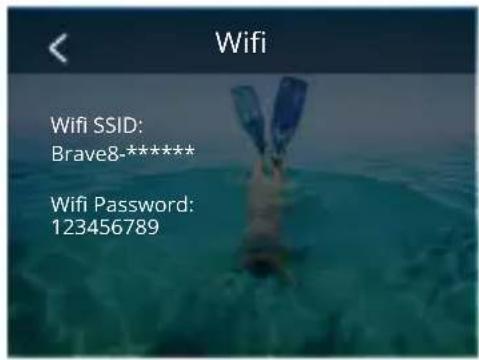

  1. Connect Wifi in one of the two ways:

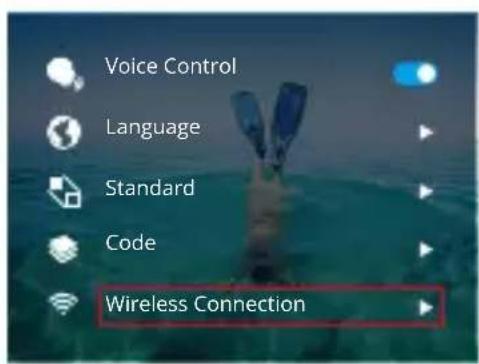

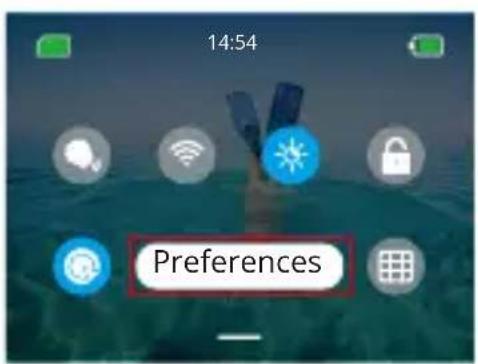

① Swipe down to enter the quick menu, tap Preferences to enter the preferences page, then scroll down to General Settings Wireless Connection, turn on Wireless Connection, then go to Camera Information. Wifi SSID and Password will be shown on the screen. Go to your phone's Wifi settings, select "Brave 8_xxxx", and enter the default password for connection.

Akaso Brave 8 - CONNECTING TO APP - 1

Akaso Brave 8 - CONNECTING TO APP - 2

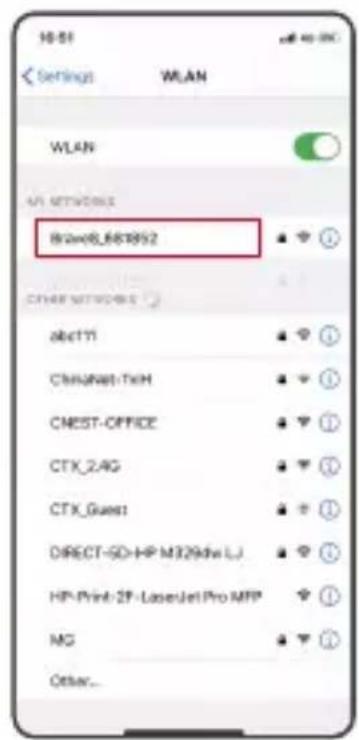

Akaso Brave 8 - CONNECTING TO APP - 3

Akaso Brave 8 - CONNECTING TO APP - 4

Akaso Brave 8 - CONNECTING TO APP - 5

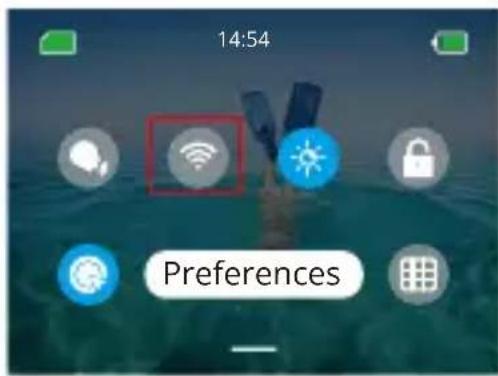

② Swipe down to enter the quick menu and tap the Wifi icon to turn on Wifi. The Wifi information will be shown on the screen. Go to your phone's Wifi settings, select "Brave 8_xxxx", and enter the default password for connection.

Akaso Brave 8 - CONNECTING TO APP - 6
Wifi connected: Wifi indicator light ON Screen display: Connected to Brave 8_xxxx

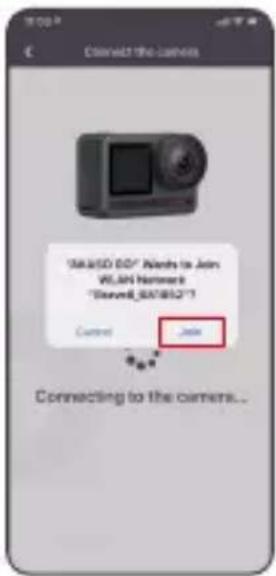

3. Connect to the AKASO GO App

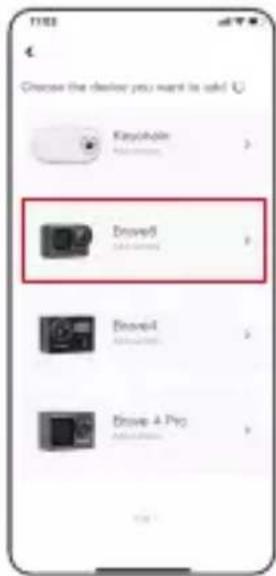

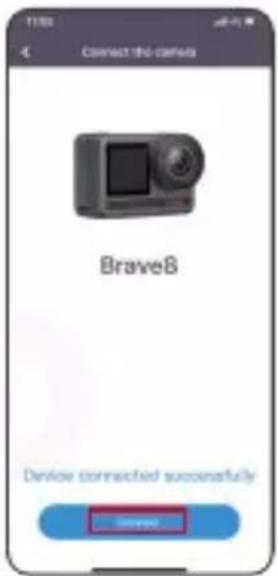

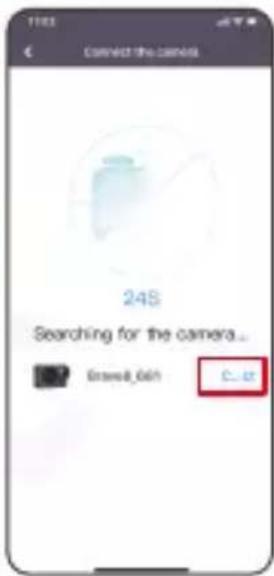

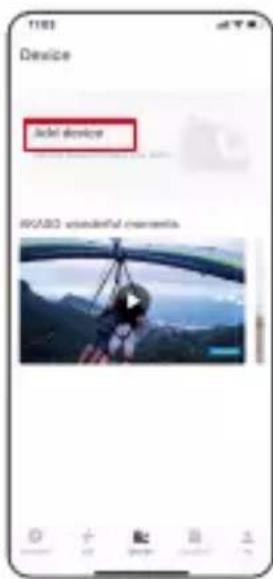

Open the AKASO GO APP, tap "Device" "Add device", find Brave8 and click on it. Click "C...ct" and "Join", and then click "Connect". Your camera is connected to the app.

Akaso Brave 8 - Connect to the AKASO GO App - 1

Akaso Brave 8 - Connect to the AKASO GO App - 2

Akaso Brave 8 - Connect to the AKASO GO App - 3

Akaso Brave 8 - Connect to the AKASO GO App - 4

Akaso Brave 8 - Connect to the AKASO GO App - 5

  1. Control your camera with the Phone APP. You can record, shoot, play back, download, delete and edit via the AKASO GO APP.

  2. When the camera is connected to the APP, press the Mode button to turn off the camera Wifi, and exit the connection interface. The APP will be disconnected with the camera.

6. SuperSmooth Instructions

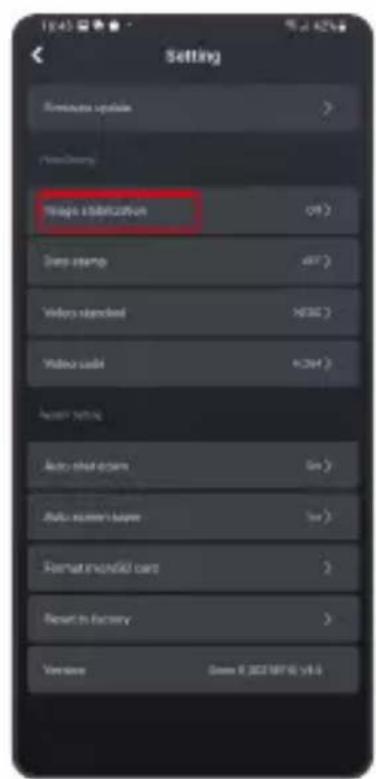

① After connecting to the camera, click - Image stabilization, choose Super Smooth, then click < in the upper left corner until it goes back to the camera page.

Note: SuperSmooth can be enabled on the camera (select SuperSmooth on the Image Stabilization option) or via the app (as shown below).

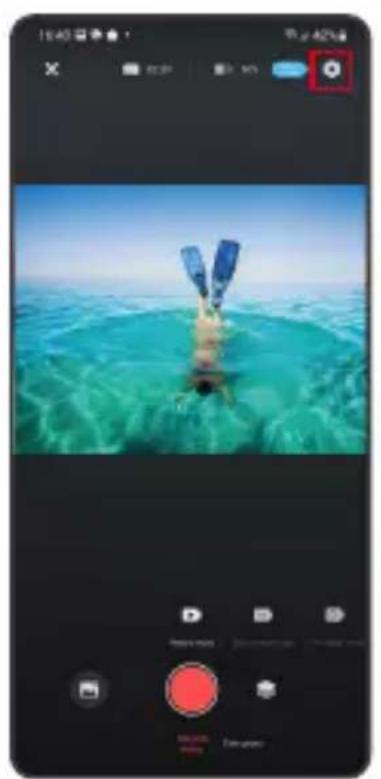

Akaso Brave 8 - SuperSmooth Instructions - 1

Akaso Brave 8 - SuperSmooth Instructions - 2

Akaso Brave 8 - SuperSmooth Instructions - 3

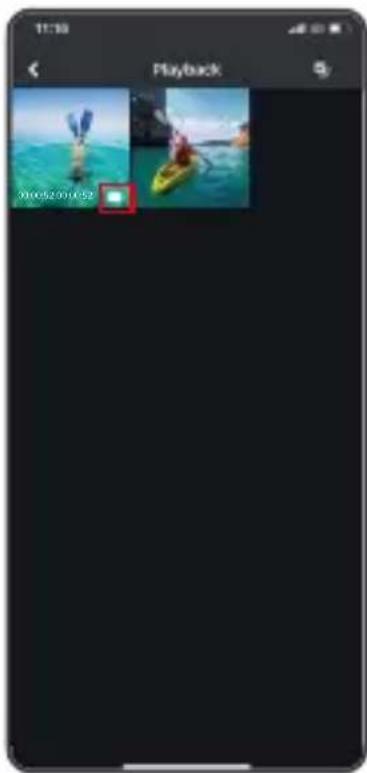

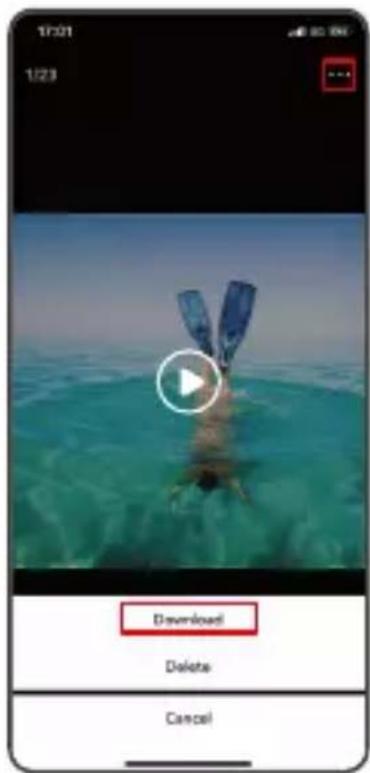

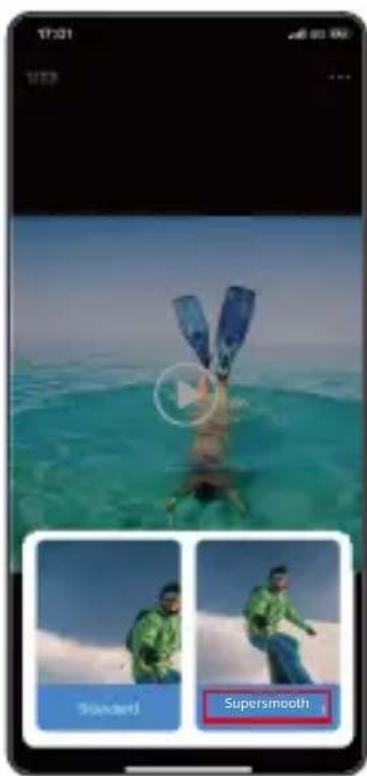

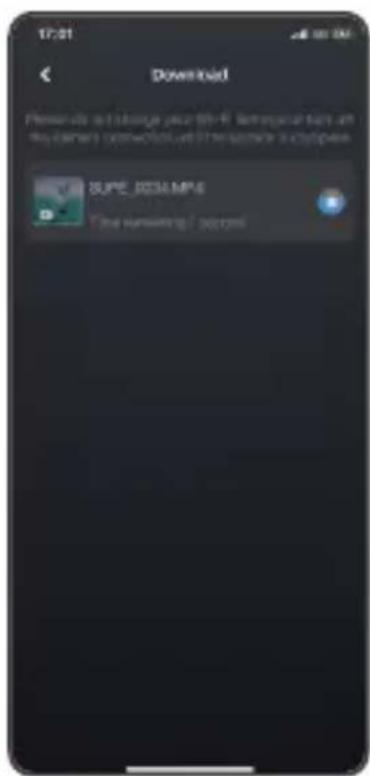

② Click , choose the video with , click … and select Download - Supersmooth, then the video with the supersmooth effect will be downloaded to the phone's album.

Akaso Brave 8 - SuperSmooth Instructions - 4

Akaso Brave 8 - SuperSmooth Instructions - 5

Akaso Brave 8 - SuperSmooth Instructions - 6

Akaso Brave 8 - SuperSmooth Instructions - 7

7. Firmware Upgrade Instructions

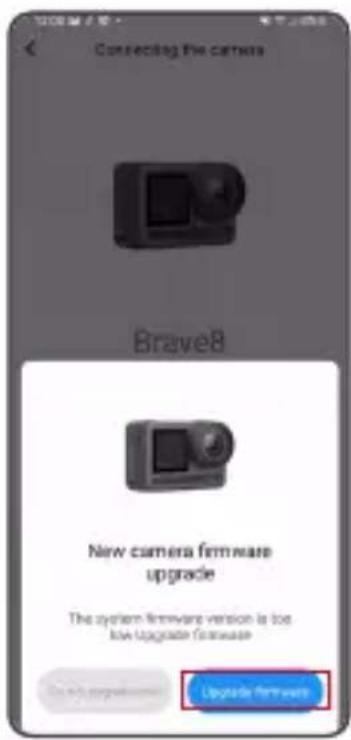

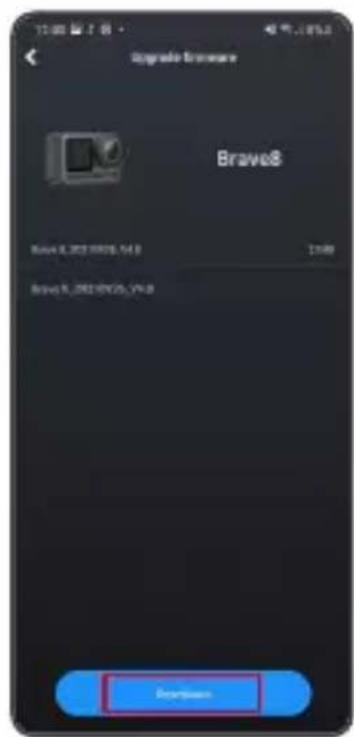

① After connecting to the camera, click Upgrade firmware on the pop-up window. Then click Download.

Note: Please insert the memory card before upgrading the firmware. You can also choose Do not upgrade now. Click Connect and then click , Select Firmware update on the setting menu, and click Download.

Akaso Brave 8 - Firmware Upgrade Instructions - 1

Akaso Brave 8 - Firmware Upgrade Instructions - 2

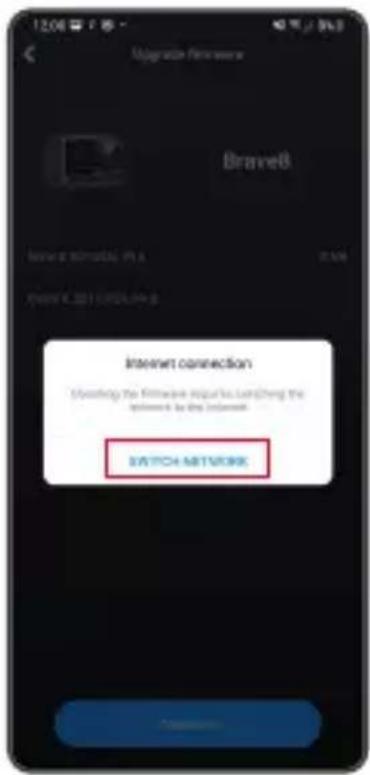

② Click SWITCH NETWORK and select a Wifi that works well, and click Done when it displays connected.

Akaso Brave 8 - Firmware Upgrade Instructions - 3

Akaso Brave 8 - Firmware Upgrade Instructions - 4

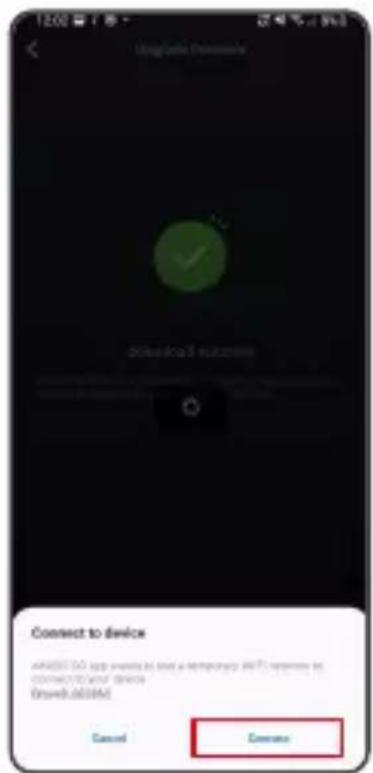

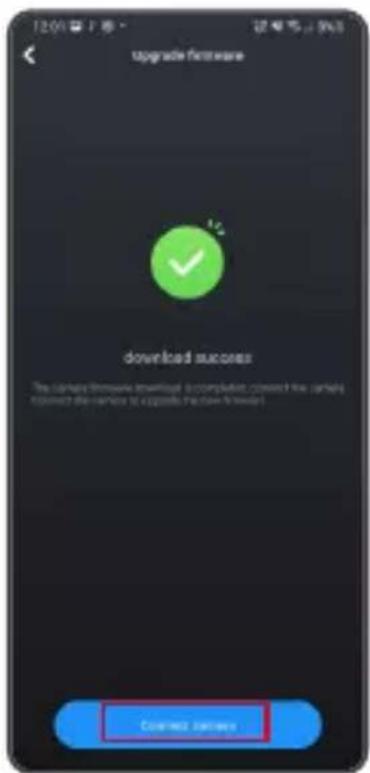

③ Tap on the Connect camera option once the download success page appeared. Then choose Connect and wait for the system to upgrade.

Akaso Brave 8 - Firmware Upgrade Instructions - 5

Akaso Brave 8 - Firmware Upgrade Instructions - 6

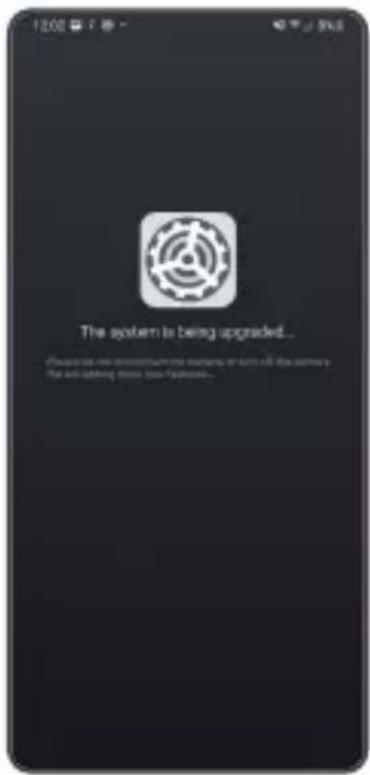

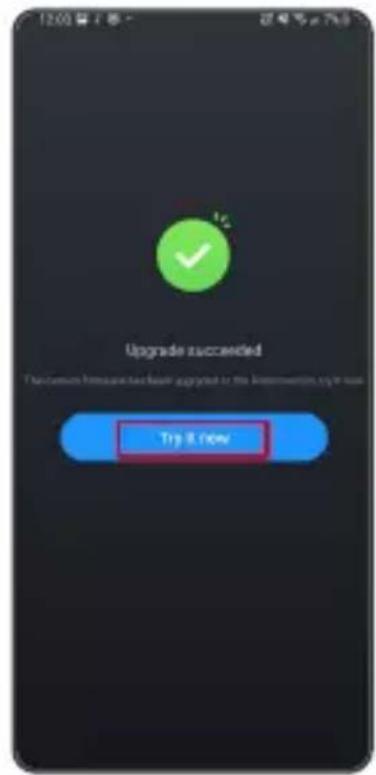

④ Now just click Try it now and the camera firmware has been upgraded to the latest version.

Akaso Brave 8 - Firmware Upgrade Instructions - 7

Akaso Brave 8 - Firmware Upgrade Instructions - 8

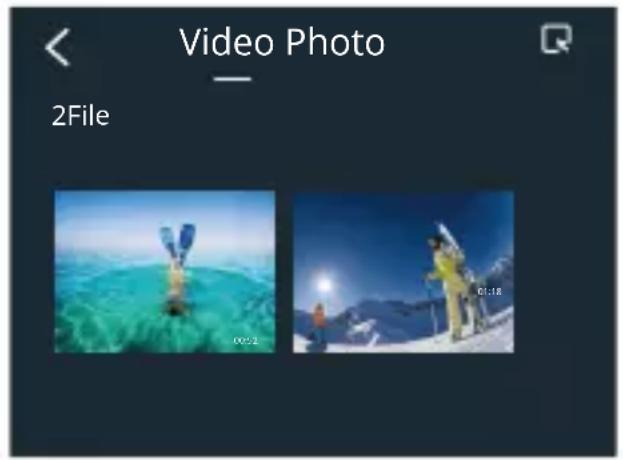

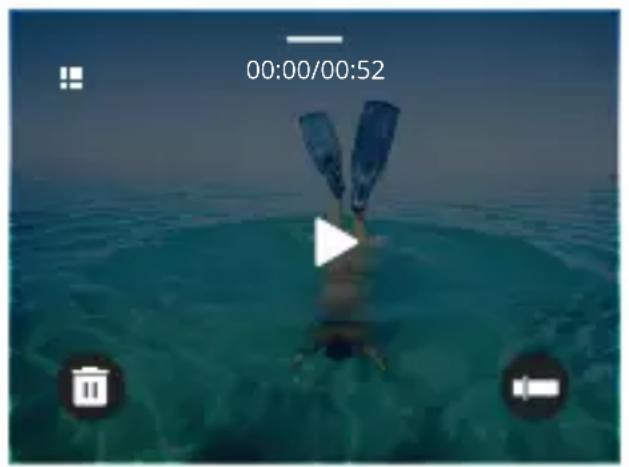

Swipe from right to left to enter the playback interface. Tap grid view to change the thumbnail browse mode. Swipe the screen to browse the file. Click the file to preview, then tap the "Playback" icon to play the file. To delete the file, tap the Delete icon and click "Confirm".

Akaso Brave 8 - Firmware Upgrade Instructions - 9

Akaso Brave 8 - Firmware Upgrade Instructions - 10

CONNECTING TO USB

Plug in your camera with the USB cable. When the message appears on the camera screen, select USB Storage, then copy files from the memory card to PC. Select Camera Mode to use the camera as a Web camera. Select Charging Mode to charge the camera.

MAINTAINING YOUR CAMERA

Please follow these guidelines to get the best performance of your camera:

  1. For best audio performance, shake the camera or blow the mic to remove debris from the microphone holes.
  2. To clean the lens, wipe it with a soft and lint-free cloth.
  3. Do not insert any object around the lens.
  4. Do not touch the lens directly with your fingers.
  5. Keep the camera away from drops and bumps, which may cause damage to the parts inside.
  6. Keep the camera away from high temperature and exposure to strong sunray.

MAINTAINING YOUR BATTERY

If the battery reaches 0% while recording, the camera will save the file and the power goes off.

To maximize battery life, please follow these guidelines if possible:

  • Turn off Wireless Connections when not using
  • Capture videos at lower frame rates and resolutions
  • Use screen protection setting

Battery storage and operation

  • Do not expose the camera to extreme cold or hot weather. It will shorten the battery life or cause malfunction to the camera with those conditions. Please avoid the extreme changes in temperature or humidity as condensation may form on or inside the camera.
  • Do not dry the camera or battery with microwave ovens or hair dryers. Damage to the camera or battery caused by liquid is excluded from the warranty.
  • Do not store the battery with metal objects such as coins, keys or necklaces. If the battery terminals come close to metal objects, fire may be caused.
  • Do not make any unauthorized alterations to the camera as this may compromise the safety, regulatory compliance, or performance, and may void the warranty.

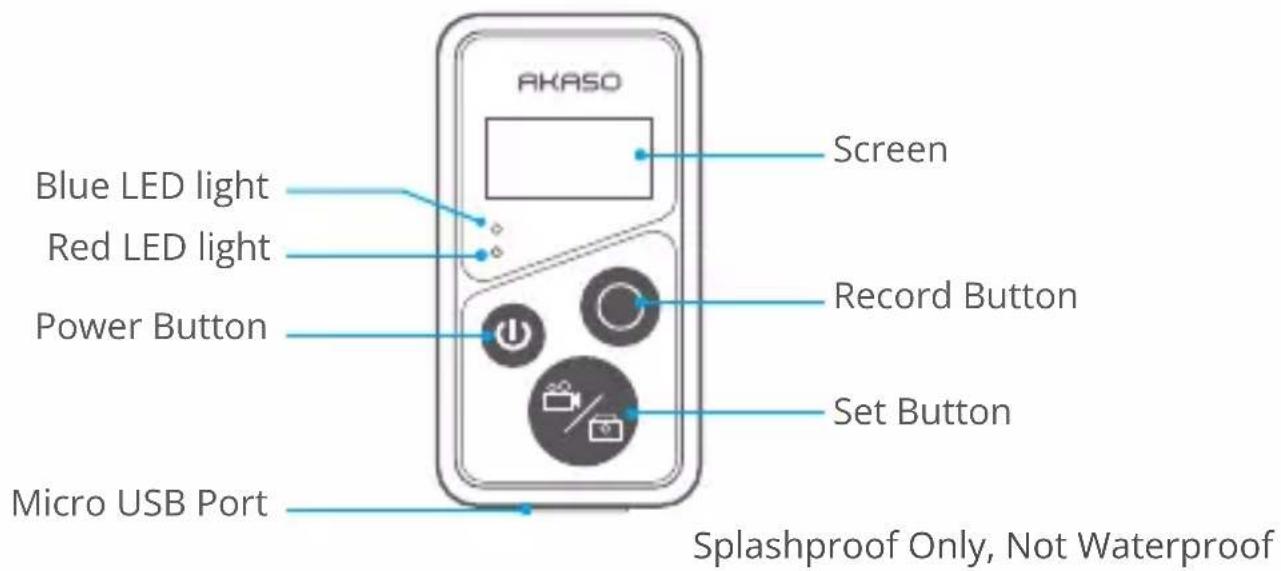

REMOTE BUTTON OPERATION INSTRUCTIONS

Akaso Brave 8 - REMOTE BUTTON OPERATION INSTRUCTIONS - 1

1. Remote Power on/off

FunctionOperation StatusOperationDetail
Power onOff Press thePower buttonPress the Power button to turn on the remote. The red and blue indicators will be flashing quickly.
PairPairing Press Set and Record buttons1. When the camera is turned on, swipe down to enter the quick menu, tap "Preferences" to find the "Remote" option, and tap on it to enable the remote feature. 2. Long press the remote's Record and Set buttons till its screen displays the date. The two indicators will black out. Then the remote is successfully connected to your camera. Warm tip: The remote will be connected to the camera automatically in your second use.
Power offOn Press thePower buttonPress the Power button again to turn off the remote control.

2. Photos/Videos

FunctionOperation StatusOperationDetail
Record videosVideo Mode OnPress the Record buttonPress the Record button to start recording. Press again to stop recording.
Take photosPhoto Mode OnPress the Record buttonPress the Record button to start taking photos.

3. Switch Mode

FunctionOperation StatusOperationDetail
Switch modeVideo or Photo Mode OnPress the Set buttonPress the Set button to switch the video or photo mode.

4. Turn off the Camera

FunctionOperation StatusOperationDetail
Control the camera to shut downOn Press and hold the Power button for 5 secondsPress and hold the Power button for 5 seconds, you can control the camera to shut down, and the remote control also automatically shuts down.

5. Indicator Status Description

Blue Light Red LightStatus Description
OffOff Power off
Flash quicklyFlash quickly Not paired
OffOff Work mode (power on)
/ Video RecordingFlash slowly
/Keep on (charging status) The remote is charging
/Off (charging status) The remote is fully charged

Akaso Brave 8 - Indicator Status Description - 1

Akaso Brave 8 - Indicator Status Description - 2

Akaso Brave 8 - Indicator Status Description - 3

Akaso Brave 8 - Indicator Status Description - 4

Akaso Brave 8 - Indicator Status Description - 5

CONTACT US

For any inquiries about AKASO products, please feel free to contact us.

We will respond within 24 hours.

Tel: (888) 466-9222 (US)

Email: cs@akasotech.com

Web: www.akasotech.com

BRAVE 8

A c t i o n K a m e r a

Akaso Brave 8 - BRAVE 8 - 1

QU'Y A-T-IL DANS LA BOITE

Akaso Brave 8 - QU'Y A-T-IL DANS LA BOITE - 1
AKASO Brave 8 x1

MISE SOUS/HORS TENSION

Pour allumer:

``` ``` ``` ``` ``` ``` ``

O 元 100000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000

Akaso Brave 8 - ``` ``` ``` ``` ``` ``` `` - 1

Akaso Brave 8 - ``` ``` ``` ``` ``` ``` `` - 2

USB 連絡

PYKOBODCTBO NOIb3OBATEJIa

CODEPXXAHNE

UTO BKOPO6KE 01
Bawa kamepa Brave 8 02
HAUJIO PABOTbI 05
OB3OPPEKIMOB 07
KoMnJIeKChbIe cyHkCmN 08
PykoBOIDCTBO 08
HacrpoKn Kamepb 09
HACTPOIKA PA3PEUHEHNA 11
ПЕРСОHAЛьная HACTPOИKA 12
Подклочене К пиложени 16
BOCIPON3BEDEHNEBAUETO KOHTEHTA 23
ПОДКЛЮЧЕНИЕ ПО USB 23
OBCJYKINBAHNE BAWEI KAMEPbI 24
YBEJIuHHeNCPOKA CJyKbI BATAPEN 24
PukOBoCTBO NO IcNoJIb3OBAHnIO KHOPIKIIyIbTA DInCTAHUOHHO UYPABJIeHnI 25
Akeccsyapb 27
CBJXTECCHAM 28

Akaso Brave 8 - CODEPXXAHNE - 1

Akaso Brave 8 - CODEPXXAHNE - 2

Akaso Brave 8 - CODEPXXAHNE - 3

Akaso Brave 8 - CODEPXXAHNE - 4

Akaso Brave 8 - CODEPXXAHNE - 5

Akaso Brave 8 - CODEPXXAHNE - 6

Akaso Brave 8 - CODEPXXAHNE - 7

Akaso Brave 8 - CODEPXXAHNE - 8

Akaso Brave 8 - CODEPXXAHNE - 9

Akaso Brave 8 - CODEPXXAHNE - 10

Akaso Brave 8 - CODEPXXAHNE - 11

Akaso Brave 8 - CODEPXXAHNE - 12

Akaso Brave 8 - CODEPXXAHNE - 13

Akaso Brave 8 - CODEPXXAHNE - 14

Akaso Brave 8 - CODEPXXAHNE - 15

Akaso Brave 8 - CODEPXXAHNE - 16

Akaso Brave 8 - CODEPXXAHNE - 17

Akaso Brave 8 - CODEPXXAHNE - 18

Akaso Brave 8 - CODEPXXAHNE - 19
AKASO Brave 8 x1

Akaso Brave 8 - CODEPXXAHNE - 20
Pamka kamepbx 1

Akaso Brave 8 - CODEPXXAHNE - 21
KpenneHnHaJHemx2

Akaso Brave 8 - CODEPXXAHNE - 22
IynbT DnCTaHcNoHHoro ynpabNeHx1

Akaso Brave 8 - CODEPXXAHNE - 23
3apnHoe yctpoNCTBOx1

Akaso Brave 8 - CODEPXXAHNE - 24
AkkymyTOp x2

Akaso Brave 8 - CODEPXXAHNE - 25
KpenneHnHa pylb/ nOcdeIbHbI uTbIpb x 1

Akaso Brave 8 - CODEPXXAHNE - 26
Kpenenne X7

Akaso Brave 8 - CODEPXXAHNE - 27
TkaHb dIa 06beKtNbA x1

Akaso Brave 8 - CODEPXXAHNE - 28
CtpaxoBOUHAR 3actekx5

Akaso Brave 8 - CODEPXXAHNE - 29
Pemeokdny Kpenenx4

Akaso Brave 8 - CODEPXXAHNE - 30
USB-ka6eJb x1

Akaso Brave 8 - CODEPXXAHNE - 31
PemeokIyX1BByxCTOpOHnCKOTU x2

Akaso Brave 8 - CODEPXXAHNE - 32

Akaso Brave 8 - CODEPXXAHNE - 33
KpaTKoe pyKOBOIDCTBO X1

Akaso Brave 8 - CODEPXXAHNE - 34

Akaso Brave 8 - CODEPXXAHNE - 35

Akaso Brave 8 - CODEPXXAHNE - 36

KhoNka 3aTbopa/Bbl6opa
1peepnHn 3KpaH
06beKTHB
KhoNka nHTaHnA
5ДинамнK
Cnot KapTbI namrTn

7 NopT USB-C
HnDnKaTOp 3apAdkN/Wi-Fi
93KpaH
KhoNka nepeKniUoyeHnpeKIMOB
KpbIuKa OTceKa aKKyMylTopa

PpmeaHne o cyHKunx KNONOK

Khonka nHTaHn:

Haxmte, yTo6bI BbIEcTn ycTpoNCTBO n3 cnraeero pexmHa. HaxmTe uyepKuBaTe dna BKJIOueHn/BlKJIIOueHn.

Khonka nepeKJIoueHnpeXIMOB:

Haxmnte, yTo6bI nepeKnIOuHTb peKIM.

Haxmte u ydepkvaite npeeknueHn meKdy nepeDnM n 3aHnM 3kpaHAM. (He pa6otaet BO Bpem 3anuc.)

IpeHn H 3aHn 3KpaHbI He MoryT pa6oTaTb OndHOBpeMeHHO.

Akaso Brave 8 - Khonka nepeKJIoueHnpeXIMOB: - 1

Akaso Brave 8 - Khonka nepeKJIoueHnpeXIMOB: - 2

1.3HaOK KapTbI NaMRTN:

OTo6paKaetocTabWeecBpeM3aHcN/koJIueCTBOΦoTOrpaΦn.

2. YpOBeHb 3aPja 6aTapei:

OTo6paKaet npoceHT 3apya 6aTapei.

3. BbIKIOuATEnb 3Byka:

Bknnoaetnn BbIKnOuae3Byk npn 3anncn Bndeo.

4. PeknM pOToCbeMKn:

IpeekJIIOUaAe peKIMbI nnOTo6paKaAeTeKyuI nepeKIM.

5. Pa3peWeHne:

OTo6paXaETekUeepa3peWeHneIyIyCTaHaBnBaETpa3peWeHne.

6. MacstabpoBaHne:

Perynnpyetyroncbemkn.

7. Ctrpauca foToIpaФn:

UnpaBJIeT cBemKo BnDeO BpeXmE BnDeO.

Приимechане: Камера He 6удET 3aINcblBaTb 3Byk, KOrda OHa HaxOДNTcR B BOДОненpoHицaemOM ФуТЯр.

HAUJIO PABOTbl

KpaTKoe pyKOBoDcTBO no haay pa60tbi

ToIbko 3aunTa oT 6pb3r. He BoDoHepOnncaeMbI

1.BKIOUeHne/BbIKIOUeHne NITaHnI Ndy

ФункцияСоspect网络安全ДемоставlesОпис网络安全
Вълоченье ПитаньВълНадаь кногу Питаньчывдпь"ЖКМЖР"МДпжКдь."Фплш" ЧЗыФдпь"MP3цр"снжOKш"Д"Одкд"ДКдж"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКд"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКд"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКд"ДКд"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКc"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКc"ДКd"ДКc"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКc"ДКd"ДКс"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКe"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКс"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКc"ДКd"ДКe"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКc"ДКd"ДКcd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКd"ДКcd"ДКd"ДКd"ДКcd"ДКd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКcd"ДКcd"ДКd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКCD"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДКcd"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК蝶"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК碟"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК进程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДК章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДК章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДК章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДК章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДК章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДК章程"ДK章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДК章程"ДК章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДК章程"ДК章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДК章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДК章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДК章程"ДK章程"ДK章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДК章程"ДK章程"ДК章程"ДK章程"ДК章程"ДК章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"ДK章程"DA

2.ФOTO/BuJeO

Manual assistant
Powered by ChatGPT
Waiting for your message
Product information

Brand : Akaso

Model : Brave 8

Category : Action camera
