Product type	Motion detector
Brand	Velleman
Model	E301LS
Power supply	220-240 V~, 50 Hz
Rated current	10 A
Maximum load (incandescent lamp)	1200 W
Maximum load (lamp with integrated ballast)	300 W
Protection rating	IP44
Ambient light adjustment range	< 5 - 50 lux (adjustable)
Operating temperature	-20 to +40 °C
Operating humidity	< 93 % RH
Detection type	Passive infrared (PIR)
Installation	Wall or corner mounting
Connection	Screw terminals
Adjustment	LUX potentiometer
Warm-up time	Approximately 30 seconds
Cleaning	Damp cloth, without solvents or harsh detergents
Safety	Installation by a qualified electrician; disconnect before servicing
Warranty	24 months for consumer products
Use	Indoor only

Frequently Asked Questions - E301LS VELLEMAN

How to install the E301LS motion detector?

Install the device on a wall or in a corner. Use the screws and plugs provided. Pass the wire through the cable gland and connect according to the diagram. Fix the detector to the bracket. Call a qualified technician and disconnect the power supply before any intervention.

How to adjust the light sensitivity (LUX)?

Turn the LUX knob fully counterclockwise to turn off the lamp, then turn it until it lights up at the desired brightness level. The adjustment range is < 5 to 50 lux.

Why does the connected lamp not turn on?

Check that the power supply is connected (220-240 V~, 50 Hz). Ensure the LUX knob is not in the total extinction position. The detector requires approximately 30 seconds warm-up after power-on.

What is the maximum load supported by the detector?

For an incandescent lamp, the maximum load is 1200 W. For a lamp with integrated ballast, it is 300 W. The rated current is 10 A.

Can I use the E301LS detector outdoors?

No, the device is designed for indoor use only. Its IP44 protection rating protects against water splashes, but it is not intended for prolonged exposure to weather.

How to clean the detector?

Clean occasionally with a damp cloth to maintain its new look. Do not use harsh chemicals, solvents, or strong detergents.

What to do if the detector does not work?

Check the electrical connections and the LUX setting. If the problem persists, consult a qualified technician or contact customer service. Do not open the device yourself.

What safety precautions must be observed?

Installation must be carried out by a qualified technician. Always disconnect the power supply before any intervention. Do not point the detector at reflective surfaces, heat sources, or moving objects (curtains, plants).

What is the warranty period for the detector?

The warranty is 24 months for consumer products, from the date of purchase. It covers manufacturing and material defects, but not damage due to incorrect use.

How to test the detector?

Turn on the device and wait about 30 seconds for warm-up. Turn the LUX knob fully counterclockwise to turn off the lamp, then adjust it until it lights up again. This confirms proper operation.

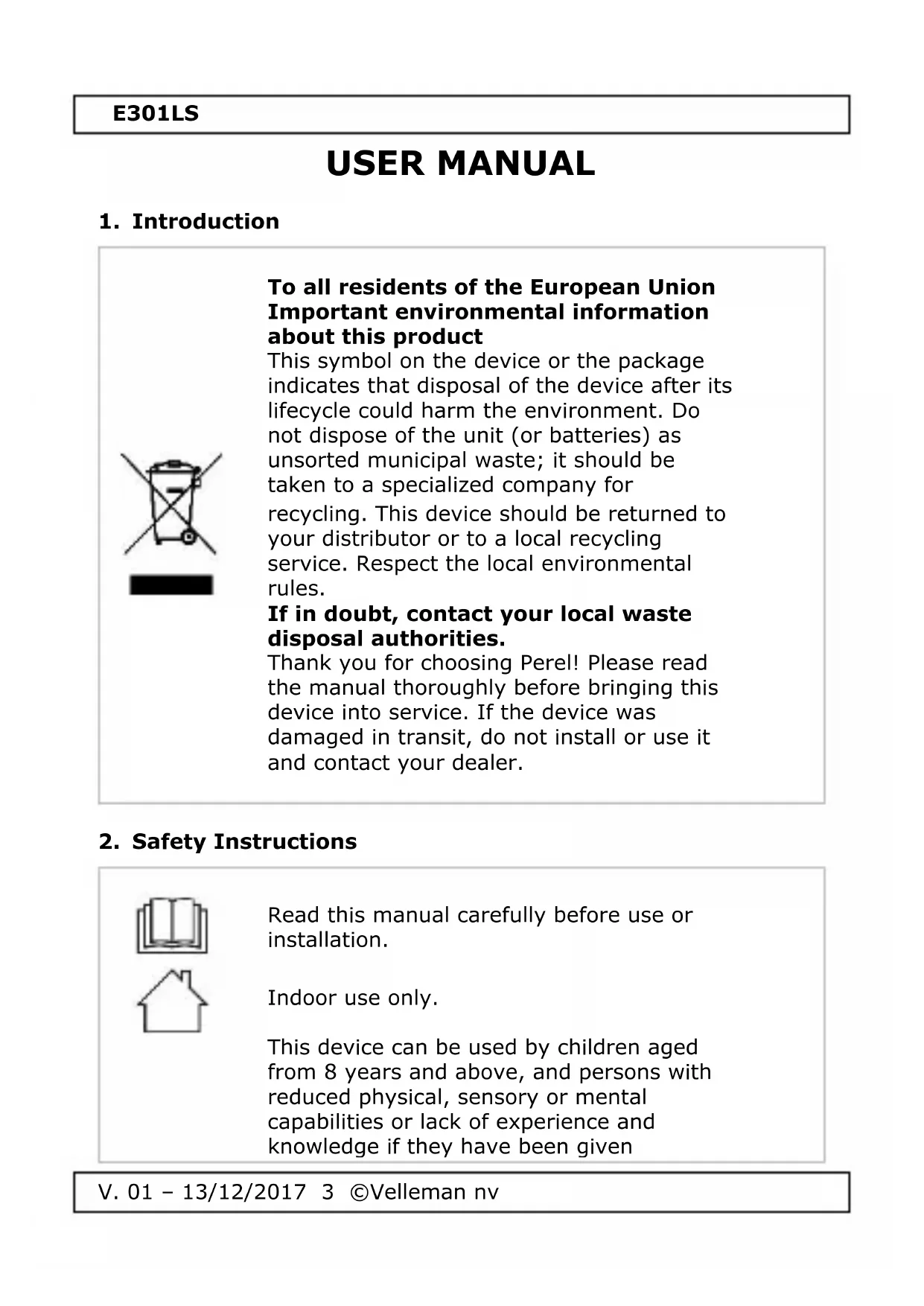

USER MANUAL E301LS VELLEMAN

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Perel! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Read this manual carefully before use or installation.

Indoor use only.

This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given

supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision. Do not use or install a visibly damaged device.

All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual. Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty. Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.

4. Installation and Connection

Installation Guidelines

Avoid pointing the detector towards objects with highly reflective surfaces such as mirrors.
Avoid pointing the detector near heat sources such as heating vents, air conditioning units, etc.

Avoid pointing the detector towards objects that may move in the wind such as curtains, plants, etc.
Install the detector at a distance of minimum 60 cm when using a lamp of 60 W or more.
Do not install the detector directly below a light source.

Installation

Install this detector flat on a wall or in a corner. Use an appropriate screwdriver and the included screws and nylon plugs.

1. Fix the bracket onto the wall using two nylon plugs and two screws.
2. Pass the wire through the cable gland and connect the wire according to the connection diagram. Screw the cable gland onto the detector.
3. Fix the detector onto the bracket.

Connection Guidelines

Risk of electroshock! Touching live wires can cause life-threatening electroshocks.

• Have the device installed by qualified personnel.
• Disconnect the power source.
• Cover and shield any adjacent live components.
• Ensure the device cannot be switched on.
• Make sure the power supply is disconnected.

See illustration on page 2.

1. 220 - 240V ,50 Hz power supply
2. load

E301LS

5. Operation

Testing the Detector

1. Test the detector at the point of time you feel the lamp needs to be switched on.
2. Switch on the power. The detector needs a warm-up time of ± 30 seconds before it will switch on the connected lamp.
3. Turn the LUX knob fully anti-clockwise. The lamp should switch off.

Setting the Detector

1. Turn the LUX knob until the lamp switches on.
2. Close the detector with the cover and tighten the screw.

6. Cleaning and Maintenance

This appliance does not need any particular maintenance. However, occasionally wipe it with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.

7. Technical Specifications

power supply 220-240 V\~, 50 Hz

rated current. 10 A

rated load

incandescent lamp .max. 1200 W

self-ballasted lamp max. 300 W

IP rating IP44

ambient light < 5-50 lux (adjustable)

working temperature -20 °C to + 40 °C

working humidity < 93 % RH

dimensions 80 x 105 mm

weight 107g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.perel.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All

worldwide rights reserved. No part of this manual may be copied,

reproduced, translated or reduced to any electronic medium or

otherwise without the prior written consent of the copyright holder.

HANDLEIDING

1. Inleiding

gloeilamp max. 1200 W

dimensions. 80 x 105 mm

poids 107g

luz ambiental < 5-50 lux (regulable)

Ver as imagens da网页 2.

1. alimentacao: 220-240 V\~, 50 Hz
   2.arga

5. Utilização

Testar o Detetor

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries. All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits; - consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
  flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;

• flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
