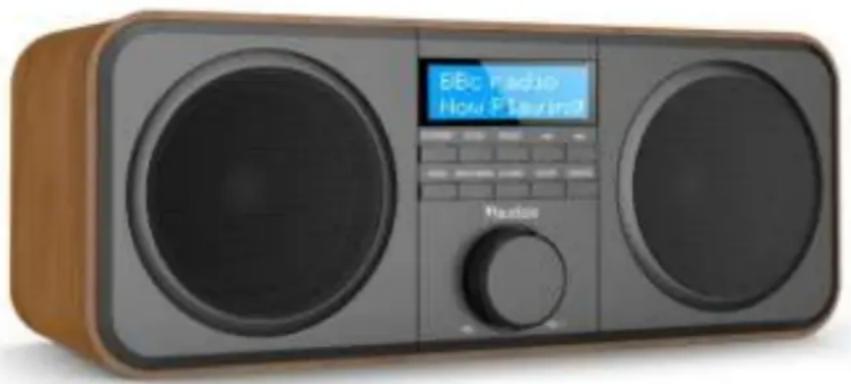

Novara - Radio Audizio - Free user manual and instructions

Product type	DAB+ / FM digital radio
Brand	Audizio
Model	Novara
Power supply	220–240 V~, 50 Hz
DAB+ frequency range	Band III (174–240 MHz)
FM frequency range	87.5–108 MHz
Number of presets	20 (10 DAB+ + 10 FM)
Functions	Alarm, Snooze, Clock, Auto/Manual Scan
Display	LCD screen
Speaker	Built-in
Antenna	Telescopic
Headphone jack	Yes (3.5 mm jack)
Dimensions (W x H x D)	Approx. 200 x 120 x 80 mm
Weight	Approx. 1 kg
Operating temperature	5 °C to 35 °C
Cleaning	Dry cloth, no harsh chemicals
Repairability	Repairs by authorized technician only
Safety instructions	Do not open, avoid moisture, unplug during storms

Frequently Asked Questions - Novara Audizio

How to set the time manually if the radio does not receive a DAB+ signal?

Press and hold Info/Menu, select date/time with Enter, then adjust hours and minutes with ▶ or ◀ and confirm with Enter. Then set the year, month, and date.

How to save a station as a preset?

First tune to the desired station. Press Preset for 3 seconds. Use ▶ or ◀ to choose the preset number (1-20), then press Enter to confirm.

Why does my radio not find any DAB+ stations?

Make sure the antenna is fully extended. Move the radio to a location with better reception. If the signal is still absent, perform a Full Scan by pressing Scan.

How to switch from DAB+ mode to FM mode?

Press the Mode button until the display shows FM. To return to DAB+, press Mode again and select DAB+.

What to do if the screen does not turn on?

Check that the device is properly plugged into a working power outlet (220-240 V). If the problem persists, contact an authorized technician.

How to use the alarm function?

Press and hold Alarm for 3 seconds. Select Alarm 1 or 2 with Enter. Set the hour, minutes, volume, then choose the mode (DAB, FM, or Alarm). Confirm with Enter.

How to reset the radio?

Press Info/Menu for a few seconds. Use ▶ or ◀ to access the reset option and press Enter. All presets will be erased.

How to clean the radio?

Use a dry, non-abrasive cloth. Never use detergent or abrasive products. Avoid any contact with water.

Can I use the radio with batteries?

The manual does not mention a battery compartment. The device operates only on mains power via the supplied power cord.

What to do in case of condensation after transportation?

Do not turn on the radio immediately. Leave it off until it reaches room temperature (about 1 to 2 hours) to avoid any damage.

USER MANUAL Novara Audizio

Ref. nr.: 102.410,102.412,102.414,102.416

INSTRUCTION MANUAL

GEBRUIKSAANWIJZING

MANUEL D'INSTRUCTIONS

INDEX

ENGLISH 4

UNPACKING INSTRUCTION 5
FRONTPANEL 5
GETTING STARTED 5
6
TIME SETTINGS 6
SET TIME - SNOOZE. 6
DAB+MODE 6
FM MODE 6
STATION STORE. 7
CLEANING AND MAINTENANCE 7

NEDERLANDS 8

UITPAKKEN 9
VOORAANZICHT 9
AAN DE SLAG 9
GEBRUK 9
TIJD INSTELLEN 10
TIJD INSTELLEN - SNOOZE 10
DAB+-MODUS. 10
FM-MODUS. 10
ZENDER OPSLAAN 11
FABRIKSEs RESET 11

SCHOONMAKEN EN ONDERHOUD 11

DEUTsCH 12

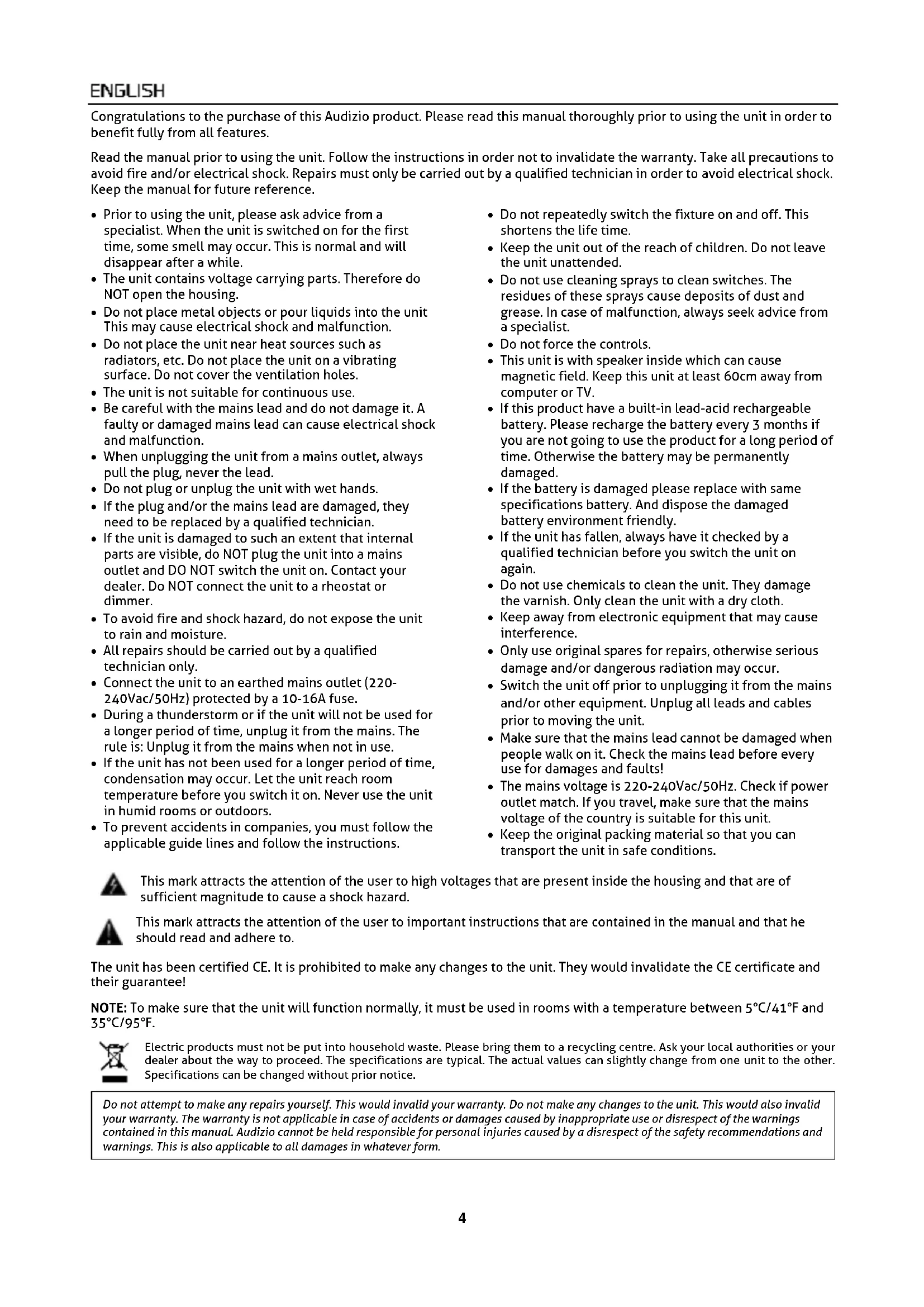

Congratulations to the purchase of this Audizio product. Please read this manual thoroughly prior to using the unit in order to benefit fully from all features.

Read the manual prior to using the unit. Follow the instructions in order not to invalidate the warranty. Take all precautions to avoid fire and/or electrical shock. Repairs must only be carried out by a qualified technician in order to avoid electrical shock. Keep the manual for future reference.

• Prior to using the unit, please ask advice from a specialist. When the unit is switched on for the first time, some smell may occur. This is normal and will disappear after a while.
• The unit contains voltage carrying parts. Therefore do NOT open the housing.
• Do not place metal objects or pour liquids into the unit. This may cause electrical shock and malfunction.
• Do not place the unit near heat sources such as radiators, etc. Do not place the unit on a vibrating surface. Do not cover the ventilation holes.
• The unit is not suitable for continuous use.
• Be careful with the mains lead and do not damage it. A faulty or damaged mains lead can cause electrical shock and malfunction.
• When unplugging the unit from a mains outlet, always pull the plug, never the lead.
• Do not plug or unplug the unit with wet hands.
• If the plug and/or the mains lead are damaged, they need to be replaced by a qualified technician.
• If the unit is damaged to such an extent that internal parts are visible, do NOT plug the unit into a mains outlet and DO NOT switch the unit on. Contact your dealer. Do NOT connect the unit to a rheostat or dimmer.
• To avoid fire and shock hazard, do not expose the unit to rain and moisture.
• All repairs should be carried out by a qualified technician only.
• Connect the unit to an earthed mains outlet (220-240Vac/50Hz) protected by a 10-16A fuse.
• During a thunderstorm or if the unit will not be used for a longer period of time, unplug it from the mains. The rule is: Unplug it from the mains when not in use.
• If the unit has not been used for a longer period of time, condensation may occur. Let the unit reach room temperature before you switch it on. Never use the unit in humid rooms or outdoors.

• To prevent accidents in companies, you must follow the applicable guide lines and follow the instructions.

• Do not repeatedly switch the fixture on and off. This shortens the life time.

• Keep the unit out of the reach of children. Do not leave the unit unattended.
• Do not use cleaning sprays to clean switches. The residues of these sprays cause deposits of dust and grease. In case of malfunction, always seek advice from a specialist.
• Do not force the controls.
• This unit is with speaker inside which can cause magnetic field. Keep this unit at least 60cm away from computer or TV.
• If this product have a built-in lead-acid rechargeable battery. Please recharge the battery every 3 months if you are not going to use the product for a long period of time. Otherwise the battery may be permanently damaged.
• If the battery is damaged please replace with same specifications battery. And dispose the damaged battery environment friendly.
• If the unit has fallen, always have it checked by a qualified technician before you switch the unit on again.
• Do not use chemicals to clean the unit. They damage the varnish. Only clean the unit with a dry cloth.
• Keep away from electronic equipment that may cause interference.
• Only use original spares for repairs, otherwise serious damage and/or dangerous radiation may occur.
• Switch the unit off prior to unplugging it from the mains and/or other equipment. Unplug all leads and cables prior to moving the unit.
• Make sure that the mains lead cannot be damaged when people walk on it. Check the mains lead before every use for damages and faults!
• The mains voltage is 220-240Vac/50Hz. Check if power outlet match. If you travel, make sure that the mains voltage of the country is suitable for this unit.
• Keep the original packing material so that you can transport the unit in safe conditions.

This mark attracts the attention of the user to high voltages that are present inside the housing and that are of sufficient magnitude to cause a shock hazard.

This mark attracts the attention of the user to important instructions that are contained in the manual and that he should read and adhere to.

The unit has been certified CE. It is prohibited to make any changes to the unit. They would invalidate the CE certificate and their guarantee!

NOTE: To make sure that the unit will function normally, it must be used in rooms with a temperature between 5^ / 41^ and 35^ / 95^ .

Electric products must not be put into household waste. Please bring them to a recycling centre. Ask your local authorities or your dealer about the way to proceed. The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

Do not attempt to make any repairs yourself. This would invalid your warranty. Do not make any changes to the unit. This would also invalid your warranty. The warranty is not applicable in case of accidents or damages caused by inappropriate use or disrespect of the warnings contained in this manual. Audizio cannot be held responsible for personal injuries caused by a disrespect of the safety recommendations and warnings. This is also applicable to all damages in whatever form.

UNPACKING INSTRUCTION

CAUTION! Immediately upon receiving the product, carefully unpack the carton, check the contents to ensure that all parts are present, and have been received in good condition. Notify the shipper immediately and retain packing material for inspection if any parts appear damage from shipping or the package itself shows signs of mishandling. Save the package and all packing materials. In the event that the product must be returned to the factory, it is important that the product be returned in the original factory box and packing.

If the device has been exposed to drastic temperature fluctuation (e.g. after transportation), do not switch it on immediately. The arising condensation water might damage your device. Leave the device switched off until it has reached room temperature.

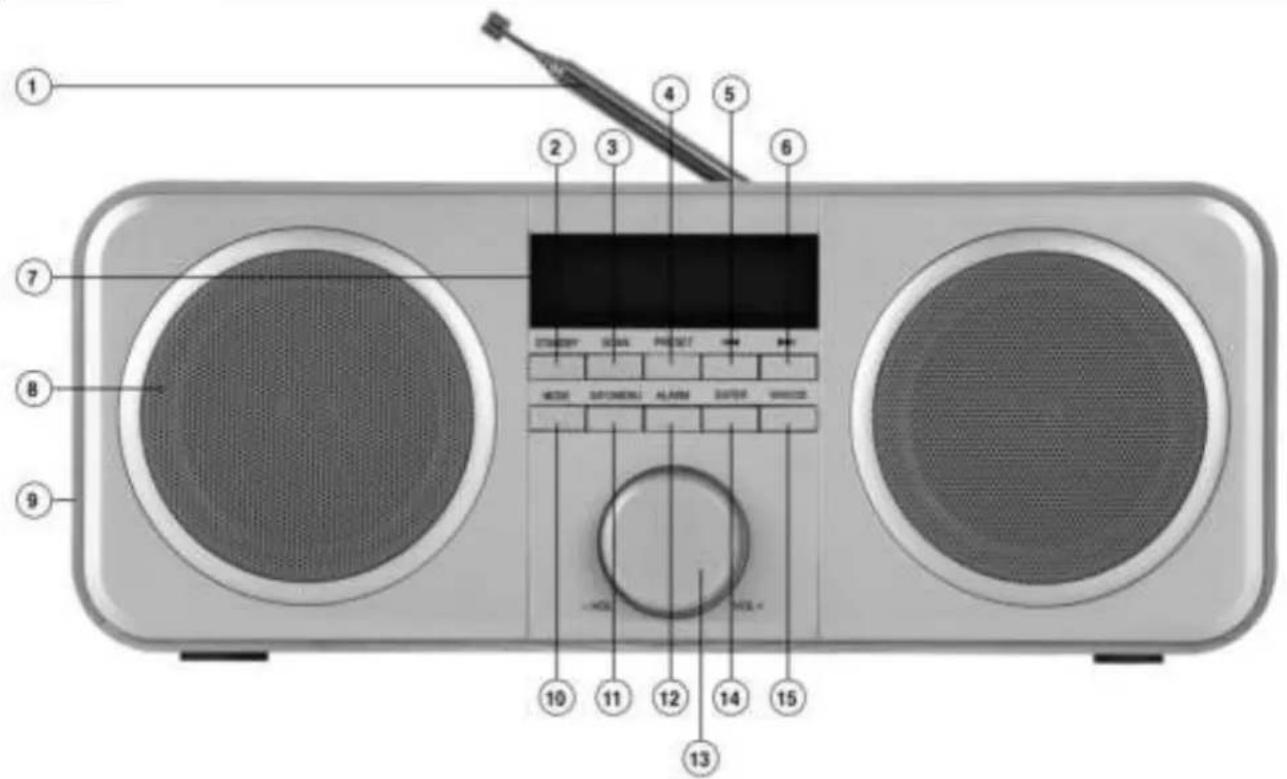

FRONTPANEL

1.ANTENNA
2. STANDBY
3. SCAN
4. PRESET
5. BACK BUTTON
6. FORWARD BUTTON
7. DISPLAY
8. SPEAKER
9. DC IN/HEADPHONE OUT (3.5MM AUDIO JACK)
10. MODE (SELECT FM/DAB)
11. INFO/MENU
12. ALARM
13. VOLUME
14. ENTER
15. SNOOZE

GETTING STARTED

1. Unpack the digital radio and remove all packing materials.
2. Completely unwind the power cord and plug it into the wall outlet.
3. Pull out the antenna completely.

USAGE

Press the [POWER]-button directly on the radio to turn on the unit.

On the display you will see "Welcome to Digital Radio",

The radio starts searching for DAB+ radio stations and sets the time and date automatically when there is a DAB signal available.

Note: if there is no DAB Signal, switch the radio off and move it to a location with a stronger signal.

If you push the [Power] button again the Radio will go to standby mode and the backlight will dim after a few seconds.

TIME SETTINGS

Note: Set the time manually if you are not receiving DAB+ signal. As soon as the radio receives DAB+ signal, the time will be set automatically.

Manual time setting

1. In when the unit is on, press the [Info/Menu] button for a few seconds to enter the time/date menu and push [Enter] to access.
2. Press [Enter] to set the hour with the [▶] or [▶-button. Press the [Enter] button to confirm the hour.
3. Set the minutes using the [▶] or [▶-] button. Press the [Enter] button to confirm.
4. Press enter again to set the year/month/date. Press [Enter] again to save the settings and close the menu.

SET TIME -SNOOZE

1. press the [Alarm] button for about 3 seconds until the "Alarm 1" or "Alarm 2" will appear on the display:
2. Press enter and select if you want to select to put a alarm on or off with the [▶] or [▶] buttons and press enter again.
3. Set the hour with the [▶] or [▶] button and confirm with the [Enter]-button.
4. Set the minute using the [▶] or [▶] button and confirm with the [Enter]-button.
5. Set the volume using the [▶] or [▶] button and confirm with the [Enter]-button.
6. Set the Alarm mode [choose between DAB,FM or Alarm] using the [11] or [11] button and confirm with the [Enter]-button.
7. Now the alarm is activated or deactivated.

Note: You can use the [Snoopze] button when the alarm is ringing, the alarm will turn off and after a few minutes it will be activated again "Snoopze".

DAB·MODE

When the radio is connected to the power supply for the first time, Press the mode button to select DAB+

When station search is complete, you can use the [▶] or [▶-] button to tune in the individual stations. The stations are displayed alphabetically. To select a station, press the [ENTER] key.

Full Scan

The "Full Scan" searches all DAB+. After searching for a channel, the found channels are listed alphabetically and the first channel is played back.

1. To activate the scan, press the [SCAN] button until the display shows .
2. All found stations are automatically saved. Use the [▶] or [←]-button to find the desired station and press the [ENTER] button to select the station.

FM MODE

Switch from DAB+ mode to FM mode by pressing the [Mode] button and selecting FM, The display will show the frequency.

Automatic station search

Press the [SCAN] button on the radio to start the automatic station search.

When a station is found, the scan stops automatically.

Manual station search

Press the [PREV/NEXT] buttons to manually select a station.

STATION STORE

You can store up to 20 stations, 10 stations in DAB+ mode and 10 stations in FM mode.

1. Set the desired station.
2. Press the [Preset] button for about 3 seconds.
3. Use [or] buttons to select the number where you want to store the station and press [ENTER] button to confirm.
4. Confirmation appears on the display.
5. Once a station has been stored, you can recall the station by pressing the [Preset] button.
6. Use the [▶] or [←] buttons to scroll through the preset stations and press the [ENTER] button to select the desired station.

FACTORY RESET

1. Push the [info/menu] button for a few seconds
2. Go to with the [▶▶] or [■] buttons
3. select with the [▶▶] or [▶▶] buttons en push the [Enter] button
4. After the radio is reset, the radio will start searching for DAB+ radio stations and will set the time again if there is a strong DAB+ signal.

Note: Please note that all programs will be deleted after the reset.

CLEANING AND MAINTENANCE

Radio

Clean the radio with a slightly moistened cloth. The cloth must not be wet! Do not use aggressive cleaning agents!
- Do not place the radio in a hot, humid or dusty place.
- Keep your radio away from devices that generate heat or emit electrical signals.

Playback Options: DAB+ tuner, FM radio

Output Connections: 3.5mm jack

Output Power: 40W

Power Supply: 100-240VAC 50/60Hz (5V Adapter)

Dimensions: 280 × 130 × 110mm

Weight: 1.35kg

The specifications are typical. The actual values can slightly change from one unit to the other. Specifications can be changed without prior notice.

The products referred to in this manual is conforming European and UK legislation directives to which they are subject:

European Union

United Kingdom

Tronios B.V.,

7602KR Almelo, The Netherlands

2014/35/EU

2014/30/EU

2011/65/EC

Tronios Ltd.,

130 Harley Street,

London W1G 7JU, United Kingdom

S.l. 2016:1101

S.l. 2016:1091

S.l. 2012:3032

Specifications and design are subject to change without prior notice.

www.audizio.com

Copyright © 2022 by Tronios The Netherlands
