USER MANUAL BTR Xtreme 5.0 Oehlbach

Mobiler Bluetooth Transmitter/Receiver

BTR Xtreme 5.0

User manual | Warranty information

You can download the operating instructions online. Please scan the QR code to get to the product page.

QR code image containing encoded data, no visible human-readable text

Warning symbol image with exclamation mark inside triangle

i

Use only power supplies listed in the user instructions.

GER	6
ENG	16
FRA	25
NLD	35
ITA	45
ESP	55
POL	65
GRE	75
RUS	86

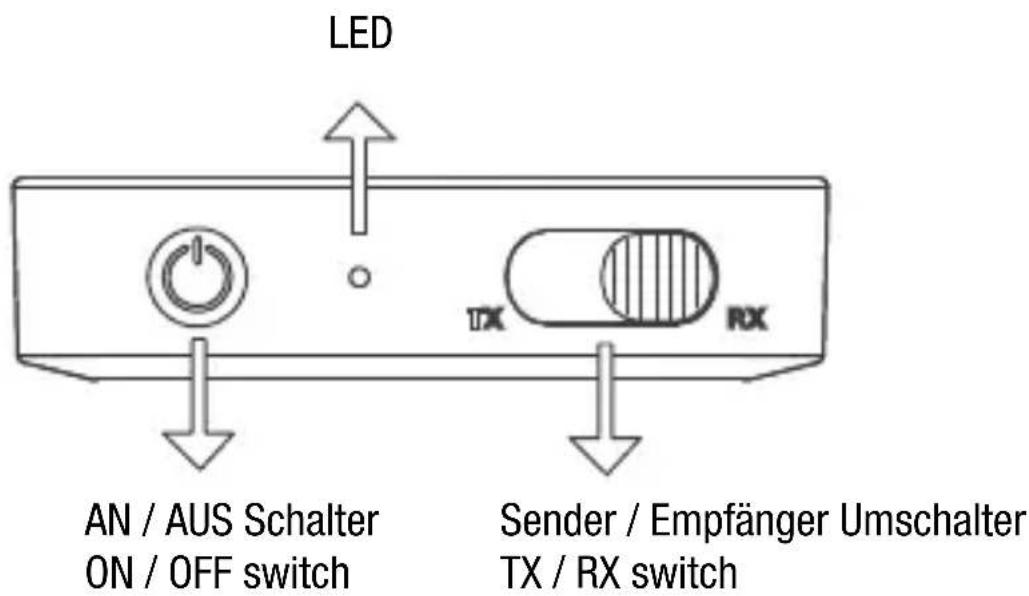

Operating Elements

Diagram of a device with internal components and directional arrows indicating movement or force (no text or symbols)

Micro USB charging port

Pure electrical connector diagram showing a curved black cable with two terminal connectors (no text or symbols)

Pure electrical circuit lines without any symbols

Bluetooth Version: 5.0 - aptX, Aptx-LL HD,

Low Latency,

Reichweite: bis 10m

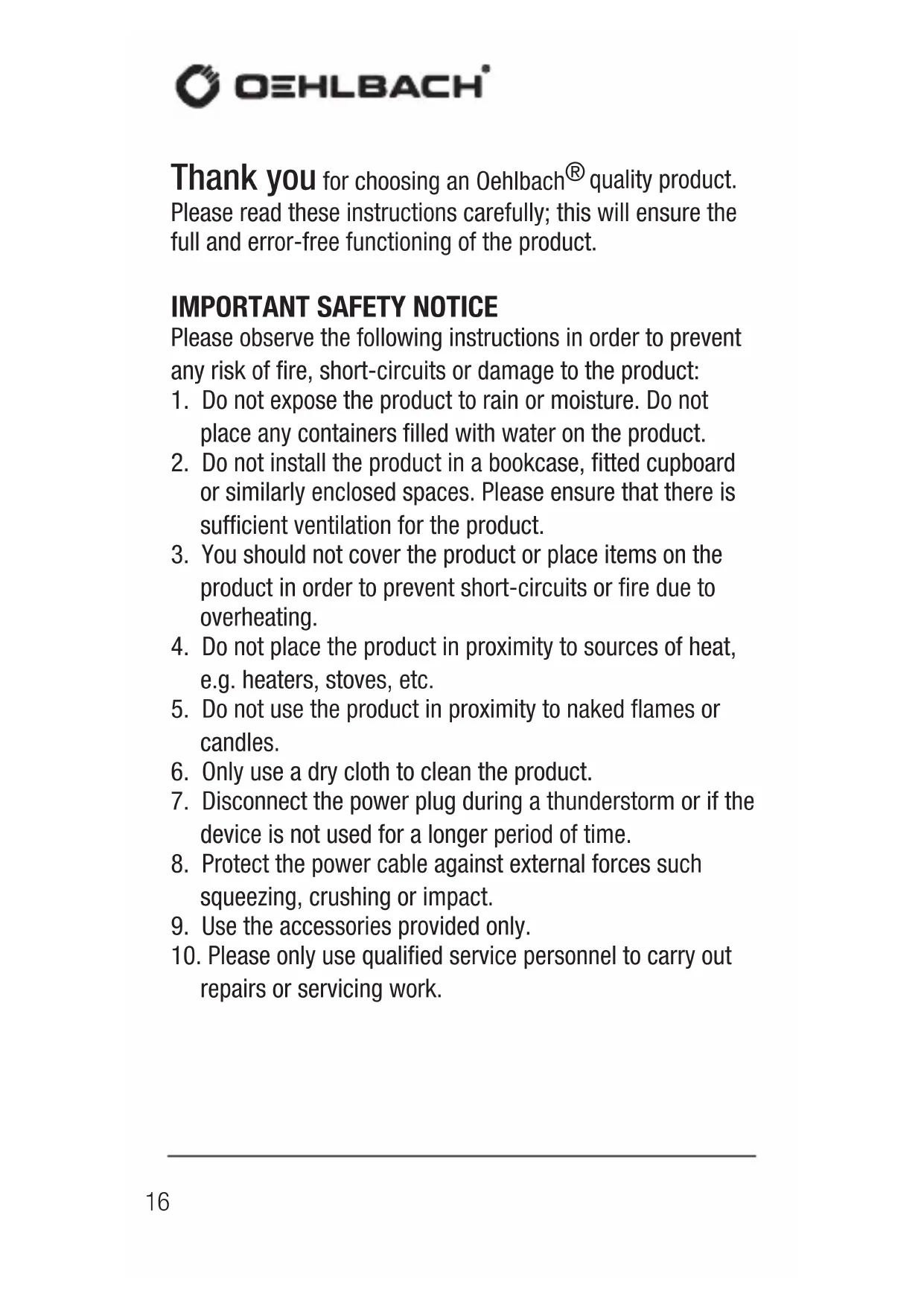

Thank you for choosing an Oehlbach® quality product. Please read these instructions carefully; this will ensure the full and error-free functioning of the product.

IMPORTANT SAFETY NOTICE

Please observe the following instructions in order to prevent any risk of fire, short-circuits or damage to the product:

1. Do not expose the product to rain or moisture. Do not place any containers filled with water on the product.
2. Do not install the product in a bookcase, fitted cupboard or similarly enclosed spaces. Please ensure that there is sufficient ventilation for the product.
3. You should not cover the product or place items on the product in order to prevent short-circuits or fire due to overheating.
4. Do not place the product in proximity to sources of heat, e.g. heaters, stoves, etc.
5. Do not use the product in proximity to naked flames or candles.
6. Only use a dry cloth to clean the product.
7. Disconnect the power plug during a thunderstorm or if the device is not used for a longer period of time.
8. Protect the power cable against external forces such squeezing, crushing or impact.
9. Use the accessories provided only.
10. Please only use qualified service personnel to carry out repairs or servicing work.

COMPLIANCE WITH EU DIRECTIVES

This product is eligible to bear the CE mark. It complies with the EU Low Voltage Directive 2014/35/EC; EU Directive 2014/30/EC on electromagnetic compatibility; EU RoHS Directive 2011/65/EC; EU Directive on Waste Electrical and Electronic Equipment (WEEE) 2012/19/EC.

Hereby, Oehlbach Kabel GmbH declares that the device BTR Xtreme 5.0 is in compliance with the essential requirements and other relevant provisions of directive 2014/53/EU. The Declaration of Conformity can be found at www.oehlbach.com.de in the download area of the device.

You can obtain a free copy of the Declaration of Conformity by contacting your retailer, distributor or the headquarters of Oehlbach Kabel GmbH. Contact information can be found at: http://www.oehlbach.com.

The declaration of conformity can be found under: http://www.oehlbach.com/compliance/6050

Operating frequency: 2402-2480 MHz Maximum emitted power according to EN 62479: 3,7 dBm

DISPOSAL ADVICE

In accordance with the European Guideline 2012/19/EC all electrical and electronic equipment must be disposed of separately at local collection points. Please observe local rules and do not dispose of your old equipment in the normal household waste!

PACKAGING CONTENTS

· Oehlbach BTR Xtreme 5.0
· 3,5 mm Jack jack cable 0,18m
- USB cable for power supply - 0,3m
- Operating instructions

The Oehlbach BTR Xtreme 5.0 is a Bluetooth 5.0 2in1 adapter. In the transmitter mode, audio signals can be received by cable and sent wirelessly from the BTR Xtreme 5.0 to Bluetooth compatible headphones or active speakers. In receiver mode you can easily send music or audio content from a smartphone, tablet or computer wirelessly to the BTR Xtreme 5.0 and output it analogously via the 3.5 mm jack interface to a device/loudspeaker/headphones. Both happens in CD quality thanks to aptX HD support. Due to the low latency feature the BTR Xtreme 5.0 reaches an extremely low latency of less than 40ms and transmits the sound without noticeable delay.

FUNCTIONS

• 2in1 Bluetooth adapter enables sending and receiving in one device.
• Can be paired with two devices simultaneously in transmitter or receiver mode
• With a weight of 18 g very light and perfectly mobile
• Bluetooth version 5.0
  • 3.5 mm interface for analog signals.
• aptX HD guarantees audio transmission in CD quality.
  • Very low latency of less than 40ms
• Operation possible while charging the battery

SPECIFICATION

Bluetooth version: 5.0 - aptX, Aptx-LL HD, Low latency,

Range: up to 10m

Temperature range: -10 to +55 °C

Permissible relative humidity: 5 to 90%.

Power supply: 5V / 150 mA

Dimensions: 43 x 43x 10.7 (W x H x D in mm)

Weight: 0,018 kg

Frequency band: 2.402GHz-2.480Ghz

Connectors: 3.5mm jack, USB power supply

Control elements: On/Off switch, TX/RX selection

Finish: black, white

charging time: approx. 2h

Battery life: approx. 12h

Battery: 250 mAh lithium-ion battery

Chipset: CSR 8675

OPERATION

Preparation

Before using the BTR Xtreme, fully charge the BTR Xtreme and make sure that the mobile phone or computer you are using with this product is sufficiently charged or connected to the mains.

BTR Xtreme 5.0 as a Bluetooth transmitter

In transmitter mode, the BTR Xtreme 5.0 can be connected to other Bluetooth enabled devices that use a Bluetooth receiver to receive audio signals wirelessly. Here the BTR Xtreme 5.0

acts as a Bluetooth transmitter:

1. Before pairing the BTR Xtreme 5.0 with devices, other Bluetooth enabled devices should be switched off. This ensures a problem-free pairing of the devices.
2. Set the selector switch of the BTR Xtreme 5.0 to "TX". Then switch on the BTR Xtreme by pressing the ON/OFF button.
3. Press the on/off button of the BTR Xtreme 5.0 twice in quick succession to enter pairing mode. Now the function light should flash alternately red and blue.
4. The BTR Xtreme 5.0 can now be found by other Bluetooth enabled devices and pairing is possible.
5. When pairing is complete, the blue LED flashes once every 8 seconds and audio signals can be transmitted.
6. To switch off the BTR Xtreme 5.0, press and hold the On/Off button for 2 seconds.

BTR Xtreme 5.0 as a Bluetooth Receiver

In receiver mode the BTR Xtreme 5.0 can be connected to other Bluetooth enabled devices that use a Bluetooth transmitter to send audio signals wirelessly. Here the BTR Xtreme 5.0 acts as a Bluetooth receiver. To use the BTR Xtreme 5.0 in receiver mode, set the selector switch of the BTR Xtreme 5.0 to “RX” and follow the instructions above from point three.

Operating modes

Switch on

Press the On/Off button for at least 2 seconds. The blue LED lights up 3 times.

Switch off

Press the On/Off button for at least 2 seconds. A red light comes on.

Automatic switch off

If no connection is established within 5 minutes in pairing mode, the BTR Xtreme 5.0 will automatically switch off. If the battery charge is less than 3.3V, all LEDs light up red. If the battery charge is less than 3.1V, the device switches off automatically.

Change mode

Change the switch from TX to RX (or vice versa). Always change the mode with the power off.

Connecting devices

Press the On/Off button of the BTR Xtreme twice. The LED flashes alternately red and blue and searches for other Bluetooth devices. When the BTR Xtreme is connected, the blue LED lights up once every 8 seconds.

Terminate connection

If no connection is established after 300s, the connection mode is automatically aborted.

Erase memory

When the mode is changed (TX/RX), the memory is erased accordingly. Always change the mode when the power is off.

Coupling 2 devices (RX)

Turn on the BTR Xtreme 5.0 and select the RX mode. Pair the mobile phone or other Bluetooth device with the BTR. After successful pairing press the on/off button twice.

This will disconnect the connection and search for a new device. From the second Bluetooth device, turn on the Bluetooth search mode and pair with the BTR Xtreme. After successfully pairing the second Bluetooth device, turn on the first Bluetooth device and select the BTR Xtreme from the paring list. After this step both Bluetooth devices are successfully connected.

2 Coupling devices (TX)

Turn on the BTR and set it to TX mode. Now proceed as for pairing in RX mode.

Pause/play music

Press the On/Off button once to play or pause music.

Troubleshooting

The BTR Xtreme 5.0 cannot be switched on

a) Please make sure that the BTR Xtreme 5.0 is sufficiently charged
b) Check if you press and hold the on/off button for at least 2 seconds

The BTR Xtreme 5.0 cannot be connected to another device

a) Make sure that the Bluetooth device is no more than 1 m away during pairing mode.

b) Make sure that Bluetooth is enabled on the device to be paired and is in search/pair mode.
c) Check that you have selected the correct Bluetooth mode (receiver/transmitter).

The BTR Xtreme 5.0 is connected to a device, but it is not possible to play music

a) Make sure that both devices are coupled. Please note that the maximum range is 10 m. If there are walls or objects between the units, the range will be reduced.
b) Make sure that the volume control of the player is set between 50 and 100%.

Warranty

Congratulations! Thanks to your intelligent choice you are now the proud owner of an OEHLBACH ^® product. OEHL-BACH ^® products enjoy an excellent reputation around the world due to their high quality. This high quality standard allows us to provide a 2 year warranty for this OEHLBACH ^® product. OEHLBACH ^® products are continuously inspected and checked throughout the entire manufacturing process. If service is necessary, however, please observe the following:

1. The warranty period starts with the purchase of the product and only applies to the original owner.
2. During the warranty period we will rectify any defects that are due to faulty material or workmanship by replacing or repairing the defective part at our discretion. Further claims, and in particular those for price reduction, cancellation of sale, compensation for damage or subsequent damage, are excluded. The warranty period is not affected by any work we

provide under the warranty.

1. The product should not be tampered with.
2. In the event of a warranty claim please contact your authorised dealer first. Should it prove necessary to return the product to us, please ensure that

- the product is sent in its original factory packaging in good condition,

- your proof of purchase is enclosed.

1. The following are excluded from the warranty:

- Illuminants

- Wear parts

- Shipping damages, either readily apparent or concealed (claims for such damages must be lodged immediately with the shipping agent, the railway express office or the post office).

- Scratches in metal components, front panels, etc. (You must notify your authorised dealer directly of such defects within 5 days of purchase).

- Defects caused as a result of incorrect installation, faulty connection, improper operation (see user manual), overloading or external force.

- Improperly repaired or modified devices that have been opened by a party other than us.

- Subsequent damage to other devices.

- Reimbursement of costs for repairing damage that has been caused by a third party without our prior conse.
