265897 - Drill SILVERLINE - Free user manual and instructions

Brand	Silverline
Model	265897
Product Type	Corded Hammer Drill
Rated Voltage	230 V~, 50 Hz
Power Input	500 W
No-Load Speed	0 - 3,000 min⁻¹
Impact Rate	0 - 48,000 blows/min
Chuck Capacity	1.5 - 13 mm
Max. Drilling Capacity - Masonry	13 mm
Max. Drilling Capacity - Wood	30 mm
Max. Drilling Capacity - Steel	10 mm
Dimensions (L x W x H)	270 x 70 x 210 mm
Weight	1.58 kg
Power Cord Length	1.8 m
Protection Class	II (double insulated)
Protection Rating	IP20
Sound Pressure Level (LpA)	92.1 dB(A)
Sound Power Level (LwA)	103.1 dB(A)
Weighted Vibration - Drilling mode	3.871 m/s²
Weighted Vibration - Hammer mode	16.327 m/s²
Operating Modes	Drilling, hammering
Rotation Direction	Reversible
Variable Speed	Yes, by thumbwheel
Auxiliary Handle	Yes, removable
Depth Stop	Yes, adjustable
Warranty	3 years (upon registration)

Frequently Asked Questions - 265897 SILVERLINE

How to install the auxiliary handle on the Silverline 265897 drill?

Loosen the thumbwheel of the auxiliary handle by turning it counterclockwise. Slide it onto the chuck and the clamping collar, then tighten by turning the handle clockwise. Make sure it is not attached to moving parts before use.

How to adjust the depth stop?

Loosen the auxiliary handle, slide the depth stop into its bracket, and adjust it to the desired depth. The distance between the end of the stop and the tip of the drill bit corresponds to the drilling depth. Tighten the handle to lock.

How to change the drill bit or accessory?

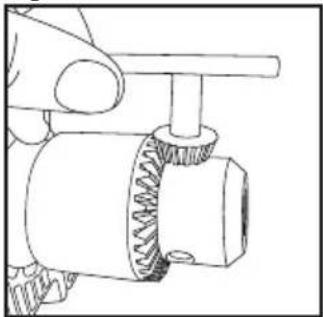

Insert the chuck key into one of the adjustment holes on the chuck. Turn counterclockwise to open the jaws. Insert the bit, then turn the key clockwise to tighten. Remove the key and check that the bit is securely held.

How to select hammer or drill mode?

Use the mode selector located on the top of the drill. Push it toward the hammer symbol (percussion) for drilling masonry or concrete, and toward the drill symbol for wood and metal. Never change modes while the tool is running.

How to reverse the rotation direction?

Use the rotation direction switch located above the trigger. Push it to the desired position (forward or reverse). Never change the rotation direction while the drill is running.

How to adjust the rotational speed?

Turn the speed adjustment knob located on the handle. Turn clockwise to increase speed and counterclockwise to decrease it. Never adjust the speed while the tool is running.

How to use the continuous operation function?

Press and hold the on/off trigger, then press the continuous operation button. Release the trigger, then the button. The drill will continue running. To stop, press and release the trigger again.

What protective equipment should I wear?

Always wear safety glasses, a dust mask, hearing protection (as noise exceeds 85 dB), anti-vibration gloves, and a hard hat if necessary. Wear fitted clothing and remove jewelry and long hair.

How to clean and maintain the drill?

Unplug the tool before any cleaning. Clean the housing with a soft, damp cloth (not water directly). Do not use caustic products. Regularly lubricate moving parts with an appropriate spray. Check the condition of the cable and carbon brushes.

What to do if the drill does not start or operates abnormally?

Check the fuse and the power cord. If the motor overheats, let it cool down and clean the vents. If sparks appear or speed is abnormal, the carbon brushes may be worn: contact a Silverline authorized service center. For any other problem, refer to the troubleshooting table in the manual.

USER MANUAL 265897 SILVERLINE

Black and white photo of a Silverlinec DIY Series electric drill press on a stand, with a circular logo below (no text on the device itself)

1 2 3 4 5 SILVERLINEC DIY SERIES 6 7 8 9 10 11 12 13 14 15 16

Fig.1

Diagram of a mechanical component with rotational motion arrows (no text or symbols)

Fig.II Fig.III

Technical line drawing of a mechanical device with rotating shaft and housing (no text or symbols)

Technical line drawing of a precision measuring tool with a ruler and lever (no text or symbols)

Fig.IV

Hand holding a mechanical gear assembly (no text or symbols visible)

Fig.V Fig.VI

Diagram of a mechanical device with a diagonal bar and lock mechanism, no text or symbols present

Diagram of a mechanical drill bit with directional arrow indicating motion (no text or symbols)

Fig.VII

Technical diagram showing two configurations of a drill bit with directional arrows and cross/minus symbols indicating alignment or tolerance.

Fig.VIII

Technical line drawing of a mechanical component with no visible text or symbols

Fig. IX

Pure mechanical diagram showing three vertical slots with arrows indicating rotation, no text or symbols present

Fig.X

Simple line drawing of a device with a circular component and directional arrows, no text or symbols present.

Fig.XI

Line drawing of a hand holding a device with an arrow pointing to it (no text or symbols present)

Fig.XII

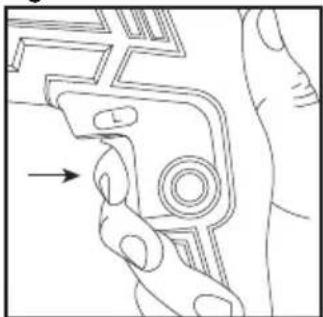

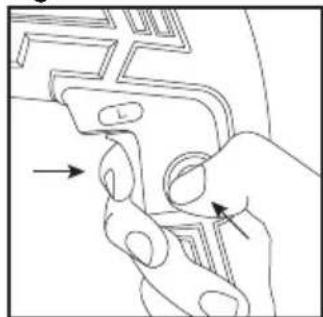

Hand holding a device with an arrow pointing to the button (no text or symbols visible)

Fig.XIII

Technical line drawing of a mechanical component with a ruler and threaded rod (no text or symbols)

English ......6

Français ......12

Deutsch......18

Español......24

Nederlands ......30

Polski ......36

Introduction

Thank you for purchasing this Silverline product. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the product read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection.

Wear eye protection.

Wear breathing protection.

Wear head protection.

Wear hand protection.

Read instruction manual.

Caution!

Class II construction (double insulated for additional protection)

Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!

Environmental Protection

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Conforms to relevant legislation and safety standards.

Keep bystanders away!

DO NOT use in rain or damp environments!

Technical Abbreviations Key

V Volts
~, AC Alternating current
A, mA Ampere, milli-Amp
n_0	No load speed
Nm Newton metres (torque)
∅ Diameter
Hz Hertz
W, kW Watt, kilowatt
/min or min ^1	Operations per minute
rpm Revolutions per minute
bpm Blows (impacts) per minute (drill)
dB(A) Decibel sound level (A weighted)
m/s ^2	Metres per second squared (vibration magnitude)

Specification

Voltage: 230V\~, 50Hz

Power: 500W

No load speed: 0-3000min ^1

Impact rate: 0-48,000bpm

Chuck capacity: 1.5-13mm

Ingress protection: IP20

Protection Class:

Power cord length: 1.8m

Max drilling capacity:

Masonry: 13mm

Wood: 30mm

Steel: 10mm

Dimensions: 270 x 70 x 210mm

Weight: 1.58kg

As part of our ongoing product development, specifications of Silverline products may alter without notice.

Sound and vibration information:

Sound pressure L : 92.1 dB(A

Sound power L _w : 103.1dB(A)

Uncertainty K: 3dB

Weighted vibration (Drilling mode): 3.871m/s²

Weighted vibration (Hammer Mode): 16.327 m/s ^2

Uncertainty K: 1.5m/s2

The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary.

The sound intensity level for the operator may exceed 85dB(A) and sound protection measure are necessary.

⚠ WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

⚠ WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the

figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another. The declared vibration total value may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission during actual use of the power tool can differ from the declared total value depending on the ways in which the tool is used. There is the need to identify safety measures to protect the operator that are based on an estimation of exposure in the actual conditions of use (taking account of all parts of the operating cycle such as the times when the tool is switched off and when it is running idle in addition to the trigger time).

Carefully read and understand this manual and any label attached to the tool before use. Keep these instructions with the product for future reference. Ensure all persons who use this product are fully acquainted with this manual.

Even when used as prescribed it is not possible to eliminate all residual risk factors. Use with caution. If you are at all unsure of the correct and safe manner in which to use this tool, do not attempt to use it.

General Power Tool Safety Warnings

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term "power tool" in the warnings refers to your mains operated (corded) power tool or battery-operated (cordless) power tool.

1) Work area safety

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.

3) Personal safety

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.

d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.

e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.

h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Service

a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.

Specific Safety

Hammer Drill Safety

WARNING!

• Wear ear protectors when impact drilling. Exposure to noise can cause hearing loss.
• Use auxiliary handle(s), if supplied with the tool. Loss of control can cause personal injury.
• Hold power tool by insulated gripping surfaces, when performing an operation where the cutting accessory may contact hidden wiring or its own cord. Cutting accessory contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock

IMPORTANT: If you suspect or discover asbestos is present in any area you are working in, seek professional advice immediately. Removal of asbestos should be done by a licensed contractor. Contact the HSE in the UK (www.hse.gov.uk) or your national health and safety authority in your country for further information about dealing with asbestos. European Directive 2009/148/EC provides additional information related to exposure to asbestos at work.

a) DO NOT allow anyone under the age of 18 years to use this tool. Ensure that operators are qualified and familiar with the operating and safety instructions.
b) Use personal protective equipment (PPE) including safety glasses and protective clothing.
c) Wear respiratory protection suitable for the work being undertaken. A minimum rating of FFP2 is recommended.
d) If operating the tool causes discomfort in any way, stop immediately and review your method of use.

e) Wear suitable protective anti-vibration gloves that are non-fabric or coated fabric to prevent loose strands of material catching in the rotating drill bit. Discard gloves immediately if material is visibly frayed.

f) Hammer drills produce a very high level of vibration when operating in hammer mode. Frequent breaks are advised.

g) Use metal and voltage detectors to locate concealed electric, water or gas lines. Avoid touching live components or conductors.

h) Extension cable reels used with this tool must be completely unwound. Minimum conductor cross section: 1.0mm2.

i) When using this tool outdoors fit a RCD (GFCI in USA and Canada) to the mains connection. Ensure any extension cables used are suitable for outdoor use with water-resistant connections.

j) Ensure that the drill bit is securely fixed in the chuck. Insecure drill bits can be ejected from the tool causing a hazard.

k) Ensure that the lighting is adequate.

i) Ensure that the drill bit is in contact with the workpiece prior to starting up the tool.

m) Before drilling, check that there is sufficient clearance for the drill bit under the workpiece.

n) Use both hands when operating this tool.

o) DO NOT put pressure on the tool; to do so would shorten its service life.

p) Drill bits get hot during operation; allow to cool prior to handling them.

q) NEVER use your hands to remove sawdust, chips or waste close by the bit.

r) If you are interrupted when operating the drill, complete the process and switch off before looking up.

s) Where possible, use clamps or a vice to hold your work.

t) ALWAYS disconnect the hammer drill from the electric supply before changing a drill bit.

u) Examine the chuck regularly for signs of wear or damage. Have damaged parts repaired by a qualified service centre.

v) ALWAYS wait until the drill has come to a complete stop before putting it down.
w) On completion of the work, disconnect the tool from the power source and remove bit from the tool.
x) Periodically check all nuts, bolts and other fixings and tighten where necessary

Product Familiarisation

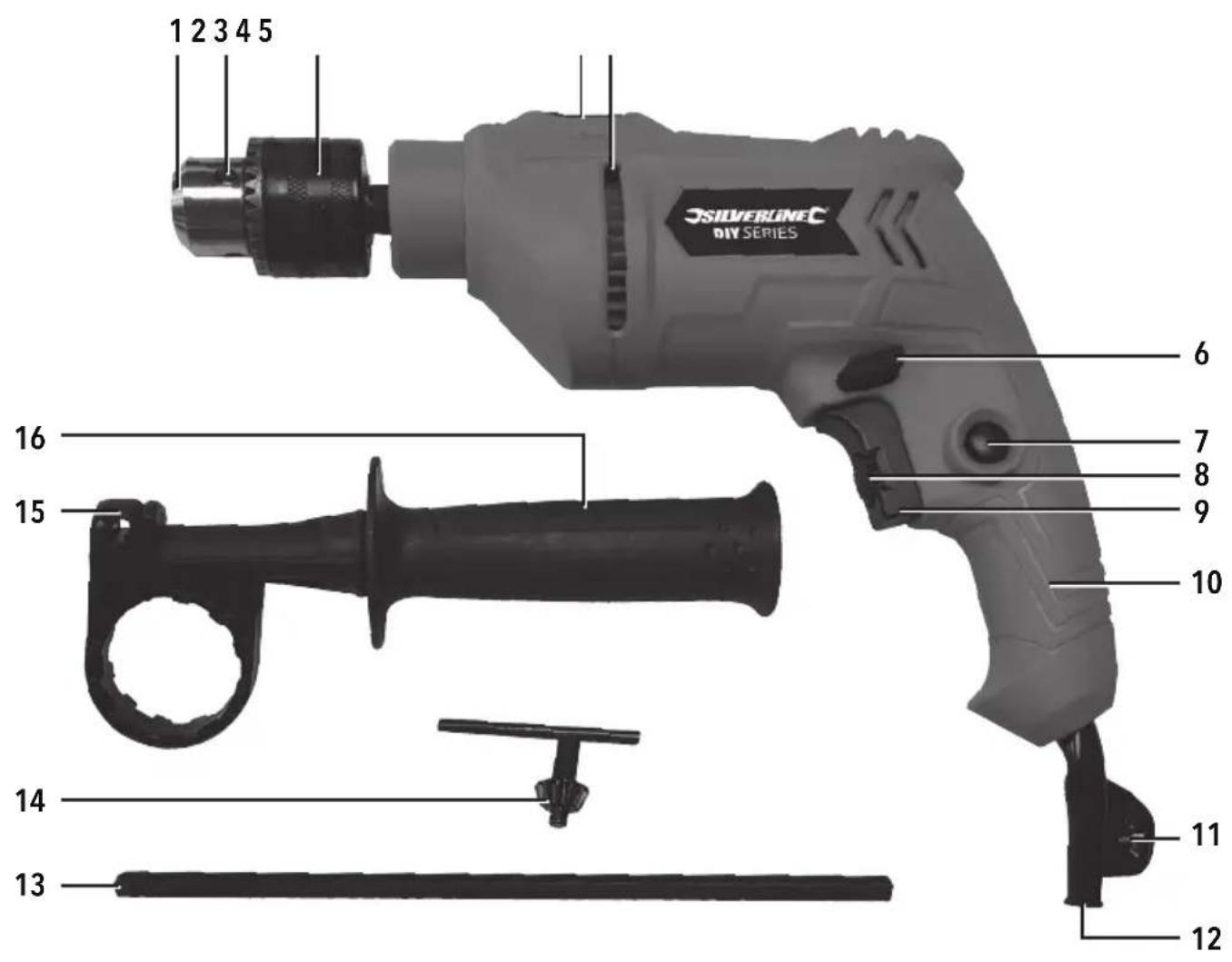

1.	Chuck
2.	Chuck Key Hole
3.	Chuck Collar
4.	Jammer/Drill Mode Selector
5.	Motor Vents
6.	Forward/Reverse Switch
7.	Lock ON Button
8.	Variable Speed Control Dial
9.	ON/OFF Trigger Switch
10.	Main Handle
11.	Chuck Key Holder
12.	Power Cord
13.	Depth Gauge
14.	Chuck Key
15.	Depth Gauge Slot
16.	Auxiliary Handle

Intended Use

Portable light duty corded power drill suitable for drilling a wide range of materials, including masonry when using the hammer mode function.

Unpacking Your Tool

• Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions
• Ensure all parts of the product are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this product

Before Use

⚠ WARNING: Ensure the tool is disconnected from the power supply before attaching or changing any accessories, or making any adjustments.
⚠ WARNING: Always use this tool with the Auxiliary Handle (16) fitted. Using without the handle fitted may result in personal injury.

Installing the Auxiliary Handle

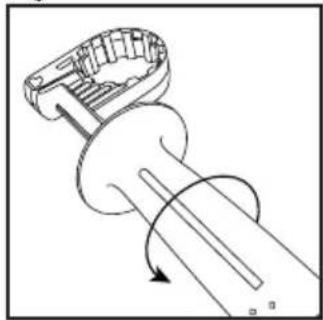

1. On the Auxiliary Handle (16), rotate the hand grip anticlockwise to loosen (Fig. I)

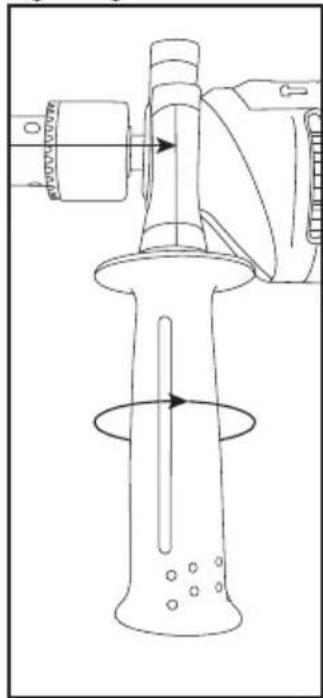

2. Slide the Auxiliary Handle over the Chuck (1) and Chuck Collar (3) onto the drill then tighten the Auxiliary Handle by rotating the hand grip clockwise (Fig. II)

IMPORTANT: Ensure the Auxiliary Handle is not tightened onto any moving parts of the tool before use.

Installing & setting the Depth Gauge

1. On the Auxiliary Handle (16), rotate the hand grip anticlockwise to loosen
2. Slide the Depth Gauge (13) into the Depth Gauge Slot (15) (Fig. III)

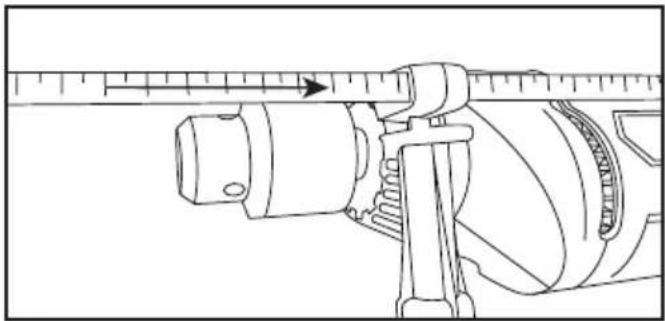

3. Adjust the Depth Gauge to the required drilling depth; the end of the Depth Gauge to the end of the drill bit will be the drilling depth

Note: The Depth Gauge has a small blank section before zero to allow for the tip of the drill bit. Always take this into consideration when calculating the drilling depth.

1. Rotate the hand grip clockwise on the Auxiliary Handle to secure the Depth Gauge in position.

Installing/removing drill bits & accessories

• This drill is equipped with a 1.5-13mm Chuck (1) for use with standard shank drill bits and accessories
  • To attach a drill bit or accessory:

• Hold the drill securely and insert the Chuck Key (14) into one of the Chuck Key Holes (2), ensuring the teeth on the Chuck and Chuck Key interlock (Fig. IV)

• Rotate the Chuck Key anticlockwise to open the jaws on the Chuck (Fig. V)
• Insert the drill bit or accessory into the jaws (Fig. VI)
• Rotate the Chuck Key clockwise to close the Chuck jaws and secure the drill bit or accessory in position (Fig. V)
• Remove the Chuck Key
• Check the drill bit or accessory cannot be removed from the Chuck, and carry out a test run under no load to ensure correct alignment (Fig. VII) before attempting to use this tool (see 'Switching ON & OFF')

IMPORTANT: ONLY the shank of the drill bit or accessory should be gripped by the Chuck Jaws. If necessary loosen the Chuck Jaws and reposition the drill bit or accessory correctly.

• To remove a drill bit or accessory:

1. Insert the Chuck Key into one of the Chuck Key Holes
2. Rotate the Chuck Key anticlockwise to loosen the Chuck jaws
3. Remove the drill bit or accessory
4. Remove Chuck Key from Chuck

Operation

WARNING: ALWAYS wear appropriate personal protective equipment, including eye protection when working with this tool.
WARNING: As the drill bit penetrates the workpiece, it may 'catch' or 'snag'. This can cause the tool to suddenly 'kick'. Prevent any possibility of injury by always holding the drill securely, using the Auxiliary Handle (16) and Main Handle (10), and using sharp drill bits.
⚠ WARNING: Always ensure workpiece is secure. If appropriate use a vice or clamp to hold the workpiece, and always keep two hands on the drill.

Hammer drill mode selection

Note: Hammer drill mode is to be used for drilling masonry and concrete.

1. Slide the Hammer/Drill Mode Selector Switch (4) to the hammer Position (Fig. VIII)
2. Do not attempt to move the Hammer/Drill Mode Selector Switch while the drill is switched ON
3. Do not attempt to operate the drill with the Mode Selector Switch in a mid-position

Rotary drill mode selection

Note: Rotary drill mode is to be used when drilling wood or metal.

1. Slide the Hammer/Drill Mode Selector Switch to the drill position (Fig. VIII)
2. Do not attempt to move the Hammer/Drill Mode Selector Switch while the drill is switched ON
3. Do not attempt to operate the drill with the Mode Selector Switch in a mid-position

Direction control

⚠ WARNING: NEVER change the direction of rotation while the tool is running. This may cause permanent damage to the tool.

• The direction of rotation can be set using the Forward/Reverse Switch (6) (Fig. IX)
• Set the Forward/Reverse Switch to the required position

Adjusting tool speed

⚠ WARNING: NEVER adjust the tool speed while the tool is running. This may cause permanent damage to the tool.

• The speed of the tool can be varied between 0-3000rpm
- To adjust the tool speed, rotate the Variable Speed Control Dial (8) clockwise to increase the speed and anticlockwise to decrease the speed (Fig. X)

Note: When the tool speed is set to low speed, the ON/OFFTrigger Switch will not fully depress. This is normal and not a fault with the tool.

Switching ON & OFF

1. To switch the drill ON, squeeze the ON/OFF Trigger Switch (9) (Fig. XI)
2. To stop the drill, release the ON/OFF Trigger Switch

Note: This tool features a lock ON mechanism for improved control while operating.

To activate the lock ON feature:

1. Squeeze and hold the ON/OFF Trigger Switch and press the Lock ON Button (7) (Fig. XII)
2. Release the ON/OFF Trigger Switch
3. Release the Lock ON Button

- When the ON/OFF Trigger Switch is now released the tool will remain ON

- To deactivate the lock ON mechanism, squeeze then release the ON/OFF Trigger Switch

Using the Depth Gauge

The Depth Gauge (13) can be used to assist in the drilling of holes to specific depths

1. Install the Depth Gauge to required drilling depth (see 'Installing & setting the Depth Gauge')

2. Drill the hole until the Depth Gauge comes into contact with the workpiece (Fig. XIII)

- If the Gauge has been set correctly the hole will now be the required depth

Drilling concrete

- Set the drill to hammer drill mode (see 'Hammer drill mode selection')

- Install a suitable masonry drill bit (not supplied) into the Chuck (1) (see 'Installing/removing drill bits & accessories')

- Tungsten carbide drill bits should be used for masonry and concrete drilling

IMPORTANT: Do not apply excessive pressure while drilling as this will damage the motor and drill bit.

Note: The drilled hole may fill with debris while drilling. To clear the debris, remove the drill bit from the hole before continuing.

Drilling wood & metal

- Set the drill to rotary drill mode (see 'Rotary drill mode selection')

- Install a suitable wood or metal drill bit (not supplied) in the Chuck (1) (see 'Installing/removing drill bits & accessories')

IMPORTANT: Ensure that the drill bit being used is suitable for the workpiece. Always use HSS drill bits for steel.

Note: The drilled hole may fill with debris while drilling. To clear the debris, remove the drill bit from the hole before continuing.

Drilling tiles

- Set the drill to rotary drill mode (see 'Rotary drill mode selection')

- Install a suitable tile drill bit (not supplied) in the Chuck (1) (see 'Installing/removing drill bits & accessories')

Drilling pilot holes

- When a large hole in a tough material (i.e. steel) is required, it is recommended a small pilot hole be drilled first before using a larger drill bit

Cooling the motor

⚠ WARNING: Tool may become hot with use.

- If the tool becomes hot, set the speed to maximum and run the tool with no load for 2-3 minutes to cool the motor

Accessories

- A full range of accessories including drill bits is available from your Silverline stockist

- Spare parts can be obtained from toolsparesonline.com

Maintenance

⚠ WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.

General inspection

• Regularly check that all the fixing screws are tight

- Prior to each use, inspect the supply cord of the tool for damage or wear

- Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool

Cleaning

- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the tools service life. Clean the body of your tool with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes

- Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents

- Never use caustic agents to clean plastic parts

Lubrication

- Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant

Brushes

• Over time the carbon brushes inside the motor may become worn

- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking

- If you suspect that the brushes may be worn, have them replaced at an authorised Silverline service centre

Contact

For technical or repair service advice, please contact the helpline on ([phone]

Web: silverlinetools.com/en-GB/Support

Address:

Toolstream Ltd

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Storage

- Store this tool carefully in a secure, dry place out of the reach of children

Disposal

Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.

- Do not dispose of power tools, or other waste electrical and electronic equipment (WEEE), with household waste

- Contact your local waste disposal authority for information on the correct way to dispose of power tools

Troubleshooting

Problem Possible cause Solution
Tool will not start Blown fuse Check and replace fuse. If problem persists		immediately contact an authorised Silverline service centre
		Power cord damaged Contact an authorised Silverline service centre
		ON/OFF Trigger Switch (9) faulty
		Faulty motor
Slow rotation speed Tool is overheating Switch the tool OFF and allow it to cool down		to room temperature. Inspect and clean the ventilation slots
Slow rotation speed or no rotation plus possible visible sparking from motor vents	Carbon brushes worn Contact an authorised service centre to have the carbon brushes replaced
Vibration or abnormal noise Gearbox low on grease Contact an authorised Silverline service		centre

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

- Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

Introduction

Silverline Tools Service Centre

PO Box 2988

Yeovil

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Gewogen trilling (boren): 3,871 m/s²

Gewogen trilling (hamer): 16,327 m/s²

Onzekerheid: 1,5 m/s ^2

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Strona: gmctools.com/pl-PL/Support

Adres:

Toolstream Ltd

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Przechowywanie

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

Black electric drill putter with a black handle and black base (no visible text or symbols)

GB 3 Year Guarantee. Register online within 30 days. Terms and Conditions apply.
