USER MANUAL 252190 SILVERLINE

Restraint Positioning Lanyard 1.5m

Metallic chain link with attached clips, no text or symbols visible

1 2 3 4 5

1. Fall Arrest

2. Fall Restraint

3. Positioning
FR Fig. I 1. Protection anti-chutes / 2. Système de retenue / 3. Maintien au travail
DE Abb. I 1. Auffangen / 2. Halten / 3. Positionieren
ES Fig. I 1. Arnés anticaída / 2. Arnés de sujeción / 3. Arnés de posicionamiento
IT Fig. I 1. Arresto caduta / 2. Ritegno caduta / 3. Posizionamento
NL Fig. I 1. Valbeveiliging / 2. Restrictie / 3. Positionering
PL Rys. I 1. Wyhamowanie upadku / 2. Zapobieganie upadkom / 3. Pozycjonowanie

Fig. I

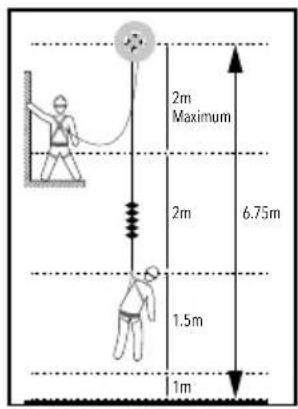

2m Maximum 2m 6.75m 1.5m 1m

FR Fig. II 2 m Maximum
DE Abb. II 2 m Maximum
ES Fig. II 2m Máximo
IT Fig. II 2m Massimo
NL Fig. II 2m Maximum
PL Rys. II Maksimum 2 m
Fig. II

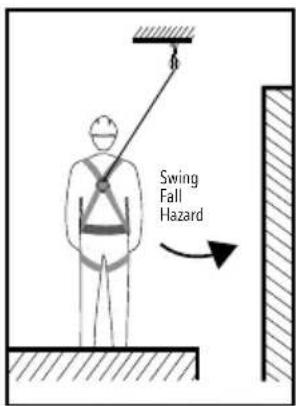

Swing Fall Hazard

FR Fig. III Risque de chute avec balancement
DE Abb. III Gefahr eines Pendelsturzes
ES Fig. III Riesgo de caída en péndulo
IT Fig. III Caduta dondolante
NL Fig. III Zwaaiivalgevaar
PL Rys. III Efekt wahadla
Fig. III

Diagram showing six different manual techniques for using a tool, with checkmarks and X marks indicating selection or failure.

Fig. IV

Diagram of a hook clamp mechanism with labeled parts 1 and 2, showing rotational motion arrows.

Fig. V

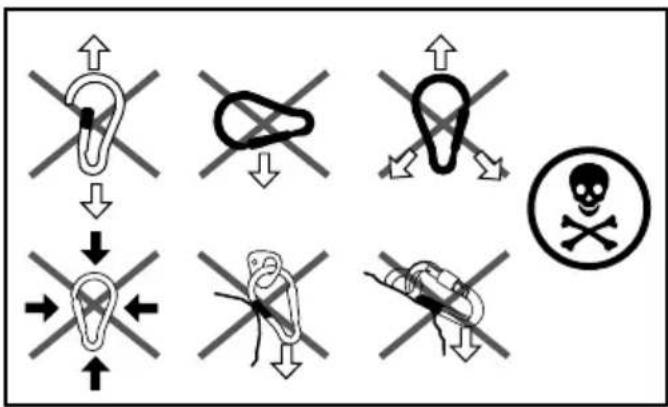

Diagram illustrating various types of hazard symbols and correct/incorrect labeling, including a skull symbol and a hand holding a skull.

Fig. VI

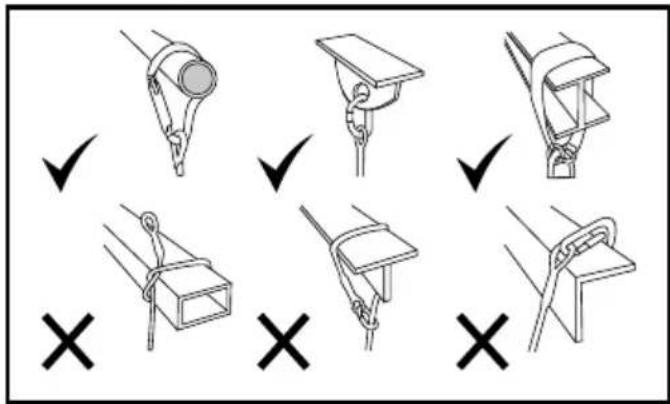

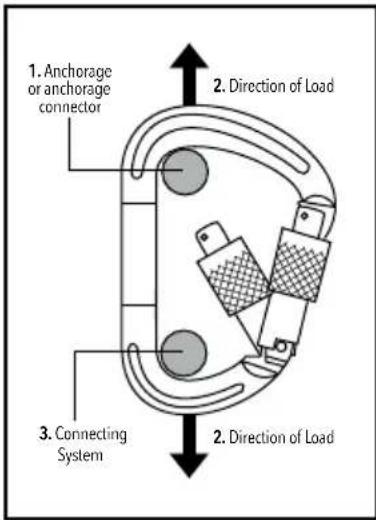

1. Anchorage or anchorage connector 2. Direction of Load 3. Connecting System 2. Direction of Load

FR Fig. VII

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Read instruction manual

Caution!

Conforms to relevant legislation and safety standards

1105

Notified body number

⚠️ Carefully read and understand these instructions and any label attached to the tool before use. Keep these instructions with the product for future reference. Ensure all persons who use this product are fully acquainted with these instructions.

Specification

Model: 252190

Applicable standards:....EN354:2010 (Fall protection lanyards)

EN362:2004/B (Karabiners)

EN 362:2004/A (Scaffold hook)

EN 365:2004 (Fall arrest equipment general requirements)

2016/425/EU

Material: Karabiner: steel grade 35CrMo

Scaffold hook: steel grade C45

Rope: Polyester

Thimble: Polyethylene

Maximum strength: 25kN

Temperature range: -40 to +80°C

Gate opening ....Screwgate karabiner: 19mm

Scaffold hook: 56mm

Dimensions

(max working length x rope diameter): 1660 x 14mm

Net weight: 0.89kg

As part of our ongoing product development, specifications of Silverline products may alter without notice.

Safety Instructions for Height Safety Equipment

⚠ WARNING: Activities involving the use of this equipment are inherently dangerous. ALWAYS carry out a risk assessment before work commences, including rescue arrangements.
⚠ WARNING: Specific training is essential before using this equipment. It must only be used by competent and responsible individuals, taking care not exceeding the limitations of the equipment.
WARNING: Failure to adhere to any warnings and recommendations given in these instructions, may result in severe injury or even death! When using this equipment you personally assume all risks and responsibilities for all damage, injury or death which may occur during or following incorrect use of this equipment. You are responsible for your own actions and decisions. If you are unable, or not in a position to assume this responsibility or to accept these risks, DO NOT USE THIS EQUIPMENT.

a) NEVER use equipment that has exceeded its shelf and/or service life.
b) This product MUST NOT be stressed beyond its strength rating.
c) DO NOT use components of fall arrest gear outside its limitations, or for applications which they were not specifically designed for.
d) Avoid impacts and rubbing against abrasive surfaces during use, transport and storage.
e) DO NOT use connectors with manual locking mechanisms in areas where they are frequently opened and closed.
f) Ensure locking mechanisms and safety devices engage securely and connectors are fully closed and locked before use.
g) NEVER combine components that are not recommended by the manufacturer as being compatible. One item may interfere with the safe function of another, jeopardising the function of the system as a whole.
h) NEVER attach a fall arrest system to an anchorage if you are unsure about the strength and condition of the anchorage.
i) Take into account the length of every single component of a fall arrest system, including the connectors, when determining the total length of the system.
j) The clearance under the user must be sufficient to prevent them from striking an obstacle in the event of a fall.
k) DO NOT allow any part of a fall arrest, work positioning or restraint system to come into contact with sharp edges or abrasive surfaces during use. Reposition if necessary or choose an alternative anchorage.
1) Any component of a fall arrest system must be individually inspected according to the manufacturer's recommendations and procedures. After assembly, the system must be inspected as a functional unit.
m) Any kind of repair or modification of this equipment is strictly PROHIBITED.
n) DO NOT tie knots in harnesses, lanyards and ropes. DO NOT allow equipment to become tangled.
o) Equipment that has been exposed to extreme conditions, failed an inspection or has been used to arrest a fall must be retired and destroyed. Never expose items made with synthetic fibre components to direct flames.
p) DO NOT use shock absorbers that have been partially deployed, or when the plastic sheath is damaged.
q) Destroy retired equipment immediately, to prevent further use.

r) All users of fall arrest gear must be medically fit for activities at height and must wear appropriate personal protective equipment for the environment, work carried out and tools used.
s) Carry out a risk assessment for every activity, and define a rescue plan that can be safely and rapidly executed in case of emergency.
t) All product markings must remain intact and clearly legible for the entire service life of this equipment.
u) Store the equipment with its dedicated service record and usage instructions. Gear with uncertain service history must be removed from service and destroyed.
v) Before using this equipment, ensure that it complies with local federal regulations and other applicable safety standards.
w) Textile products including webbing and ropes MUST NOT be marked using ink from marker pens or paint, as these substances may potentially lead to chemical damage of the material.
x) Store in accordance with the manufacturer's instructions.

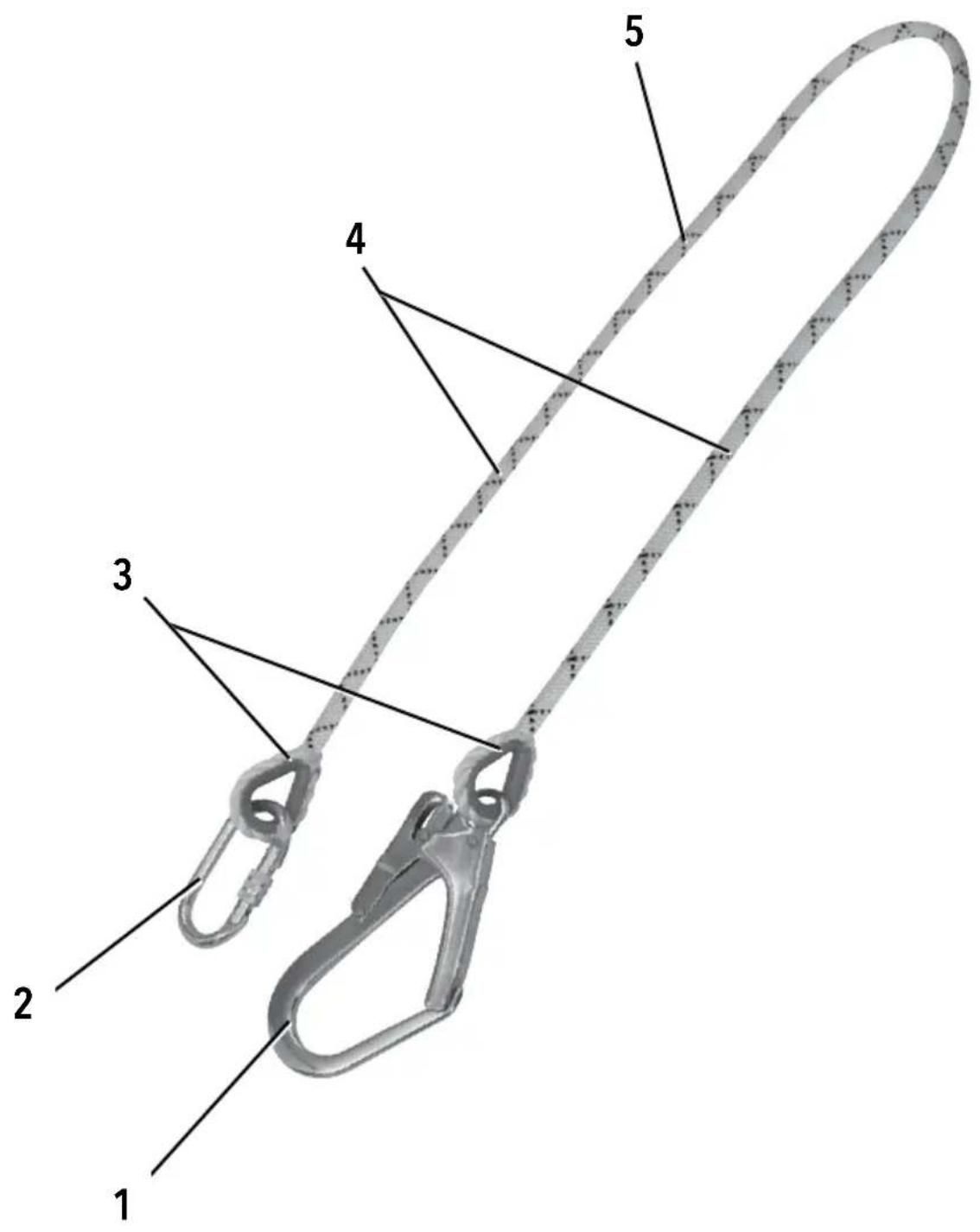

Product Familiarisation

1. Scaffold Hook

2. Karabiner

3. Rope Thimbles

4. Protective Sleeves (with safety labels)

5. Lanyard

Intended Use (Fig. I)

This lanyard is primarily used to connect to a suitable anchorage as part of a work positioning or restraint system.

⚠ WARNING: Do not use the restraint positioning lanyard for fall arrest purposes. Always use in conjunction with a compatible fall arrest system when working at height.

Usage Limitations

⚠ WARNING: Do not use a work positioning or restraint belt if there is a risk of becoming suspended or exposed to unintended tension by the belt.
WARNING: Fall arrest gear is designed to arrest a fall from height ONLY ONCE! If subjected to an arrested fall, the gear must be withdrawn from service and rendered unusable.

- Manual-locking or self-closing gates should only be used where the user does not have to attach and remove the connector frequently, i.e. many times during a working day

- This equipment is designed for use by one person with a combined total weight no greater than 140kg, including clothing, tools, and other user-borne objects

- Acidic, alkaline, or other environments with harsh substances may damage the hardware of the karabiner. DO NOT expose the karabiner to corrosive environments for prolonged periods of time. Organic substances and salt water are particularly corrosive to metal parts

- Do not use in environments with temperatures lower than -40°C / -40°F or greater than 80°C / 176°F

- Avoid contact with rough, abrasive surface, sharp edges, cutting tools etc.

- Equipment must be shielded when used near welding, metal cutting, or other activities that produce large amounts of heat

- Use extreme CAUTION when working near energised electrical sources. Metal hardware conducts electric current. Maintain a safe working distance (at least 3m from all electrical hazards

• A full body harness is the only acceptable body holding device that can be used in a fall arrest system
• Never exceed a total sub-system length of 2m with an energy absorber, including lanyard, terminations and connectors
• Never use a lanyard for fall arrest purposes without an Energy Absorber
  • Always minimise the amount of slack in the lanyard near a fall hazard
• Always move to an area where there is no fall hazard to adjust the lanyard length

Unpacking your Product

• Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions
• Ensure all parts of the product are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this product

Before Use

Pre-use checks

• An inspection must be carried out before every use. All parts of the gear must be inspected in an area with appropriate light conditions
• Check correct function of Karabiner (2) and Scaffold Hook (1), and smooth operation of their safety mechanisms
• Check the Lanyard (5), Rope Thimbles (3) and the Protective Sleeves (4) for damage

Note: Refer to the 'Maintenance' section for further advice on inspection and fault conditions.

- If the risk assessment shows that loading over an edge is possible, take appropriate precautions to ensure safe use of the Lanyard

Clearance

Fall clearance (Fig II):

• Before use, it is essential to verify the clearance required beneath the user. This clearance must be sufficient to prevent the user from hitting the ground or another obstacle, in the event of a fall
  Swing falls (Fig. III):

⚠ WARNING: The force of striking an object in a swing fall may cause serious injury or death.

• Swing falls occur when the anchorage is not located directly above the point where a fall occurs
• Minimise swing falls by working as close as possible to the anchorage
• DO NOT enter a situation where a swing fall could occur, if it is likely to result in an injury

Note: The risk of swing falls significantly increases the clearance required when using a self-retracting lifeline or another variable length connecting system.

⚠ WARNING: When connectors are poorly positioned, the attachment D-rings could act as a lever on the gate of a karabiner and subsequently damage it when sudden tension comes on to the rope. ALWAYS ensure connectors remain safely positioned during use.

Anchorage requirements (Fig. IV)

• According to EN795 the minimum strength of any anchorage is 10kN
• Check anchorage for signs of deterioration
• Like all fall arrest gear, anchorages must be subjected to regular inspections through a competent person. Inspect at least once every three months, and record findings in a dedicated service record
• Check that the karabiner is the correct size for the anchorage to be used. If the karabiner is too small, use an anchor sling to connect to the anchorage

Anchorage position

- The anchorage of the system should preferably be located above the user's position

Use as part of a fall arrest system

- Anchorages selected for fall arrest systems should be capable of sustaining a static load, applied in the directions permitted by the system of at least:

• 22kN for non-certified anchorages, or

- 2 x the maximum arrest force for certified anchorages

- If more than one system is attached to one anchorage, the required strength shall be multiplied by the number of systems attached

Use as part of a work positioning system

- Structures to which a work positioning system is attached should be capable of sustaining a static load, applied in the directions permitted by the system of at least 13kN, or twice the potential impact force, whichever is greatest. If more than one system is attached to one anchorage, the required strength should be multiplied by the number of systems attached

Use as part of a restraint system

- Anchorages to which a restraint or travel restraint system is attached shall be capable of sustaining a static load, applied in the directions permitted by the system of at least

• 4.5kN for non-certified anchorages, or

- 2 x the foreseeable force for certified anchorages

- If more than one system is attached to one anchorage, the required strength should be multiplied by the number of systems attached

Connecting to other fall arrest system components

- When used as part of a fall arrest system, connect to dorsal attachment point of harness, combined with a suitable shock absorber

- Connect to appropriate D-rings on work positioning or restraint system (refer to manufacturer's recommendations)

⚠ WARNING: Karabiners and other connectors must ALWAYS be used with the gate closed and securely locked.

Compatibility

- This product is compatible with miscellaneous fall arrest systems and safety gear, including but not limited to the following Silverline products:

• Fall Arrest & Restraint Harness

- Wide Back Support Belt

Notes:

- Connecting hardware must be compatible in size, shape, and strength. Non-compatible connectors may accidentally disengage and lead to serious injury or even death

- Only use connectors, such as D-rings, snaphooks, karabiners and other equipment with a minimum rating of 22kN

- ALWAYS take the length of the karabiner (see 'Specification') into consideration, when planning the layout of a fall arrest system, as it will influence the total length of the fall

⚠ WARNING: Always verify that the connecting karabiner and the D-ring on the harness or anchorage connector are compatible.

Operation

Note: This equipment must ONLY be used by competent operators. All users must be trained in its safe use. Inexperienced users must receive instruction prior to using this equipment. A risk assessment must be carried out before undertaking any operations requiring fall arrest equipment.

⚠ WARNING: ALWAYS wear personal protective equipment appropriate for the work area and type of activity, including but not limited to eye protection, gloves, hard hat, protective shoes and hearing protection.

Opening and closing the screw gate Karabiner

1. To open, turn the knurled locking sleeve anticlockwise until the gate opens
2. Push the gate inwards to open the karabiner
3. To close, release the mechanism, let the gate return to its closed position, and turn the knurled locking sleeve all the way clockwise, into the locked position

⚠ WARNING: This karabiner must ALWAYS be used with the Gate closed and fully locked. To check whether the Gate is securely locked, ensure that the Locking Sleeve has been turned clockwise all the way, so it prevents the Gate from opening when pushed.

Opening and closing the Scaffold Hook

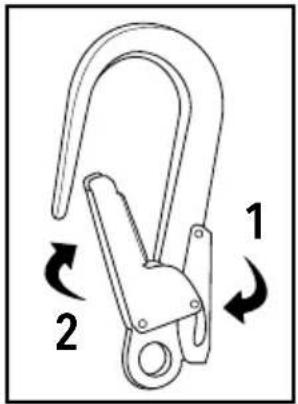

1. Push the locking lever (see Fig. V: "1") towards the hook's spine
2. The gate (see Fig. V: "2") is now unlocked and can be pushed in to open
3. Release gate and locking lever to close

⚠ WARNING: This scaffold hook must ALWAYS be used with the gate closed and fully locked! To check whether the gate is securely locked, try pushing the gate open from the outside; it must not open without the locking lever being operated first.

Making connections (see Fig. IV & VI)

WARNING: Never apply multiple loads to a single karabiner.

- When using a karabiner to connect to an anchorage, or when connecting components of a fall arrest system together, ensure that accidental disengagement ('rollout') cannot occur

Note: Rollout is possible when interference between a karabiner and the mating connector causes the karabiner's gate or keeper to accidentally open and release.

• DO NOT use connectors that will not completely close over the anchor point
  • DO NOT make knots in a lanyard
  • DO NOT hook a lanyard back on to itself
• DO NOT attach two or more karabiners to each other
  • DO NOT attach two or more karabiners into one D-ring
  • DO NOT attach karabiners directly to a horizontal lifeline
  • DO NOT choke hitch the lanyard

⚠ WARNING: ALWAYS follow the manufacturer's instructions supplied with each system component.

Proper alignment of the karabiner under load

• The Karabiner (2) must be installed so that the loads are applied in the area designed for greatest strength (see marking on the product and Fig. VII)
• The anchorage or anchorage connector should be seated in the radius of the Karabiner opposite the Gate
  • DO NOT apply loads across the Gate (Fig. VI)
• The Karabiner must be able to move freely and without interference during use. ANY constraint or external pressure is DANGEROUS (Fig. VI)
• Be aware that some equipment combinations may reduce the effective strength of the Karabiner (e.g. when connecting to wide straps)

Note: Regularly check connections with other equipment in the system during use, and ensure various system components are correctly positioned with respect to each other. This may save your life!

Rescue plan

⚠ WARNING: A suitable and sufficient risk assessment must be carried out before commencing with any kind of work at height, or any work that requires the use of personal protective equipment (PPE) as a control measure.

• The user must have a rescue plan and the means at hand to implement it
• The plan must take into account the equipment and special training necessary to effectively conduct prompt rescue under all foreseeable conditions

Accessories

- Additional fall arrest equipment, workwear and other personal protection equipment is available from your Silverline stockist

Maintenance

Note: All fall arrest equipment must be regularly inspected, cleaned and maintained by a competent person, in accordance with local laws and regulations. Maintenance must be recorded in a dedicated service record (see end of this manual).

WARNING: Carry out a visual and tactile inspection of all components, every time the equipment is used. Carry out a detailed examination if the equipment has not been used for some time.
Note: A thorough, detailed examination of the equipment must be carried out at regular intervals, at least once annually, or more frequently depending on use.
⚠ WARNING: It is ILLEGAL to carry out any kind of repair or modification to fall arrest equipment.
⚠ WARNING: Should any damage be detected, remove the equipment from service immediately. It must then be rendered unusable and discarded.

Inspection procedure

• The following procedure helps detect defects potentially resulting in degradation and/or weakening of the Karabiner (2) and Scaffold Hook (1):
• Inspect for missing or altered parts. Refer to the image in 'Product Familiarisation' for identification. Verify each item is present and has not been tampered with
• Inspect the entire karabiner or hook for cracks, nicks or breaks in the metal. Inspect every millimetre

Note: If necessary, clean before inspection, to be able to detect even small hairline cracks.

1. Inspect for deformation, bent or dented parts. Open the gate and inspect the nose of the karabiner or hook for signs of wear, distortion or damage
2. Inspect the metal surface for any signs of corrosion. Steel karabiners and hooks may show red dust as evidence of corrosion, aluminium karabiners may develop pitting or scales
3. Inspect for heat damage, which can usually be seen as discoloration or darkening of the metal surfaces
4. Perform a functional test: The locking mechanism must function easily, and the karabiner or hook must fully open and close smoothly and easily. When locked, the gate MUST NOT open under pressure from any direction
5. Slowly pass the rope through your hands to detect small defects, abrasions and twist damage. Feel for softening and hardening of fibres and look for ingress of contaminants

6. The following defects potentially result in degradation and/or weakening of the lanyard:

7. Cut/broken fibres or nicks

8. Kinks, knots (other than those intended by the manufacturer) or hockling (unravelling due to constant turning of the rope in the same direction, or due to shock loading)
   • Brittle, fuzzy or worn fibres, fraying or abrasions

• Overall deterioration or discolouration
- Any kind of modification/attempted repairs
- Hard or shiny spots, fused fibres or strands
- Heat or friction damage indicated by fibres with a glazed appearance which may feel harder than surrounding fibres
• Burnt, charred or melted fibres or strands
- Change in diameter, compared to the original diameter (see 'Specification')
- Rope marked with paint or a permanent marker
- Loose, missing, deformed or damaged Rope Thimble (5)
- Eye damage (cuts, nicks, fraying, fusing, abrasion etc.)
- Damage to protective covers/sleeves/sheaths
- Splices starting to unravel, or showing signs of damage or deterioration
- Partially deployed energy absorber (e.g. short pull-out of tear webbing)
- Damage to stitching
- Chemical attack potentially resulting in local weakening and softening (often indicated by flaking of the surface)
- UV-degradation which is difficult to identify, particularly visually, but there may be some loss of colour (if dyed) and a powdery surface
- Contamination (e.g. with dirt, grit, sand etc.) which may result in internal or external abrasion
- Damaged, oxidised or deformed fittings (e.g. karabiners, screw link connectors, scaffold hooks)

• Inspect all other components or subsystem of the fall arrest equipment according to manufacturer's instructions
• Record inspection date and results in a dedicated service record (see end of this manual)

Note: Refer to 'Service life and product obsolescence' if any damage or other defects are detected during inspection.

Cleaning

Note: Correct cleaning is essential to ensure integrity of all safety equipment. Follow the cleaning instructions below without deviation.

• Clean the karabiner and hook by wiping it with a soft, lightly oiled cloth
• If this is not sufficient, use warm water with a mild pH neutral (pH 7) detergent, to clean off any foreign matter. Dry thoroughly and lubricate moving parts with a suitable spray lubricant
• Clean lanyard in warm water (30 - 60°C) with a mild pH neutral (pH7) household detergent, taking care that water does not enter underneath the protective sheath of the Energy Absorber (3). In case of minor soiling, wipe with a cotton cloth or carefully clean using a soft brush
• DO NOT under any circumstances use any abrasive materials, acids, basic detergents or solvents
• Disinfect parts that come into contact with the operator's skin, using a disinfectant suitable for the material of the equipment (see 'Specification'). Strictly follow the disinfectant manufacturer's recommendations and procedures
• ALWAYS allow the equipment to dry naturally, and keep it away from open fire or any other heat source

Note: This also applies to equipment that has become wet during use.

Lubrication

- Occasionally apply a small amount of a suitable spray lubricant, to the gate mechanism. Afterwards, perform a thorough inspection as described in 'Inspection procedure'

Transport

- ALWAYS transport this equipment inside a dedicated bag or suitable container that protects it from mechanical damage and shields the equipment from high temperatures, humidity, UV rays and chemicals

Storage

• Store this tool carefully in a secure, dry place out of the reach of children
• Store at moderate temperature and humidity, away from direct sunlight or chemicals, inside a dedicated, UV-proof bag or container
• Never place heavy objects on top of this equipment

Disposal

Service life and product obsolescence

⚠ WARNING: Fall arrest equipment is designed to arrest a fall from height ONLY ONCE! If subjected to an arrested fall, the equipment must be withdrawn from service and rendered unusable.

Note: The date on which the product is removed from the original packaging for the first time becomes the 'date of first use', which should be recorded on the Inspection Record (see end of this manual). The specified working life begins from this point.

• This equipment is subject to a maximum working life of 5 years from the recorded date of first use, provided the product has been correctly stored, maintained and subjected to regular inspections by a trained and competent person
• New equipment may be stored for a maximum of 5 years from the date of manufacturing as indicated on the product, and will still give the potential 5-year working life - provided it remains in the original manufacturer's packaging

Note: Other reasons why the product may be considered obsolete include but are not limited to changes of applicable standard, regulations or legislation, development of new techniques or incompatibility with other equipment.

⚠ WARNING: Remove fall arrest equipment from service if:

• it has been used to arrest a fall
• any damage is present
• identification is not evident (permanent markings are not legible or have been damaged/removed)
• it exceeds its specified service life
• if its full service history is unknown
• you have any doubt as to its integrity

Contact

Legal Manufacturer: Toolstream Ltd

For Declaration of Conformity please visit www.silverlinetools.com

For technical or repair service advice, please contact the helpline on (+44) 1935

382 222

Web: silverlinetools.com/en-GB/Support

Address:

Toolstream Ltd

Boundary Way

Lufton Trading Estate

Yeovil, Somerset

BA22 8HZ, United Kingdom

Notified body:

CCQS UK Ltd

5 Harbour Exchange

London

E14 9GE, United Kingdom

Notified body number:

1105

⚠ WARNING: If the product is re-sold outside the original country of destination, it is essential the reseller shall provide instructions for use, periodic examination, maintenance and repair in the language of the country in which the product is to be used.

Silverline Tools Guarantee

This Silverline product comes with a forever guarantee

Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the forever guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-

- Your personal details

• Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline Tools

Declares that

This declaration has been issued under the sole responsibility of the manufacturer.

The object of the declaration is in conformity with the relevant Union harmonisation Legislation.

Identification code: 252190

Description: Restraint Positioning Lanyard

Conforms to the following directives and standards:

• PPE REGULATION 2016/425

• EN 354:2010

• EN 362:2004

Notified body: CCQS UK Ltd (1105)

The technical documentation is kept by: Silverline

Date: 29/11/2019

Signed:

Mr Darrell Morris

Managing Director

Name and address of the manufacturer:

Toolstream Ltd, Company No. 04281144. Registered address: Toolstream, Boundary

Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom.

Introduction

Silverline Tools Service Centre

PO Box 2988

Yeovil

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Toolstream Ltd, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, Regno Unito..

Inleiding

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

Metallic chain link with attached hook and loop (no text or symbols)

GB Guaranteed Forever. Register online within 30 days. Terms and Conditions apply.
