Product type	Ceramic glass hob
Brand	Silverline
Model	FLHK 800 ESK
Total power	6400 W
Energy consumption (hob)	180 Wh/kg
Number of cooking zones	4
Front left zone (diameter / power)	210 / 135 mm, 2200 / 1000 W
Rear left zone (diameter / power)	145 mm, 1200 W
Rear right zone (diameter / power)	180 mm, 1800 W
Front right zone (diameter / power)	145 mm, 1200 W
Control type	Sensitive touch keys
Display	Digital with residual heat indicator
Automatic cooking	Yes, all zones
Control panel lock	Yes
Residual heat indicator	Yes (symbol H)
Extension zone	Yes
Electrical connection	230 V~ 50/60 Hz (1P+N) or 400 V~ 50/60 Hz (2P+N)
Power cable size	3 x 2.5 mm² (230 V) or 4 x 1.5 mm² (400 V)
Protection calibre	25 A (230 V) or 16 A (400 V)
Cut-out dimensions (A1 x B1)	520 x 780 mm
Overall glass dimensions	526 x 786 mm
Surface material	Ceramic glass
Cleaning	Damp cloth with mild detergent; avoid abrasives
Safety features	Child lock, automatic shut-off, residual heat indicator, overheating protection

Frequently Asked Questions - FLHK 800 ESK SILVERLINE

Why does the hob not start?

Check if the hob is properly connected to the power supply, the fuse is intact, the control panel is not locked (symbol L), and the touch keys are clean and dry.

What does the error symbol 'E' mean?

The 'E' symbol indicates an electronic failure. Contact the After-sales Service.

Why do one or all cooking zones turn off during use?

This may be due to the safety system engaging: the zone was left on too long, the pan is empty and overheated, or a touch key is covered. Let the hob cool and remove any objects on the controls.

How do I use the automatic cooking function?

Select a zone, set it to full power, then press the [-] key to activate automatic cooking. The display shows a blinking 'A' and the power level. The zone will run at full power then reduce to the selected level.

How do I lock the control panel?

Press the On/Off key to start. Then simultaneously press the [∧] and [∼] keys on the left side. The display shows 'L' on all zones. To unlock, repeat the same steps within 5 seconds of switching on.

What does the residual heat indicator 'H' mean?

The 'H' symbol shows that the cooking zone is still hot. Do not touch it or place heat-sensitive objects on it to prevent burns or fire. It disappears when safe to touch.

Can I use pans with a diameter smaller than the cooking zone?

For best efficiency, use pans that cover the cooking zone as much as possible. The zone may not detect very small pans, and energy efficiency decreases.

How do I clean the ceramic glass hob?

Ensure the hob is off and cool. Wipe with a damp cloth and a little washing-up liquid, then rinse and dry thoroughly. Avoid abrasive cleaners, scouring pads, or steam cleaners.

What should I do if sugar or jam spills on the hot hob?

Immediately remove the spillage from the hot zone (be careful not to burn yourself) using a scraper if necessary. The sugar can damage the glass if allowed to cool.

What are the minimum clearances for installation?

The hob must be installed with at least 50 mm space from walls or sides. The safety distance to a cooker hood above should be at least 760 mm unless specified otherwise by the hood manufacturer. Ensure 20 mm gap underneath for ventilation.

USER MANUAL FLHK 800 ESK SILVERLINE

Exterior view of a modern office building (no signage)

SILVERLINE

Simple line drawing of a trash bin with no text or symbols

USING THE APPLIANCE 18

PRECAUTIONS NOT TO DAMAGE THE APPLIANCE 19

PRECAUTIONS IN CASE OF APPLIANCE FAILURE....20

OTHER PROTECTIONS....20

DESCRIPTION OF THE APPLIANCE....21

TECHNICAL DATA....21

CONTROL PANEL 21

USE 22

SENSITIVE TOUCHES....22

DISPLAY 22

RESIDUAL HEAT INDICATION 22

STARTING UP THE APPLIANCE....22

BEFORE USING YOUR NEW HOB....22

STARTING-UP 22

EXTENSION ZONE 23

AUTOMATIC COOKING 23

CONTROL PANEL LOCKING....23

COOKING ADVICES....24

EXAMPLES OF POWER SETTING: 24

MAINTENANCE AND CLEANING 24

WHAT TO DO IN CASE OF A PROBLEM....25

ENVIRONMENT PROTECTION 25

INSTALLATION INSTRUCTIONS....26

ELECTRICAL CONNECTION 27

RATING LABEL 28

Precautions before using

- Unpack all the materials.

- The installation and connecting of the appliance have to be done by approved specialists. The manufacturer cannot be responsible for damage caused by building-in or connecting errors.

- To be used, the appliance must be well-equipped and installed in a kitchen unit and an adapted and approved work surface.

- This domestic appliance is exclusively for the cooking of food, to the exclusion of any other domestic, commercial or industrial use.

- Remove all labels and self-adhesives from the ceramic glass.

- Do not change or alter the appliance.

- The cooking plate cannot be used as freestanding or as working surface.

- The appliance must be grounded and connected conforming to local standards.

- Do not use any extension cable to connect it.

- The appliance cannot be used above a dishwasher or a tumble-dryer: steam may damage the electronic appliances.

- The appliance is not intended to be operated by means of external timer or separate remote control system.

- CAUTION: The cooking process has to be supervised. A short term cooking process has to be supervised continuously.

Using the appliance

- Switch the heating zones off after using.

- Keep an eye on the cooking using grease or oils: that may quickly ignite.

- Be careful not to burn yourself while or after using the appliance.

- Make sure no cable of any fixed or moving appliance contacts with the glass or the hot saucepan.

- Magnetically objects (credit cards, floppy disks, calculators) should not be placed near to the engaged appliance.

- Metallic objects such as knives, forks, spoons and lids should not be placed on the hob surface since they can get hot.

- In general do not place any metallic object except heating containers on the glass surface. In case of untimely engaging or residual heat, this one may heat, melt or even burn.

- Never cover the appliance with a cloth or a protection sheet. This is supposed to become very hot and catch fire.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

Precautions not to damage the appliance

- Raw pan bottoms or damaged saucepans (not enamelled cast iron pots,) may damage the ceramic glass.

- Sand or other abrasive materials may damage ceramic glass.

- Avoid dropping objects, even little ones, on the vitroceramic.

- Do not hit the edges of the glass with saucepans.

- Make sure that the ventilation of the appliance works according to the manufacturer's instructions.

- Do not put or leave empty saucepans on the vitroceramic hobs.

- Sugar, synthetic materials or aluminium sheets must not contact with the heating zones. These may cause breaks or other alterations of the vitroceramic glass by cooling: switch on the appliance and take them immediately out of the hot heating zone (be careful: do not burn yourself).

- WARNING: Danger of fire: do not store items on the cooking surface.

- Never place any hot container over the control panel.

- If a drawer is situated under the embedded appliance, make sure the space between the content of the drawer and the inferior part of the appliance is large enough (2 cm). This is essential to guaranty a correct ventilation.

- Never put any inflammable object (ex. sprays) into the drawer situated under the vitroceramic hob. The eventual cutlery drawers must be resistant to heat.

Precautions in case of appliance failure

• If a defect is noticed, switch off the appliance and turn off the electrical supplying.
• If the ceramic glass is cracked or fissured, you must unplug the appliance and contact the after sales service.
• Repairing has to be done by specialists. Do not open the appliance by yourself.
• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

Other protections

• Note sure that the container pan is always centred on the cooking zone. The bottom of the pan must have to cover as much as possible the cooking zone.
• For the users of pacemaker, the magnetic field could influence its operating. We recommend getting information to the retailer or of the doctor.
• Do not to use aluminium or synthetic material containers: they could melt on still hot cooking zones.
• NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

Technical data

Type	KHL 780 S
Total powerEnergy consumption for the hob EC_hob *	6400 W180 Wh/kg
Front left heating zoneNominal powerStandardised cookware category*Energy consumption EC_cw *	210 / 135 mm2200 / 1000 WC171.1 Wh/kg
Rear left heating zoneNominal powerStandardised cookware category*Energy consumption EC_cw *	145 mm1200 WA173.8 Wh/kg
Rear right heating zoneNominal powerStandardised cookware category*Energy consumption EC_cw *	180 mm1800 WB191.3 Wh/kg
Front right heating zoneNominal powerStandardised cookware category*Energy consumption EC_cw *	145 mm1200 WA173.8 Wh/kg

* calculated according to the method of measuring performance (EN 60350-2).

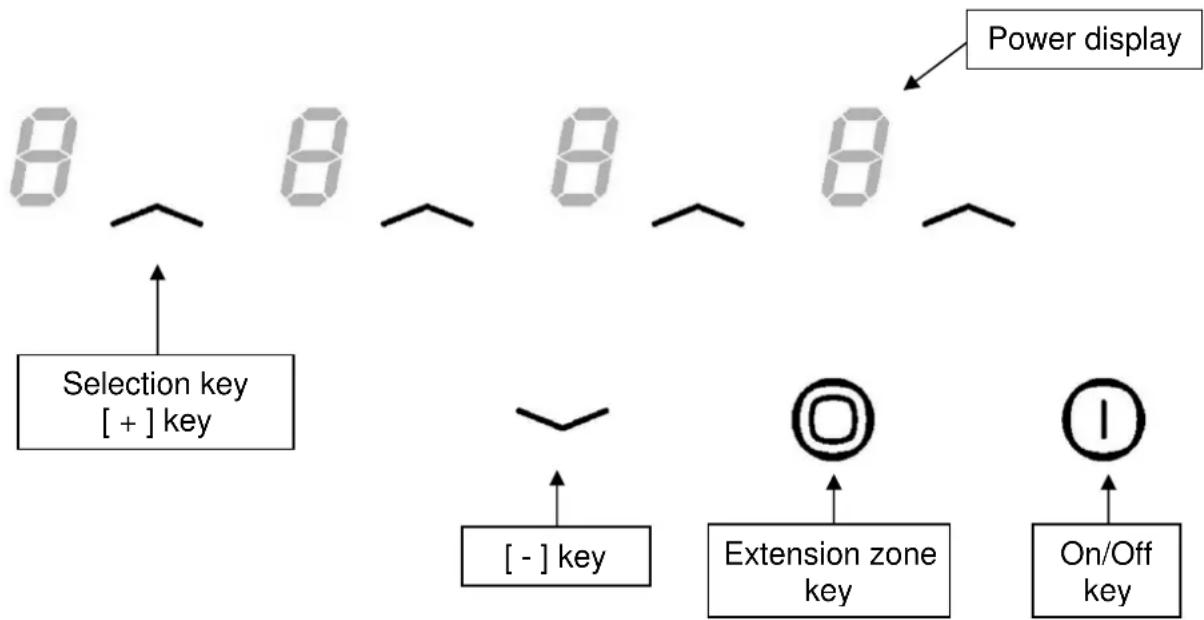

Control panel

Sensitive touches

Your ceramic hob is equipped with electronic controls with sensitive touch keys. When your finger touches the key, the corresponding command is activated. This activation is validated by a control light, a letter or a number in the display and/or a “beep” sound.

Touch only one key on the same time.

Display

Display	Designation	Function
0	Zero	The heating zone is activated
1...9	Power level	Selection of the cooking level
A	Heat accelerator	Automatic cooking
E	Error message	Electronic failure
H	Residual heat	The heating zone is hot
L	Locking	The control panel is locked

Residual heat indication

After the switch-off of the hob, the heating zone is still hot and indicates [H] on the display. The symbol [H] disappears when the heating zone may be touched safely. When the residual heat indicator light is on, don't touch the heating zone and don't put any heat sensitive object on them. There are risks of burn and fire.

STARTING UP THE APPLIANCE

Before using your new hob

Clean your hob with a damp cloth, and then dry the surface thoroughly. Do not use detergent which risks causing blue-tinted colour on the glass surface.

Starting-up

• Start-up/ switch off the hob

Action	Control panel	Display
To start	press key [1]	[0]
To stop	press key [1]	nothing or [H]

• Start-up/ switch off a heating zone

Action	Control panel	Display
Increase power	press key [ ∧ ]	[1] to [9]
Decrease power	press key [ ∼ ]	[9] to [1]
Stop	press simultaneous [ ∧ ] and [ ∼ ]	[0] or [H]
or press key [ ]	[0] or [H]∼

If no action is made within 20 second the electronics returns in waiting position.

Extension zone

• S witch off/on the extension zone

Action	Control panel	Display
select zone	Press key [ ]	[0]
Increase power	Press key [ ]	[0] to [9]
Switch off	Touch key [ ]	Extension zone
Switch on	Touch key [ ]	Extension zone

Automatic cooking

All the cooking zones are equipped with an automatic “go and stop” cooking device. The cooking zone starts at full power during a certain time, then reduces automatically its power on the preselected level.

• Start-up :

Action	Control panel	Display
Zone selection	press key [ ] from the zone~ [ 0 ]
Full power setting	repress key [ ] [ 1 ] to [ 9 ]
Automatic cooking		repress key [ ~ ]	[ 9 ] is blinking with [A]
Power level selection		press key [ ~ ]	[ 9 ] wents to [ 8 ] [ 7 ]
(for example « 7 »)		[ 7 ] is blinking with [A]

• Switching off the automatic cooking :

Action	Control panel	Display
Zone selection (for example « 7 »)	press key [ ] from the zone~ [ 7 ] is blinking with [A]
Power level selection	press key [ √ ] or [ ↗ Level selected

Control panel locking

To avoid modifying a setting of cooking zones, in particular with within the framework of cleaning the control panel can be locked (with exception to the On/Off key [①]).

• Locking

Action	Control panel	Display
Start		Press key [1]	[0] or [H] on 4 displays
Hob locking	Press simultaneously [ ] and [ ] at left	No modification
Press key [ ]	[L] on 4 displays

• Unlocking

Action	Control panel	Display
Start		Press key [1]	[L] on 4 displays
In the 5 seconds after start:
Unlocking the hob		Press simultaneously [ ∨ ]and [ ∧ ] at left [0] or [H] on 4 displays
Press key [ ]		No light on the displays

Examples of power setting:

(The values below are indicative)

1 to 2 Melting, Reheating	Sauces, butter, chocolate, gelatineDishes prepared beforehand
2 to 3 Simmering, Defrosting	Rice, pudding, sugar syrupDried vegetables, fish, frozen products
3 to 4 Steam Vegetables, fish, meat
4 to 5 Water Steamed potatoes, soups, pasta, fresh vegetables
6 to 7 Medium cooking, Simmering Meat, liver, eggs, sausages, pancakes
7 to 8 Cooking Potatoes, fritters, waffles
9 Frying, roasting, Boiling water Steaks, omelettes, fried dishes, water

MAINTENANCE AND CLEANING

Switch-off the appliance before cleaning.

Do not clean the hob if the glass is too hot because they are risk of burn.

• Remove light marks with a damp cloth with washing up liquid diluted in a little water. Then rinse with cold water and dry the surface thoroughly.
• Highly corrosive or abrasive detergents and cleaning equipment likely to cause scratches must be absolutely avoided.
• Do not ever use any steam-driven or pressure appliance.
• Do not use any object that may scratch the ceramic glass.
• Ensure that the pan is dry and clean. Ensure that there are no grains of dust on your ceramic hob or on the pan. Sliding rough saucepans will scratch the surface.
• Spillages of sugar, jam, jelly, etc. must be removed immediately. You will thus prevent the surface being damaged.

The hob or the cooking zone doesn't start-up:

• The hob is badly connected to the electrical system.
  • The protection fuse has blown.
• The locking function is activated
• The sensitive keys are covered by grease or water.
• An object is covering the control panel.

The symbol [E] displays :

- Call the After-sales Service.

One or all cooking zones cut-off:

• The safety system has engaged
- You forgot to cut-off the cooking zone for a long time.
• One or more sensitive keys are covered.
- The pan is empty and has overheated.

The automatic cooking system « go and stop » doesn't start-up:

• The cooking zone is still hot [H]
• The highest power level is set [9]
- The cooking level was engaged with [ - ]

The symbol [L] displays :

• Refer to the chapter control panel locking page.

ENVIRONMENT PROTECTION

• The packaging material is ecological and can be recycled.

• The worn appliances contain certain noble metals. Apply to the local government about the possibilities of recycling.

• Don't dispose of your appliance with general household waste

• Get in touch with the waste collection centre of your local council that control the recycling of household appliances.

Symbol of a trash bin with no text or labels, including a crossed-out box and a solid black rectangle below (no readable text or symbols)

INSTALLATION INSTRUCTIONS

The installation must be performed by a qualified electrical contractor. This contractor will take the entire responsibility of the installation. The installation has to comply with the legislation and the standards in force in your country.

How to stick the gasket:

The gasket supplied with the hob prevents the intrusion of liquids into the cabinet below. Its installation has to be done carefully, as described below.

Stick the gasket (2) two millimeters from the external edge of the glass, after removing the protection tape (3).

Fitting - installing:

- Cut out sizes of the worktop:

Glass		Cutting		Rear	Side	Radius	Shoulder		Shoulder depth.
A1	B1	C	D	E	F	H	A2	B2	G
520	780	490	750	60	40	8	526	786	5

• Ensure that there is a distance of 50 mm between the hob and the wall or sides.
• The hobs are classified as "Y" class for heat protection. Ideally the hob should be installed with plenty of space on either side. There may be a wall at the rear and tall units or a wall at one side. On the other side, however, no unit or divider must stand higher than the hob.

- The piece of furniture or the support in which the hob is to be fitted, as well as the edges of furniture, the laminate coatings and the glue used to fix them, must be able to resist temperatures of up to 75 °C.

- The mural rods of edge must be heat-resisting.

• Not to install the hob to the top of a not ventilated oven or a dishwasher.

- To guarantee under the bottom of the hob casing a space of 20 mm to ensure a good air circulation of the electronic device.

- If a drawer is placed under the work, avoid to put into this drawer flammable objects (for example: sprays) or not heat-resistant objects.

- Materials which are often used to make worktops expand on contact with water. To protect the cut out edge, apply a coat of varnish or special sealant. Particular care must be given to applying the adhesive joint supplied with the hob to prevent any leakage into the supporting furniture. This gasket guaranties a correct seal when used in conjunction with smooth work top surfaces.

- The safety gap between the hob and the cooker hood placed above must respect the indications of the hood manufacturer. In case of absence of instructions respect a distance minimum of 760 mm.

- The connection cord should not be subjected, after building-in, to any mechanical constraint (for instance constraint given by a drawer installed below).

- WARNING: Use only hob guards designed by the manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

ELECTRICAL CONNECTION

• The installation of this appliance and the connection to the electrical network should be entrusted only to an electrician perfectly to the fact of the normative regulations and which respects them scrupulously.
• Protection against the parts under tension must be ensured after the building-in.
• The data of connection necessary are on the stickers place on the hob casing near the connection box.
• The connection to the main must be made using an earthed plug or via an omnipolar circuit breaking device with a contact opening of at least 3 mm.
• The electrical circuit must be separated from the network by adapted devices, for example: circuit breakers, fuses or contactors.
• If the appliance is not fitted with an accessible plug, disconnecting means must be incorporated in the fixed installation, in accordance with the installation regulations.
• The inlet hose must be positioned so that it does not touch any of the hot parts of the hob or oven.

Caution!

This appliance has only to be connected to a network 230 V\~ 50/60 Hz.

Connect always the earth wire.

Respect the connection diagram.

The connection box is located underneath at the back of the hob casing. To open the cover use a medium screwdriver. Place it in the slits and open the cover.

Mains	Connection	Cable diameter	Cable	Protection calibre
230V~ 50/60Hz 1	Phase + N 3 x	2.5 mm^2	H 05 VV - FH 05 RR - F	25 A *
400V~ 50/60Hz 2	Phases + N	4 × 1.5 mm^2	H 05 VV - FH 05 RR - F	16 A *

* calculated with the simultaneous factor following the standard EN 60 335-2-6

Connection of the hob

Setting up the configurations:

For the various kinds of connection, use the brass bridges which are in the box next the terminal

Monophase 230V\~1P+N

Put a bridge between terminal 1 and 2.

Attach the earth to the terminate “earth”, the neutral N to terminal 4, the Phase L to one of the terminals 1 or 2.

Biphase 400V\~2P+N

Attach the earth to the terminate “earth”, the neutral N to terminal 4, the Phase L1 to the terminal 1 and the Phase L2 to the terminal 2.

Caution! Be careful that the cables are correctly engaged and tightened.

We cannot be held responsible for any incident resulting from incorrect connection or which could arise from the use of an appliance which has not been earthed or has been equipped with a faulty earth connection.

The rating label is located on the underside of the hob and contains the information below:

Abb. Rating label (Exemple)

1: Electrical connection
2: Brand
3: Model
4: Manufacturer information
5: Technical specifications
6: Serial number
