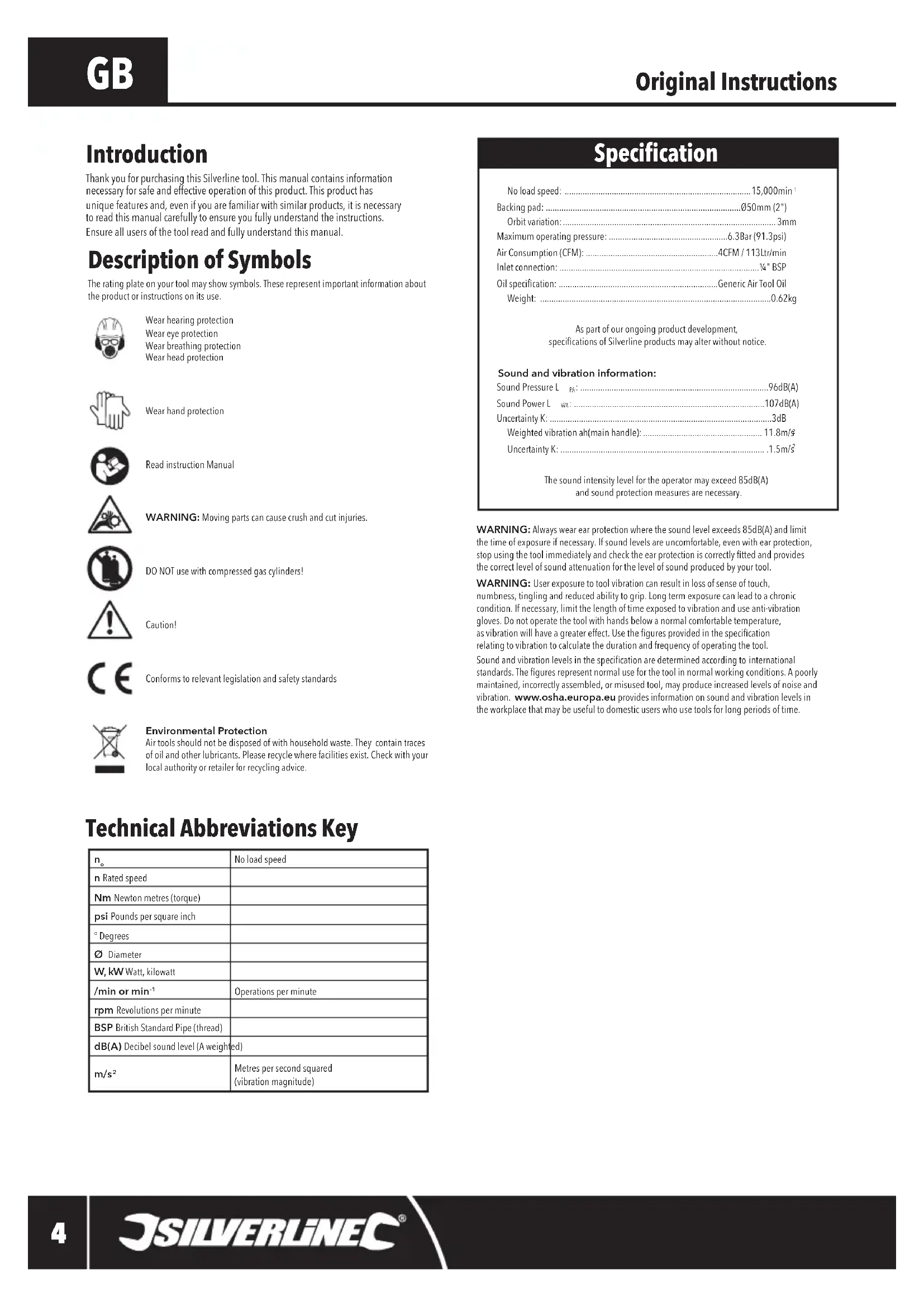

Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has

unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions.

Ensure all users of the tool read and fully understand this manual.

Description of Symbols

The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.

Wear hearing protection

Wear eye protection

Wear breathing protection

Wear head protection

Wear hand protection

Read instruction Manual

WARNING: Moving parts can cause crush and cut injuries.

DO NOT use with compressed gas cylinders!

Caution!

Conforms to relevant legislation and safety standards

Environmental Protection

Air tools should not be disposed of with household waste. They contain traces of oil and other lubricants. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.

Technical Abbreviations Key

\( {\mathrm{n}}_{\mathrm{o}} \)	No load speed
n Rated speed
Nm Newton metres (torque)
psi Pounds per square inch
° Degrees
Diameter
W, kW Watt, kilowatt
/min or min \( {}^{-1} \)	Operations per minute
rpm Revolutions per minute
BSP British Standard Pipe (thread)
dB(A) Decibel sound level (A weighted)
\( \mathrm{m}/{\mathrm{s}}^{2} \)	Metres per second squared (vibration magnitude)

Specification

No load speed: 15,000min

Backing pad: .050mm (2")

Orbit variation: 3mm

Maximum operating pressure: 6.3Bar (91.3psi)

Air Consumption (CFM): 4CFM / 113Ltr/min

Inlet connection: 14"BSP

Oil specification: Generic Air Tool Oil

Weight: 0.62kg

As part of our ongoing product development,

specifications of Silverline products may alter without notice.

Sound and vibration information:

Sound Pressure L 96dB(A)

Sound Power L 107dB(A)

Uncertainty K: 3dB

Weighted vibration ah(main handle): 11.8m/s

Uncertainty K: 1.5m/s

The sound intensity level for the operator may exceed 85dB(A)

and sound protection measures are necessary.

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.

Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.

General Safety

a) For multiple hazards, read and understand the safety instructions before installing, operating, repairing, maintaining, changing accessories on, or working near this tool. Failure to do so can result in serious bodily injury
b) Only qualified and trained operators should install, adjust, or use this tool
c) Do not modify this tool. Modifications can reduce the effectiveness of safety measures and increase the risks to the operator
d) Do not discard the safety instructions; give them to the operator
e) Do not use this tool if it has been damaged
f) Tools shall be inspected periodically to verify that the ratings and markings required by this part of ISO 11148 are legibly marked on the tool. The employer/user should contact the manufacturer to obtain replacement marking labels when necessary

WARNING: This appliance is not intended for use by persons (including children) with reduced, physical or mental capabilities or lack of experience or knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children must be supervised to ensure that they do not play with the appliance.

Projectile Hazards

a) Be aware that failure of the workpiece or accessories, or even of the inserted tool itself, can generate high velocity projectiles
b) Always wear impact-resistant eye protection during operation of this tool. The grade of protection required should be assessed for each use
c) For overhead work, wear a safety helmet
d) The risks to others should also be assessed at this time
e) Ensure that the workpiece is securely fixed

Entanglement Hazards

• Choking, scalping and/or lacerations can occur if loose clothing, personal jewellery, neck wear, hair or gloves are not kept away from the tool and its accessories

Operating Hazards

a) Use of the tool can expose the operator's hands to hazards, including cuts, abrasions and heat
b) Wear suitable gloves to protect hands
c) Operators and maintenance personnel should be physically able to handle the bulk, weight and power of the tool
d) Hold the tool correctly; be ready to counteract normal or sudden movements and have both hands available
e) Maintain a balanced body position and secure footing
f) Release the start-and-stop device in the case of an interruption of the energy supply
g) Use only lubricants recommended by the manufacturer
h) Personal protective safety glasses should be used; suitable gloves and protective clothing are recommended
i) Avoid direct contact with moving parts in order to prevent pinching or cutting of hands or other body parts
j) Wear suitable gloves to protect hands
k) There is a risk of electrostatic discharge if used on plastic and other non-conductive materials

Repetitive Motions Hazards

a)When using this tool to perform work-related activities, the operator can experience discomfort in the hands, arms, shoulders, neck or other parts of the body
b)While using this tool, the operator should adopt a comfortable posture whilst maintaining secure footing and avoiding awkward or off-balance postures. The operator should change posture during extended tasks; this can help avoid discomfort and fatigue
c) If the operator experiences symptoms such as persistent or recurring discomfort, pain, throbbing, aching, tingling, numbness, burning sensations or stiffness, these warning signs should not be ignored. The operator should inform the employer and consult a qualified health professional

Accessory Hazards

a) Disconnect the tool from the energy supply before fitting or changing the inserted tool or accessory
b) Avoid direct contact with the inserted tool during and after use, as it can be hot or sharp
c) Use only sizes and types of accessories and consumables that are recommended by the manufacturer of this tool; do not use other types or sizes of accessories or consumables.

Workplace Hazards

a) Slips, trips and falls are major causes of workplace injury. Be aware of slippery surfaces caused by use of the tool and also of trip hazards caused by the air line or hydraulic hose
b) This tool is not intended for use in potentially explosive atmospheres and is not insulated against contact with electric power

Dust and Fume Hazards

a) Dust and fumes generated when using this tool can cause ill health (for example cancer, birth defects, asthma and/or dermatitis); risk assessment and implementation of appropriate controls for these hazards are essential
b) Risk assessment should include dust created by the use of the tool and the potential for disturbing existing dust
c) Direct the exhaust so as to minimise disturbance of dust in a dust-filled environment
d) Where dust or fumes are created, the priority should be to control them at the point of emission
e) Select, maintain and replace the consumable/inserted tool as recommended in the instruction handbook, to prevent an unnecessary increase in dust or fumes
f) Use respiratory protection in accordance with employer's instructions and as required by occupational health and safety regulations

Noise Hazards

a) Exposure to high noise levels can cause permanent, disabling hearing loss and other problems, such as tinnitus (ringing, buzzing, whistling or humming in the ears). Therefore, risk assessment and implementation of appropriate controls for these hazards are essential
b) Appropriate controls to reduce the risk can include actions such as damping materials to prevent workpieces from 'ringing'
c) Use hearing protection in accordance with employer's instructions and as required by occupational health and safety regulations
d) Operate and maintain this tool as recommended in the instruction handbook, to prevent an unnecessary increase in the noise level
e) Select, maintain and replace the consumable/inserted tool as recommended in the instruction handbook, to prevent an unnecessary increase in noise
f) If the tool has a silencer, always ensure it is in place and in good working order when the tool is being operated

Vibration Hazards

a) Exposure to vibration can cause disabling damage to the nerves and blood supply of the hands and arms
b) Wear warm clothing when working in cold conditions and keep your hands warm and dry
c) If you experience numbness, tingling, pain or whitening of the skin in your fingers or hands, stop using the machine, inform your employer and consult a physician
d) Operate and maintain the sender or polisher as recommended in the instruction handbook, to prevent an unnecessary increase in vibration levels
e) Hold the tool with a light but safe grip, taking account of the required hand reaction forces, because the risk from vibration is generally greater when the grip force is higher. Additional Safety Instructions for Pneumatic Power Tools

Additional Safety Instructions for Pneumatic Power Tools

Air under pressure can cause severe injury:

Always shut off air supply, drain hose of air pressure and disconnect tool from air supply when not in use, before changing accessories or when making repairs
- Never direct air at yourself or anyone else
- Whipping hoses can cause severe injury. Always check for damaged or loose hoses and fittings
- Whenever universal twist couplings (claw couplings) are used, lock pins should be installed and whipcheck safety cables should be used to safeguard against possible hose-to-tool or hose-to-hole connection failure
- Do not exceed the maximum air pressure stated on the tool
- Never carry an air tool by the hose

Sanding Tool Safety WARNING!

• Use clamps or another practical way to secure the workpiece to a stable platform. Holding the workpiece by hand or against the body makes it unstable and may lead to loss of control.
  a. ALWAYS wear appropriate protective equipment, including a dust mask with a minimum FFP2 rating, eye protection and ear defenders
  b. Ensure all people in the vicinity of the work area are also equipped with suitable personal protective equipment
  c. Take special care when sanding some woods (such as beech, oak, mahogany and teak), as the dust produced is toxic and can cause extreme reactions
  d. NEVER use to process any materials containing asbestos. Consult a qualified professional, if you are uncertain whether an object contains asbestos
  e. DO NOT sand magnesium or alloys containing a high percentage of magnesium
  f. Be aware of paint finishes or treatments that may have been applied to the material that is being sanded. Many treatments can create dust that is toxic, or otherwise harmful. If working on a building constructed prior to 1960, there is an increased chance of encountering lead-based paints

g. The dust produced when sanding lead-based paints is particularly hazardous to children, pregnant women, and people with high blood pressure. DO NOT allow these people near to the work area, even if wearing appropriate personal protective equipment
h. Whenever possible, use a vacuum dust extraction system to control dust and waste
i. Be especially careful when using a machine for both wood and metal sanding. Sparks from metal can easily ignite wood dust. ALWAYS clean your machine thoroughly to reduce the risk of fire
j. Empty the dust bag or container (where applicable) frequently during use, before taking breaks and after completion of sanding. Dust may be an explosion hazard. DO NOT throw sanding dust into an open fire. Spontaneous combustion may occur when oil or water particles come into contact with dust particles. Disposse of waste materials carefully and in accordance with local laws and regulations.
k. Work surfaces and sandpaper can become very hot during use. If there is evidence of burning (smoke or ash), from the work surface, stop and allow the material to cool. DO NOT touch work surface or sandpaper until they have had time to cool
1. DO NOT touch the moving sandpaper
m. ALWAYS switch off before you put the sander down
n. DO NOT use for wet sanding. Liquids entering the motor housing can cause severe electric shocks
0. ALWAYS unplug the sander from the mains power supply before changing or replacing sandpaper
p. Even when this tool is used as prescribed it is not possible to eliminate all residual risk factors. If you are in any doubt as to safe use of this tool, do not use it

Additional Safety Instructions for Pneumatic Sanding Tools

• Inspect the backing pad before use. Do not use if cracked or broken or if it has been dropped
• Never run the tool unless abrasive is applied to the workpiece
• Grinding wheels and cutting off tools shall not be used
• Check that the maximum operating speed of the inserted tool (flap wheels, abrasive belts, fibre discs, backing pads, etc.), is higher than the rated speed of the sander or polishing
  Self-fixing sander discs shall be placed concentrically on the supporting pad
• Ensure that there are no electrical cables, gas pipes, etc., which can cause a hazard if damaged by use of the tool

Product Familiarisation

1 Oscillating Spindle

2 Spindle Housing

3 Safety Catch

4 Throttle Trigger

5 Handle

6 Air Inlet

7 Quick Connector

8 Spindle Locking Tool

9 Hook & Loop Backing Pad

10 Spindle Locking Hole

Intended Use

Compressed-air-powered sandblasting gun that sprays abrasive material on to surfaces in order to remove coatings, rust and contaminants. Ideal for the removal of paint and light corrosion within tight spaces.

Unpacking Your Tool

Carefully unpack and inspect your new tool. Familiarise yourself with all its features and functions
- Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool.

Before Use

WARNING: Always disconnect from the air supply and depressurise

before cleaning or carrying out any maintenance.

WARNING: Before fitting sanding sheets, ensure the sander is disconnected from the power supply. Note: DO NOT continue to use worn, torn, or heavily clogged sanding sheets. Ensure foreign objects, such as nails and screws, are removed from the workpiece before commencing sanding.

WARNING: DO NOT use a sanding sheet on wood that has previously been used on metal. This may cause scouring on the wooden surface. DO NOT use this sander for sanding magnesium. Note: Before every use drip 3 droplets of Air Tool Oil (not supplied) into the Air Inlet (6) to increase tool longevity.

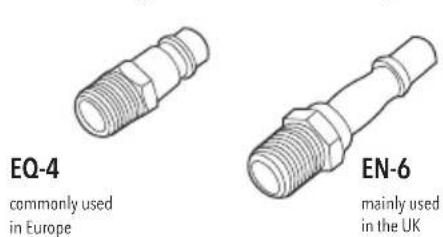

Fitting the quick connector

Note: This tool is supplied with two different male air line quick connectors.

• Please choose the connector that is compatible with the air line system you are using, and install as outlined below:
• Apply some PTFE tape (not included) to the screw threads of the Quick Connector (7). This will help to maintain an air-tight seal

Note: Apply PTFE tape tightly, and in a clockwise direction, so it does not come off when the thread is screwed into the tool.

1. Remove the protective plug from the Air Inlet (6)
2. Using a spanner (not included) screw the Quick Connector into the Air Inlet located at the base of the handle
3. Connect to air line, pressurise carefully, and carry out a leak check (e.g. by spraying small amounts of soapy water on to the outside of the connectors)
   Air lines fitted with matching female quick connectors will now be a push fit to the tool

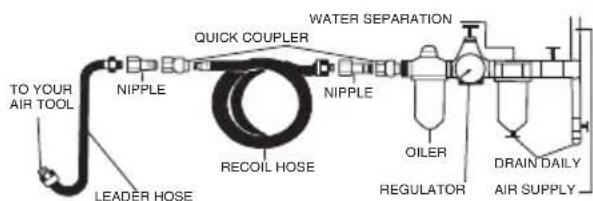

Air supply connection

• This tool should be connected to a clean, dry air supply with inline oiler and water separator
• Do not allow supply pressure to exceed the maximum stated (see "Specifications")
• Ensure that water is drained from air system daily
• Ensure that all parts of the system (hoses, couplers, etc.) are correctly rated for the air pressure to be used

Attaching the backing pad

1. Lock the Oscillating Spindle (1) in position by inserting the Spindle Locking Tool (8) into the Spindle Locking Hole (10)
   Note: Once the Spindle Locking Tool is inserted in the Spindle Locking Hole, the threaded insert within the Oscillating Spindle may need to be turned until it properly locks in position.
2. With the Oscillating Spindle free from movement, screw in the Hook & Loop Backing Pad (9) securely

Selecting the right grade of sanding disc

• Sanding discs are available in a variety of different grades: coarse (60 grit), medium (120 grit) and fine (240 grit)
• Use a coarse grit to sand down rough finishes, medium grit to smooth the work, and fine grit to finish off
  Always use good quality sanding discs to maximise the quality of the finished task

It is advisable to carry out a trial run on a scrap piece of material to determine the optimum grit grade for a particular job. If there are still marks on the workpiece after sanding, try either going back to a coarser grade and sanding the marks out before recommencing with the original choice of grit, or try using a new sanding disc to eliminate the unwanted marks before moving on to a finer grit and finishing the job

Attaching a hook & loop sanding disc

• With the sander disconnected from the air supply, firmly press the hook

& loop sanding disc on to the Hook & Loop Backing Pad (9)

Operation

WARNING: ALWAYS wear eye protection, adequate respiratory and hearing protection, as well as suitable gloves, when working with this tool.

Note: Always use clamps to secure the workpiece to the workbench wherever possible.

1. Connect the sander to the air supply and ensure the pressure setting is correct, see 'Specifications' for the air supply pressure rating
2. Hold the tool by the Handle (5), disengage the Safety Catch (3) and gently squeeze the Throttle Trigger (4) towards the Handle
3. The Oscillating Spindle (1) will begin to spin. Squeeze the Throttle Trigger further to increase the speed, slightly release to decrease the speed,
4. With the Hook & Loop Backing Pad (9) spinning at the required speed, slowly move the pad towards the workpiece and gently engage the material
5. Apply moderate pressure to the workpiece surface during operation. Do not apply excessive pressure
6. To stop the tool, move the disc away from the workpiece, fully release the Throttle Trigger and allow the Safety Catch to re-engage

Accessories

• A range of accessories and consumables, including Coiled Air Hose (269591), Air Filter Regulator & Lubricator (245014) and Mini In-Line Oiler (456965) is available from your Silverline stockist. Spare parts can be obtained from toolsparesonline.com

Maintenance

General inspection

Regularly check that all the fixing screws are tight

Cleaning

• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life. Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
• Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents
• Never use caustic agents to clean plastic parts

Lubrication

• Slightly lubricate all moving parts at regular intervals with a suitable spray lubricant

Storage

• Store this tool carefully in a secure, dry place out of the reach of children

Troubleshooting

Problem Possible Cause Solution
No function when Throttle Trigger (4) is operated. Oscillating Spindle (1) rotates freely	Air supply issue	Check all connections between compressor and tool, and ensure the operating pressure is set correctly
	Defective Throttle Trigger or throttle components	In the event the internal throttle mechanism becomes jammed. Check for dirt within the Air Inlet (6) and remove. Pour a small amount of air tool oil (not included) into the Air Inlet, reconnect the air supply and operate the Throttle Trigger in small bursts. If the tool still ceases to function, return to an authorised Silverline service centre
Oscillating Spindle (1) performance is restricted, yet air flows freely from the tool	Internal vane seized	Disconnect the air supply. Pour a small amount of air tool oil (not included) into the Air Inlet (6), reconnect the air supply and operate the Throttle Trigger in small bursts.Periodically tap the Spindle Housing using a rubber mallet (not included). If the tool still ceases to function, return to an authorised Silverline service centre
Seized Oscillating Spindle (1)	Broken internal vane	Return to an authorised Silverline service centre
Sander will not turn off when Throttle Trigger (4) is released	Defective internal Throttle Trigger components	Return to an authorised Silverline service centre

Silverline Tools Guarantee

This Silverline product comes with a 3 year guarantee

Register this product at www.silverinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.

Registering your purchase

Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:

• Your personal details
  Details of the product and purchase information

Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.

Terms & Conditions

Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.

If this product develops a fault after the 30 day period, return it to:

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU,UK

The guarantee claim must be submitted during the guarantee period.

You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.

You must provide precise details of the fault requiring correction.

Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.

Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.

All work will be carried out by Silverline Tools or its authorized repair agents.

The repair or replacement of the product will not extend the period of guarantee

Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.

Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.

The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.

What is covered:

The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.

If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.

Use of this product in the EU.

What is not covered:

Silverline Tools does not guarantee repairs required as a result of:

Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.

The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.

Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.

Use of the product for anything other than normal domestic purposes.

Change or modification of the product in any way.

Use of parts and accessories which are not genuine Silverline Tools components.

Faulty installation (except installed by Silverline Tools).

Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.

Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.

CE Declaration of Conformity

The undersigned: Mr Darrell Morris

as authorised by: Silverline

Declaresthat

This declaration has been issued under the sole responsibility of the manufacturer.

The object of the declaration is in conformity with the relevant Union harmonisation Legislation.

Identification code: 672976

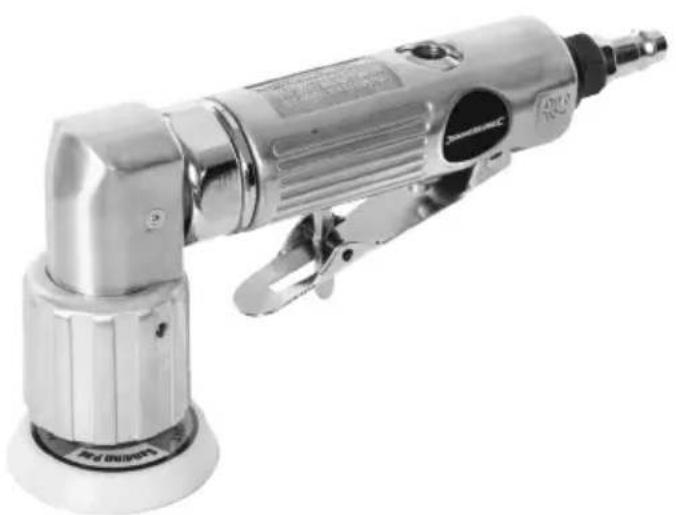

Description: Mini Air Sander

Conforms to the following directives and standards:

• Machinery Directive 2006/42/EC

ENISO11148-8:2011

The technical documentation is kept by: Silverline

Date:23/07/15

Signed:

Name and address of the manufacturer:

Powerbox International Limited, Company No. 06897059. Registered address: Powerbox, Boundary Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom.

Introduction

Plateau support: 0 50 mm

Le sousigned: M. Darrell Morris

Machinery Directive 2006/42/EC

ENISO11148-8:2011

Handvibration a (Hauptgriff): 11,8 m/s²

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GroBbritannien

D. however materially rich, they remain spiritually poor

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU,GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, GB

Silverline Tools Service Centre

PO Box 2988

Yeovil

BA21 1WU, UK

• Machinery Directive 2006/42/EC

ENISO11148-8:2011

Powerbox International Limited, Company No. 06897059. Registered address: Powerbox, Boundary

Way, Lufton Trading Estate, Yeovil, Somerset BA22 8HZ, United Kingdom.

GB 3 Year Guarantee *Register online within 30 days. Terms and Conditions apply.
