261362 - Sander SILVERLINE - Free user manual and instructions
Find the device manual for free 261362 SILVERLINE in PDF.
| Brand | Silverline |
| Model | 261362 |
| Product Type | Orbital polisher/sander |
| Voltage | 220-240 V ~50 Hz |
| Power | 110 W |
| No-load speed | 3,100 rpm |
| Pad diameter | 240 mm |
| Protection rating | IP20 |
| Protection class | II (double insulation) |
| Dimensions (L x W x H) | 270 x 260 x 215 mm |
| Weight | 2.1 kg |
| Sound pressure LpA | 60 dB(A) |
| Sound power LwA | 71 dB(A) |
| Weighted vibration ah | 11.5 m/s² |
| Vibration uncertainty | K = 1.5 m/s² |
| Sound uncertainty | K = 3 dB |
| Main functions | Polishing of vehicles and similar surfaces |
| Maintenance | Regular cleaning, replacement of carbon brushes |
| Safety | Wear goggles, mask, hearing protection; double insulation |
| Warranty | 3 years (registration within 30 days) |
| Compliance | CE, directives 2006/42/EC, 2014/30/EU, 2011/65/EU |
Frequently Asked Questions - 261362 SILVERLINE
User questions about 261362 SILVERLINE
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Sander in PDF format for free! Find your manual 261362 - SILVERLINE and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 261362 by SILVERLINE.
USER MANUAL 261362 SILVERLINE
DIY 110W Orbital Car Polisher 240mm
FR Polisseuse-lustreuse orbitale 240 mm, 110 W
Français ......8
Deutsch......12
Español......16
Italiano ......20
Nederlands ......24
Polski ......28

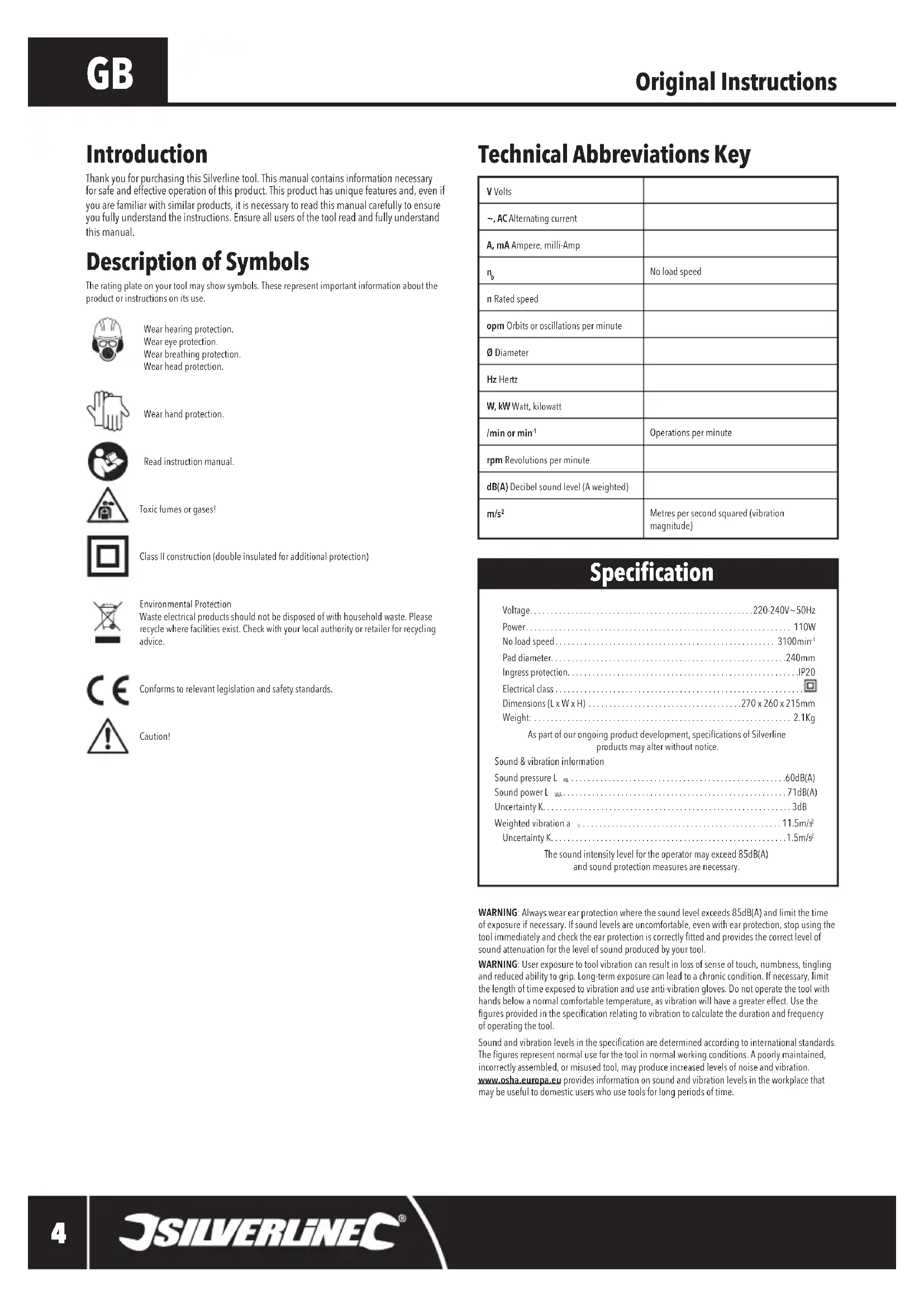

Introduction
Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual.
Description of Symbols
The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.
Wear hearing protection.
Wear eye protection.
Wear breathing protection.
Wear head protection.
Wear hand protection.
Read instruction manual.
Toxic fumes or gases!
Class II construction (double insulated for additional protection)
Environmental Protection
Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.
Conforms to relevant legislation and safety standards.
Caution!
Technical Abbreviations Key
| V Volts | |
| ~,AC Alternating current | |
| A, mA Ampere, milli-Amp | |
| n_b | No load speed |
| n Rated speed | |
| opm Orbits or oscillations per minute | |
| ∅ Diameter | |
| Hz Hertz | |
| W, kW Watt, kilowatt | |
| /min or min^1 | Operations per minute |
| rpm Revolutions per minute | |
| dB(A) Decibel sound level (A weighted) | |
| m/s^2 | Metres per second squared (vibration magnitude) |
Specification
Voltage 220-240V\~50Hz
Power....110W
No load speed 3100min ^-1
Pad diameter....240mm
Ingress protection....IP20
Electrical class
Dimensions (L x W x H) 270 x 260 x 215mm
Weight: 2.1Kg
As part of our ongoing product development, specifications of Silverline
products may alter without notice.
Sound & vibration information
Sound pressure L 60dB(A)
Sound power L 71dB(A)
Uncertainty K....3dB
Weighted vibration a 11.5m/s ^2
Uncertainty K....1.5m/s²
The sound intensity level for the operator may exceed 85dB(A)
and sound protection measures are necessary.
WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.
WARNING: User exposure to tool vibration can result in loss of sense of touch, numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool.
Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration.
www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time.
General Safety
WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.
1) Work area safety
a) Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.
2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply. Use of an RCD reduces the risk of electric shock.
3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energising power tools that have the switch ON invites accidents.
d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.
g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.
4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.
5) Service
a) Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
Polisher Safety
- Do not use this polisher as an angle grinder
• Always read and understand all information supplied with polishing pastes before use
- Do not smoke, eat, or drink when using this polisher
- Never attach any accessory with a maximum speed lower than the no load speed of the machine

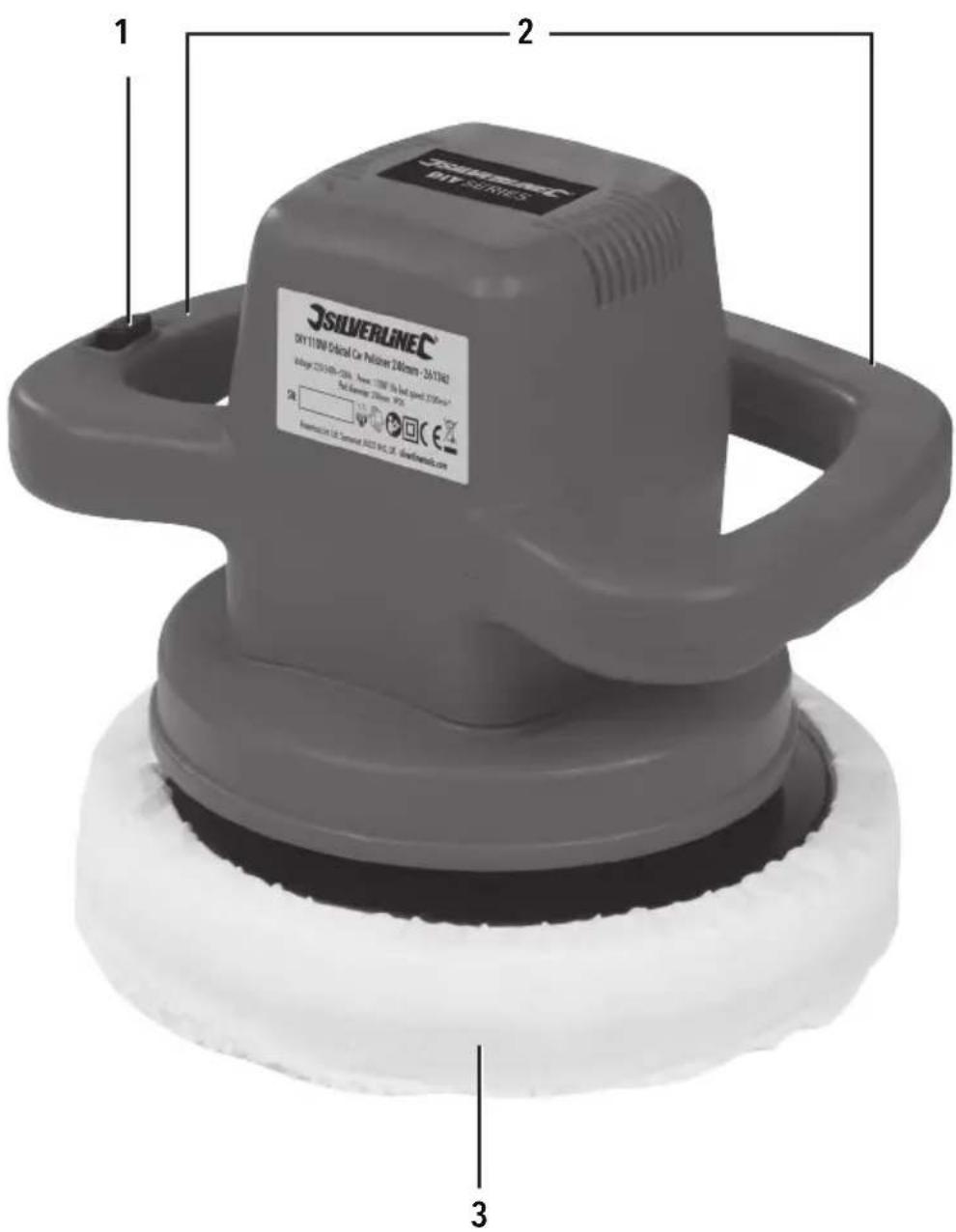

Product Familiarisation
-
ON/OFF Switch
-
Handles
-
Polishing Pad
Intended Use
Electrical orbital polishing tool for light to medium duty polishing tasks on vehicles of all kinds and other similar surfaces.
Unpacking Your Tool
- Carefully unpack and inspect your new sander. Familiarise yourself with all its features and functions
- Ensure that all parts of the tool are present and in good condition. If any parts are missing or damaged, have such parts replaced before attempting to use this tool
Before Use
WARNING: Ensure the polisher is disconnected from the power supply before attaching or changing any accessories.
Fitting a polishing bonnet
- Polishing bonnets can be fitted over the Polishing Pad (3)
- If using tie string type bonnets, ensure that tie strings are secure, and will not snag on any part of the machine
Operation
WARNING: ALWAYS wear appropriate personal protective equipment, including eye protection when working with this tool.
Switching ON
- Put on all safety equipment required to use this tool and connect the tool to the power source
- Grip the polisher by both hands, using both of the Handles (2)
- Slide the ON/OFF Switch (1) into the 'ON' position
- To switch OFF the polisher, slide the switch to the 'OFF' position
Polishing tips
• ALWAYS ensure that the area to be polished is clean and dry
- Read and understand all information supplied with your polishing compound or paste before use
- Apply polishing compound or paste to the polishing bonnet (follow manufacturers guidance), and place polishing bonnet against work surface
- Hold the machine securely, using both hands, by the handles provided. The polishing bonnet should lightly contact the work surface
- Start the machine, and work across the surface using a wide 'sweeping' motion. Apply extra compound or paste as required
- When entire work surface is coated, stop the machine and allow compound or paste to dry (follow manufacturers guidance)
- Attach a clean polishing bonnet to the machine, and work across the surface as before until all polishing compound or paste is removed
Accessories
- A range of accessories and consumables, including spare polishing bonnets and various polishing compounds, is available from your Silverline stockist
- Spare parts can be obtained from toolsparesonline.com
Maintenance
WARNING: ALWAYS disconnect from the power supply before carrying out any inspection, maintenance or cleaning.
General inspection
- Regularly check that all the fixing screws are tight
- Inspect the supply cord of the tool, prior to each use, for damage or wear. Repairs should be carried out by an authorised Silverline service centre. This advice also applies to extension cords used with this tool
- Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the machine's service life. Clean the body of your machine with a soft brush, or dry cloth. If available, use clean, dry, compressed air to blow through the ventilation holes
- Clean the tool casing with a soft damp cloth using a mild detergent. Do not use alcohol, petrol or strong cleaning agents
- Never use caustic agents to clean plastic parts
Cleaning
Brushes
• Over time the carbon brushes inside the motor may become worn
- Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking
- If you suspect that the brushes may be worn, have them replaced at an authorised Silverline service centre
Contact
For technical or repair service advice, please contact the helpline on (+44) 1935 382 222
Web: silverlinetools.com/en-GB/Support
Address:
Powerbox
Boundary Way
Lufton Trading Estate
Yeovil, Somerset
BA22 8HZ, United Kingdom
Storage
- Store this tool carefully in a secure, dry place out of the reach of children
Disposal
Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.
- Do not dispose of power tools or other waste electrical and electronic equipment (WEEE) with household waste
- Contact your local waste disposal authority for information on the correct way to dispose of power tools
Silverline Tools Guarantee
This Silverline product comes with a 3 year guarantee
Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt.
Registering your purchase
Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-
- Your personal details
• Details of the product and purchase information
Once this information is entered your guarantee certificate will be created in PDF format for you to print out and keep with your purchase.
Terms & Conditions
Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.
PLEASE KEEP YOUR SALES RECEIPT
If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.
If this product develops a fault after the 30 day period, return it to:
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK
The guarantee claim must be submitted during the guarantee period.
You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.
You must provide precise details of the fault requiring correction.
Claims made within the guarantee period will be verified by Silverline Tools to establish if the deficiencies are related to material or manufacturing of the product.
Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.
All work will be carried out by Silverline Tools or its authorized repair agents.
The repair or replacement of the product will not extend the period of guarantee
Defects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.
Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools.
The repair or replacement of your product under guarantee provides benefits which are additional to and do not affect your statutory rights as a consumer.
What is covered:
The repair of the product, if it can be verified to the satisfaction of Silverline Tools that the deficiencies were due to faulty materials or workmanship within the guarantee period.
If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.
Use of this product in the EU.
What is not covered:
Silverline Tools does not guarantee repairs required as a result of:
Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.
The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.
Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.
Use of the product for anything other than normal domestic purposes.
Change or modification of the product in any way.
Use of parts and accessories which are not genuine Silverline Tools components.
Faulty installation (except installed by Silverline Tools).
Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.
Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee.
CE Declaration of Conformity
The undersigned: Mr Darrell Morris
as authorised by: Silverline
Declares that:
This declaration has been issued under the sole responsibility of the manufacturer.
The object of the declaration is in conformity with the relevant Union harmonisation Legislation.
Identification code: 261362
Description: DIY 110W Orbital Car Polisher 240mm
Conforms to the following directives and standards:
• Machinery Directive 2006/42/EC
• EMC Directive 2014/30/EU
• RoHS Directive 2011/65/EU
• EN 60745-1:2009+A11:2010
• EN 60745-2-4:2009+A11:2011
• EN 55014-1:2006+A2:2011
• EN 55014-2:1997+A2:2008
• EN 61000-3-2:2014
• EN 61000-3-3:2013
Notified body: TÜV
The technical documentation is kept by: Silverline
Date: 16/11/2017
Signed:
Mr Darrell Morris
Managing Director
Name and address of the manufacturer:
Powerbox International Limited,
Company No. 06897059. Registered address: Powerbox, Boundary Way, Lufton Trading Estate,
Yeovil, Somerset, BA22 8HZ, United Kingdom.
Introduction
Silverline Tools Service Centre
PO Box 2988
Yeovil
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GB
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, GB
Silverline Tools Service Centre
PO Box 2988
Yeovil
BA21 1WU, UK

