USER MANUAL 953705 SILVERLINE

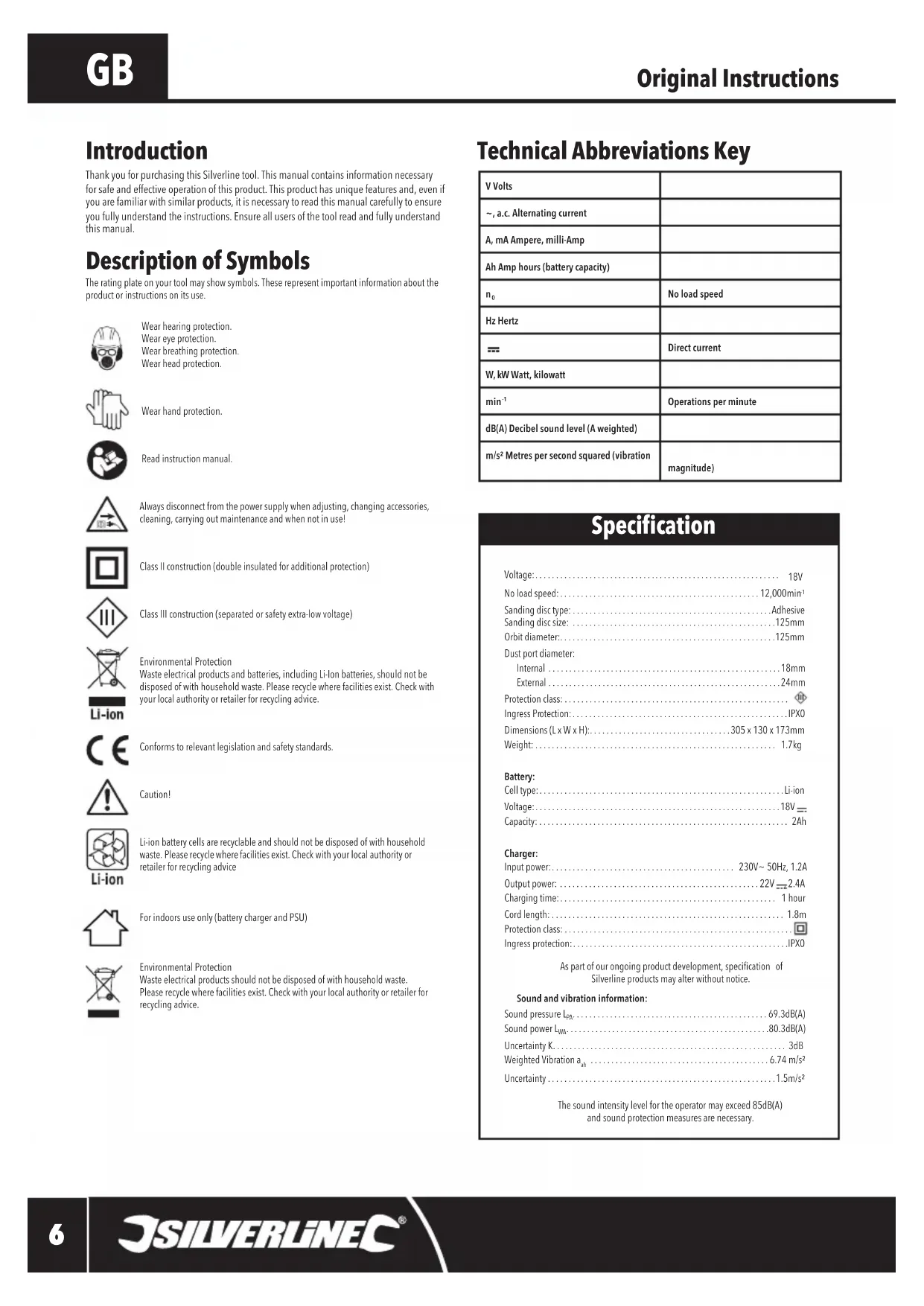

...........................................6.74 m/s² Uncertainty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1.5m/s² The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are necessary. Technical Abbreviations Key Specication Description of Symbols The rating plate on your tool may show symbols. These represent important information about the product or instructions on its use.Wear hearing protection. Wear eye protection. Wear breathing protection.Wear head protection.Wear hand protection.Read instruction manual.Always disconnect from the power supply when adjusting, changing accessories, cleaning, carrying out maintenance and when not in use!Class II construction (double insulated for additional protection)Class III construction (separated or safety extra-low voltage)Environmental Protection Waste electrical products and batteries, including Li-Ion batteries, should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice.Conforms to relevant legislation and safety standards. Caution!Li-ion battery cells are recyclable and should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling adviceFor indoors use only (battery charger and PSU)Environmental ProtectionWaste electrical products should not be disposed of with household waste.Please recycle where facilities exist. Check with your local authority or retailer forrecycling advice. Introduction Thank you for purchasing this Silverline tool. This manual contains information necessary for safe and effective operation of this product. This product has unique features and, even if you are familiar with similar products, it is necessary to read this manual carefully to ensure you fully understand the instructions. Ensure all users of the tool read and fully understand this manual. Original Instructions V Volts~, a.c. Alternating currentA, mA Ampere, milli-AmpAh Amp hours (battery capacity)

WARNING: Always wear ear protection where the sound level exceeds 85dB(A) and

limit the time of exposure if necessary. If sound levels are uncomfortable, even with ear protection, stop using the tool immediately and check the ear protection is correctly fitted and provides the correct level of sound attenuation for the level of sound produced by your tool.

WARNING: User exposure to tool vibration can result in loss of sense of touch,

numbness, tingling and reduced ability to grip. Long-term exposure can lead to a chronic condition. If necessary, limit the length of time exposed to vibration and use anti-vibration gloves. Do not operate the tool with hands below a normal comfortable temperature, as vibration will have a greater effect. Use the figures provided in the specification relating to vibration to calculate the duration and frequency of operating the tool. Sound and vibration levels in the specification are determined according to international standards. The figures represent normal use for the tool in normal working conditions. A poorly maintained, incorrectly assembled, or misused tool, may produce increased levels of noise and vibration. www.osha.europa.eu provides information on sound and vibration levels in the workplace that may be useful to domestic users who use tools for long periods of time. General Power Tool Safety Warnings

WARNING: Read all safety warnings, instructions, illustrations and specifications

provided with this power tool. Failure to follow all instructions listed below may result in electric shock, re and/or serious injury. Save all warnings and instructions for future reference. The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

a) Keep work area clean and well lit. Cluttered or dark areas invite accidents. b) Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids gases or dust. Power tools create sparks which may ignite the dust or fumes. ) Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2) Electrical safety

a) Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodied plugs and matching outlets will reduce risk of electric shock.b) Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.c) Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts.Damaged or entangled cords increase the risk of electric shock.e) When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.f) If operating a power tool in a damp location is unavoidable, use a residual current device (RCD) protected supply.Use of an RCD reduces the risk of electric shock.

a) Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence o drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.b) Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.c) Prevent unintentional starting. Ensure the switch is in the OFF-position before connecting to power source and/or battery pack, picking up or carrying the tool.Carrying power tools with your nger on the switch or energising power tools that have the switch ON invites accidents. d) Remove any adjusting key or wrench before turning the power tool ON. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts.g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.h) Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety principles. A careless action can cause severe injury within a fraction of a second.

4) Power tool use and care

a) Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.b) Do not use the power tool if the switch does not turn it ON and OFF. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.c) Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools.Such preventive safety measures reduce the risk ofstarting the power tool accidentally.d) Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.e) Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.f) Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.g) Use the power tool, accessories and tool bits, etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation. h) Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5) Battery tool use and care

a) Recharge only with the charger specified by the manufactu er. A charger that is suitable for one type of battery pack may create a risk of re when used with another battery pack.b) Use power tools only with specifically designated ba tery packs. Use of any other battery packs may create a risk of injury and re.c) When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a re.d) Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with wate . If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns. e) Do not use a battery pack or tool that is damaged or modified Damaged or modied batteries may exhibit unpredictable behaviour resulting in re, explosion or risk of injury.f) Do not expose a battery pack or tool to fi e or excessive temperature. Exposure to re or temperature above 130°C may cause explosion.g) Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions Charging improperly or at temperatures outside the specied range may damage the battery and increase the risk of re.

a) Have your power tool serviced by a qualified epair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained. b) Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorised service providers. Sanding Tool Safety

• Hold the power tool by insulated gripping surfaces only, when performing an operation where the sanding disc may contact hidden wiring. A sanding disc contacting a ‘live’ wire may make exposed metal parts of the power tool ‘live’ and could give the operator an electric shock.• Use clamps or another practical way to secure the workpiece to a stable platform. Holding the workpiece by hand or against the body makes it unstable and may lead to loss of control.a. ALWAYS wear appropriate protective equipment, including a dust mask with a minimum FFP2 rating, eye protection and ear defendersb. Ensure all people in the vicinity of the work area are also equipped with suitable personal protective equipmentc. Take special care when sanding some woods (such as beech, oak, mahogany and teak), as the dust produced is toxic and can cause extreme reactions d. NEVER use to process any materials containing asbestos. Consult a qualied professional, if you are uncertain whether an object contains asbestose. DO NOT sand magnesium or alloys containing a high percentage of magnesium 953705_Manual.indd 7 25/03/2020 12:12GB

f. Be aware of paint finishes or t eatments that may have been applied to the material that is being sanded. Many treatments can create dust that is toxic, or otherwise harmful. Ifworking on a building constructed prior to 1960, there is an increased chance of encountering lead-based paintsg. The dust produced when sanding lead-based paints is particularly hazardous to children, pregnant women, and people with high blood pressure. DO NOT allow these people near to the work area, even if wearing appropriate personal protective equipmenth. Whenever possible, use a vacuum dust extraction system to control dust and wastei. Be especially careful when using a tool for both wood and metal sanding. Sparks from metal can easily ignite wood dust. ALWAYS clean your tool thoroughly to reduce the risk of re . Empty the dust bag or container (where applicable) frequently during use, before taking breaks and after completion of sanding. Dust may be an explosion hazard. DO NOT throw sanding dust into an open re. Spontaneous combustion may occur when oil or water particles come into contact with dust particles. Dispose of waste materials carefully and in accordance with local laws and regulations.k. Work surfaces and sandpaper can become very hot during use. If there is evidence of burning (smoke or ash), from the work surface, stop and allow the material to cool.DO NOT touch work surface or sandpaper until they have had time to cooll. DO NOT touch the moving sandpaperm. ALWAYS switch off before you put the sander down n. DO NOT use for wet sanding. Liquids entering the motor housing can cause severe electric shockso. ALWAYS disconnect the sander from the power supply before changing or replacing sandpaperp. Even when this tool is used as prescribed it is not possible to eliminate all residual risk factors. If you are in any doubt as to the safe use of this tool, do not use it. Battery and Charger Safety Use the Battery Charger correctly

• Refer to the section of this manual relating to use of the Battery Charger (14) before attempting to charge the Battery (6)• Do not attempt to use the Battery Charger with any batteries other than those supplied. • Keep your Battery Charger clean; foreign objects or dirt may cause a short or block air vents. Failure to follow these instructions may cause overheating or fi e
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualifie persons in order to avoid a hazard
• Examine the Battery Charger regularly for damage, especially the cord, plug and enclosure. If the Battery Charger is damaged, it must not be used until it has been repaired• Children should be supervised to ensure that they do not play with the appliance WARNING: Do not attempt to recharge non-rechargeable batteries. Battery safety

WARNING: Li-ion batteries, if incorrectly used, stored or charged are a fire, burn and explosion

hazard.• Keep the battery out of reach of children

• OnlychargeLi-ionbatteriesdesignedspecificall forthischarger

• Allow batteries to cool for 15 minutes after charging or heavy use. Failure to follow these instructions may cause overheating or fi e

• Whennotinusebatteriesshouldbestoredatroomtemperature(approximately20˚C)
• Ensure battery contacts cannot accidentally short in storage. Keep batteries clean; foreign objects or dirt may cause a short. Keep away from other metal objects, for example paperclips, coins,keys, nails and screws• Under abusive conditions, liquid may be ejected from the battery. This liquid may cause skin irritation or burns. Avoid contact.If contact accidentally occurs, flus with water.If liquid contacts eyes, seek medical help
• Donotopen,disassemble,crush,heatabove60°Corincinerate.Donotdisposeofinfi eor similar• Do not get batteries wet or immerse in water Battery & charger safety features The Battery and Charger are fitted with a number of safety features which may be triggered during charging or operation:• Over-charge protection: Charger automatically switches off when the Battery has reached full charge capacity, protecting the internal components of the battery• Over-discharge protection: Prevents the Battery from discharging beyond the recommended lowest safety voltage• Over-heat protection: Sensor switches off if the Battery becomes too hot during operation. This can happen if the tool is overloaded or being used for extended periods of time. Up to 30 minutes cooling time may be required depending on the ambient temperature• Overload protection: Battery temporarily stops if it is overloaded or the maximum current draw is exceeded, protecting the internal components.The Battery will resume normal operation when the current draw returns to a normal safe level.This may take a few seconds• Short circuit protection: The Battery will stop working immediately if a short circuit occurs, this prevents damage to the Battery or tool

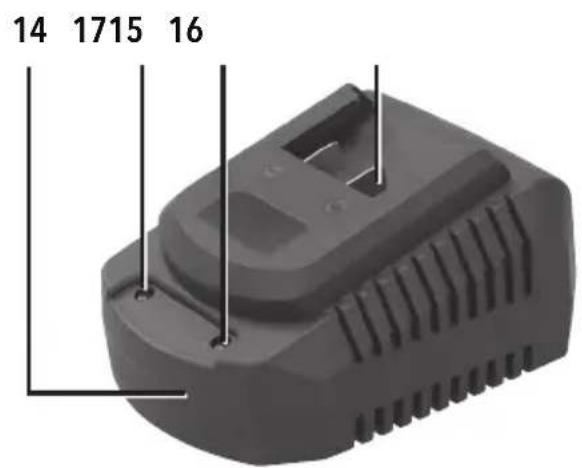

8. Battery Charge Indicator

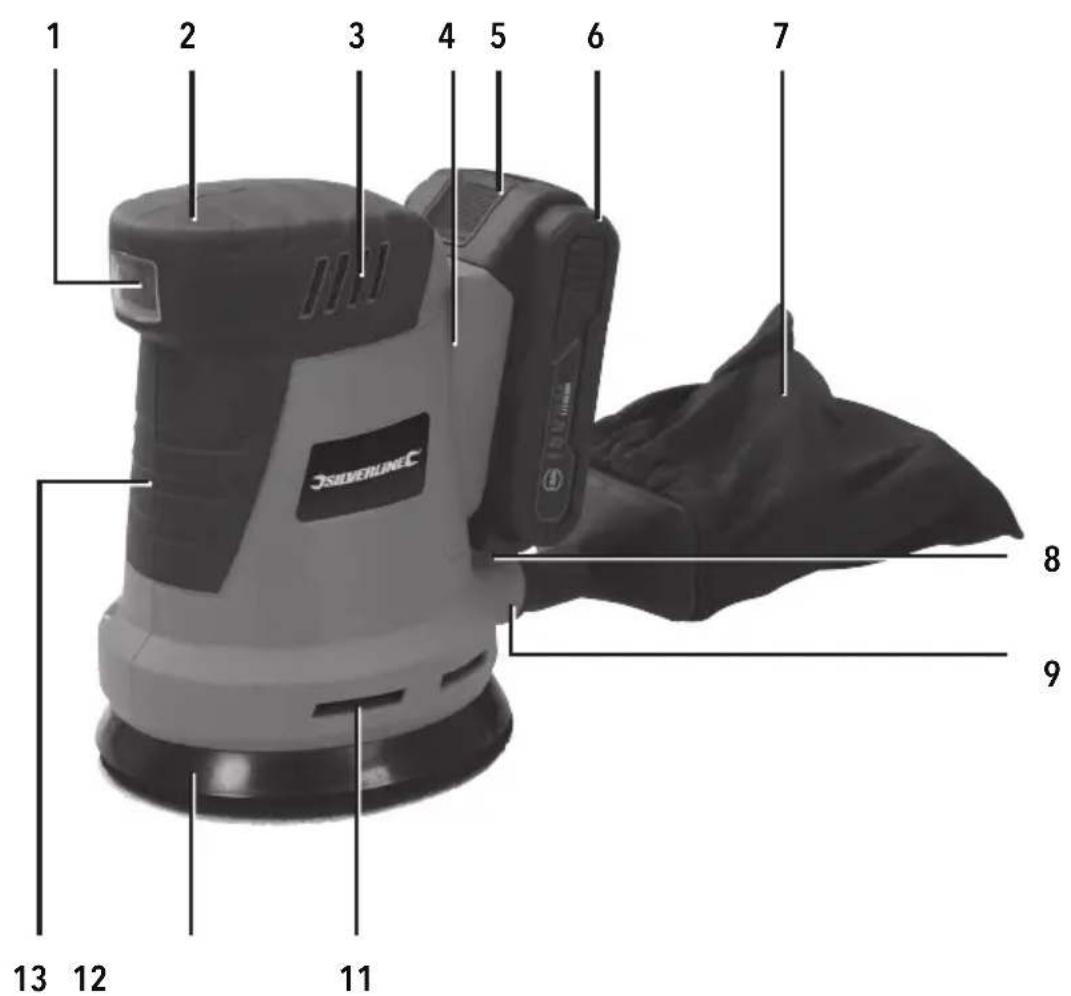

Charger Terminals Product Familiarisation Intended Use Compact random orbit sander, with dust bag, for light duty sanding tasks on various materials.The tool must ONLY be used for its intended purpose. Any use other than those mentioned in this manual will be considered a case of misuse. The operator, and not the manufacturer, shall be liable for any damage or injury resulting from such cases of misuse. The manufacturer shall not be liable for any modifications made to the tool, nor for any damage resulting from such modifications. Unpacking Your Tool

• Carefully unpack and inspect your product. Fully familiarise yourself with all its features and functions• Ensure all parts of the product are present and in good condition • If any parts are missing or damaged, have such parts replaced before attempting to use this product Before Use

WARNING: ALWAYS remove the battery before attaching or changing any accessories or making any adjustments.

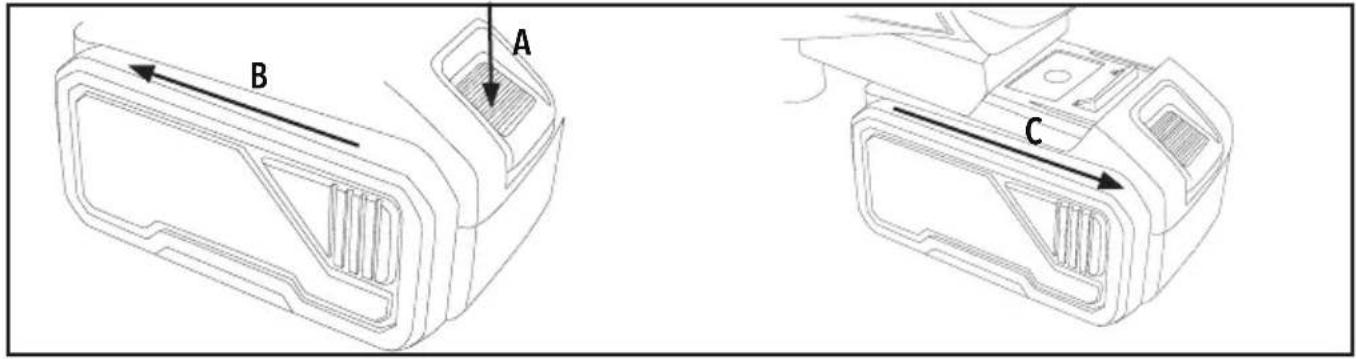

Removing the Battery To remove the Battery (6), press the Battery Release (5) and slide the Battery off the Battery Mount (4) (Fig. I (a-b)) Installing a charged Battery

1. Tofi achargedBattery(6),slideitontotheBatteryMount(4)(Fig.I(c))

Note: The Battery will fit only in one direction, which is determined by its shape and the design of the Battery Mount. However, if the Battery does not slide onto the Battery Mount easily, do not force it. Instead, pull the Battery off the Battery Mount again, check for the correct position, and try again gently.2. Push the Battery onto the Battery Mount until it locks into place securely953705_Manual.indd 8 25/03/2020 12:1218V Random Orbit Sander 125mm

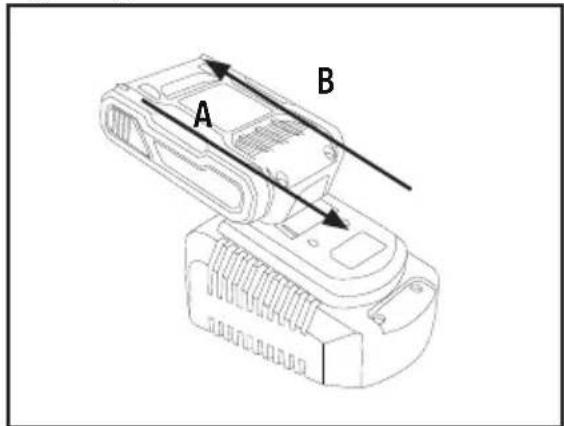

1. Iffi ted,removetheBattery(6)fromtheBatteryCharger(14)(Fig.II(b))

2. Connect the Battery Charger to the mains power supply

Note: The Green LED (16) on the Battery Charger will illuminate to indicate that the Charger is powered. WARNING: The Battery Charger is designed for indoor use only and must not be exposed to moisture and rain. Charging the Battery

WARNING: Failure to follow the correct procedure when charging the Battery (6) will result in

permanent damage.Note:Normal charging time is 1 hour for a recently fully-discharged Battery, but if the Battery has been left in a discharged state for some time, it may take extended time to charge.1. Slide a discharged or partially discharged Battery onto the Battery Charger (14) (Fig. II (a)) Note: Make sure the Battery and Battery Charger are lined up correctly. If the Battery does not slide onto the Battery Charger easily, don’t force it. Instead, remove the Battery, then check that the top of the Battery and the Battery Charger slot are clean and undamaged and that the Charger Terminals (17) are not bent.2. Once charging commences, only the Red LED (15) will illuminate Note: If the Red LED is not constantly illuminated after an uncharged Battery is inserted into the Charger, the Battery or Charger may be faulty. Recheck the Battery is fully inserted in the Battery Charger. If the fault persists do not use and contact your authorised Silverline distributer.3. When the Battery is fully-charged, only the Green LED (16) will be illuminated Battery Charge Level The Battery has a built-in Battery Charge Indicator (8). Pressing on the button to the right will indicate the charge level.The number of bars that illuminate when the button is pressed indicate the charge level; 1 bar indicating a low charge, 3 bars indicating a full charge. IMPORTANT: When a low charge level is indicated, be aware the tool may stop operating while in use. This may be dangerous. It is recommended to always ensure the Battery has a good charge level. Notes about battery charging IMPORTANT: Batteries are an expendable supply whose capacity shortens over time.Always adhere to the correct handling and charging instructions in the manual. If the battery does not hold charge or working time is shortened, purchase a genuine Silverline replacement. • The battery should be charged at ambient temperatures between 10°C and 40°C (ideally around 20°C)• After charging, allow 15 minutes for the battery to cool before use• Ensure that the charger is disconnected from the mains supply after use, and is stored correctly• Do not leave batteries on charge for extended periods and never store batteries on charge • The charger monitors battery temperature and voltage while charging. Remove the battery once charging has been completed to maximise charge cycles of the battery and not waste power• Batteries can become faulty over time, individual cells in the battery can fail, and the battery could short.The charger will not charge faulty batteries. Use another battery, if possible, to check correct functionality of the charger and purchase a replacement battery if a faulty battery is indicated• Do not store Lithium-ion battery packs in a discharged state long term. This can damage the Lithium-ion cells. For long-term storage, store batteries in a high charge state disconnected from the power tool• The capacity of batteries will reduce over time. After 100 charge cycles, the battery’s operation time and the performance will slightly reduce.This decline will continue until the battery has minimal capacity after 500 charge cycles.This is normal and not a fault with the battery pack Selecting the right grade of Sanding Disc Note: Always use good quality Sanding Discs to maximise the quality of the finished task. Always test the Sanding Disc on a scrap piece of material to determine whether it is suitable for the intended task:• Coarse (60 grit) for use on rough material • Medium (120 grit) for smoothing off

• Fine(240grit)forfinishin Note: DO NOT use Sanding Discs designed for wet sanding. Fitting a Sanding Disc to the Sanding Pad

1. RemoveanydustordebrisfromtheSandingPad(12),beforefi tingaSandingDisc(10)

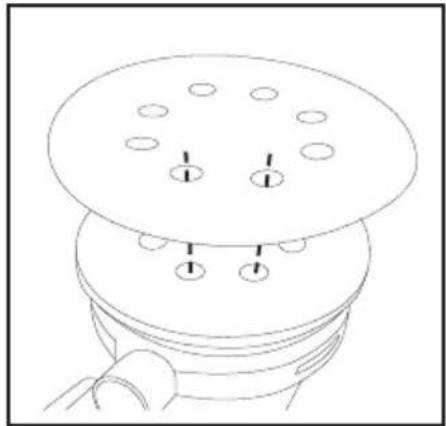

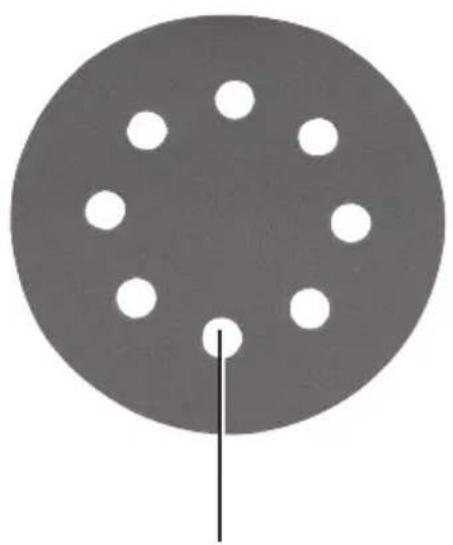

2. Select the required Sanding Disc for your intended task3. Align the dust extraction holes in the Sanding Disc with the holes in the Sanding Pad (Fig. III)

Warning: Failure to align the holes on the Sanding Disc with the holes on the Sanding Pad will cause

dust to build up on the Sanding Disc and reduce its service life.4. Press the Sanding Disc onto the Sanding Pad to attach it Note: The Sanding Pad and Sanding Disc use a hook and loop system for attachment

5. Runthetoolbriefl tochecktheSandingPadissecure

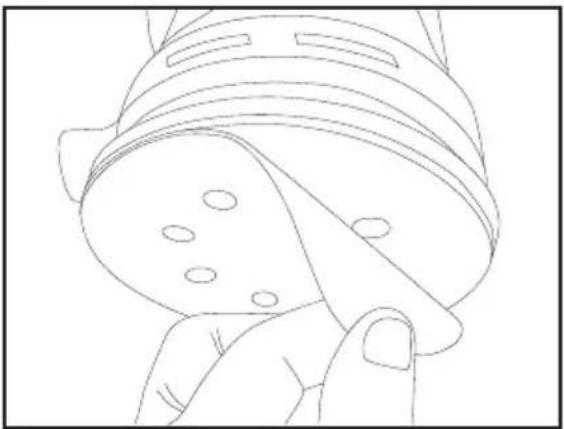

6. To remove a Sanding Disc, slowly peel it away from the Sanding Pad (Fig. IV)

Fitting/removing the Dust Bag

WARNING: Remove and DO NOT use the Dust Bag (7) when sanding metal. Hot metal particles

and sparks could ignite residual wood dust or cause the Dust Bag to catch fire.

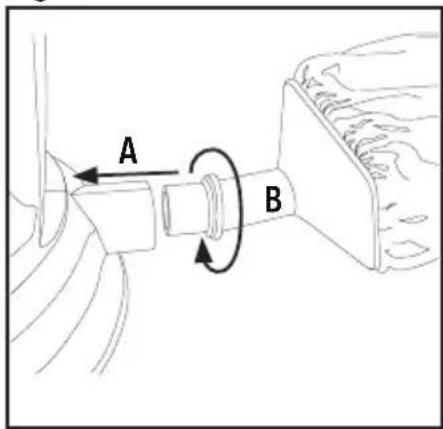

1. Fitting:AlignthepinsontheDustBag’sbayonetfi tingwiththegroovesintheDustPort(9),then

insert into the Dust Port and twist clockwise (Fig. V)

2. Removing:TwisttheDustBagfi tinganticlockwiseandpulltoremoveitfromtheDustPort

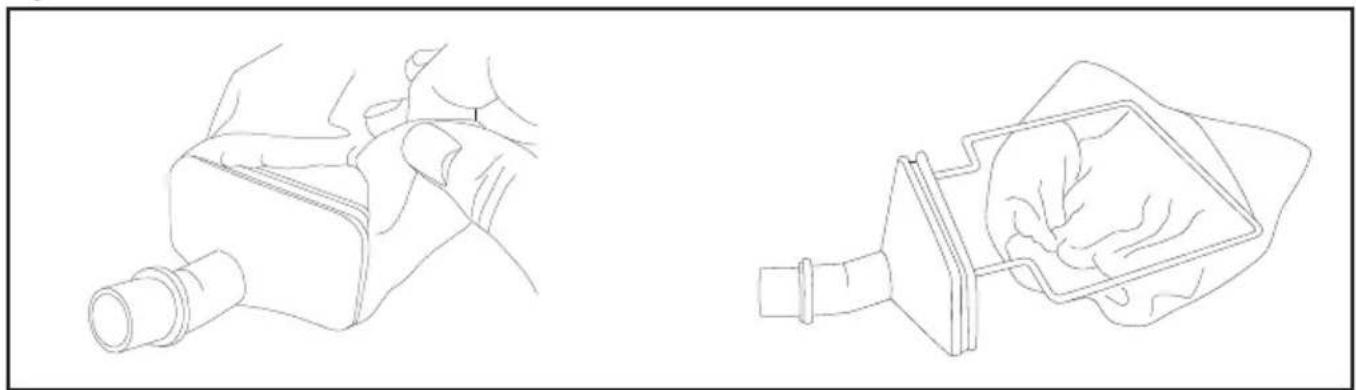

Emptying the Dust Bag IMPORTANT: For optimum dust removal, empty the Dust Bag when it is no more than half full.1. Remove the Dust Bag from the tool2. Unhook the elasticated neck of the Dust Bag from the groove in the Dust Bag housing (Fig. VI)3. Slide the Dust Bag over the internal wire frame4. Empty the bag5. Re-assembly Operation WARNING: ALWAYS wear appropriate personal protective equipment, including eye protection, dust mask and gloves when working with this tool. Switching ON & OFF 1. Hold the tool firmly by the Top Handle (2) and Front Handle (13)2. Move the ON/OFF Switch (1) to the ‘I’ position, to switch the tool ON3. Move the ON/OFF Switch to the ‘O’ position, to switch the tool OFF Sanding

WARNING: The dust produced from working with some materials can be toxic. Beech, oak,

mahogany and teak natural woods, man-made composite woods and some surface treatments, including paint with lead, are toxic. Lead-based paint is common in buildings built before 1960. Always wear suitable respiratory protection; for example, a respirator face mask. Use a dust extraction system or regularly vacuum the work area to prevent the build-up of dust. In addition, vacuum the work area after the work has been completed. Most dust is a fire hazard. Overhead work surfaces have an increased safety risk for dust. WARNING: Do not touch the moving Sanding Disc.

WARNING: Ensure foreign objects, such as nails and screws, are removed from the workpiece

before starting to sand.• Allow the tool to reach the required speed before making contact with the workpiece.• Move the machine in a circular motion over the workpiece surface, applying an even, moderate pressure until you reach the desired surface finis

• The removal rate and the sanding pattern are determined by the type of Sanding Disc (10) and the applied pressure• Pay particular attention to applying uniform sanding pressure; this increases the working life ofthe Sanding Discs• Excessive pressure does not result in more effective or faster sanding capacity, but will cause premature wear of the Sanding Disc and increase wear and tear on the tool• Regularly brush down or vacuum the surface being sanded to ensure the Sanding Disc is in direct contact with the surface• Wait until the machine has stopped completely before putting it down. IMPORTANT: Do not continue to use worn, torn or heavily clogged sanding discs.

WARNING: A Sanding Disc that has been used for sanding metal should not be used for sanding

other materials. Accessories

• A full range of accessories including sanding discs is available from your Silverline stockist• Spare parts can be obtained from toolsparesonline.com 953705_Manual.indd 9 25/03/2020 12:12GB

WARNING: Always disconnect the tool from the power supply, before cleaning or carrying out

maintenance. General inspection

• Regularlycheckthatallthefixin screwsaretight.Theymayvibratelooseovertime
• Repairs should be carried out by an authorised Silverline service centre. Emptying the Dust Bag

WARNING: Always wear respiratory protection, eye protection and gloves when emptying the

Dust Bag (7).IMPORTANT: Always clean the tool THOROUGHLY when switching from sanding wood to sanding metal and vice versa.IMPORTANT:If the sanding dust contains harmful substances, such as particles from old paint, varnish, surface coatings etc., always dispose of according to laws and regulations. Cleaning

WARNING: ALWAYS wear protective equipment including eye protection and gloves when

cleaning this tool.• Keep your tool clean at all times. Dirt and dust will cause internal parts to wear quickly, and shorten the device’s service life• Clean the body of your tool with a soft brush, or dry cloth

• Neverusecausticagentstocleanplasticparts.Ifdrycleaningisnotsufficient amilddetergent on a damp cloth is recommended• Water must never come into contact with the tool• Ensure the tool is thoroughly dry before using it• If available, use clean, dry, compressed air to blow through the ventilation holes (where applicable) Brushes
• Over time the carbon brushes inside the motor may become worn• Excessively worn brushes may cause loss of power, intermittent failure, or visible sparking• If you suspect that the brushes may be worn, have them replaced at an authorised service centre Contact For technical or repair service advice, please contact the helpline on ([phone]Web: silverlinetools.com/en-GB/SupportAddress:Toolstream LtdBoundary WayLufton Trading EstateYeovil, SomersetBA22 8HZ, United Kingdom Storage
• Store this tool carefully in a secure, dry place out of the reach of children• For long-term storage, remove batteries and store separately Disposal Li-ion batteries should not be disposed of with household waste. If you do not know of a li-ion battery recycling centre in your area, contact your local authority or original dealer for advice on disposal of li-ion batteries.Always adhere to national regulations when disposing of power tools that are no longer functional and are not viable for repair.• Do not dispose of power tools, batteries or other waste electrical and electronic equipment (WEEE), with household waste• Contact your local waste disposal authority for information on the correct way to dispose of power tools and batteries 953705_Manual.indd 10 25/03/2020 12:1218V Random Orbit Sander 125mm

silverlinetools.com Problem Possible cause Solution Red LED (15) on the Battery Charger (14) does not illuminate to indicate the Battery (6) is correctly charging Battery not correctly connected to Battery Charger Clean battery socket of Battery Charger and Battery contacts and fully slide on to Battery Charger so it clicks in a locked position Battery Charger not powered Recheck mains connection Battery pack has low capacity Battery not being fully charged Do not remove Battery until a full charge is indicated Battery pack has been charged over 100 times and capacity has started to reduce This is normal for battery packs. Contact your Silverline dealer to purchase a replacement battery pack Tool does not start when ON/OFF Switch turned on Battery completely discharged Recharge Battery or replace with a fully charged Battery Defective Battery Replace Battery Tool defective Contact your dealer or authorised Silverline service centre Slow material removal Sandingdisctoofin orworn Fit new Sanding Disc with coarser grit Scratches on workpiece after sanding Sanding Disc too coarse FitnewSandingDiscwithfine grit Not enough material removed Continue sanding Burn marks on workpiece Sanding disc incompatible with material Fit correct Sanding Disc Too much pressure exerted on to the sander Use less pressure whilst moving the machine Excessive dust emission Dust extraction not working; Sanding Disc not aligned with dust extraction holes in the Sanding Pad (12); extraction holes blocked Realign Sanding Disc; unblock dust extraction holes Dust Bag (7) full Empty Dust Bag DustBaginsufficien forthetaskathand Connect a vacuum dust extraction system Troubleshooting 953705_Manual.indd 11 25/03/2020 12:12GB

silverlinetools.com Terms & Conditions Silverline Tools Guarantee This Silverline product comes with a 3 year guarantee Register this product at www.silverlinetools.com within 30 days of purchase in order to qualify for the 3 year guarantee. Guarantee period begins according to the date of purchase on your sales receipt. Registering your purchase Registration is made at silverlinetools.com by selecting the Guarantee Registration button. You will need to enter:-• Your personal details• Details of the product and purchase information Oncethisinformationisenteredyourguaranteecertificat willbecreatedinPDFformatforyou to print out and keep with your purchase. Guarantee period becomes effective from the date of retail purchase as detailed on your sales receipt.

PLEASE KEEP YOUR SALES RECEIPT

If this product develops a fault within 30 days of purchase, return it to the stockist where it was purchased, with your receipt, stating details of the fault. You will receive a replacement or refund.If this product develops a fault after the 30 day period, return it to:Silverline Tools Service Centre PO Box 2988 Yeovil BA21 1WU, UKThe guarantee claim must be submitted during the guarantee period.You must provide the original sales receipt indicating the purchase date, your name, address and place of purchase before any work can be carried out.You must provide precise details of the fault requiring correction. Claimsmadewithintheguaranteeperiodwillbeverifie bySilverlineToolstoestablishifthe deficiencie are related to material or manufacturing of the product. Carriage will not be refunded. Items for return must be in a suitably clean and safe state for repair, and should be packaged carefully to prevent damage or injury during transportation. We may reject unsuitable or unsafe deliveries.All work will be carried out by Silverline Tools or its authorized repair agents.The repair or replacement of the product will not extend the period of guaranteeDefects recognised by us as being covered by the guarantee shall be corrected by means of repair of the tool, free of charge (excluding carriage charges) or by replacement with a tool in perfect working order.Retained tools, or parts, for which a replacement has been issued, will become the property of Silverline Tools. Therepairorreplacementofyourproductunderguaranteeprovidesbenefit whichare additional to and do not affect your statutory rights as a consumer. What is covered: Therepairoftheproduct,ifitcanbeverifie tothesatisfactionofSilverlineToolsthatthe deficiencie were due to faulty materials or workmanship within the guarantee period. If any part is no longer available or out of manufacture, Silverline Tools will replace it with a functional replacement part.Use of this product in the EU. What is not covered: Silverline Tools does not guarantee repairs required as a result of:Normal wear and tear caused by use in accordance with the operating instructions eg blades, brushes, belts, bulbs, batteries etc.The replacement of any provided accessories drill bits, blades, sanding sheets, cutting discs and other related items.Accidental damage, faults caused by negligent use or care, misuse, neglect, careless operation or handling of the product.Use of the product for anything other than normal domestic purposes. Changeormodificatio oftheproductinanyway. Use of parts and accessories which are not genuine Silverline Tools components.Faulty installation (except installed by Silverline Tools).Repairs or alterations carried out by parties other than Silverline Tools or its authorized repair agents.Claims other than the right to correction of faults on the tool named in these guarantee conditions are not covered by the guarantee. Battery Guarantee Silverline batteries are guaranteed for 30 days. If a defect occurs on a registered battery during the term of the Battery Guarantee, due to material or manufacturing fault, then Silverline will replace it free of charge. This guarantee does not apply to commercial use nor does it extend to normal wear and tear or damage as a result of accident, abuse or misuse. 953705_Manual.indd 13 25/03/2020 12:12FR
