USER MANUAL TPM1502S Tomado

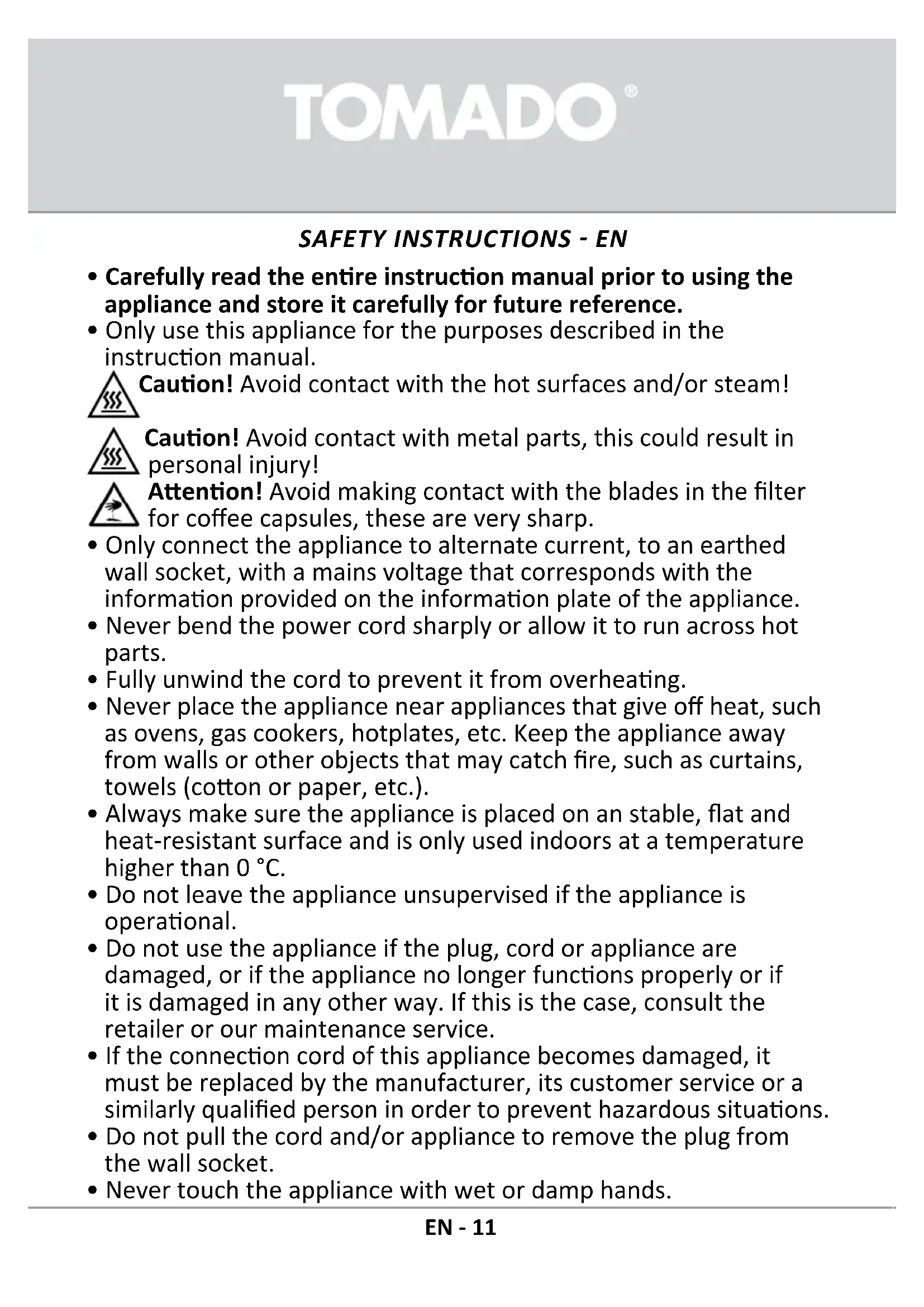

• Carefully read the enre instrucon manual prior to using the appliance and store it carefully for future reference.

• Only use this appliance for the purposes described in the instrucon manual. Cauon! Avoid contact with the hot surfaces and/or steam! Cauon! Avoid contact with metal parts, this could result in personal injury! Aenon! Avoid making contact with the blades in the lter for coee capsules, these are very sharp.

• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the informaon provided on the informaon plate of the appliance.

• Never bend the power cord sharply or allow it to run across hot parts.

• Fully unwind the cord to prevent it from overheang.

• Never place the appliance near appliances that give o heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other objects that may catch re, such as curtains, towels (coon or paper, etc.).

• Always make sure the appliance is placed on an stable, at and heat-resistant surface and is only used indoors at a temperature higher than 0 °C.

• Do not leave the appliance unsupervised if the appliance is operaonal.

• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer funcons properly or if it is damaged in any other way. If this is the case, consult the retailer or our maintenance service.

• If the connecon cord of this appliance becomes damaged, it must be replaced by the manufacturer, its customer service or a similarly qualied person in order to prevent hazardous situaons.

• Do not pull the cord and/or appliance to remove the plug from the wall socket.

• Never touch the appliance with wet or damp hands.EN - 12

• Keep the appliance out of reach of children. Children do not see the dangers associated with handling electrical appliances. Therefore, never allow children to operate electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.

• The appliance may be used by children of 8 years and older and by persons with restricted physical, sensory or mental capacies or a lack of experience or knowledge, provided that they use the appliance under supervision and are instructed about the safe use of the appliance, and understand the associated hazards.

• Children must not play with the appliance.

• The appliance must not be cleaned or maintained by children, unless they are over 8 years of age and this is done under supervision.

• If the appliance is not being used or is being cleaned, switch o the appliance and remove the plug from the socket.

• Always make sure the appliance is switched o and cooled down and that the plug has been removed from the socket, before you remove parts from the appliance.

• If the appliance does not funcon aer it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been acvated in the electrical distribuon box. The load on the group can be too high or an earth leakage could have occurred.

• In case of a breakdown, never make repairs yourself; a tripped safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should be used.

• The water reservoir deforms when using hot water, therefore only ll it with cold water. Always use the coee machine with a closed lter cover.

• Do not switch on the appliance with an empty reservoir.

• Never submerge the appliance, cord or plug in water.EN - 13

• This appliance is intended for household and similar use, such as: - in sta kitchens, in shops, oces and other work environments; - by guests of hotels, motels and other residenal environments; - in Bed&Breakfast type environments; - farms.

• If the appliance is not used as intended, no compensaon can be claimed in case of defects or accidents and the warranty will be invalidated.EN - 14

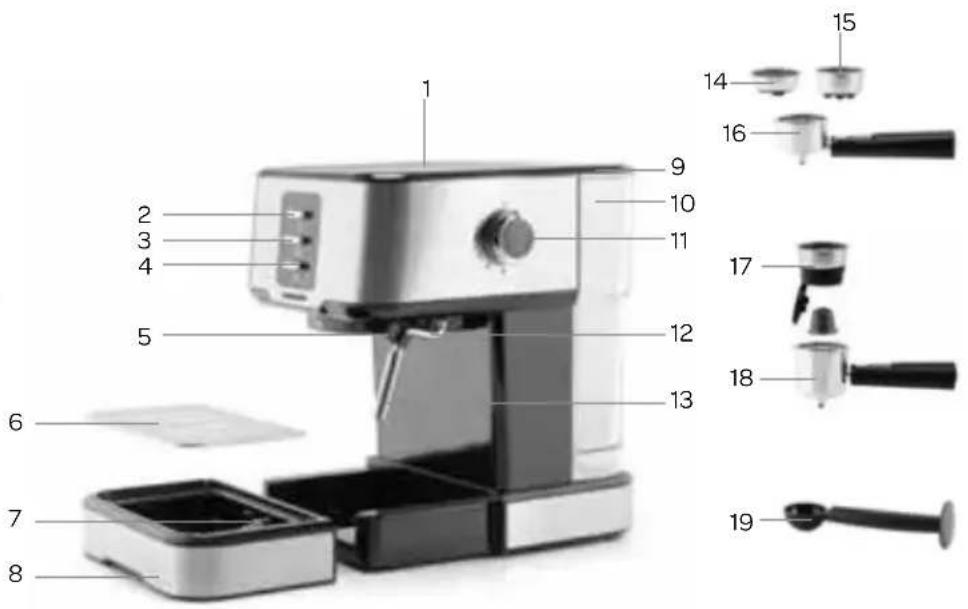

8. Removable leak tray

9. Cover removable water reservoir

10. Removable water reservoir

Before using the coee machine for the rst me, proceed as follows: Carefully unpack your coee machine and remove all packaging material and possible promoonal sckers. Also do not forget the cover cap at the boom of the reservoir. Keep the packaging (plasc bags and cardboard) out of reach of children. Aer unpacking the appliance, carefully check it for external damage that may have occurred during transport. Place the coee machine on a at, stable and heat-resistant surface. It is best to clean the interior of the new coee machine prior to using it for the rst me. This is done as follows:

• Take the removable water reservoir from the appliance, slide the cover upwards and fold it over. Fill the water reservoir with cold drinking water. Do not ll it above the MAX mark. Place the cover back on the reservoir and slide the reservoir back into the appliance.

• Place the one- or two-cup lter without coee in the lter holder, making sure that the ball at the side of the lter falls precisely into the indentaon in the holder. Then place the holder in the appliance from posion and rmly turn the handle counter-clockwise to posion .

• Place a cup in the centre of the cup grille and make sure the steam controller is switched o (turned upwards).

• Insert the plug in the socket and press the on/o buon once, aer which the indicator light switches on.

• The indicator light next to the coee buon ashes. When this light remains on, press the coee buon and the appliance will start to pump water. When water ows out of the lter holder, you must press the coee buon once more to stop the ow of water.

• Now press the steam buon. The indicator light next to the buon ashes. When the light remains on, press the buon to turn it o. The indicator light next to the coee buon will now ash quickly. Press down the coee buon and water will start to ow.

• When the water stops owing, you must press the coee buon to turn it o. Then switch o the appliance, remove the plug from the socket and remove the remaining water from the water reservoir and the cup.

• Allow the appliance to cool down and clean all separate parts as indicated in secon CLEANING AND MAINTENANCE. Aenon: The appliance can make more noise when pumping water for the rst me, this is normal, as the air in the appliance is released. Aer approximately 20 minutes the noise will decrease. Important: Only ll the appliance with cold water. Hot water has a negave eect on the coee machine’s life span.MAKING ESPRESSO/COFFEE Check that the voltage stated on the informaon plate matches the voltage used in your region. Place the coee machine on a at, stable and heat-resistant surface. Insert the plug in an earthed wall socket.

1. Take the removable water reservoir from the appliance, slide the cover upwards and fold it over.

Fill the water reservoir with cold drinking water. Do not ll it above the MAX mark. Place the cover back on the reservoir and slide the reservoir back into the appliance.

2. Take the lter holder from the appliance by turning it clockwise.

3. Fill the one- or two-cup lter with the required amount of coee by means of the provided measuring

spoon. Firmly compress the coee using the tamper. Depending on your taste, approximately 1 cup of coee can be made with 1 measuring spoon. When using coee capsules for making coee, you can place the capsules of your taste in the lter provided for that purpose. Aenon! Avoid making contact with the blades in the lter for coee capsules, these are very sharp. 4. Place the lter in the lter holder, making sure that the ball at the side of the lter falls precisely into the indentaon in the holder. Then place the holder in the appliance from posion and rmly turn the handle counter-clockwise to posion

5. Place the required number of coee cups on the cup grille. Make sure the cups are properly posioned, so that the coee

6. Check that the steam controller is switched o (turned upwards). Switch on the appliance by pressing the on/o buon,

aer which the indicator light switches on. The indicator light next to the coee buon is ashing to indicate that the appliance is being pre-heated. When this light remains on, press the coee buon and the coee will start to ow. Press the coee buon once more when the required amount of coee has been made. If you do not do this, the cup will overow! Aenon: Aer making coee, the indicator light may start to ash again to indicate that the appliance is pre-heang. When the light remains on, you can connue making coee.

7. Coee tastes best immediately aer it has been made, so do not wait too long before serving.

• We recommend slightly warming up an espresso cup prior to use, for instance by rst placing it on the hot plate on top of the appliance. A pre-heated cup will prevent the espresso from cooling down too quickly.

• In order to make a good espresso, we recommend pre-heang the appliance. This is done by rst making a cup of espresso without adding coee, as a result of which hot water ows through the appliance.

Warning: Do not leave your coee machine unsupervised when it is working, because of the manual acons you have to

HEATING UP (CHOCOLATE) MILK

Check that the voltage stated on the informaon plate matches the voltage used in your region. Place the coee machine on a at, stable and heat-resistant surface. Insert the plug in an earthed wall socket.

1. Take the removable water reservoir from the appliance, slide the cover upwards and fold it over.

Fill the water reservoir with cold drinking water. Do not ll it above the MAX mark. Place the cover back on the reservoir and slide the reservoir back into the appliance.

2. Check that the steam controller is switched o (turned upwards). Switch on the appliance by pressing the

on/o buon, aer which the indicator light switches on. The indicator light next to the coee buon ashes.

3. Now press the steam buon. The indicator light next to the coee buon switches o and the light next to the steam buon

ashes. When this light remains on, the water is at the right temperature.

4. Turn the steam pipe away from the appliance, use the provided handle for this.

5. Fill a cup with the drink that you want to heat up, (chocolate) milk. It is important that the cup used is not too small, observe a minimum diameter of 7.5 mm and take into account that the drink can double in volume when foaming.

6. Remove the aachment from the steam pipe and place the steam pipe in the drink to be heated. If you also want to foam

your drink, leave the aachment on the steam pipe. Place the steam pipe in the drink to be warmed up. Make sure that the end of the steam pipe is always in the drink (approx. 2 cm), and not only in the foam for example, to prevent liquid from splashing upwards. EN - 15EN - 16

7. Slowly turn the steam controller, aer which the steam sprays out of the steam pipe and your drink is heated up. The

amount of steam can be controlled by turning the buon. Warning: Never turn the steam controller too quickly, too much steam could be created too quickly otherwise, which in rare cases could lead to an explosion.

8. When your drink has reached the required temperature, turn the steam controller to the closed posion again (turned

upwards) and press the steam buon to turn it o. Aer use, you must properly ush though the steam pipe 1 me to remove residues of (chocolate) milk. For this, observe the above-menoned steps and select water at step 5. Aer ushing through, throw away the water. Remove the aachment from the steam pipe and clean it as described in secon CLEANING AND MAINTENANCE. Be careful that you do not burn yourself! Aenon:

• If you want to make coee immediately aer using the steam pipe, the indicator light next to the coee buon will ash quickly. The appliance is sll too hot for making coee. Aer using the steam pipe, we recommend switching o the appliance and allowing it to cool down for at least 5 minutes, before making coee.

• When the appliance fails while steam is being released, the residual heat ensures that steam connuous to be released for a certain period of me. The appliance stops producing steam when you turn the steam controller o (turned upwards).

Warning: The steam pipe becomes hot, only grab it by means of the supplied handle.

SWITCHING OFF Aer use, always switch o the appliance by briey pressing the ON/OFF buon. When the indicator light switches o, you can let go of the buon and the appliance is switched o. If you do not switch o the appliance yourself, it will switch o automacally aer approx. 25 minutes to save energy. Aer switching o, remove the plug from the socket. Aer making coee, do not forget to screw the lter holder out of the appliance and remove the coee residue. For this, push the ap on the handle of the holder upwards with your thumb, this makes sure that the lter does not fall out of the holder. Then remove the lter from the holder and rinse it under owing water. Empty the water reservoir to prevent scaling. Also empty the removable leak tray regularly, the oater in the leak tray becomes visible above the cup grille when the leak tray is full. Allow all parts to cool down before you clean them.

CLEANING AND MAINTENANCE

Regularly clean the coee machine. This is not only benecial for the life span of the appliance, it also ensures opmum use of the appliance and, of course, good tasng coee. Cleaning should involve the following:

• Prior to cleaning, always check that the coee machine is switched o, cooled down and that the plug has been removed from the socket.

• Regularly clean the outside of the appliance with a slightly damp cloth and then wipe it dry with a dry cloth.

• Regularly clean the water reservoir, leak tray and cup grille of the appliance with hot water and a mild washing-up liquid. Then rinse thoroughly with hot water and wipe dry.

• Take the lter holder away from the appliance by turning it clockwise. Remove coee residues and clean the lter holder, lters and measuring spoon/tamper with water and a mild washing-up liquid. Then rinse thoroughly with hot water and wipe dry. Aenon! Avoid making contact with the blades in the lter for coee capsules, these are very sharp.

• Remove the aachment from the steam pipe and clean it with hot water and a mild washing-up liquid. Then rinse thoroughly with hot water and wipe dry. Wipe the end of the steam pipe clean with a slightly damp cloth and then wipe it dry with a dry cloth.

• Place back all components correctly in the appliance. Aenon: Never use abrasives, alcohol or solvents when cleaning. Never rinse the appliance under the tap or submerge it in water.EN - 17 STORAGE When the coee machine is not being used for a longer period of me, you must rst release the steam in the appliance. This is done as follows: 1. Check that the steam controller is switched o (turned upwards). Switch on the appliance and wait unl the indicator lights remain on. Press the steam buon and wait unl the indicator light remains on. 2. Turn the steam pipe away from the appliance, use the provided handle for this. Hold a cup under the steam pipe to collect any water that is released.

Warning: The steam pipe becomes hot, only grab it by means of the supplied handle.

3. Press the steam buon and then slowly turn the steam controller, aer which the steam sprays out of the steam pipe. Allow the steam to be released for 3 minutes. Warning: Never turn the steam controller too quickly, too much steam could be created too quickly otherwise, which in rare cases could lead to an explosion. 4. Then turn the steam controller closed again (turned upwards) and press the steam buon to turn it o. Allow the appliance to cool down and remove the plug from the socket. Cauon! Avoid contact with the steam, this could result in personal injury! Store the appliance on a dry locaon at a temperature that is higher than 0 °C. DE-SCALING Regularly de-scale your coee machine. The de-scaling intervals depend on the hardness of the mains water and the frequency at which the coee machine is being used. We recommend de-scaling the coee machine every 2-3 months. Due to scaling, the heang element can become obstructed. This causes overheang, as a result of which the coee machine is switched o automacally as a safety precauon and will no longer funcon. The coee machine will have to be repaired. You can de-scale the coee machine with a special de-scaling agent for coee machines or with kitchen grade vinegar. If you use a special de-scaling agent for coee machines, you must observe the instrucons on the packaging of this agent. When using kitchen grade vinegar, proceed as follows:

1. Switch o the appliance by pressing the on/o buon and remove any remaining water from the water reservoir.

Fill the water reservoir with clean, cold water and cold kitchen grade vinegar up to the MAX mark. The water and kitchen grade vinegar rao should be 4:1. Place the lter holder with lter (without coee) back in the appliance and place a cup on the cup grille.

3. Check that the steam controller is switched o (turned upwards) and switch on the appliance.

4. Press the coee buon when the indicator light next to the buon remains on. Allow the water to ow unl your cup is full.

Press the coee buon once more to stop the coee making process and remove the water from the cup.

5. Repeat step 4 once and then wait 5 seconds.

6. Press the steam buon and wait unl the indicator light remains on. Make steam for 2 minutes by slowly turning the steam controller. Hold a cup under the steam pipe to collect any water that is released. Turn the steam controller upwards again and press the steam buon once more to switch it o.

7. Switch o the appliance. Wait at least 15 minutes and then switch the appliance back on. As a result the scale will be

soened and removed. 8. Wait unl the indicator lights remain on and allow the appliance to run unl the water reservoir is empty. The de-scaling process has been completed. Empty the cup and the removable leak tray to remove any water. 9. Aer de-scaling, allow a full reservoir of cold water to ow through the appliance at least 3 mes, to remove all de-scaling liquid and vinegar residues and thus prevent a sour taste in the coee. Repeat all above-menoned steps, only now do not add kitchen grade vinegar to the water. It is not necessary to wait 15 minutes at point 7. Cauon! If the coee machine has not been used for some me, e.g. due to vacaon, it is recommended to remove and clean all separate components. Then place the cleaned separate components back on their place and allow the coee machine to make one run with clean water. In this way you will prevent a possible foreign taste.BREAKDOWNS AND SOLUTIONS In case of a breakdown, you must:

• switch o the appliance, if possible;

• remove the plug from the socket;

• some small problems can be resolved by the user himself, using the instrucons in the table below. Check all points in the table in sequence, before contacng the maintenance or customer service. Breakdown (code) Cause What to do The metal parts in the water reservoir show signs of rust. The used de-scaler is not the recommended type, this could affect the parts in the reservoir. Use the correct de-scaling agent. Water is leaking from the bottom of the appliance. There is too much water in the leak tray. Empty the leak tray. The appliance is not working properly. Contact the service department or customer service department. There is water leaking from the lter. There are coee residues on the rim of the lter. Remove the coee residues. The coee has a sour, acidic taste. The appliance has not been properly rinsed aer de-scaling. Clean the appliance several mes, as indicated in secon

The coee used has been stored on a warm, damp locaon, making it unt for use. Use fresh coee and store unused coee on a cool and dry locaon. Properly close an opened package and store it in a refrigerator to keep the coee fresh. The appliance no longer works. The plug is not properly in the socket. Make sure the plug is properly inserted in the wall socket. If the appliance is sll not working, please contact the maintenance department or customer service department . The milk will not foam. The aachment has not been placed on the steam pipe. Place the aachment on the steam pipe. The indicator light at the steam buon does not switch on. The light must rst switch on before it is possible to foam milk. The used milk container is too large or the shape is not correct. Use a high and narrow container. The milk used is not correct. Use full-cream or semi-skimmed milk. When switching on the appliance, the indicator light next to the coee and/or steam buon is ashing quickly. One or both of the buons is/are sll pressed down. Press the buon(s) concerned to turn them o. When using, there are akes coming out of the steam pipe. The steam pipe has not been properly cleaned. Properly rinse the steam pipe, see secon HEATING UP (CHOCOLATE) MILK Aenon: Never repair a fault yourself. When the soluon is not menoned in the table above, please contact the maintenance department or customer service department. RECYCLING This symbol means that this product should not be disposed of with regular household waste (2012/19/EU). Observe the rules that apply in your country for the separated collecon of electric and electronic products. Correct disposal of the product prevents negave consequences for the environment and for public health. The packaging material of this product can be recycled 100%, return packaging material separately. EN - 18DE - 19
