USER MANUAL TPM1501B Tomado

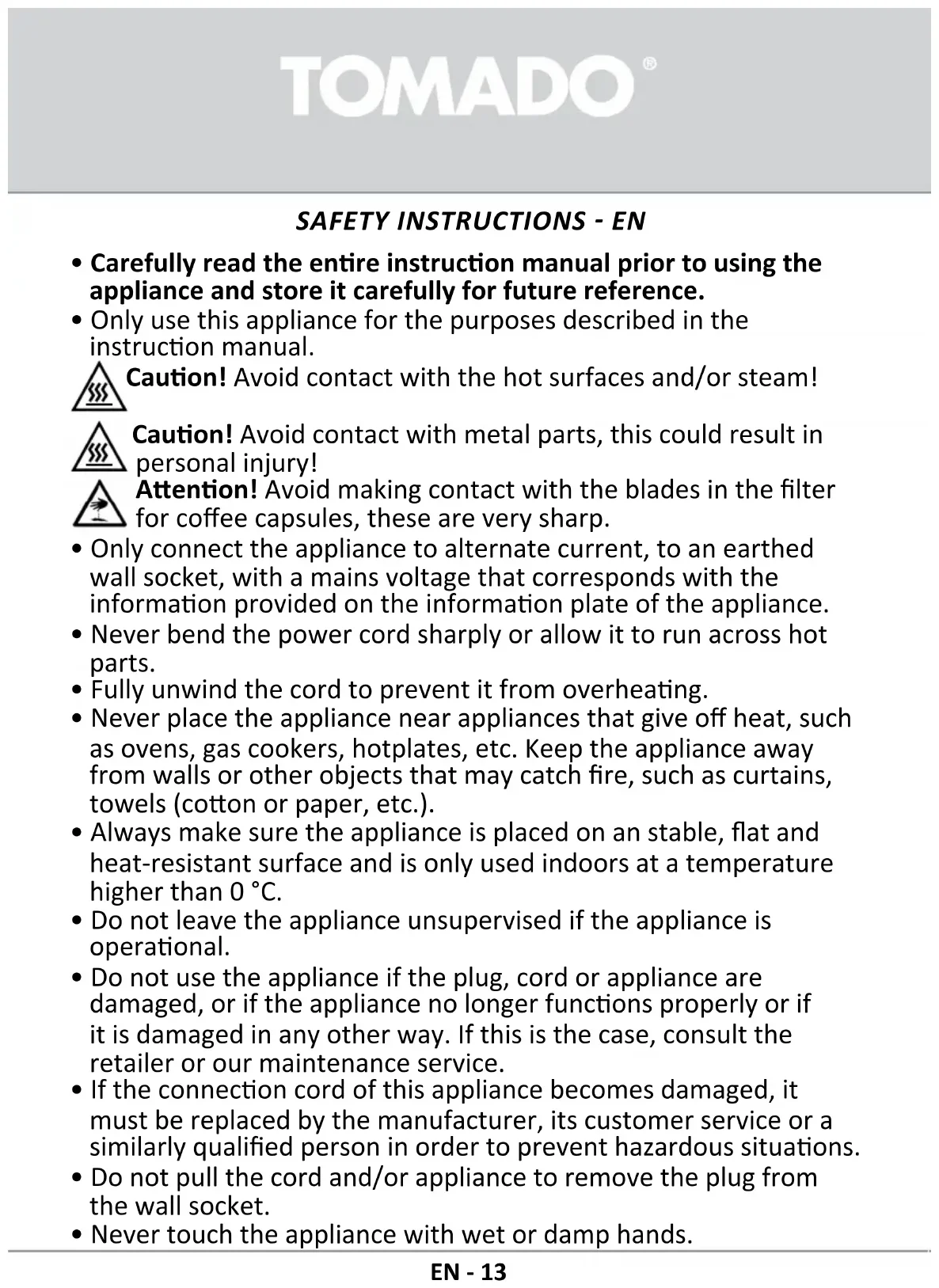

• Carefully read the enre instrucon manual prior to using the appliance and store it carefully for future reference.

• Only use this appliance for the purposes described in the instrucon manual. Cauon! Avoid contact with the hot surfaces and/or steam! Cauon! Avoid contact with metal parts, this could result in personal injury! Aenon! Avoid making contact with the blades in the lter for coee capsules, these are very sharp.

• Only connect the appliance to alternate current, to an earthed wall socket, with a mains voltage that corresponds with the informaon provided on the informaon plate of the appliance.

• Never bend the power cord sharply or allow it to run across hot parts.

• Fully unwind the cord to prevent it from overheang.

• Never place the appliance near appliances that give o heat, such as ovens, gas cookers, hotplates, etc. Keep the appliance away from walls or other objects that may catch re, such as curtains, towels (coon or paper, etc.).

• Always make sure the appliance is placed on an stable, at and heat-resistant surface and is only used indoors at a temperature higher than 0 °C.

• Do not leave the appliance unsupervised if the appliance is operaonal.

• Do not use the appliance if the plug, cord or appliance are damaged, or if the appliance no longer funcons properly or if it is damaged in any other way. If this is the case, consult the retailer or our maintenance service.

• If the connecon cord of this appliance becomes damaged, it must be replaced by the manufacturer, its customer service or a similarly qualied person in order to prevent hazardous situaons.

• Do not pull the cord and/or appliance to remove the plug from the wall socket.

• Never touch the appliance with wet or damp hands.EN - 14

• Keep the appliance out of reach of children. Children do not see the dangers associated with handling electrical appliances. Therefore, never allow children to operate electrical appliances without supervision. Keep the appliance and cord out of reach of children younger than 8 years of age.

• The appliance may be used by children of 8 years and older and by persons with restricted physical, sensory or mental capacies or a lack of experience or knowledge, provided that they use the appliance under supervision and are instructed about the safe use of the appliance, and understand the associated hazards.

• Children must not play with the appliance.

• The appliance must not be cleaned or maintained by children, unless they are over 8 years of age and this is done under supervision.

• If the appliance is not being used or is being cleaned, switch o the appliance and remove the plug from the socket.

• Always make sure the appliance is switched o and cooled down and that the plug has been removed from the socket, before you remove parts from the appliance.

• If the appliance does not funcon aer it has been switched on, it is possible that the fuse or earth leakage circuit breaker has been acvated in the electrical distribuon box. The load on the group can be too high or an earth leakage could have occurred.

• In case of a breakdown, never make repairs yourself; a tripped safety device in the appliance could indicate a defect that cannot be remedied by removing or replacing this safety device. Only original parts should be used.

• The water reservoir deforms when using hot water, therefore only ll it with cold water.

• Always use the coee machine with a closed lter cover.

• Do not switch on the appliance with an empty reservoir.

• Never submerge the appliance, cord or plug in water.EN - 15

• This appliance is intended for household and similar use, such as: - in sta kitchens, in shops, oces and other work environments; - by guests of hotels, motels and other residenal environments; - in Bed&Breakfast type environments; - farms.

• If the appliance is not used as intended, no compensaon can be claimed in case of defects or accidents and the warranty will be invalidated.EN - 16 PRODUCT DESCRIPTION

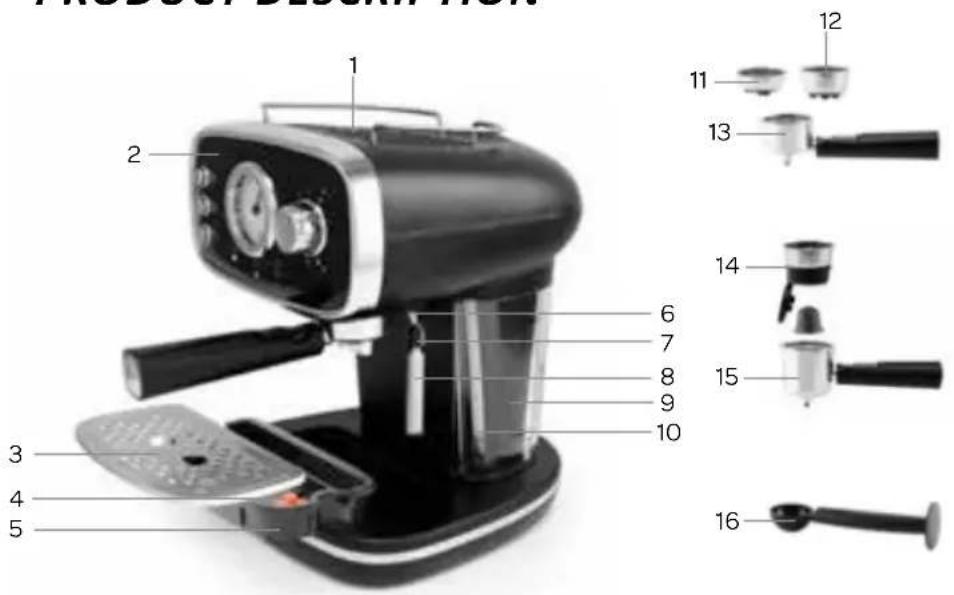

5. Removable leak tray

8. Aachment steam pipe

9. Removable water reservoir

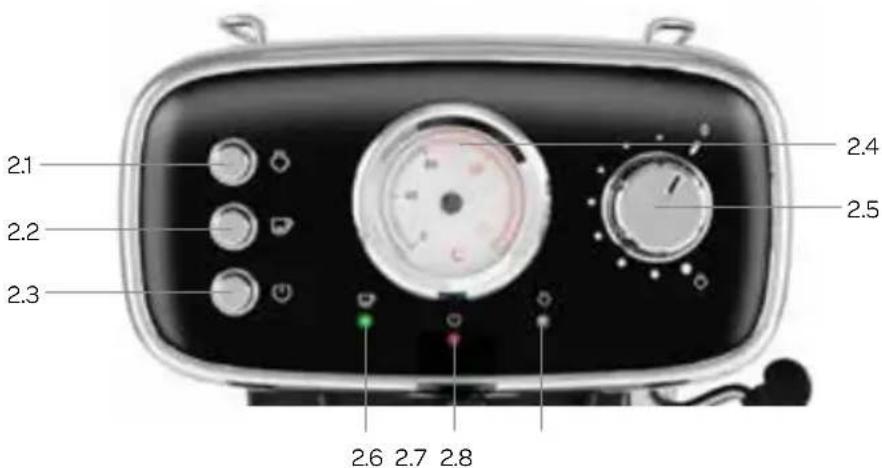

2.5 Steam controller

2.6 Coee indicator light,

lights up when the correct coee temperature has been reached

2.7 On/o indicator light,

lights up when the appliance is switched on

2.8 Steam indicator light,

lights up when the correct steam temperature has been reached

Before using the coee machine for the rst me, proceed as follows: Carefully unpack your coee machine and remove all packaging material and possible promoonal sckers. Keep the packaging (plasc bags and cardboard) out of reach of children. Aer unpacking the appliance, carefully check it for external damage that may have occurred during transport. Place the coee machine on a at, stable and heat-resistant surface. Check that the voltage stated on the informaon plate matches the voltage used in your region. It is best to clean the interior of the new coee machine prior to using it for the rst me. This is done as follows:

• Slide the removable water reservoir out of the appliance. Fill the water reservoir with cold drinking water. Do not ll it above the MAX mark. Slide the reservoir back into the appliance and place the water hose in the water reservoir.

• Place the one- or two-cup lter without coee in the lter holder, making sure that the ball at the side of the lter falls precisely into the indentaon in the holder. Then place the holder in the appliance from the INSERT posion and rmly turn

9the handle counter-clockwise to the LOCK posion.

• Place a cup in the centre of the cup grille and make sure the steam controller is switched o (turned to 0).

• Insert the plug in the earthed wall socket and press the on/o buon once ( ), aer which the indicator light switches on.

• Now press the coee buon ( ), the appliance starts to pump water. When water ows out of the lter holder, you must press the coee buon ( ) once more to stop the ow of water.

• Check that the steam buon ( ) is not pressed down. When the buon is not pressed down, the water will be heated up to the ideal temperature for making coee. When the buon is pressed down, the water will be heated up to the ideal temperature for creang steam, this temperature is higher than the temperature for making coee.

• When the coee indicator light lights up connuously, the water is at the correct temperature. Press down the coee buon( ) and the water will start to ow.

• Allow the water to ow for 1 minute and then press the coee buon ( ) once more to stop the ow of water. Make sure your cup is large enough to contain all the water. Then switch o the appliance, remove the plug from the socket and remove the remaining water from the water reservoir and the cup.

• Allow the appliance to cool down and clean all separate parts as indicated in secon CLEANING AND MAINTENANCE. Aenon: The appliance can make more noise when pumping water for the rst me, this is normal, as the air in the appliance is released. Aer approximately 20 minutes the noise will decrease. Important: Only ll the appliance with cold water. Hot water has a negave eect on the coee machine’s life span.

MAKING ESPRESSO/COFFEE

1. Slide the removable water reservoir out of the appliance. Fill the water reservoir with cold drinking water. Do not ll it above the MAX mark. Slide the reservoir back into the appliance and place the water hose in the water reservoir.

2. Take the lter holder from the appliance by turning it clockwise.

3. Fill the one- or two-cup lter with the required amount of coee by means of the provided measuring spoon. Firmly

compress the coee using the tamper. Depending on your taste, approximately 1 cup of coee can be made with 1 measuring spoon. When using coee capsules for making coee, you can place the capsules of your taste in the lter provided for that purpose. Aenon! Avoid making contact with the blades in the lter for coee capsules, these are very sharp. 4. Place the lter in the lter holder, making sure that the ball at the side of the lter falls precisely into the indentaon in the holder. Then place the holder in the appliance from the INSERT posion and rmly turn the handle counter-clockwise to the LOCK posion.

5. Place the required number of coee cups on the cup grille. Make sure the cups are properly posioned, so that the coee

ows into the cups. 6. Check that the steam controller is switched o (turned to 0). Insert the plug in an earthed wall socket and switch on the appliance by pressing the on/o buon ( ), aer which the indicator light switches on.

7. Check that the steam buon (

) is not pressed down. When the buon is not pressed down, the water will be heated up to the ideal temperature for making coee. When the buon is pressed down, the water will be heated up to the ideal temperature for creang steam, this temperature is higher than the temperature for making coee.

8. When the coee indicator light lights up connuously, the water is at the correct temperature. Then press down the coee

buon ( ) and coee will start to ow. Press the coee buon once more when the required amount of coee has been made. If you do not do this, the cup will overow! Aenon: When making coee, the coee indicator light may switch o occasionally, this is normal and happens because the appliance is connuously heang in order to maintain the correct temperature.

9. Coee tastes best immediately aer it has been made, so do not wait too long before serving.

• We recommend slightly warming up an espresso cup prior to use, for instance by rst placing it on the hot plate on top of the appliance. A pre-heated cup will prevent the espresso from cooling down too quickly.

• In order to make a good espresso, we recommend pre-heang the appliance. This is done by rst making a cup of espresso without adding coee, as a result of which hot water ows through the appliance.

Warning: Do not leave your coee machine unsupervised when it is working, because of the manual acons you have to

perform. EN - 17EN - 18

HEATING UP (CHOCOLATE) MILK

1. Slide the removable water reservoir out of the appliance. Fill the water reservoir with cold drinking water. Do not ll it above the MAX mark. Slide the reservoir back into the appliance and place the water hose in the water reservoir. 2. Place the one- or two-cup lter without coee in the lter holder, making sure that the ball at the side of the lter falls precisely into the indentaon in the holder. Then place the holder in the appliance from the INSERT posion and rmly turn the handle counter-clockwise to the LOCK posion. 3. Check that the steam controller is switched o (turned to 0). Insert the plug in an earthed wall socket and switch on the appliance by pressing the on/o buon ( ), aer which the indicator light switches on.

4. Press the steam buon (

). When the buon is pressed down, the water will be heated up to the ideal temperature for creang steam, this temperature is higher than the temperature for making coee. When the buon is not pressed down, the water will be heated up to the ideal temperature for making coee. 5. Fill a cup with the drink that you want to heat up, (chocolate) milk. It is important that the cup used is not too small, observe a minimum diameter of 7.5 mm and take into account that the drink can double in volume when foaming.

6. Remove the aachment from the steam pipe and place the steam pipe in the drink to be heated. If you also want to foam

your drink, leave the aachment on the steam pipe. Make sure that the end of the steam pipe is always in the drink (approx. 2 cm), and not only in the foam for example, to prevent liquid from splashing upwards. Aenon: For the best result, always rst hold an empty cup under the steam pipe and open the steam controller for approx. 15 seconds. In the rst shot of steam there is oen a lot of water, which can be released in this way.

7. Slowly turn the steam controller, aer which the steam sprays out of the steam pipe and your drink is heated up. The

amount of steam can be controlled by turning the buon. Warning: Never turn the steam controller too quickly, too much steam could be created too quickly otherwise, which in rare cases could lead to an explosion. 8. When your drink has reached the required temperature, turn the steam controller to the closed posion again (turned to 0). Aer each use, you must properly ush through the steam pipe once to remove residues of (chocolate) milk. For this, hold an empty cup under the steam pipe. Slowly turn open the steam controller and press down the coee buon

). Water is spraying from the steam pipe. Aer 30 seconds, press the coee buon ( ) once more and close the steam controller again (turned to 0). Throw the water away aer ushing. If applicable, remove the aachment from the steam pipe and clean it as described in secon CLEANING AND MAINTENANCE. Do make sure you do not burn yourself! Aenon:

• If you want to make coee immediately aer using the steam pipe, the appliance is sll too hot for making coee. Aer using the steam pipe, we recommend switching o the appliance and allowing it to cool down for at least 5 minutes, before making coee.

• When the appliance fails while steam is being released, the residual heat ensures that steam connuous to be released for a certain period of me. The appliance stops producing steam when you turn the steam controller o (turned to 0).

Warning: The steam pipe becomes hot, only grab it by means of the supplied handle.

SWITCHING OFF Aer use, always switch o the appliance by pressing the on/o buon ( ), the indicator light switches o. If you do not switch o the appliance yourself, it will switch o automacally aer approx. 30 minutes to save energy. Aer switching o, remove the plug from the socket. Aer making coee, do not forget to screw the lter holder out of the appliance and remove the coee residue. For this, push the ap on the handle of the holder upwards with your thumb, this makes sure that the lter does not fall out of the holder. Then remove the lter from the holder and rinse it under owing water. Empty the water reservoir to prevent scaling. Also empty the removable leak tray regularly, the oater in the leak tray becomes visible above the cup grille when the leak tray is full. Allow all parts to cool down before you clean them!EN - 19

CLEANING AND MAINTENANCE

Regularly clean the coee machine. This is not only benecial for the life span of the appliance, it also ensures opmum use of the appliance and, of course, good tasng coee. Cleaning should involve the following:

• Prior to cleaning, always check that the coee machine is switched o, cooled down and that the plug has been removed from the socket.

• Regularly clean the outside of the appliance with a slightly damp cloth and then wipe it dry with a dry cloth.

• Regularly clean the water reservoir, leak tray and cup grille of the appliance with hot water and a mild washing-up liquid. Then rinse thoroughly with hot water and wipe dry.

• Take the lter holder away from the appliance by turning it clockwise. Remove coee residues and clean the lter holder, lters and measuring spoon/tamper with water and a mild washing-up liquid. Then rinse thoroughly with hot water and wipe dry. Aenon! Avoid making contact with the blades in the lter for coee capsules, these are very sharp.

• Remove the aachment from the steam pipe and clean it with hot water and a mild washing-up liquid. Then rinse thoroughly with hot water and wipe dry. Wipe the end of the steam pipe clean with a slightly damp cloth and then wipe it dry with a dry cloth.

• Place back all components correctly in the appliance. Aenon: Never use abrasives, alcohol or solvents when cleaning. Never rinse the appliance under the tap or submerge it in water. STORAGE When the coee machine is not being used for a longer period of me, you must rst release the steam in the appliance. This is done as follows:

1. Check that the steam controller is switched o (turned to 0) and that the steam buon (

) is pressed down. Switch on the appliance by pressing the on/o buon ( ) and wait unl the steam indicator light lights up connuously. 2. Turn the steam tube away from the appliance, use the provided handle for this. Hold a cup under the steam pipe to collect any released water.

Warning: The steam pipe becomes hot, only grab it by means of the supplied handle.

3. Then slowly turn the steam controller, aer which the steam sprays out of the steam pipe. Allow the steam to escape for 3 minutes. Warning: Never turn the steam controller too quickly, too much steam could be created too quickly otherwise, which in rare cases could lead to an explosion. 4. Then turn the steam controller closed again (turned to 0) and switch o the appliance. Allow the appliance to cool down and remove the plug from the socket. Aenon! Avoid contact with steam, this could result in personal injury! Store the appliance on a dry locaon at a temperature that is higher than 0 °C.DE-SCALING Regularly de-scale your coee machine. The de-scaling intervals depend on the hardness of the mains water and the frequency at which the coee machine is being used. We recommend de-scaling the coee machine every 1-2 months. Due to scaling, the heang element can become obstructed. This causes overheang, as a result of which the coee machine is switched o automacally as a safety precauon and will no longer funcon. The coee machine will have to be repaired. You can de-scale the coee machine with a special de-scaling agent for coee machines or with kitchen grade vinegar. If you use a special de-scaling agent for coee machines, you must observe the instrucons on the packaging of this agent. When using kitchen grade vinegar, proceed as follows:

1. Switch o the appliance by pressing the on/o buon (

) and remove any remaining water from the water reservoir.

Fill the water reservoir with clean, cold water and cold kitchen grade vinegar up to the MAX mark. The water and kitchen grade vinegar rao should be 4:1. Place the lter holder with lter (without coee) back in the appliance and place a cup on the cup grille.

3. Check that the steam controller is switched o (turned to 0) and that the steam buon (

) is not pressed down. Switch on the appliance by pressing the on/o buon ( ), aer which the indicator light switches on.

4. Press the coee buon when the coee indicator light lights up. Allow the water to ow unl your cup is full. Press the

coee buon once more to stop the coee making process and remove the water from the cup.

5. Repeat step 4 and then wait 5 seconds.

6. Press the steam buon (

) and wait unl the steam indicator light remains on. Make steam for 2 minutes by slowly turning the steam controller. Hold a cup under the steam pipe to collect any water that is released. Turn the steam controller to 0 again and switch o the appliance by pressing the on/o buon (

7. Wait for at least 15 minutes, as a result the scale will be soened and removed.

8. Check that the steam controller is switched o (turned to 0) and that the steam buon (

) is not pressed down. Switch on the appliance by pressing the on/o buon ( ), aer which the indicator light switches on.

9. Press the coee buon and allow the appliance to run unl the water reservoir is empty. The de-scaling process has been

completed. Empty the cup and the removable leak tray to remove any water. 10. Aer de-scaling, allow a full reservoir of cold water to ow through the appliance at least 3 mes, to remove all de-scaling liquid and vinegar residues and thus prevent a sour taste in the coee. Repeat all above-menoned steps, only now do not add kitchen grade vinegar to the water. It is not necessary to wait 15 minutes at point 7. Aenon! If the coee machine has not been used for some me, e.g. due to vacaon, it is recommended to remove and clean all separate components. Then place the cleaned separate components back on their place and allow the coee machine to make one run with clean water. In this way you will prevent a possible foreign taste.

EN - 20BREAKDOWNS AND SOLUTIONS

In case of a breakdown, you must:

• switch o the appliance, if possible;

• remove the plug from the socket;

• some small problems can be resolved by the user himself, using the instrucons in the table below. Check all points in the table in sequence, before contacng the maintenance or customer service. Breakdown (code) Cause What to do Water is leaking from the bottom of the appliance. There is too much water in the leak tray. Empty the leak tray. The appliance is not working properly. Contact the service department or customer service department. There is water leaking from the lter. There are coee residues on the rim of the lter. Remove the coee residues. The coee has a sour, acidic taste. The appliance has not been properly rinsed aer de-scaling. Clean the appliance several mes, as indicated in secon

The coee used has been stored on a warm, damp locaon, making it unt for use. Use fresh coee and store unused coee on a cool and dry locaon. Properly close an opened package and store it in a refrigerator to keep the coee fresh. The appliance no longer works. The plug is not properly in the socket. Make sure the plug is properly inserted in the wall socket. If the appliance is sll not working, please contact the maintenance department or customer service department . The milk will not foam. The aachment has not been placed on the steam pipe. Place the aachment on the steam pipe. The steam indicator light does not light up. The light must rst switch on before it is possible to foam milk. The used milk container is too large or the shape is not correct. Use a high and narrow container. The milk used is not correct. Use full-cream or semi-skimmed milk. When using, there are akes coming out of the steam pipe. The steam pipe has not been properly cleaned. Properly rinse the steam pipe, see secon HEATING UP (CHOCOLATE) MILK Aenon: Never repair a fault yourself. When the soluon is not menoned in the table above, please contact the maintenance department or customer service department. RECYCLING This symbol means that this product should not be disposed of with regular household waste (2012/19/EU). Observe the rules that apply in your country for the separated collecon of electric and electronic products. Correct disposal of the product prevents negave consequences for the environment and for public health. The packaging material of this product can be recycled 100%, return packaging material separately. EN - 21DE - 22
