| Product type | Portable sound system with headset microphone |
| Brand | HQ Power |
| Model | HQPA10002 |
| Dimensions | 155 x 95 x 50 mm |
| Weight | 400 g |
| Power supply | 10 VDC / 300 mA (power adapter included) |
| Battery | Li-ion 7.4 V, 1000 mAh |
| Battery life | 8 to 10 hours |
| Charging time | 4 to 5 hours |
| Output power | 5 W @ 4 Ω |
| Frequency response | 100 Hz - 13 kHz |
| Main functions | MP3 playback (USB / SD card), FM radio, recording (MP3 or WMV), 3.5 mm line input, headset microphone |
| Inputs | USB, SD card, 3.5 mm audio input, headset microphone, charging |
| Included accessories | Power adapter, fixing belt, headset microphone |
| Maintenance and cleaning | Clean with a damp cloth; do not use solvents or harsh detergents |
| Safety | Indoor use only; do not expose to water; non-replaceable battery; child supervision recommended |
| Spare parts and repairability | The battery is not replaceable; any modification voids the warranty; repairs only by an authorized service |
| General information | 24-month warranty for consumer products; comply with local regulations for end-of-life recycling |
Frequently Asked Questions - HQPA10002 HQ Power
User questions about HQPA10002 HQ Power
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Microphone in PDF format for free! Find your manual HQPA10002 - HQ Power and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HQPA10002 by HQ Power.

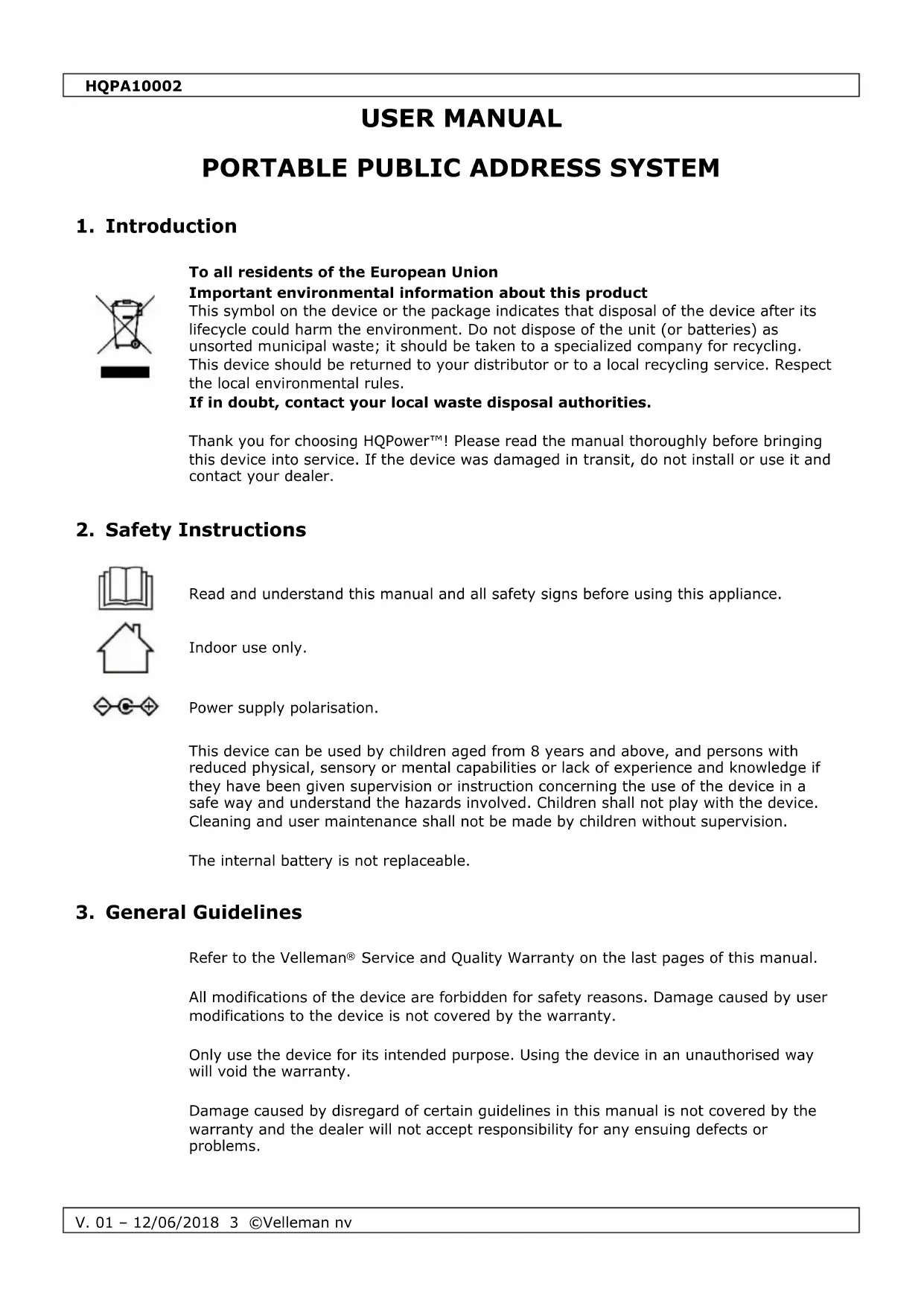

USER MANUAL HQPA10002 HQ Power
PORTABLE PUBLIC ADDRESS SYSTEM
1. Introduction
To all residents of the European Union
Important environmental information about this product
This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.
If in doubt, contact your local waste disposal authorities.
Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.
2. Safety Instructions
Read and understand this manual and all safety signs before using this appliance.
Indoor use only.
Power supply polarisation.
This device can be used by children aged from 8 years and above, and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the device in a safe way and understand the hazards involved. Children shall not play with the device. Cleaning and user maintenance shall not be made by children without supervision.
The internal battery is not replaceable.
3. General Guidelines
Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.
All modifications of the device are forbidden for safety reasons. Damage caused by user modifications to the device is not covered by the warranty.
Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.
Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
HQPA10002
Nor Velleman NV nor its dealers can be held responsible for any damage (extraordinary, incidental or indirect) – of any nature (financial, physical...) arising from the possession, use or failure of this product.
Keep this manual for future reference.
4. Overview
Refer to the illustrations on page 2 of this manual.
| 1 | volume |
| 2 | display |
| 3 | SD card slot |
| 4 | USB input |
| 5 | audio input |
| 6 | MP3 power switch |
| 7 | MP3 control panel |
| 8 | charging input |
| 9 | charging LED |
| 10 | microphone input |
| 11 | on-off switch |
5. Operation
5.1 Charging the Battery
This device contains an internal rechargeable battery. When the device reaches end-of-life, it must be disposed of in accordance with local regulations.
Please charge the system when the red LED burns. To do so:
- Make sure the system is switched off.
- Connect the system to the mains using the power adapter.
- The LED will flash green as soon as the battery is fully charged. Do not overcharge and disconnect from the mains after charging is complete.
5.2 Wearing the System
Fix the system to your waist using the included belt.
5.3 Using the Microphone
- Connect the included microphone to the system.

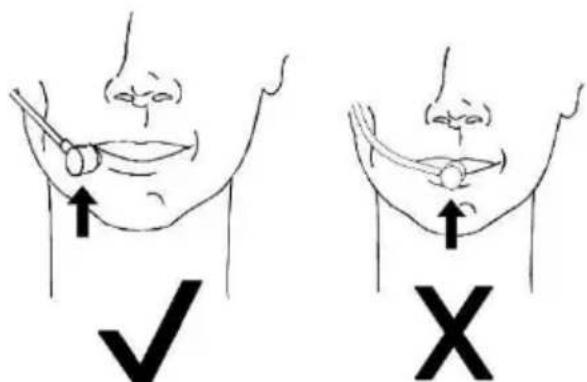

- Slide the microphone set over your head and wear it as illustrated. Place the microphone at a distance of 20 - 30mm from your mouth.
- Talk into the microphone. Use the same full voice you would normally use to be heard in a conversation.
5.4 Using the System
General
| key | MP3 | FM | menu |
| M | submenu (short press) system menu (long press) | submenu (short press) system menu (long press) | select |
| ▶|| | play/pause | play/pause | / |
| « | previous (short press) fast rewind (long press) | - 0.1 MHz (short press) auto search (long press) | previous |
| » | next (short press) fast forward (long press) | + 0.1 MHz (short press) auto search (long press) | next |
| VOL+ | increase volume | increase volume | / |
| VOL- | decrease volume | decrease volume | / |
USB/SD
- Switch on the system and MP3 function.
- Insert a USB stick or SD card into the respective input. The MP3 files will be played automatically.
FM Radio
- Switch on the system and MP3 function.
- Select the FM menu.
- Search for your frequency.
Line Audio Input
- Switch on the system and MP3 function.
- Insert a standard audio cable with 3.5mm plug into the audio input. You can now use the PA system as an amplifier or recorder.
Microphone Input
- Switch on the system.
- Insert the included headset into the microphone input. Slide the microphone set over your head. Place the microphone at a distance of 20 - 30mm from your mouth.
- Talk into the microphone. Use the same full voice you would normally use to be heard in a conversation.
- Insert a USB stick or SD card into the respective input, switch on the MP3 function and enable the recording function to record.
Recording
- Switch on the system and MP3 function.
- Insert a USB stick or SD card into the respective input.
- Select the recording menu. Record through a microphone or the line input. The recording will be saved as an MP3 or WMV file.
Settings
Set the calendar and other settings in their respective menu.
HQPA10002
6. Cleaning and Maintenance
Occasionally wipe with a damp cloth to keep it looking new. Do not use harsh chemicals, cleaning solvents or strong detergents.
7. Technical Specifications
power supply 10 VDC/300 mA (adaptor incl.)
operating voltage 7.4 V
battery. Li-ion 7.4 V, 1000 mAh
battery operating time 8-10 h
battery charging time ± 4 - 5h
output. 5W@4Ω
frequency response 100 Hz - 13 kHz
dimensions 155 x 95 x 50 mm
weight 400g
Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu. The information in this manual is subject to change without prior notice.
© COPYRIGHT NOTICE
The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
HANDLEIDING
DRAAGBAAR "PUBLIC ADDRESS"-SYSTEM
1. Inleiding
SYSTEME "PUBLIC ADDRESS" PORTATIF
1. Introduction
dimensoes 155x95x50mm
peso 400g
Velleman® Service and Quality Warranty
Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.
All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).
General Warranty Conditions Concerning Consumer Products (for EU):
-
All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
-
Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.
You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.
- Not covered by warranty:
-
all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
-
consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
-
flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
-
flaws caused deliberately, negligently or resulting from improper handling, negligent maintenance, abusive use or use contrary to the manufacturer's instructions:
-
damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
-
damage resulting from an inappropriate packing and shipping of the article;
-
all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
-
Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
-
Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
-
Repairs occurring after warranty expiration are subject to shipping costs.
-
The above conditions are without prejudice to all commercial warranties.
The above enumeration is subject to modification according to the article (see article's manual).
