Product type	Wireless microphone (transmitter)
Brand	HQ Power
Model	MICW43
Dimensions	105 x 65 x 20 mm
Weight	82 g
Power supply	2 x 1.5 V R6 batteries (not included)
Recommended battery type	New alkaline batteries
Frequency response	40 Hz to 18 kHz
RF output power	10 to 30 mW
Frequency control	PLL
Stability	± 0.005 %
RF squelch	50 dB max.
Settings	On/off, frequency up/down, lock
Display	LCD screen
Antenna	Built-in
Use	Indoors only
Operating temperature	+5 °C to +35 °C
Maintenance and cleaning	Wipe with a non-lint damp cloth. Do not use alcohol or solvents.
Safety	Do not open the housing. Protect from rain and humidity. Use only new alkaline batteries.
Spare parts and repairability	No user-serviceable parts. Contact dealer for spare parts.
Warranty	24 months for consumer products (Velleman conditions)
General information	Professional use (discotheques, theaters). Transport in original packaging.

Frequently Asked Questions - MICW43 HQ Power

How to insert batteries into MICW43 transmitter?

Open the battery compartment cover (reference 4) and insert 2 R6 (LR6C) batteries respecting the indicated polarity. Preferably use new alkaline batteries.

How to select a channel on the MICW43?

Turn on the transmitter. Press the SET button to access the menu, select [disp] with ▲ or ▼, then wait 2-3 seconds. Choose the channel menu [channel] with ▲ or ▼ and press SET again. Unlock the settings [loc off] if necessary, then select the desired channel with ▲ or ▼ and confirm with SET.

How to adjust the frequency on the MICW43?

Press SET to access the menu, select [disp] with ▲ or ▼, wait 2-3 seconds, then choose the frequency menu [fyegu] (or similar). Press SET, unlock if necessary ([loc off]), then adjust the frequency with ▲ or ▼ and confirm with SET.

Why is my microphone not working?

Check that the transmitter is on (switch in ON position), that the batteries are correctly inserted and sufficiently charged. Make sure the receiver is on the same channel/frequency as the transmitter. Keep the transmitter at least 1 m away from walls.

How to lock or unlock the settings?

In the menu, after selecting [channel] or [fyegu], wait 2-3 seconds. The screen displays [loc on] or [loc off]. Use ▲ or ▼ to choose [loc off] (unlocked) or [loc on] (locked), then press SET to confirm.

What batteries to use for the MICW43?

Use new alkaline batteries of type R6 (LR6C) 1.5 V. Used or rechargeable batteries may reduce range and signal quality.

How to clean the MICW43 transmitter?

Wipe the device regularly with a non-lint damp cloth. Never use alcohol, solvents, or abrasive products.

What is the range of the MICW43?

The range depends on surrounding conditions. With an RF power of 10 to 30 mW, the typical range is approximately 30 to 50 meters in open space.

Can I use the MICW43 outdoors?

No, the device is designed for indoor use only. It must be protected from rain, humidity, and water splashes.

What to do if the device does not turn on?

Check the condition and insertion of the batteries. Make sure the power switch (reference 5) is in the ON position. If the problem persists, contact your dealer.

USER MANUAL MICW43 HQ Power

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing HQPower™! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, do not install or use it and contact your dealer.

2. Safety Instructions

Indoor use only. Keep this device away from rain, moisture, splashing and dripping liquids.

• Damage caused by disregard of certain guidelines in this manual is not covered by the warranty and the dealer will not accept responsibility for any ensuing defects or problems.
• Do not switch the device on immediately after it has been exposed to changes in temperature. Protect the device against damage by leaving it switched off until it has reached room temperature.
• Note that damage caused by user modifications to the device is not covered by the warranty.
• Keep the device away from children and unauthorised users.

3. General Guidelines

Refer to the Velleman® Service and Quality Warranty on the last pages of this manual.

• This device is designed for professional use on stage, in discos, theatres, etc.
• Do not shake the device. Avoid brute force when installing or operating the device.
• Familiarise yourself with the functions of the device before actually using it. Do not allow operation by unqualified people. Any damage that

MICW43

may occur will most probably be due to unprofessional use of the device.

• Use the original packaging if the device is to be transported.
• All modifications of the device are forbidden for safety reasons.
• Only use the device for its intended purpose. All other uses may lead to short circuits, burns, electroshocks, crash, etc. Using the device in an unauthorised way will void the warranty.
• Make sure there is no flammable material within a 0.5m radius of the device.
• Only operate or transport the device at temperatures within the range +5^ C +35^ C .

4. Overview

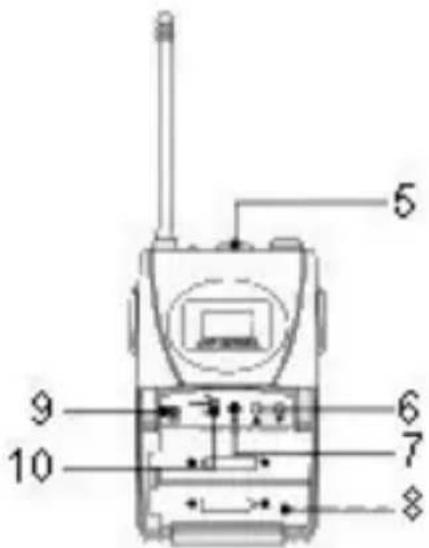

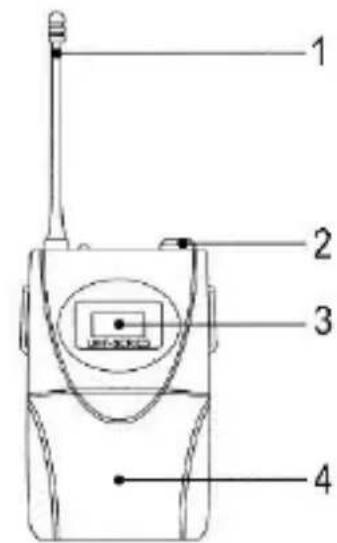

Refer to the illustrations on page 2 of this manual.

1	antenna
2	input jack
3	LCD
4	battery compartment
5	power switch
6	▲▼ buttons - channel/ frequency selection
7	SET button
8	battery compartment
9	volume control
10	HI/LO

5. Operation

Preparing the Transmitter for Use

Open the battery compartment and insert 2x AA batteries (order code LR6C, not incl.) respecting the polarity. Insert the plug of the optional microphone (order code MICW44 or MICW45, not incl.) into the input jack.

Channel Selection

Switch on the transmitter by sliding the power switch to ON. Press SET and select the display menu [disp]. Wait 2 to 3 seconds and select the channel menu (channel) using or . Press SET again to enter the menu. You will see next display.

Wait 2 to 3 seconds. Next, you will be given the choice to lock [loc on] or to unlock [locoff] the transmitter's settings. Choose [locoff] using or . Press SET again to enter the menu. Choose your channel using or and press SET again to confirm.

Frequency Selection

Press SET and select the display menu [disp]. Wait 2 to 3 seconds and select the frequency menu [fyegu] using or . Press SET again to enter the menu. You will see next display.

Wait 2 to 3 seconds. Next, you will be given the choice to lock [loc on] or to unlock [locoff] the transmitter's settings. Choose [locoff] using or . Press SET again to enter the menu. Choose your frequency using or and press SET again to confirm.

NOTE: By selecting [loc on], you will lock the transmitter's settings.

6. Important Remarks

• Keep the transmitter 1m above the ground and 1m away from walls for the best results.
• Turn off your device before changing the batteries.
• Never open the transmitter's housing.
• Make sure to match the frequency or the channel on your receiver and your microphone / transmitter.
• Use only fresh alkaline batteries as partially drained batteries may cause weak signal reception.

7. Cleaning and Maintenance

• Wipe the device regularly with a moist, lint-free cloth. Do not use alcohol or solvents.
• There are no user-serviceable parts.
• Contact your dealer for spare parts if necessary.

8. Technical Specifications

RF outputs	10 ~ 30 mW
frequency control	PLL
stability	± 0.005 %
frequency response	40 Hz ~ 18 kHz
controls	power on/off, up/down, lock
RF squelch	max. 50 dB
power supply	2x 1.5V AA batteries (not incl.)
dimensions	105 x 65 x 20 mm
weight	82 g

Use this device with original accessories only. Velleman nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.hqpower.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.
