USER MANUAL PBM 42 A1 PARKSIDE

Translation of the original instructions

NL BE

Benzine grasmaier

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

FR BE

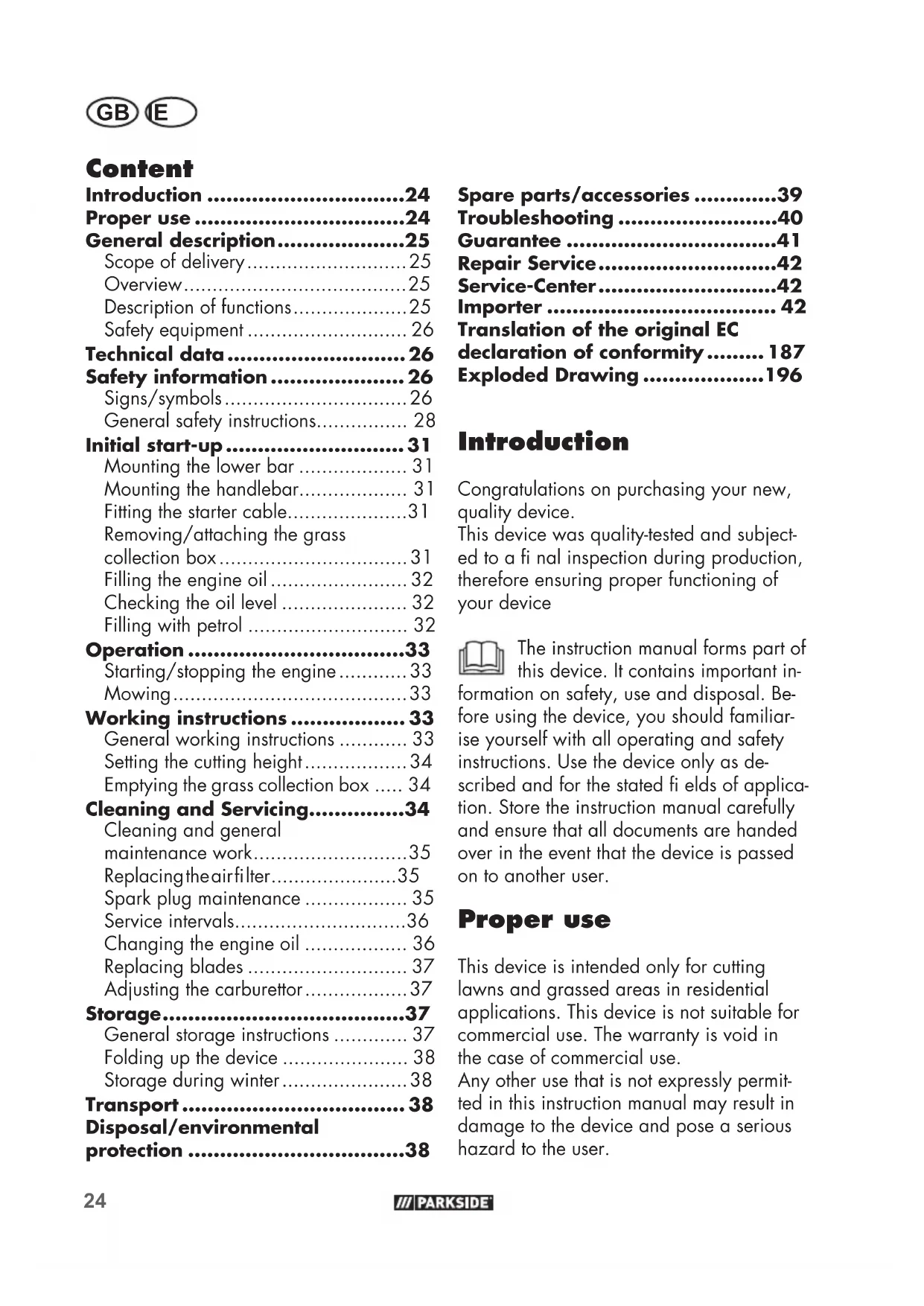

GB/IE Translation of the original instructions Page

General description. 25

Scope of delivery 25

Overview 25

Description of functions 25

Safety equipment 26

Technical data. 26

Safety information 26

Signs/symbols 26

General safety instructions. 28

Initial start-up 31

Mounting the lower bar 31

Mounting the handlebar 31

Fitting the starter cable. 31

Removing/attaching the grass

collection box 31

Filling the engine oil 32

Checking the oil level 32

Filling with petrol 32

Operation 33

Starting/stopping the engine 33

Mowing 33

Working instructions 33

General working instructions 33

Setting the cutting height 34

Emptying the grass collection box 34

Cleaning and Servicing.34

Cleaning and general

maintenance work. 35

Replacing the air filter. 35

Spark plug maintenance 35

Service intervals. 36

Changing the engine oil 36

Replacing blades 37

Adjusting the carburettor 37

Storage. 37

General storage instructions 37

Folding up the device 38

Storage during winter 38

Transport 38

Disposal/environmental

protection 38

Spare parts/accessories 39

Troubleshooting 40

Guarantee 41

Repair Service. 42

Service-Center. 42

Importer 42

Translation of the original EC declaration of conformity. 187

Exploded Drawing 196

Introduction

Congratulations on purchasing your new, quality device.

This device was quality-tested and subjected to a final inspection during production, therefore ensuring proper functioning of your device

The instruction manual forms part of this device. It contains important information on safety, use and disposal. Before using the device, you should familiarise yourself with all operating and safety instructions. Use the device only as described and for the stated fi elds of application. Store the instruction manual carefully and ensure that all documents are handed over in the event that the device is passed on to another user.

Proper use

This device is intended only for cutting lawns and grassed areas in residential applications. This device is not suitable for commercial use. The warranty is void in the case of commercial use.

Any other use that is not expressly permitted in this instruction manual may result in damage to the device and pose a serious hazard to the user.

The device is intended for use by adults. Children and people who are not familiar with this instruction manual must not use the device.

The operator or user is responsible for any accidents or personal injury and/or material damage to third parties or their property.

General description

An illustration of the most important functional components can be found on the front and the back fold-out pages.

Scope of delivery

Carefully remove the device from the packaging and check whether all the parts listed below are present and complete:

• Petrol lawnmower
• Lower bar
• Mounting accessories for the handlebar
• Grass collection box
• Cable clamp
• Spare spark plug
• Spark plug wrench
• Quick guide
• Instruction manual

Overview

1. Handlebar
   2 Safety bracket
   3 Lower bar
   4 Mounting accessories, handlebar
   4a Washer
   4b Quick release levers
   4c Screw
   5 2 quick release levers
   6 Starter handle with starter cable

7 Engine cover with ventilation holes (fi nger protection)
8 Tank cap
9 Air filter box
10 Air filter (not visible)
11 Spark plug connector
12 Spark plug (not visible)
13 2 front wheels
14 Sheet plate housing
15 Exhaust guard
16 Lever for setting the cutting height
172rear wheels
18 Oil tank cap with dipstick
19 Rear impact protection
20 Grass collection box
21 Grass collection box carrying handle
21a Bottom handle, grass collection box
22 Fill level indicator
23 Cable clamp
24 Starter cable guide
25 Bowden cable
26 Spare spark plug
27 Spark plug wrench
D 28 Grass collection box attachment
F 29 Filler plugs
30 Petrol pump (primer)
31 Cutting height position
32 Blade
33 Blade bolt
34 Engine spindle
35 Clamping disk

Description of functions

The device is powered by a powerful 4-stroke engine (Zongshen NP130).

The device is equipped with a high quality steel plate housing, a grass collection box and a foldable grip handle.

Please refer to the descriptions below for information on how the operating elements work.

Safety equipment

2 Safety bracket

The device stops when the safety bracket is released.

15 Exhaust guard

Prevents hands or fl ammable materials from coming into contact with the hot exhaust.

19 Rear impact protection

Protects the operator from ejected parts and against unintended contact with the blade when mowing without the grass collection box.

Technical data

Petrol lawn mower.....PBM 42 A1

Engine. Zongshen NP130

Engine displacement. 132 cm³ (cc)

Power. 1.8 kW (2,45 PS)

Max. speed (n_0) 2850 min-1

Blade tightening torque. 45 Nm

Petrol tank volume 0.85 I

Octane rating 95-98

Engine oil tank volume. 0.4 I

Spark plug .Torch F5RTC

Cutting circle 420 mm

Cutting height. 7-level,

25/30/38/45/55/65/75 mm

Grass collection box volume. 551

Weight (incl. grass collection box,

with an empty tank) 20 kg

Sound pressure level

(L_pA) 83 dB(A); K_pA = 3 dB

Sound power level (L_WA)

measured.....94.5dB(A); K_WA = 1.79 dB

guaranteed 96 dB(A)

Vibration on handle

(a_h) 3 m/s²; K= 1.5 m/s²

Levels of noise and vibration were determined according to the standards and regulations in the declaration of conformity.

The vibration emission value has been measured according to a standardised testing method and may be used for comparison with another device.

The indicated vibration emission value may also be used for an introductory assessment of the exposure.

Warning: The vibration emission value whilst actually using the device may vary from the given values regardless of the type and way in which the device is used.

Try to keep the exposure to vibrations as low as possible. Examples of measures to reduce vibration exposure are the wearing of gloves when using the tool and limiting the working hours. All parts of the operating cycle have to be considered while doing so (for example, times when the power tool is switched off and times when it is switched on but running without any load).

Safety information

This section describes the basic safety rules when working with the device.

Signs/symbols

Symbols on the device

Caution!

Read the instruction manual

Risk of injury due to ejected parts;

Keep persons in the vicinity away from the device

Risk of injury due to sharp blade! Warning: Keep hands and feet away from the blade

Caution-Toxic vapours! Do not operate device in closed rooms

Caution - Petrol is flammable! Not smoke and keep heat sources away.

not refuel while the engine is running.

Do not expose the device to moisture. Never operate the device in rain.

tion! The lawnmower blade continues to move

Switch off the engine when you leave the device.

mow if there are people, particularly children or animals, nearby.

Switch off the engine before maintenance work and unplug the spark plug connector

Caution - Hot surfaces! Risk of burn injury

Wear eye and hearing protection

The sound power level L_WA is indicated in dB

Danger! Keep hands and feet at a safe distance

Symbol on the oil tank cap:

Reference to the oil fi ller neck

Symbol on petrol pump:

Press petrol pump (primer) 3 × before starting.

Symbols on the motor:

Read the instruction manual

Warning against flammable substances

Caution - Toxic vapours! Do not operate device in closed rooms

10W30

Caution! Check the oil level before starting. Use 10W30 motor oil

Symbol on handlebar:

Switch device on (ON): Pull up safety bracket

Switch device off (OFF): Release safety bracket

Fill level indicator:

Fill level indicator open: Grass collection box empty

Fill level indicator closed: Grass collection box filled

Symbols used in the instruction manual

Hazard symbol with information on the prevention of personal injury or property damage.

GB E

Hazard symbol with information on damage prevention.

Stand behind the device when starting it.

Advisory symbol with information on how to best use the device.

Read the instruction manual

Wear gloves when handling the blade.

highly fl ammable

toxic

environmentally hazardous

General safety instructions

WARNING! Read all safety instructions and guidelines carefully. Failure to follow the safety instructions and guidelines may result in fire and/or serious injuries.

Note:

• Read the instruction manual carefully. Familiarise yourself with the adjustment settings and how to use the machine correctly.

In case of uncertainties, consult some one for instruction concerning the use of the device and prohibited operations.

• Pay attention, be aware of what you are doing and take the utmost care when working. Do not use the device if you are tired or ill or you are under the influence of drugs, alcohol or other medication. A moment of inattention whilst using the device can result in serious injuries.

• This device is not intended for use by people with restricted physical, sensory or mental capabilities; those who do not have sufficient experience in using the device or knowledge of the device must not use it unless they are supervised by an individual responsible for their safety, or receive instructions from this person on how to use the device.
  Children must be supervised to ensure that they do not play with the device.

• Never allow children or other people who are unfamiliar with the instruction manual to use the device. Local regulations may specify the minimum age of the user.
• Never mow if there are people, particularly children or animals, nearby. Distractions can cause you to lose control of the device.
• Remember that the user is responsible for accidents involving other people or their property.
• Observe noise protection rules and other local regulations.

Preparations:

Always wear slip-resistant shoes and long trousers when mowing. Do not mow barefoot or in light sandals. Loose clothing, jewellery or long hair may get caught in moving parts. Wearing suitable clothing reduces the risk of injuries.
- Check the terrain on which the device will be used and remove all objects (e.g. stones, sticks, wires, toys) which may be drawn into the device and ejected.
- Warning: Petrol is highly flammable. Fire or explosions can lead to severe burns:

• Store petrol only in the specially provided containers;
• Refuel only in open areas and never

smoke while refuelling the device;

• Petrol has to be added before starting the engine. The fuel tank cap must not be opened and petrol must not be added while the engine is running or the device is still hot.

• If there was an accidental petrol spill, do not attempt to start the engine. Instead, remove the device from the petrol contaminated surface. Do not try to ignite the engine until all petrol vapours have evaporated;

• If the fuel tank or other tank caps are damaged, replace them for safety reasons.

• Replace defective mufflers.

• Before use, always perform a visual inspection to check whether the cutting tools, fastening bolts and the entire cutting unit are worn out or damaged. Worn or damaged tools and bolts must only be replaced as a set to prevent imbalance.
  Take care when using devices with several cutting tools as the movement of one blade can lead to rotation of the other blades.
• Use replacement and accessory parts supplied or recommended by the manufacturer only. Using externally produced parts can cause injury, and void any warranty claims.

Operation:

• Never let the internal combustion engine run in a confined space, as dangerous carbon monoxide can accumulate.

• Use the machine only in daylight or with good artificial lighting. Working in areas without lighting can result in accidents.
  If possible, do not use the device on wet grass.

• Always ensure secure positioning, particularly on hillsides, landflls, ditches or dykes. This will help you to have better control of the device in unexpected situations.

• Always move crosswise across slopes, never up or down.

• Take special care when changing the direction of travel on slopes.

• Do not mow on overly steep slopes (max. 10^ ).

• Only operate the device at walking speed.
  Take special care when turning the device around or pulling it towards you.

• Stop the cutting tool when the device has to be tipped for transport over other areas than grass and when the device is moved from and to the area to be mowed.
• Never use the device with damaged protective equipment or protective grating or without installed protective equipment, e.g. impact protection and/or grass collection equipment. This ensures the safety of the device is not adversely affected.
• Do not change the controller settings of the motor and do not overturn it. This could damage the device.
  Before starting the engine, release all cutting tools and drives.
• Turn on the device with care in accordance with the manufacturer instructions. Ensure your feet are at a suffient distance from the cutting tool. There is a risk of injury.
• When starting or turning the engine on, the device must not be tilted, unless it is required to lift the device in the process. In this event, tilt the device only as far as absolutely necessary and lift it only on the side facing away from the user.

GB E

• Do not start the motor when standing in front of the ejector opening.
• Switch the engine on as directed and only if your feet are a safe distance away from the cutting tools.
• Never place your hands or feet on or below rotating parts. Always keep away from the ejector opening. A moment of inattention when using the device can result in serious injuries.
• Never lift or carry the device when the engine is running.

• Shut off the engine, disconnect the spark plug connector, remove the ignition key if present, and make sure that all movable parts have stopped moving:

• before removing obstructions, or loosening blockages from the ejector opening;

• before checking the device, cleaning it or performing maintenance work on it;
• when a foreign object has been hit. Check for damages to the device and perform any required repairs before starting and working with the machine again;
• if the device starts to vibrate abnormally strong, an immediate inspection is required.
• when leaving the device;

• before refuelling.

• Never leave the device unattended at the workplace.

• Do not work with a damaged or incomplete device or one which has been converted without the permission of the manufacturer. Using the device for anything other than its intended use can lead to dangerous situations.

• Do not work with the device if there is a risk of lightning strike. Danger of electric shock.

The throttle valve must be closed when the motor comes to a stop. If the engine has a petrol shut-off valve, it must be closed after mowing.

Maintenance and storage:

• Make sure that all nuts, bolts and screws are properly tightened, and that the device is in safe working order. Many accidents are caused by poorly maintained appliances.
• Never store the device with fuel in its petrol tank inside a building, where fuel vapours may be coming in contact with fire or sparks.
• Give the engine time to cool off before you store the device in an enclosed space. Possible fire hazard.
• To avoid risk of fire, keep engine, exhaust and the area around the petrol tank free of grass, leaves or leaking grease (engine oil).
• Check the grass collection unit regularly for wear or loss of function.
• Replace worn or damaged parts for safety reasons. Replace defective mufflers.
  If you need to drain the petrol tank, you must do so outside.
• Treat your device with care. Keep the tools sharpened and clean in order to be able to work better and safer. Follow the maintenance instructions.
• Do not try to repair the device yourself, unless you have professional training. All work not specified in this instruction manual may only be carried out by customer service centres authorised by us.
• Store the device in a dry place and out of reach of children. Devices can be dangerous if operated by inexperienced persons.

Initial start-up

Caution! Risk of injury due to rotating blade. Only perform work on the device when the engine is switched off and has come to a stop.

Before starting the device, you must

• Remove all transport safety devices,
• fold up the grip rod and lock the quick release levers,
• fi ll the engine oil,
• fi ll the petrol,
• mount the grass collection box if necessary,
• set the cutting height if necessary.

Mounting the lower bar

Make sure that the Bowden cable (25) is not crushed during the assembly of the grip rod.

1. Fold the lower bar (3) up.
2. Turn the quick release levers (5) crosswise towards the bar. Gently pull the quick release levers (5) away from the lower bar (3).
3. Move the lower bar (3) to the desired position.

There are three possible positions.

1. Turn the quick release levers (5) back to their original position. The quick release levers click into place.

Mounting the handlebar

1. Place the handlebar (1) onto the lower bar (3).
2. Slide a screw (4c) through the holes on the grip rods on both sides.
3. Slide one washer (4a) on each of the screws (4c). The grooved side of the

washer (4a) should face the handlebar (1).

1. Screw the quick release levers (4b) on the screws (4c).
2. Lock the quick release levers (4b) by pressing them towards the handlebar (1).

The quick release levers must rest against the bar in such a way that tightening can be carried out with medium force. Otherwise, the quick release levers must be turned clockwise for tensioning them or anti-clockwise to loosen them.

1. Fasten the Bowden cable (25) using a cable clamp (23) to the lower bar (3).

Fitting the starter cable

1. Pull the safety bracket (2) towards the upper handlebar (1) and hold it in this position.
2. Slowly pull the starter cable by the starter handle (6) towards the bar.
3. Guide the starter cable into the starter cable guide (24).
4. Release the safety bracket (2).

Removing/attaching the grass collection box

Caution: Do not run the device if the grass collection box or impact protection are not attached properly. Risk of injury!

Attaching the grass collection box to the device:

1. Lift the rear impact protection (19).
2. Hold the grass collection box (20) by the carrying handle (21).

3. Hang the grass collection box (20) into the grass collection box attachment (28) on the rear of the device.

4. Remove the impact protection (19); it keeps the grass collection box (20) in place.

Removing the grass collection box:

1. Lift the impact protection (19).

2. Remove the grass collection box (20) by the carrying handle (21).

E Filling the engine oil

Place the device on an even base.

1. Screw off the oil tank cap with dipstick (18).
2. Fill the engine oil in the oil tank. The engine oil tank holds 0.4 l of oil. Use brand-name oil (e.g. SAE 30).
3. Close the oil tank cap (18) again.

Checking the oil level

1. Screw off the oil tank cap with dipstick (18).
2. Wipe the dipstick (18) using a clean cloth.
3. Return the oil tank cap with dipstick (18) back in the oil tank as far as it will go.
4. After removing the dipstick, read the oil level.

The oil level must be in the marked fi eld between the minimum and maximum mark (maximum: 0.4 l engine oil in the oil tank).

1. Wipe away any spilt engine oil.
2. Close the oil tank cap (18) again.

Each time before you mow, check the oil level and top up the engine oil before it reaches the bottom mark.

F Filling with petrol

Warning! Petrol is fl ammable and harmful to health and the environment:

• Store petrol in vessels intended for this;
  Only refuel in the open air and never while the engine is running or hot;
• Carefully open the fuel cap so that overpressure can be relieved;
• Do not smoke while refuelling; Avoid skin contact and inhalation of fumes;
• Remove spilled petrol;
• Keep petrol away from sparks, open fl ames and other ignition sources.
• Dispose of any petrol remnants in an environmentally friendly way (see "Disposal/environmental protection").

• Do not use any petrol/oil mixture.

Use lead-free normal or premium-grade petrol; If using organic fuel, do not mix more than 10% ethanol.
- Only use clean, fresh petrol.
- Do not store petrol for longer than one month, as its quality will deteriorate.

1. Unscrew the tank cap (8).
2. Add petrol up to the lower edge of the fi Iller neck (29). Do not fi II the petrol tank fully, so that the petrol has space to expand.
3. Wipe petrol residues off the tank cap (8).
4. Close the tank cap (8).

Operation

Some level of noise emission with this equipment is unavoidable. Postpone noisy work until designated periods when it is permitted. Take rest periods when needed and limit working time to the minimum necessary. For your personal protection and the protection of people working nearby a suitable form of hearing protection must be worn.

Starting/stopping the engine

Warning! Petrol is flammable. Start the engine at least 3 m away from where you refuelled. Possible fire hazard.

Place the device on a solid, even base, avoiding high grass if possible. Make sure that the cutting tool does not touch either other objects or the ground.

For your safety: Stand behind the device when starting it.

Regularly check the petrol and oil levels (see "Checking the oil level") and top up promptly.

Cold start:

1. Press the petrol pump (30) (primer) 3 ×

1. Pull the safety bracket (2) towards the handlebar (1) and hold it.

2. Pull the starter handle (6).

3. If the motor starts, slowly release the starter handle into the starter cable guide (24).

For a warm start it is not necessary to press the primer (30).

If the primer is pressed too often, too much petrol will enter the carburettor and the motor is difficult to start.

Stopping the engine:

• Release the safety bracket (2). The engine switches off and the blade is braked.

Blade stopping device:

Regularly examine the blade stopping device:

• Release the safety bracket (2). The engine switches off and the blade is braked.

The blade must stop within 7 seconds.

Mowing

1. Start the engine (see "Starting/stopping the engine").
2. Hold the handlebar (1) and the safety bracket (2) with both hands while mowing.

Working instructions

General working instructions

If possible, mow dry grass to go gentle on the sod.
- Adjust the cutting height so that the device is not overloaded.
- Move the device at walking speed and in lines as straight as possible. For a flawless mowing result, the lines should always overlap by a few centimetres.
- Do not move backwards.
Always move across the slope when working on hills.

GB E

• If the blades come into contact with a foreign object, turn the engine off immediately. Wait until the blade comes to a stop and check the device for damage. Only continue working if the device is undamaged.
• Switch off the device during longer breaks or when transporting it and wait until the blade has stopped moving.
• Clean the device after each use, as described in the section "Cleaning/storage".

J Setting the cutting height

The device has 7 positions for setting the cutting height:

1	25 mm	4	45 mm	7	75 mm
2	30 mm	5	55 mm
3	38 mm	6	65 mm

1. Turn the lever (16) outward to set the cutting height.
2. Move the lever to the desired position (31) to set the cutting height.
3. Release the lever (16) for setting the cutting height.

The correct cutting height is between 30 and 45mm for an ornamental lawn and about 40 - 65mm for a utility lawn.

A high cutting height should be selected for the first mowing of the season.

D Emptying the grass collection box

Fill level indicator:

You can see when the grass collection box (20) is full through the fi ll level indicator

(22) on the top of the grass collection box (20).

Fill level indicator (22) open: Grass collection box empty

Fill level indicator (22) closed: Grass collection box filled

The fi ll level indicator (22) only works while the device is in operation.

1. Switch off the engine and wait for the blade to come to a stop.
2. Lift the rear impact protection (19).
3. Remove the grass collection box (20).
4. To empty the grass collection box (20), grab it at the carrying handle (21) and the bottom handle (21a) (see also "Disposal/environmental protection").
5. Mount the grass collection box again.

Cleaning and Servicing

Have any service and maintenance work on the device that is not described in this instruction manual performed by a professional. Only use original spare parts. Accident hazard!

Maintenance and cleaning work must always be carried out with the engine switched off and the spark plug connector removed. Risk of injury!

Allow the device to cool off before performing any maintenance or cleaning. Engine elements are hot. There is a danger of burns!

Wear gloves when handling the blade.

Cleaning and general maintenance work

Cleaning and maintenance work on the underside of the appliance:

Place an underlay under the petrol lawnmower.

1. Fold the upper handlebar (1) up

2. Release the quick release levers (5) and fold up the upper bar (3).

3. Tilt the device back so that the spark plug faces upwards.

Make sure that a second person holds the device because there is a danger of tipping backwards.

Do not tilt the device to the side or forwards. Operating fluids could escape and the engine could be damaged.

Always keep the device clean. Use a brush or cloth for cleaning, but do not use any aggressive cleaning agents or solvents.

Do not use any water to clean the engine, it could contaminate the fuel system.

• After mowing, remove any plant remains using a piece of wood or plastic. Clean the ventilation holes in particular (7), the ejector opening and the blade area. Do not use any hard or sharp objects, as these could damage the device.

• Check the device before each use for obvious defects such as loose, worn or damaged parts. Ensure that all nuts, bolts and screws are firmly in place.

• Check the covers and protective devices (2, 7, 15, 19) for damage and correct fit. Replace these if necessary.

Replacing the air fi lter

Never run the device without an air fi liter. Dust and dirt may otherwise enter the engine and cause damage.

Removing the air fi Iter

1. Disconnect the spark plug connector (M 11) (see "Spark plug maintenance").
2. Open the air filter box (9).
3. Remove the air fi tter (10).
4. Clean the air filter (10) in a soap solution.
5. Allow the air fi lter (10) to dry. Put a few drops of fresh engine oil into the air fi lter.
6. Replace the faulty air fi iter with a new air fi iter (see „Spare parts/Accessories").

Inserting the air fi Iter

1. Insert the air fi iter (10) into the air fi iter box (9).
2. Close the air fi lter box (9) back up.

Spark plug maintenance

Worn spark plugs, or a spark plug gap that is too large, will lead to a reduction in engine power.

1. Remove the spark plug connector (11) by pulling and turning the spark plug (12).
2. Unscrew the spark plug (11) counterclockwise with the enclosed spark plug wrench (27).
3. Check the spark plug gap with the help of a feeler gauge (available from specialised dealers). The spark plug gap must be 0.7 - 0.8mm

GB E

1. Reset the gap if necessary, by carefully bending the ground/side electrode of the spark plug.
2. Clean the spark plug (12) with a wire brush.
3. Insert the cleaned and set spark plug or replace a damaged spark plug with a spare spark plug (26) (recommended tightening torque 20Nm , determined with torque wrench) (see "Spare parts/accessories").

Service intervals

Carefully perform the maintenance tasks listed in the table on a regular basis. Regular servicing will extend the life of your device. Additionally, you will achieve optimum cutting performance and prevent accidents.

Maintenance tasks(see "Cleaning and Servicing")	before after		after the fi rst 5 hours	after 8 hours	after 50 hours	annu- ally
	work
Check and tighten the screws, nuts and bolts	✓
Check the engine oil level/pet- rol level and add engine oil/ petrol as needed	✓			✓
Clean the operating elements/ area surrounding the muffler		✓		✓
Replace the engine oil			✓✓	✓
Replace the air fi liter						✓
Clean/adjust/replace the spark plug				✓		✓
Clean/check blade sharpen blade		✓				✓
Clean the air cooling systema						✓

Replace more frequently in a high dust environment or in case of heavy contamination

Changing the engine oil

Change the engine oil when the petrol tank is empty and the engine is warm.

• Perform the first engine oil change after about 5 operating hours and then every 50 operating hours or annually.

• Dispose of the used oil in an environmentally-responsible way (see „Disposal/Environmental Protection").

• Disconnect the spark plug connector (M 11) (see "Spark plug maintenance").

• Open the oil tank cap (18).

• Pump out the engine oil with an oil pump (not included in delivery).

• Top up the engine oil (see "Filling the engine oil").

Replacing blades

Improper installation can cause severe injury.

Never tilt the lawnmower to the side or forwards when the petrol or oil tank is fi lled!

This could damage the engine, voiding the warranty.

Check the blade for wear and damage. If dull or damaged, replace the blade!

Always have a specialist workshop sharpen a dull blade, as they can perform imbalance testing.

Wear gloves when handling the blade.

Once you have loosened the blade screw (33), you have to replace the clamping disk (35).

The tightening torque of the blade is 45Nm

1. Disconnect the spark plug connector (11).
2. Put the device in the maintenance position (see Figure).

3. Use firm gloves and keep hold of the blade (32). Use a spanner to turn the blade bolt (33) counterclockwise from the motor spindle (34).

4. Reassemble the new blade in the reverse order.

Make sure that the blade is positioned correctly and resting fl ush on the engine spindle.

The clamping disk (35) must be positioned between the blade screw and blade.

1. Tighten the blade with 45Nm

Adjusting the carburettor

The carburettor has been preconfi gured for ideal performance at the factory. If any readjustments are necessary (see "Troubleshooting"), have the adjustments made by a specialist workshop.

Storage

General storage instructions

Never store the device with the grass collection box full. If the weather is too hot, the grass will begin to ferment under heat. Possible fire hazard.

• Clean and maintain the device prior to storage.
• Give the engine time to cool off before you store the device in an enclosed space.
• Use suitable, permissible containers for storing the fuel.
• Store the device in a dry and dustproof location and out of reach of children.
• Do not enclose the device in nylon sacks as this may cause moisture or mould to form.

N Folding up the device

For space-saving storage the grip rod can be folded twice.

1. Remove the grass collection box (20).
2. Unhinge the starter cable (6).
3. Open the quick release lever (4b) on the upper bar (1). Quick release lever (4b), washer (4a) and screws (4c) can remain mounted.
4. Turn the quick release levers (5) crosswise towards the bar. Gently pull the quick release levers (5) away from the lower bar (3).
5. Fold both handles down again. The Bowden cable (25) must not be jammed when you do this.

Storage during winter

Failure to follow the storage instructions may leave fuel remnants in the carburettor, which in turn can cause start-up problems or permanent damage.

• Start the engine and allow it to run until it goes out due to a lack of petrol.
• Perform an oil change (see "Changing the engine oil").

• Preserve the engine:

• Remove the spark plug (M 12) (see "Cleaning and servicing");

• Fill a tablespoon of engine oil into the engine compartment through the spark plug opening;
• Slowly pull the starter cable (G6) several times with the safety bracket (G2) pulled to distribute the oil inside the engine;

Screw the spark plug (M 12) back in.

• Dispose of used oil and petrol residues in an environmentally-responsible way (see „Disposal/Environmental Protection").

The petrol tank does not have to be emptied if you add a fuel additive to the petrol (see "Spare parts/accessories").

Transport

• Do not tilt the device forwards or to the side.
• Do not touch the blade.
• Be aware that the blade will continue to rotate for a short time after being switched off.
• Never lift or carry the device when the engine is running.
• Be aware of the weight of the device and do not overstrain yourself.
• Do not transport the device upside down and do not tilt it as otherwise fuel might leak out.
• Before transporting between two locations, empty the fuel tank with a petrol suction pump. Do not empty the fuel tank indoors, near fire or when smoking. Gas vapours can cause explosions or fire.

Disposal/environmental protection

• The device, accessories and packaging should be properly recycled.

• Carefully empty the petrol and oil tank and take your device to a recycling plant. The plastic and metal parts used on your device can be properly sorted according to materials and grades and efficiently recycled.

• Dispose of used oil and petrol residues at a disposal site and do not pour into sewers or down the drain.

• Please contact our service centre for more information.

• Disposal of your sent in defective devices is carried out free of charge.

• Do not throw cut grass into the rubbish bin; instead, take it for composting or spread it as a mulch below shrubs and trees.

Spare parts/accessories

You can get spare parts and accessories from www.grizzlytools.shop

If you have issues ordering, please use the contact form. If you have any other questions, contact the service centre (see page 42).

Position manual	Name	Order	no.
3	Lower bar (set)			911061
5	Quick release levers with mounting accessories 91106162
13	Front wheel (set) 91106157
16	Lever for setting the cutting height 91106159
17	Rear wheel (set)	91106158
19	Rear impact protection	91105619
20	Grass collection box	91106160
25	Bowden cable	91106163
32-35	Blade/Blade bolt/Engine spindle/Clamping disk			13700458

Troubleshooting

Problem Possible cause Troubleshooting
Engine won't start	Not enough petrol in the petrol tank	Fill petrol
	Incorrect starting sequence	Observe the instructions for starting the engine (see "Operation")
	Spark plug connector (11) not plugged in correctly, sooty spark plug	Plug in the spark plug connector Clean, set or replace spark plug (see "Cleaning and Servicing")
	Carburettor set incorrectly	Have the carburettor reset by a specialist workshop
Engine starts, but the device does not run at full power	Dirty air fi liter (L 10)	Replace the air fi liter (see "Cleaning and Servicing")
	Carburettor set incorrectly	Have a specialist workshop reset the carburettor
Engine sput-ters, slows down	Carburettor set incorrectly	Have a specialist workshop reset the carburettor
	Sooty spark plug (M 12)	Clean, set or replace spark plugs (see "Cleaning and Servicing")
Engine overheated	Ventilation holes (7) plugged Clean the ventilation holes
	Incorrect spark plug (M 12) Repace the spark plug
	Not enough engine oil in the engine	Top up engine oil (see "Initial start-up")
Engine giving off smoke	Dirty air fi liter (L 10)	Replace the air fi liter (see "Cleaning and Servicing")
	Not enough engine oil in the engine	Top up engine oil (see "Initial start-up")
Output not satisfactory or engine is diffi cult to operate	Grass too short or high	Change the cutting height (see "Setting the cutting height")
	Blade blunt see „Replacing blades"
	Blade blocked by grass, grass collection box full, ejector opening plugged	Remove grass (see "Cleaning and Servicing")
Blade not rotat-ing	Blade blocked by grass Remove grass
	Blade not mounted correctly	Fit the blade correctly (see "Replacing blades")
Abnormal sounds, clat-tering or vibra-tions	Blade not mounted correctly	see „Replacing blades"
	Blade damaged

Guarantee

Dear Customer,

This device comes with a 3-year warranty from the date of purchase.

Should the device have defects, you are entitled to further rights vis-à-vis the device vendor. These statutory rights are not limited by the guarantee described in the following.

Terms of Guarantee

The term of the guarantee begins on the date of purchase. Please retain the original receipt. This document is required as proof of purchase.

If a material or manufacturing defect occurs within three years of the date of purchase of this product, we will repair or replace - at our choice - the product for you free of charge. This guarantee requires the defective equipment and proof of purchase to be presented within the three-year period with a brief written description of what constitutes the defect and when it occurred.

If the defect is covered by our guarantee, you will receive either the repaired product or a new product. No new guarantee period begins on repair or replacement of the product.

Guarantee Period and Statutory Claims for Defects

The guarantee period is not extended by the guarantee service. This also applies for replaced or repaired parts. Any damages and defects already present at the time of purchase must be reported immediately after unpacking. Repairs arising after expiry of the guarantee period are chargeable.

Guarantee Cover

The equipment has been carefully produced in accordance with strict quality guidelines and conscientiously checked prior to delivery.

The guarantee applies for all material and manufacturing defects. This guarantee does not extend to cover product parts that are subject to normal wear and may therefore be considered as wearing parts (e.g. cylinders, v-belt or attachments) or to cover damage to breakable parts (z. B. Cutting unit, spark plug, air fi liter, starter cable). This guarantee shall be invalid if the product has been damaged, used incorrectly or not maintained. Precise adherence to all of the instructions specified in the operating manual is required for proper use of the product. Intended uses and actions against which the operating manual advises or warns must be categorically avoided. The product is designed only for private and not commercial use. The guarantee will be invalidated in case of misuse or improper handling, use of force, or interventions not undertaken by our authorised service branch.

Processing in Case of Guarantee

To ensure quick handling of you issue, please follow the following directions:

• Please have the receipt and item number (IAN 373349_2104) ready as proof of purchase for all enquiries.

• Please find the item number on the rating plate, an engraved plate on the front page of your manual (bottom left) or as a sticker on the back or bottom.

• Should functional errors or other defects occur, please initially contact the service department specified below by telephone or by e-mail. You will then receive further information on the processing of your complaint.

GB E

• After consultation with our customer service, a product recorded as defective can be sent postage paid to the service address communicated to you, with the proof of purchase (receipt) and specific cation of what constitutes the defect and when it occurred. In order to avoid acceptance problems and additional costs, please be sure to use only the address communicated to you. Ensure that the consignment is not sent carriage forward or by bulky goods, express or other special freight. Please send the equipment inc. all accessories supplied at the time of purchase and ensure adequate, safe transport packaging.

Repair Service

For a charge, repairs not covered by the guarantee can be carried out by our service branch, which will be happy to issue a cost estimate for you.

We can handle only equipment that has been sent with adequate packaging and postage.

Attention: Please send your equipment to our service branch in clean condition and with an indication of the defect.

Equipment sent carriage forward or by bulky goods, express or other special freight will not be accepted.

We will dispose of your defective devices free of charge when you send them to us.

Service-Center

GB Service Great Britain Tel.:[phone]

E-Mail: [e-mail]

IAN 373349_2104

IE Service Ireland

Tel.: [phone]

(0,08 EUR/Min., (peak))

(0,06 EUR/Min., (off peak))

E-Mail: [e-mail]

IAN 373349 2104

Importer

Please note that the following address is not a service address. Please initially contact the service centre specified above.

Garantie - France. 62

Chere cliente, cher client,

Chere cliente, cher client,

125mm445mm775mm
230mm555mm
38mm665mm

1. Trek de maaihoogteregelaar (16) maar buiten.
2. Schuif de maaihoogteregelaar in degewenste stand (31).
3. Laat de maaihoogteregelaar (16) weer los.

125mm445mm775mm
20 mm 555 mm
38mm665mm

1. Vytyihnite paku (16) na nastavenie vysky kosenia smerom von.
2. Paku na nastavenie vysky kosenia prepnite do ziadanej polohy (31).
3. Paku na nastavenie vyšky kosenia (16) znova pustite.

Montering at startsnor

GB IE	Translation of the original EC declaration of conformity
We hereby confi rm that the Petrol Lawnmower Design Series PBM 42 A1 Serial Number 000001 - 030639 conforms with the following applicable relevant version of the EU guidelines :
2006/42/EC • 2014/30/EU • 2000/14/EC & 2005/88/EC 2011/65/EU* & (EU)2015/863
In order to guarantee consistency, the following harmonised standards as well as na- tional standards and stipulations have been applied:
EN ISO 5395-1:2013/A1:2018 • EN ISO 5395-2:2013/A2:2017 EN ISO 14982:2009 • EN IEC 63000:2018
We additionally confi rm the following in accordance with the 2000/14/EC emissions guideline: Sound power level guaranteed: 96 dB(A); measured: 94,5 dB(A) Compliance evaluation process carried out in accordance with Appendix VI, 2000/14/EC and 2005/88/EC Registered Offi ce: NB 0036; TÜV SÜD Industrie Service GmbH, Westendstrasse 199, 80686 München, Germany
This declaration of conformity is issued under the sole responsibility of the manufacturer:
CE Grizzly Tools GmbH & Co. KG Stockstädter Straße 20 63762 Großostheim Germany 20.11.2021	Christian Frank Documentation Representative

• The object of the declaration described above satisfies the provisions of Directive 2011/65/EU of the European Parliament and the Council of 8 June 2011 on limiting the use of certain harmful substances in electrical and electronic appliances.
