USER MANUAL Polly Magic Relax CHICCO

Line drawing of a baby in a baby boom chair with decorative ornaments and a headboard (no text or symbols)

chicco®

C1 B12 B13 C2 B2 A1 A3

B7 B8 A2 A4 A6

B6 B5 A5 B3 B4 B1

B11

C2 C3

B9 B10

B13

Technical diagram of a car seat with labeled parts D1, D2, and D7 indicating different seat positions or components.

D6 D5 D3

Technical diagram of a mechanical component with labeled parts and a red annotation 'D4'

1A

Diagram showing two-step procedure for using a tool, with red arrows indicating step 1 and a magnified view of the tool's tip.

Line drawing of a hand using a tool to lift a foot, no text or symbols present

Illustration of a pair of pliers with a hand adjusting the blade (no text or symbols)

Line drawing of a car seat assembly with a hand adjusting the seat (no text or symbols)

Line drawing of a small vacuum cleaner with internal components and a red circular label (no text or symbols on the device itself)

Line drawing of a baby car seat with a hand adjusting the seat (no text or symbols)

Illustration of hands using a compass tool to lift or rotate a piece, with a red arrow indicating rotation (no text or symbols present)

Illustration of two hands using a tool to adjust or install a small object on a folding chair (no text or symbols present)

Line drawing of a compass tool with a highlighted section (no text or symbols)

10

Illustration of a hand using a tool to lift a bicycle seat, showing the handle and seat (no text or symbols)

Illustration of a bicycle steering wheel with a red arrow indicating the turning point (no text or symbols present)

Illustration of a hand using a pliers to cut a tool, showing motion direction (no text or symbols)

14

Line drawing of a mechanical compass tool (no text or symbols present)

Line drawing of a pliers with a 15A label (no text or symbols on the diagram itself)

Sequence of four sequential illustrations of a manual clamp or tool, showing step-by-step assembly (no text or symbols)

Illustration of a hand adjusting a bicycle wheel handle (no text or symbols)

Line drawing of a pair of pliers or tools with no visible text or symbols

Illustration of a hand holding a small object to lift a cable or pipe (no text or symbols present)

Illustration of a hand holding a tool with a red circular arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical clamp or hook assembly (no text or symbols)

Illustration of a hand using a tool to adjust or install a mechanical component (no text or symbols visible)

23

Line drawing of a mechanical device with arrows indicating motion, no text or symbols present

Line drawing of a folding tool with a red circular marker labeled '25' (no text or symbols on the diagram itself)

IT ISTRUZIONI D'USO

AVVISO IMPORTANTE IMPORTANTE : LEGGERE ATTENTAMENTE E CONSERVARE PER FUTURO RIFERIMENTO.

ATTENZIONE: PRIMA DELL'USO RIMUOVERE ED ELIMINARE EVENTUALI SACCHETTI DI PLASTICA E TUTTI GLI ELEMENTI FACENTI PARTE DELLA CONFEZIONE DEL PRODOTTO O COMUNQUE TENERLI LONTANI DALLA PORTATA DEI BAMBINI.

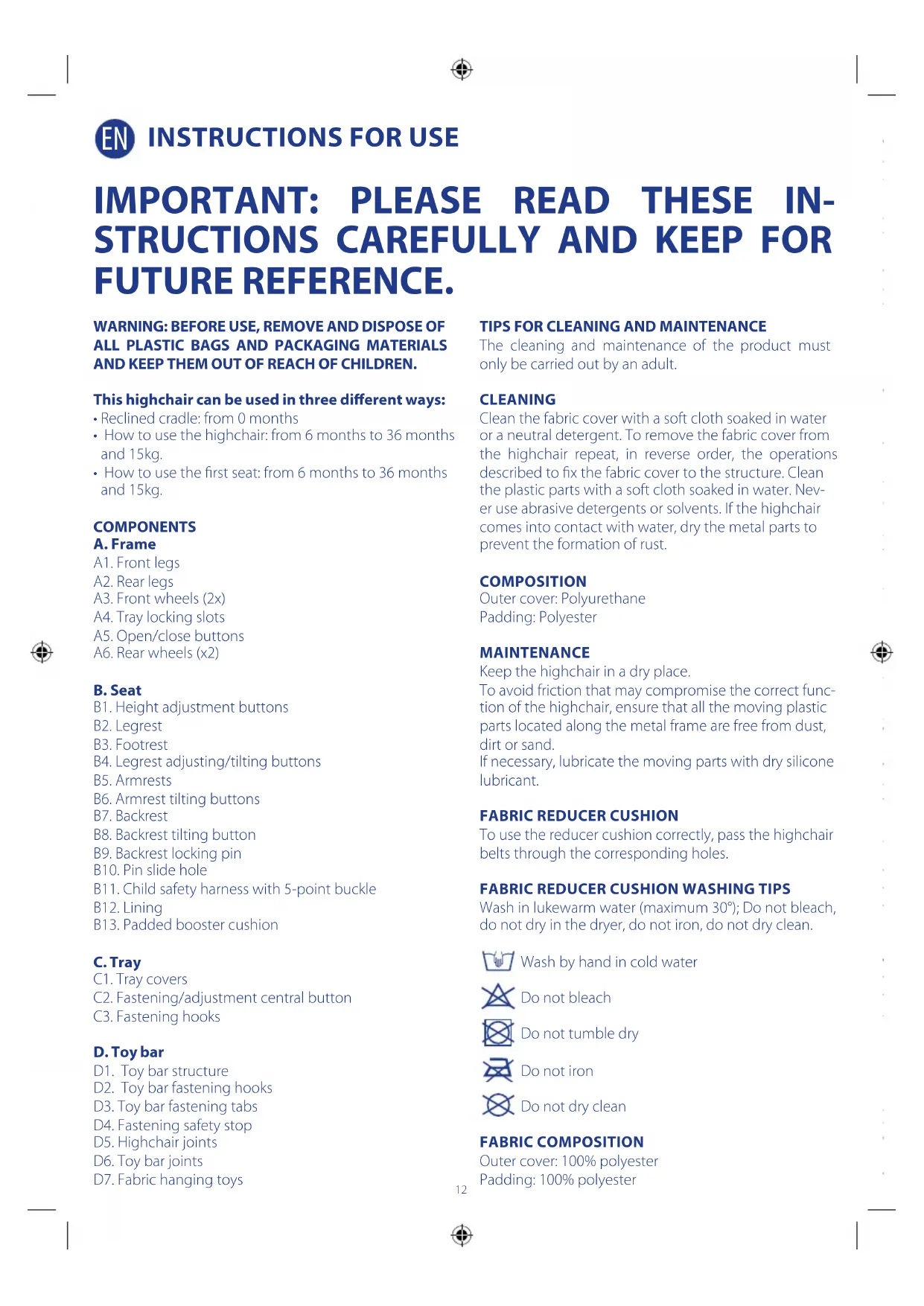

IMPORTANT: PLEASE READ THESE IN-STRUCTIONS CAREFULLY AND KEEP FOR FUTURE REFERENCE.

WARNING: BEFORE USE, REMOVE AND DISPOSE OF ALL PLASTIC BAGS AND PACKAGING MATERIALS AND KEEP THEM OUT OF REACH OF CHILDREN.

This highchair can be used in three different ways:

• Reclined cradle: from 0 months
• How to use the highchair: from 6 months to 36 months and 15kg.
• How to use the first seat: from 6 months to 36 months and 15kg.

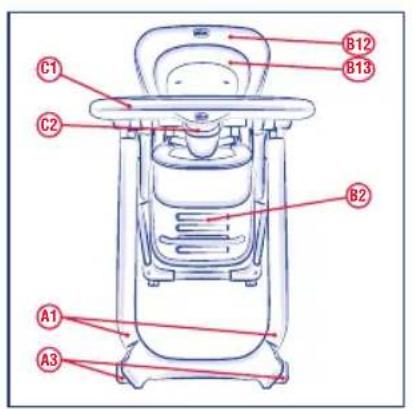

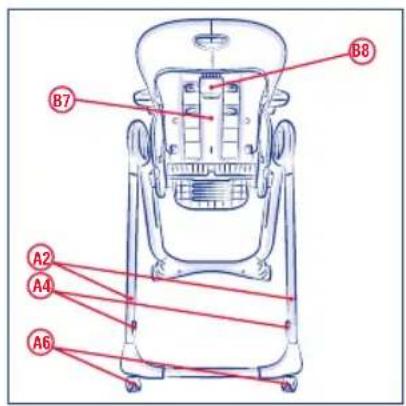

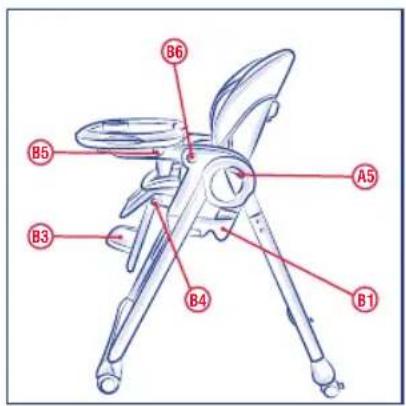

COMPONENTS

A. Frame

A1. Front legs
A2. Rear legs
A3. Front wheels (2x)
A4. Tray locking slots
A5. Open/close buttons
A6. Rear wheels (x2)

B. Seat

B1. Height adjustment buttons
B2. Legrest
B3. Footrest
B4. Legrest adjusting/tilting buttons
B5. Armrests
B6. Armrest tilting buttons
B7. Backrest
B8. Backrest tilting button
B9. Backrest locking pin
B10. Pin slide hole

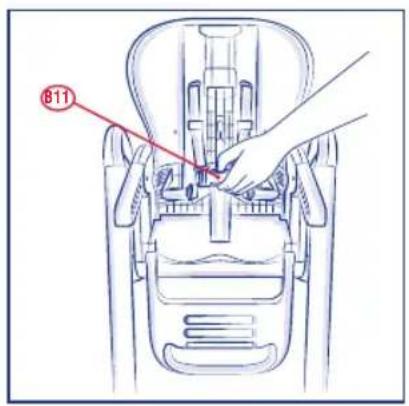

B11. Child safety harness with 5-point buckle
B12. Lining

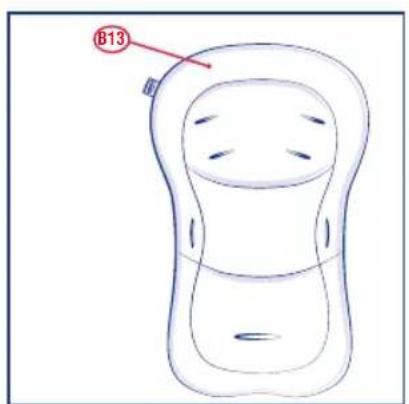

B13. Padded booster cushion

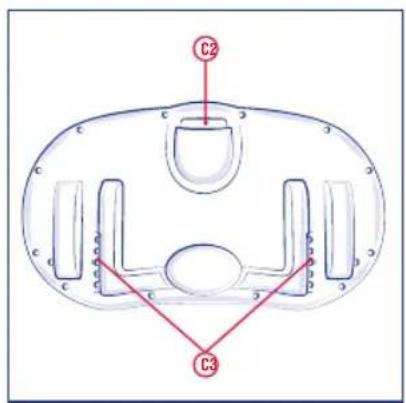

C. Tray

C1. Tray covers
C2. Fastening/adjustment central button
C3. Fastening hooks

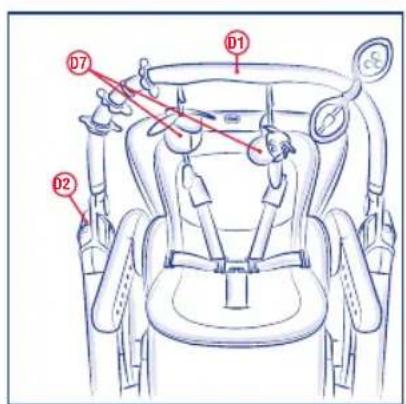

D. Toy bar

D1. Toy bar structure
D2. Toy bar fastening hooks
D3. Toy bar fastening tabs
D4. Fastening safety stop
D5. Highchair joints
D6. Toy bar joints
D7. Fabric hanging toys

TIPS FOR CLEANING AND MAINTENANCE

The cleaning and maintenance of the product must only be carried out by an adult.

CLEANING

Clean the fabric cover with a soft cloth soaked in water or a neutral detergent. To remove the fabric cover from the highchair repeat, in reverse order, the operations described to fix the fabric cover to the structure. Clean the plastic parts with a soft cloth soaked in water. Never use abrasive detergents or solvents. If the highchair comes into contact with water, dry the metal parts to prevent the formation of rust.

COMPOSITION

Outer cover: Polyurethane

Padding: Polyester

MAINTENANCE

Keep the highchair in a dry place.

To avoid friction that may compromise the correct function of the highchair, ensure that all the moving plastic parts located along the metal frame are free from dust, dirt or sand.

If necessary, lubricate the moving parts with dry silicone lubricant.

FABRIC REDUCER CUSHION

To use the reducer cushion correctly, pass the highchair belts through the corresponding holes.

FABRIC REDUCER CUSHION WASHING TIPS

Wash in lukewarm water (maximum 30°); Do not bleach, do not dry in the dryer, do not iron, do not dry clean.

Wash by hand in cold water
Do not bleach
Do not tumble dry
Do not iron
Do not dry clean

FABRIC COMPOSITION

Outer cover: 100% polyester

Padding: 100% polyester

FIRST USE/OPENING

WARNING: The product is inserted in the package wrapped in a protective foil. When removing, make sure to avoid damage to the product and its additional components by cutting objects. Once the product is open, quickly remove the packaging components and keep them out of reach of children!

Once using the first time, the backrest needs to be changed from packaging to use position, making it rotate up until you hear the engagement click (Fig.1).

It is now no longer possible to return the backrest to packaging position.

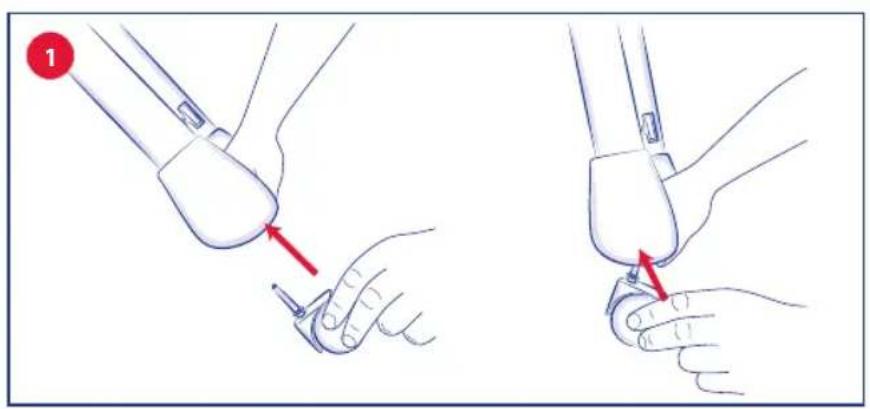

Insert the rear wheels (A6) in the specific slots (Fig.1A), pushing them in as far as they will go.

WARNING: Check that pin B9 is always engaged correctly in the sliding hole B10 by pressing lightly on the back toward the rear part of the highchair.

To open the frame, press simultaneously the A5 opening/closing buttons, distancing the front legs A1 from the rear legs A2 (Fig. 2) until the click indicates complete opening.

Insert the footrest B3 in one of the four slots (Fig.3) of the legrest B2 turning until it locks.

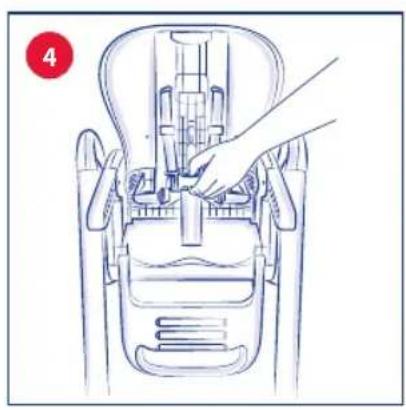

To put the cover on the seat B, after unfastening the safety harness (Fig. 4), the cover B15 must be fitted from the top to the bottom until it fits in the backrest part (Fig. 5).

Put the cover B15 on the seat B, inserting the safety harness B14 in appropriate cover holes. Make sure that the positions of the holes on the fabric cover correspond to those on the backrest.

SAFETY HARNESS

WARNING: The use of the safety harness with fabric crotch strap is essential to guarantee the safety of your child.

WARNING: The tray alone does not guarantee the safety of your child. Always use the safety harness! The highchair has a 5-point safety harness.

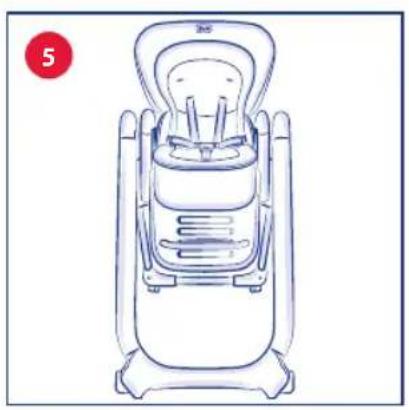

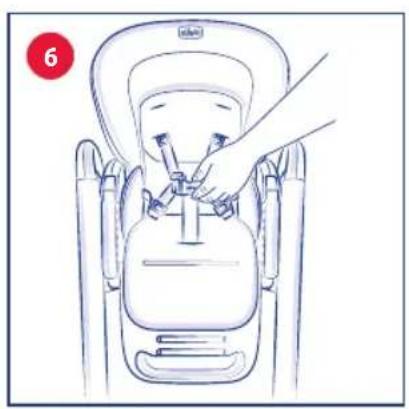

Release the safety harness, place the child on the high-chair and secure the child with the harness, adjusting its length so it suits the child.

The safety harness can be adjusted to two height positions. The buckle may be released by pressing the forks.

The width of the waist belts can be adjusted using the relevant sliding rings (Fig. 6).

TRAY POSITIONING/ADJUSTMENT

The tray can be adjusted to 4 different positions.

To fasten the tray C, turn the armrests B5 and make sure that they are locked in horizontal position (Fig. 7).

Insert the armrests in the guides below the tray, keeping the central fastening button C2 pressed (Fig. 8).

Move the tray to the desired position and release the button. If the tray is not automatically locked on the armrests, move the tray until a click is heard, indicating that the tray has locked.

WARNING: before use, always check the correct fastening of the tray on the armrests.

WARNING: the tray may only be adjusted to the 4 indi-

cated positions.

WARNING: never leave the tray fitted in a position in which the danger signs are visible on the armrests: This position is NOT safe!

WARNING: When the tray is fitted on the product, make sure to avoid the inadvertent pressing of the arm-rest tilting buttons.

To remove the tray, press the central button C2. When not in use, the tray may be fastened to the rear of the structure (Fig. 9) in the relevant slots A4. The highchair is equipped with a tray cover C1. It can be fastened to the tray sides with a pressure mechanism.

WARNING: When in use, always make sure that the tray is correctly fastened. If the child eats at the table with the parents, the tray cover may be used as a convenient place mat.

WHEELS

The rear legs have swivel wheels with brakes (A6).

The front legs of the highchair are equipped with one-way wheels A3 to facilitate handling and opening/closing operations.

WARNING: always place the chair on a horizontal, stable surface. Never place the highchair near stairs or steps.

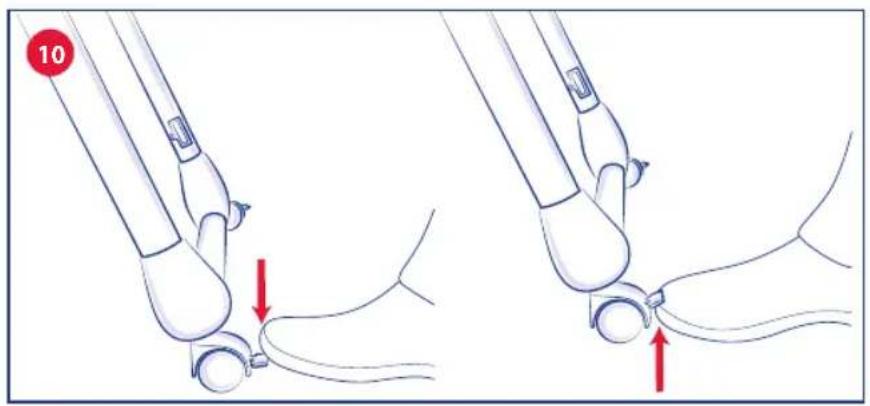

To activate the highchair brakes, lower the wheel locking levers. To release the brakes, raise the levers again (Fig.10).

HEIGHT ADJUSTMENT

The highchair can be adjusted to 8 height positions.

To raise the seat, hold the upper part of the backrest and pull it upwards, until the desired height is reached (Fig. 11). To lower the seat, press the two B1 buttons at the same time, lowering the seat until the desired height is reached (Fig.12).

WARNING: do not carry out this operation with the child sitting in the highchair.

HOW TO CLOSE THE CHAIR

WARNING: when performing this operation, ensure that your child, or other children, are at a safe distance. Make sure that during these operations the removable parts of the highchair do not come into contact with your child.

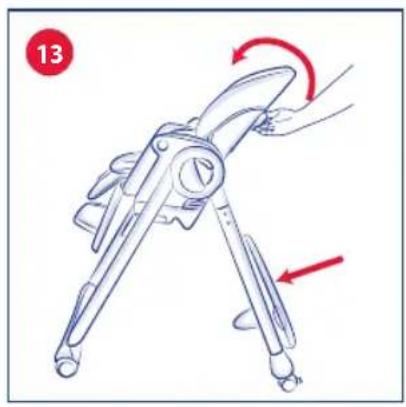

- Place the backrest in vertical position (Fig. 13), remove the tray and fit it to the rear legs, then tilt the armrests by pressing the buttons B6 (Fig. 14).

- Completely lower the seat by pressing the two height adjustment buttons B1 at the same time.

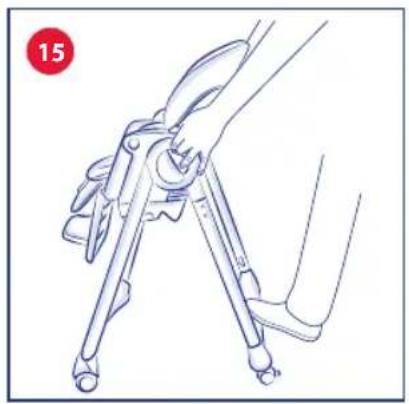

- Press the opening/closing buttons A5 located at the centre of the lateral joints and at the same time approach the legs of the highchair (Fig.15).

LEGREST

The highchair is equipped with a legrest B2 that can be adjusted to 3 positions of use; press the two buttons B4 and tilt the legrest until reaching the desired position.

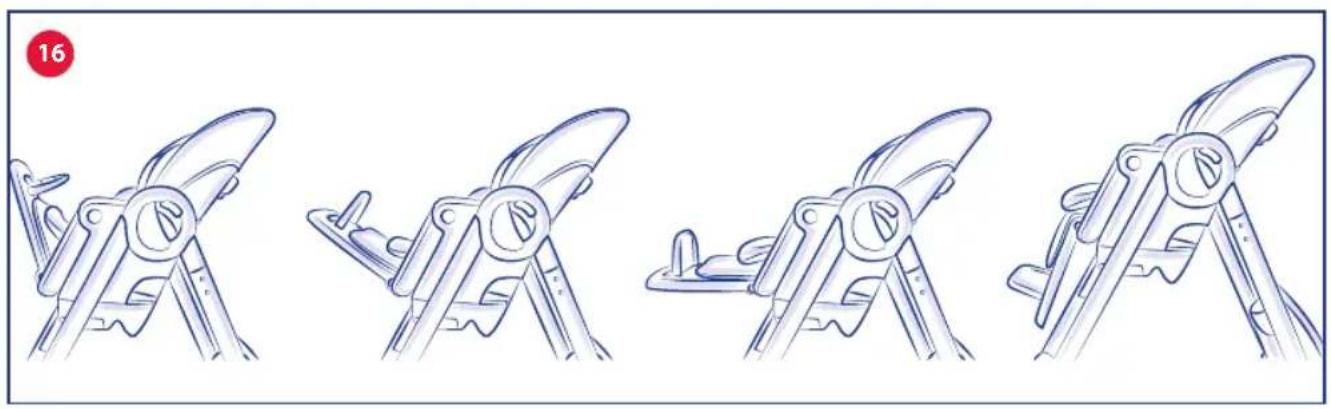

WARNING: The legrest can turn upward to non-usable positions (Fig. 16)

FOOTREST

The highchair is equipped with a footrest B3 that can be adjusted to 4 height positions. From the currently used position turn it upwards until it unlocks. Remove the footrest and fit it at the desired height.

RECLINED CRADLE (0m+)

RECLINED CRADLE USE WARNING

• WARNING: Never leave the child unattended.
- WARNING: Do not use the toy bar to carry the reclined cradle.
- WARNING: Do not use the reclined cradle once your child can sit unaided, roll over or stand up pushing on their hands, knees and feet.
- WARNING: This reclined cradle is not intended to be used for prolonged periods of sleeping.
- WARNING: It is dangerous to use this reclined cradle on an elevated surface, e.g. a table or a chair.
- WARNING: Always use the restraint systems.
- Age range intended for use: from birth to 9 kg (6 months).
- The reclined cradle does not replace a bed or a crib. If the child needs to sleep, they should be put in a bed or cradle.
- Do not use the reclined cradle if any components are broken or missing.
- Do not use accessories or replacement parts other than those approved by the manufacturer.
• The product and all of its components must always be assembled by an adult.
- Do not use the reclined cradle with more than one child at time.
- Never leave the seat on surfaces that are not perfectly horizontal.
• Always supervise children playing near the reclined cradle.
• To prevent fire hazards, do not leave the reclined cradle near sources of heat, electrical and gas devices, etc.
• Make sure that the cover is properly secured to the structure of the chair.
• Make sure that all parts are correctly hooked to the mounts.
- Periodically check for any worn parts, loose screws, worn or unstitched materials and replace any damaged parts immediately.
- Do not place the reclined cradle with the child near windows or walls, where strings, curtains or other objects could be used by the child to climb or causing chocking or strangling hazards.
- Keep the product out of children's reach when it is not being used.

HOW TO USE THE BABY RECLINED CRADLE

The product may be used as reclined cradle by children aged 0 months or more and up to 9 kg.

To use it as a reclined cradle:

- Completely tilt the backrest B7 of the seat B, by pressing the button B8 on the rear part of the backrest (Fig.17).

- Adjust the legrest B2 to the completely horizontal po-

sition (Fig.18).

- The footrest B3 may be removed or adjusted according to the child's height.

The operations described above may be performed with the child in the highchair as well, but they might be more difficult.

Whenever the seat height needs to be adjusted, this can be performed before the operations indicated in the above paragraph.

HIGHCHAIR (6m+)

HIGHCHAIR USE WARNING

• WARNING: Never leave the child unattended.
  • WARNING: Always use the restraint systems.
• WARNING: Risk of falling: do not allow your child to climb the product.
• WARNING: Do not use the highchair unless all components are correctly fitted and adjusted
• WARNING: Do not place near open fire and other sources of heat in the vicinity of the highchair.
• WARNING: Danger of tipping over if your child pushes with their feet against the table or any other object.
• WARNING: Make sure that any harness is correctly fitted before use.
• WARNING: Always check the security and the stability of the highchair.
• WARNING: Ensure that all safety devices are fitted and working correctly before using. In particular, make sure that the highchair is locked in the open position.
• Do not use the highchair until the child can sit up unaided.
• This high chair is intended for use for children between 6 and 36 months of age, weighing up to 15 kg.
• Do not use the highchair if any part is broken, torn or missing.
• Before assembly, check that neither the product nor any of its components have been damaged during transportation. In this case, do not use and keep out of reach of children.
• The highchair shall only be opened, adjusted and closed by an adult.
  • Make sure that the person using the highchair knows exactly how it functions.
• When opening, adjusting or closing the booster seat, make sure that your child is at a safe distance. Make sure that during the adjustment operations (tilting the backrest, adjusting the tray), the movable parts of the highchair do not come into contact with your child.
• The use of the safety harness with fabric crotch strap correctly fastened to the seat and with rigid crotch bar is necessary to ensure the safety of your child when the chair is used as a highchair.
• The tray alone does not guarantee the safety of your child. Always use the safety harness.
• Never move the highchair with your child seated in it.
• Do not allow other children to play unsupervised near the highchair, or to climb onto it.
• Do not use the highchair for more than one child at a time.

• Do not leave small objects on the highchair that can be swallowed by children.

• Do not place the highchair near windows or walls where cords, curtains or other objects may be used by the child to climb out of the highchair or could represent choking or strangling hazards.
  • Always place the highchair on a horizontal, stable surface when the child is seated in it. Never place the highchair near stairs or steps or on carpets.

• Bags or weights must not be placed on the tray or hung on the highchair frame, as they might affect the stability of the highchair.
• If the highchair is exposed to direct sunlight for a long time, allow it to cool down before placing your child in it.
• Do not leave the highchair in the sun for a long time: it may change the colour of the materials and fabric.
• When not in use, the highchair must be kept out of the reach of children.
• Never use the highchair without its cover.
• Do not use components, replacement parts, or accessories not supplied or approved by the manufacturer.
• Do not open or close the highchair when your child is sitting in it.
• WARNING! When not in use, keep the tray out of the reach of children.
• WARNING: If the highchair is equipped with parking brakes, always engage the parking device when the highchair is stationary.

HOW TO USE THE HIGHCHAIR

The product may be used as highchair from an age at which the child can sit up unaided, up to 36 months. If used as highchair, it is possible to:

• Adjust the height of the seat;
• Adjust the legrest and footrest;
• Tilt the backrest;
  • Use the tray and adjust it.

To perform the above mentioned operations, refer to the corresponding paragraphs.

USING TOY BAR

• WARNING: Never use the toy bar to lift the highchair.
• Do not attach any strings to extend the fastening systems of the toy bar's hanging toys and do not make knots/loops: this may cause the accidental formation of loops that could pose strangling hazards. This toy must only be used under adult supervision.
• Regularly check the product for signs of wear or any other damage. If any part of the product is damaged, do not use and keep out of the reach of children.
• The toy bar must only be used together with the Polly Magic Relax highchair.
• The toy bar must be reclined in order to keep the toys at an adequate distance from the face of the child, and to enable them to interact correctly with the toys when playing.

FITTING TOY BAR

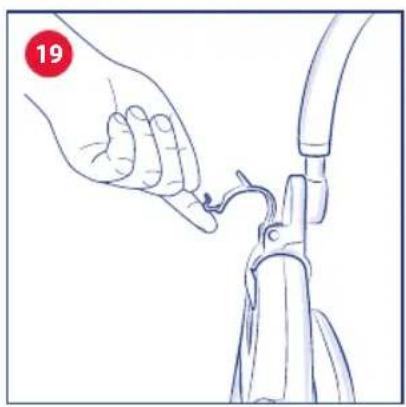

1. Attach the structure of toy bar D1 to the highchair, placing the fixing hooks D2 on the side joints of the highchair D5 (Fig. 19).
2. To complete assembly, close the fastening tabs D3 _15

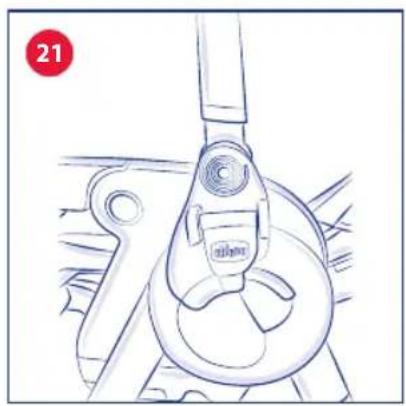

(Fig. 20), pushing them until you hear a click confirming their correct engagement (Fig. 20A). If you fit it incorrectly (Fig. 20B) repeat the steps and check that stop D4 is correctly engaged. (Fig. 21) indicates that it has been correctly assembled.

1. To remove the toy bar, act on the safety stop D4 and at the same time turn the tabs D3 outwards (Fig. 22-23).

RECLINING THE TOY BAR

Using the joints D6, the toy bar can be adjusted to 3 different reclining levels (Fig. 24) depending on the seat position.

FIRST SEAT (6m+)

HOW TO USE THE FIRST SEAT

The product may be used as first seat from an age at which the child can sit up unaided, up to 36 months. If used as first seat, it is possible to:

• Adjust the height of the seat;
• Adjust the legrest in vertical position;
• Fold the armrests;

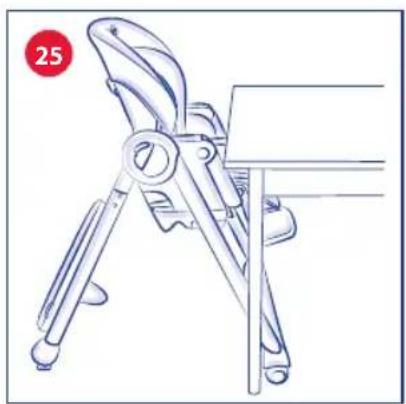

• Put the highchair at the table, moving it using the wheels A3 (Fig. 25).

To perform the above mentioned operations, refer to the corresponding paragraphs.

WARRANTY

The product is guaranteed against any conformity defect in normal conditions of use as provided for by the instructions for use.

The warranty shall not therefore apply in the case of damages caused by improper use, wear or accidental events. For the duration of warranty on conformity defects please refer to the specific provisions of national laws applicable in the country of purchase, where provided.

NOTICE D'UTILISATION

IMPORTANT: LIRE ATTENTIVEMENT ET CONSER- VER POUR TOUTE RÉFÉRENCE FUTURE.

ATTENTION : AVANT L'EMPLOI, ENLEVER ET ÉLIMINER TOUS LES SACS EN PLASTIQUE ET ÉLÉMENTS QUI FONT PARTIE DE L'EMBALLAGE DU PRODUIT ET LES TENIR HORS DE PORTÉE DES ENFANTS.

WAARSCHUWING VOOR GEBRUIK ALS LIGSTOELTJE

WAARSCHUWING GEBRUIK ALS HOGE KINDER-STOEL

Vycpávka: 100% Polyester;

PRVNÍ POUŽITÍ/OTEVŘENÍ

RÅD FÖR RENGÖRING OCH SKÖTSEL

BARNETS FÖRSTA STOL (6m+)

ANVÄNDNING SOM BARNETS FÖRSTA STOL

RÅD FOR RENHOLD OG VEDLIKEHOLD

Fyll: 100% polyester;

F∅RSTE GANGS BRUK/ÅPNING

FORSIKTIG: Produktet er lagt inn i en emballasje inne i

ARTSANA GERMANY GMBH

Borsigstrasse 1-3

28923 Alcorcon (Madrid)-Spain

902 117 093

www.CHICCO.es

ARTSANA PORTUGAL S.A.

ARTSANA POLAND Sp.zo.o.

Aquarius, Ul. Połczyńska 31 A

01-377 Warszawa

[phone]

www.CHICCO.com

Артсана С.п.А.

ARTSANA BRASIL LTDA.

Dec V. Ruben Dario 1015

Colonia Lomas De Providencia 44647

Guadalajara, Jalisco-Mexico

01800 702 8983

www.CHICCO.com.mx

ARTSANA ARGENTINA S.A.

Uruguay 4501

Victoria Cp(1644)

San Fernando- Buenos Aires-Argentina

0810-888-2442

www.CHICCO.com.ar

ARTSANA INDIA PRIVATE LIMITED,

7Th Floor, Tower B, Paras Twin Towers,

Golf Course Road, Sector 54

Gurgaon - 122002 - Haryana, India

(+91)(124)(4964500)

www.CHICCO.in

ARTSANA S.p.A.

22070 Grandate (CO) - Italy

Tel. [phone]

Fax [phone]

www.CHICCO.com

NOTE
