Product type	Cordless pendulum jigsaw
Brand	Scheppach
Model	CJS254
Power supply	20 V lithium-ion battery (not included)
No-load stroke rate	0 - 2400 min⁻¹
Stroke length	25.4 mm
Number of orbital positions	3 (0, 1, 2, 3)
Max. cutting angle	45° (left/right)
Weight	1.75 kg
Sound pressure level (LpA)	88 dB(A)
Sound power level (LWA)	99 dB(A)
Vibration (ah)	3.327 m/s²
Main functions	Electronic speed control, pendulum motion, quick blade clamp, parallel guide, anti-splinter protection, safety stop
Blade type	T-shank blade (compatible with quick clamping system)
Delivery contents	1 jigsaw, 1 parallel guide, 1 blade for wood, 1 blade for metal, 1 instruction manual
Maintenance	Clean with a damp cloth and a little soap; do not use aggressive products; blow out ventilation slots with compressed air
Storage	Dark, dry, frost-free place (5-30°C), out of reach of children
Safety	Lockable switch, contact protection, anti-restart device (battery removal)
Wear parts	Saw blades, carbon brushes
Repairability	Spare parts available from authorized Scheppach dealers; repair by authorized after-sales service
Warranty	Legal warranty; any modification or non-compliant use voids the warranty
Intended use	Private use (non-professional); sawing of wood, metals (with appropriate blades) and non-hazardous materials

Frequently Asked Questions - CJS254 SCHEPPACH

How to change the blade of the Scheppach CJS254 jigsaw?

Make sure the battery is removed. Turn the quick clamp (14) and hold it. Push the saw blade (10) fully into the quick clamp until it clicks. Release the quick clamp: it must return to its initial position. The blade is then locked. Make sure it is properly guided in the guide roller (9).

How to adjust the cutting angle?

Loosen the clamping lever (6). Set the desired angle (0°, 15°, 30° or 45° left or right) on the base plate (7) using the engraved markings. The housing has a stop rod. Retighten the clamping lever (6).

How to use the pendulum function (orbital motion)?

Use the pendulum motion selector (8) to choose between positions 0 (no pendulum, fine cut) to 3 (maximum pendulum, fast cut). Depending on the material, test to determine the best setting. The pendulum motion allows faster feed on thick pieces.

Which battery to use with the CJS254 jigsaw?

The saw works with 20 V lithium-ion batteries designed for Scheppach tools. Only use original batteries recommended by the manufacturer. Do not use non-rechargeable batteries.

How to charge the battery?

Only use the charger recommended by Scheppach for this battery type. Charge indoors, away from moisture. Let the hot battery cool down before charging. Do not leave the battery exposed to sunlight or on a radiator.

What to do if the saw does not start?

Check that the battery is charged and correctly installed. If the problem persists, check the On/Off switch. If the battery is defective, have it checked by a qualified electrician. If the motor is defective, contact the after-sales service.

How to maintain the jigsaw?

Always remove the battery before cleaning. Clean the device with a damp cloth and a little soap. Do not use aggressive detergents. Blow out the ventilation slots with low-pressure compressed air to remove dust.

What is the maximum cutting depth?

The manual does not specify a maximum depth. The stroke length is 25.4 mm, which gives an idea of the maximum cutting thickness for a standard blade. For deeper cuts, use a suitable blade.

Can the saw cut metal?

Yes, with the supplied metal blade. Use a coolant like cutting oil to extend blade life. Make sure to set the correct speed and pendulum motion (usually position 0 or 1) for metal.

Where to find spare parts for the CJS254?

Original Scheppach spare parts and accessories are available from specialized dealers. Provide the article number, type and year of construction when ordering. Saw blades are wear parts and can be purchased separately.

USER MANUAL CJS254 SCHEPPACH

Black and white photo of a J-shaped electrical shaver with 'Scheppach' branding, no visible text or symbols on the device itself.

CJS254-20ProS

DE	PENDELHUBSTICH SÄGEOriginalbedienungsanleitung	4
GB	JIGSAWTranslation of original instruction manual	13
FR	SCIE SAUTEUSE PENDULAIRETraduction des instructions d'origine	22
PL	WYRZYNARKAPrzekład z oryginału instrukcji obsługi	32
CZ	PŘÍMOČARÁ PILAPřekład originálního návodu k obsluze	42
SK	Priamočiara kyvadlo vá pílaPreklad originálu návodu na obsluhu	51
HU	Kirakós játékAz eredeti használati utasítás fordítása	60

A 1 2 3 4 Scheppach 2015 8910

B 15 MOALANO 2017

Close-up of a mechanical assembly with a numbered component (6) and no visible text or symbols

Close-up of a hand using a power tool on a wooden base, no visible text or symbols

Close-up of a robotic device with a gloved hand holding a white object, mounted on a platform (no visible text or symbols)

Günzburger Straße 69

D-89335 Ichenhausen

Verehrter Kunde

Explanation of the symbols on the equipment

The use of symbols in this manual is intended to draw your attention to possible risks. The safety symbols and the explanations that accompany them must be perfectly understood. The warnings in themselves do not remove the risks and cannot replace correct actions for preventing accidents.

	Caution - Read the operating instructions to reduce the risk of inquiry
	Wear ear-muffs! The impact of noise can cause damage to hearing.
	Wear a breathing mask! Dust which is injurious to health can be generated when working on wood and other materials. Never use the device to work on any materials containing asbestos!
	Wear safety goggles! Sparks generated during working or splinters, chips and dust emitted by the device can cause loss of sight.
	Wear work gloves!

Table of contents: Page:

1. Introduction 15
2. Device description 15
3. Scope of delivery 15
4. Intended use 15
5. Safety information 16
6. Technical data 18
7. Unpacking 19
8. Installation
9. Cleaning
10. Storage 20
11. Maintenance 20
12. Disposal and recycling 20
13. Troubleshooting 21

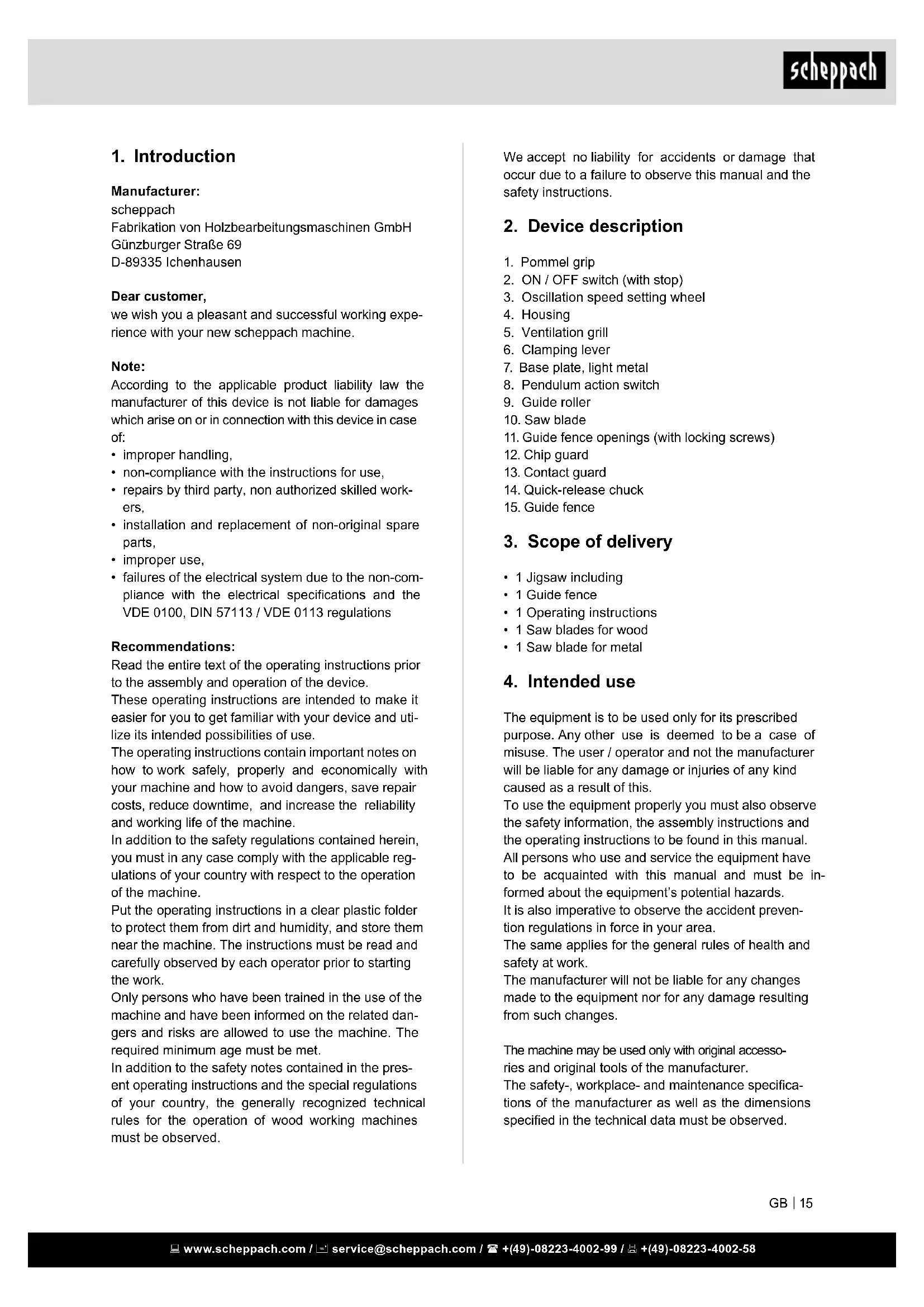

1. Introduction

Manufacturer:

scheppach

Günzburger Straße 69

D-89335 Ichenhausen

Dear customer,

we wish you a pleasant and successful working experience with your new scheppach machine.

Note:

According to the applicable product liability law the manufacturer of this device is not liable for damages which arise on or in connection with this device in case of:

• improper handling,
  • non-compliance with the instructions for use,
• repairs by third party, non authorized skilled workers,
• installation and replacement of non-original spare parts,
• improper use,
• failures of the electrical system due to the non-compliance with the electrical specifications and the VDE 0100, DIN 57113 / VDE 0113 regulations

Recommendations:

Read the entire text of the operating instructions prior to the assembly and operation of the device.

These operating instructions are intended to make it easier for you to get familiar with your device and utilize its intended possibilities of use.

The operating instructions contain important notes on how to work safely, properly and economically with your machine and how to avoid dangers, save repair costs, reduce downtime, and increase the reliability and working life of the machine.

In addition to the safety regulations contained herein, you must in any case comply with the applicable regulations of your country with respect to the operation of the machine.

Put the operating instructions in a clear plastic folder to protect them from dirt and humidity, and store them near the machine. The instructions must be read and carefully observed by each operator prior to starting the work.

Only persons who have been trained in the use of the machine and have been informed on the related dangers and risks are allowed to use the machine. The required minimum age must be met.

In addition to the safety notes contained in the present operating instructions and the special regulations of your country, the generally recognized technical rules for the operation of wood working machines must be observed.

We accept no liability for accidents or damage that occur due to a failure to observe this manual and the safety instructions.

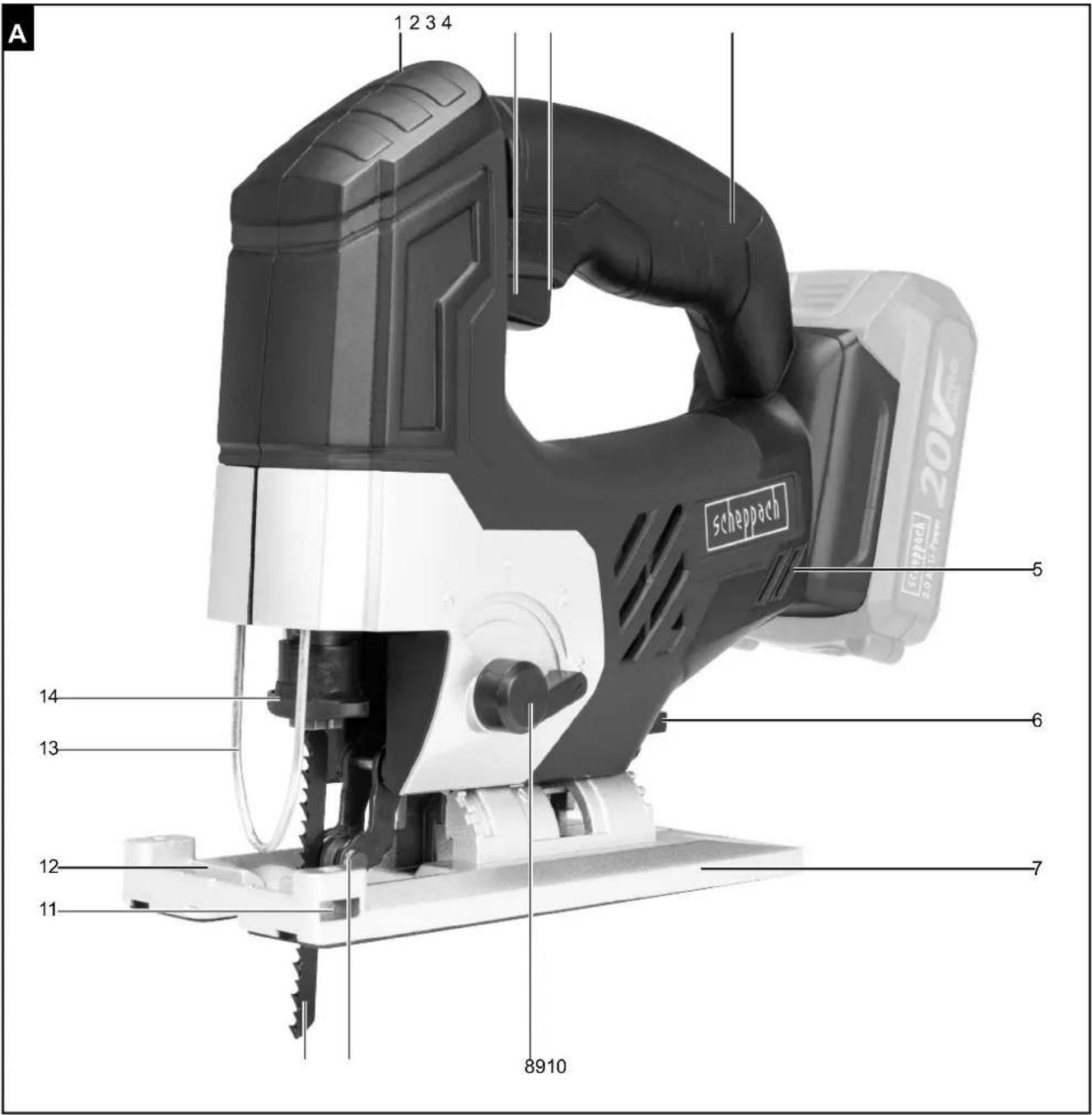

2. Device description
