| Product Type | Battery-powered hedge trimmer |
| Brand | AL-KO |
| Model | HT 4055 |
| Intended use | Trimming hedges, shrubs, and bushes (private use) |
| Power supply | Lithium-ion battery (not included) |
| Compatible batteries | B150 Li (ref. 113280), B200 Li (ref. 113524) |
| Compatible charger | C130 Li (ref. 113281) |
| Safety devices | Overload protection, hand protection, two-hand control |
| Measured sound power level | 84 dB(A) |
| Guaranteed sound power level | 87 dB(A) |
| Delivery contents | Hedge trimmer, blade guard, user manual |
| Battery storage temperature | 0 °C to +35 °C |
| Recommended storage charge | 40 to 60% |
| Motor protection | Motor protection circuit breaker |
| Maintenance | Regular cleaning and blade oiling |
| Symbols on the device | Read manual, wear goggles, ear protection, mask, protect from moisture |
Frequently Asked Questions - HT 4055 AL-KO
User questions about HT 4055 AL-KO
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Hedge trimmers in PDF format for free! Find your manual HT 4055 - AL-KO and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. HT 4055 by AL-KO.
USER MANUAL HT 4055 AL-KO
Inhaltsverzeichnis
Deutsch 8
English....32
Nederlands 54
Français....77
Español 101
Italiano 125
Slovenščina 147
Hrvatski....170
Polski....191
Česky 216
Slovenská 238
Magyarul....260
Dansk 284
Svensk....305
Norsk 326
Suomi 348
Lietuvių 369
Latviešu 392
Русский 415
Україна....441
© 2017
AL-KO KOBER GROUP Kötz, Germany
This documentation or excerpts therefrom may not be reproduced or disclosed to third parties without the express permission of the AL-KO KOBER GROUP
01
www.al-ko.com/service-contacts
1 About these operating instructions 34
1.1 Legends and signal words.... 34
2 Product description 34
2.1 Intended use.... 34
2.2 Possible foreseeable misuse.... 34
2.3 Safety and protective devices 34
2.3.1 Overload protection 35
2.3.2 Hand guard 35
2.3.3 Two-hand operation 35
2.4 Symbols on the appliance 35
2.5 Scope of supply 35
2.6 Product overview (01) 36
3 Safety instructions 36
3.1 General safety instructions for power tools 36
3.2 Electrical safety 36
3.3 Personal safety 37
3.4 Use and handling of the electrical tool 38
3.5 Safety in the workplace 39
3.6 Use and handling of the rechargeable battery-operated tool 39
3.7 Service 40
3.8 Safety instructions for hedge trimmers (IEC 60745-2-15) 40
3.9 Safety instructions relating to operation 41
3.9.1 Vibration load 42
3.9.2 Noise pollution 43
3.9.3 Safety information regarding the rechargeable battery 43
3.9.4 Safety information regarding the charging unit.... 44
4 Start-up 46
4.1 Charging the rechargeable battery 46
5 Operation 46

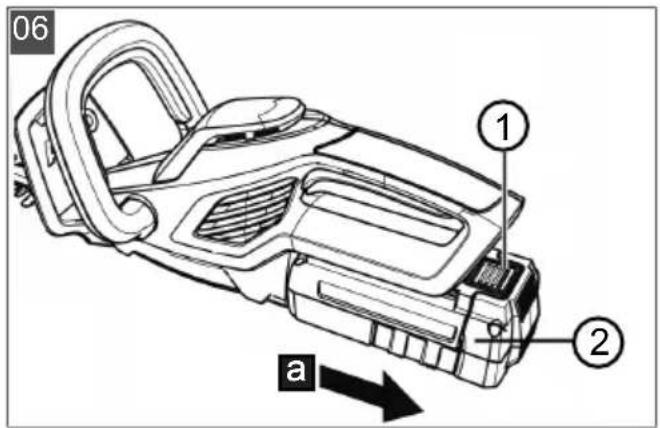

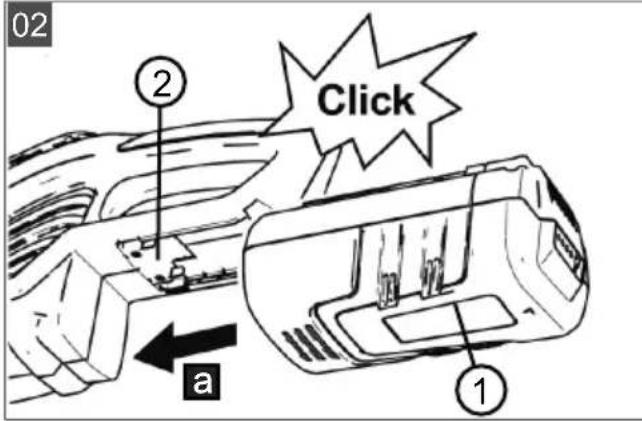

5.1 Inserting and removing the rechargeable battery (02) (06) 46

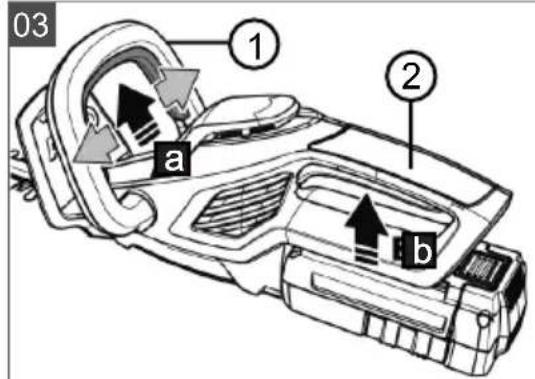

5.2 Starting the hedge trimmer (03) 46

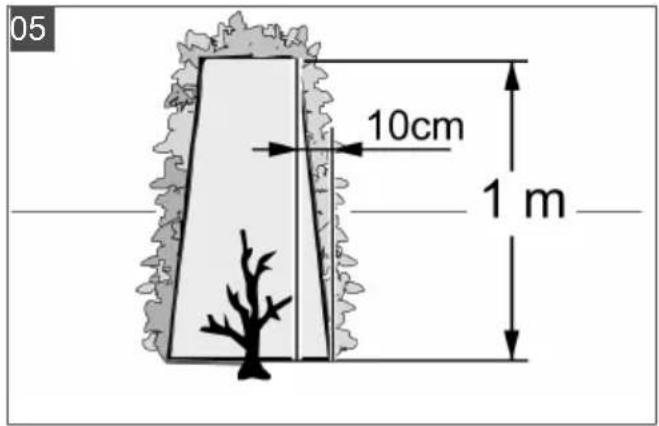

6 Working behaviour and working technique (05) 47
7 Maintenance and care 47
8 Transport 48
9 Storage 48

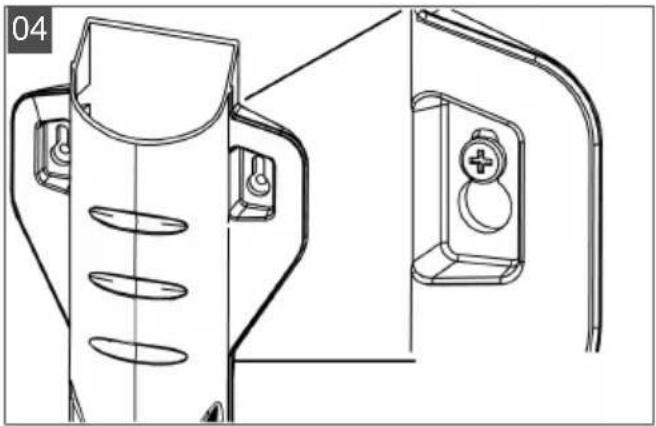

9.1 Storing the appliance (04) 48
9.2 Storing the battery and charger 49
10 Disposal 49
11 After-Sales / Service 50
12 Help in case of malfunction.... 51
13 Guarantee....52
14 EU declaration of conformity.... 53

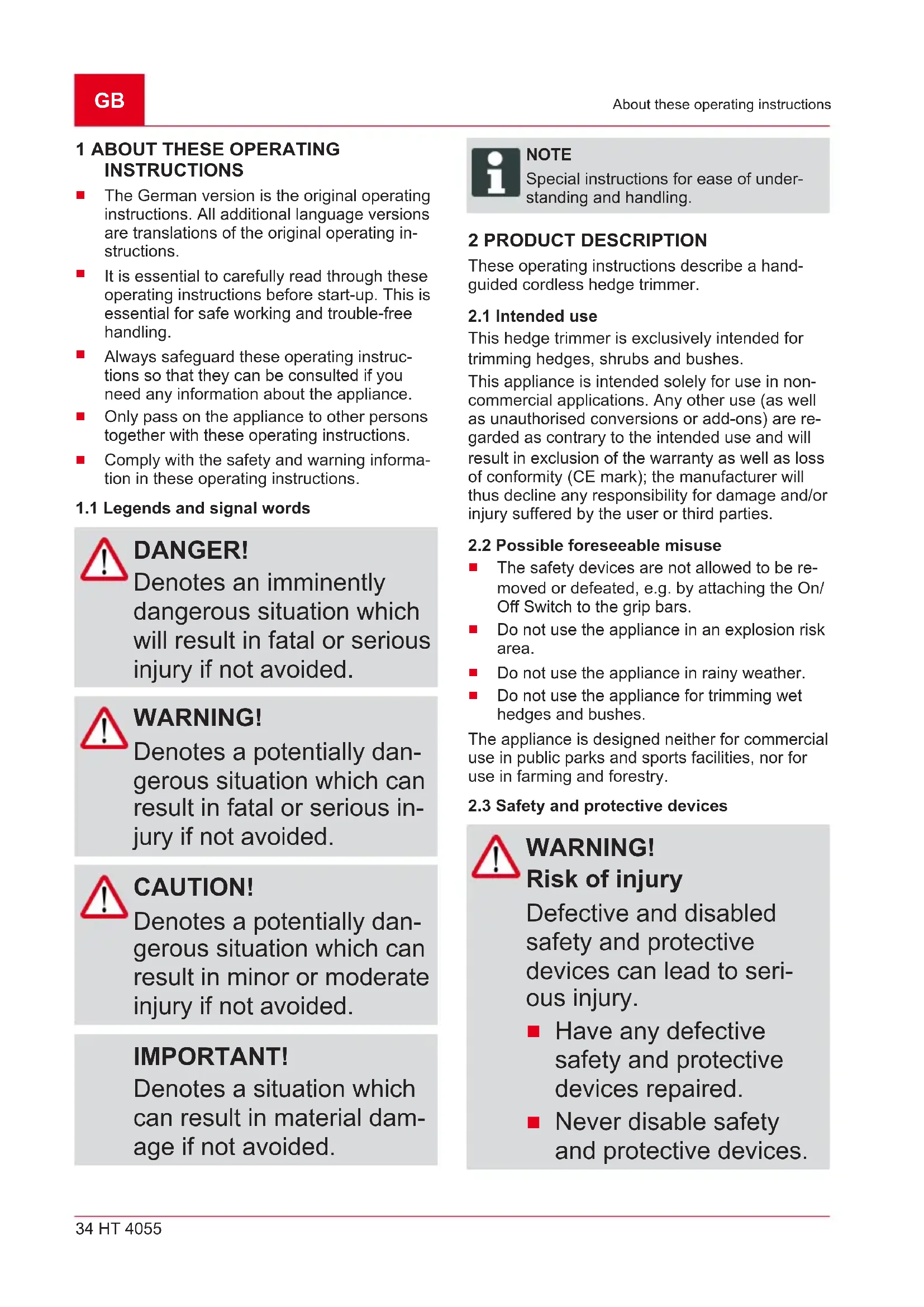

1 ABOUT THESE OPERATING INSTRUCTIONS
The German version is the original operating instructions. All additional language versions are translations of the original operating instructions.
It is essential to carefully read through these operating instructions before start-up. This is essential for safe working and trouble-free handling.
■ Always safeguard these operating instructions so that they can be consulted if you need any information about the appliance.
■ Only pass on the appliance to other persons together with these operating instructions.
■ Comply with the safety and warning information in these operating instructions.
1.1 Legends and signal words
DANGER!
Denotes an imminently dangerous situation which will result in fatal or serious injury if not avoided.
WARNING!
Denotes a potentially dangerous situation which can result in fatal or serious injury if not avoided.
CAUTION!
Denotes a potentially dangerous situation which can result in minor or moderate injury if not avoided.
IMPORTANT!
Denotes a situation which can result in material damage if not avoided.
NOTE
Special instructions for ease of understanding and handling.
2 PRODUCT DESCRIPTION
These operating instructions describe a hand-guided cordless hedge trimmer.
2.1 Intended use
This hedge trimmer is exclusively intended for trimming hedges, shrubs and bushes.
This appliance is intended solely for use in non-commercial applications. Any other use (as well as unauthorised conversions or add-ons) are regarded as contrary to the intended use and will result in exclusion of the warranty as well as loss of conformity (CE mark); the manufacturer will thus decline any responsibility for damage and/or injury suffered by the user or third parties.
2.2 Possible foreseeable misuse
The safety devices are not allowed to be removed or defeated, e.g. by attaching the On/Off Switch to the grip bars.
- Do not use the appliance in an explosion risk area.
■ Do not use the appliance in rainy weather.
- Do not use the appliance for trimming wet hedges and bushes.
The appliance is designed neither for commercial use in public parks and sports facilities, nor for use in farming and forestry.
2.3 Safety and protective devices
WARNING!
Risk of injury
Defective and disabled safety and protective devices can lead to serious injury.
■ Have any defective safety and protective devices repaired.
■ Never disable safety and protective devices.
2.3.1 Overload protection
CAUTION!
Beware of property damage
If the clippings are too thick or there is a hard object, the blade blocks and the motor switches off automatically.
■ Remove the battery from the machine before carrying out any work.
■ Remove the blockade of the blade.
■ Wait approximately 5 seconds.
■ Turn the machine on again.
2.3.2 Hand guard
CAUTION!
Risk of injury on the cutting blade
There is a risk of injury on the cutting blade if the hand guard is not fitted.
■ Never operate the appliance without hand guard.
2.3.3 Two-hand operation
The hedge trimmer can only be operated with two hands at the same time.
2.4 Symbols on the appliance
Sym- bol
Meaning
Pay special attention when handling this product.
Read the operating instructions before starting operation.
Wear eye protection.
Wear ear protection.
Wear a face mask.
Protect the appliance from rain and moisture!
2.5 Scope of supply
NOTE
The rechargeable battery and the charging unit are not included.
The hedge trimmer must only be used with the following components:
Lithium ion rechargeable battery – B150 Li, item no. 113280 / B200 Li, item no 113524
- Charging unit – C130 Li, item no. 113281
IMPORTANT!
Danger of damage to the appliance and battery
If the appliance is operated with an unsuitable battery, both the device and the battery may be damaged.
■ Only operate the appliance with the specified rechargeable battery.
NOTE
You will find further information in the following operating instructions:
■ "Li-Ion rechargeable battery B150 Li" (doc. no. 441630)
■ "Charging unit C130 Li" (doc. no. 441633)
After unpacking check that all the parts have been delivered.
| 1 HT 4055 hedge trimmer |
| 2 Protective cover for the cutting blade |
| 3 Operating instructions |

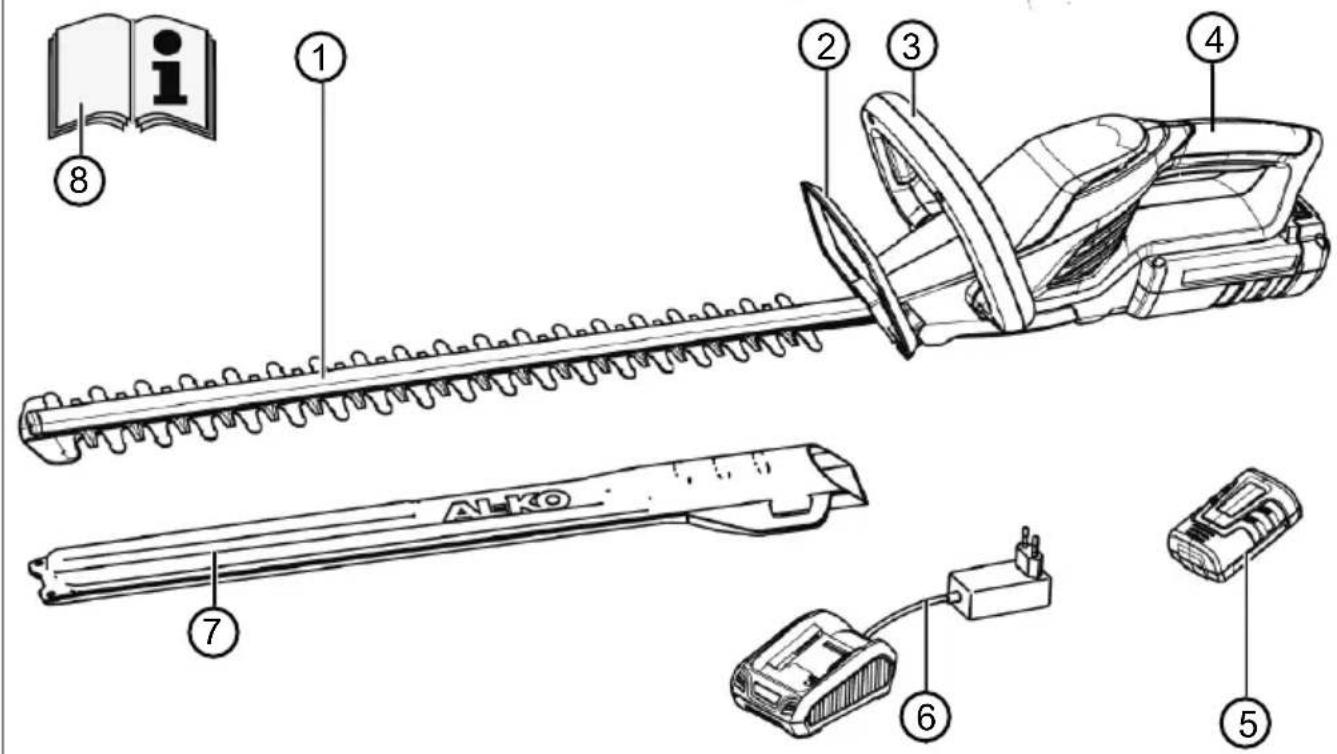

2.6 Product overview (01)
The product overview provides an overview of the appliance.
No. Component
| 1 Cutting blade |
| 2 Hand guard |
| 3 Front grip bar with safety switch |
| 4 Rear handle with the on/off switch |
| 5 Battery with locking mechanism* |
| 6 Charger with mains plug* |
| 7 Protective cover for the cutting blade |
| 8 Instructions for use |
* Not included in the scope of supply.
3 SAFETY INSTRUCTIONS
3.1 General safety instructions for power tools
WARNING!
Read all safety instructions, instructions, illustrations and technical data that are provided with this power tool.
Failure to comply with the following instructions can lead to an electric shock, fire and/or series injuries.
- Keep all safety instructions and other instructions for future reference.
The term "power tool" used in the safety instructions refers to mains-operated power tools (with mains line) and to battery-operated power tools (without mains line).
3.2 Electrical safety
- Avoid physical contact with earthed surfaces such as on pipes, heaters, cookers and refrigerators. There is an increased risk of electric shock if your body is earthed.
- Keep electrical tools out of the rain and away from moisture. Water getting into an electrical tool increases the risk of an electric shock.
3.3 Personal safety
■ Be alert, pay attention to what you are doing and take a cautious approach to working with a power tool. Do not use a power tool if you are tired or under the influence of drugs, alcohol or medicines. A moment's in-attentiveness when using the power tool can result in serious injury.
■ Wear personal protective equipment, and always use safety goggles. The injury risk can be reduced by wearing personal protective equipment such as a dust mask, non-slip shoes, a protective helmet or ear defenders, depending on the type and application of the power tool.
■ Avoid starting to operate the appliance inadvertently. Ensure the switch is in the off-position before connecting to power source and/or battery pack, picking up or carrying the power tool. Accidents can be caused by leaving your finger on the
switch when you carry the power tool or when you connect it to the power supply.
■ Remove the adjusting tools or spanner before you switch on the power tool. A tool or spanner that is in a rotating part of the power tool can cause injury.
■ Avoid an abnormal bodily posture. Make sure you can stand safely and keep your balance at all times. This will enable you to control the power tool better if something unexpected happens.
■ Wear suitable clothing. Do not wear baggy clothing or jewellery. Keep your hair and clothing away from moving parts. Loose clothing, jewellery or long hair can be snagged on moving parts.
If dust extraction and catchment devices can be mounted, then these must be connected and correctly used. Using a dust extraction system can reduce the risk caused by dust.
■ Do not give yourself a false sense of safety; do not ignore the safety rules for power tools even if you are familiar with the power tool after using it many times.
One careless action can lead to serious injuries within seconds.
3.4 Use and handling of the electrical tool
- Do not overload the power tool. Use the appropriate power tool for the job you are doing. Using the appropriate power tool will enable you to work more effectively and safely in the specified performance range.
- Do not use a power tool if it has a defective switch. A power tool that can no longer be switched on or off is dangerous and must be repaired.
■ Disconnect the plug from the socket and/or remove the battery before you make adjustments to the appliance, replace parts or put the power tool away. This precautionary measure will prevent the power tool from starting inadvertently. - Keep unused power tools out of the reach of children. Do not allow people to use the power tool if they are not familiar with it or have not read these instructions.
Power tools are dangerous if they are used by inexperienced people.
■ Look after power tools and the insertion tool with care. Check whether moving parts function perfectly and do not stick, whether there are any broken parts or parts that are damaged in such a way that the function of the power tool is impaired. Have damaged parts repaired before using the power tool. Many accidents are caused by failure to maintain power tools properly.
- Keep cutting tools sharp and clean. Carefully maintained cutting tools with sharper cutting edges are less likely to stick and are easier to control.
■ Use power tools, accessories, insertion tools, etc. according to these instructions. When doing so, take account of the working conditions and the activity to be undertaken. Using power tools for applications other than the intended purpose can result in dangerous situations.
- Keep the grips and grip surfaces dry, clean and free from oil and grease. Slippery grips and grip surfaces prevent safe operation and control of the power tool in unforeseen situations.
3.5 Safety in the workplace
- Keep your working area clean, and make sure it is well illuminated. Untidiness or dimly lit working areas can lead to accidents.
- Do not work with the power tool in a potentially explosive atmosphere with the presence of flammable liquids, gases or dust. Power tools give rise to sparks that can ignite the dust or vapours.
- Keep children and other people away from the power tool when using it. If you are distracted, you may lose control of the power tool.
3.6 Use and handling of the rechargeable battery-operated tool
■ Only recharge batteries with chargers that are recommended by the manufacturer. Using a charger intended for one particular type of
rechargeable battery with a different type of rechargeable battery represents a fire risk.
■ Only use batteries in the power tools that are intended for this purpose. Using other batteries can lead to injuries and represents the risk of fire.
- Keep the unused rechargeable battery away from paper clips, coins, keys, nails, screws or other small metal objects that could short-circuit the contacts. A short circuit between the rechargeable battery contacts can result in burns or fire.
■ Incorrect use can result in fluid leaking out of the rechargeable battery. Avoid coming into contact with it. In case of inadvertent contact, rinse off with water. If the fluid gets into your eyes, additionally seek medical assistance. Leaking rechargeable battery fluid can lead to skin irritations or burns.
■ Do not use a damaged or changed rechargeable battery. Damaged or changed
batteries can behave unpredictably and lead to fire, explosion or a risk of injury.
■ Do not expose a rechargeable battery to fire or high temperatures. Fire or temperatures over 130 °C can cause an explosion.
■ Comply with all of the instructions for charging, and never charge the rechargeable battery or the rechargeable battery-operated tool outside of the temperature range specified in the operating instructions. Incorrect charging or charging outside of the permissible temperature range can destroy the rechargeable battery and increase the risk of fire.
3.7 Service
■ For your own safety, only have your power tool repaired by qualified specialist personnel using genuine spare parts. This ensures that the power tool remains safe.
■ Never maintain damaged batteries. All rechargeable battery maintenance should only ever be undertaken by the manufacturer or authorised customer service points.
3.8 Safety instructions for hedge trimmers (IEC 60745-2-15)
- Keep all body parts away from the cutting blade. Do not attempt to remove cut material or hold onto material to be cut when the blade is operating. Switch off the appliance before you remove trapped cut material. A moment's inattentiveness when using the hedge trimmer can result in serious injuries.
- Carry the hedge trimmer using the handle, and make sure the blade is switched off. Always put on the protective cover when transporting or storing the hedge trimmer. Careful handling of the appliance reduces the risk of injury from the blade.
■ Hold the power tool by insulated gripping surfaces only, because the cutting blade may contact concealed electrical cables or its own cable. Contact between the cutting blade and a live cable can result in electrical current flowing through metal parts of the appliance, leading to an electric shock.
- Keep the cable away from the cutting area. During operation, the cable can become obscured in the bushes and accidentally severed.
3.9 Safety instructions relating to operation
WARNING!
Risk due to electromagnetic field
This power tool produces an electromagnetic field during operation. Under certain circumstances, this field may impair active or passive medical implants.
In order to reduce the risk of serious or fatal injury, we recommend that any persons fitted with medical implants should consult their doctor and the manufacturer of the medical implant before operating the power tool.
Before cutting, check the hedges and bushes for concealed objects – e.g. wires, wire fences, electrical cables, garden equipment, bottles – and remove them.
■ Move and transport the appliance so that persons and animals cannot touch the cutting blade. Before transport, push the protective cover over the cutting blade.
■ During the work, do not hold the branches to be cut off.
■ Before removing jammed branches, switch off the appliance and wait until the cutting blade has come to a standstill.
■ Remove the rechargeable battery from the appliance and push the protective cover over the cutting blade for:
■ Testing, adjustment work and cleaning work
■ Working on the cutting blade
■ Leaving the appliance
Transport
Storage
■ Maintenance and repair work
Danger
3.9.1 Vibration load
WARNING!
Danger due to vibration
The actual magnitude of the vibration emissions during the use of the appliance may deviate from that stated by the manufacturer. Observe the following influencing factors before or during use:
■ Is the appliance being used as intended?
■ Is the material being cut or processed in the proper manner?
■ Is the appliance in a proper condition of use?
Is the cutting tool properly sharpened or is the correct cutting tool installed?
Are the handle grips and any optional vibration grips mounted, and are they firmly attached to the appliance?
■ Only operate the appliance at the motor speed required for the respective work. Avoid using the maximum speed in order to reduce noise and vibrations.
■ The noise and vibrations of the appliance can increase due to improper use and maintenance. This leads to damage of the health. In this case, immediately switch off the appliance and have it repaired by an authorised service workshop.
The degree of stress due to vibration depends on the work to be performed or on the use that the appliance is put to. Estimate the stress and plan appropriate work breaks. This considerably reduces stress due to vibration over the entire working time.
■ Extensive use of the appliance exposes the operator to vibrations, which can lead to circulatory issues ("white fingers"). To avoid this risk, wear gloves and keep your hands warm. If any symptoms of "white fingers" occur, immediately consult a physician. These symptoms include: Numbness, loss of feeling, tingling, itching, pain, reduced muscular strength, changes in the colour or condition of the skin. Normally these conditions affect the fingers, hands or pulse. The risk increases at low temperatures.
Take long breaks during your working day so you can recover from the noise and the vibrations. Plan your work in such a way that the use of appliances that generate strong vibrations is spread over several days.
If you notice an unpleasant sensation or discolouration of the skin on your hands when using the appliance, stop work immediately. Take sufficient work breaks. Without sufficient breaks, a hand/arm vibration syndrome can occur.
- Minimise your risk of being exposed to vibrations. Maintain the appliance according to the instructions in the operating instructions.
If the appliance is used frequently, contact your dealer to purchase anti-vibration accessories (e.g. handles).
- Avoid working with the appliance at temperatures below 10 °C. Define how the vibration load can be limited in a work plan.
3.9.2 Noise pollution
A certain level of noise exposure from this appliance is inevitable. Carry out noisy work at approved and specified time periods. Observe rest periods as necessary and restrict the duration of the work to a minimum. For your personal protection and protection of persons in the vicinity, appropriate hearing protection must be worn.
3.9.3 Safety information regarding the rechargeable battery
This section mentions all the basic safety and warning information to be heeded when using the rechargeable battery. Read these instructions.
■ Only use the rechargeable battery as designated, i.e. for AL-KO rechargeable battery-driven appliances. Only charge the rechargeable battery with the AL-KO charging unit provided.
■ Only unpack the new rechargeable battery from the original packaging when it is to be used.
■ Fully charge the rechargeable battery before using it for the first time and always use the specified charger. Comply with the details given in these instructions for use for charging the rechargeable battery.
- Do not use the rechargeable battery in environments where there is a potential risk of explosion and/or fire.
- Do not expose the rechargeable battery to moisture and humidity when in use with the appliance.
■ Protect the rechargeable battery from heat, oil and fire to prevent it being damaged so no vapours and electrolyte liquids can escape. - Do not subject the rechargeable battery to impacts or throw it.
- Do not use the rechargeable battery when soiled or wet. Before use, clean and dry the rechargeable battery with a dry, clean cloth.
- Do not open, dismantle or crush the rechargeable battery. There is a danger of electric shock and short-circuit.
This rechargeable battery must not be used by unauthorised persons unless they are supervised by a person responsible for their safety or have been instructed on how to use the rechargeable battery. Unauthorised persons include, for example:
■ Persons (including children) with limited physical, sensory or mental aptitude
■ Persons who have no experience and/or knowledge of the rechargeable battery.
■ Children must be supervised and instructed so they do not play with the rechargeable battery.
- Do not leave the rechargeable battery permanently in the charger. For prolonged storage, remove the rechargeable battery from the charger.
■ When not in use, remove the rechargeable batteries from the operated appliances.
- Dry the unused rechargeable battery and store in a closed place. Protect from heat and direct sunlight. Unauthorised persons and children must not have access to the rechargeable battery.
3.9.4 Safety information regarding the charging unit
This section mentions all the basic safety and warning information to be heeded when using the charger. Read these instructions.
■ Only use the appliance as designated, i.e. for charging the intended rechargeable batteries. Only charge original rechargeable batteries from AL-KO in the charging unit.
Before each use, inspect the entire appliance – and especially the mains cable and the rechargeable battery compartment – for damage. Only use the appliance when it is in a proper working order.
- Do not use the appliance in environments where there is a potential risk of explosion and/or fire.
■ Only operate the appliance indoors and do not expose it to moisture and humidity.
■ Always place the charging unit on a well ventilated and non-inflammable surface because it heats up during the charging process. Keep the ventilation slots clear and do not cover the appliance.
■ Before connecting the charging unit, make sure that the mains voltage matches the voltage stated in the "Technical data".
■ Only use the mains cable for connecting the charging unit, not for other purposes. Do not carry the charging unit by the
mains cable and do not re- move the power plug from the power outlet by pulling on the mains cable.
■ Protect the mains cable from heat, oil and sharp edges to prevent it being damaged.
- Do not use the charging unit and rechargeable battery when soiled or wet. Before using the appliance, clean and dry the rechargeable battery.
- Do not open the charging unit or rechargeable battery. There is a danger of electric shock and short-circuit.
■ For your own safety, have your appliance repaired by qualified specialist personnel only using original spare parts.
This appliance must not be used by unauthorised persons unless they are supervised by a person responsible for their safety or have been instructed on how to use the appliance. Unauthorised persons include, for example:
■ Persons (including children) with limited physical, sensory or mental aptitude
■ Persons who have no experience and/or knowledge of the appliance.
■ Children must be supervised and instructed so they do not play with the appliance.
- Dry unused appliances and store in a closed place. Unauthorised persons and children must not have access to the appliance.
4 START-UP
4.1 Charging the rechargeable battery
CAUTION!
Danger of fire during charging!
Due to heating of the charger, there is a danger of fire if it is placed on an inflammable surface and is not adequately ventilated.
■ Always use the charger on a non-inflammable surface or in a non-combustible environment.
■ If available: Keep the ventilation slots free.
NOTE
The rechargeable battery and the charging unit are not included.
The rechargeable battery is partially charged. Fully charge the rechargeable battery before using it for the first time. The rechargeable battery can be charged in any charge status. Interrupting charging does not damage the rechargeable battery.
NOTE
For detailed information, heed the separate operating instructions for the rechargeable battery and for the charging unit.
5 OPERATION
WARNING!
Risk of injury due to detaching appliance parts
Appliance parts detaching during operation can lead to serious injury.
■ Before turning the appliance on, check that all the parts of the appliance are firmly tightened.
■ Attach cutting tools so that they cannot detach during operation.
5.1 Inserting and removing the rechargeable battery (02) (06)
Inserting the battery
- Push the rechargeable battery (02/1) from above (02/a) into the rechargeable battery slot (02/2) until it engages.
Pull out the rechargeable battery
- Press and hold the unlock button (06/1) on the rechargeable battery (06/2).
- Pull out the rechargeable battery (06/a).
5.2 Starting the hedge trimmer (03)
- Stand securely.
-
Hold the front handle (03/1) with one hand and then the rear handle (03/2) with the other hand.
-
Press the safety switch on the front handle (03/a), then press the on/off switch on the rear handle (03/b). The appliance starts.
- Keep both switch buttons pressed while working. The appliance switches off when the on/off switch is released.
6 WORKING BEHAVIOUR AND WORKING TECHNIQUE (05)
WARNING!
Increased risk of falling
There is a greater risk of falling if work is carried out from an elevated position (e.g. ladder).
■ always work with the appliance from the ground and make sure that you are standing securely.
■ Heed the safety instructions.
- Cut the hedge regularly and only at the permitted times.
■ Only cut off the thin branches and new growth on the surface of the hedge; do not cut too deep.
■ Always cut the two sides of a hedge first, followed by the top. This prevents cut material from falling into areas that you have not yet trimmed.
Hedges should always be trimmed into a trapezoidal shape (tapering toward the top). This prevents the leaves on the lower branches from being shaded out (05).
■ Make sure the motor is stopped before you remove any cuttings.
■ When leaving/transporting the appliance:
■ Switch off the appliance.
■ Fit the protective cover.
■ Remove the battery.
■ After use, remove the battery and check the appliance for damage.
7 MAINTENANCE AND CARE
WARNING!
Danger of cutting injuries
Danger of cutting injuries when reaching into sharp-edged, moving appliance parts and into cutting tools.
■ Before maintenance, care and cleaning work, always switch off the appliance. Remove the rechargeable battery.
■ Always wear protective gloves during maintenance, care and cleaning work.
NOTE
Repair work is only allowed to be carried out by expert workshops or our AL-KO service centres.
- Do not get the appliance wet or expose it to moisture.
■ After each use, clean the housing and cutting blades with a brush or cloth. Do not use water and/or aggressive cleaning agents or solvents - risk of corrosion and damage to the plastic parts.
■ Remove the battery and check for damage after each use.
■ Clean the cutting blade and spray with rust-proofing oil.
■ Regularly check the cutting blade. Contact an AL-KO service centre under the following circumstances:
■ Defective cutting blade
Blunt cutting blade
Excessive wear
■ Check all screws for tightness.
- Check the electrical contacts on the appliance for corrosion, clean with a fine wire brush if necessary and then spray with a contact spray.
8 TRANSPORT
Before transporting, carry out the following measures:
- Switch off the appliance.
- Remove the rechargeable battery from the appliance.
- Pack the battery properly.
NOTE
The nominal energy of the rechargeable battery is less than 100 Wh. Therefore, heed the following transport instructions.
The li-ion rechargeable battery contained in the appliance is subject to the hazardous goods law, but can be transported under simplified conditions:
The undamaged rechargeable battery can be transported on public roads by the private user without further conditions provided it is packaged for retail sale and the transport serves personal purposes. The weight limits for batteries sent separately must be observed:
Max. 30 kg total weight per package when transported by road, rail and water
No upper limit for air transport but max. 2 pieces per package
If damage to the battery (e.g. due to the appliance falling) is suspected, transport is not permissible.
■ Commercial users who carry out the transport in connection with their main activity (e.g. delivery from and to building sites, or demonstrations) can also take advantage of this simplification.
In both cases, it is essential to take the mandatory precautions mentioned above to prevent any leakage of the contents. In other cases, it is essential to comply with the regulations of the hazardous goods law. In the case of non-compliance, severe penalties can be imposed on the sender and possibly the transporter.
Additional notes on transport and shipment
■ Only transport or ship lithium-ion rechargeable batteries in an undamaged state.
- Secure the appliance in such a way as to prevent it from starting to operate inadvertently during transport.
- Secure the appliance with strong outer packaging (cardboard shipment box). Use the manufacturer's original packaging if possible.
■ Ensure correct identification and documentation of the consignment during transport or dispatch (e.g. by parcel or forwarding):
When transporting by road, rail and water, a warning sticker must be applied to the packaging when the battery/batteries accompany the appliance. No warning sticker is necessary if the battery/batteries are installed or fitted into the appliance, since the outer packaging/original packaging must already comply with specific regulations.
A warning sticker must always be placed on the packaging when transporting by air. The maximum weight limits for batteries sent together with the appliance must be observed: max. 5 kg battery weight per package and max. 2 pieces per package, if the battery/batteries are accompanying the appliance.
Please find out in advance whether transport is possible with the selected service provider, and show your shipment.
We recommend involving a hazardous goods specialist in the preparation of the shipment. Please heed any other national regulations.
9 STORAGE
9.1 Storing the appliance (04)
The blade guard can be attached to the wall as a holder for the hedge trimmer (04). Ensure that the fixing screws are tight!
Thoroughly clean the appliance and its accessories after each use and – if present – attach all covers.
■ Store the appliance in a dry place protected against frost.
- Keep out of the reach of children and unauthorised persons.
Carry out the following jobs before intervals in work lasting for longer than 30 days:
■ Clean the cutting blade and spray with rust-proofing oil.
■ Thoroughly clean the appliance and store it in a dry place.
9.2 Storing the battery and charger
DANGER!
Danger of explosion and fire!
Persons will be fatally or severely injured if the rechargeable battery explodes because it was stored in front of naked flames or heat sources.
■ Store the rechargeable battery in cool and dry conditions, but not in front of naked flames or heat sources.
NOTE
When charging, the rechargeable battery is protected from overcharging due to automatic detection of the charge status and thus can remain connected to the charging unit for some time, but not permanently.
- Store the rechargeable battery in a dry, frost-free place at a storage temperature between 0°C – +35 °C and with a charge state of approx. 40 – 60 %.
Due to a risk of short-circuit, do not store the battery near metallic or acid-containing objects.
The battery must be recharged after a certain storage period. Please also comply with the rechargeable battery operating instructions.
10 DISPOSAL
Information on the German Electrical and Electronic Equipment Act (ElectroG)
■ Electrical and electronic appliances do not belong in household waste, but should be collected and disposed of separately.
■ Used batteries or rechargeable batteries that are not installed permanently in the old appliance must be removed before disposal. Their disposal is regulated by the battery law.
- Owners or users of electrical and electronic appliances are obliged by law to return them after use.
■ The end user bears personal responsibility for deleting his personal data from the old appliance to be disposed of.
The symbol of the crossed-through rubbish bin means that electrical and electronic appliances may not be disposed of in the household rubbish.
Electrical and electronic appliances can be handed in at no charge at the following places:
■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of electrical appliances (stationary and online) provided traders are obliged to take them back or offer this voluntarily.
These statements only apply to appliances that are installed and sold in the countries of the European Union and are subject to European Directive 2012/19/EU. Different provisions may apply to the disposal of electrical and electronic appliances in countries outside the European Union.
Information on German Battery Act (BattG)
■ Used batteries and rechargeable batteries do not belong in household waste, but should be collected and disposed of separately.
For safe removal of batteries or rechargeable batteries from the electrical appliance and for information on their type or chemical system, follow the further information within the operating or installation instructions.
- Owners or users of batteries and rechargeable batteries are obliged by law to return them after use. The return is limited to the handover of customary household quantities.
Used batteries can contain harmful substances or heavy metals that can cause damage to the environment and human health. Reuse of the used batteries and use of the resources contained therein contributes to the protection of these two essential commodities.
The symbol of the crossed-through rubbish bin means that batteries and rechargeable batteries may not be disposed of in household rubbish.
In addition, if the symbol Hg, Cd or Pb appears under the rubbish bin, this stands for the following:
■ Hg: Battery contains more than 0.0005 % mercury
Cd: Battery contains more than 0.002 % cadmium
■ Pb: Battery contains more than 0.004 % lead
Rechargeable batteries and batteries can be handed in at the following places at no charge:
■ Public service disposal or collection points (e.g. municipal building yards)
■ Points of sale of batteries and rechargeable batteries
■ Disposal points of the common take-back system for the used batteries of appliances
■ Disposal point of the manufacturer (if not a member of the common take-back system)
These statements apply only to rechargeable batteries and batteries that are sold in the countries of the European Union and that are subject to European Directive 2006/66/EU. Different provisions can apply to the disposal of rechargeable batteries and batteries in countries outside the European Union.
11 AFTER-SALES / SERVICE
In the event of questions of warranty, repair or spare parts, please contact your nearest AL-KO Service Centre.
These can be found on the Internet at:
www.al-ko.com/service-contacts
12 HELP IN CASE OF MALFUNCTION
CAUTION! Risk of injury
Sharp-edged and moving appliance parts can lead to injury.
■ Always wear protective gloves during maintenance, care and cleaning work.
| Malfunction Cause Remedy | ||
| Engine does not run. Rechargeable battery is flat. Charge the rechargeable battery. | ||
| Motor keeps cutting out. | ■ Appliance faults■ The On/Off switch is defective. | Contact an AL-KO service centre. |
| Cutting blade becomes hot when running. Generation of smoke. | No oil on the cutting blade. 1. Switch off the appliance and remove the rechargeable battery.2. Clean and oil the cutting blade.3. Insert the rechargeable battery again. | |
| ■ Cutting blade is blunt.■ Nicks in the cutting blade. | Contact an AL-KO service centre. | |
| Branches are not cleanly cut. Branches are often jammed in the cutting blade. | Cutting blade is blunt. Contact an AL-KO service centre. | |
| The sliding play of the cutting blade is too great. | Contact an AL-KO service centre. | |
| Motor running, but the cutting blade does not move. | Appliance faults Contact an AL-KO service centre. | |
| Appliance vibrates unusually. | Appliance faults Contact an AL-KO service centre. | |
| Rechargeable battery operating time is significantly shorter. | The service life of the rechargeable battery has expired. | Replace the rechargeable battery.Only use genuine accessories from the manufacturer. |
| Malfunction Cause Remedy | ||
| Rechargeable battery cannot be charged. | Rechargeable battery contacts are dirty. | Contact an AL-KO service centre. |
| Rechargeable battery or charging unit is defective. | Order spare parts. Contact an AL-KO service centre. | |
| Rechargeable battery is too hot. | Allow the battery to cool down. | |
NOTE
If you encounter any malfunctions that are not listed in this table or that you cannot rectify yourself, please contact our customer service.
13 GUARANTEE
We will resolve any material or manufacturing faults on the appliance during the legal warranty period for claims relating to faults, in accordance with our choice either to repair or replace. The legal warranty period is determined by the legislation of the country in which the appliance was purchased.
Our warranty promise applies only if:
■ These operating instructions are heeded
■ The appliance is handled correctly
■ Original spare parts have been used
The warranty becomes void in the case of:
■ Unauthorised repair attempts
■ Unauthorised technical modifications
Non-intended use
The guarantee excludes:
■ Paint damage that can be attributed to normal wear and tear
■ Wear parts that are marked with a frame xxxxxx (x) on the spare parts card
The guarantee period commences with purchase by the first end user. The date on the proof of purchase is decisive. In the event of a guarantee claim, please take this guarantee declaration and the original proof of purchase, and contact your dealer or the nearest authorised customer service centre.
This statement does not affect the purchaser's statutory claims for defects against the vendor.
14 EU DECLARATION OF CONFORMITY
We hereby declare that this product in its marketed form conforms to the requirements of the harmonised EU Directives, EU safety standards and the product-specific standards.
| Product | Manufacturer | Duly authorised person for technical file |
| Battery hedge trimmer | AL-KO Geräte GmbH | Andreas Hedrich |
| Serial number | Ichenhauser Str. 14 | Ichenhauser Str. 14 |
| G2033012 | D-89359 Kötz | D-89359 Kötz |
| Germany | Germany |
Type EU directives Harmonised standards
| HT 4055 | 2006/42/EC | EN 62841-1 |
| Sound power level | 2014/30/EU | EN 60745-2-15 |
| DIN EN ISO 3744 | 2000/14/EC | EN 55014-1 |
| measured/guaranteed | 2011/65/EU | EN 55014-2 |
| 84 dB(A) / 87 dB(A) | EN 62233 |
Declaration of conformity
2000/14/EC Appendix V
Kötz, 01/09/2017
Wolfgang Hergeth
Managing Director
VERTALING VAN DE ORIGINELE GEBRUIKERSHANDLEIDING
Inhoudsopgave
2 PRODUCTOMSCHRIJVING
www.al-ko.com/service-contacts
12 AIDE EN CAS DE PANNES
ATTENTION !
Risque de blessures
14 DÉCLARATION DE CONFORMITÉ CE
www.al-ko.com/service-contacts
12 AYUDA EN CASO DE AVERÍA
¡PRECAUCIÓN!
Riesgo de lesiones
www.al-ko.com/service-contacts
12 SUPPORTO IN CASO DI ANOMALIE
CAUTELA!
1 Škarje za živo mejo HT 4055
Št. Sestavni del
11 SERVISNA SLUŽBA/SERVIS
2000/14/ES, priloga V
Kötz, 1. 9. 2017
Wolfgang Hergeth, generalni direktor
PRIJEVOD ORIGINALNIH UPUTA ZA UPORABU
Sadržaj
1 Informacije o Uputama za uporabu.... 172
1.1 Objasnjenja oznaka i signalnih riječi 172
2 Opis proizvoda.... 172
2.1 Namjenska uporaba 172
2.2 Moguća predvidiva nepravilna uporaba 172
2.3 Sigurnosni i zaštitni uređaji.... 173
2.3.1 Zaštita od preopterećenja.... 173
2.3.2 Štitnik za ruke 173
2.3.3 Dvoručno aktiviranje 173
2.4 Simboli na uređaju.... 173
2.5 Opseg isporuke 173
2.6 Pregled proizvoda (01) 174
3 Sigurnosne napomene.... 174
3.1 Opće sigurnosne napomene za električne alate 174
3.2 Električna sigurnost 175
3.3 Sigurnost osoba 175
3.4 Uporaba i postupanje s električnim alatom 176
3.5 Sigurnost na radnome mjestu 177
3.6 Uporaba i postupanje s akumulatorskim alatom 177
3.7 Servis 178
3.8 Sigurnosne napomene za škare za živicu (IEC 60745-2-15) 178
3.9 Sigurnosne napomene za opsluživanje.... 179
3.9.1 Opterećenje vibracijama.... 180
3.9.2 Izloženost buci.... 181
3.9.3 Sigurnosne napomene za akumulator.... 182
3.9.4 Sigurnosne napomene za punjač.... 183
4 Puštanje u rad.... 184
4.1 Napunite akumulator 184
5 Rukovanje 185
5.1 Umetanje i vađenje akumulatora (02) (06) 185
5.2 Pokretanje škara za živicu (03) 185
6 Način i tehnika rada (05).... 185
7 Održavanje i njega 186
8 Transport 186
9 Skladištenje 187
9.1 Skladištenje uređaja (04).... 187
9.2 Skladištenje akumulatora i punjača 187
10 Zbrinjavanje 188
11 Korisnička služba/Servis 188
12 Pomoć u slučaju smetnji 189
13 Jamstvo 190
14 Izjava o sukladnosti EZ-a.... 190
1 INFORMACIJE O UPUTAMA ZA UPORABU
| 1 Škare za živicu HT 4055 |
| 2 Zaštitni pokrov oštrice |
| 3 Upute za uporabu |
2.6 Pregled proizvoda (01)
Pregled proizvoda daje pregled uređaja.
www.al-ko.com/service-contacts
12 POMOĆ U SLUČAJU SMETNJI
OPREZ!
Opasnost od ozljeda
Oštri i pomični dijelovi uređaja mogu uzrokovati ozljede.
www.al-ko.com/service-contacts
12 POMOC W PRZYPADKU USTEREK
OSTROŻNIE!
Wolfgang Hergeth Managing Director
PŘEKLAD ORIGINÁLNÍHO NÁVODU K POUŽITÍ
Obsah
Technical diagram of a hair shower with labeled parts including a book icon and a close-up view of the blade.Sz. Alkatrész
www.al-ko.com/service-contacts
12 HIBAELHÁRÍTÁS
VIGYÁZAT!
Sérülésveszély
www.al-ko.com/service-contacts
12 HJÆLP VED FORSTYRRELSER
Wolfgang Hergeth Managing Director
OVERSETTELSE AV DEN ORIGINALE BRUKSANVISNINGEN
Innhold
1 Om denne bruksanvisningen 328
1.1 Tegnforklaringer og signalord.... 328
2 Produktbeskrivelse 328
6 ARBEIDSMÅTE OG ARBEIDSTEKNIKK (05)
ADVARSEL! Økt fare for fall
7 VEDLIKEHOLD OG PLEIE
ADVARSEL!
Fare for kuttskader
www.al-ko.com/service-contacts
12 FEILS∅KING
FORSIKTIG!
Fare for personskader!
Technical diagram of a hair clip with labeled parts including a book icon, a wire rack, and a plastic clip labeled 'ALXO'.Nr. Detala
компонента
www.al-ko.com/service-contacts
компонента
1 Кущоріз НТ 4055
www.al-ko.com/service-contacts
