| Product type | Cooling unit for TIG welding torch |
| Brand | GYS |
| Model | WCU 1KW A |
| Compatibility | TIG 220 DC, TIG 300 DC, TIG 220 AC/DC, WCU 0.5 KWA, WCU 1 KWB |
| Cooling type | By coolant circulation |
| Water level protection | Yes |
| Water flow protection | Yes |
| Automatic detection | Yes, by the welding machine |
| Protection index | IP23 |
| Operating temperature | -10 °C to +40 °C |
| Storage temperature | -20 °C to +55 °C |
| Maximum humidity | 50% at 40°C, 90% at 20°C |
| Maximum altitude | 1000 m |
| Recommended coolant | GYS specific coolant (do not use automotive coolant) |
| Recommended fill level | Recommended MAX level (indicated on the gauge) |
| Coolant change interval | Every 12 months |
| Regular maintenance | Internal dusting, checking connections |
| Safety precautions | Disconnect before servicing, wait 2 min for capacitor discharge |
| Warranty | 2 years, parts and labor |
| Outdoor use | Possible (IP23) but protected from heavy rain |
Frequently Asked Questions - WCU 1KW A GYS
User questions about WCU 1KW A GYS
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Fridge in PDF format for free! Find your manual WCU 1KW A - GYS and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. WCU 1KW A by GYS.
USER MANUAL WCU 1KW A GYS
FR 2-6/37-40
EN 7-11/37-40
DE 12-16 / 37-40
ES 17-21/37-40
RU 22-26 / 37-40
NL 27-31/37-40
IT 32-36/37-40
WCU 0.5KW A
WCU 1KW A
WCU 1KW B
AVERTISSEMENTS - RÉGLES DE SECURITÉ
CONSIGNE GÉNÉRALE
INSTALLATION - FONCTIONNEMENT PRODUIT
Read and understand the following safety recommendations before using or servicing the unit. Any change or servicing that is not specified in the instruction manual must not be undertaken.
The manufacturer is not liable for any injury or damage due to a non-compliance with the instructions featured this manual. In the event of problems or uncertainties, please consult a qualified person to handle the installation properly.
ENVIRONMENT
This equipment must only be used for welding operations in accordance with the limits indicated on the descriptive panel and/or in the user manual. The operator must respect the safety precautions that apply to this type of welding. In case of inadequate or unsafe use, the manufacturer cannot be held liable for damage or injury.
This equipment must be used and stored in a place protected from dust, acid or any other corrosive agent. Operate the machine in an open, or well-ventilated area.
Operating temperature: Use between -10 and +40^ (+14 and +104^) Store between -20 and +55^ (-4 and 131^)
Air humidity: Lower or equal to 50% at 40^ (104^) Lower or equal to 90% at 20^ (68^)
Altitude: Up to 1000 meters above sea level (3280 feet).
PROTECTION OF THE INDIVIDUALS
Arc welding can be dangerous and can cause serious injury or even death.
Welding exposes the user to dangerous heat, arc rays, electromagnetic fields, risk of electric shock, noise and gas fumes. People wearing pacemakers are advised to consult a doctor before using the welding machine. Protect yourself and others. Ensure the following safety precautions are taken:
In order to protect you from burns and radiations, wear clothing without cuffs. These clothes must be insulating, dry, fireproof, in good condition, and cover the whole body.
Wear protective gloves which guarantee electrical and thermal insulation.
Wear welding protective gear for the whole body: hood, gloves, jacket, trousers... (variable, depending on the application). Protect your eyes during cleaning procedures. Contact lenses are prohibited during use. It may be necessary to install fireproof welding curtains to protect the area against arc rays, weld spatter and sparks. Inform people who are around the working area to never look at the arc ray or the molten metal, and to wear protective clothes.
Wear ear protection if the work exceeds the authorised noise limit. The same applies to anyone in the welding area.
Keep hands, hair and clothes away from moving parts such as fans, and engines. Never remove the safety covers from the cooling unit when the machine is plugged in. The manufacturer is not liable for any injury or damage due to non-compliance with the safety precautions.
Parts that have just been welded will be hot and may cause burns when touched. During the maintenance of the torch, make sure that the torch has sufficiently cooled down and wait at least 10 minutes before any operation. When using a water-cooled torch, make sure that the cooling unit is switched on to avoid any burns that could potentially be caused by the liquid. It is important to secure the working area before leaving it to ensure protection of the goods and the safety of people.
WELDING FUMES AND GAS
The fumes, gases and dust produced during welding are hazardous. It is mandatory to ensure adequate ventilation and/or extraction to keep fumes and gases away from the work area. An air fed helmet is recommended in cases of insufficient air supply in the workplace.
Check that the air intake complies with safety standards.
Care must be taken when welding in small areas, and the operator will need supervision from a safe distance. Welding certain pieces of metal containing lead, cadmium, zinc, mercury or beryllium can be extremely toxic. The user will also need to degrease the workpiece before welding. Gas cylinders must be stored in an open or ventilated area. The cylinders must be in a vertical position secured to a support or trolley. Do not weld in areas where grease or paint are stored.
FIRE AND EXPLOSION RISKS
Protect the entire welding area. Compressed gas containers and other inflammable material must be moved to a minimum safe distance of 11 meters.
A fire extinguisher must be readily available. Be careful of spatter and sparks, even through cracks.
It can be the source of a fire or an explosion.
Keep people, flammable objects and containers under pressure at a safe distance.
Welding of sealed containers or closed pipes should not be undertaken. If opened, the operator must remove any inflammable or explosive materials (oil, petrol, gas).
Grinding operations should not be directed towards the device itself or any flammable materials.
ELECTRIC SAFETY
The machine must be connected to an earthed electrical supply. Use the recommended fuse size.
An electrical discharge can directly or indirectly cause serious accidents, if not deadly.
Never touch live parts inside and outside of the device when it is on (Torches, clamps, cables, electrodes) as they are connected to the welding circuit. Before opening the device, it is imperative to disconnect it from the grid and wait 2 minutes so that all the capacitors are discharged.
Do not touch the torch or electrode holder and earth clamp at the same time.
Be sure to change the cables and torches if they are damaged, to be performed by qualified and authorised personnel.
The dimensions of these accessories should be sufficient.
Always wear dry clothes in good condition, in order to be insulated from the electrical circuit. Wear insulating shoes, regardless of the environment in which you work in.
TRANSPORTATION OF THE MACHINE
It is preferable to drain the cooling unit before transport.
Do not place/carry the unit over people or objects.
INSTALLATION
Rules to follow:
- Put the machine on the floor (maximum incline of 10^ .)
- Ensure the work area has sufficient ventilation for welding, and that there is easy access to the control panel.
- The machine must be placed in a sheltered area away from rain or direct sunlight.
- The machine must not be used in an area with metal dusts.
- The machine protection level is IP23, which means :
- Protection against access to dangerous parts from solid bodies of a ≥ 12.5mm diameter and,
- Protection against the rain inclined at 60% towards the vertical.
These devices can be used outside in accordance with the IP23 protection index.
The manufacturer does not incur any responsibility regarding damages to both objects and persons that result from an incorrect and/or dangerous use of the machine.
MAINTENANCE / RECOMMENDATIONS
Maintenance should only be carried out by a qualified person.
Ensure the machine is unplugged, and that the ventilator inside has stopped before carrying out maintenance work. High
Voltage and Currents inside the machine.
- Remove the casing 2 or 3 times a year to remove any excess dust. Take this opportunity to have the electrical connections checked by a qualified person, with an insulated tool.
- Regularly check the condition of the power supply cable. If the power cable or connection cables are damaged, they must be replaced by the manufacturer, its after sales service or an equally qualified person to prevent danger.
- Ensure the ventilation holes of the device are not blocked to allow adequate air circulation.
The cooling liquid must be changed every 12 month in order to avoid sediments which could block the torch cooling circuit. Any leak or residual fluid after use, must be handled within the appropriate purification factory. If possible, recycle the product. It is prohibited to empty the product into a river, sceptic tank or a draining system. The diluted fluid must not be emptied in the sewers, unless authorised by the local regulations.
INSTALLATION - PRODUCT OPERATION
Only qualified personnel authorized by the manufacturer should perform the installation of the welding equipment. During set up, the operator must ensure that the machine is unplugged.
HARDWARE DESCRIPTION
The cooling unit is a system designed to cool the water cooled torches connected to your TIG :
| Compatibility | TIG 220 DC TIG 300 DC TIG 2 | 20 AC/DC |
| WCU 0.5 KWA - - | ✓ | |
| WCU 1 KWA - | ✓ | |
| WCU 1 KWB - - | ✓ |
This device is controlled directly by the welding machine via two connection cables.
The WCU1KWA and WCU1KWB cooling units feature:
- with a water level protection making sure the filling is at the minimum level for the good functioning of the cooling system but also for a good torch cooling.
- with a water flow protection in order to protect the torch against a blockage at the level of the water circuit or a damage of the torch connection.
The recommended cooling system unit is automatically detected by the machine. In the OPTION menu, this cooling unit system can be deactivated. Warning! Do not plug the cooling unit whilst the TIG machine is on.

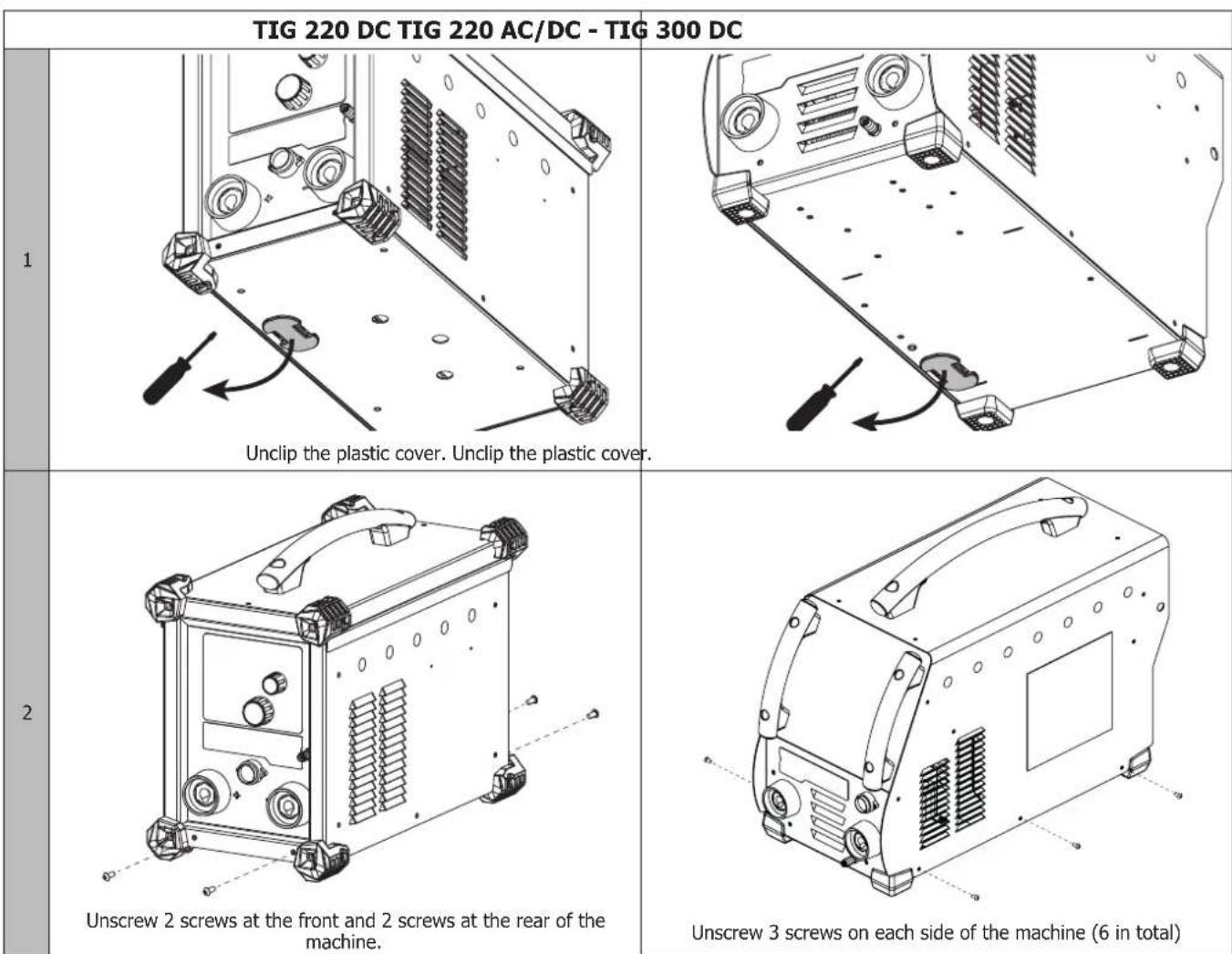

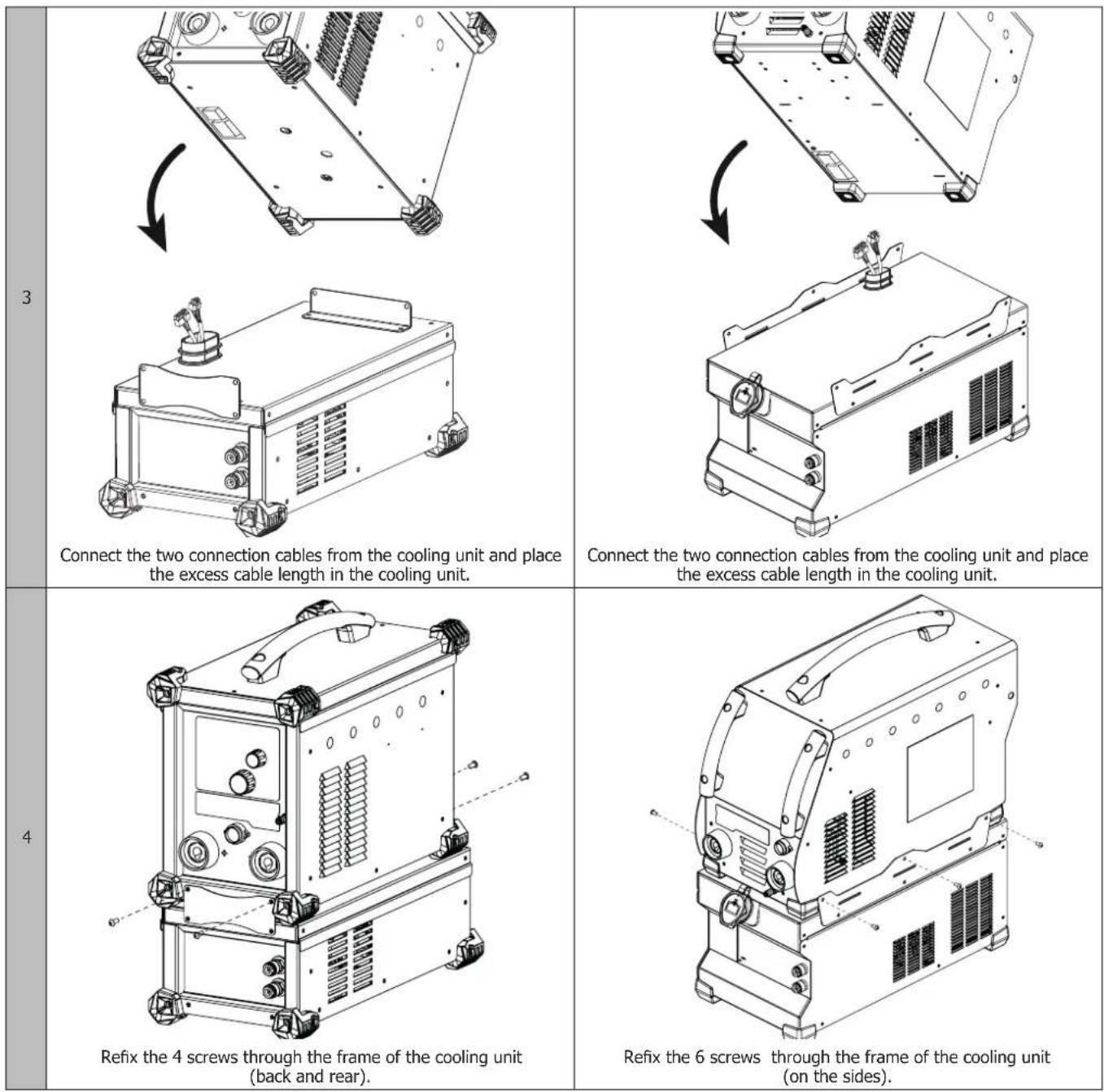

INSTALLATION AND CONNECTION
COOLING LIQUID
The operator must fill the tank up to its maximum indicated on the front of the cooling unit but never under the minimum line or a warning message will be displayed on the screen. The cooling liquid recommended by the manufacturer, must be used (ref. 052246). The use of any other coolant, and including the special automotive one, can lead, by electrolysis effect, to the accumulation of dumps in the cooling system, damaging it and even more by blocking the circuit.
The maximum level indication is essential to optimize the duty cycle of the machine.
Any damage caused to the machine by the use of another cooling liquid will not be taken under warranty.
The recommended cooling system unit is automatically detected by the machine. In the OPTION menu, this cooling unit system can be deactivated.
Make sure that the cooling unit is turned off before disconnecting the inlet and outlet hoses for torch liquid.
The coolant is harmful and irritates the eyes, the mucus membranes and the skin. Hot liquid may cause burns.
TROUBLESHOOTING
This device integrates a default management system. This allows the operator to diagnose the errors and anomalies with the help of the instruction manual (Troubleshooting chapter).
WARRANTY
The warranty covers faulty workmanship for 2 years from the date of purchase (parts and labour).
The warranty does not cover:
- Transit damage.
- Normal wear of parts (eg.: cables, clamps, etc.).
- Damages due to misuse (power supply error, dropping of equipment, disassembling).
- Environment related failures (pollution, rust, dust).
In case of failure, return the unit to your distributor together with:
- The proof of purchase (receipt etc ...)
- A description of the fault reported
| Compatible | TIG 220 DC TIG 300 DC TIG 2 | 20 AC/DC |
| WCU 0.5 KWA - - | ✓ | |
| WCU 1 KWA - | ✓ | |
| WCU 1 KWB - - | ✓ |
I3MeHHeHn I pEmoHT, He yKa3aHHbE B 3ToI INHCTpyKcIMn, He DOJXKbI 6bITb IppeINpHnTbI.
PpOIN3BODInTeJIb He HecET OTBETCTBEHHOCTH 3a TpaBMbl mATEpnaIbHbIe NOBpeXdEHn C8BaAHHbIe C HECOTBTCTBYUOMm DaHHo INHCTpyKuIM nCNoIb3ObaHnEM annapata. B Cnyae npo6JIembl nn COMHeHn, o6paTntEc b K KBaIIuΦuNpOBaHHOMy npoPeCCNOHaany dIra IpaBnIbHoro noKnIOueHn.
OKPYXKAHOUJAR CPEDA
3To 06OpdyOBaHne doJHKHO 6bIb NCIOJIb3OBAHO NCKIOUHTeJIbHO IIN CBAPoOHbIX pa6OT, ORpAHuINBaIcB yKa3aHnMm 3aBOckO TabIuKn N/IN INCTpyKU. Heo6xOIMo COJIIOAdTb DInpeKTINbI NO Mepam 6e3OanCHOCTN. B CInyae HeaAeKBaTHOrO INn ONaCHOrO NCIOJIb3OBAHn IpnON3BOITeJIb HE HecET OTBeTCTBeHHOCtN.
Annapa donjhen 6b1b yctahOBlen B nomeueHn 6e3 nbJIn, KNCOTbl, BO3rpaembx ra3OB, nIIN dpyrnx koppo3nhbIX BeueCTB. TaKne xe ycIOBnA doJHKh b6tbcobJIOeHb Inerero xpaHnna.Y6eNTecb B pncyTcBm BEHTnlaun npn cnoNb30BaHN annapata.
Temnepa typbIe npedenbl:
IcnoB3OBAHne:ot-10do+40°C (oT +14 do+104°F).
Xpaehnne:OT-20do +55^ (OT-4do 131^
BlaXHoCTb Bo3Dyxa:
50% nii Hnke npn 40^ 104F
90% niiHnke npn 20^ (68^)
BbICota HAD yPOBHeM MOpA:
1000MBbICOTbHaD yPOBHeM MOpA (3280 FOyTOB).
HINBNUyAJIbHA3AUHTA N 3AUHTA OKPYKAIOUX
Cbapoyhie pa6oTbI NOBepraOT NlB3OBATeJI B03JeCTBnIO ONaCHOrO IcToHnka TeIIa, CBeTOBOrIO N3IyHeHnI yITN, 3JKeTPOMaTHHTbIM NOIaM (oc6oe BHNMaHne IInzam, IMeIoUmM 3JKeTPOkApDIOCTMMyIaTOp), CINbHOMy WMy, BblJeHnM r3a, a TAKKe MOrYt CTaB npuHOnI npaKeHnI 3JKeTpUeCKnM TOKOM.
YTo6b3aunntbce6rOToxorOBuOByeHn np pa6ote c annapatom, HadeBaTe cyxyo pa6oyu 3aunTHyo Odekny (B XopoWem coctOHN) n3 orHeynopHO TKAHN, 6e3 OTBOPOTOB, KOtopa NOKpbIbAET BCE TeIO NOHOCbIO.
Pa6oTaiTe B 3aunTHbIX pykabuiax, o6ceueHbaOuie 3JeKtpo- n Tepmon3oJauio.
B HeKOTOpbIX CnyaIe Hno6xOIMMo OKpyKInb 30Hy OrHeynOpHbIMn WToPamN, YTO6bl 3aunTntb 30Hy CBapKn OT Lyuei, 6pb3r N hakaJIeHHoro 7Jnaka.
Ppeynpeinte OkpykaioxH He cmoTpeb Ha dIyry n o6paBaTaBaeMbte deTaln Hn HaeBaTb 3aunTHyo paOohyO oEckdy.
HaedeBaTe 3aunTHyMo Macky Cbapuika (KnaccnKkaUN NR10 nnn 6oNbwe) n 3auuuaTe rna3a BO BpeMa 3aHcTkn. Hoene KOHTaKTHbIX IHH3 BocnPeeaaetcra.
Hocnte HauhNn npotNB uyma, cInn CBapOHy npoceCdoCTnraet 3ByKOBoYpOBeHb Bblwe Do3BOJeHHoro. To Jx eOTHCNTcK IIOdM, HaxoJaumcB CBAPOH0 30He.
Деркinte pykn, BOIocbI, OdExkdy noaIbwe OT NOBnKhbIX qacteN (DINrataIb, BEHTnIATop...).
Hikorda He chimaTe 3aunThb Koprnc C cnctembl OxlanxdeHn, Korda annapat noh HnnpjKeHn. Ppon3Bodntel he hecet OTBeTcBeHHocn B clyae He cchaTHoro clyua.
ToIbKO TTO CBapeHhBie DeTaNr Ropany N MOry Tb Bb3BaTb OXoRn np KOHTaKTe C HmN.
Bo Bpemay Texo6cnyxmbaHnra ropeKn y6eNTecb, YTO OHa DOCTaTOUHO oxlaadinacb NIOOxJnte KaK MHNMyM 10 MNHT nepei Hauanom pa6OT. Ecnr ropeKna C BOHbIM OxJaXdEHHem, TO CNCTema OxJaXdEHHa DoJIXA Ha 6bITb BKIOueHa, YTO6bl He o6xeHcR KIKKOCTbH.
OueHbaxn0630anacntb pa6ooyu 3ohny peep TEm, kae ee noknhytb, yTo6bl 3aunntb IIOe HmUyecTBO.
CBAPOHbIE DblIM IΓA3
BbIeIaIeMbI npn cbapke dbIM, ra3 n nbIb onaChbl IIN 3IOPOBB. BeHTNJIaIaIg DOJXHa 6bITb IOCTaTOHoi, IN MOKET notpe6oBaTcBdoONHHTeNbHa NOdA H O3dyxa.
Pn HeoctaToCHOBENTHJIAUMOXXHO BOCNb30BaTcMAckOn CBAPuKa-peCnnpaTopOM.
PpOBeBpTe, UTo6bI BCaCbIbAHnE BO3dYxa 6blIO 3ΦΦeKTHBbIM B COOTBeTcBn C HopMaMn 6e3OnacHOCTn.
Bbte BnMaTeIbHb: CBapka B He60JIbXnx NOMEeHnX Tpe6yET H6JIIOHeHna Ha 6e3OJaCHom pacCToHH. Kpome TorO, Cbapka HeKOTopbIX MetaIIOB, CoepKaaXnx CBnHeU, KaDMn, UHK, pTyTB nIu dAxe 6epnllnn, Moxet 6bIt bpe3BbHaHHO BpeHNo. TaKke, cneJyET ONUCTNtB OT Xnpa detaII nepeCBapkoI.
Ta3OBbIe 6aJIIOHbI dOJIKNbI 6bITb CkJIaIIpObaHbI B OTKpbITbIX IIN XOPOo IPOBETPnBaEmbIX NOMEueHNX. OHN DOLKHBI 6bITb B BEPTNKaJIbHOM NOLOKeHHN 3aKpeIIeHbI Ha CTOnke IIN TEneKke. HIn B KOEM cnyuae He BapITb B6Jln3N Jnpa IIN KpaKn.
PNCIOKAPA N B3PbIBA
IIOJIHOCTbIO 3aUHTInTe 3OHy CBapKn. Bo3rpoaembIe MaTePnaJIbI doJIKHbI 6bITb ydAnEhI KaK MHNIMyM Ha 11 MetPoB.
IpoTbONIOKapHOeO6OpyOBaHHe OJnKHO HaxoDITbcra B6n3n npOBeHnCBAPoHbIX pa60T.
OcToPOxHO C 6pbI3ramn ropayero MaTePnaIa IIN NCKp, dAxe uepez IeJI.
OHN MOry TBb3BaTb IOXkap NnB3pbIb.
YdaJInte IIOJeB, BO3rOpaEmbIe PpeMTeBn BCE EMKoCTn IOd DaBHeHmE Ha 6e3OnaChoe paCtOHaHe.
Hn B KOem Cnyae He Bapnte B KOHTeHepax nn 3akpbTbIX Tpy6ax. B cnyae, eCNI OHN OTKpbTbI, To nepd CBAPKO IH Hx HyXHO OCBOOHTb OT BCex B3pbBvATbIX INI BO3rOpaeMbIX BeueCTB (MacNo, TOPIINBO, OCTaTOHbIe ra3bl ...).
WlfoBaIbHbIe pa60Tb He eoJXhbl 6bItb HappaBHeHb B CTOpOHy aIIaPaTa IIN B CTOpOHy BO3rOpaEmbIX MaTePnAIOB.
3JIeKTPnueCKa BE30nACHOCTb
IcnoB3yema 3Jektpuecka cetb dojxHa o6raTeNbHO 6bTb 3aemnHNO. Co6nOaTe KaN6p npdoxpaHnteYka3AHbHa ha annapate.
3Jektpnuecknn pa3pnd MOKET BblBaTb npMble nIIN KOCBeHHbe paHeHH, I daKe CMeptb.
HnKOrda He DoTpaBaaTeCb Do UacteI NOD HapxKeHem KAc BHyTpN, TaK i ChapyKn AnnapaTa, KOrda OH nOdkluoyen K cTeuNTaHna (ropeIKN, 3axMbI, Ka6eIN, 3JeKTpoDb), T.K. OHn NpoklueHb K CbaOpOH uen.
Ipeep TeM, kak OTkpblb annapat, ero HxKHO OTKnIOHTb OT cETn NnoOxKaTb 2 MInHytbl, Ira toro, UTO6bl BCE KOHDeHCaTobpI pa3prdunncb.
HnKoIa He DoTparuBaItec b OndHOBpeMeHHo Do ropeKn Nnn 3JeKtpdoOpdepkaTeJI No do 3axmMa Maccbl.
Ecn Kabe nn BpeKdeHb, nonpocTe KBaIINuPBOAHbIX n yIOnHOMOeHHbIX CneuaJIACCTOB INx 3aMeHHTb.
06paTnTe BHHMaHHe Ha ceueHHe, KOtOpoe DoJxHO 6bItb DOCTaTOHybIM.
Bcerda Hocnte cyxuyo 0eJy B xopoWem coCTOaHnn Ira N3OJIaun OT CBAPOHou ceni. Hocnte n3OJIpyuoyo 6yBB He3ABNCmo OT ToI Cpebl, rde Bbl pa6otaete.
TPAHCNOPTNPOBKA IN TPAH3NT ANIAPATA
XeIaTeBHO CnITb XnIKoCTb Kynepa nepeI erO TpaHcnpTnpOBkoI.
He nepenocntb annapa Tnad IIOdbm nnnpedmetam.
YCTAHOBKA ANIAPATA
Co6nloJaTe cneJyUoJe npaBnla :
- NoctabTe ICTOCHNK CBAPOHORO TOKA HA NON, MAKCImaJIbHbI HAKIOH KOtOPoro 10°.
- PnpDyCMToPte DoCTaTOH0 6oBbOe npocTpaHCTBO dI XopoWero npoBeTpBaHn annapaTa I DoCTyna K ynpabHeHIO.
- AnnapaTdoJKeH 6bITb yKpbIT OT npOJIbHOrO DoXJa Hc TcTb Ha coJIHcE.
He nCnoIb3OBaTb B cpeDe coepkauei MeTaIIHueckyIO nbIb- npOBoHNK. - 06opyuobaaHne mMeet 3aunTy IP23,чTo O3naHaet
-3auntyOTnonadaHnBOnachbIe 30hbl TBepdbix TeJ DnaMeTpom ≥ 12,5mm n - 3aunty npotnb kaneb doxka, HanpaBneHbIX noD yrIOM 60% OTHOCHTeBHO BepTnKaII.
3To 06opydoBaHHe MoKet 6bItb NcNoIb3ObaHO BHe NOMEueHn COOTBeTCTBeHHo CTeneHn 3aunTy IP23.
IpoH3BOIDTeH He Hecet OTBETCTBEHOCHTN OTHOCHTeHbHO Usep6a, HaHeceHHOro NnI pEmTaM, n3-3a HenpaBnIbHorO nOnaCHO IcNoIb3OBAHnE 3TOrO annapaTa.
OBCJYKINBAHNE / COBETbl
TexHueckoe 6cIyKBAHHe DOnJxHO pON3BODITbC ToJIbKO KBaIIHnIpOBAHHbIM CneuaJIHCTOM.
OtknIOHTe NITaHne, BbIHyB BNIKy n3 pO3eTKN, I DoXdNTecb OCTAHOBKn BeHTNIrTopa nepeD TeM, KaK npNCTynITb K Teo6cnykmbahno annapata.
- PeryIpaHNo OTKpbIaBaiTe annapat n npOyBaIte ero, yTO6bI ouHCTnTb OT nbIi. Heo6xOIMo TAKe IPOBepaTb BCE 3JIeKTPuueckne coEINHeHna C nOMooIbIO hONIpOBaHHOrO INCHtpymEnTa. IPOBepKa dOJkHa OCUeCTBIArK BcAIImHpOBAHHbIM CneuaJIACtOM.
- Perynpho npobepaTe COCTOHNHe WHPa NHTAHN IN COEINHNTeBbIX WNaHROB. ECIn WHPy NTaHNA IN NCOENHTEBbIe WNaHrN NOBpeXdHb, OHIOJHXb 6bTb 3aMeHEb IPOUN3BOIDTeNEM, ERO CEPBCHOn CUYK60B IN KBAJIINPHUPOBaHHM CNEuaNtCTOM BO I36exAHne ONACHOCTN.
- OctabnTe OTBepTna B annapate Cbo6oHbIMn dIra Cbo6oHoro npoxokdeHra BO3dyxa.
KnKIOCTb oxJxJeHnI OJIKnHa 6bTb 3aMeHeHa KaJbIe 12 MeCaeB, YTO NOMOKe TpeoTbpATmTb 6pa30BaHne ocakOB, KOTOpBcMoYr 3aBtB cIb b OxJaXeHnI rOpEkn. IIObIe OcaKn nIN OctaTK KnIKOCTn DOJIKNb 6bITb 6pa6oTaHb Ha npEnHa3NaHeHNO dIra 3TORO BOOOHuaIoUe CTAHuN. ECLN BO3MOXHO, npOyKT DoJKeH 6bTb nepepaoTah. Kateropueckn 3aPpeSeHo CInBaTb INcNoIb3OBaHHyO XnIKOCTb B peK, OTcToHKn INI dpEhAxHbte CNCTeMb. Pa36abIeHHyO XnIKOCTb He cIeDyET CInBaTb B kAHAnl3auHIO, KpOME clyuAeB, KOrDa 3TO DOnyckaTeC MeCTHO perIamentaueH.
YCTAHOBKA IN PUNHUN DEICTBNA
ToIbKOOnbTHNHyIyIIOHMOUHeHbI pOIN3BOIDHTeM CNEuAInCT MOKeT OcyueCTBnry YCTaHOBky. Bo BpeMa yCTaHOBKn y6eNTecb, yTO nCToHNI KOTKIIIOHE ON cETn. NocleDoBaTeHbIe nn npapAnlneHbIe coeDHeHn IcTOHnKa 3anpeHbI.
ONICAHNE ANIAPATA
Cnctema oxlaaKeHnna (Kyep) npedHa3NaeH a n 0xlaKeHnna ropeIOK, oxlaKeHbIX KnuKocTbIO, noKnIOueHbIX K annapaty TIG :
| COBMECTHMOCTb | TIG 220 DC TIG 300 DC TIG 220 AC/DC | ||
| WCU 0.5 KWA - - | ✓ | ||
| WCU 1 KWA - | ✓ | ✓ | |
| WCU 1 KWB - - | ✓ | ||
3n annapaTbI ynpabraHOTc CBAPoHbIM annapaTOM C NOMOuBIO DByX NOKJIQUeHHbIX K Hemy pyKaBOB.
BLOKO oxlaJckHeN WCU1KWA n WCU1KWB ochaueHb:
-3auntoyypOBHxNkoCTn,06ceuBaIOeMmHmAbHo Heo6xoDmoe Ira pa6OtbI CNTeMbI OXnaKdEHHr OpeKeHN HanoHHeHne.
-3aunTOIIOaUHJIKoCTNI03BOLJIOeIIN36ExKaTbOpa3OBaHNIIPO6KnB CnCTMe UIPKjLauuH JIKoCTN IINIOBpeXJeHNApyKaBa rOpEnKN.
PncyTcBne Kynepa ABToMaTHueckn OnpedEnaeTc npn nOKnIOueHm. B MeHIOPTION CBAPoHOro annapaTa, Kynep moKet 6bIb 3abIoKpOBaH.
BHHMaHHe! He nooCoeHNrT CnTeMy oxJaXDeHnK annapaTy TIG ecnn OH BKnIOueH.

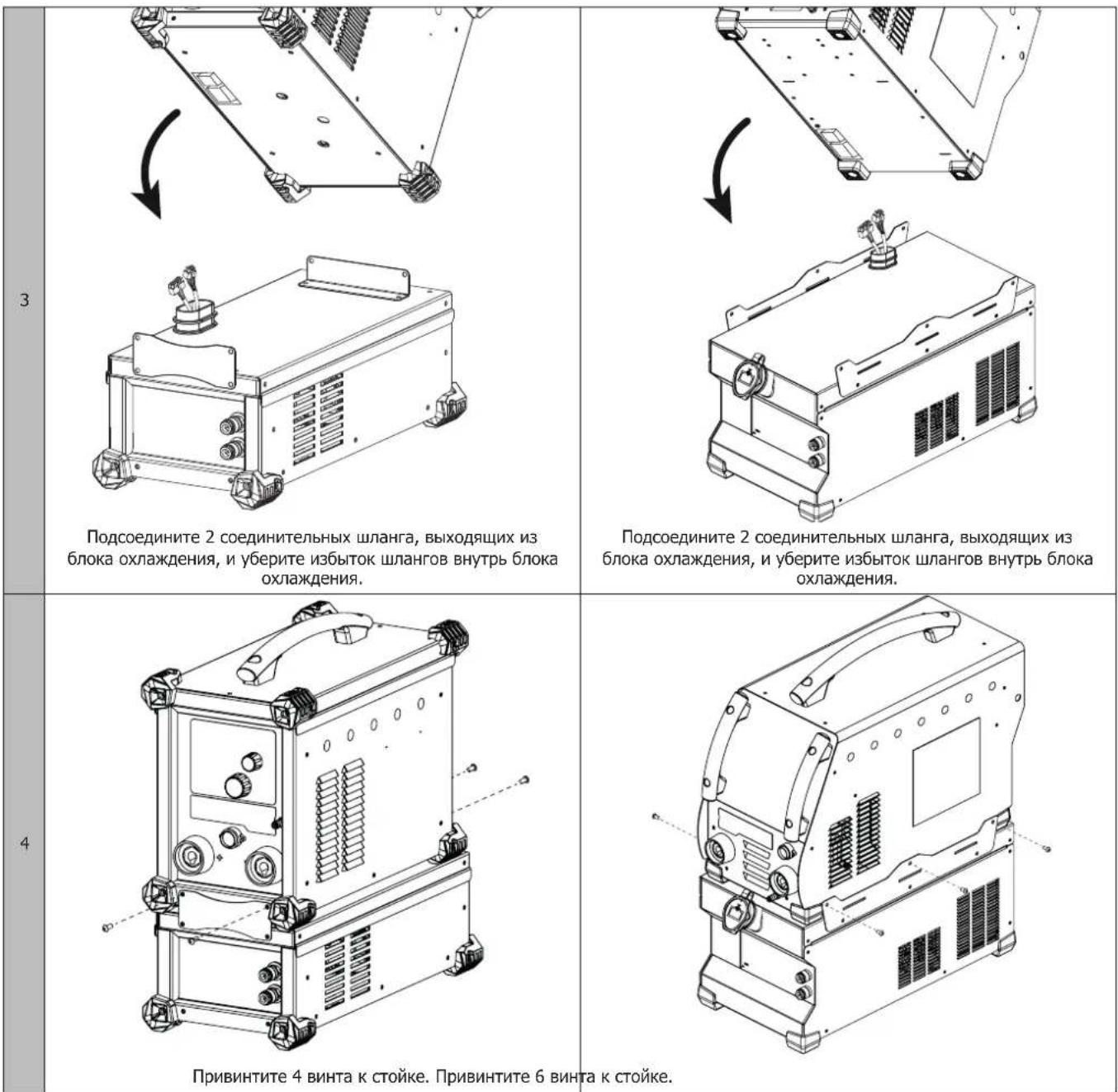

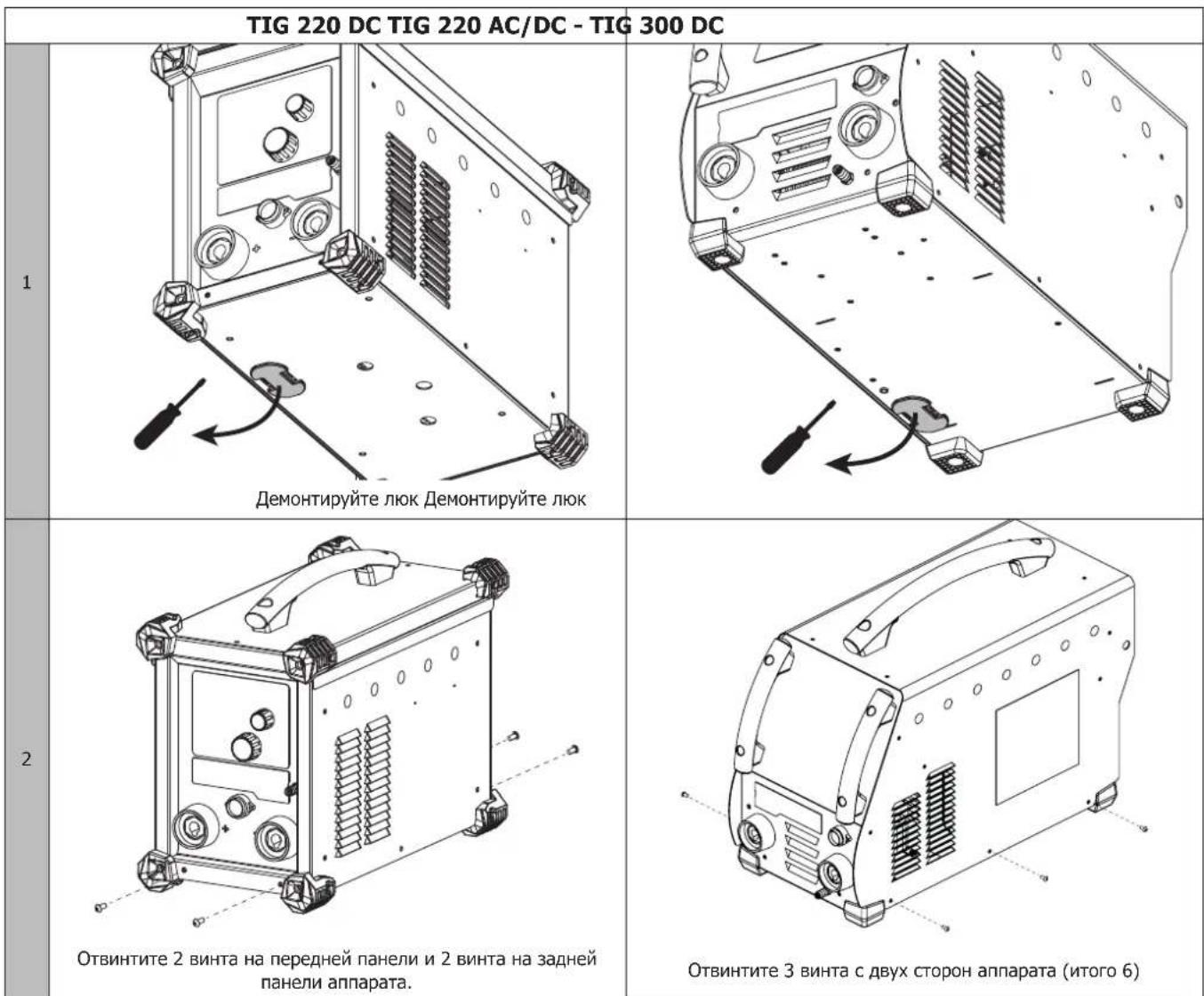

YCTAHOBKA I NOKJIIOUOHEHNE
OXIAKDAIOUJAKNDKOCTb
Pe3epByap kynepa doJnkeh o6bHbHanonHeNo do pekomehoBHO ypOBH MAX, yka3aHoro Ha ypOBhempe cnepeyn Knyepa, Ho H N B KOem cnuyae He nKx ypOBH MIN - B 3TOM cnuyae Ha ekpahe annapata TIG noBHTC npdynpkdoohoe coo6uene. Heo6xmoNcnoIb30BaTB oxnaKdaOyU xnkocst, pekomehymyIO npOn3BODnteMe. IcnoJIb3OBAHne dpynx oxJaXdoUx nxdkocTe, HanpImep TOcoNa, 13-3a npOceca 3a6tB ee.
3TOT peKoMeHDoBaHHb yPoBeHb MAX Upe3BbuaHb Baxhen IaONTUMn3aunn % oxIaxJaemr ropeKn.
JIO6oe NOBPEKdEHeNE annapata, CB3aHHOe C INcNoIb3OBAHne OTnHOn OTepeKoHdYEmo JNkKOCTn OxJaXdEHn, He 6ydt paccMaTpBaTbcra Ka rapaHTmHb cnya.
PekomnoBaHHa CnTeMa OxJaXeHn ABTomatHeckn OnPepEnrTcAnnapaTOM TIG. B MeHIOPTION CBapOuHoro annapaTa, Kynep MoKet 6bItb 3a6IkpovBaH.
Y6eNTecb TOM, YTO CNTema OxJaXeHn BblKnIOueHa nepei TeM, KaK OTCoeHNHTb pyKaBa IODaH N BblOda KUnIKoCTN OT ropEnK.
Oxlaaaoaa Kndkoctb BpeHa n pa3paKaet rna3a, cinnctyio 06oOnouky Koxy. Topraa KndkocT MoKeT Bbl3BaTb Oxorn.
COOBUHNAOBOWBKE,HENCPABHOCTN,NX PNUHHI N UCTPAHEHNE
DaHHoe 6obpyoBaHHe IMeET CnCTeMy npOBepKHeNCpabHocTei, nepeaUeien HhOpMaunHo HeNocpeCTBeHNO Ha nCTouHKn. 3To no3BOJnEe ONpeJeHTb HeNCpabHocTb B pykoBcTBe No EKnIyatauIN NODcoEHNHeHORO CBapOCHoro annapata (rnaBa CoooHnEo 6 own6ke, HeNCpabHocTn, IN PnUnHbN yCtpaHene).
TAPAHTR
TapaHTn paCnpoctpaHReTc H a IIO6o3aBODcKo DeΦeKT nIb 6paK B TeueHne 2x let C daTbI nokyPkn n3dEInna (3aIpaCTn pa6oay cnila).
Fapantn He paonpoctpaenrca Ha:
-ⅡI6bIe NIOOMK, BbI3BaHHBIE TpaHCnOpTnpOBkO.
- HopmaJIbHbI n3Hoc detaJIe (HaIpIMep : Ka6eJI, 3axMbI u T.d.).
CnyuHnepaBnIbHO nCnoIb3ObaHHa (oun6ka nITaHHa, naeHHe, pa36opka).
CnyanBbIXOaH3cTPOn3-3aOKpyKaHOeIcpebl(3arpa3HeHneBO3dyxa,Koppo3n,bln).
PnBbIXOe n3 cTpo, o6paNTecb B NYKTK NOKyTNKn annapaTa C npdeBraBHeHem CneDyoUxN DOKyMeHTOB:
- DOKYMENT, NOITBepKdaIoUH NOKyNkY (c DaToI): KaccOBbI YeK, INHOBc...
-ONICAHNE NOJOMKN.
WAARSCHUWING - VEILIGHEIDSINSTRUCTIES
ALGEMENE INSTRUCTIES
