USER MANUAL Koolweld 4 GYS

Technical line drawing of a rectangular industrial machine with cooling fins and control panel (no text or symbols)

FR 1-6 / 7-10 / 39-44

EN 1-6 / 11-14 / 39-44

DE 1-6 / 15-18 / 39-44

ES 1-6 / 19-22 / 39-44

RU 1-6 / 23-26 / 39-44

NL 1-6 / 27-30 / 39-44

IT 1-6 / 31-34 / 39-44

PL 1-6 / 35-38 / 39-44

KOOLWELD 1

KOOLWELD 4

Technical diagram of an industrial machine with numbered components and labeled parts

Technical line drawing of a rectangular electronic device with cooling fans and wheels (no text or symbols)

AVERTISSEMENTS - RÈGLES DE SÉCURITÉ

CONSIGNE GÉNÉRALE

INSTALLATION - FONCTIONNEMENT PRODUIT

Technical line drawing of a mechanical assembly with mounting brackets and a housing (no text or symbols)

CONDITIONS DE GARANTIE

These instructions must be fully read and understood before operating the machine. Do not carry out any modifications or maintenance work that is not included in the user manual.

Any personal injury or material damage due to use that does not comply with the instructions in this manual cannot be held at the expense of the manufacturer.

If you have a problem or query, please consult a qualified technician to set up the device correctly.

THE ENVIRONMENT

This equipment should only be used for welding operations within the limits indicated on the rating plate and/or in the user manual. The safety regulations must be observed. In the event of improper or dangerous use, the manufacturer shall not be held liable.

The device must be set up and operated in a location that is free of dust, acids, flammable gases and other corrosive substances, even when in storage. Make sure there is sufficient air circulation when in use.

Temperature ranges:

Use between -10 and +40°C (+14 and +104°F).

Store between -20 and +55°C (-13 and 131°F).

Air humidity:

Less than or equal to 50% at 40°C (104°F).

Less than or equal to 90% at 20°C (68°F).

Altitude:

Up to 1000 m above sea level (3280 feet).

PROTECTING YOURSELF AND OTHERS

Arc welding can be dangerous and cause serious injury or death.

Welding exposes people to a dangerous source of heat, light and radiation from the arc as well as electromagnetic fields (caution to those with pacemakers), risk of electrocution, noise and gaseous fumes.

To protect yourself and others, follow these safety instructions:

To protect yourself from burns and radiation, wear insulating, dry, fireproof clothing in good condition without lapels; the clothing must cover the whole body.

Wear gloves that provide electrical and thermal insulation.

Use welding protection and/or a welding hood with a sufficient level of protection (variable depending on the application). Protect your eyes during cleaning operations. Wearing contact lenses is strictly forbidden.

It is sometimes necessary to enclose the welding area with fireproof curtains to protect it from arc radiation, spatter and incandescent waste.

Inform people in the welding area not to look at the arc rays or the molten parts and to wear the appropriate clothing to protect themselves.

Wear noise-cancelling headphones if the welding process reaches a noise level above the permissible limit (these must be worn by anyone in the welding area).

Keep hands, hair and clothing away from moving parts (the fan).

Never remove the cooling unit's protective casing when the welding power source is on; the manufacturer cannot be held responsible in the event of an accident.

Newly welded parts are hot and can cause burns when handled. When carrying out maintenance on the torch or electrode holder, make sure that it has sufficiently cooled by waiting at least 10 minutes before starting any work. The cooling unit must be switched on when using a water-cooled torch to make sure that the liquid does not cause burns.

It is important to secure the work area before leaving it, this is to protect people and property.

WELDING FUMES AND GASES

The fumes, gases and dusts emitted by welding are health hazards. Sufficient ventilation must be provided and an air supply may be required. An air-fed mask could be a possible solution if there is inadequate ventilation.

Check that the extraction system is operating effectively by checking it against relevant safety standards.

Caution: Welding in confined environments requires remote monitoring for safety reasons. Furthermore, welding certain materials that contain lead, cadmium, zinc, mercury or even beryllium, can be particularly harmful; it is important to thoroughly degrease the parts before welding them.

Gas cylinders must be stored in an open or well-ventilated area. They must be in an upright position and held on a support or on a trolley.

Do not weld near grease or paint.

FIRE AND EXPLOSION RISK

Fully shield the welding area; flammable materials should be kept at least 11 metres away. Fire fighting equipment must be nearby during welding operations.

Beware of hot material or sparks being projected, even through cracks; they can cause a fire or explosion.

Keep people, flammable objects and pressurised containers at a safe distance.

Welding in closed containers or tubes should be avoided and if they are open they should be emptied of any flammable or explosive material (oils, fuels and gas residues, etc.).

Grinding operations must not be directed towards the welding power source or towards any flammable materials.

ELECTRICAL SAFETY

The electrical power supply must be earthed. Use the fuse size recommended on the information panel. Electric shocks can cause serious direct or indirect accidents and even death.

Never touch live parts inside or outside the live power source (torches, clamps, cables and electrodes) as these parts are directly connected to the welding circuit.

Before opening the welding current source, it must be disconnected from the mains and wait 2 minutes. so that all the capacitors are discharged. Do not touch the torch or electrode holder and the earth clamp at the same time.

Ensure that cables and torches are changed by qualified and authorised personnel if they become damaged. Select the cable's cross-section size according to the intended application. Always wear dry, undamaged clothing to insulate yourself from the welding circuit. Wear insulated footwear in all work environments.

TRANSPORTING AND MOVING THE PRODUCT

It is advisable to drain the cooling unit before transportation. Do not carry the equipment over people or objects.

SETTING UP THE EQUIPMENT

• Place the equipment on a floor with a maximum slope of 10^ .
• Ensure the work area has sufficient ventilation for welding, and that there is easy access to the control panel.
• The machine must not be used in an area with conductive metal dusts.
• The equipment must be protected from heavy rain and kept out of direct sunlight.
• The machine protection level is IP23, which means :
• Protection against access to dangerous parts from solid bodies of a ≥12.5mm diameter and,
• Protection against the rain inclined at 60° towards the vertical.
  These devices can be used outside in accordance with the IP23 protection index.

• Maintenance should only be carried out by a qualified technician Annual maintenance is recommended.
• Turn off the power supply by unplugging the outlet, and wait for the fan to stop before working on the device. The voltages and currents are high and dangerous inside the device.

- Regularly remove the cover and blow out the dust. Take the opportunity to have the electrical connections checked by a qualified technician using an insulated tool.

- Check the condition of the power cord regularly If the power cable is damaged, it must be replaced by the manufacturer, their after-sales service department or a similarly qualified technician to avoid hazards.

- Leave the welding power source's vents free to allow air to enter and exit the machine

The coolant must be changed every 12 months in order to avoid deposits that may clog the torch's cooling circuit. Any leakage or residues from the welding machine after use must be treated at an appropriate treatment plant. The product should be recycled, if possible. Emptying the used fluid into waterways, pools or drainage systems is strictly forbidden. Unless permitted by local regulations, the diluted fluid should not be drained into the sewer system.

SET UP - OPERATING THE DEVICE

Only experienced personnel, authorised by the manufacturer, may set up and install the device. During setup, ensure that the power source is disconnected from the mains power supply. Serial or parallel power source connections are not allowed.

DESCRIPTION

The KOOLWELD 1 / KOOLWELD 4 cooling unit is designed to cool liquid TIG torches (L). The cooling unit is controlled directly by the power source through the power cable (II-5).

Power source compatibility KOOLWELD 1 KOOLWELD 4
TITANIUM 230 AC/DC FV	■
TITANIUM 231 AC/DC FV	■	■
KRYPTON 231 DC FV	■
KRYPTON 231 E DC FV	■	■
KRYPTON 321 DC TRI	■
ORION 321 AC/DC	■	■

KOOLWELD 1 is equipped with:

• a water level safeguard to prevent the water level from becoming too low for the unit, as well as the torch's water-cooling feature, to operate properly.
• a water flow safeguard to prevent clogs in the torch's water supply system and damage to the torch.
• a thermal safeguard to protect the torch against abnormal heating.

KOOLWELD 4 is equipped with:

- a thermal safeguard to protect the torch against abnormal heating.

These equipments are automatically detected by the power source.

TITANIUM / O:

Select «System/Cooling unit» on the HMI:
- AUTO: activates when welding and deactivates the cooling unit 10 minutes after the welding is finished.
- ON: the cooling unit is permanently switched on.
- OFF: the cooling unit is switched off.
- PURGE: a feature that is designed to purge the cooling unit or fill the water circuit; these safeguarding features are then deactivated.

KRYPTON:

In the menu «SEt UP» «Con FIG.»

• Co.U. On : the cooling unit is permanently switched on.
• Co.U. OFF : the cooling unit is switched off.
• Co.U. auto : activates when welding and deactivates the cooling unit 10 minutes after the welding is finished.

PRODUCT DESCRIPTION (II)

1.) Fill plug
2.) Coolant outlet (blue)
3.) Coolant inlet (red)
4.) Filling gauge
5.) Power cable

LIQUID COOLING

FILLING THE DEVICE

The cooling unit tank must be filled to the gauge's recommended MAX level on the front of the cooling unit. However, it must never fall below the MIN level, otherwise a warning message will appear.

Use only a specific coolant designed specifically for welding machines; it must have with low electrical conductivity as well as being protected against corrosion and freezing (P.N. 062511).

Using other coolants, in particular a standard automotive coolant, may lead to an electrolytic build-up of solid deposits in the cooling system which, in turn, may lead to poor cooling performance and even blockages in the cooling circuit.

The recommended MAX level is essential for optimising the liquid-cooled torch's operational performance.

Any damage to the machine caused by using a coolant other than those stipulated in these instructions will not be covered by the machine's warranty.

HOW TO USE

1.) NEVER USE the cooling unit WITHOUT COOLANT when the pump is running. Respect the minimum coolant level. Failure to do so may result in permanent damage to the cooling system's pump.
2.) Ensure that the cooling unit is switched off before disconnecting the liquid-cooled torch's inlet and/or outlet pipes. Coolant is hazardous and irritates eyes, mucous membranes and skin. The hot liquid can cause burns.
3.) Hot liquid burn hazard. Never drain the cooling unit after use. The liquid inside will be boiling, wait for it to cool down before draining.
TITANIUM / KRYPTON / ORION : In «AUTO» mode, the cooling unit's pump will start running when the welding process is started. When the welding has stopped, the pump will continue to operate for 10 minutes. During this time, the liquid will cool the welding torch and brings it back to room temperature. Leave the power source connected for a few minutes after welding to allow it to cool down.

The cooling unit must be switched off (OFF) to use an air-cooled TIG torch. For further instructions on how to do this, please refer to the power source's HMI user manual.

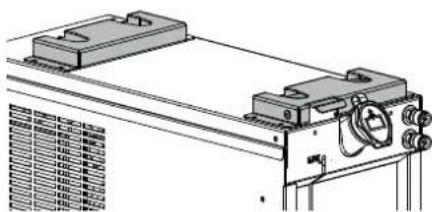

OPTIONAL QUICK-RELEASE COUPLING

Technical line drawing of a mechanical assembly with mounting brackets and a rotating component (no text or symbols)

This equipment can be fitted with a quick assembly kit (P.N. 076006) in order to very quickly connect and disconnect a power source fitted to the cooling unit. Pleaser refer to the kit's user manual (076006) to confirm that it is compatible.

MESSAGES AND ERROR CODES

This equipment features a fault-monitoring system which is communicated directly to the appliance. Please refer to the corresponding welding machine or HMI user manual.

WARRANTY CONDITIONS

The warranty covers any defects or manufacturing faults for two years from the date of purchase (parts and labour).

The warranty does not cover:

• Any other damage caused by transport
• The parts' normal wear and tear (e.g. cables, clamps, etc.)
- Misuse-related incidents (misfeeding, dropping or disassembling the device)
• Environmental failures (pollution, rust and dust, etc.)

Should the appliance malfunction, return it to your distributor together with:

- dated proof of purchase (receipt or invoice, etc.)

- a note explaining the breakdown

Technical line drawing of a mechanical assembly with mounting brackets and a housing (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a housing (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and rollers (no text or symbols)

WAARSCHUWINGEN - VEILIGHEIDSINSTRUCTIES

ALGEMENE INSTRUCTIES

SNELBEVESTIGING OPTIONEEL

Technical line drawing of a mechanical assembly with mounting brackets and a housing (no text or symbols)

Technical line drawing of a mechanical assembly with mounting brackets and a housing (no text or symbols)

RYZYKO POŻARU I WYBUCHU

Technical line drawing of a mechanical assembly with mounting brackets and a rotating component (no text or symbols)

Exploded view diagram of a device with numbered parts for identification and assembly reference.

1 Pompe / Pump / Pumpe / Bomba / Pomp / Pompa / Pompa 55309
2	Ventilateur / Fan / Lüfter / Ventilador / Ventilator / Ventilatore / Wentylator	51290
3 Patin / Pad / Kunststoff-Schutzecken / Soporte / Beschermdopje / Distanziale / Stopka 56120
4	Coupleur DP9 rouge / DP9 red coupler / DP9-Kupplung rot / Acoplador DP9 rojo / Koppeling DP9 rood / Commutatore DP9 rosso / Złącze DP9 czerwona	71695
5	Coupleur DP9 bleu / DP9 blue coupler / DP9-Kupplung blau / Acoplador DP9 azul / Koppeling DP9 blauw / Commutatore DP9 blu / Złącze DP9 niebieska	< 24.10.070820.000001 71694
		> 24.10.070820.000001 71691
6	Bouchon de remplissage / Fill plug / Einfüllstutzen / Tapón de envase / Vuldop / Tappo del serbatoio / Korek wlewu paliwa	71299
7	Capteur de température / Temperature sensor / Temperatursensor / Sensor de temperatura / Temperatuursensor / Sensore di temperatura / Czujnik temperatury	< 23.06.070820.000001 52105
		> 23.06.070820.000001 52107
8 Radiateur / Radiator / Radiator / Radiator / Radiator / Radiator 71751
9	Réservoir / Tank / Behälter / Tanque / Tank / Serbatoio / Zbiornik	S81141
10	Capteur de niveau d'eau / Water level sensor / Wasserstandssensor / Sensor de nivel de agua / Sensor waterniveau / Sensore del livello di acqua / Czujnik poziomu wody	71766
11	Capteur de débit d'eau / Water flow sensor / Wasserdurchflusssensor / Sensor de flujo de agua / Sensor watertoevoer / Sen- sore del flusso dell'acqua / Czujnik przepływu wody	81100
12	Passe fil / Wire pass / Kabelverschraubung / Pase de cable / Doorgang draad / Passa filo / Przepust kablowy	71163
13	Circuit groupe froid / Cooling unit circuit / Kühlaggregatkreislauf / Circuito equipo de refrigeración / Circuit koelgroep / Circuito unità di raffreddamento / Obieg jednostki chłodzącej	E0012C
14	Presse étoupe / Stuffing box / Stopfbuchse / Prensa estopada / Pakkingbus / Pressaestoppa / Przepust kablowy	71962
15	Cable d'alimentation / Power supply cable / Stromkabel / Cable de alimentación / Voedingska- bel / Cavo di alimentazione / Kabel zasilający	< 25.12.070820.000001 63794
		> 25.12.070820.000001 72194

KOOLWELD 4

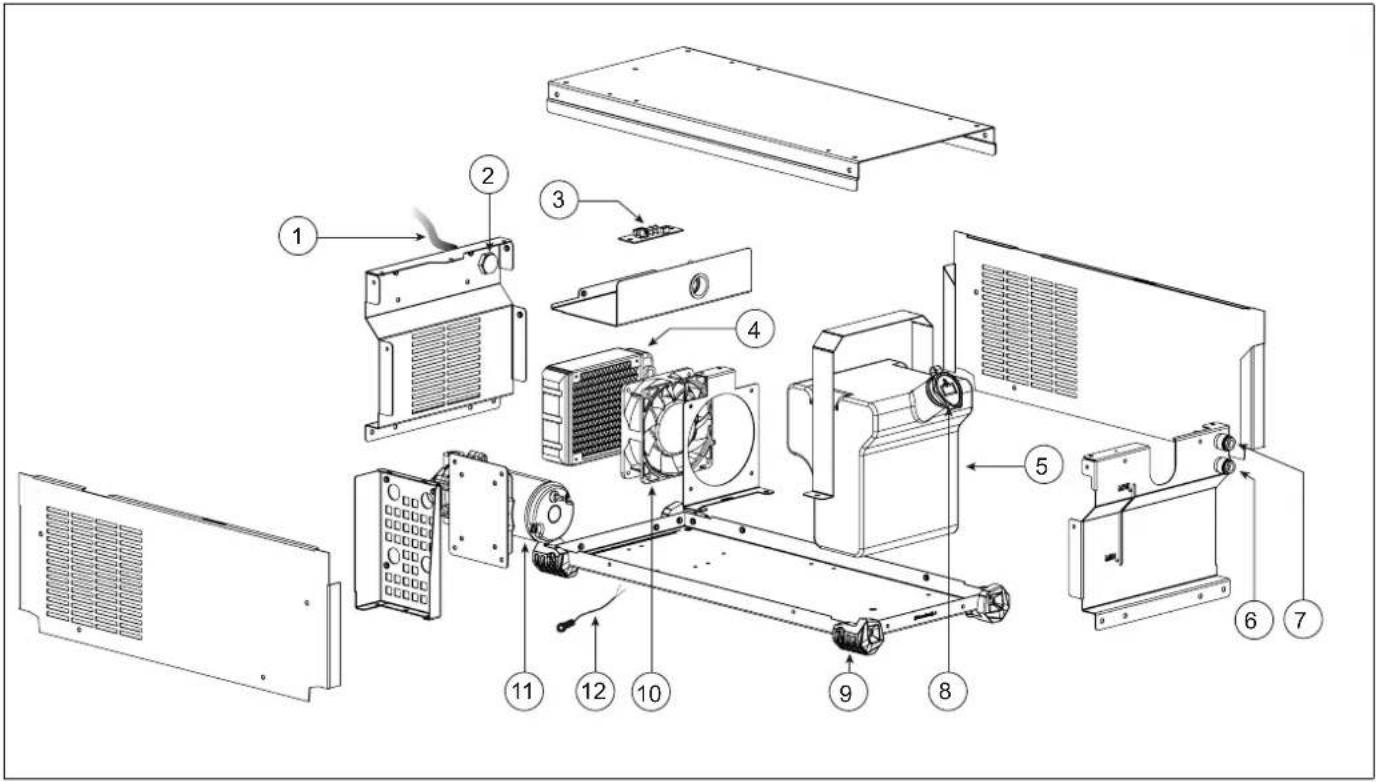

Exploded view diagram of an air conditioning unit with numbered components for identification

1	Cable d'alimentation / Power supply cable / Stromkabel / Cable de alimentación / Voedingskabel / Cavo di alimentazione / Kabel zasilający	72194
2	Presse étoupe / Stuffing box / Stopfbuchse / Prensa estopada / Pakkingbus / Pressaestoppa / Przepust kablowy	71962
3	Circuit groupe froid / Cooling unit circuit / Kühlaggregatkreislauf / Circuito equipo de refrigeración / Circuit koelgroep / Circuito unità di raffreddamento / Obieg jednostki chłodzącej	63887
4	Radiateur / Radiator / Radiator / Radiador / Radiator / Radiatore / Radiator 72175
5	Réservoir / Tank / Behälter / Tanque / Tank / Serbatoio / Zbiornik	S81191
6	Coupleur DP9 rouge / DP9 red coupler / DP9-Kupplung rot / Acoplador DP9 rojo / Koppeling DP9 rood / Commutatore DP9 rosso / Złącze DP9 czerwona	71695
7	Coupleur DP9 bleu / DP9 blue coupler / DP9-Kupplung blau / Acoplador DP9 azul / Koppeling DP9 blauw / Commutatore DP9 blu / Złącze DP9 niebieska	71691
8	Bouchon de remplissage / Fill plug / Einfüllstutzen / Tapón de envase / Vuldop / Tappo del serbatoio / Korek wlewu paliwa	71299
9	Patin / Pad / Kunststoff-Schutzecken / Soporte / Beschermdopje / Distanziale / Stopka 56120
10	Ventilateur / Fan / Lüfter / Ventilador / Ventilator / Ventilatore / Wentylator	51238
11	Pompe / Pump / Pumpe / Bomba / Pomp / Pompa / Pompa 55309
12	Capteur de température / Temperature sensor / Temperatursensor / Sensor de temperatura / Temperatuursensor / Sensore di temperatura / Czujnik temperatury	52107

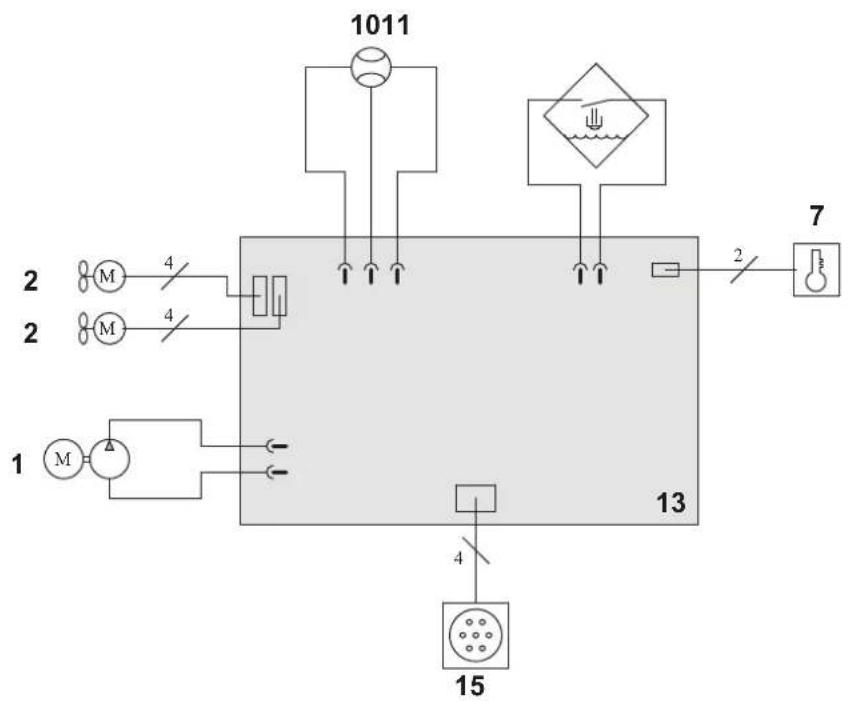

CIRCUIT DIAGRAM / SCHALTPLAN / DIAGRAMA ELECTRICO / ЭЛЕКТРИЧЕСКАЯ СХЕМА / ELEKTRISCHE SCHEMA / SCEMA ELETTRICO

KOOLWELD 1


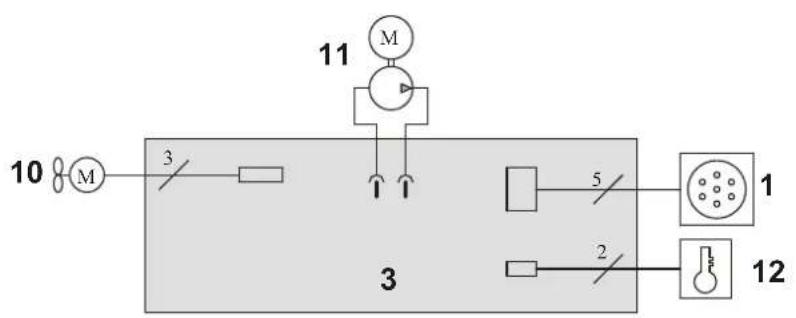

KOOLWELD 4

TECHNICAL SPECIFICATIONS / TECHNISCHE DATEN / ESPECIFICACIONES TÉCNICAS / ТЕХНИЧЕСКИЕ СПЕЦИФИКАЦИИ / TECHNISCHE GEGEVENS / SPECIFICHE TECNICHE

	KOOLWELD 1 KOOLWELD 4
Primaire / Primary / Primär / Primario / Первичка / Primaire / Primario
Tension d'alimentation / Power supply voltage / Versorgungsspannung / Tensión de red eléctrica / Напряжение питания / Voedingsspanning / Tensione di alimentazione	U1 24 V
Puissance de refroidissement à 1l/min à 25°C / Cooling power at 1l/min at 25°C / Kühleistung bei 1l/min bei 25°C / Potencia de refrigeración a 1l/min a 25°C/ Мощность охлаждения 1 л/мин при 25°C / Koelvermogen 1l/min bij 25°C / Potenza di raffreddamento a 1l/min à 25°C	1 kW
Facteur de correction à 40°C / Correction factor 40°C / Korrekturfaktor bei 40°C / Factor de corrección a 40°C / Коэффициент коррекции при 40°C / Correctiefactor bij 40°C / Ciclo di correzione a 40°C	0.58 0.63
Pression maximale / Maximum pressure / Maximaler Druck / Presión máxima / Максимальное давление / Maximale druk / Pressione massima / Maximale druk	Pmax	0.48 MPa(70 psi)
Capacité réservoir / Tank capacity / Füllmenge (Kühlflüssigkeit) / Capacidad del tanque / Вместимость резервуара / Tankcapaciteit / Capacità del serbatoio	3 L(0.66 gal US)
Température de fonctionnement / Functioning temperature / Betriebstemperatur / Temperatura de funcionamiento / Рабочая температура / Gebruikstemperatuur / Temperatura di funzionamento	-10°C → +40°C
Température de stockage / Storage temperature / Lagertemperatur / Temperatura de almacenaje / Температура хранения / Bewaar-temperatuur / Temperatura di stoccaggio	-20°C → +55°C
Degré de protection / Protection level / Schutzart / Grado de protección / Степень защиты / Beschermingsklasse / Grado di prote-zione	IP23
Dimensions (Lxlxh) / Dimensions (LxWxH) / Abmessungen (Lxbxt) / Dimensiones (Lxlxh) / Размеры (ДхШхВ) / Afmetingen (Lxlxh) / Dimensioni (Lxlxh)	56 x 23 x 26 cm
Poids / Weight / Gewicht / Bec / Peso / Gewicht / Peso 14 kg 13 kg

SYMBOLS / ZEICHENERKLÄRUNG / ICONOS / СИМВОЛЫ / РИСТОGRAMMEN / ICONE / IÇONES / IKONY / IKONER

	FR Attention I Lire le manuel d'instruction avant utilisation. EN Warning! Read the user manual before use. DE ACHTUNG! Lesen Sie diese Anleitung sorgfältig durch vor Inbetriebnahme des Geräts. ES ¡Atención! Lea el manual de instrucciones antes de su uso. RU Внимание! Прочтите инструкцию перед использованием. NL Let op! Lees aandachtig de handleiding. IT Attenzione! Leggere il manuale d'istruzioni prima dell'uso. PT Atenção! Ler o manual de instruções antes de usar. PL Uwaga! Przed użyciem należy uważnie przeczytać instrukcję obsługi.
	FR Alimentation électrique continue EN Continuous power supply DE Kontinuierliche Stromversorgung ES Alimentación continua RU Непрерывное электролитание NL Ononderbroken stroomvoorziening IT Alimentazione continua PT Alimentação eléctrica continua PL Ciągłe zasilanie.
[6A3T]	FR Tension assignée d'alimentation EN Assigned voltage DE Netzspannung ES Tensión asignada de alimentación eléctrica. RU Номинальное напряжение питания NL Nominale voedingsspanning IT Tensione nominale d'alimentazione PT Tensão de alimentação PL Napiecie znamionowe zasilania.
[6E7T]	FR Volt EN Volt DE Volt ES Voltio RU Вольт NL Volt IT Volt PT Volt PL Wolt
[5T74]I1max(W23T)	FR Courant d'alimentation assigné maximal (valeur efficace) EN Maximum rated power supply current (effective value). DE Maximaler Versorgungsstrom ES Corriente de alimentación eléctrica asignada máxima (valor eficaz). RU Максимальный сетевой ток (эффективное значение) NL Maximale nominale voedingsstroom (effectieve waarde) IT Corrente d'alimentazione nominale massima (valore effettivo) PT Corrente de alimentação nominal máxima de alimentação (valor eficaz) PL Maksymalny prąd znamionowy zasilania (wartość skuteczna).
[HCXK]	FR Ampères EN Amperes DE Ampere ES Amperios RU Амперы NL Ampère IT Amper PL Ampères PL Ampery
*[ADAC]	FR Groupe froid EN Cooling unit system DE System der Kühleinheit ES Sistema de refrigeración de la unidad RU Система охлаждения NL Koelgroep IT Unità di raffreddamento PT Sistema de unidade de arrefecimento PL System agregatu chłodzącego
[6V8B]	FR Puissance de refroidissement pour 1Litre par minute EN Cooling capacity for 1 litre per minute DE Kühleistung für 1 Liter pro Minute ES Capacidad de enfriamiento de 1 litro por minuto RU Охлаждающая способность 1 litr в минуту NL Koelcapaciteit voor 1 liter per minuut IT Capacità di raffreddamento per 1 litro al minuto PT Capacidade de arrefecimento de 1 litro por minuto PL Wydajność chłodzenia dla 1 litra na minutę
[2CAX]	FR Kilowatt EN Kilowatt DE Kilowatt ES Kilovatios RU Киловатт NL Kilowatt IT Kilowatt PT Kilowatt PL Kilowat
[2RCW]	FR Pression maximale en sortie EN Maximum outlet pressure DE Maximaler Ausgangsdruck ES Presión máxima de salida RU Максимальное давление на выходе NL Maximale uitaatrudk IT Pressione massima in uscita PT Pressão máxima de salida PL Maksymalne ciśnienie wylotowe
[2D4S]	FR Megapascal EN Megapascal DE Megapascal ES Megapascal RU Megapascal NL Megapascal IT Megapascal PT Megapascal PL Megapaskal
	FR Entrée de liquide de refroidissement EN Cooling liquid input. DE Wasservorlauf ES Entrada de líquido de refrigeración. RU Вход для охлаждающей жидкости. NL Ingang koelvloeistof. IT Entrata di líquido di raffreddamento PT Entrada do líquido de arrefecimento PL Wlew płynu chłodzącego
[2WKX]	FR Sortie de liquide de refroidissement EN Cooling liquid output. DE Wasserrücklauf ES Salida de líquido de refrigeración. RU Выход для охлаждающей жидкости. NL Afvoer koelvloeistof IT Uscita di líquido di raffreddamento PT Saida do líquido de arrefecimento PL Odpływ płynu chłodzącego
	FR Niveau maximum de liquide de refroidissement EN Maximum coolant level DE Maximaler Kühmittelstand ES Nivel máximo de refrigerante RU Максимальный уровень охлаждающей жидкости NL Maximum koelvloeistofpeil IT Livello massimo del refrigerante PT Nivel máximo de refrigerante PL Maksymalny poziom płynu chłodzącego
[1ZMH]	FR Niveau minimum de liquide de refroidissement EN Minimum coolant level DE Minimaler Kühmittelstand ES Nivel mínimo de refrigerante RU Минимальный уровень охлаждающей жидкости NL Minimum koelvloeistofpeil IT Livello mínimo del refrigerante PT Nivel mínimo de refrigerante PL Minimalny poziom płynu chłodzącego
[1XTC]	FR Matériel conforme aux Directives européennes. EN Device complies with europeans directives. DE Gerät entspricht europäischen Richtlinien. ES Aparato conforme a las directivas europeas. RU Устройство соответствует директивам Еврессюза. NL Apparaat in overeenstemming met de Europese richtlijnen. IT Materiale in conformità alle Direttive europee. PT Aparelho conforme às diretivas européias. PL Urządzenie jest zgodne z dyrektywami europejskimi. DA Enheden overholder europäiske direktiver.
[2476]	FR Matériel conforme aux exigences britanniques. EN Equipment in compliance with British requirements. DE Das Gerät entspricht den britischen Richtlinien und Normen. ES Equipo conforme a los requisitos británicos. RU Материал соответствует требованиям Великобритании. NL Materiaal conform aan de Britse eisen. IT Materiale conforme alla esigenze britanniche. PT O equipamento atende às exigências británicas. PL Wyposażenie spełnia wymogi brytyjskie.
	FR Matériel conforme aux normes Marocaines. EN Equipment in conformity with Moroccan standards. DE Das Gerät entspricht die marokkanischen Standards. ES Equipamiento conforme a las normas maroquíes. RU Товар соответствует нормам Марокко. NL Dit materiaial voldoet aan de Marokkaanse normen. IT Materiale conforme alle normative marocchine. PT Equipamento em conformidade com as normas maroquinas. PL Urządzenie zgodne ze standardami marokanskimi .
IEI [1227]	FR L'appareil respecte la norme EN 60974-2. EN This product is compliant with standard EN 60974-2. DE Das Gerät entspricht der Norm EN 60974-2. ES El aparato es conforme a las normas EN60974-2. RU Аппарат соблюдает нормы EN 60974-2. NL Het apparaat voldoet aan de norm EN 60974-2. IT I dispositivo rispetta la norma EN 60974-2. PT O dispositivo está em conformidade com a norma EN 60974-2. PL Urządzenie spełnia wymagania normy EN 60974-2.
	FR Ce matériel faisant l'objet d'une collecte sélective selon la directive européenne 2012/19/UE. Ne pas jeter dans une poubelle domestique ! EN This hardware is subject to waste collection according to the European directives 2012/19/EU. Do not throw out in a domestic bin ! DE Für die Entsorgung Ihres Gerätes gelten besondere Bestimmungen (sondermüll) gemäß europäische Bestimmung 2012/19/EU. Es darf nicht mit dem Hausmüll entsorgt werden! ES Este material requiere una recogida de basuras selectiva según la directiva europea 2012/19/UE. ¡No tirar este producto a la basura doméstica! RU Это оборудование подлежит переработке согласно директиве Евросюзка 2012/19/UE. Не выбрасывать в общий мусоросборник! NL Afzonderlijke inzamingi vereist volgens de Europese richtlijn 2012/19/UE. Gooi het apparaat niet bij het huishoudelijk afval ! IT Questo materiale è soggetto alla raccolta differenziata seguendo la diretiva europea 2012/19/UE. Non smallire coni rifiuti domestici! PT Este produto está sujeito à coleta seletiva de acordo com a diretiva europeia 2012/19 / UE. Não jogar no lixo doméstico. PL Urządzenie to podlega selektywnej zbiorce odpadów zgodnie z dyrektywą UE 2012/19/UE. Nie wyrzucać do zwykłego kosza!
	FR Produit recyclable qui relève d'une consigne de tri. EN This product should be recycled appropriately DE Producingprodukt, das gesondert entsorgt werden muss. ES Producto reciclable que requiere una separación determinada. RU Этот annapat подлежит утилизации. NL Product recyclebaar, niet bij het huishoudelijk afval goien IT Prodotto riciclable soggetto a raccolta differenziata. PT Produto reciclável que se enquadra em uma ordem de classificação. PL Produkt nadaje się do recyklingu zgodnie z instrukcjami sortowni.
	FR Marque de conformité EAC (Communauté économique Eurasienne) EN EAEC Conformity marking (Eurasian Economic Community). DE EAC-Konformitätszeichen (Eurasische Wirtschaftsgemeinschaft) ES Marca de conformidad EAC (Comunidad económica euroasítica). RUЗнак соответствия EAC (Евраэйское экономическое сообщество) NL EAC (Eurazialische Economische Gemeenschap) merkteken van overeenstemming IT Marca di conformità EAC (Comunità Economica Euraslatica) PT Marca de conformidade EAC (Comunidade Económica da Eurásia) PL Znak zgodności EAC (Euroazjatyckiej wspólnoty Gospodarczej)

GYS France

Siège social / Headquarter
