TX602B - Cultivator Texas - Free user manual and instructions

Product type	Tiller cultivator
Brand	Texas
Model	TX602B
Dimensions (L x W x H)	1250 x 570-850 x 1240 mm
Weight	58.5 kg
Fuel	Unleaded petrol E5
Engine	B&S XR950, 208 CC, 4.5 kW at 3600 rpm
Transmission	1 forward speed, 1 reverse speed
Working width	36 – 85 cm (adjustable)
Working depth	33 cm
Blade rotation speed	110 rpm
Sound level (LwA)	101 dB
Sound pressure (LpA)	83.2 dB
Vibrations (handle)	6.84 / 7.50 m/s² ±1.5 m/s²
Main functions	Tilling, milling, use of accessories (plough, harrow, etc.)
Safety	Emergency stop, safety zone, mandatory PPE
Maintenance	SAE-30 oil change, air filter cleaning, spark plug maintenance
Spare parts	Available at www.texas.dk

Frequently Asked Questions - TX602B Texas

How to start the engine of the Texas TX602B?

Set the throttle control to maximum, activate the choke (cold engine), then pull the starter cord. Once the engine starts, reduce the choke and set the throttle to low position.

What engine oil to use and how to drain it?

Use SAE-30 oil. The first oil change is after 5 hours of operation, then once a year. Run the engine for 5 minutes to warm the oil, stop it, remove the drain plug, and collect the used oil in a suitable container.

How to adjust the working depth?

The depth is adjusted via the depth skid: push it more or less into the ground. The deeper it is pushed, the deeper the blades work and the slower the forward speed. Test different positions depending on soil conditions.

Which accessories are compatible with the TX602B?

Many accessories are available: ridging plough, harrow, rake, scarifier, snow blower, etc. They attach using the rear hook or the mounting plate.

How to maintain the air filter?

Clean the air filter regularly. Remove the cover, take out the paper filter and gently brush it. Wash the foam pad with soapy water, dry it, then soak it with a few drops of SAE-30 oil before reassembling.

What to do if the blades do not rotate?

Check that stones are not stuck between the blades. If so, detach the blades to remove them. Also check the condition and installation of the cables, belt, and belt tensioner.

What safety precautions are essential?

Wear fitted clothing, gloves, ear protectors, and steel-toed boots. Never leave the safety zone with the engine running. Stop the engine before any adjustment or inspection.

How to store the tiller for winter?

Clean it thoroughly with water, remove grass and dirt from the rotor shaft. Wipe surfaces with an oiled cloth to prevent corrosion. Store in a dry and clean place.

Where to find spare parts?

The parts list is available on www.texas.dk. You can order from authorized dealers. Have the item reference handy.

What to do if the engine does not start?

Check the fuel control, spark plug, and fuel level. Make sure you have fresh petrol. Also refer to the separate engine instructions.

USER MANUAL TX602B Texas

1. Kun for model TX601 / TX611:

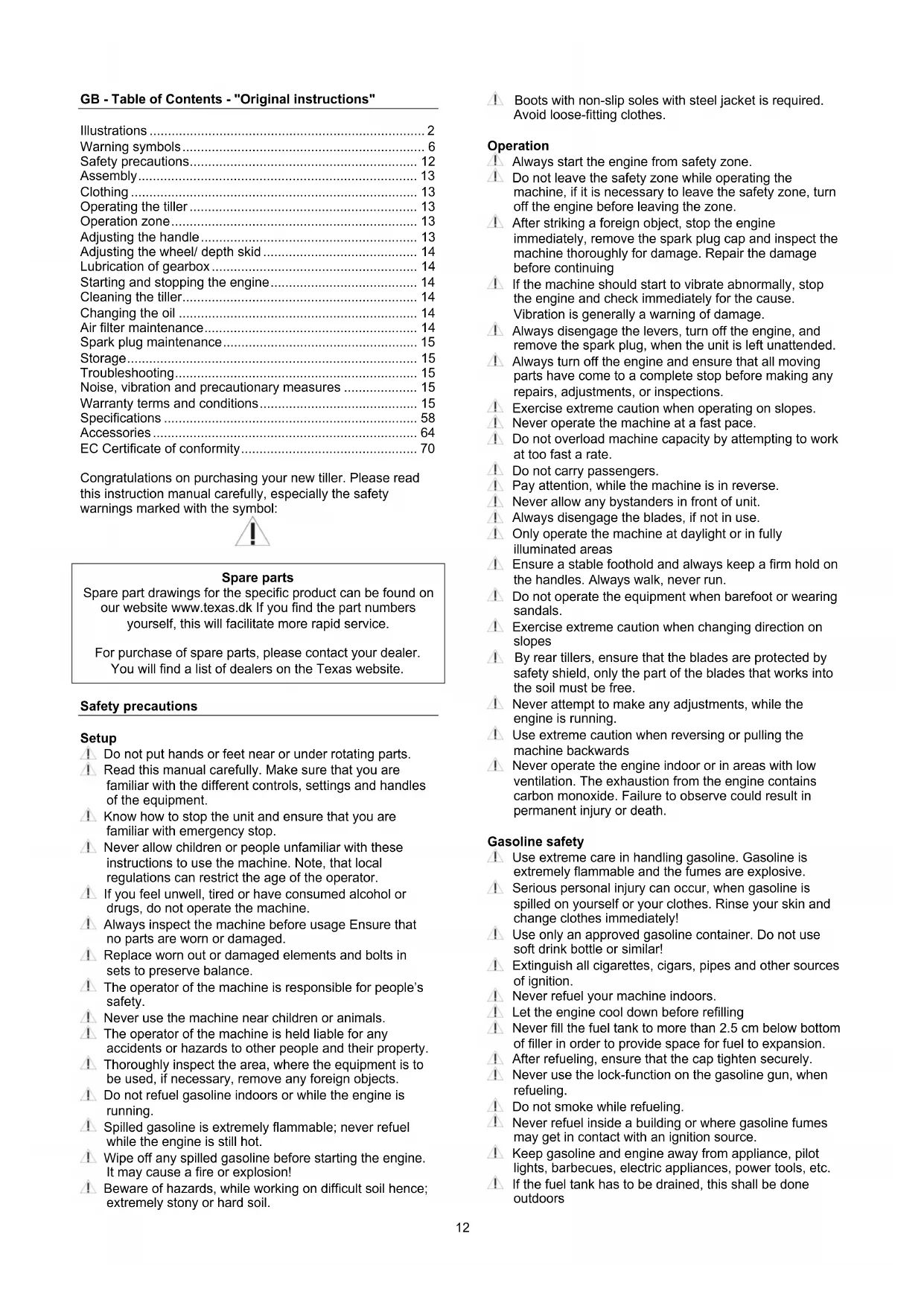

GB - Table of Contents - "Original instructions"

Illustrations 2

Warning symbols. 6

Safety precautions 12

Assembly 13

Clothing 13

Operating the tiller 13

Operation zone 13

Adjusting the handle 13

Adjusting the wheel/depth skid 14

Lubrication of gearbox 14

Starting and stopping the engine 14

Cleaning the tiller. 14

Changing the oil 14

Air filter maintenance 14

Spark plug maintenance 15

Storage 15

Troubleshooting. 15

Noise, vibration and precautionary measures 15

Warranty terms and conditions. 15

Specifications 58

Accessories 64

EC Certificate of conformity. 70

Congratulations on purchasing your new tiller. Please read this instruction manual carefully, especially the safety warnings marked with the symbol:

Spare parts

Spare part drawings for the specific product can be found on our website www texas.dk If you find the part numbers yourself, this will facilitate more rapid service.

For purchase of spare parts, please contact your dealer. You will find a list of dealers on the Texas website.

Safety precautions

Setup

Do not put hands or feet near or under rotating parts.

4 Read this manual carefully. Make sure that you are familiar with the different controls, settings and handles of the equipment.

4 Know how to stop the unit and ensure that you are familiar with emergency stop.

Never allow children or people unfamiliar with these instructions to use the machine. Note, that local regulations can restrict the age of the operator.

If you feel unwell, tired or have consumed alcohol or drugs, do not operate the machine.

Always inspect the machine before usage Ensure that no parts are worn or damaged.

Replace worn out or damaged elements and bolts in sets to preserve balance.

4 The operator of the machine is responsible for people's safety.

Never use the machine near children or animals.

The operator of the machine is held liable for any accidents or hazards to other people and their property.

4 Thoroughly inspect the area, where the equipment is to be used, if necessary, remove any foreign objects.

4 Do not refuel gasoline indoors or while the engine is running.

Spilled gasoline is extremely flammable; never refuel while the engine is still hot.

Wipe off any spilled gasoline before starting the engine. It may cause a fire or explosion!

Beware of hazards, while working on difficult soil hence; extremely stony or hard soil.

1 Boots with non-slip soles with steel jacket is required. Avoid loose-fitting clothes.

Operation

Always start the engine from safety zone.
1 Do not leave the safety zone while operating the machine, if it is necessary to leave the safety zone, turn off the engine before leaving the zone.
After striking a foreign object, stop the engine immediately, remove the spark plug cap and inspect the machine thoroughly for damage. Repair the damage before continuing
If the machine should start to vibrate abnormally, stop the engine and check immediately for the cause. Vibration is generally a warning of damage.
Always disengage the levers, turn off the engine, and remove the spark plug, when the unit is left unattended.
Always turn off the engine and ensure that all moving parts have come to a complete stop before making any repairs, adjustments, or inspections.
Exercise extreme caution when operating on slopes.
1 Never operate the machine at a fast pace.
1 Do not overload machine capacity by attempting to work at too fast a rate.
Do not carry passengers.
Pay attention, while the machine is in reverse.
Never allow any bystanders in front of unit.
Always disengage the blades, if not in use.
Only operate the machine at daylight or in fully illuminated areas
Ensure a stable foothold and always keep a firm hold on the handles. Always walk, never run.
Do not operate the equipment when barefoot or wearing sandals.
Exercise extreme caution when changing direction on slopes
By rear tillers, ensure that the blades are protected by safety shield, only the part of the blades that works into the soil must be free.
1 Never attempt to make any adjustments, while the engine is running.
Use extreme caution when reversing or pulling the machine backwards
1 Never operate the engine indoor or in areas with low ventilation. The exhaustion from the engine contains carbon monoxide. Failure to observe could result in permanent injury or death.

Gasoline safety

Use extreme care in handling gasoline. Gasoline is extremely flammable and the fumes are explosive.
1 Serious personal injury can occur, when gasoline is spilled on yourself or your clothes. Rinse your skin and change clothes immediately!
Use only an approved gasoline container. Do not use soft drink bottle or similar!
Extinguish all cigarettes, cigars, pipes and other sources of ignition.
1 Never refuel your machine indoors.
1. Let the engine cool down before refilling
1 Never fill the fuel tank to more than 2.5cm below bottom of filler in order to provide space for fuel to expansion.
After refueling, ensure that the cap tighten securely.
1 Never use the lock-function on the gasoline gun, when refueling.
Do not smoke while refueling.
1 Never refuel inside a building or where gasoline fumes may get in contact with an ignition source.
1 Keep gasoline and engine away from appliance, pilot lights, barbecues, electric appliances, power tools, etc.
If the fuel tank has to be drained, this shall be done outdoors

Maintenance and storage

4 The engine shall be stopped when carrying out maintenance and cleaning operations, when changing tools and when being transported by means other than under its own power.
4 Check regularly that all bolts and nuts are tightened. Retighten if necessary.
The engine must be completely cooled before storing indoors or covered.
If the machine unused for a period of time, please refer to the instructions in this manual.
4. Maintain or replace safety and instruction labels, as necessary.
Only use original spare parts or accessories. If not original parts or accessories is used, the liability is no longer applied.
Replace faulty silencers.

Miscellaneous

The gears are delivered pre-greased. However, always ensure they are well greased before each use.
The motor is not pre-filled with oil.
Factory-fitted control devices, such as the handle-mounted clutch cable, must not be removed or exposed.
Only drain the fuel tank outdoors. Gasoline is extremely flammable and the fumes are explosive.
Ensure that the machine is properly secured when transported on a flatbed etc.
4 Reduce the throttle during engine shutdown and close the fuel valve.
Due to vibrations, it is recommended to take a break for every 30 minutes use to avoid fatigue in your arms.

Assembly

Please follow the steps in figure:

(Actual model may vary from the illustration shown.)

1. Box content

A. Extension blades
B. Tiller with cables and support wheels
C. Blades Outer
D. Side guards
E. Handlebar (TX602/TX612)
F. Depth skid
G. Bumper

H. Mounting bracket for handlebar (TX602/TX612)
I. Lower handle x2 (TX601/TX611)
J. Handlebar (TX601/TX611)

1. Only for model TX601 / TX611

Fit the lower handle section. Use the supplied mountings and bolts.

Fit the handle. Use the supplied assembly kit as shown.

1. Only for model TX602 / TX612
   Fit the handle into the bracket (1-H) fasten with hand wheel.
   NB: Ensure the bolt goes through the spring.
2. Mount clutch handle as shown on the picture.
3. Mount the side guards using the bolts and nuts supplied. Note the side guard has to go under the body.
4. Attach the bumper using the bolts and nuts supplied.
5. Mount the blades using the cotter bolts and pins.

Fitting the panel on the handlebars.

This section only applies to the models TX602B and TX612TG

The parts for the panel in the handlebars are shown and described in Figure 13.

A. Plastic panel
B. Handlebars
C. Throttle
D. Screw for throttle
E. Screw hole for fitting panel on handlebar

Assembly

Start by fitting the throttle (C) using the two accompanying screws (D) on the rear of the panel (A).

Next, screw the panel (A) securely to the handlebar (B) in the screw holes (E) using the accompanying screws that are with the manual.

Fill the motor with oil.

See changing the oil section for more details.

Clothing

When using the machine, wear close-fitting work clothes, hard-wearing work gloves, ear defenders and non-slip boots with steel toecaps.

Operating the tiller

Ensure the machine is placed on a level surface with the support wheels lowered prior to start.
1 Remove all foreign objects from the work area before using the machine. Stones, glass, branches and similar items may damage the tiller. Also check the bolts on the tiller are tightened.
1 Start the motor as per the instructions below. Stand clear of the machine's moving parts.
1 Never attempt to move the machine in any way other than intended for normal use while the motor is running.

The tiller is designed for use in vegetable gardens and flowerbeds. Ensure that you are familiar with these instructions before operating the machine, in particular the motor start and stop procedures.

Fig 10B: To use the black handle the control stick must first be activated. By tilting the control stick to the right or left side and then activate the black handle lever, the tiller will move forward or backwards.

Pay attention while reversing. It is important that the area is cleared, for any obstacle before reversing. Never reverse the tiller against a wall, tree or any other fixed obstacle.

Operation zone

While the machine is being operated and the motor is running, do not leave the operation zone marked fig 11. If it is necessary to leave the operation zone, for example to attach an accessory, first stop the engine.

It is normally necessary to drive the tiller over a section of earth 2-3 times from different directions. Do not till very wet soil, as clods of earth will form that are difficult to break up.

Adjusting the handle

TX602 model only: Fig 3. The handle angle can be adjusted. Use the two hand wheels to set one of the 3 available positions. The handle can be flipped forward during transport. NB: Ensure the cables do not become trapped.

Adjusting the wheel/ depth skid

Fig 12. During operation, it may be necessary to raise the wheel assembly, as it is connected to the depth skid. Depress the pedal to the right of the support wheels to adjust the wheel assembly/depth skid to one of the 3 available positions.

The depth skid can be set to 3 different depths. The deeper it extends into the soil, the deeper the tilling blades will work and the slower the machine will advance. Setting the correct tilling depth will significantly reduce the effort required. The depth skid should always be adjusted to suit the ground conditions. We recommend testing several depths to see which works best.

Lubrication of gearbox

The gearbox is permanently lubricated at the factory, never open the gearbox.

Starting and stopping the engine

Remember: Always check the oil level prior to use!

The oil level must always be between the min. and max. Mark on the dipstick. Always use SAE-30 oil. Use only unleaded E5 gasoline. Never over-fill the gas tank.

Warning: Stay out of dashed zone, while starting the engine! Always start the engine from dotted operation zone See Figure 9.

Starting the engine See fig. 10

1. Set the throttle control on the handle to max.
2. Position the choke at max. Move the choke lever fully to the left. The choke is not required if the motor is hot.
3. Pull the start cord to start the motor. Always feed the start cord back into the motor by hand.
4. When the motor is started, set the choke to minimum (fully to the right) Engage the throttle slightly.

Stopping the engine

1. Set the throttle control to "low" and let the motor run for approx. 30 seconds.
2. When the motor idles, set the throttle control to full stop.

Use the toolbox underneath the breastplate to keep tools handy. Fig 8.

Vibrations may travel up into the handle during use. We therefore recommend taking a break every 30 minutes.

Important - Adjustment of clutch cables before use:

1. Start the engine on tiller and lift the blades, so they don't touch the ground.
2. Activate the clutch handle slowly (forward and reverse) to find the point where blades start to turn around - and then at that point measure the distance between grip and outer plastic handle. See fig. 14+15.

It is recommended to be 2 persons doing this: One that holds the tiller and activate clutch handle and one that adjust the cables.

Forward:

The forward belt should first be activated (blades start to rotate), when the clutch handle is 80mm above the grip. Then the belt will not slide on the pulley.

Reverse:

The reverse belt should first be activated (blades starts to rotate), when the clutch handle is 30mm above the grip. This to avoid that the reverse belt is too tight and being activated unintendedly and thereby becomes warm and risks to shrink.

If the belt is activated with a different distance, adjust the clutch cable for forward and/or reverse by following this procedure:

The clutch cable can be adjusted both on the clutch handle or behind the belt cover on machine. See fig.16+17.

It doesn't matter which place to tighten it.

1. Loosen the nut (A)

2. Adjust the bolt (B):

3. Clockwise will loosen the cable (+)

4. Anti-clockwise will tighten the cable (-)
5. Find the right adjustment to get the recommended distance between grip and handle
6. Tighten the nut (A)

It is recommended to check above again after the first 30 min use. And then every 5 hours (and before first time's use each year). This will extend the lifetime of the belts.

Cleaning the tiller

The tiller should be cleaned after use. Use a garden hose to wash off soil and dirt. Remove any grass, etc. from the rotor shaft. The chassis number should only be cleaned with a damp cloth to avoid unnecessary wear. Avoid using a high-pressure washer during cleaning.

Changing the oil

The oil should initially be changed after the first 5 hours of use, and thereafter once per year.

1. Let the motor run for 5 minutes to heat up the oil. This allows the oil to run more freely and makes for a more complete oil change.
2. After 5 minutes, stop the motor. Remove the spark plug cap. Drain the oil by unscrewing the sump plug. Remember to drain the oil into a container of sufficient capacity. NB: The motor must not be tipped backwards more than 45 degrees.
3. Screw the sump plug back in and pour new oil into the motor. Do this by removing the dipstick and pouring in the recommended quantity of oil.
4. Refit the spark plug cap.

Alternatively, use an oil extractor kit.

1. Suck the oil up through the oil filler hole using the syringe. Use the hose to reach the sump.
2. Transfer the used oil to the container.
3. Fill the engine with new SAE-30 oil.
4. Check the oil level using the dipstick.

Remember to dispose of used oil in a safe way. Oil and oil extractor kit are not included

Air filter maintenance

Please inspect and clean the air filter on a regular basis. If the filter has not been cleaned for a longer period, this will have influence on the engines power take-off and the exhaustion.

1. Clean around the air filter before it is removed.
2. Carefully remove the paper filter and check it. Brush it with a soft brush. If it is very dirty, it must be changed. Take care that no dirt gets into the intake of the engine.

3. Wash the black foam element on the right side in warm soapy water.

4. Press the water out of the foam element and let it dry. Put a few drops of SAE-30 oil on the filter to moisten it lightly with oil. Carefully squeeze out any surplus oil. Remount the element.

5. Check that all parts are fitted correctly, and the cover closed as shown in the picture.

Spark plug maintenance

• Remove the spark plug cap.
• Brush away any dirt and deposit of the spark plug.
• Loosen the spark plug using a spark plug socket.
• Check the insulation is intact.
• Clean the spark plug using a wire brush.
  Measure the electrode gap 0.7 - 0.8mm Avoid damaging the electrode.
• If it is damaged, replace it with a new one.
• Refit the spark plug.
• Refit the spark plug cap.

Storage

• If the machine is likely to be stored unused for prolonged periods, follow the instructions below. This will ensure longer machine lifetime.
• Use a garden hose to wash off soil and dirt. Remove any grass, etc. from the rotor shaft. The chassis number should only be cleaned with a damp cloth to avoid unnecessary wear. Avoid using a high-pressure washer during cleaning.
• Wipe the tiller with a damp cloth so that all surfaces are clean. Wipe the surfaces down with an oily cloth to prevent rust.
  Always store the machine in a dry, clean location.

Troubleshooting

The motor will not start

1. Check the fuel control is set correctly.
2. Check the spark plug.
3. Check there is fresh gas in the tank.
4. See separate motor instructions for further troubleshooting.

The motor is not running smoothly

1. Ensure the throttle control is not set to max.
2. Check there is fresh gas in the tank.

The blades will not rotate

1. Check for stones lodged between the blades.
2. Release any stones by removing the blades.
3. Check the cables are in good working order and fitted correctly.
4. Check the belt is in good working order and fitted correctly.
5. Ensure the belt tensioner is adjusted correctly.

The blades will not stop

1. Stop the engine and contact your dealer.

Noise, vibration and precautionary measures

1. Long-term exposure to noise levels exceeding 85 dB (A) are damaging. Always use ear defenders when the machine is being used.
2. Reduce the running speed of the motor to reduce vibration and noise levels.
3. To reduce noise levels further, only use the machine in an open environment.
4. Vibrations can be reduced further by holding the handle firmly.

5. To avoid disturbing others, the machine should only be used during the daytime.

6. Always wear close-fitting work clothes, hard-wearing work gloves, ear defenders and non-slip boots with steel toecaps.

7. Take a 30-minute break every 2 working hours.
8. A worn belt has to be replaced/ serviced by a authorized dealer

Warranty terms and conditions

The warranty period is 2 years for private end users in EU countries.

Products sold for commercial use, only have a warranty period of 1 year.

The warranty covers material and/or fabrication faults.

Restrictions and requirements

Normal wear and replacement of wearing parts are NOT covered by the warranty.

Wearing parts, which are NOT covered for more than 12 months:

Blades
Cables
Belts
Switches
- Membranes/gaskets
Spark plugs
- Engine liquids (oil, gasoline)
- Starter cords
- Filters

If you start the engine without adding oil, it will be damaged and cannot be repaired and therefore not covered by the warranty.

The warranty does NOT cover damages/faults caused by:

• Lack of service and maintenance
  Structural changes
• Exposure to unusual external conditions
• Damages to the bodywork, deck, handles, panels etc.
• If the machine has been improperly used or overloaded
• Wrong use of oil, gasoline or other liquid types, which are not recommended in this user manual
• Bad or dirty gasoline, which results in contamination of the fuel system
• Use of unoriginal spare parts.
• Other conditions where Texas cannot be held responsible.

Whether a case is a warranty claim or not is determined in each case by an authorized service center.

Your receipt is your warranty note, why it should always be kept safe.

REMEMBER: The purchase of spare parts as well as any request for warranty repair, model number, year and serial number should always be informed. It can be found on the CE-label on the machine!

• We reserve the right to change the conditions and accept no liability for any misprints

UcTaHOBtB HnXHIOU qaTb pyJN. IcNoIb3yIte npIraeMbl KOMPNeKT KpeJIeHn I 60NTOB.

YcTaHOBnte pyIb. IcNoJIb3yIte NoCTaBnEMyk KOMJIneKT dIra c6OpKn, KaK Noka3aHo Ha pncyHke.

1. TOnbkoДЯМоDEЛN TX 602 / TX612

YctaHOBnTe pyKy B KPOHHTeH (1-H) 3akpenTe 6apaKoM.

NB:Y6eDInTeScb,HTo 60JTI npoxOAnT Upe3 npyKHy.

1. YcTaHOBInTe pyUky CUnenNHeHn, KaK nOKa3aHo Ha pncyHKe.
2. YctaHOBnTe PIIactIKOBbIe KpbJIbIc NOMOJIbIO 60JTOB IraEK N3 KOMJIeKTA NOCTaBKn. O6paTIne BHHMaHHe, YTO KpbJIbIy YcTaHaBaINBaIOTcN oD metaJIINueckn KOxyX.
3. YcTaHOBnTe 6amnep C NOMOuIbIO 6oITOB n raeK n3 KOMnJIeKTA NOCTaBKn.
4. YcTaHOBnTeΦpe3bIC NOMOuBIO MetaJIINueCKNX NaJIbueB uINJInHTOB.

YcTaHOBka NaHeJIHa pyKoTkax.

OuHCTka KylbTnBaTopa

CneNyET BbINONHtB ONUCTKy KylbTbBaTopa nocNe nCNOJIb3OBAHn. Ppi NOMOu CaIOBOro UHaHa r CMOIte noBy n TpAaNTe TpaBy n T. n C BaJa cpe3. Homep Ha WACCn CneNyET npOuNAtb ToNbKO BnaxHOJ TkaHbU, B npOTNBHom Cnyae erO MOxHO NOBpeDntb. He npOn3BOJNTe ONUCTKy BODo NOD BBICOKM DaBHeHem.

3aMeHa MacJa

B nepbB pa3 macno B dBnurateJe Heo6xOJMo 3aMeHNTb nocne nepbbix 5 yacob kcnnyatau, 3aTeM MeHrTb er0 oDn pa3 B roD INo60 pa3 B 25 acob B 3aBNCMOCTN OT TORO, qTO HAcTyIPT paHee.

1. 3anyctnte DbrarateJIb Ha 5 MNHyT, yTO6bl MacNo nporpeneocb. BnarOapra 3tOMy MaCNO TeUeT IerYe n npOn3BODNTc60Jee NoJIHb CnIB Macna.
2. Yepe3 5 MInHyT 3aIpyuHte DBrarateJIb.CHMnTe KOJNaUOK CO CBeUH 3aXKurHaH.N.CneIe MaCIO, BblkpyTNB np6Ky KapTepa.He 3a6ydbTe NOcCTaBHTb KOHTeHep DOCTaTOHOrO o6bema dNra CINBa Macna. O6paTIte BHMaHHe: DBrarateJIb DOJIkeH 6blt HaKIOHeH BnepeD Bolee Yem Ha 45^
3. Bkpynte npo6ky Kaptepa Ha MeTo n 3aJeTe HOBoe MacNo B DnIraTeJIb. IJr 3TO rO ydaIne uyn n 3aJeTe peKOMeHDoBaHHoe KOnuHeCTBO MacJa.
4. YctaHOBNTe KOJNaQK CBeu3aJnraHn Ha MeCTO.

Takke MoKHO NcNoB3OBaTB Ha6Op CO UnpnueM dIy 3aMeHb MaCna. Ira 3TOrO:

1. YdaHnTe MacNo uepe3 MacNoHaJIINBHOe OTBepCTne C NOMObIoo Wnpuca. NcNoIb3yJte WJaHr DnA BBeDeHnB KApTep.CneTe Otpa6oTaHHe macNo B KOHTeHep.
2. 3aJIeIe TB DnBraTeJIb HOBoE MaCNo Tnna SAE-30.
3. PpOBeBpTe yPoBeHb MaCn c NOMoU bU yua.

IOMHnTe, yTO yTINn3aunr Otpa6oTaHHOrO MaCna DOnJXHa BbINOHNbC r C06JIIODeHnEM HOpM n 3aUInTe OkpykaIoUeI cpebl. Macno n Ha6op C MacnIyHbIM WnpuCeM HE BXODT B KOMNKeT NocTabKn.

06cnyxmbaHne Bo3dyuHoro qnIbTp

Perynpho npOBepaTe n OuyuauTe Bo3dyhbln pHbTp. EcnnpHbTp He 6bln ouuue HIN 3amehen B TeueHne DInTEbHO rpeNoDa BpeMeHN, 3TO MOKeT CTAb npuHoi NoTePNMOUHOCTN DBrAteJIa.

1. OuHCTnTe MeCTo BOKpyr BO3DyUHoro FInbTpra nepei CHaTnEM.
2. AkkypaTHO CHIMnTE 6yMaXHbI ΦnJIbTp c NopoJHOOBbIM npEoDΦnJIbTpOM nnpOBepbTe erO. OcNCTnTe erO c NOMOuB MoRKO uTKeK. EcNn ΦnJIbTp oYeHrpa3HbI -3aMeHnTe erO. Y6eDuNTecb, UTO rpa3b He nonaDaet BHyTp bDnraTeJ.
3. BbIMoTe YeHbI NopoIOHObI 3nEMeHT B TeTIOB MblbHO B0E.
   4.ДаTe Emy BbICoxHyTb.NOMeCTnTe HeCKoNbKO kaneBSAE-30,MacnaHaNoPOnHObBmФnBtp.
4. OToXMMTe N3NIMKn Macna.
5. Cobepnte fnnbtp.
6. Y6eIntecb, yTO BCE deTaIIy cTaHOBHeHb I npaBnIbHO n 3akpoTe KpbIuKy.

06cnyxbHaeCBeu3aKHaHn

• N3BNeKTe CBevy 3axnHaHna.
  OuHCTnTe rpa3b n HaJIeT CO CBeU 3axnraHna.
  Bbikpynte cBey 3axirahan.
• PpOBePbTe ueIOCTHOCTb H3OJIaIIN.
  OuICTIe CBeU npOBJOnHNoIeTKoI.
• I3MepbTe 3a3Op Mekdy 3neKtpoamn. CneDnte 3a Tem, YTO6bI He NOBpeDNTb 3neKtpoDbl. 3a3Op DOJIKeH 6bITb 0.7 -0.8 MM.
• YctaHOBInTe CBeUy 3axnraHnHa MeCTO. Ecn OHa NOBpeKdHa, 3aMeHNTe ee HOBoN.
• YCTAHOBITE KONNAQOK CBEH 3aXINRAHNA HA MECTO.

Xpahene

EcIN OxNdaetcYTO KylbTnBAtOp dNITeHbHOe BpEm 6yDet HaxOINTbcra Ha xpaHeHHn H He 6yDet NcNoJIb30BaTbCra, BblNOJHnTe pNBeDeHHbIe HIXKe yka3aHn.3To oBeceNeHT dNITeHbHbI cPOK cIyX6bl MaunHbl.
- Ppi nOmoUcAIOBO rO OJHaHr CMOIe NOyBu I rPra3b. YdaJInte TpaBv N.T.n.CBaNAΦpe3.Homep Ha Waccn CJIeDyET pOChuATb TOJIbKO BnaxHOH TKaHbIO, B npOTINBHOM Cnyuae erO MOXHO IOBpeINb. He npON3BOIDTE OCHCTky BOoI NOd BBICOKM DaBNeHHeM. OOHCTNE IOBepxHOCTb KjNbTnBaTOPa BnaxHOH TKAHbIO.
ДяnpedotBpaueHnKoppoHn NOBepxHOCTb CneDyET npotepeT cMOeHHbIM B MaCJIe KycOCHOM TkaHn.
Bcerda xpaHnte kynbTnBaTOP BCYOM N YNCTOM MECTe.

YctpaHHeH HeNcnpaBHOCTe

DnuratJIb He 3anyckaetc

1. Y6eIntecb, YTO TOnJIINBHyB KpaH OTKpbIT.
2. OcmotpntcBceyu 3axnraHna.
3. PpOBepeTe, eCTb JIn 6eH3nH B 6aKe.
   4.Долнгельньи ИСТуки NO yCtpaHENIO HeICnравHOCTe npBBeHb B OTdeHbHom pyKOBODCTBE K DBnRaTeNIO.

BnraTeIb pa6oTaET HepaBHomepHo

1. Y6eIntecb, YTO dPocceJIbHa 3acNoHka yCTaHOBJeHa HA MAKcImaJIbHbIe 06OpOtbl.
2. PpOBepbTe DoCTaTOHoe KOJIueCTBO CBExeRo 6eH3nHa B 6ake.

Φe3bI He BpaaHOTc

1. PpOBepbTe, HETJINKAMHei, 3aKNHMBuNXΦpe3bl. OTCoeDHNHTeΦpe3bI ydaJIte KAMHn.
2. Поверпг, Утошл.Tрсьбы Вхоршем pa6очem coctorHи И павильно 3akpenneHbI.
3. PpOBepbTe, yTo6blpeMeHb 6blB xopoWem pa6ooym COCTOaHHN INPpaBnIbHO yCTaHOBNeH.
4. Поверпгпавиьногсь рулровки натужноуства ремя.

Φpe3bI He octaHaBnBaHTcR

1. 3aIyUInTe DnIraTeJIb N CBxKITecb C npOdaBcOM INN cepBnCHbIM ueHTpOM.

Uym, Bn6paun n npdeynpeDntBhbie MepbI

1.Долговременhoe Bo3dJeCTBHe WymOB,пpeБыlaIOxN 85ДБ(A)ВрEDNoДЯСlyxa.Bo ВретмEkcnIyatauIN KJYbTnBaTopa BcerdaHaDeBaIte 3aunTHbIe HayUnHKn.
2.ДЯ CHINXKeHnI yPoBnI Bn6paun n Wyma,ymeHbWnteCKOpOCTb DBnraTeJI.
3.ДяdoonHHTeNbHOrOCHINKeHnryypOBHyaWMa NCNoJIb3yIteKylbTnBaTOPToNkoHaOTkpblOM BO3dyXe.
4. YTO6bI DOnONHInTeJbHO yMeHbSInTb Bn6paun, KpeNko ydepKINBaIne pynb.
5. 4To6bI He TpeBOXnTb OKpyKaIOuINx, cneDyET NcNoJIb3OBArTb KJtNbTBArTOJbKO B DHeBHOe Bpemr.
6.ДЯ pa60Tb C KynbTnBaTOpOM CneDyET BCERda HAneBaTb NnotHO npnneraOuSyo pa6OuyIO Odekdy, NnotHO npnneraOuSyne pa6OuyNE nepuATKn, cpeIcTBa 3aunTb oprAHOB CnyxN BOTnHKn C HeckOJIb3aJeN NODOWBOn I CTaJIbHbIM HOCKOM.
7. Дени Te 30-MnHyTHbI npepebIB kaxdble 2 pa6oHx Yaca.

Mazani prevodovsky 47

Startovani a vypinani motoru 47

Cisteni rotavatoru 47

Vymena oleje 47

2000/14/EC amended by 2005/88/EC

Materiellet er udfort i overensstemmelse med følgende standarder · Conforms with the following standards · In Übereinstimmung mit den folgende Standards · Conformément aux normes suivantes · jest zgodna z nastepujacymi normami · Echipament se face in conformitate cu urmatoarele standarde · V skladu z naslednjimi standardi · Proizvod je sukladan sa sijedećim standardima · Odpóvidá následujćim normám · Utrustningen ar tillverkad i enlight med fóljande standarder · Conforme con i seguenti standard

EN709: 1997+A4:2009, EN709+A4/AC:2012, EN14982:2009

Measured LpA 83.2 dBA Guaranteed LwA 101 dB(A)

TX611TG S/N: 2103024510000 - 2303024599999

TX612TG S/N: 2103024610000 - 2303024699999

TX601B S/N:2103014210000-2303014299999

TX602B S/N: 2103014310000 - 2303014399999

Texas Andreas Petersen A/S

Knullen 22 · DK-5260 Odense S

16.06.2021

Johnny Lolk

Managing Director

Keeper of documentation

Johnny Lolk

TEXAS

EQUIPMENT
