EL Tex 750 - Electric tiller Texas - Free user manual and instructions

Product type	Electric tiller
Brand	Texas
Model	EL Tex 750
Power supply	230 V – 50 Hz
Rated power	750 W
Working width	280 mm
Max. working depth	220 mm
Sound level	93 dB(A)
Lubrication	Multifak Fedt grease (Ref. 90306500)
Safety stop	Release of handle B
Blade replacement	Replace as a set
Regular maintenance	Clean after each use; grease every 20 h
Long-term storage	Grease metal parts against corrosion
Spare parts	Only genuine Texas parts (available at www.texas.dk)
Repairs	Entrust to an approved workshop
Electrical safety	Use a mains cable and secure it in the cable holder
Safety distance	10 meters around the machine
Documentation	User manual available in PDF

Frequently Asked Questions - EL Tex 750 Texas

How to start the EL Tex 750 tiller?

Plug the machine into the mains and secure the cord in the cable holder. Press the safety button A then pull handle B upwards. Once started, release button A.

How to stop the tiller quickly?

Simply release handle B. The machine stops immediately.

What to do if the engine does not start?

Check the power supply and cables. If the safety switch is defective, contact your dealer. If the overheating protection is activated, work less deeply, remove blockages, or wait 15 minutes before restarting.

How to replace the blades?

Wear gloves. Remove the outer cotter pin then the outer blades, then the inner pin and inner blades. Blades must be replaced as a set.

Which grease to use for lubrication?

Use Multifak Fedt grease (Ref. 90306500). Refill after every 20 hours of operation: lay the machine on its side, clean the orifice, pour grease up to the edge, and replace the plug.

What are the essential safety precautions?

Wear safety glasses, ear protection, and safety shoes. Keep people at least 10 meters away. Do not use near explosive liquids. Disconnect before any intervention.

The tiller vibrates abnormally, what to do?

The blades may be broken or worn. Replace them or contact your dealer. Also check that bolts and nuts are tight.

What is the maximum working depth?

The maximum depth is 220 mm. For efficient work, advance an arm's length then pull the machine towards you.

How to maintain the tiller after use?

Clean all grass or dirt. If not used for several months, grease all metal parts to prevent corrosion. Use only genuine parts.

Can I use the tiller on very hard soil?

Yes, but reduce the working depth. If the overheating protection activates, wait 15 minutes. Use the technique of advancing and pulling back several times to loosen the soil.

USER MANUAL EL Tex 750 Texas

1. Contents "Translation of the original user manual."

Warning symbols 2
2. Safety instructions 11
3.Identification - El-Tex 750 13
4. Assembly - El-Tex 750 14
5. Starting the engine 15
6. Blades 16
7. Lubrication 16
8.Maintenance and storage 17
9. Trouble shooting 18
10. Specifications 18

Spare parts

Part list and drawings for the specific product, can be found on our website www texas.dk

If you help find part numbers yourself, it will ease the service.

For purchase of spare parts, please contact your dealer.

2. Safety instructions

Read this manual carefully before using the machine so that you understand and are able to fully comply with all safety instructions and ways of operation.

Children may not use the machine.

If you feel sick, tired, or have been drinking alcohol or taken medicine you may not use the machine.

Always use eye- and ear protection and solid footwear when using the machine. Avoid loose fitting clothes.

Make sure to good foot hold and have good control of the machine when using it.

Make sure that spectators are at least 10 m from where you start or use the machine.

Do not use the machine near explosive fluids, gasses or dust. The machine may make sparks that can ignite dust etc.

Never start using the machine until the work area has been cleared. Make sure to have enough light.

Any repairs except those that are described in this manual must be carried out by an authorized dealer. The machined must be turned off when repairs are carried out.

Only use original spare parts for repairs.

The machine must only be lent to persons who are familiar with the use.

This manual should always follow the machine.

The warnings, precautions and instructions that are described in this user manual do not cover every condition or situation or eventuality that may arise. This means that the user must use common sense and exercise caution when using this product.

Waste electrical products must not be disposed of with the household waste. This tool should be taken to your local recycling centre for safe treatment.

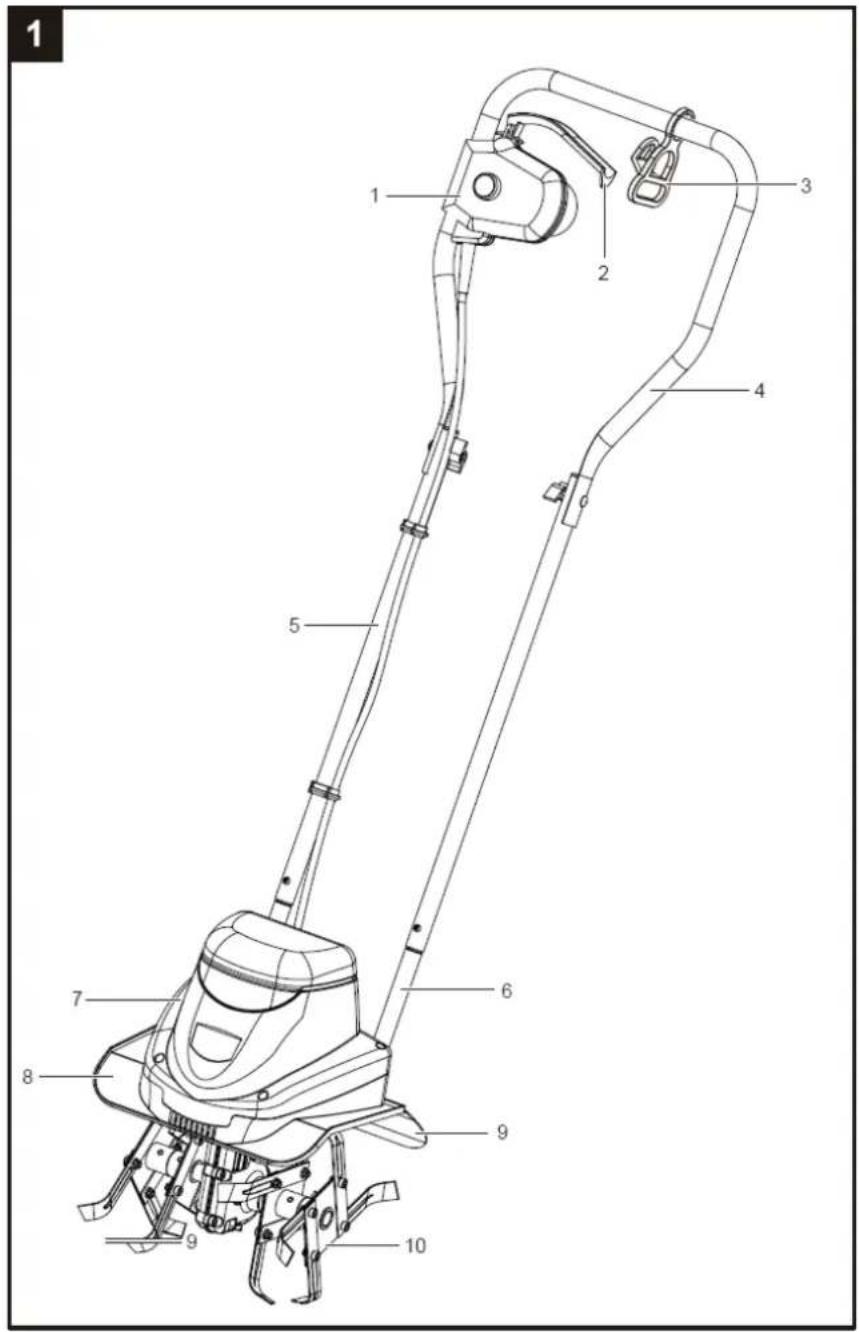

1.	Controlpanel 2. Throttle
3.	Cable clips 4. Upper frame
5.	Middle frame 6. Lower frame
7.	Engine
9.	Rear protection 10. Blade

8.	Side

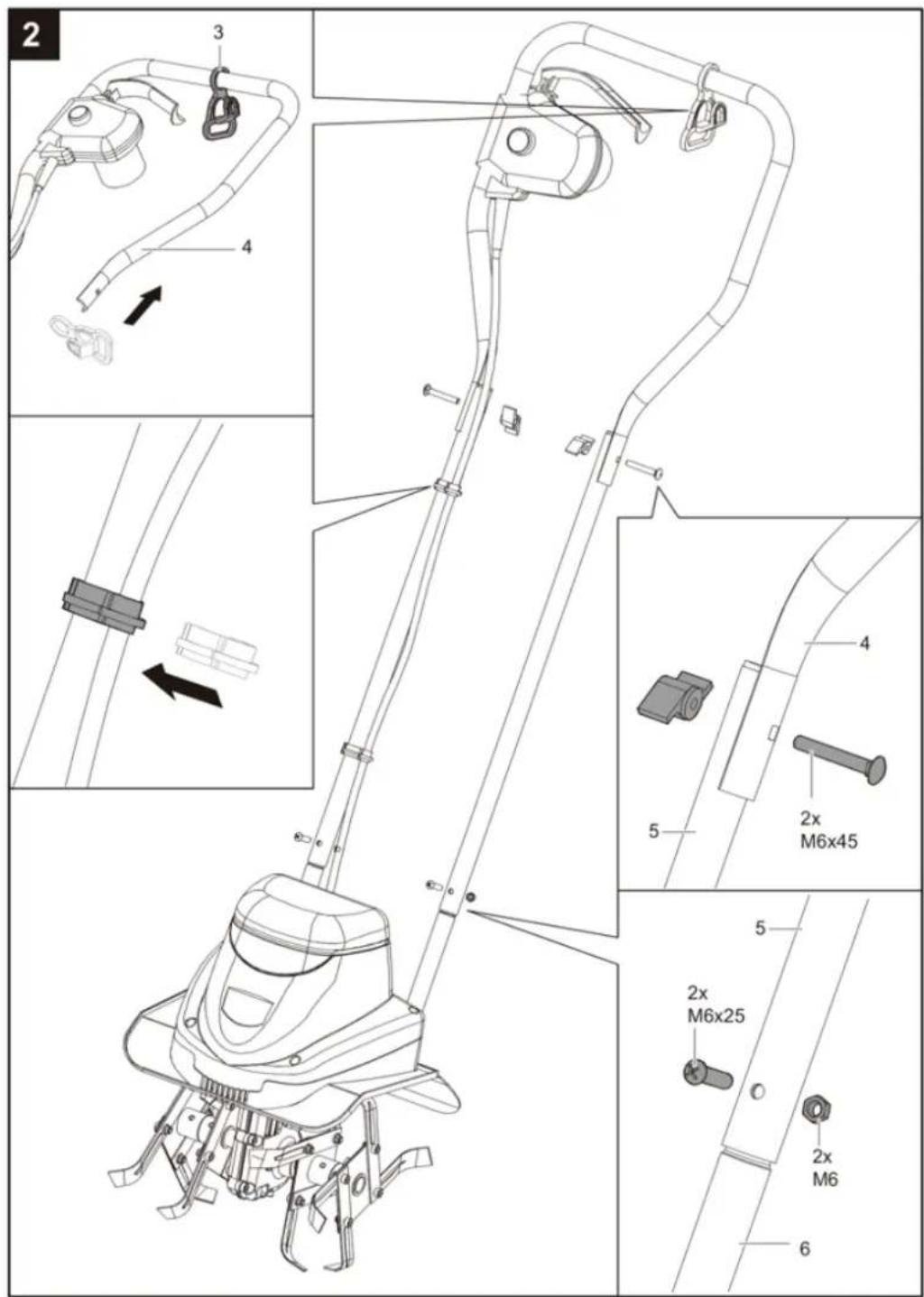

Assemble the frame with the screws supplied.
Fit the cable holders. (fig. 2)

5. Starting the engine

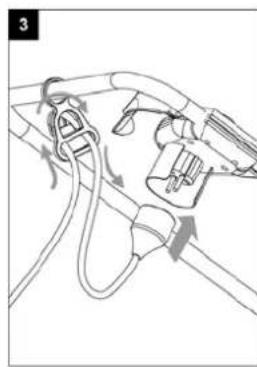

Connect the power and make sure that the cord is fitted correctly in the cable holder. (fig. 3)

Start the machine by pressing the safety button A and then pull the handle B towards the frame. When the machine has started, release A.

Stop the machine by releasing handle B. (fig. 4)

Tips

Do not start the machine until you are at the work area. Always have both hands on the machine.

The blades will make the machine move forward. Let the blades sink slowly into the ground.

When you want the machine to work in deep soil, the most effective way is to let the machine move forward one arm's length. Then pull the machine back towards you. Then move forward again.

The blades must always run at the highest speed. Make sure they are not overloaded.

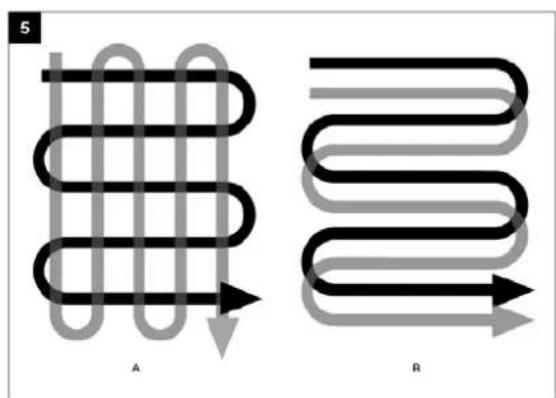

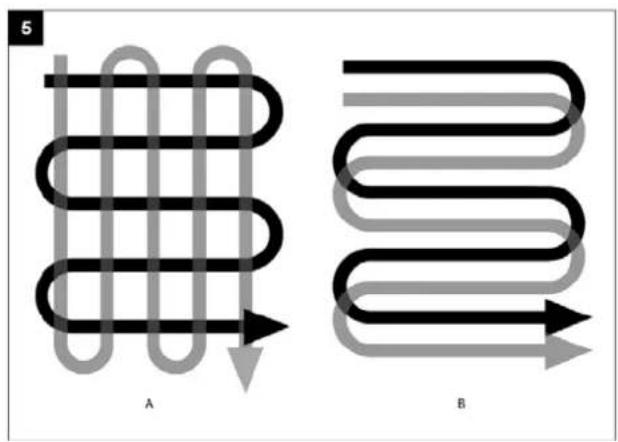

Use one of these work patterns when preparing an area for sowing. (fig. 5)

6. Blades

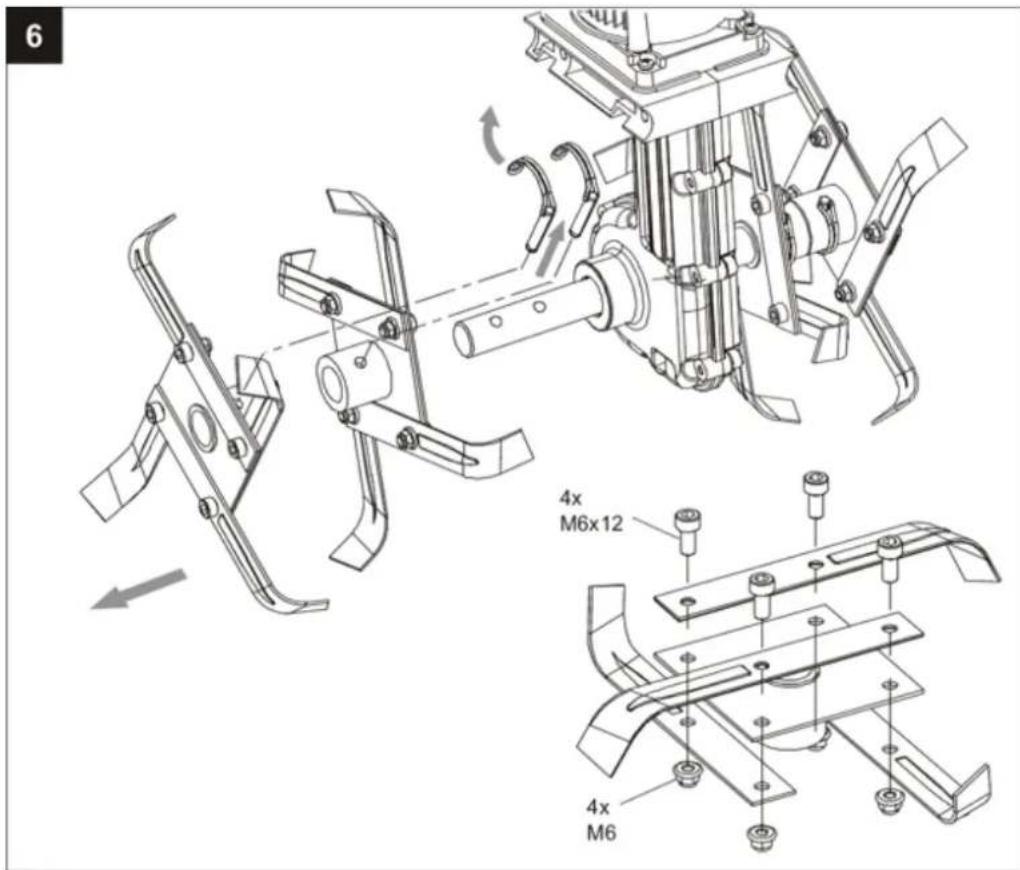

If the blades are worn or break they can be replaced. See fig. 6. Lack of maintenance will lead to poor cultivating results or overload of the engine. Always use gloves when working near the blades.

The blades may only be replaced as a set. Remove the outer lock pin and the outer blades, then the inner lock pin and the inner blades. (fig. 6).

7. Lubrication

Important: Check and refill with grease after each 20 hours of operation.

Procedure:

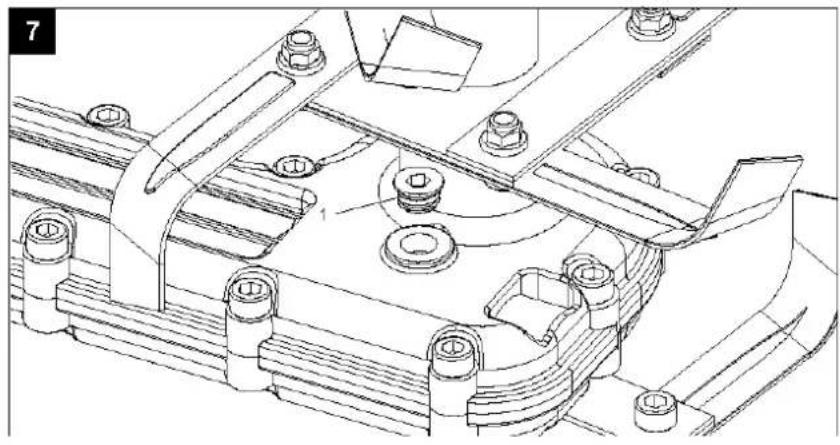

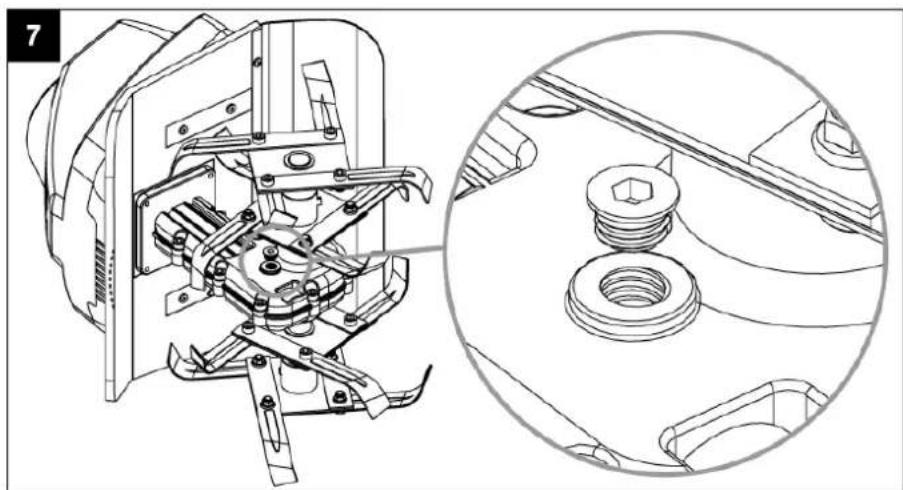

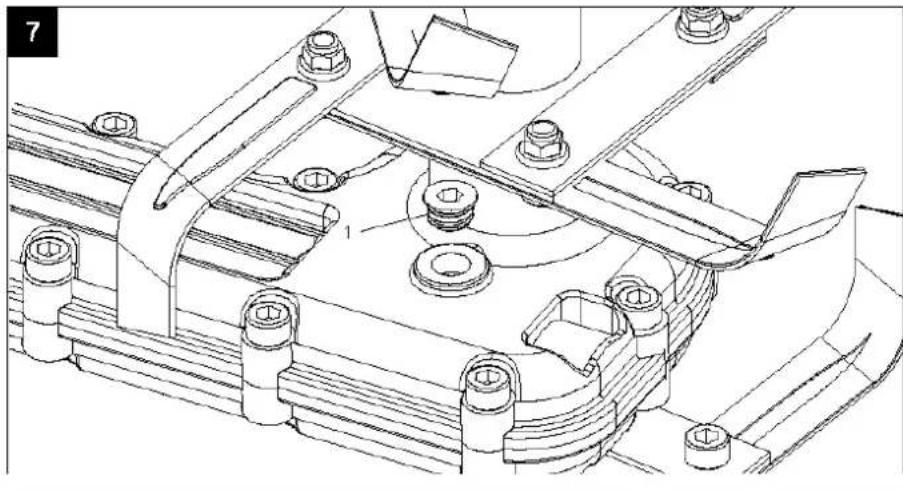

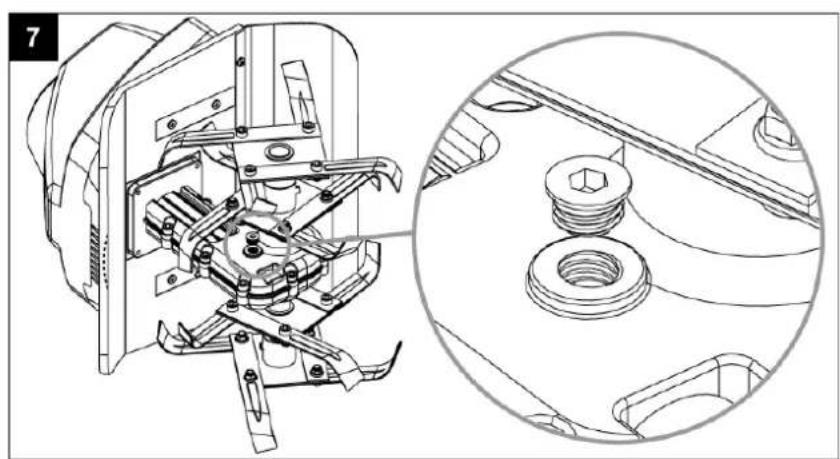

Place the machine on its right side. Clean around the filling hole to prevent dirt from getting into the machine when the plug is removed. (fig. 7)

Fill up with new grease type Multifak to the level of the rim. Fit the plug again.

Spare part no. for Multifak grease: 90306500

8. Maintenance and storage

After each use the machine should be cleaned completely for grass and dirt.

If you plan not to use the machine for several months all metal parts should be oiled to prevent corrosion.

Only use original spare parts.

9. Trouble shooting

Problem	Reason	Solution
Engine does not start No	powe r Check power and cables
	Defective safety switch Conta	ct local deale r
	Overheat protection active a.	Work at lower depth. b. Remove possible blockages. c. The soil is too hard. Change the work depth and go slowly forwards and backwards several times. Do not restart for 15 min.
Abnormal noise level Blades are blocked Stop the engine and await complete stop. Remove the blockage.
Lack of grease Contact local deale r
Loose bolts, nuts or safety equipment.	Tighten. Contact local dealer, if noise persists.
Abnormal vibrations Blades broken or worn Replace or contact local dealer
Work depth too big Use correct work depth.
Bad results Work depth too low Use correct work depth.
Worn blades Replace or contact local dealer

10. Specifications

Model El-Tex 750
Power supply 230 Volt - 50 Hz
Watt	750 Watt
Work width	280 mm
Max. work depth	220 mm
dB(A)	93 dB(A)
Grease	Multifak Fedt / 90306500

5. BkIIOUeHHe KynbTnBaTopa

BcTaBbTe po3eKy ydHnHteIa B BuNky KylbTnBaTopa N y6eIITecb, YTO Ka6eIb npaBnIbHO 3akpeIleH B cKCaTope Ka6eIa. (pnc. 3)

BkIIOueHne KylbTnBaTopa: HaxMITE Ha KONky 6e3oNaChocTN A n NotAHTE pbUar B K pykoTke. IocNe BkIOueHnKyIbTnBaTopa, OTNCTNE KONky A.

OcTaHOBka KjIbTnBaTopa: otNyctnte pbIar B. (pnc. 4)

ПРИМЕЧАНЯ

BknouaTe KylbTnBaTop Tolbo B pa6oey 3OHe. Bcerda depknte KylbTnBaTOp oBeuMn pykAmn.

При вразецни Фразе Кльстоватор начNET DBINATBcR BnpeД. Мдпенно 3aIGNy6nte ФразьВЗмЮ.

Haibonee 3oΦeKTHBbI cnoc6 rny60o o6pa60TaTb noCy - 3TO DaTb KynbTbAtopy npOdBnHybcra Bnepe, a 3aTe m npITaHyTb erO onrTb K ce6e. ChOba HaHHTe DBrXKeHne Bnepe.

Φpe3bldoJXHbI BpaaatbcaHa MaKcImaJIbHOI cKOpOCTn. Y6eIITecb, YTO OH He neperpyxHebl.

IcnoJIb3yITe OdIN Hn I3 cnocO6OB o6pa6oTKn noYBbI (pnc 5).

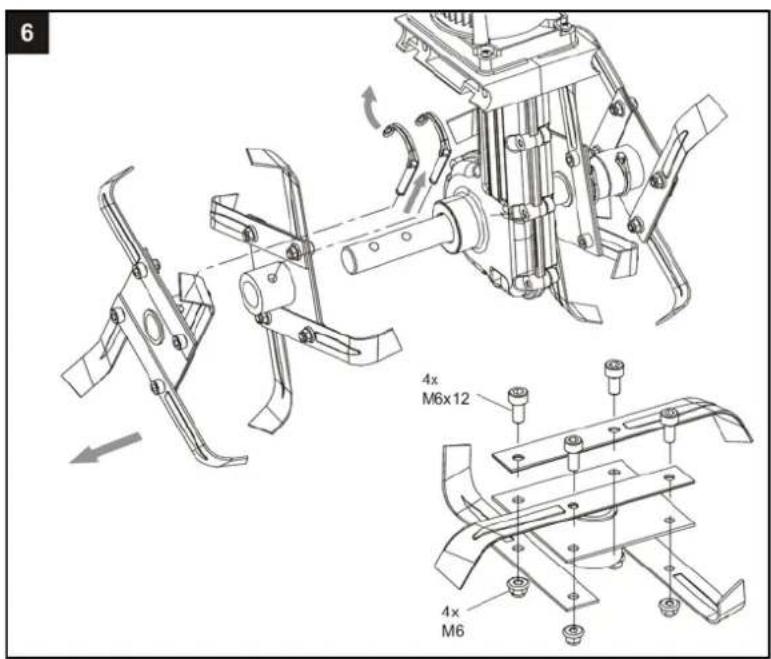

6.Φpe3bl

Ecnn pfpe3bl NOBpeXdeHb IIN N3HOWeHb, INx Heo6xoJMo 3aMeHHTb. CMOtpnte pnc. 6. HenpaBnIbHoe o6cnyKuBaHne MoKeT npNBecTN K IIOXoN pa6ote KynbTnBaTopa IIN neperpy3ke DBriraTeNa. OcyueCTBna Pa6Otbl No o6cnyKuBaHnO fpe3, HaeBaIte 3aunTHbIe nepaATkn.

3aMeHy Bcex φpe3 Heo6xOdHMo npOn3BODnTb OndHOBpeMeHHo. YdaNITe BHeuHne UnnHTbl N BHeuHne φpe3bl, 3aTeM BHyTpEHnE uNNHTbl N BHyTpEHnE φpe3bl.(pnc.6).

KyntBaTOp nOCTaBnEeTc C 3aONHeHHbIM cMa3Ko peDyKTopOM.

Baxho: npoBepaTe KOJIuYeCTBO CMa3Kn I Do6aBnIe e ee npn Heo6XoDnMoCTn Yepe3 kajdbie 20 yacob ekCnPyatau. (pnc.7).

Для поверки и добавлиеня сма3ки поевернite КлььтваTop Ha паыю CTOPOHy. Oчирпге OTверспгдяля заолиныя сма3ки, уTO6bl N36жать пonaданя ГраЗи BHytpb. OTKpyтnte np6ky. ПоверьтkoJичесТВ сма3ки. Рпн Heo6xOДМоCTN do6abTe cma3ky Multifak Fedtdo tex nop, noka oHa He NauchET BbICTyPnATb N3 OTBepCTHЯ. 3akpyтnte np6ky. TIN cma3kn: Multifak Fedt/90306500

8.ObcIyKbAHne nXpaHeHne

Heo6xOIMO OuHuaTb KylbTnBaTOP OT OCTaTKOB TpaBbl I rpr3N Nocne KaKdOrO nCNoJIb3OBAHnI.

Ecni Bbl He 6yndeI NCIOB3OBaTb KylbTnBaTOp B TeueHne HeCKOJIbKnx MecraUeB, HEO6XoIMO Cma3aTb BCE MetaJIINueckne Yactn.

IcnoJb3yIe ToJIbKO OpiRHaJIbHbIe 3aNaChIbe YacTn.

9. YcTpaHHe HEnCnPaBHOCTe

2000/14/EC amended by 2005/88/EC

Materiellet er udfört i henhold til følgende standarder • Conforms with the following standards In Übereinstimmung mit den folgende Standards • För att kunna garantera overensstammelse och nationella standarder, är foljande standarder harmoniserade • Conformément aux normes suivantes • jest zgodna z nastepujacymi normami • Conform cu urmätoarele standarde

EN 60335-1: 2012+A11, EN 709: 1997+A4, EN ISO 12100: 2010, EN 66233: 2008, AfPS GS 2014: 01, EN 55014-1: 2006+A1+A2, EN 55014-2: 1997+A1+A2, EN 61000-3-2: 2014, EN 61000-3-3: 2013

Guaranteed LwA: 93 dB(A) Measured LwA: 91.12 dB(A) a_h = 0.569m / s^2 Uncertainties : 1.5 m/s

S/N: 1701821000 - 1912829999

Texas Andreas Petersen A/S Knullen 22 · DK-5260 Odense S

Responsible for documentation Johnny Lolk

15.08.2017

Johnny Lolk Managing Director
