USER MANUAL AC Cortina Silent 12K Smart Home WOODS

Operating Instructions Visit our website to: Get usage advice, updated brochures, troubleshoot and service information Register your product for additional services: www.warranty-woods.com

CUSTOMER CARE AND SERVICE

Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model number, receipt and serial number. The refrigerant used in portable air conditioner is the environmentally friendly hydrocarbon R290. This refrigerant is odorless, and compared to the alternative refrigerant, the R290 is an ozone-free refrigerant. Warning / Caution-Safety information. General information and tips. Environmental information. Subject to change without notice.GB

Operating Instructions CONTENTS: PAGE NO. Table of Contents

OPERATING INSTRUCTIONS English Swedish Norwegian Danish German French Spanish Dutch Polish Romanian Finnish Lithuanian Latvian Estonian Greek Icelancic 04-21 22-31 32-41 42-51

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

Operating Instructions

WOOD’S FOR CLEAN AND HEALTHY

INDOOR AIR The brand Wood’s was born with the Wood’s family over 65 years ago in the Canadian city of Guelph, Ontario. This is where Wood’s began developing and manufactoring dehumidiers in 1950. Since then Wood’s has helped several hundred thousand households to prevent damages from mould damp, and to breathe cleaner air. Our portable air conditioners are suitable for use in most climates, where capacity is good even at dierent temperatures and humidity levels. They are used with good results in premises that become hot such as livingrooms, oces or bedrooms. The amount of hot air that the air conditioner removes depends on the temperature, humidity level and placement. External weather conditions may also aect the performance of the air conditioner. Wood’s air conditioners are safe in operation and intended for continuous use over many years.

HOW DOES THE AIR CONDITIONING

UNIT WORK? Low pressure gives cold air The main element of the air conditioner is a coolant, which under low pressure is converted to gas. The process “creates cold”, which is transmitted inward, while keeping the warm air out. A liquid coolant is passed through an expansion valve and into a pipe where the pressure is low. The coolant evaporates and turns into a gas. The process absorbs heat from the surroundings and the pipe is cooled. A fan blows the cold air into the room. The gas is passed through a compressor, which increases the pressure and converts the gas into liquid. In this process, heat is released, which is led to pipes on the opposite side and blown out by a fan. A thermostat shuts o the unit when the indoor air is cold enough.

1. SECURITY WARNINGS

Flammable material. This appliance contains R290/ Propane a ammable refrigerant. Refer to this manual for safety information. Read technical manual Read operators manual. SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference. Children and vulnerable people safety WARNING Risk of injury or permanent disability. This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Do not let children play with the appliance. Children of less than 3 years should be kept away unless continuously supervised. Keep all packaging away from children. Cleaning and user maintenance shall not be made by children without supervision. General Safety This appliance is intended to be used in household and similar applications such as: Family room, living room, sta kitchen areas in shops, oces and other working environments. The rating plate is located at the side or back of the Air Conditioner. Keep ventilation openings clear of obstruction. Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. The appliance shall not be stored in a room with operating ignition sources (for example: open ames, an operating gas appliance or an operation electric heater. Do not pierce or burn. Be aware that refrigerants may not contain an odour. Do not use water spray and steam to clean the appliance. Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects. If the supply cord is damaged, it must be replaced by theGB

Operating Instructions manufacturer, its Authorised Service Centre or similarly qualied persons in order to avoid a hazard. SAFETY INSTRUCTIONS Installation WARNING Only a qualied person must install this appliance. Remove all the packaging. Do not install or use a damaged appliance. The appliance shall be installed, operated and stored in a room with a oor area larger than 12,5 m². Obey the installation instruction supplied with the appliance. Always be careful when you move the appliance because it is heavy. Always wear safety gloves. Be aware that refrigerants may not contain an odour. Make sure the air can circulate around the appliance. Wait at least 4 hours before connecting the appliance to the power supply. This is to allow the oil to ow back in the compressor. Do not install the appliance close to radiators or other heat sources. Do not install the appliance where there is direct sunlight. Electrical connection WARNING Risk of re and electrical shock. The appliance must be connected to a grounded outlet. Make sure that the electrical information on the rating plate matcheswith the power supply. If not, contact an electrician. Always use a correctly installed shockproof socket. Do not use multi-plug adapters and extension cables. Make sure not to cause damage to the electrical components (e.g. mains plug, mains cable). Contact the Authorised Service Centre or an electrician to change the electrical components. The mains cable must stay below the level of the mains plug. Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation. Do not pull the mains cable to disconnect the appliance. Always pull at the mains plug. Use WARNING Risk of injury, burns, electrical shock or re. Do not change the specication of this appliance. Be careful not to cause damage to the refrigerant circuit. It contains propane (R290), a natural gas with a high level of environmental compatibility. This gas is ammable. If damage occurs to the refrigerant circuit, make sure that there are no ames and sources of ignition in the room. Ventilate the room. Do not put ammable products or items that are wet with ammable products near or on the appliance. Disposal WARNING Risk of injury. Disconnect the appliance from the mains supply. Cut o the mains cable and discard it. The refrigerant circuit of this appliance is ozone-friendly. Contact your municipal authority for information on how to discard the appliance correctly. Do not cause damage to the part of the cooling unit that is near the heat exchanger.GB

Operating Instructions

Let the machine stand up for 4 hours before use Selecting a Location Important

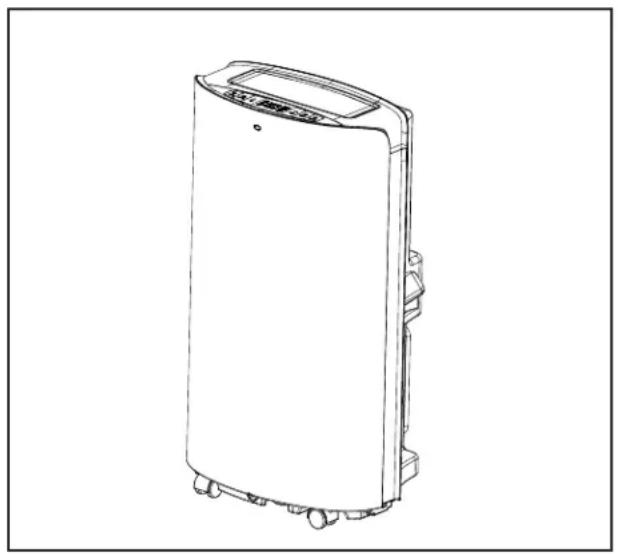

1. This air conditioner may be moved around

indoor conveniently; keep the unit in upright position while moving it. The air-conditioner shall be placed at a at surface. Do not install or operate this air-conditioner in a bathroom or other wet environment. Since a portable air conditioner is on wheels, it is easy to change positions. When the heat turns on, you just move your portable air conditioner into the room and can quickly get started cooling the space.Air conditioner must be operated in an enclosed area to be most eective. Close all doors, windows, and other outside openings to the room. The eectiveness of the Air Conditioner depends on the temperature and humidity level.

2. Place the air conditioner in a location that

does not restrict airow through the front of the unit.

3. An Air Conditioner operating in a

room will have little or no eect in drying an adjacent enclosed storage area, such as a closet, unless there is adequate circulation of air in and out of the area. A portable Air Conditioner evacuates the heat from the unit with a ventilation hose through a window or exhaust air valve.

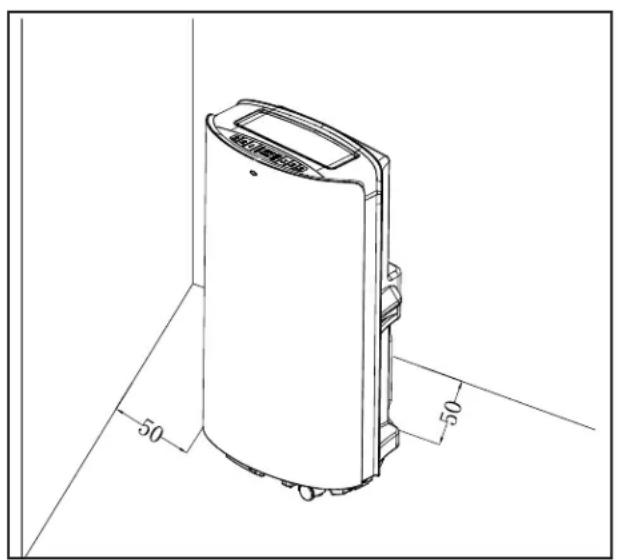

4. There should be a minimum of

50 cm distance between Air Conditioner and closest object. See picture for reference.

SET UP AIR CONDITIONER FOR INSTALLATION

Operating Instructions

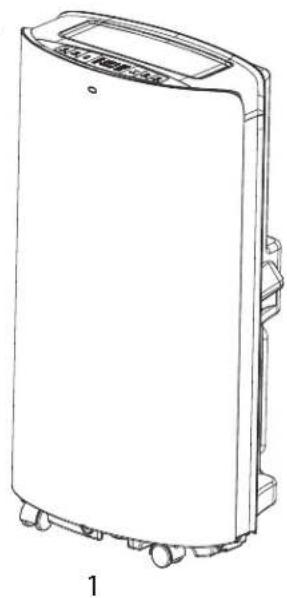

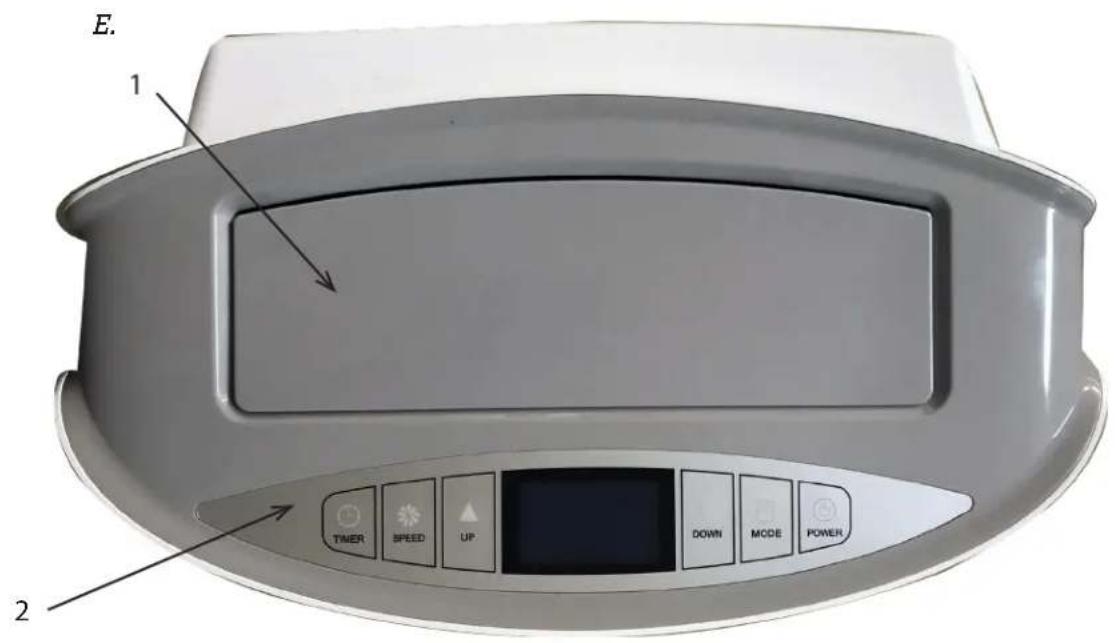

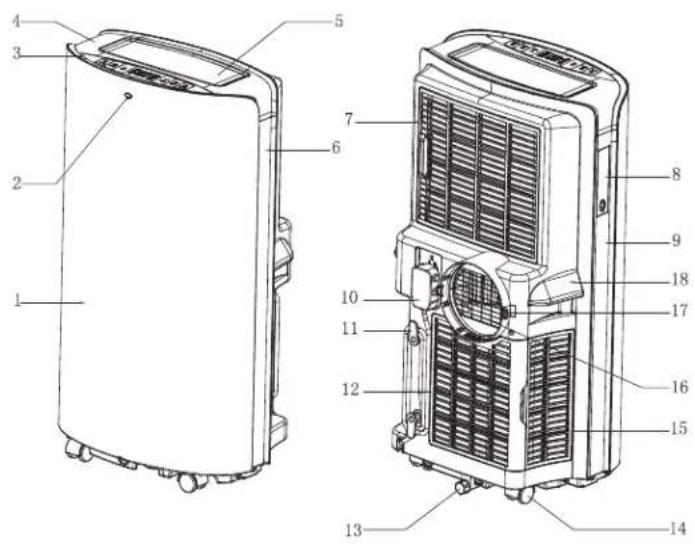

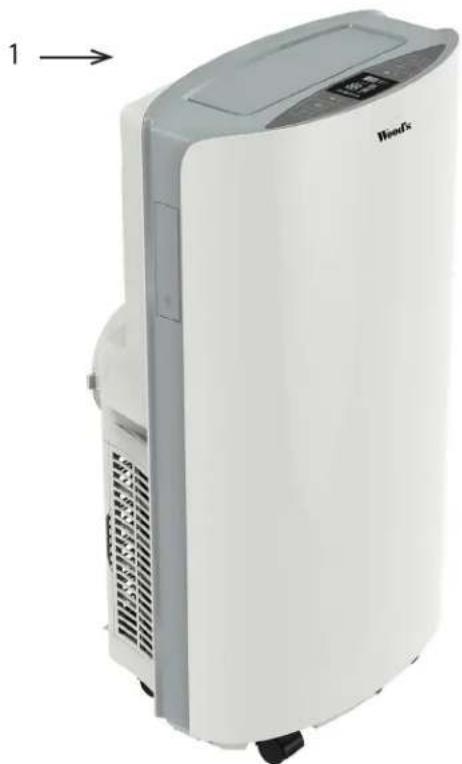

1. Main Air Conditioner Unit

2. Remote control receiving window

6. Right decoration board

7. Upper lter assembly of back panel

8. Remote control compartment

9. Left decoration board

10. Power cord with plug

12. Lower lter assembly of back panel

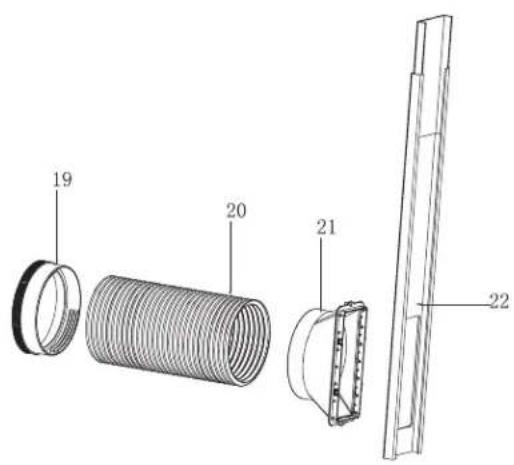

19. Round connector of exhaust hose

21. Adapter of exhaust hose

1. Side view of main air conditioner

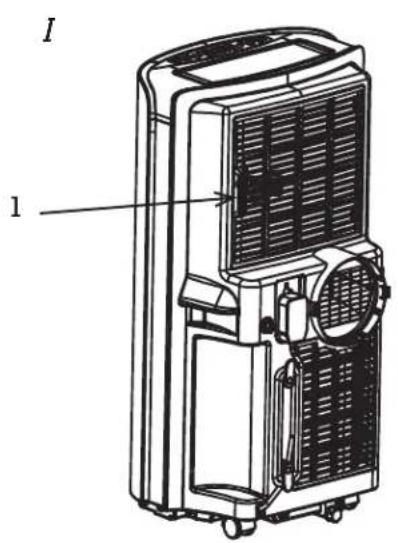

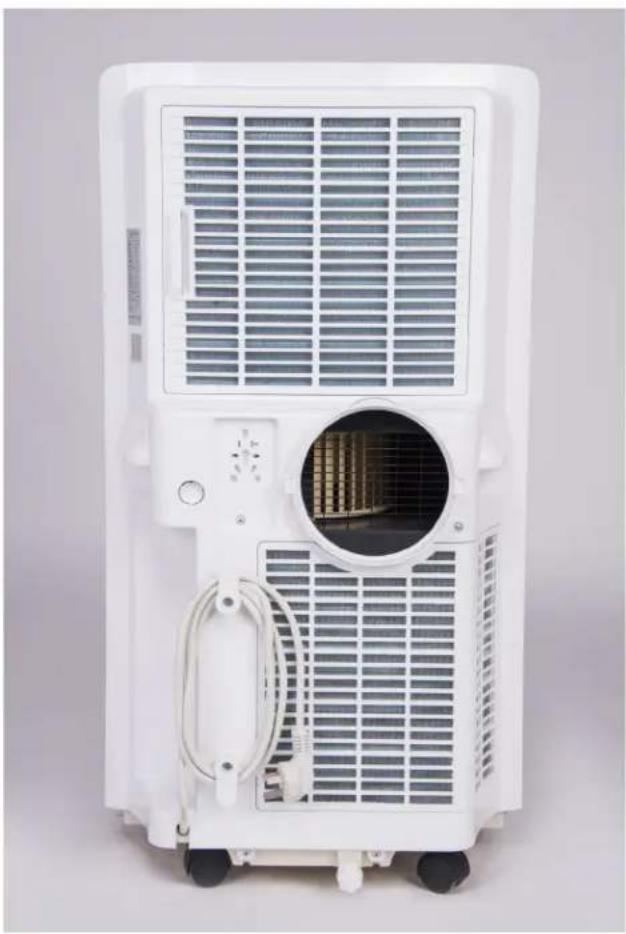

1. Back view of main air conditioner

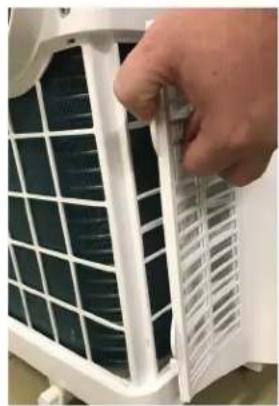

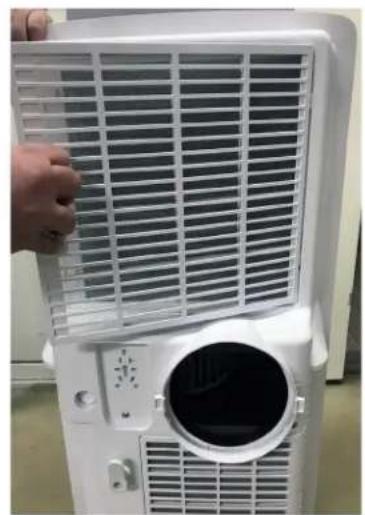

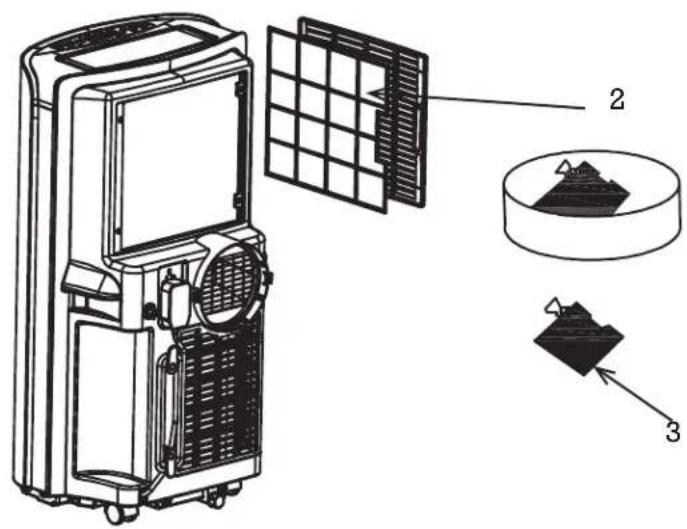

1. How to remove the lters

1. Grip the lter handle and pull it out gently

in correct direction.

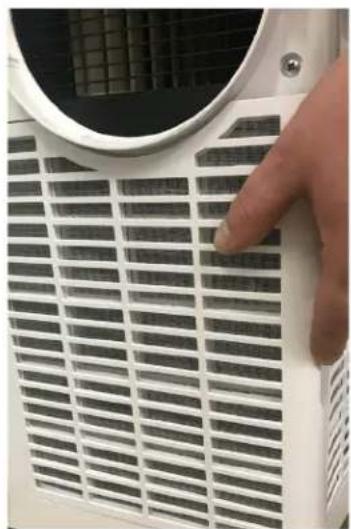

2. Clean the dirty particles in lter by cleaner

3. Immerse and wash the lter gently into

warm water (about 40℃) mixed with neu- tral cleaner, and then rinse and dry them thoroughly in the shade.

3. Exhaust hose assembly

1. Before using your remote, install the AAA

baterries into the remote control.

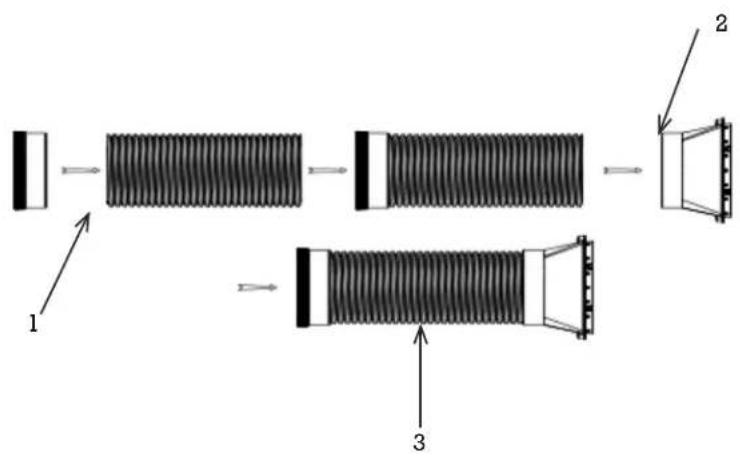

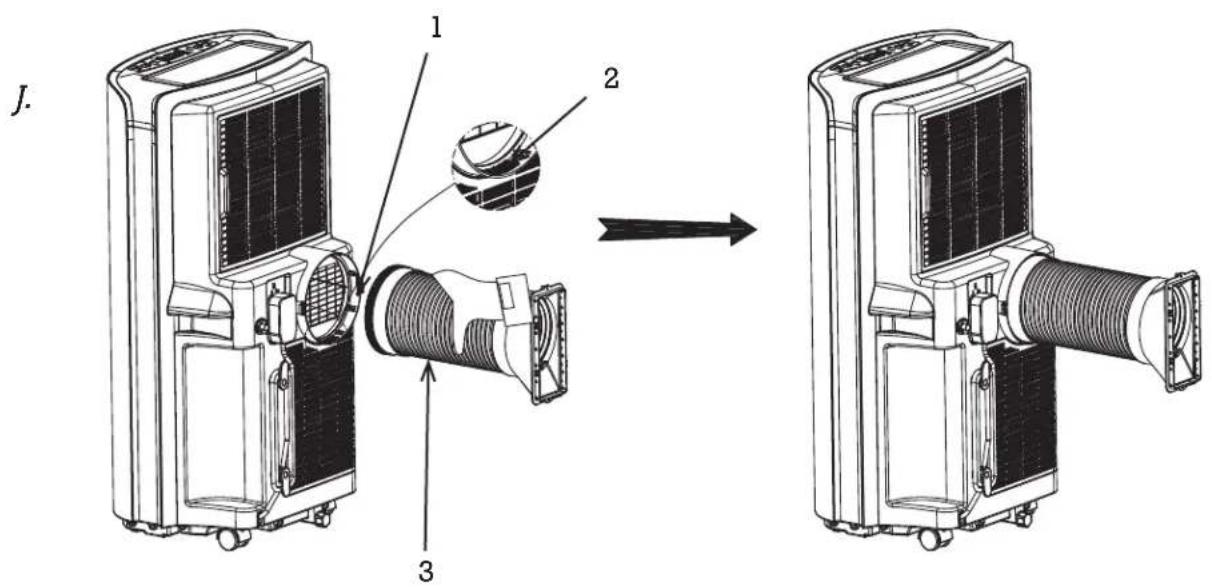

1. Extend one end of exhaust hose, screw the

end without slot of round connector onto it with anticlockwise direction at least 3 laps.

2. Extend another end of exhaust hose, screw

the adapter onto it with anticlockwise direc- tion at least 3 laps.

3. Exhaust hose assembly

1. Keep two ends of window seal plates to

meet the window edges well, to ensure seal eect.

Operating Instructions Installation If the unit has been transported horizon- tally, keep it in an upright position for 4 hours before using it. Place the unit on a at and solid surface. Do not install the unit in bathrooms or other wet environments. Make sure that air ow isn’t blocked, always keep at least 50 cm distance to surrounding surfaces.

INSTALLING THE EXHAUST HOSE

1. Extend one end of exhaust hose, screw

the end without slot of round connector onto it with anticlockwise direction at least 3 laps.

2. Extend another end of exhaust

hose, screw the adapter onto it with anticlockwise direction at least 3 laps.

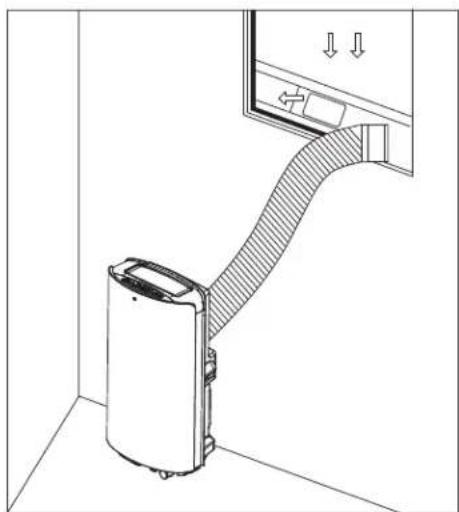

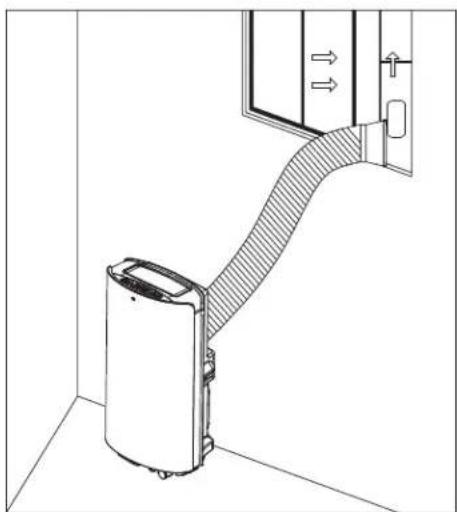

3. Extend the exhaust hose and lead it

outside through a door or window.

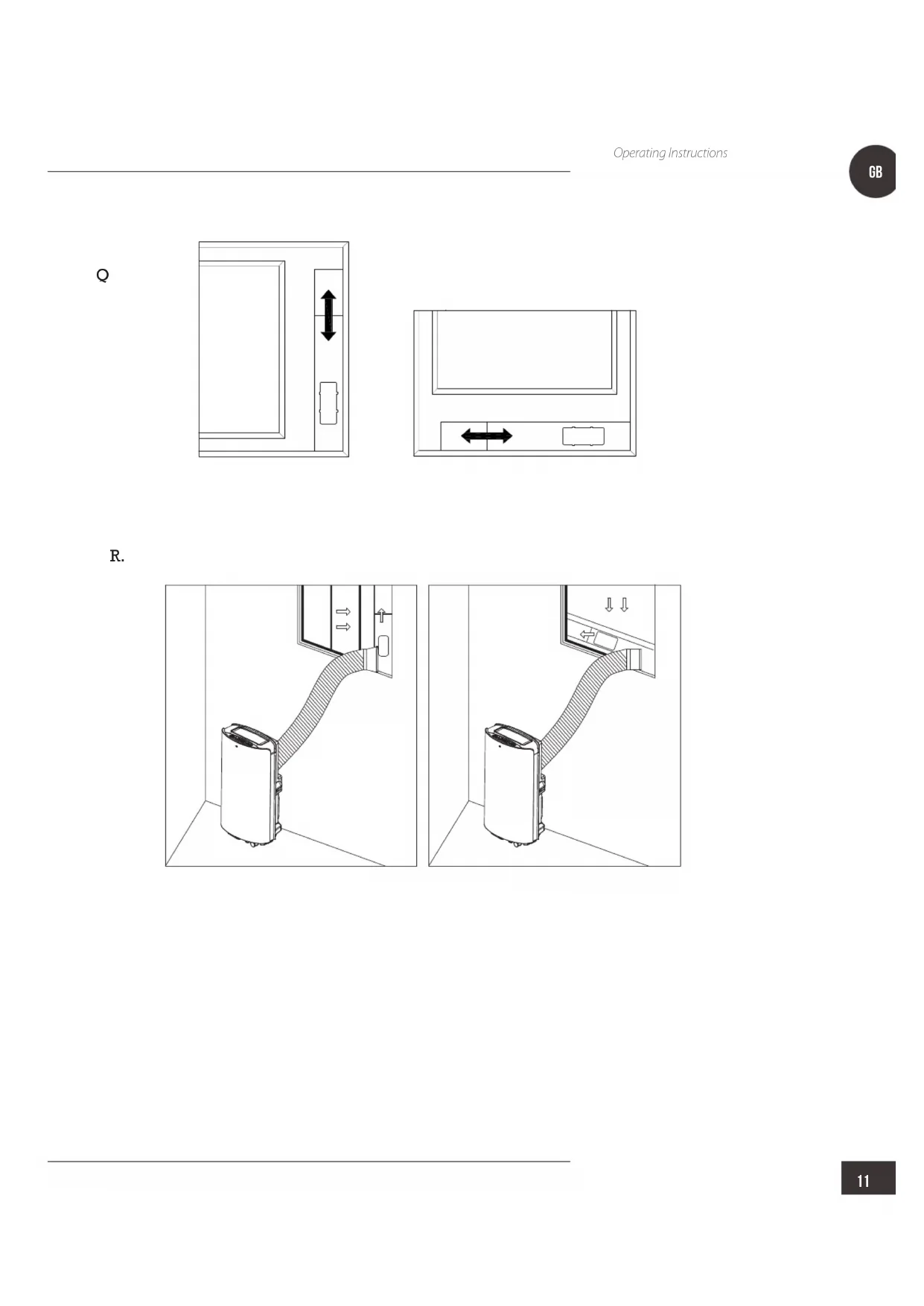

USING THE WINDOW KIT

1. To use the window kit, open the

window and place the window kit either horizontally or vertically, depending on the window.

2. Adjust the length of the window kit and

fasten it with the screws.

3. Shut the window and attach the adapter

on the exhaust hose to the window kit.

USING THE WINDOW KIT

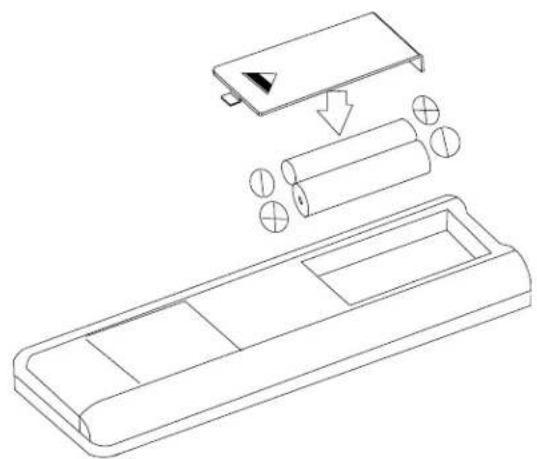

Before using your remote, install the AAA batteries into remote control.

1. Press and slide the battery cover on the

back of the remote control, then you can remove the cover.

2. Insert two new alkaline AAA batteries

into the battery compartment, being sure to note the proper polarity.

3. Put back the battery cover, making sure

the locking tab clicks into place. Use alkaline batteries only. Do not use rechargeable batteries. When replace batteries, always replace both batteries with new batteries, do not mix old and new batteries. If the air conditioner will not be used for an extended period of time, remove the batteries from the remote control. Operating instructions

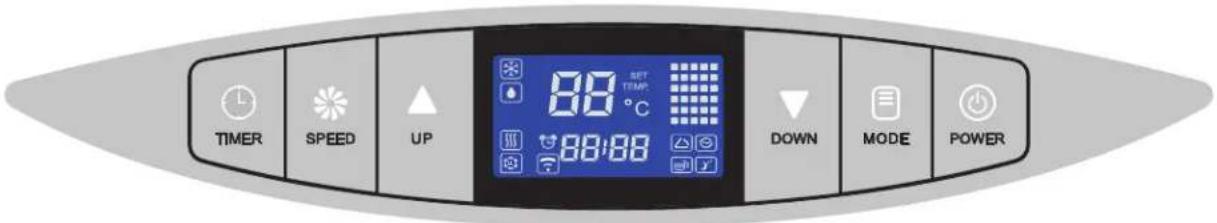

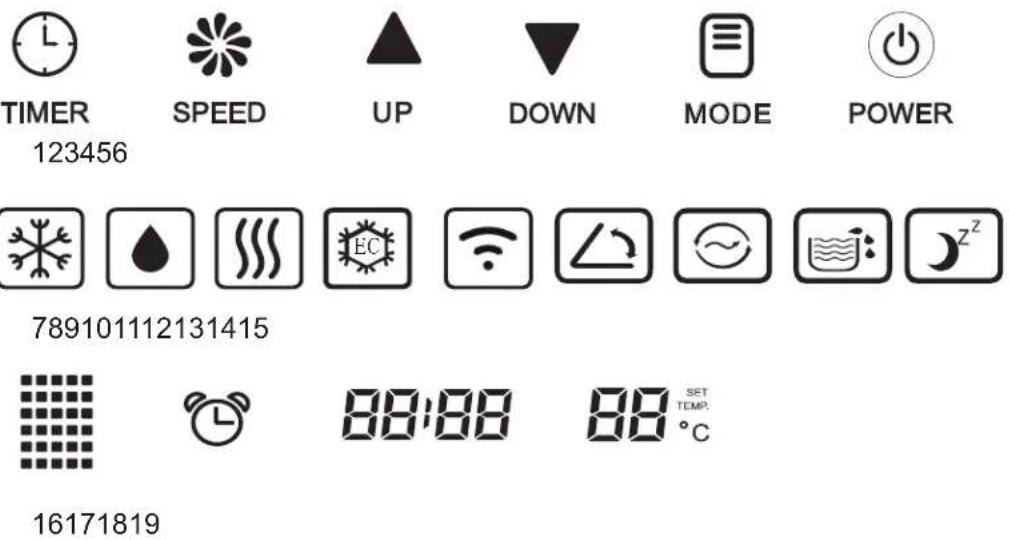

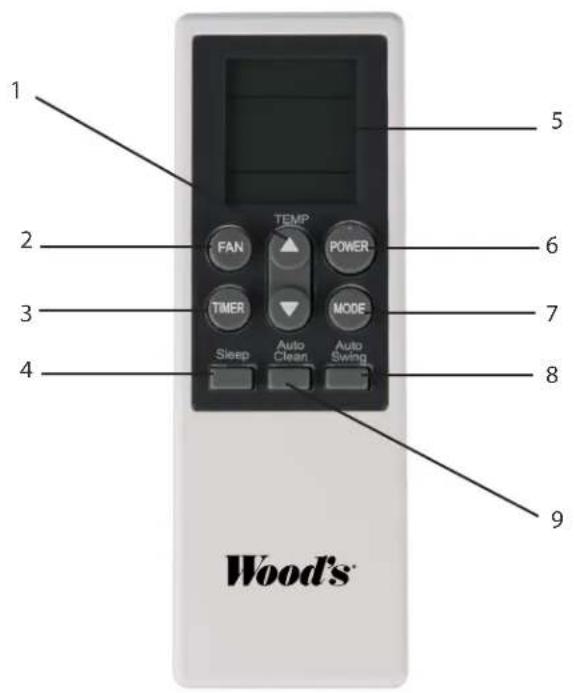

1. Starting the unit. Press the POWER

button to start and stop the unit.

2. Select mode. The unit has 4 dierent

modes: cooling, dehumidify, energy conservation and fan mode. Press MODE on the control panel or remote control to select mode.

• Cooling mode: Set desired temperature with the arrows on the control panel or the remote control. Set temperature is shown in the display.

• Dehumidify. In dehumidify mode, the fan will run on low speed only. Temperature cannot be set.

• Fan mode. The compressor stops and only the fan will run. Temperature cannot be set.

• Energy conversation mode. Low energy consumption under Energy Conversation mode. When the ambient temperature is higher than the set temperature, the unit operates in cool mode. When the ambient temperature reaches the set temperature, the compressor stops running and the upper fan also stops running. After 2 minutes and 30 seconds, the upper fan will run at low speed for 30 seconds. If the compressor does not start (that is, the ambient temperature is lower than the set temperature), the upper fan will repeatedly operate in this mode (stop for 2 minutes 30 seconds / low wind operation for 30 seconds).

• To set timer for shut o, press the TIMER button when the unit is operating.

• To set timer for start, press the TIMER button when the unit is switched o. Set time with the up and down arrows on the control panel or remote control. When the timer is activated, a light is shown on the control panel.

4. Set fan speed. Press the SPEED button

on the control panel to choose fan speed. On the remote control, press the FAN button to choose fan speed.

5. Celsius/Fahrenheit On the control panel,

press the up and down arrows at the same time to switch between Celsius and Fahrenheit.

6. Sleep mode. Use the sleep mode during

the night and the unit will not disturb your sleep. When in cooling mode, press the TIMER and UP together to enter sleep mode. On the remote, press the SLEEP button. Press again to deactivate.

7. Auto swing function. Press the TIMER

and SPEED button at the same time to activate swing function. On the remote, press the Auto-swing button. Press again to deactivate.

8. Auto clean function. Press the AUTO-

CLEAN button on the remote control to clean the unit internally. The unit will clean for 3 minutes before shutting o. PROTECTION FUNCTIONS Automatic defrost The unit will automatically defrost when needed. In defrost mode, the display shows E4 and no buttons except the POWER button are active. Compressor protection The unit has a compressor protection function causing a 3-minute start delay after the unit is restarted. Water full alarm When the water tank is full, the unit will stop working. A water-full indication light is shown in the display and a warning sound is heard. Empty the water tank and restart the unit. FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONSGB

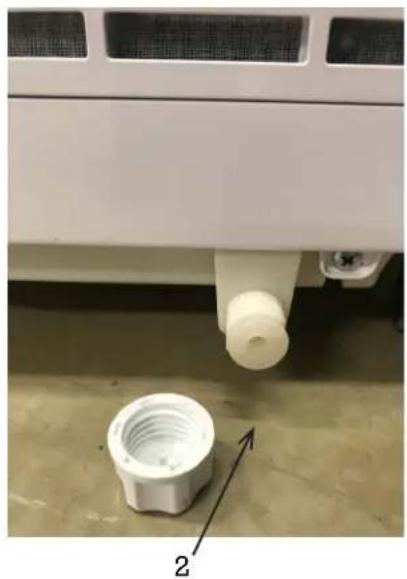

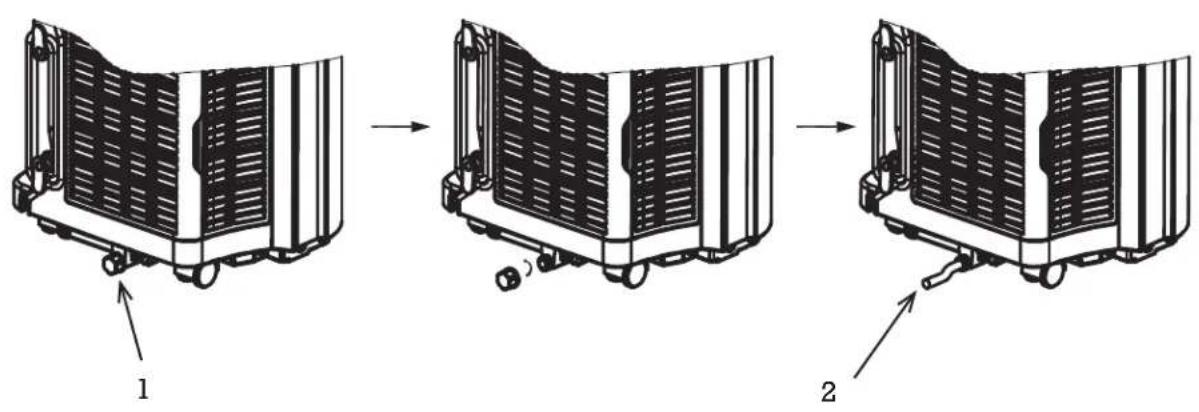

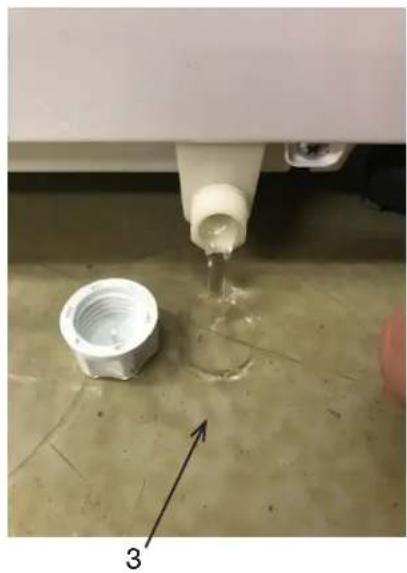

Operating Instructions Water drainage instruction Empty the water tank Unscrew the drain cover and remove the water stopper. Empty the water tank and reattache the water stopper and drain cover. Notes:

• Move the unit carefully to avoid leakage.

• Tilt the unit slightly backwards when draining.

• Block the drain hole as soon as possible before the tray is full if it cannot hold all water in the unit to prevent the water leakage and wet the oor or carpet.

• Water stopper and drain cover must be tightly installed, to avoid new conden- sate to wet the oor or carpet when the unit re-starts working. Connecting a water hose for continu- ous drainage Unscrew the drain cover and remove the water stopper. Attach a 13 mm water hose to the pipe on the unit. Lead the other end of the water hose to a drain. Make sure that the water can be drained downwards. Notes:

• Drain hose must be installed when there’s no water in the tray.

• It is suggested that not to use con- tinuous drainage when unit is in COOL mode, to ensure enough water recycle in the unit to enhance the system cool- ing eects.

• Put the drain hose in an inaccessible place, not higher than drainage hole and keep drain hose straight without any exure.

• Keep the drain cover and its stopper properly when continuous drainage is adopted. The air lter The air lter prevents dust and dirt from entering the machine, prolonging its life expectancy. It is important the lter is cle- aned regularly. otherwise the unit may be seriously damaged. Therefore, clean the lters at least once every two weeks. Filter cleaning

2. Wash it with warm water and a mild

cleansing agent. Alternatively the lter may be vacuum cleaned.

3. Let the lter dry and put it back.

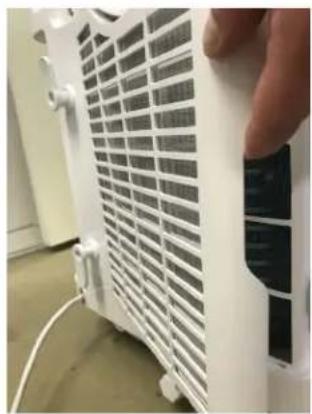

Filter installation Aim the end of the lter toward slot then push lter gently into slot. Notes:

• Be sure to install the lter to side panel then for the lter to back panel.

• Install the lter with opposite direction of removal.

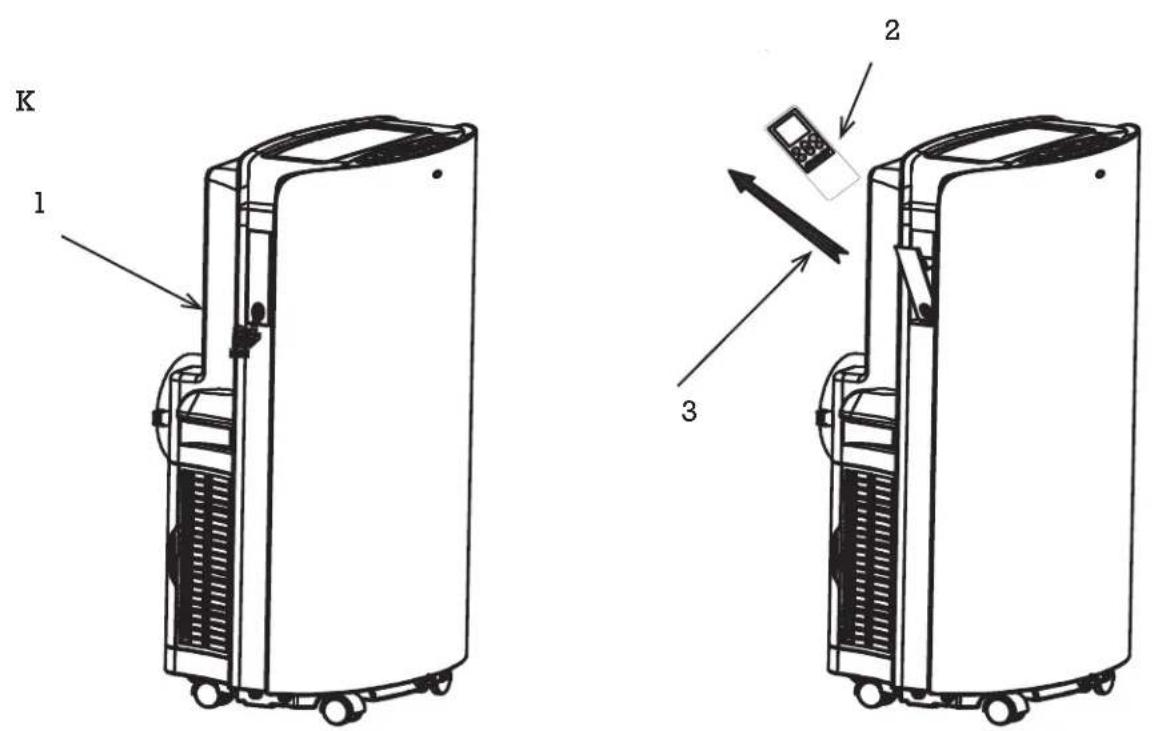

• Install the lter into place gently to avoid any damage to lter. Storage instructions Remote Control Storage

1. Insert remote controller into built-in

compartment in left side of unit.

2. Press the lower part of built-in compart-

ment gently to open it and take out remote controller. End of Season Storage

1. Screw o the drain cover and pull out

the stopper to drain condensate water completely.

2. Keep unit running in fan mode for half

day to dry inside of unit completely to prevent from going moldy.

3. Turn o the unit, pull out plug then

wrap the power cord around the wi- re-winding pillar, insert the plug into the universal xing hole at the back pa- nel of the unit, install the water stopper and drain cover.

4. Remove the heat exhaust hose assem-

bly, clean and keep it properly. Notes:

• Hold the exhaust hose assembly with both hands when removal.

• Push the fasteners aside on exhaust air outlet using your thumbs, then pull out exhaust hose assembly.

5. Pack the air-conditioner properly with

soft plastic bag and put it in dry place with appropriate dust-proof measures, and keep the unit away from children.

6. Take out the batteries from the remote

control and keep it properly. Note:

• Assure the unit is stored in a dry place.

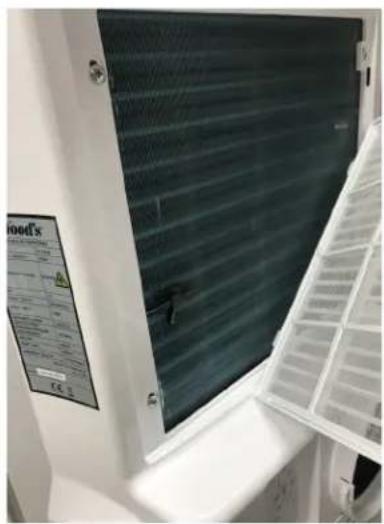

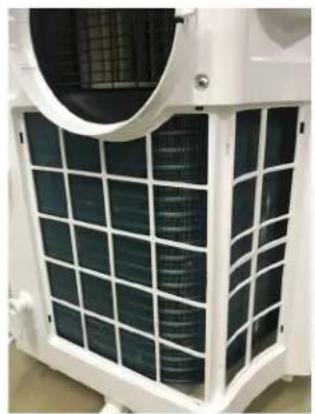

• All accessories of the unit shall be pro- tected together properly. Maintenance Clean the condensor with Wood’s cleaning detergent. Read more about how to clean your unit at woods.se Clean the unit with a soft moist cloth. Do not use solvents or strong cleaners as this might damage the surface of the unit. Service If the Air Conditioner requires servicing, you must rst contact your local retailer. Proof of purchase is required for all war- ranty claims. FUNCTION OF THE OPERATION MODES AND INSTALLATION DESCRIPTIONS It is very important that the lter is cleaned regularly; otherwise the air conditioner might lose capacity and even be seriously damaged.GB

Operating Instructions

PROBLEM CAUSE REMEDY

The unit fails to start

Power supply failure Water-full and its icon lighting Ambient temperature too low or low high The room temperature is lower than the set temperature in cooling mode or higher temperature in heating mode Connect the unit to a live socket and turn it on Drain the water stored in the unit. It is recommended to use this unit between 8-35 Change the set temperature Bad cooling eects There is direct sunlight The doors and windows are open, the room is crowded or there are other heat sources Dirty lter Air inlet or air outlet clogged Close the window curtain Close the door and window, remove other heat sources Clean or replace the lter mesh Remove the obstruction High noise level The unit is being placed at uneven surface. ut the unit at a at and rm place (may reduce noise) The compressor does not work Initiation of overheat protection Wait until the temperature decrease, the unit will re-start automatically The remote control does not work Too long distance The remote control didn’t aim at signal receptor on unit. The batteries have no electricity Bring the remote control close to the air-conditioner and ensure airs at signa receptor on unit. Replace the batteries If you are having trouble with your dehumidier, please refer to below trouble shooting. If nothing of the below works, please contact your retailer for servicing of your Air Conditioner. Error Codes CH01 Room temperature sensor failure Check the room temperature sensor and related circuits CH02 Tube temperature sensor failure Check the tube temperature sensor and related circuits E4 Anti-freeze protection Restore the functions automatically once anti-freeze protection is over. FL Water tank in chassis is full Drain the condensate and re-start the unitGB

Operating Instructions *This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your us device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. NOTE! Register at www.warranty-woods.com and read about how to get extended warranty. Please visit www.woods.se for more information. Recommended limits for use The best operating ambient temperature for cooling is 17-35 °C. The unit runs up to +45°C .Fuse Parameter: φ5.0x20mm 3.15A, 250Vac. AC Cortina Silent 12K Smart Home C Cortina Silent 12K WiFi Cooling capacity 3.520 WPower consumption 1.350 WAir flow: 420m³ / hEnergy class ADehumidification 33,6 L / 24hTemperature setting 17-30°CWorking temperatur 16-45°CEER 2,6Exhaust hose lenght 1,5 mDiameter of the exhaust hose 15 cmRefrigerant gas R290/260gNoise level in decibels 56dB / 64dBWeight 33,4 kgDimensions in mm, L x Bx H 850x471x355 TECHNICAL DATA *Technical changes and improvements may occur. All values are approximate and may vary due to external circumstances such as temperature, ventilation and humidity. NOTE! Register at www.warranty-woods.com and read about how to get extended warranty. Please visit www.woods.se for more information. Guarantees 2 years consumer warranty against production faults. Please note that the warranty is only valid upon the production of the receipt. The warranty is only valid if the product is used in accordance with the instructions and security warnings expressed in this manual. The warranty does not cover any damages caused by improper handling of the product. NOTE: The 2 years warranty only applies for consumers and not for commercial use of the unit.GB

1. Download and Install

APP Download Woods Connect app from App Store or Google Play

1. Register/Login/Forgot password

Register If you don’t have an App account, register an account or sign in with verication code by SMS. This page describes the registration process. 1.Tap to enter registration page 2.The system automatically reco- gnises your country / area. You can also select your country code. Enter the mobile number/E-mail and tap “Next”. 3.If you enter the mobile number, then enter the verication code in the message and enter the password tap”Conrm” to nish your registra- tion. 4.If you enter the E-mail enter the password and tap”Conrm” to nish your registration.

2. Sign in with username

and password or veri- cation code via SMS Sign in with username and password 1.The system automatically recogni- ses your country / area. You can also select your country code.Enter the mobile number/E-mail and tap “Next 2.Enter your registered mobile num- ber or Email, and password to login. Sign in with verication code 1.Tap“Sign in with SMS verication” to new page 2.The system automatically recogni- ses your country / area. You can also select your country code by yourself. Forgot password If you forgot your password, please follow these procedures: 1.Tap“Forgot password” 2.The system automatically recogni- ses your country / area.You can also select your country code by yourself. Enter the mobile number/E-mail and tap “Next” 3.Enter the verication code in the message/E-mail and enter the new password tap”Conrm” to nish. WiFi Woods Connect supports below functions: Power on/Power o Cool Mode Dehum Mode Fan Mode Eco Mode Temperature settings Speed: Low, Medium and High Timer: 1-24 h Sleep: On/O Auto clean: On/O Celsius/Fahrenheit Swing: On/O

3. Follow the proceedu-

res in the APP to enjoy WiFi. Smart Home If you have a Smart Home product please nish step 1 to 3. Third-party Access Service: Tap a third-party voice service icon to see how to connect to the service. You nd this icons Smart Home Woods Connect supports below functions by voice command: Power on/Power off Temperature settings For more information visit: https://woods.se/en/GB
