USER MANUAL UH38 Yealink

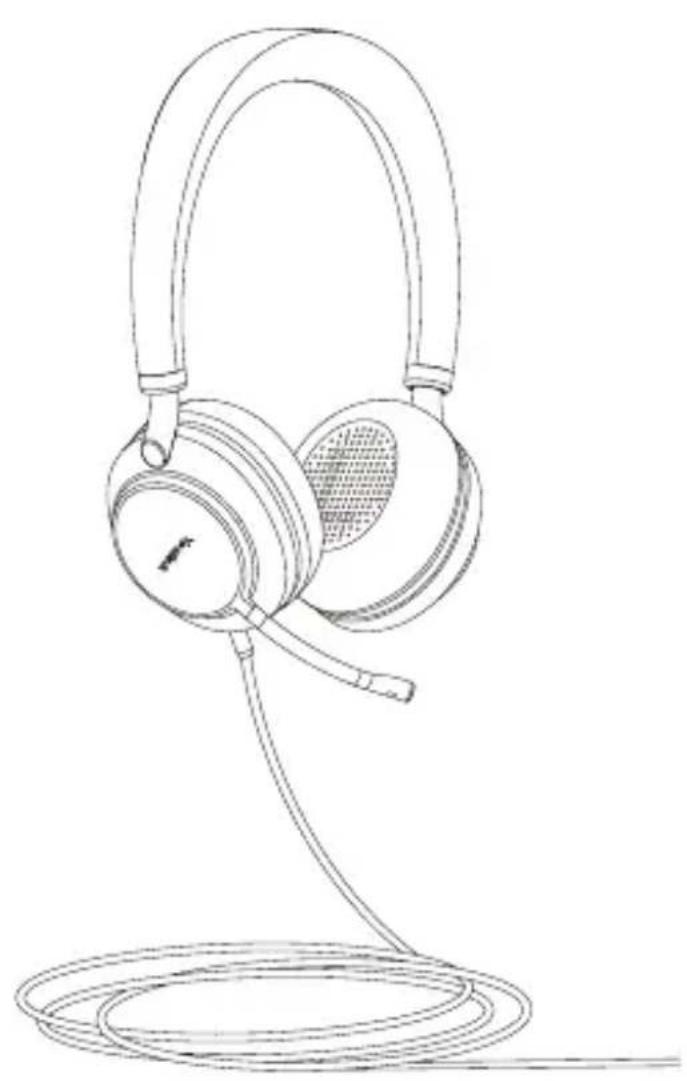

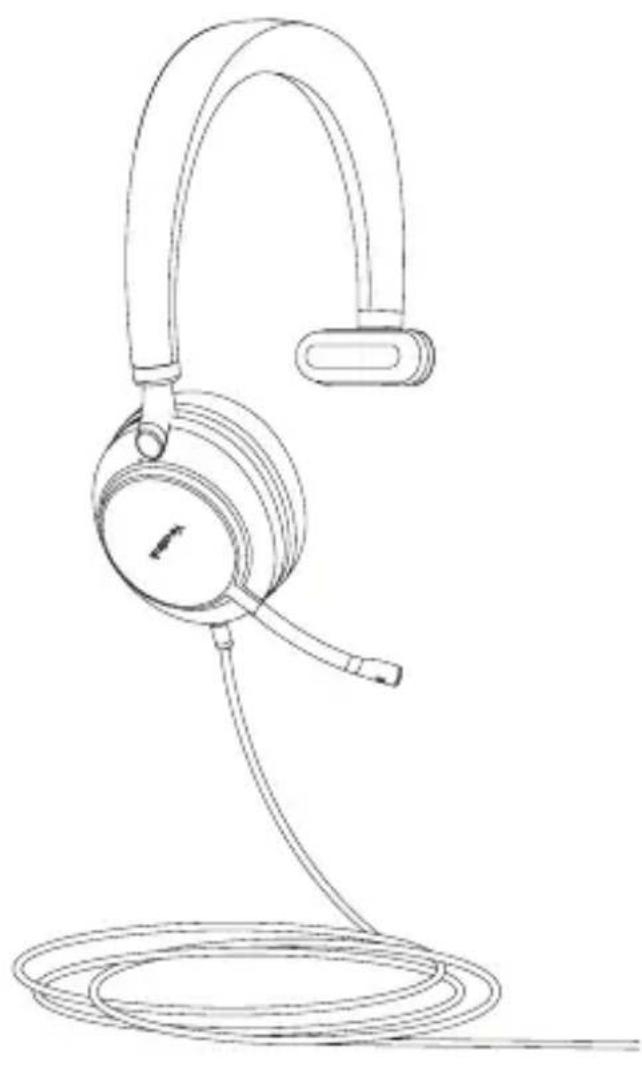

UH38 Mono & UH38 Dual

USB Wired Headset

English | Deutsch | Espanol | Français

Quick Start Guide

V1.1

Table of Contents

English 1

Deutsch 6

Espanol 11

Français 16

1 Package List UH38 Dual

UH38 Mono

1 UH38 Dual Headset / UH38 Mono Headset
2 USB 2.0 Cable (USB-A to USB-C/USB-C to USB-C)
3 Carrying Case 4 Quick Start Guide

Note: We recommend that you use the included accessories, and other accessories may have compatibility issues that prevent them from working properly.

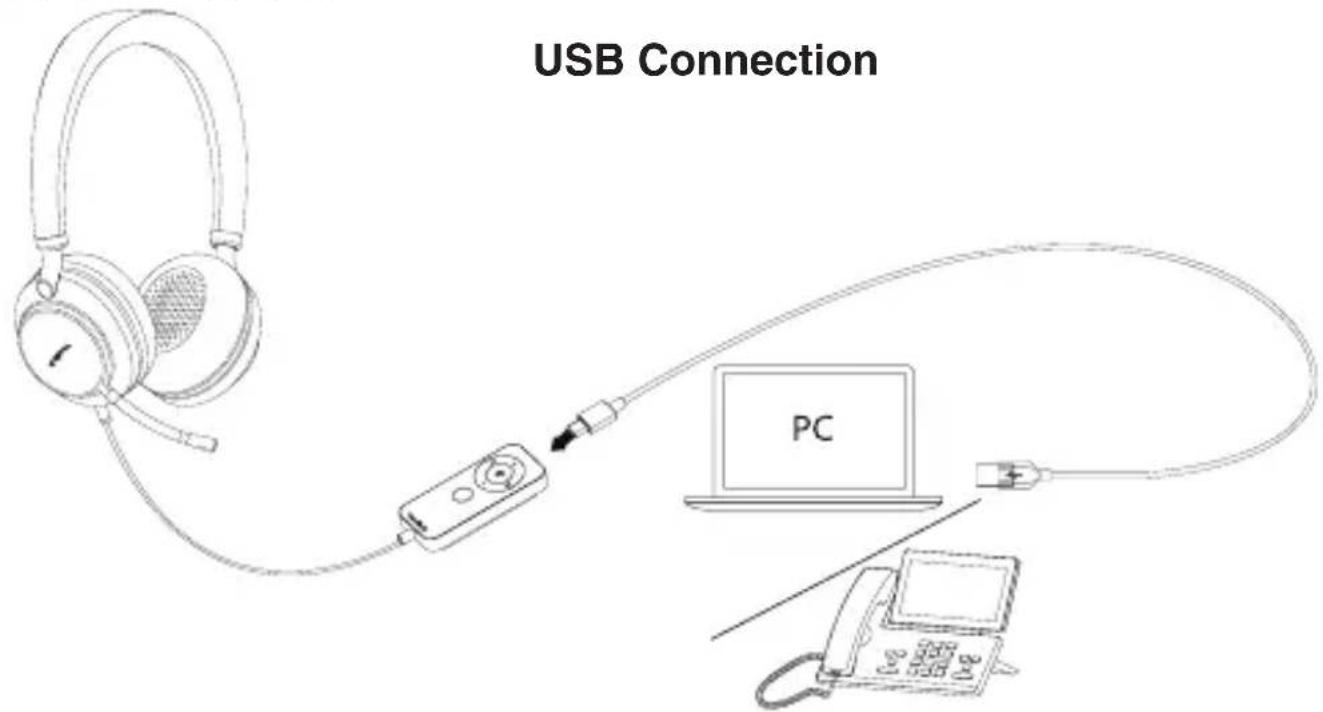

2 Connection

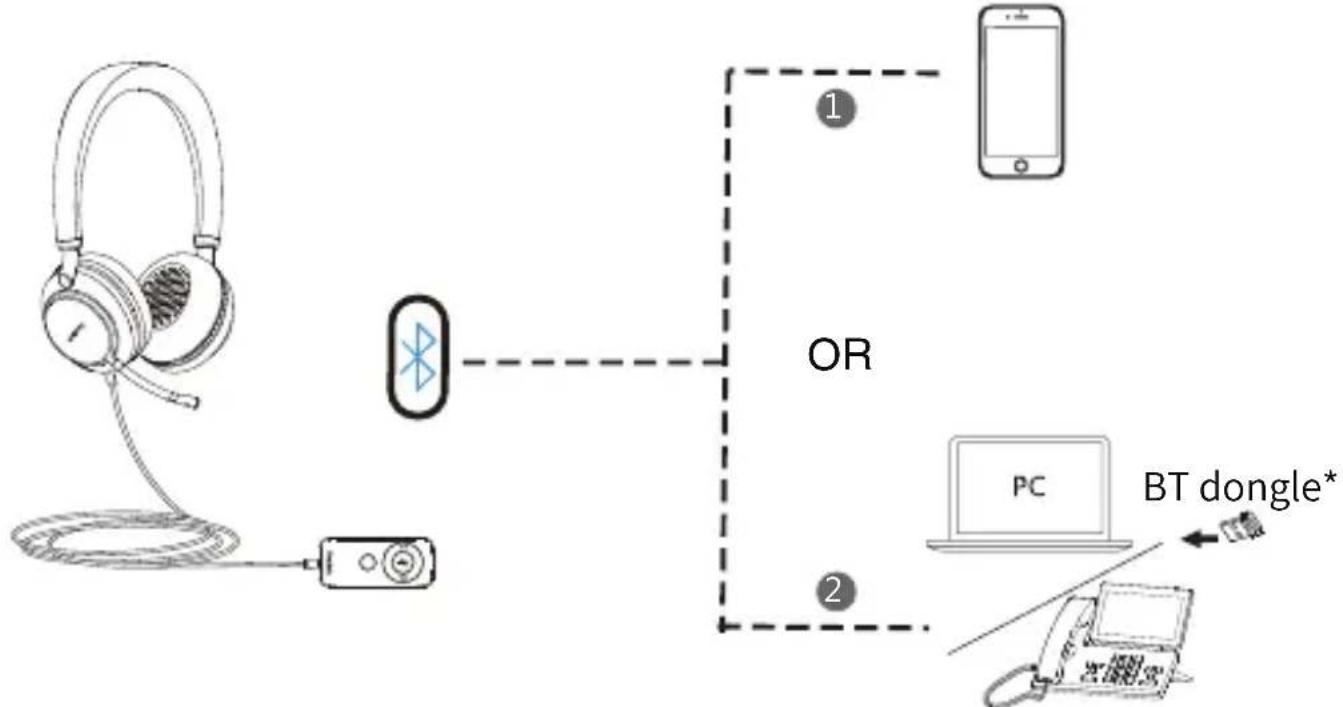

Bluetooth Connection

* The BT dongle needs to be purchased separately, please contact your dealer if necessary.

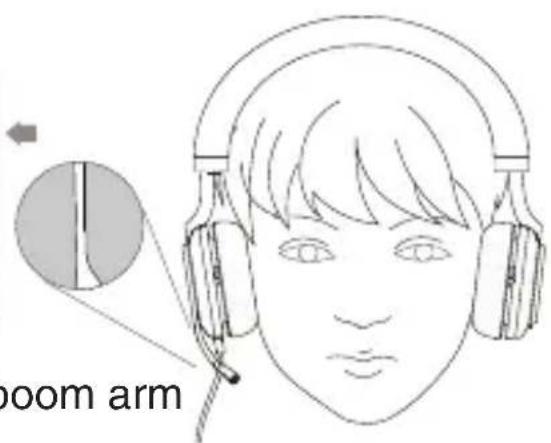

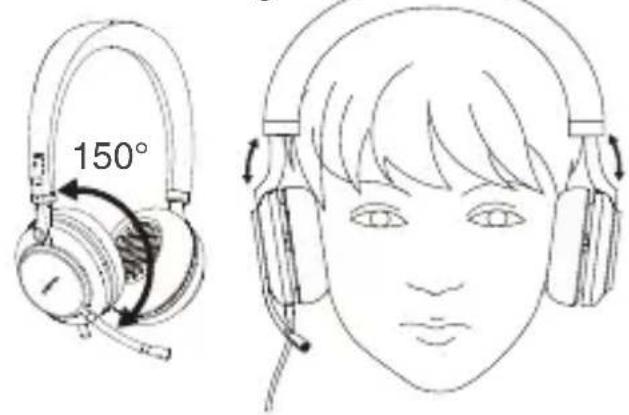

3 Wear the Headset

Right Left

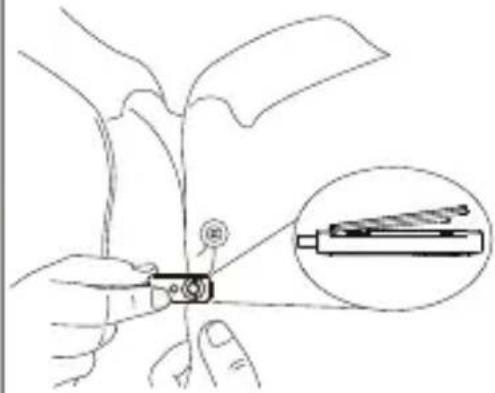

Clothing clip

Bendable boom arm

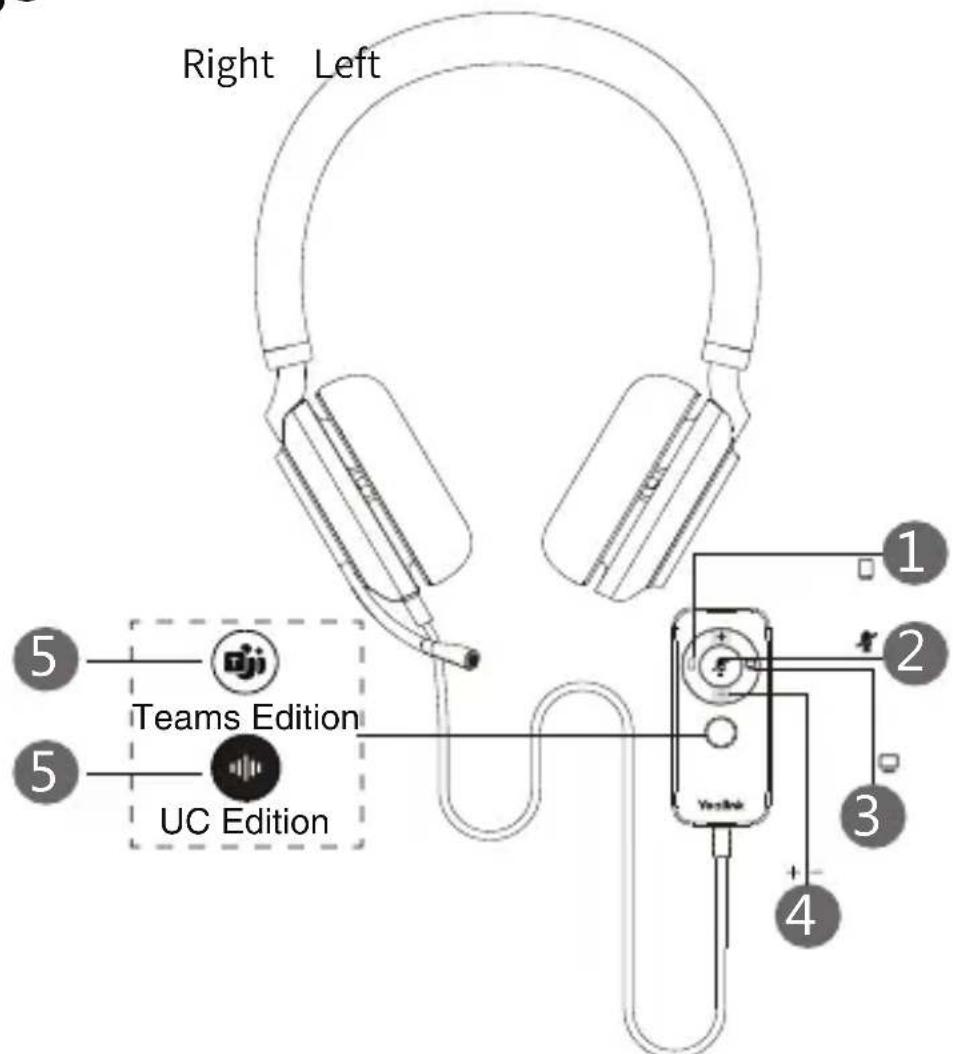

4 Usage

No.	Item Action & Function
1	Bluetooth on/off Button and Mobile Talk	·Hold for 5 seconds while powered off to enter the Bluetooth pairing mode (the button flashes red and blue). Then, search and connect Yealink UH38 on the mobile phone. ·Hold for 5 seconds to turn off Bluetooth. ·Bluetooth device call control button: press to answer, reject, or end a mobile call.
2	Mute/unmute Button Press to	mute or unmute microphone.
3	PC Talk Button	USB connected device call control button: press to answer, reject, or end a PC/desk phone call.
4	Volume up Button Volume down Button	Press to turn up/turn down volume.
5	(Teams Edition) Teams Button	·Hold for 2 seconds to activate Cortana integrated in Teams (this requires Microsoft's support). ·Press to invoke the Teams client.
	(UC Edition) Voice Assistant Button	Hold for 2 seconds to activate the voice assistant.

Note: Before using the Teams functions, you should install the Microsoft Teams client on your PC. For more information on LED indicator status, please refer to the user guide.

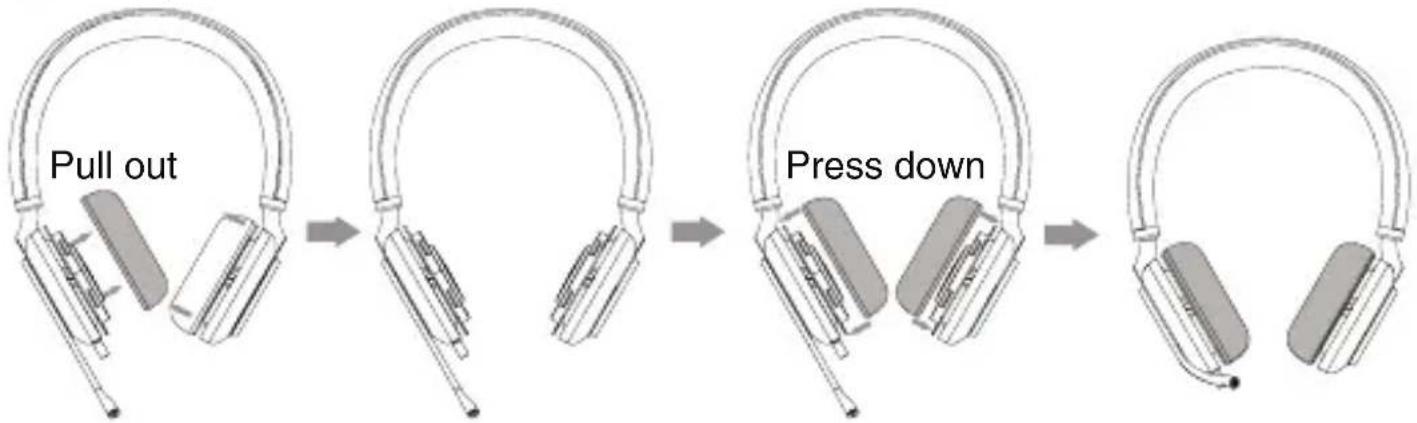

5 Replace Ear Cushions

When installing a replacement ear cushion:

• Remove the outer layer of the double-sided sticker from the new ear cushion.
• Align the cushion with the headset base and press them firmly together to snap it into place (you can hear a click for all 4 snaps).
• Press around the entire edge of the cushion to make sure that the double-sided tape and the headset base are seamlessly pasted in the entire circle.

Software

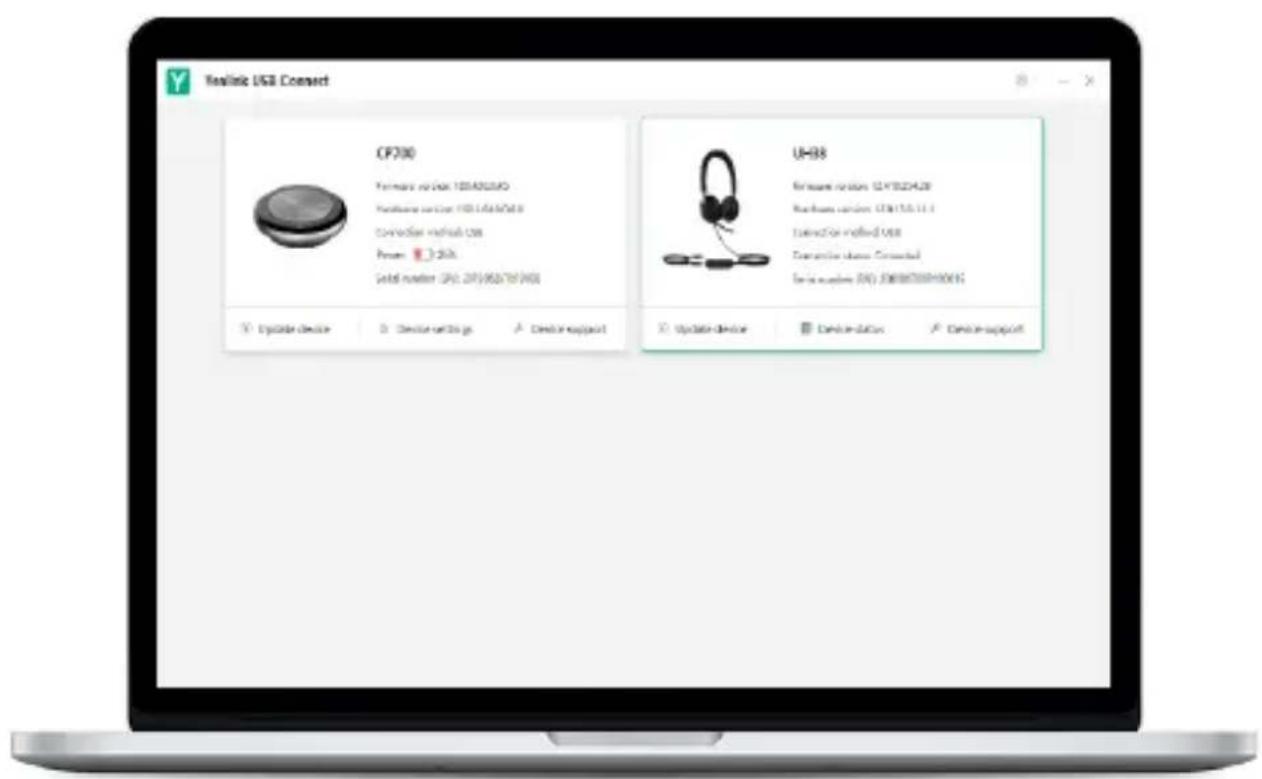

Yealink USB Connect

Yealink provides a USB device manager client - Yealink USB Connect, which you can use to personalize and manage your Yealink headsets.

Download it from the Yealink website https://www.yealink.com/product/yuc.

Note: It needs to be used with Yealink USB Connect of version 0.33.x.x or higher.

Regulatory Notices

Operating Ambient Temperatures

• Operating temperature: +14 to 122^ (-10 to 50^ )
  Relative humidity: 5% to 90% , noncondensing
  Storage temperature: -22 to +160^ (-30 to +70^)

Warranty

Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.

DC symbol

is the DC voltage symbol.

Restriction of Hazardous Substances Directive (RoHS)

This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting [e-mail].

Safety Instructions

Save these instructions. Read these safety instructions before use!

The following basic safety precautions should always be followed to reduce risk of fire, electrical shock, and other personal injury.

Environmental Requirements

• Place the product on a stable, level and non-slip surface.
• Do not place the product close to heat sources, in direct sunlight or next to any house hold appliance with strong magnetic field or
  electromagnetic field, such as a microwave oven or a refrigerator.
• Do not allow the product to come into contact with water, dust and chemicals.
• Protect the product from aggressive liquids and vapors.
• Do not place the product on or near any inflammable or fire-vulnerable object, such as rubber-made materials.
• Do not install the product in rooms with high humidity, for example, in bathrooms, laundry rooms and wet basements.

Safety Notes During Operation

• Use only spare parts and accessories supplied or authorized by Yealink. The operation of non-authorized parts cannot be guaranteed.
• Do not place heavy objects on top of the handset or the base station in case of damage and deformation caused by the heavy load.
• Do not open the handset or the base station by yourself for repair purpose, which could expose you to high voltages. Have all repairs carried out by authorized service personnel.
• Do not let a child operate the product without guidance.
• Keep the small accessories contained in your product out of reach of small children in case of accidental swallowing.
• Before plugging or unplugging any cable, make sure that your hands are completely dry.
• Do not hold the handset up to your ear when speakphone is on or when the ringer is ringing as the volume can be very loud, which may be harmful to your hearing.
• During a thunderstorm, stop using the product and disconnect it from the power supply to avoid lightning strike.
• If the product is left unused for a rather long time, disconnect the base station from the power supply and unplug the power adapter.
• When there is smoke emitted from the product, or some abnormal noise or smell, disconnect the product from the power supply, and unplug the power adapter immediately.
• Remove the electrical cord from an outlet by pulling gently on the power adapter, not by pulling the cord.

Battery Precautions

• Do not immerse the battery into water, which could short-circuit and damage the battery.

• Do not expose the battery to an open flame or leave the battery where it could be subjected to extremely high temperatures, which could cause the battery to explode.

• Do power the handset off before removing the battery.

• Do not try to use the battery for the power supply of any device other than this handset.
• Do not open or mutilate the battery, released electrolyte is corrosive and may cause damage to your eyes or skin.
• Use only the rechargeable battery pack delivered with the handset or those rechargeable battery packs expressly recommended by Yealink.
• Defective or exhausted battery should never be disposed of as municipal waste. Return old battery to the battery supplier, a licensed battery dealer or a designated collection facility.

Notices of Cleaning

• Before cleaning the base station, stop using it and disconnect it from the power supply.
• Remove the battery before cleaning the handset to reduce risk of electric shock.
• Only clean your product with a piece of slightly moist and anti-static cloth.
• Keep the power plug clean and dry. Using a dirty or wet power plug may lead to electric shock or other perils.

ENVIRONMENTAL RECYCLING

Never dispose of the device with domestic waste

Ask your Town Council about how to dispose of it in an environmentally friendly way. The cardboard box, plastic packaging and player components may be recycled in accordance with prevailing recycling regulations in your country.

Always adhere to prevailing regulations

Those who fail to do so may be fined or prosecuted in accordance with the law. The crossed out garbage can that appears on the device means that when it has reached the end of its useful life, it should be taken to a special waste disposal center and treated separately to general urban

Batteries: Be sure that the batteries have been placed in the right position. This phone use rechargeable batteries only.

Compulsory information according to regulations for battery-operated devices. Caution: Risk of explosion if battery is replaced with a battery of a wrong kind. Dispos of batteries in accordance with the instructions.

Troubleshooting

The unit cannot supply power to Yealink device.

There is a bad connection with the plug.
1. Clean the plug with a dry cloth.
2. Connect it to another wall outlet.
The usage environment is out of operating temperature range.
1. Use in the operating temperature range.
The cable between the unit and the Yealink device is connected incorrectly.

Connect the cable correctly.

You cannot connect the cable properly.
1. You may have connected a wrong Yealink device.
2. Use the correct power supply.
Some dust, etc., may be in the port.

1. Clean the port.

Contact your dealer or authorized service facility for any further questions.

Contact Information

YEALINK NETWORK TECHNOLOGY CO.,LTD.

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Made in China

309, 3rd Floor, No. 16, Yun Ding North Road, Huli District, Xiamen City, Fujian, VR China

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Niederlande

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Hergestell in China

1 Contenso del paquete UH38 Dual

UH38 Mono

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Made in China

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, China

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Pays-Bas

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, Etats-Unis

Fabrique en Chine

C

Declaration of Conformity

We,

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road,

Huli District, Xiamen City, Fujian, P.R. China

Manufacturer: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road,

Huli District, Xiamen City, Fujian, P.R. China

CE DATE: 15^th / September/ 2021

declare that the product

Type: USB Wired Headset

Model:UH38 Dual,UH38 Mono

meets the essential requirements and other relevant provisions according to the following EC directive

Directive: 2014/30/EU, 2014/35/EU, RED 2014/53/EU

Conformity

The product complies with the following standards:

Safety: EN IEC 62368-1:2020+ A11:2020

EMC: EN 55032:2015+A11:2020, EN 55035:2017+A11:2020

EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019

Radio: ETSI EN 300 328 V2.2.2

Health: EN 50663:2017, EN 62479:2010

Directive 2011/65/EU and (EU)2015/863 of the European Parliament and of the Council of 8 June 2011 and 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS 2.0)

Directive 2012/19/EU of the European Parliament and of the Council of 4.July.2012 on Waste electrical and electronic equipment(WEEE)

Regulation (EC) No.1907/2006 of the European Parliament and of the Council of 18.December.2006 on Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH)

NAME: Huahu Wang

DATE: 15/September/2021

TITLE: Vice President

Note: UH38 supports Yealink T27G/T4xS/T4U/T53/T5xW/T58/VP59 through USB connection. To have better experience, the phone firmware recommended to be v86 (xx.86.x.xx) or higher. You can find more detail in "Yealink Headset Compatibility Guide" from Yealink support website.

Need more help?
Yealink Documentation

Yealink Headset Compatibility Guide

Technical Support

Visit Yealink WIKI (http://support.yealink.com/) for the latest firmware, guides, FAQ, Product documents, and more. For better service, we sincerely recommend you to use Yealink Ticketing system (https://ticket.yealink.com) to submit all your technical issues.
