WHM621 - Headphones Yealink - Free user manual and instructions

Product Type	DECT Audio Headset
Brand	Yealink
Model	WHM621
Connectivity	DECT
Compatibility	DECT Manager W90/W80
Charging Time	Approximately 3 hours
Battery LED Indicator	Flashing red (<20%), flashing green (20-99%), solid green (100%)
Controls	Mute button, volume up/down keys, call control key
Microphone	Built-in, adjustable (rotating arm)
Earpiece	Replaceable ear cushions
Operating Temperature	-10°C to 50°C
Operating Humidity	5% to 90% (non-condensing)
Storage Temperature	-30°C to 70°C
Package Contents	WHM621 headset, charging cable (1.2m), quick start guide
Power Supply	Via charging cable (adapter not included, use approved accessories)
Battery Type	Built-in rechargeable (do not remove)
Care and Cleaning	Wipe with a slightly damp anti-static cloth; turn off and disconnect before cleaning
Safety	Do not open, do not expose to water or flames, use only approved accessories
Warranty	Limited to device under normal use
Country of Origin	China

Frequently Asked Questions - WHM621 Yealink

How to turn the headset on and off?

Press and hold the call control key for 3 seconds to turn on or off. The red light indicates power on/off.

How to charge the WHM621 headset?

Use the provided charging cable to connect the headset to a power source. Full charge takes about 3 hours. The LED indicates the level: flashing red (<20%), flashing green (20-99%), solid green (100%).

How to register the headset to the DECT manager?

First, set the DECT manager (W90DM/W80DM) to registration mode via its web interface (Handset & Account > Registration > Add Handset > Start Registration). Then, on the headset turned off, press and hold the call control key for 5 seconds until the light flashes orange. Registration occurs automatically; a solid green light confirms connection.

How to pair the headset with an existing handset?

On the DECT manager web interface, go to Handset & Account > Registration, modify the desired handset and select 'Paired Terminal' to pair it with the headset. The headset will then obtain the same extension number as the handset.

How to mute or unmute the microphone?

Press the mute button on the headset, or move the microphone arm up (mute) or down (active).

How to answer, reject, or end a call?

Press the call control key once to answer or end. To reject an incoming call, press twice. To redial the last call, press twice in standby mode.

How to adjust the volume?

Use the Volume up and Volume down keys on the side of the headset.

How to replace the ear cushions?

Gently pull off the old cushion. Align the new cushion at a 45° angle and snap it into place until secure.

What to do if the headset does not turn on or charge?

Check the charging cable connection. Clean the contacts if necessary. Ensure the environment is within the operating temperature range (-10°C to 50°C). If the problem persists, contact an authorized repair service.

How to maintain the headset?

Turn off and disconnect the headset before cleaning. Use a slightly damp anti-static cloth. Do not use chemicals. Keep the charging contacts clean and dry.

USER MANUAL WHM621 Yealink

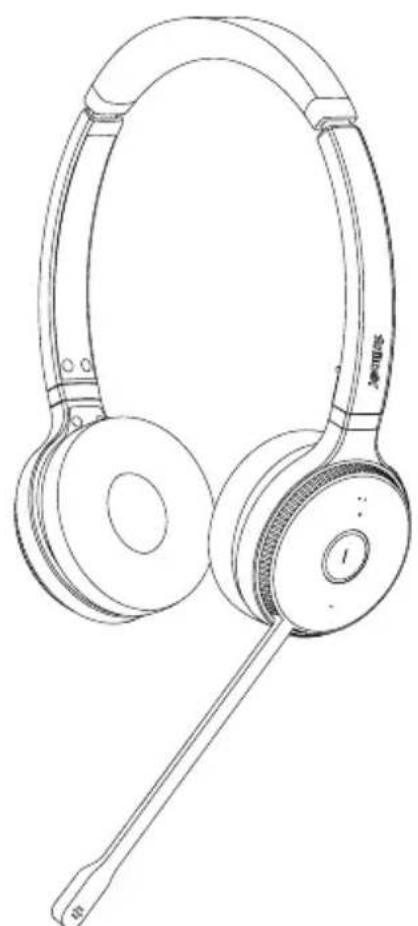

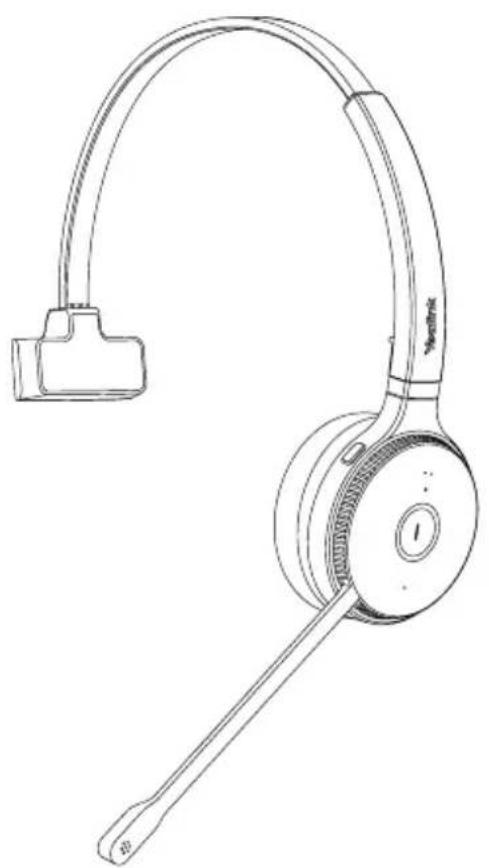

WHM621 with Charging Cable & WHD622 with Charging Cable

DECT Wireless Headset

Line drawing of a Jirovo耳机 headset with adjustable head and antenna (no text or symbols)

Line drawing of a pair of SaaS headphones with earbuds and microphone (no text or symbols)

English | Deutsch | Español | Français

Quick Start Guide

V1.0

Table of Contents

English 1

Deutsch 5

Español 9

Français ......13

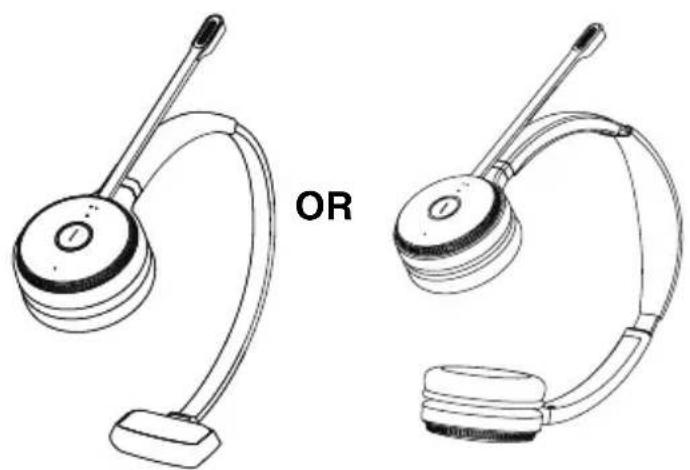

1 Package Contents

Line drawings of two earphones with adjustable arm and head (no text or symbols)

WHM621 with Charging Cable or WHD622 with Charging Cable

Line drawing of a USB-A cable with a connector (no text or symbols on the diagram itself)

Charging Cable 1.2 M

Simple line drawing of a closed book or folded paper (no text or symbols)

Quick Start Guide

Note: We recommend that you use the included accessories, because other accessories may have compatibility issues that prevent them from working properly.

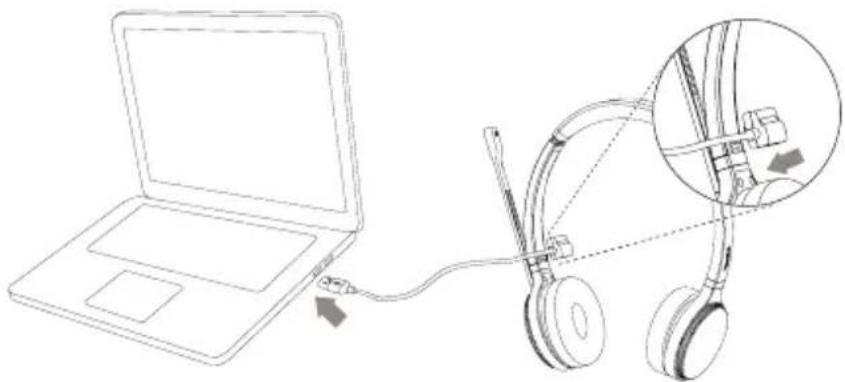

2 Charging the Headset

Line drawing of a laptop connected to an ear with a cable, showing mechanical components (no text or symbols)

Battery Charge Level	<20%	≥20% and <100%	Full
LED	Flash Red Flash	Flash Green Green	I

Note: It takes approx. 3 hours to fully charge the headset.

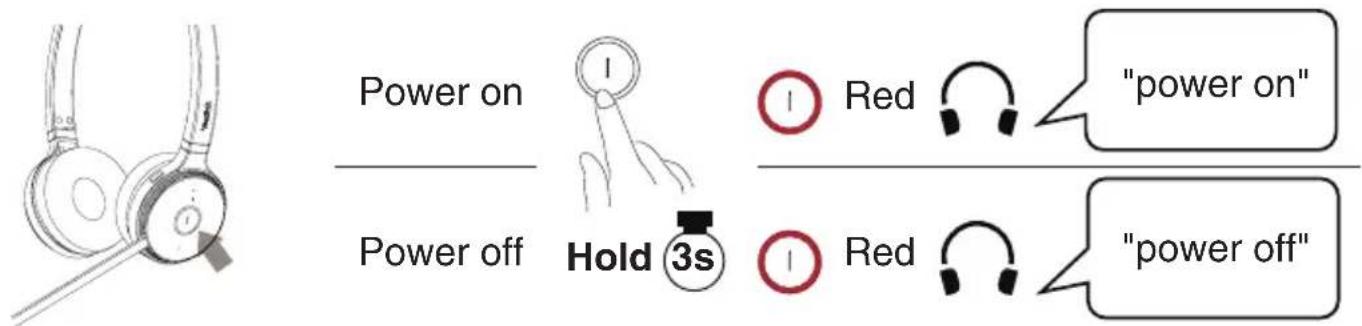

3 Powering on/off

4 Registering the Headset to W80/W90 DECT Manager (DM)

1 Put the DM into registration mode

On the W80DM/W90DM web user interface, go to Handset & Account->Handset Registration->Add Handset->Start Register Handset.

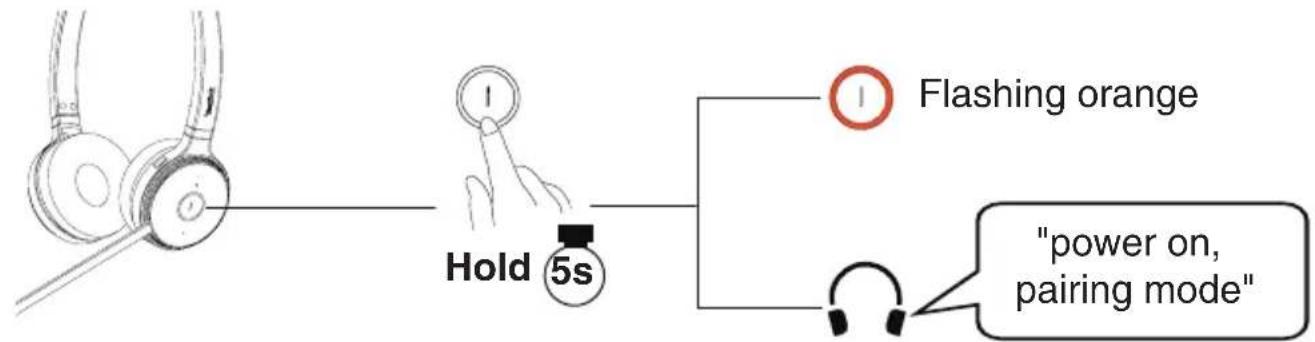

2 Put the headset into registration mode

Power off state

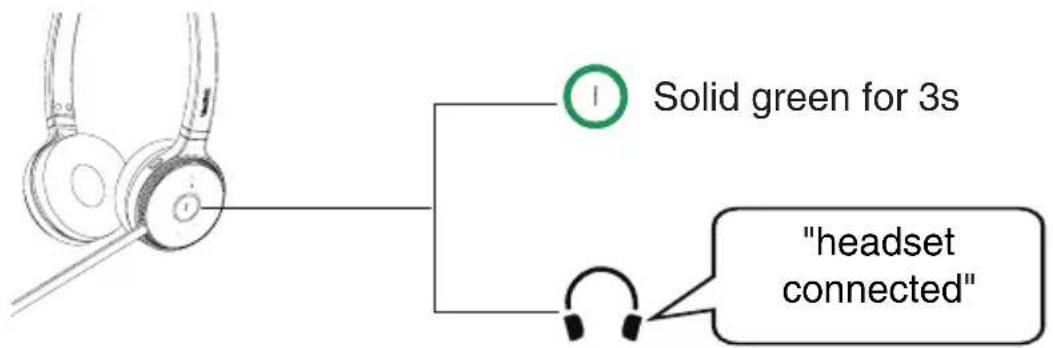

After the headset and DM are all in the registration mode, the headset will automatically register to the DM.

5 Pairing the Headset with a Handset

You can pair the headset with a handset registered on the DM.

The headset will get the same extension number as the handset.

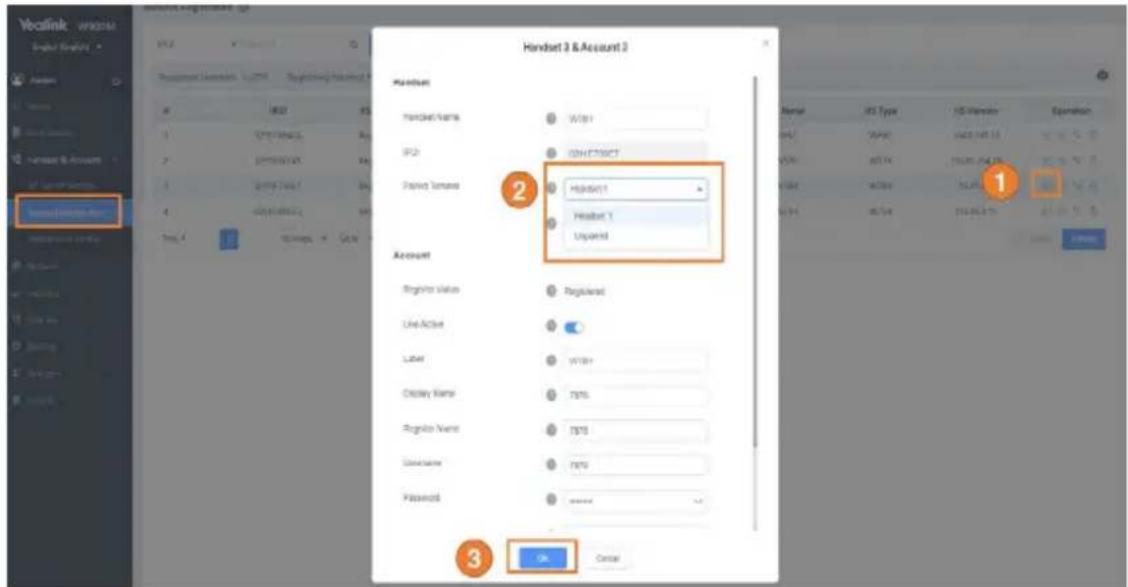

On the W90DM/W80DM web user interface, go to Handset & Account-

Handset Registration->Edit->Paired Terminal.

Note: The handsets need to be registered on the DM first.

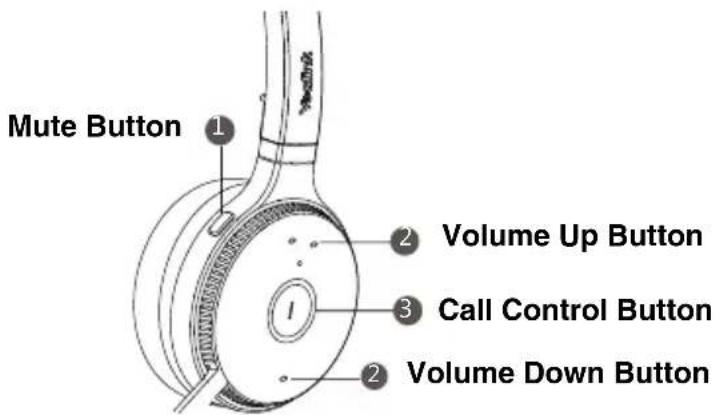

6 Usage

1	Mute or unmute your microphone	Press the Mute Button or move the microphone boom-arm up/down
2	Volume up/down	Press the Volume Up/Down Button
3	Answer or end a call	Press the Call Control Button
	Reject a call	Press the Call Control Button twice when receiving a call
	Redial a call	Press the Call Control Button twice when the head-set in the idle status

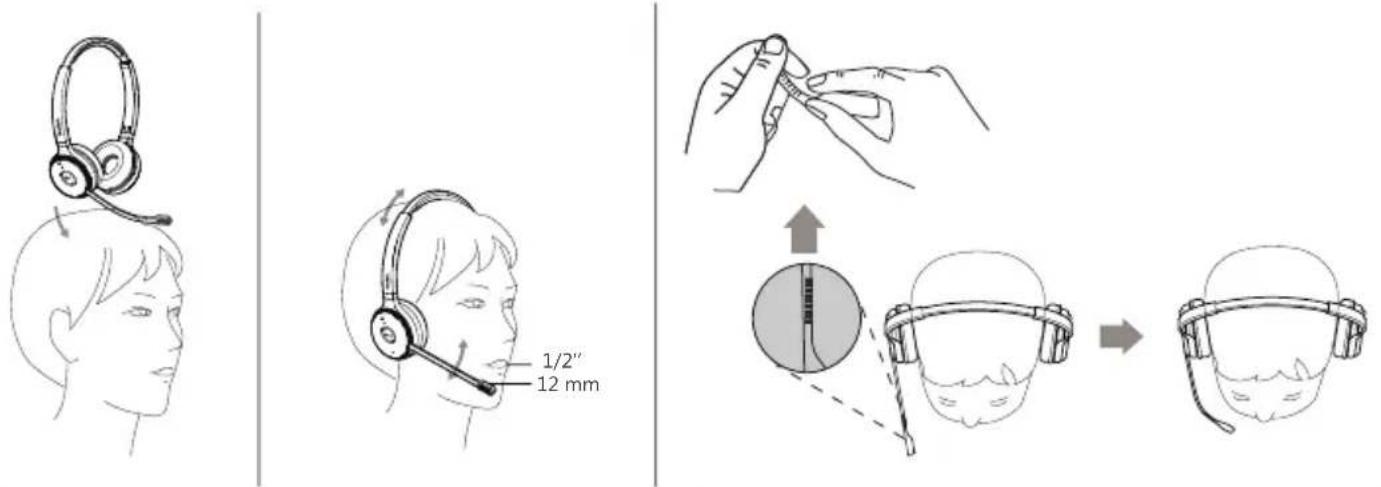

7 Wearing the Headset

Note: The side with the microphone is the right ear.

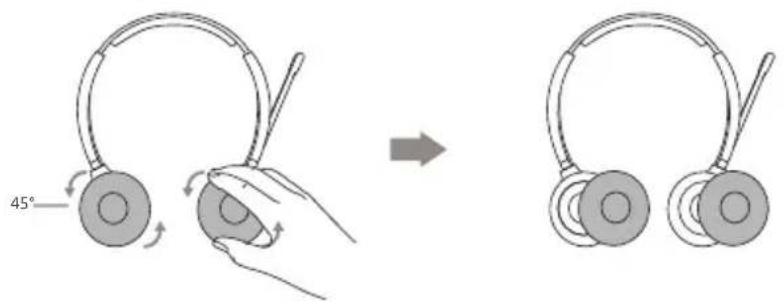

8 Replacing Ear Cushions

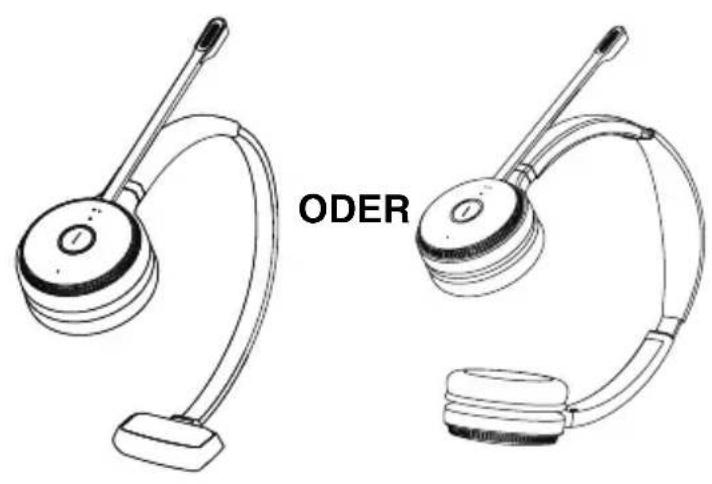

1 Verpackungsinhalt

Line drawings of two ODER headsets with adjustable arm and neck (no text or symbols)

Line drawing of a USB-A cable with connector (no text or symbols on the diagram itself)

Ladekabel 1,2 m

Simple line drawing of a closed book or document (no text or symbols visible)

Kurzanleitung

Line drawing of a laptop connected to an ear with a cable, showing mechanical components and wiring (no text or symbols)

Line drawings of two earphones with adjustable arm and head (no text or symbols)

Line drawing of a USB-A cable with a connector (no text or symbols on the diagram itself)

Simple line drawing of a closed book or folded paper (no text or symbols)

Line drawing of a laptop connected to an ear with a cable, showing mechanical components (no text or symbols)

Line drawings of two earphones with adjustable arm and head (no text or symbols)

Line drawing of a USB-A cable with connector (no text or symbols on the diagram itself)

Simple line drawing of a closed book or folded paper (no text or symbols)

Line drawing of a laptop connected to an ear with a cable, showing mechanical components (no text or symbols)

Operating Ambient Temperatures

• Operating temperature: +14 to 122^ (-10 to 50^ )
  • Relative humidity: 5% to 90%, noncondensing
  • Storage temperature: -22 to +160°F (-30 to +70°C)

Warranty

Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.

DC symbol

is the DC voltage symbol.

Restriction of Hazardous Substances Directive (RoHS)

This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting [e-mail].

Safety Instructions

Save these instructions. Read these safety instructions before use! The following basic safety precautions should always be followed to reduce risk of fire, electrical shock, and other personal injury.

Environmental Requirements

• Place the product on a stable, level and non-slip surface.
• Do not place the product close to heat sources, in direct sunlight or next to any house hold appliance with strong magnetic field or electromagnetic field, such as a microwave oven or a refrigerator.
• Do not allow the product to come into contact with water, dust and chemicals.
• Protect the product from aggressive liquids and vapors.
• Do not place the product on or near any inflammable or fire-vulnerable object, such as rubber-made materials.
• Do not install the product in rooms with high humidity, for example, in bathrooms, laundry rooms and wet basements.

Safety Notes During Operation

• Use only spare parts and accessories supplied or authorized by Yealink. The operation of non-authorized parts cannot be guaranteed.
• Do not place heavy objects on top of the handset or the base station in case of damage and deformation caused by the heavy load.
• Do not open the handset or the base station by yourself for repair purpose, which could expose you to high votages. Have all repairs carried out by authorized service personnel.
• Do not let a child operate the product without guidance.
• Keep the small accessories contained in your product out of reach of small children in case of accidental swallowing.
• Before plugging or unplugging any cable, make sure that your hands are completely dry.
• Do not hold the handset up to your ear when speakphone is on or when the ringer is ringing as the volumn can be very loud, which may be harmful to your hearing.
• During a thunderstorm, stop using the product and disconnect it from the power supply to avoid lightning strike.
• If the product is left unused for a rather long time, disconnect the base station from the power supply and unplug the power adapter.
• When there is smoke emitted from the product, or some abnormal noise or smell, disconnect the product from the power supply, and unplug the power adapter immediately.
• Remove the electrical cord from an outlet by pulling gently on the power adapter, not by pulling the cord.

Battery Precautions

• Do not immerse the battery into water, which could short-circuit and damage the battery.

• Do not expose the battery to an open flame or leave the battery where it could be subjected to extremely high temperatures, which could cause the battery to explode.

• Do power the handset off before removing the battery.

• Do not try to use the battery for the power supply of any device other than this handset.
• Do not open or mutilate the battery, released electrolyte is corrosive and may cause damage to your eyes or skin.
• Use only the rechargeable battery pack delivered with the handset or those rechargeable battery packs expressly recommended by Yealink.
• Defective or exhausted battery should never be disposed of as municipal waste. Return old battery to the battery supplier, a licensed battery dealer or a designated collection facility.

Notices of Cleaning

• Before cleaning the base station, stop using it and disconnect it from the power supply.
• Remove the battery before cleaning the handset to reduce risk of electric shock.
• Only clean your product with a piece of slightly moist and anti-static cloth.
• Keep the power plug clean and dry. Using a dirty or wet power plug may lead to electric shock or other perils.

ENVIRONMENTAL RECYCLING

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Never dispose of the device with

domestic waste

Ask your Town Council about how to dispose of it in an environmentally friendly way. The cardboard box, plastic packaging and player components may be recycled in accordance with prevailing recycling regulations in your country.

Always adhere to prevailing regulations

Those who fail to do so may be fined or prosecuted in accordance with the law. The crossed out garbage can that appears on the device means that when it has reached the end of its useful life, it should be taken to a special waste disposal center and treated separately to general urban waste.

Batteries: Be sure that the batteries have been placed in the right position. This phone use rechargeable batteries only.

Compulsory information according to regulations for battery-operated devices. Caution: Risk of explosion if battery is replaced with a battery of a wrong kind. Dispose of batteries in accordance with the instructions.

Troubleshooting

The unit cannot supply power to Yealink device.

There is a bad connection with the plug.

1. Clean the plug with a dry cloth.

2. Connect it to another wall outlet

The usage environment is out of operating temperature range.

1. Use in the operating temperature range.

The cable between the unit and the Yealink device is connected incorrectly.

1. Connect the cable correctly.

You cannot connect the cable properly.

1. You may have connected a wrong Yealink device.

2. Use the correct power supply.

Some dust, etc., may be in the port.

1. Clean the port

Contact your dealer or authorized service facility for any further questions.

Contact Information

YEALINK NETWORK TECHNOLOGY CO.,LTD.

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Made in China

Sicherheitshinweise

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

309, 3rd Floor, No. 16, Yun Ding North Road, Huli District, Xiamen City, Fujian, VR China

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Niederlande YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Made in China

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, Chine

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Pays-Bas YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

Declaration of Conformity

We,

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R. China

CE DATE: 05 ^th /January/2021

declare that the product

Type: DECT IP Wireless Headset

Manager

Model: WH62(Contains WHB620, WHD622 or WHM621)

meets the essential requirements and other relevant provisions according to the following EC directive

Directive: 2014/30/EU, 2014/35/EU, RED 2014/53/EU;

The presumption of conformity with the essential requirement is ensure according to :

Article 3.1 a :(protection of the health &the safety of the user)

Safety: EN 62368-1:2014+A11:2017

SAR: EN 50663:2017,EN 62479:2010

Article 3.1 b :(protection requirement with respect to electromagnetic compatibility)

EMC: EN55032:2015, EN55035:2017,

EN301489-6 V2.2.2, EN301489-1 V2.2.1

Article 3.2 (effective use of the radio spectrum)

Radio: ETSI EN 301406 V2.2.2

Directive 2011/65/EU and (EU)2015/863 of the European Parliament and of the Council of 8 June 2011 and 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS 2.0)

Directive 2012/19/EU of the European Parliament and of the Council of 4.July.2012 on Waste electrical and electronic equipment(WEEE)

Regulation (EC) No.1907/2006 of the European Parliament and of the Council of 18.December.2006 on Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH)

NAME: Huahu Wang

DATE:

TITLE: Manager

Huahu Wang 29-Jun-2021
