USER MANUAL BH72 Lite Yealink

Line drawing of a Vactik headphones with earbuds and microphone (no text or symbols on the devices)

English | Deutsch | Español | Français

Quick Start Guide

V1.1

Table of Contents

English 1

Deutsch 10

Español 19

Français 28

1 Package List

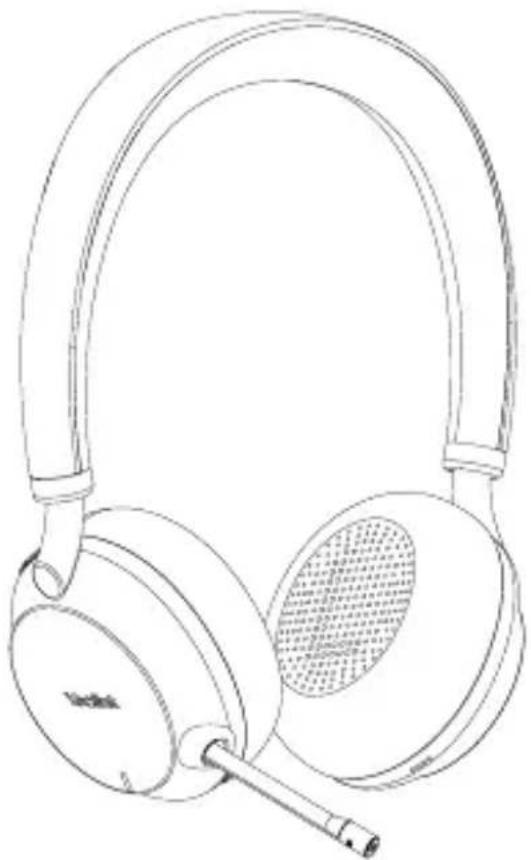

Line drawing of a pair of white headphones with earbuds and microphone (no text or symbols)

BH72(BH72 Lite)

Line drawing of a mechanical connector or tool with a central shaft and two ports (no text or symbols)

USB 2.0 Cable (USB-A to USB-C)

or

BT51-A Dongle or BT51-C Dongle

Simple line drawing of a vertical support or stand (no text or symbols)

BHC76 Wireless Charging Stand

Power Adapter
Optional

Carrying Case

Quick Start Guide

Note: We recommend that you use the included accessories, and other accessories may have compatibility issues that prevent them from working properly.

2 Charging

Diagram of a pair of headphones connected to a plug, showing ear and socket (no text or symbols)

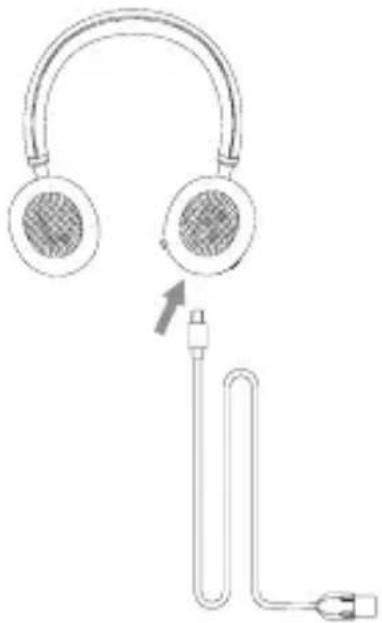

USB Charging

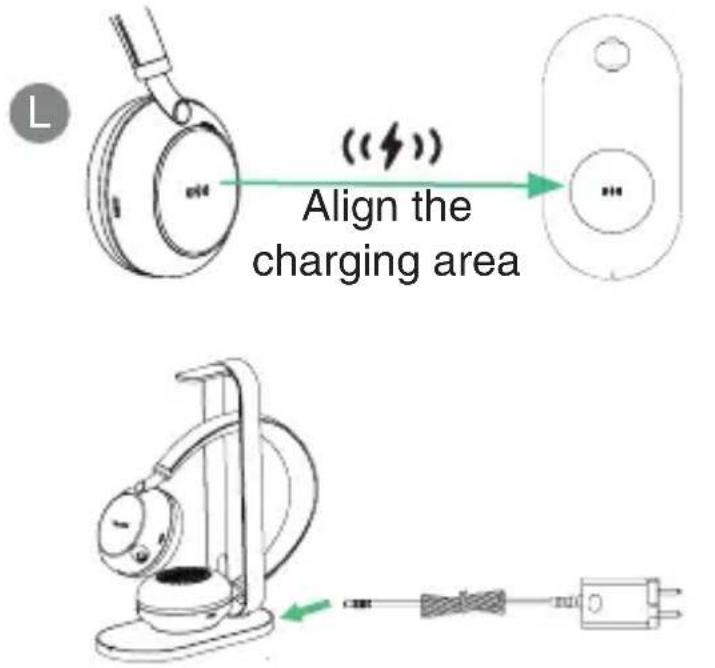

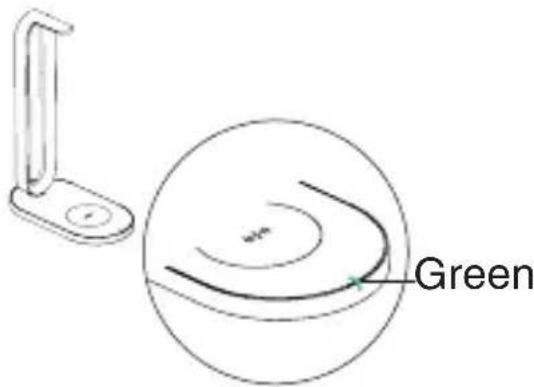

Wireless Charging (optional)

Note:

• We recommend to fully charge the headset when using it for the first time. BH72 Lite does not support wireless charging.
• The BHC76 is compatible with devices that support QI wireless charging, such as wireless charging mobile phones and headsets.

LED Indicator Status

Charging

Fully Charged

Note: It takes two hours for USB charging and three hours for wireless charging to be fully charged.

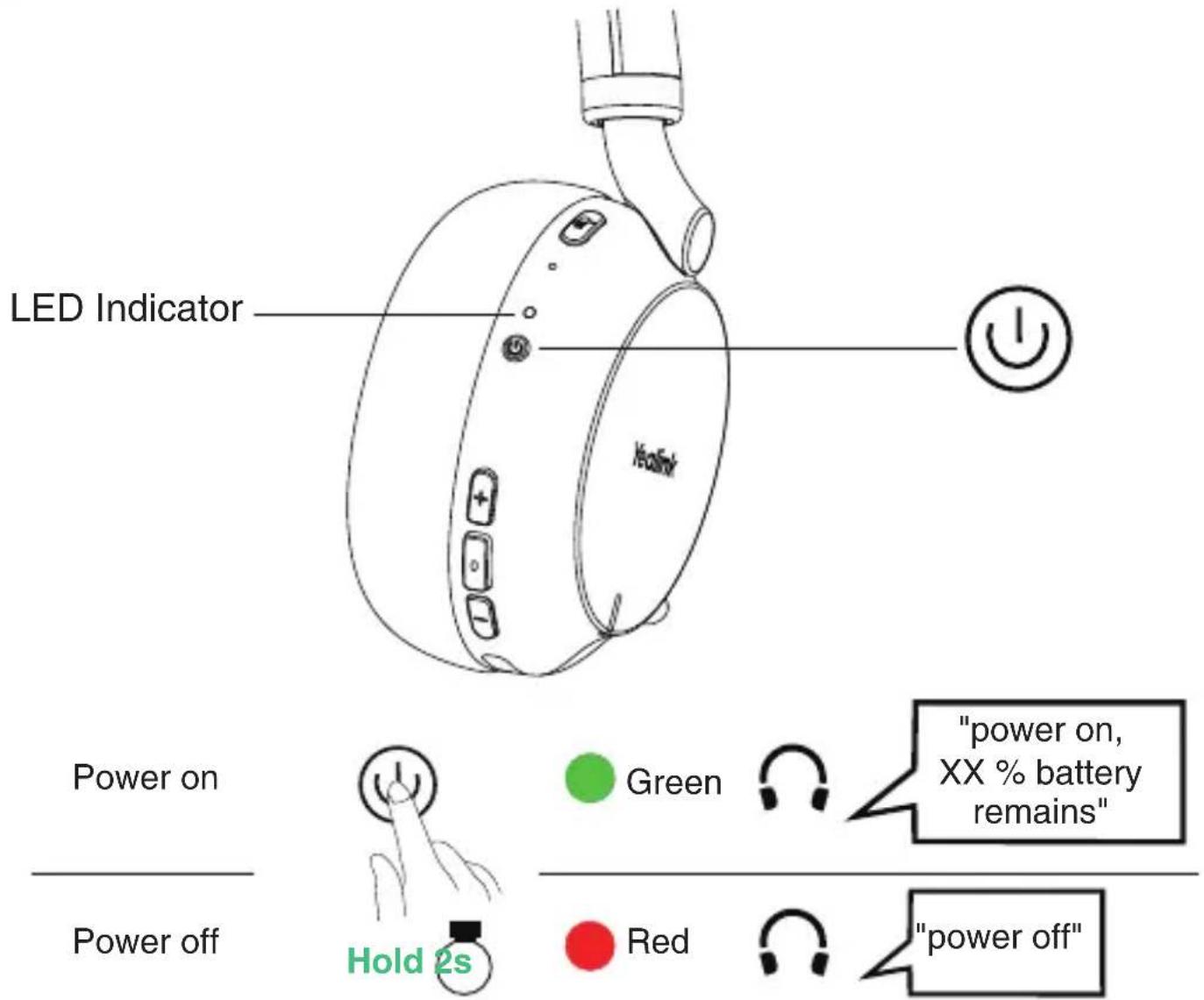

3 Power on/off

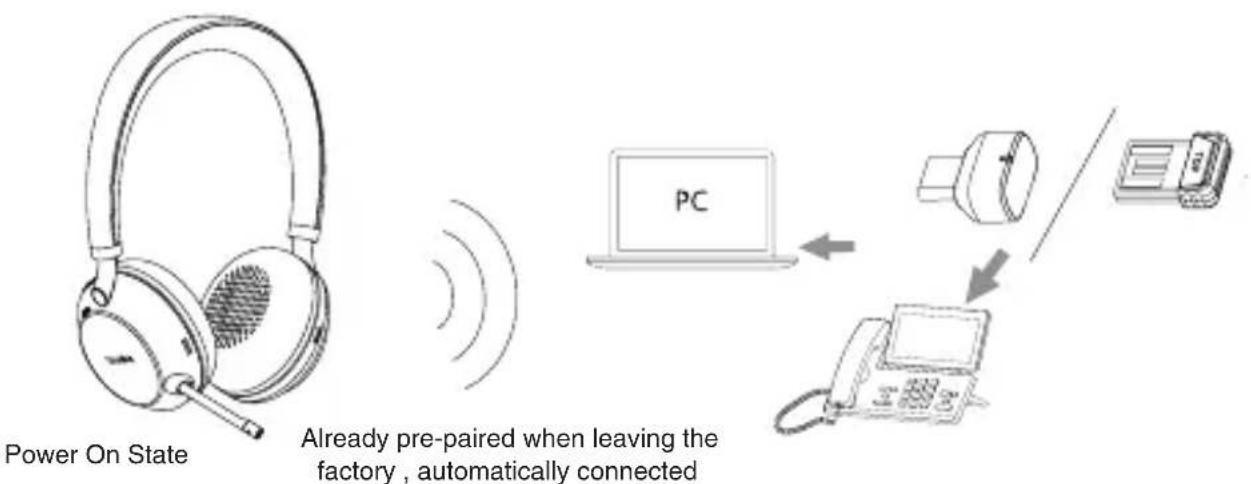

4 Pairing and Connecting Device No Built-in Bluetooth Device

Built-in Bluetooth Device

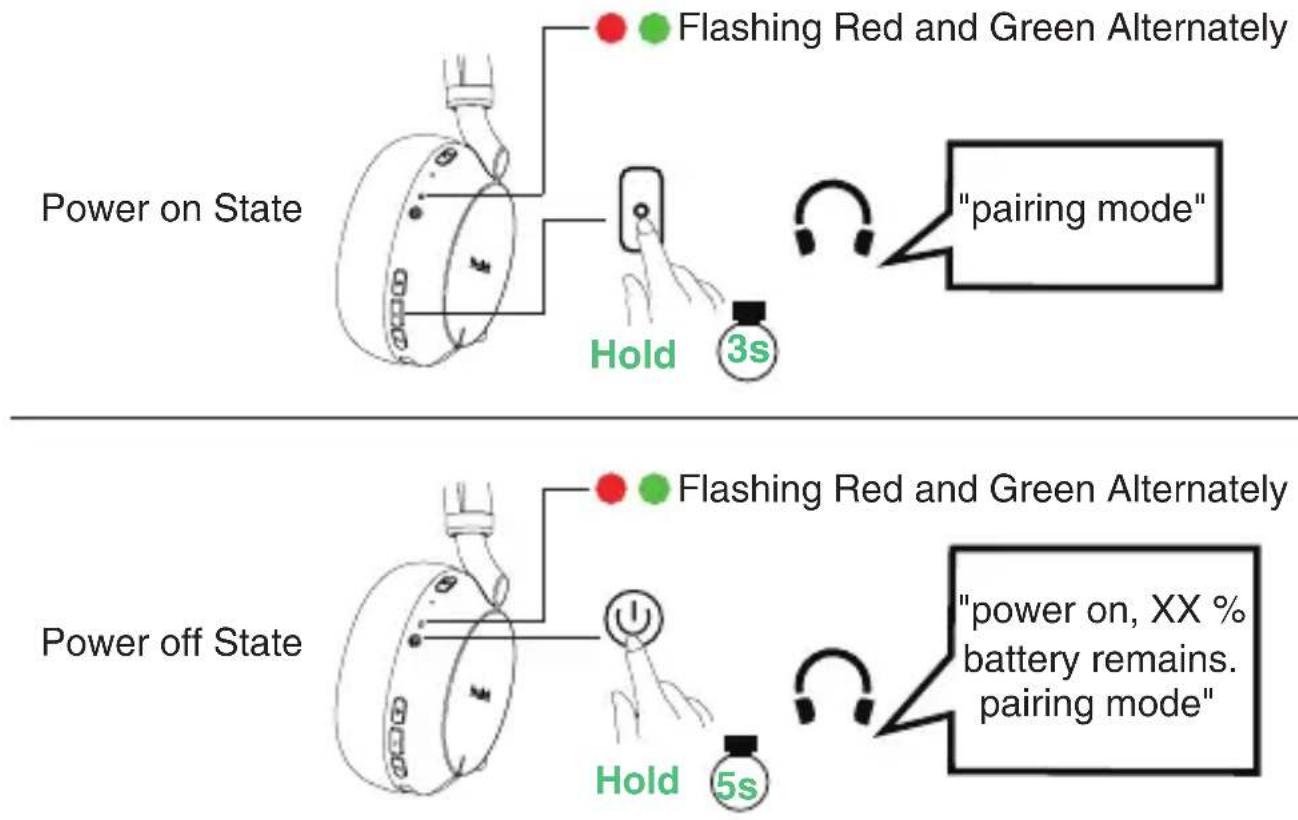

Step1: Enter Pairing Mode

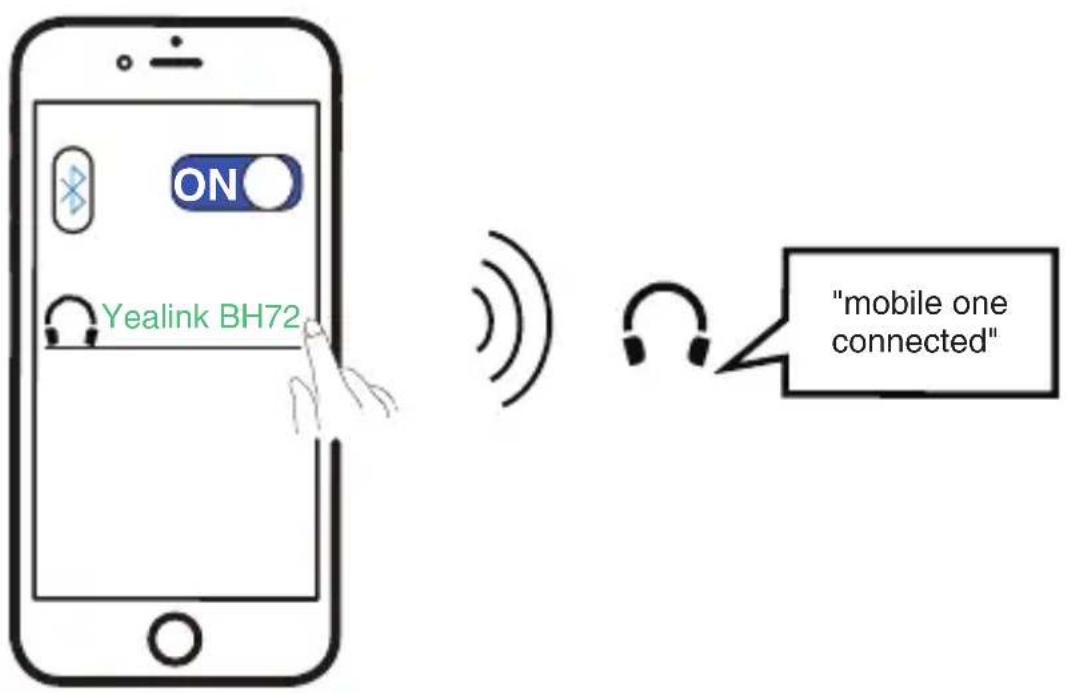

Step2: Select the Headset from Your Bluetooth Device

Note: If your desk phone/PC does not have built-in Bluetooth, you need to use the BT51 dongle to pair the headset. When the BT51 dongle is plugged into the desk phone/PC and the headset is power on, the desk phone/PC and BT51 dongle will automatically connect.

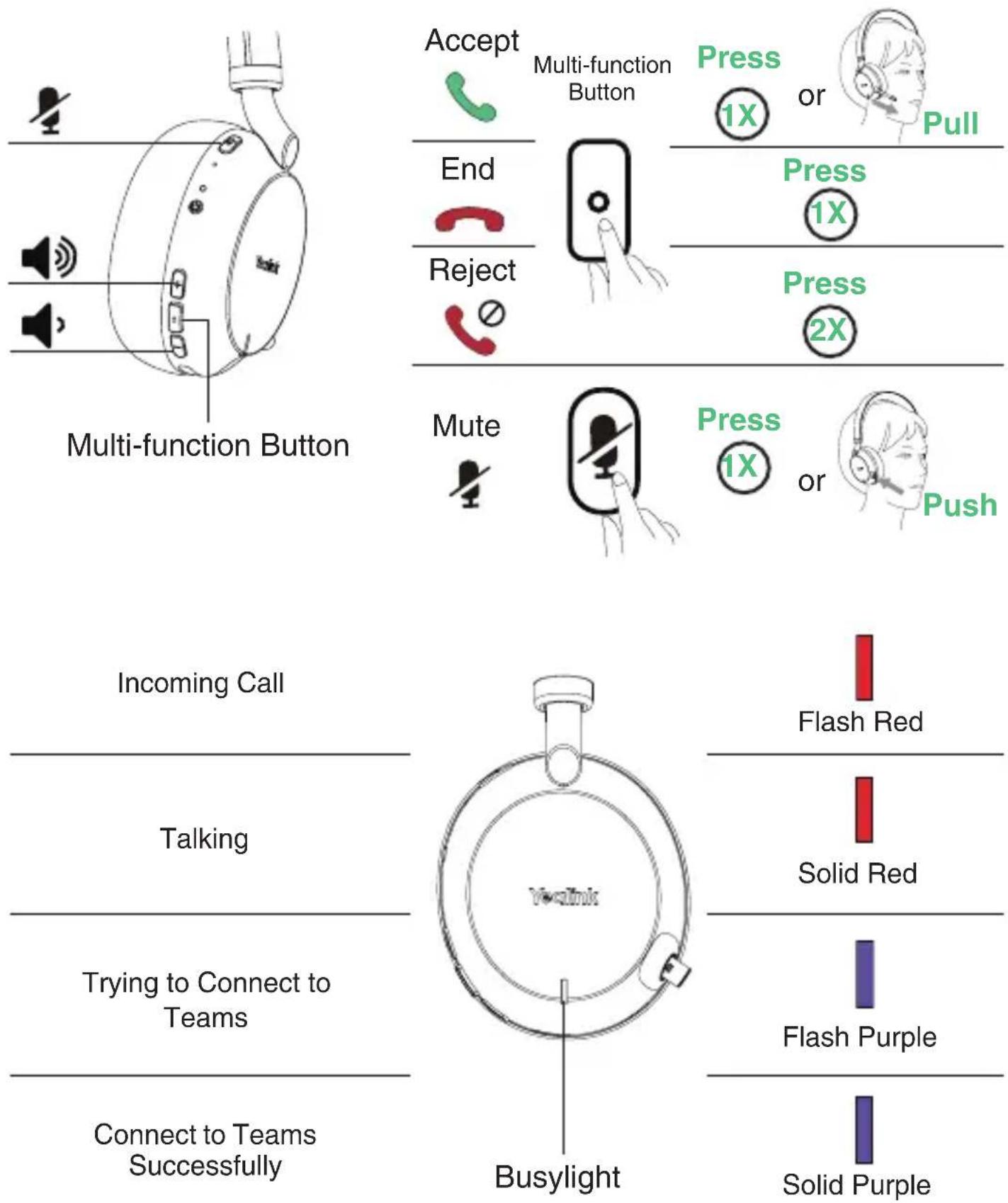

5 Call Controls and Busylight

Incoming Call

Talking

Trying to Connect to Teams

Connect to Teams Successfully

1 Flash Red

Solid Red

1 Flash Purple

Solid Purple

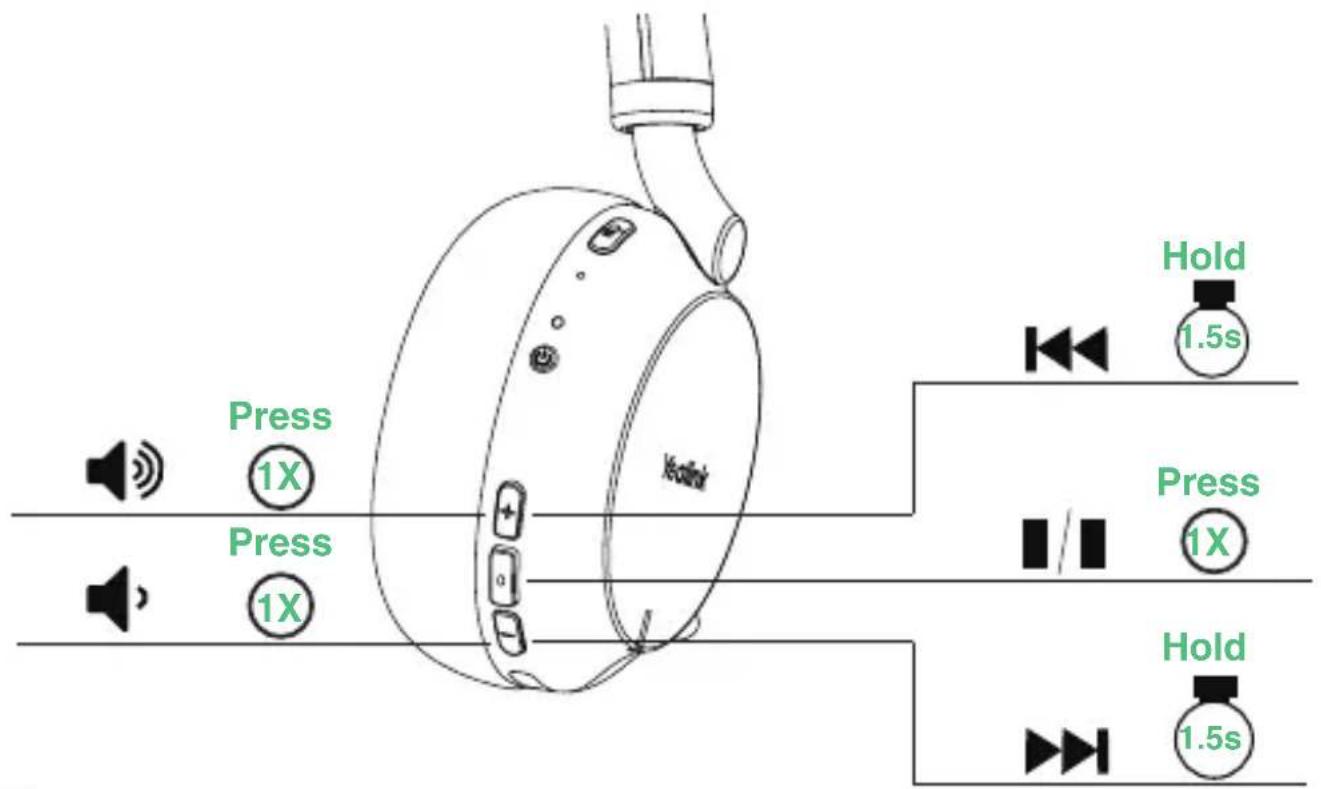

6 Music Controls

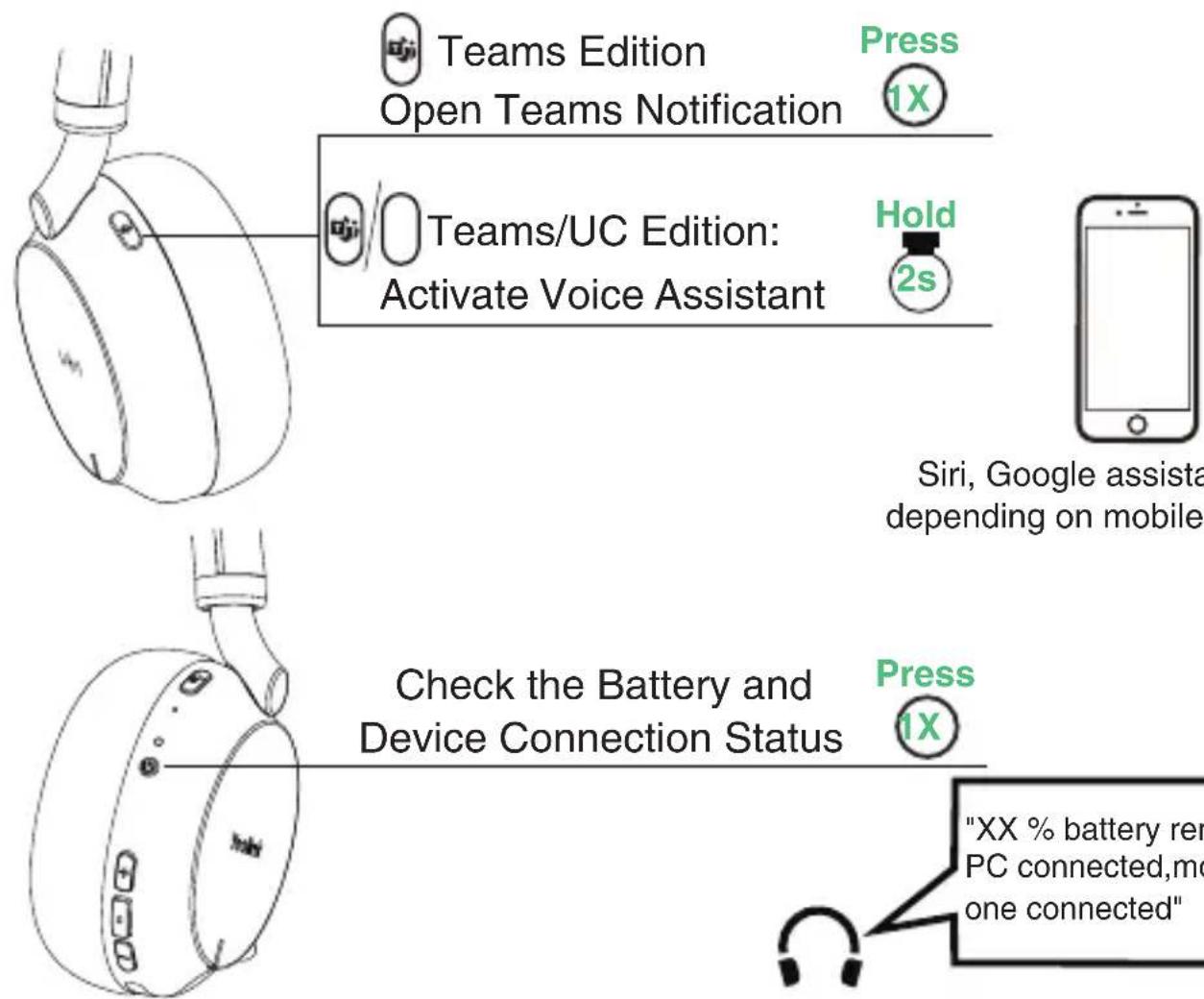

7 Customers Button

Siri, Google assistant..., depending on mobile phone.

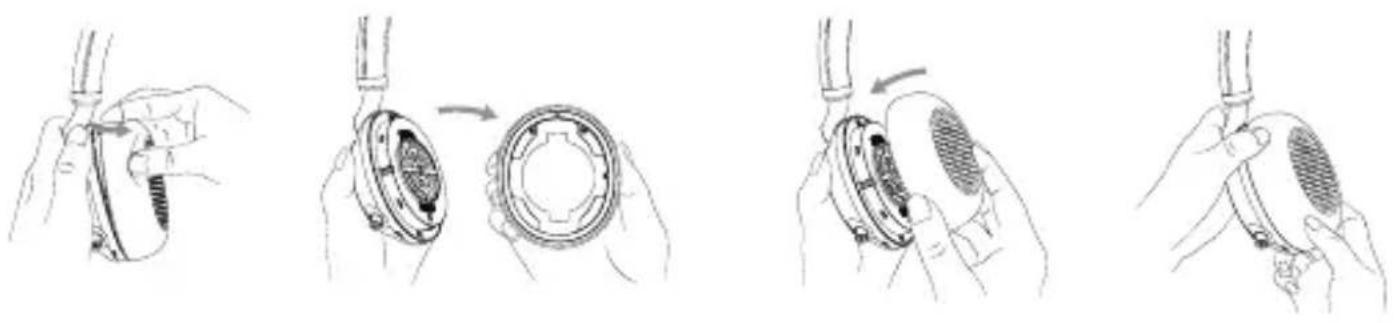

8 Replace Ear Cushions

9 Software Management

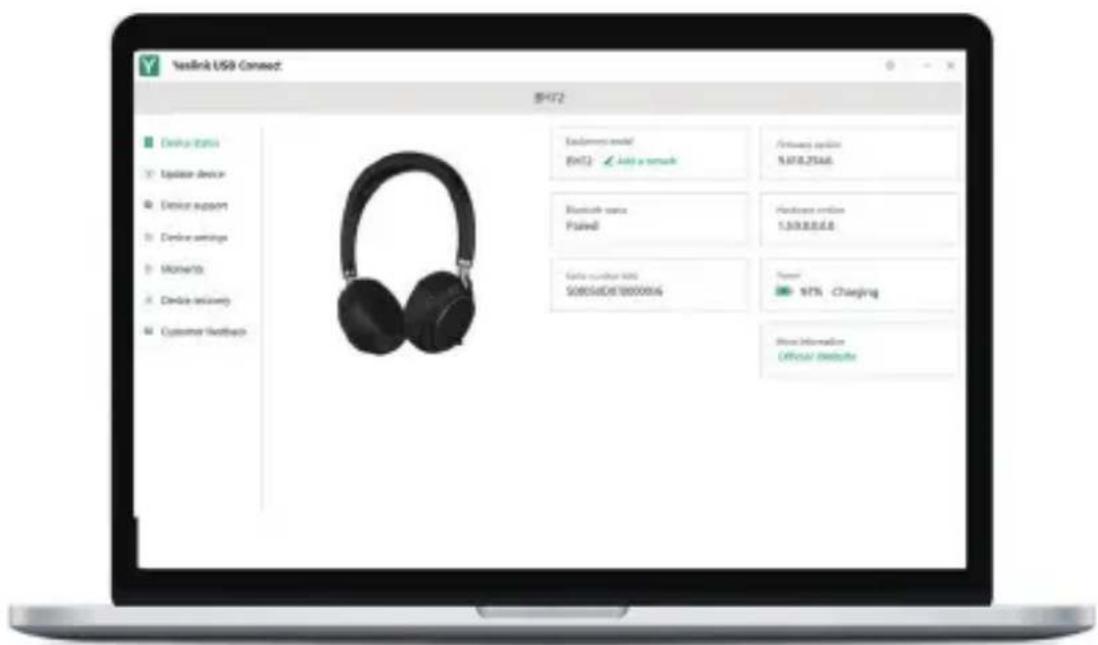

Yealink USB Connect(PC)

Download it from the Yealink website https://www.yealink.com/product/yuc.

Note: It needs to be used with Yealink USB Connect of version 0.34.x.x or higher.

Yealink Connect App (Mobile)

Apple and the Apple logo are trademarks of Apple Inc.

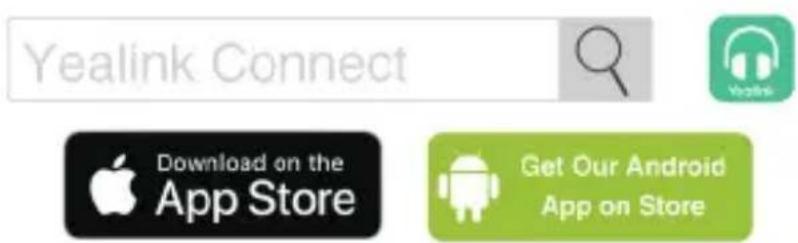

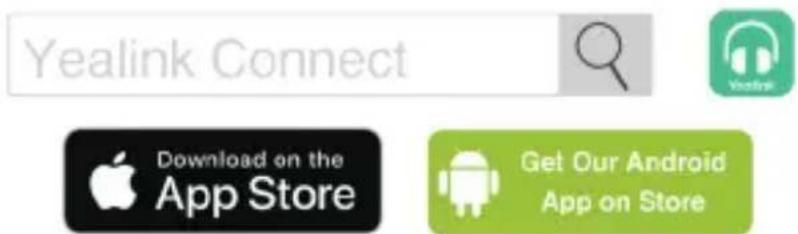

Download the Yealink Connect App from IOS App Store or Android App Store.

Notes for BHC76 (optional)

1. Please use the power adapter provided by Yealink to get a more efficient charging experience.
2. Please do not place any metal and magnetic cards on the charging board to avoid abnormalities and damage to the charger.
3. Please do not charge too far away from the charging sign to get a more efficient charging experience.
4. During use, if you find the charging board or the charged device is overheated and the charging stops (the indicator light keeps flashing), you need to remove the charged device until it cools down, and then try charging again.

5. The indicator light of the charging stand keeps flashing, and it may be the following three situations:

6. The location of the charged device is not placed correctly. You need to replace the it. After calibrating the charging position, you can charge the device normally until the indicator light is always on.

7. The charging stand has an overheating alarm. After the mobile phone or the charging stand cools down, it will stop flashing automatically and enter the normal charging state.
8. Metal or magnetic cards may be placed on the charging board, and please remove them.

Safety Guide for BHC76 (optional)

1. Do not disassemble the product by yourself or bring it near fire and water to avoid short circuit leakage or damage to the product.
2. Do not use the product in high temperature, humidity, and corrosive environment to avoid damaging the circuit and causing failure to charge or other failures.
3. Do not expose the product to corrosive liquids. Otherwise, it will cause severe damage.
4. Do not disassemble or re-equip the product for any reason to avoid secondary failure and burnout.
5. Do not place the product below -10^ or above 60^ .
6. Do not knock, throw or shake the product because rough methods will damage the internal circuit board structure.

If you need to know the product warranty information, please visit https://ams.yealink.com.

Regulatory Notices

Operating Ambient Temperatures

• Operating temperature: +14 to 122^ (-10 to 50^ )
  • Relative humidity: 5% to 90%, noncondensing
  • Storage temperature: -22 to +160°F (-30 to +70°C)

Warranty

Our product warranty is limited only to the unit itself, when used normally in accordance with the operating instructions and the system environment. We are not liable for damage or loss resulting from the use of this product, or for any claim from a third party. We are not liable for problems with Yealink device arising from the use of this product; we are not liable for financial damages, lost profits, claims from third parties, etc., arising from the use of this product.

DC symbol

is the DC voltage symbol.

Restriction of Hazardous Substances Directive (RoHS)

This device complies with the requirements of the EU RoHS Directive. Statements of compliance can be obtained by contacting [e-mail].

Safety Instructions

Save these instructions. Read these safety instructions before use!

The following basic safety precautions should always be followed to reduce risk of fire, electrical shock, and other personal injury.

Environmental Requirements

• Place the product on a stable, level and non-slip surface.
• Do not place the product close to heat sources, in direct sunlight or next to any house hold appliance with strong magnetic field or electromagnetic field, such as a microwave oven or a refrigerator.
• Do not allow the product to come into contact with water, dust and chemicals.
• Protect the product from aggressive liquids and vapors.
• Do not place the product on or near any inflammable or fire-vulnerable object, such as rubber-made materials.
• Do not install the product in rooms with high humidity, for example, in bathrooms, laundry rooms and wet basements.

Safety Notes During Operation

• Use only spare parts and accessories supplied or authorized by Yealink. The operation of non-authorized parts cannot be guaranteed.
• Do not place heavy objects on top of the handset or the base station in case of damage and deformation caused by the heavy load.
• Do not open the handset or the base station by yourself for repair purpose, which could expose you to high votages. Have all repairs carried out by authorized service personnel.
• Do not let a child operate the product without guidance.
• Keep the small accessories contained in your product out of reach of small children in case of accidental swallowing.
• Before plugging or unplugging any cable, make sure that your hands are completely dry.
• Do not hold the handset up to your ear when speakphone is on or when the ringer is ringing as the volumn can be very loud, which may be harmful to your hearing.
• During a thunderstorm, stop using the product and disconnect it from the power supply to avoid lightning strike.
• If the product is left unused for a rather long time, disconnect the base station from the power supply and unplug the power adapter.
• When there is smoke emitted from the product, or some abnormal noise or smell, disconnect the product from the power supply, and unplug the power adapter immediately.
• Remove the electrical cord from an outlet by pulling gently on the power adapter, not by pulling the cord.

Battery Precautions

• Do not immerse the battery into water, which could short-circuit and damage the battery.

• Do not expose the battery to an open flame or leave the battery where it could be subjected to extremely high temperatures, which could cause the battery to explode.

• Do power the handset off before removing the battery.

• Do not try to use the battery for the power supply of any device other than this handset.
• Do not open or mutilate the battery, released electrolyte is corrosive and may cause damage to your eyes or skin.
• Use only the rechargeable battery pack delivered with the handset or those rechargeable battery packs expressly recommended by Yealink.
• Defective or exhausted battery should never be disposed of as municipal waste. Return old battery to the battery supplier, a licensed battery dealer or a designated collection facility.

Notices of Cleaning

• Before cleaning the base station, stop using it and disconnect it from the power supply.
• Remove the battery before cleaning the handset to reduce risk of electric shock.
• Only clean your product with a piece of slightly moist and anti-static cloth.
• Keep the power plug clean and dry. Using a dirty or wet power plug may lead to electric shock or other perils.

ENVIRONMENTAL RECYCLING

Simple line drawing of a trash bin with crossed x- and y-axes, no text or symbols present.

Never dispose of the device with domestic waste

Ask your Town Council about how to dispose of it in an environmentally friendly way. The cardboard box, plastic packaging and player components may be recycled in accordance with prevailing recycling regulations in your country.

Always adhere to prevailing regulations

Those who fail to do so may be fined or prosecuted in accordance with the law. The crossed out garbage can that appears on the device means that when it has reached the end of its useful life, it should be taken to a special waste disposal center and treated separately to general urban

Batteries: Be sure that the batteries have been placed in the right position. This phone use rechargeable batteries only.

Compulsory information according to regulations for battery-operated devices. Caution: Risk of explosion if battery is replaced with a battery of a wrong kind. Dispose of batteries in accordance with the instructions.

Troubleshooting

The unit cannot supply power to Yealink device. There is a bad connection with the plug.

1. Clean the plug with a dry cloth.
2. Connect it to another wall outlet.
   The usage environment is out of operating temperature range.
3. Use in the operating temperature range.

The cable between the unit and the Yealink device is connected incorrectly.

1. Connect the cable correctly.

You cannot connect the cable properly.

1. You may have connected a wrong Yealink device.

2. Use the correct power supply.

Some dust, etc., may be in the port.

1. Clean the port.

Contact your dealer or authorized service facility for any further questions.

Contact Information

YEALINK NETWORK TECHNOLOGY CO.,LTD.

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA Made in China

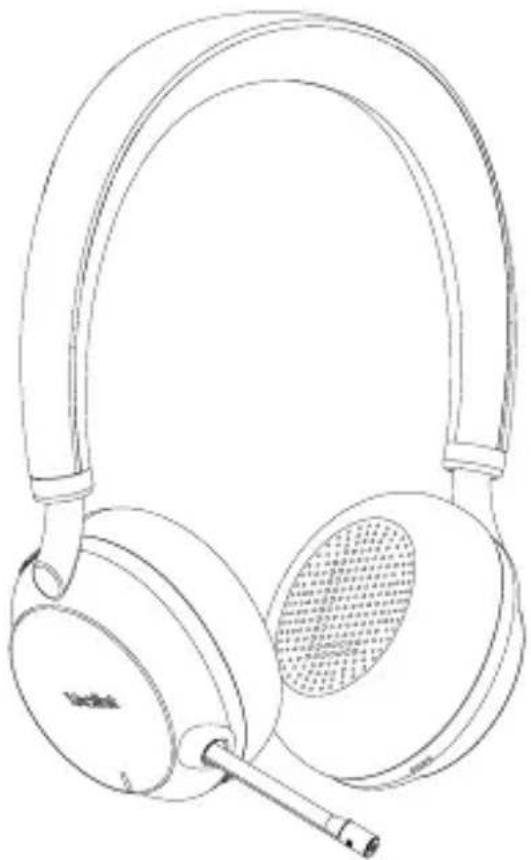

1 Verpackungsinhalt

Line drawing of a pair of white headphones with earbuds and microphone (no text or symbols)

BH72 (BH72 Lite)

Line drawing of a mechanical tool or connector with no visible text or symbols

USB-2.0-Kabel

(USB-A auf

USB-C)

oder

BT51-A Dongle oder

BT51-C Dongle

Simple line drawing of a stand with a curved handle and base (no text or symbols)

Kabellose BHC76-Ladeschale

Netzteil
Optional

Simple oval shape with a small central dot, resembling a stylized face or logo (no text or symbols)

Tragetasche

Kurzanleitung

Line drawing of a pair of audio headphones with earbuds and microphone (no text or symbols)

Yealink Connect App (Mobile)

309, 3rd Floor, No. 16, Yun Ding North Road, Huli District, Xiamen City, Fujian, VR China

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Niederlande

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA

Line drawing of a pair of white headphones with earbuds and microphone (no text or symbols)

BH72 (BH72 Lite)

Pure line drawing of a mechanical component with no text or symbols

Cable USB 2.0 (USB-A a USB-C)

0

Dongle BT51-A o Dongle BT51-C

Simple line drawing of a vertical stand with a curved handle and base (no text or symbols)

Diagram of a pair of headphones connected to a plug, showing ear and socket (no text or symbols)

Cargando USB

Simple line drawing of a trash bin with two crossed lines indicating no waste or restriction (no text or symbols)

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, P.R.C

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, The Netherlands

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

999 Peachtree Street Suite 2300, Fulton, Atlanta, GA, 30309, USA Made in China

Line drawing of a pair of Gaia headphones with earbuds and microphone (no text or symbols)

BH72 (BH72 Lite)

Line drawing of a mechanical component with a handle and two ports (no text or symbols)

Simple line drawing of a stand with a curved handle and rounded base (no text or symbols)

Socle de recharge sans fil BHC76

Adaptateur secteur

Simple oval shape with a small central dot, no text or symbols present

Étui de transport

en option

Yealink Connect App (Mobile)

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

309, 3rd Floor, No.16, Yun Ding North Road, Huli District, Xiamen City, Fujian, Chine

YEALINK (EUROPE) NETWORK TECHNOLOGY B.V.

Strawinskylaan 3127, Atrium Building, 8th floor, 1077ZX Amsterdam, Pays-Bas

YEALINK (USA) NETWORK TECHNOLOGY CO., LTD.

Declaration of Conformity

Wc,

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding North Road,

Huli District, Xiamen City, Fujian, P.R. China

Manufacturer: YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD

Address: 309, 3rd Floor, No.16, Yun Ding Nerth Road.

Huli District, Xiamen City, Fujian, P.R. China

DATE: 15th/December/2021

declare that the product

Type: Bluetooth Headset

Model:BH72

meets the essential requirements and other relevant provisions according to the following EC directive

Directive: 2014/30/EU, 2014/35/EU, RED 2014/53/EU

Conformity

The product complies with the following standards:

Safety : EN IEC 62368-1:2020+ A11:2020

EMC: EN 55032:2015/A11:2020, EN 55035:2017/A11:2020, EN 301489-1 V2.2.3,

EN 301 489-17 V2.2.4

EN IEC 61000-3-2:2019/A1:2021, EN 61000-3-3:2013/A1:2019

Radio:ETSI EN 300 328 V2.2.2;

Health : EN 50663:2017, EN 62479:2010

Directive 2011/65/EU and (EU)2015/863 of the European Parliament and of the Council of 8 June 2011 and 4 June 2015 on the restriction of the use of certain hazardous substances in electrical and electronic equipment(RoHS 2.0)

Directive 2012/19/EU of the European Parliament and of the Council of 4.July.2012 on Waste electrical and electronic equipment(WEEE)

Regulation (EC) No.1907/2006 of the European Parliament and of the Council of 18.December.2006 on Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH)

NAME: Huahu Wang

DATE:

TITLE: Manager

Huohu Wang

21-Jan-2022

About Yealink

Yealink (Stock Code: 300628) is a global brand that specializes in video conferencing, voice communications and collaboration solutions with best-in-class quality, innovative technology and user-friendly experience. As one of the best providers in more than 140 countries and regions, Yealink ranks No.1 in the global market share of SIP phone shipments (Global IP Desktop Phone Growth Excellence Leadership Award Report, Frost & Sullivan, 2019).

Copyright

Copyright © 2022 YEALINK(XIAMEN) NETWORK TECHNOLOGY CO., LTD.

All rights reserved. No parts of this publication may be reproduced or transmitted in any form or by any means, electronic or mechanical, photocopying, recording, or otherwise, for any purpose, without the express written permission of Yealink(Xiamen) Network Technology CO., LTD.

Technical Support

Visit Yealink WIKI (http://support.yealink.com/) for firmware downloads, product documents, FAQ, and more. For better service, we sincerely recommend you to use Yealink Ticketing system (https://ticket.yealink.com) to submit all your technical issues.

430104002034

YEALINK(XIAMEN) NETWORK TECHNOLOGY CO.,LTD.

Web: www.yealink.com

Addr: No.1 Ling-Xia North Road, High Tech Park, Huli District, Xiamen, Fujian, P.R.C

Copyright©2022 Yealink Inc. All rights reserved.
