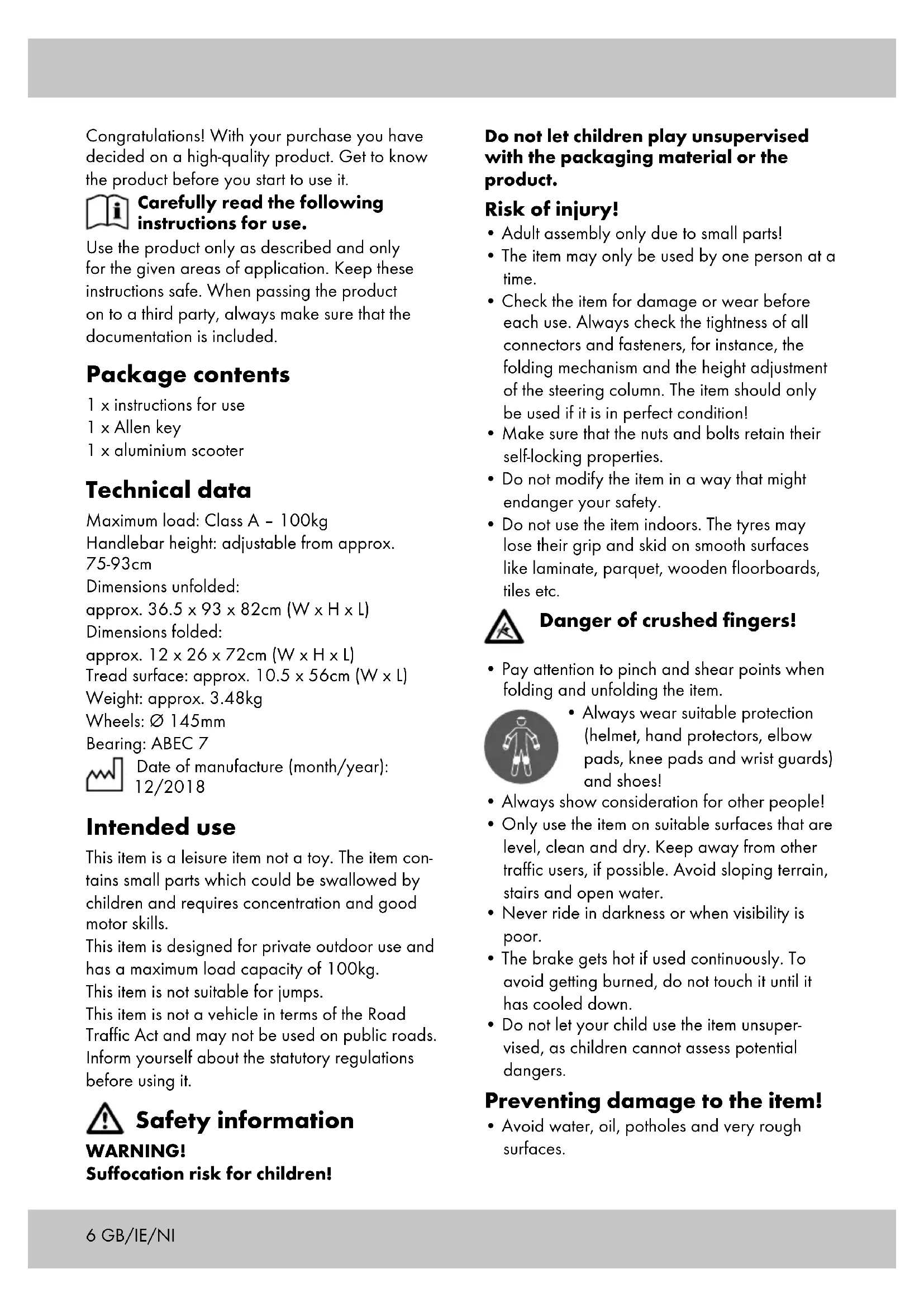

• Adult assembly only due to small parts!

• The item may only be used by one person at a time.

• Check the item for damage or wear before each use. Always check the tightness of all connectors and fasteners, for instance, the folding mechanism and the height adjustment of the steering column. The item should only be used if it is in perfect condition!

• Make sure that the nuts and bolts retain their self-locking properties.

• Do not modify the item in a way that might endanger your safety.

• Do not use the item indoors. The tyres may lose their grip and skid on smooth surfaces like laminate, parquet, wooden floorboards, tiles etc. Danger of crushed fingers!

• Pay attention to pinch and shear points when folding and unfolding the item.

• Always wear suitable protection (helmet, hand protectors, elbow pads, knee pads and wrist guards) and shoes!

• Always show consideration for other people!

• Only use the item on suitable surfaces that are level, clean and dry. Keep away from other traffic users, if possible. Avoid sloping terrain, stairs and open water.

• Never ride in darkness or when visibility is poor.

• The brake gets hot if used continuously. To avoid getting burned, do not touch it until it has cooled down.

• Do not let your child use the item unsuper- vised, as children cannot assess potential dangers. Preventing damage to the item!

• Avoid water, oil, potholes and very rough surfaces.7GB/IE/NI Assembly (The pictures can be used as examples for all item varieties) The item is delivered folded up in transport mode. Proceed as follows to get it ready for scooting: Unfolding (Fig. A)

1. Slide the safety lever (1) upwards and hold it.

2. Pull the lever (2) upwards, then release the

safety lever (1) and fold the steering column (3) forwards until it locks into place. Mounting the grips (Fig. B)

1. Remove the grips (4) from the brackets (5).

2. Lift the cover flap (6).

3. Press down on the locking knobs (7) on the

grips (4) and push the grips (4) on both sides into the T-tube (8) of the steering column (3). The locking knobs (7) must snap audibly into place into the holes (9) provided.

4. Press the cover flap (6) down over the locking

knobs (7). Note: Tighten the retaining screws on the cover flap regularly. Adjusting the height of the steer- ing column (Fig. C) The steering column can be adjusted to four different heights. The item may only be used if the locking knob is locked in place into one of the four holes provided and the steering column is then secured with the quick release fastener!

1. Loosen the quick release (10) on the steering

2. Pull the steering column (3) upwards, until the

locking knob (11) locks into place in one of the four holes (12).

3. Secure the steering column (3) by locking the

quick release (10). Steering head bearing (Fig. D) The steering head bearing (13) is pre-set when the item is supplied. After a while, if the handle- bars have too much play or become too stiff, get the steering head bearing (13) adjusted by a specialist dealer or at a bicycle shop. Putting the item into transport mode (Fig. E)

1. Loosen the quick release (10) on the steering

and lock the quick release (10).

3. Lift the cover flap (6).

4. Press the locking knobs (7) on the grips and

pull the grips (4) out of the T-tube (8).

5. Attach the grips to the brackets (5).

6. Close the cover flap (6) again.

7. Slide the lower safety lever (1) upwards and

hold it. Pull the lever (2) upwards, then release the safety lever (1).

8. Press the steering column (3) towards the deck

(14) until it snaps into place. Use Riding, braking, parking (Fig. F)

• Fold in the kickstand (16) before using the item.

• To ride, put one leg on the deck (14) and give momentum by regularly pushing off with the other leg.

• Step on the brake plate (15) to brake.

• Swing out the kickstand (16) to park. The item may only be parked on a level surface. Maintenance Replacing the wheels (Fig. G) Important! Pay attention to the chapter on “Tech- nical data”. Wheels with a different di- ameter, may alter the riding properties and possibly endanger the user. Do not use wheels that cannot be in- stalled properly. Never use wheels that are larger than the original wheels on the item. Wheels wear out. This wear depends on many factors, such as, for example, the terrain, the size and weight of the user, the weather conditions, the material of the rollers and their hardness, etc. Therefore, it is necessary to replace them now and then.8 GB/IE/NI Dispose of the products and the packag- ing in an environmentally friendly manner. The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol – which is meant to represent the recycling cycle – and a number which identifies the material. Notes on the guarantee and service handling The product was produced with great care and under constant supervision. You receive a three- year warranty for this product from the date of purchase. Please retain your receipt. The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, espe- cially the warranty rights, are not affected by this warranty. With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you. Any repairs under the warranty, statutory gua- rantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge. IAN: 307525 Service Great Britain Tel.: [phone] E-Mail: [e-mail] Service Ireland Tel.: [phone] (0,08 EUR/Min., (peak)) (0,06 EUR/Min., (off peak)) E-Mail: [e-mail]

1. Loosen the axle bolts (17) with two size 5

2. Pull out the axle bolts (17) and remove the

3. Install the new wheel and secure it with the

axle bolts (17). After replacing the wheels: Do not use the wheels if they pull side- ways after replacing them! After the first few minutes of riding, make sure that all screws are still tight and that nothing has detached or become loose. Tension the wheel once more to make sure that it is running quietly and that the bearing isn’t making any noise. Replacing the ball bearings (Fig. H)

1. Remove the wheels (18) as described in the

section “Replacing the wheels”.

2. Use an Allen key to lever out a bearing (19).

3. Remove the spacer (20) from the wheel (18)

4. Lever out the other bearing (19) with an Allen

5. Press in a new bearing (19). Turn the wheel

(18) over, insert the spacer (20) and then press in a second new bearing (19).

6. Secure the wheel (18) again as described in
