IAN 327355 - Electric scooter CRIVIT - Free user manual and instructions

Product Type	Large-wheel scooter
Brand	CRIVIT
Model	IAN 327355
Maximum load	100 kg
Dimensions (unfolded)	approx. 99.5 x 37.5 x 104 cm (L x W x H)
Dimensions (folded)	approx. 84.5 x 13 x 35 cm (L x W x H)
Handlebar height	90 - 104 cm (adjustable in 4 positions)
Weight	approx. 5.5 kg
Wheel diameter	200 mm
Bearings	ABEC 9
Brake type	Hand brake and rear fender brake
Kickstand	Yes, integrated
Folding	Yes, with safety lever
Use	One person, outdoor, flat and dry surface
Recommended protective equipment	Helmet, hand, wrist, elbow, knee protection
Package contents	1 scooter, 2 hex keys, 1 manual
Warranty	3 years (excluding normal wear)
After-sales service (Switzerland)	Phone: [phone], email: [e-mail]

Frequently Asked Questions - IAN 327355 CRIVIT

How to unfold the scooter?

Pull the safety lever (1) upwards and hold it. Pull the lever (2) upwards, release the safety lever, then tilt the steering column forward until it clicks into place.

How to adjust the handlebar height?

Loosen the lower quick release (10), pull the steering column until the locking button (11) locks into one of the four holes, then tighten the quick release.

How to attach the handles?

Release the handles (4) from their holders. Lift the closure flap (6), press the locking buttons (7) and push the handles into the T-tube until you hear a click. Close the flap.

How to adjust braking power?

Turn the adjusting nut and lock nut (21) to the left to reduce braking power, to the right to increase it. The rear wheel must rotate freely when the brake is not applied.

How to replace a wheel?

Loosen the axle screws (17) using two 5 mm hex keys. Remove the screws and the worn wheel. Install the new wheel (18) and secure it with the screws. Check the tightness after a few minutes of riding.

How to replace the ball bearings?

Remove the wheel, then extract the bearings (20) with a hex key. Remove the spacer (19) and insert the new bearings in reverse order. Reassemble the wheel.

What is the maximum allowable load?

The maximum load is 100 kg. Do not exceed this limit to avoid damage or injury.

What safety precautions should be taken?

Always wear a helmet, hand, wrist, elbow and knee protection. Use the scooter on flat, clean and dry surfaces. Avoid slopes, stairs and road traffic. Check the scooter condition before each use.

How to clean and maintain the scooter?

After use, clean and dry thoroughly. Remove pebbles from the wheels. Dry wet bearings with a clean cloth. Grease the outside of the bearings with a suitable lubricant to prevent rust. Store in a dry place.

What is the warranty period and how to contact after-sales service?

The warranty is 3 years from the date of purchase, covering material and manufacturing defects. In Switzerland, contact after-sales service at 0842 665566 or by email at [e-mail].

USER MANUAL IAN 327355 CRIVIT

Instructions for use

IAN 327355_1904

DE AT CH

Lieferumfang 4

Technische Daten 4

Safety notices 17-18

Assembly 18

Brake 18

Readying the product for transport 18

Use 18

Maintenance 18-19

Storage, cleaning 19

Disposal 19

Notes on the guarantee

and service handling 19

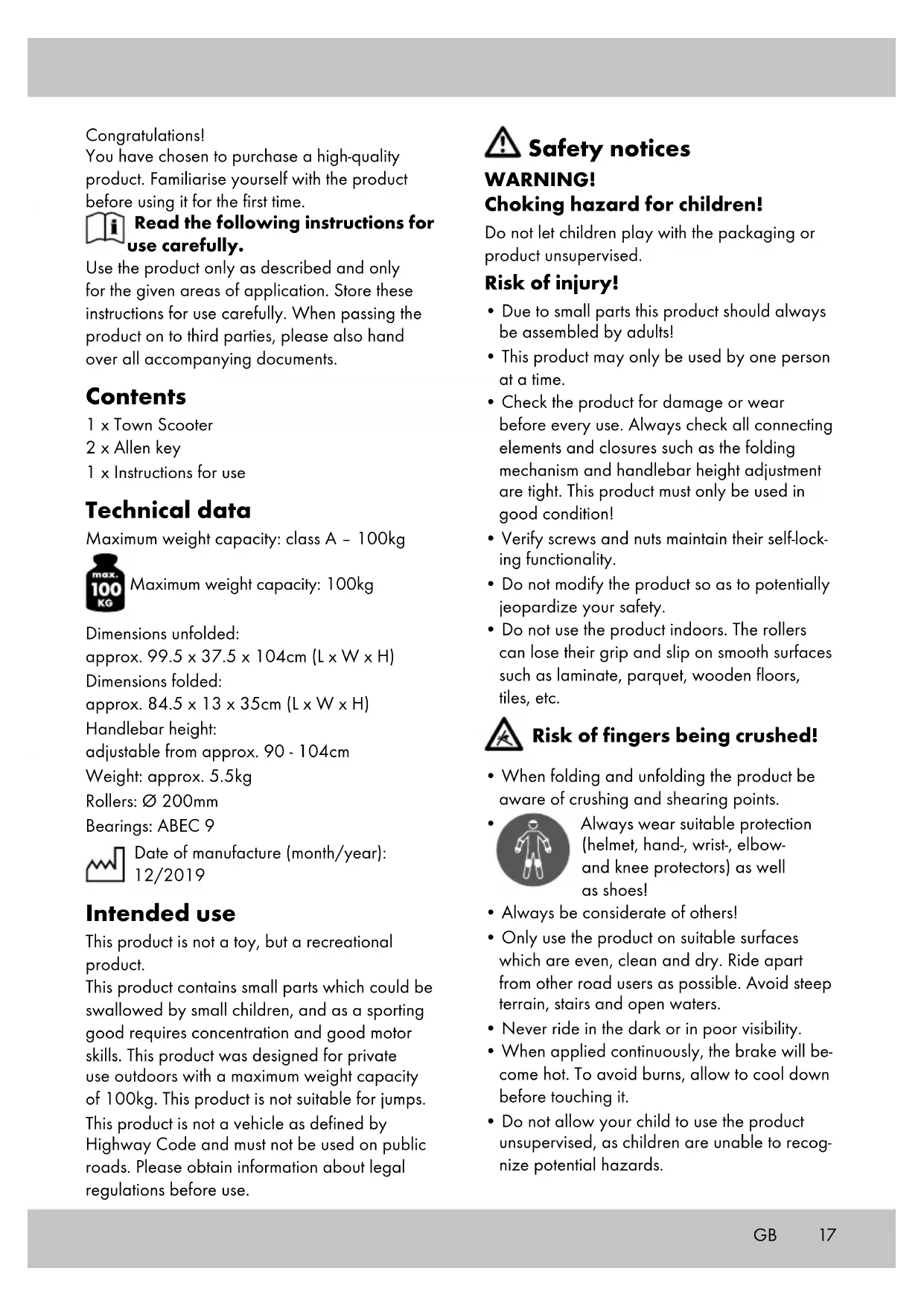

You have chosen to purchase a high-quality product. Familiarise yourself with the product before using it for the first time.

Read the following instructions for use carefully.

Use the product only as described and only for the given areas of application. Store these instructions for use carefully. When passing the product on to third parties, please also hand over all accompanying documents.

Contents

1 x Town Scooter
2 x Allen key

1 x Instructions for use

Technical data

Maximum weight capacity: class A - 100kg

Maximum weight capacity: 100kg

Dimensions unfolded:

approx. 99.5 × 37.5 × 104cm (L x W x H)

Dimensions folded:

approx. 84.5 × 13 × 35cm (L x W x H)

Handlebar height:

adjustable from approx. 90 - 104cm

Weight: approx. 5.5kg

Rollers: 200mm

Bearings: ABEC 9

Date of manufacture (month/year): 12/2019

Intended use

This product is not a toy, but a recreational product.

This product contains small parts which could be swallowed by small children, and as a sporting good requires concentration and good motor skills. This product was designed for private use outdoors with a maximum weight capacity of 100kg . This product is not suitable for jumps. This product is not a vehicle as defined by Highway Code and must not be used on public roads. Please obtain information about legal regulations before use.

Safety notices

WARNING!

Choking hazard for children!

Do not let children play with the packaging or product unsupervised.

Risk of injury!

• Due to small parts this product should always be assembled by adults!
• This product may only be used by one person at a time.
• Check the product for damage or wear before every use. Always check all connecting elements and closures such as the folding mechanism and handlebar height adjustment are tight. This product must only be used in good condition!
• Verify screws and nuts maintain their self-locking functionality.
• Do not modify the product so as to potentially jeopardize your safety.
• Do not use the product indoors. The rollers can lose their grip and slip on smooth surfaces such as laminate, parquet, wooden floors, tiles, etc.

Risk of fingers being crushed!

• When folding and unfolding the product be aware of crushing and shearing points.
  Always wear suitable protection (helmet, hand-, wrist-, elbow- and knee protectors) as well as shoes!
  Always be considerate of others!
• Only use the product on suitable surfaces which are even, clean and dry. Ride apart from other road users as possible. Avoid steep terrain, stairs and open waters.
• Never ride in the dark or in poor visibility.
• When applied continuously, the brake will become hot. To avoid burns, allow to cool down before touching it.
• Do not allow your child to use the product unsupervised, as children are unable to recognize potential hazards.

Prevent property damage!

• Avoid water, oil, potholes and very rough surfaces.

Assembly

The product is supplied folded for transport.

Proceed as follows to set it up for use:

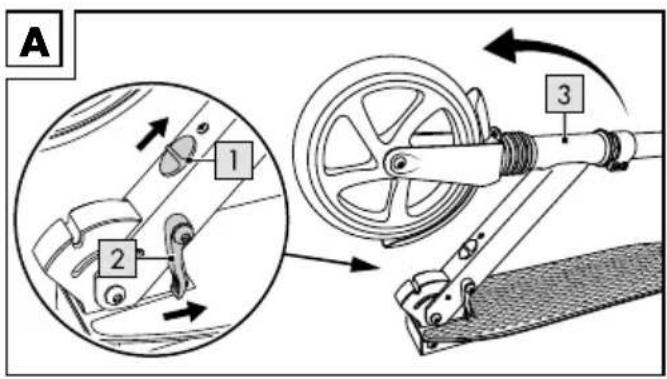

Unfolding (Fig. A)

1. Pull the clamping lever (1) up and hold in place.
2. Pull the lever (2) up, then release the clamping lever (1) and unfold the steering post (3) until it locks into place.

Handle assembly (Fig. B)

1. Remove the handles (4) from the holders (5).
2. Lift the cover flap (6).
3. Push in the locking buttons (7) on the handles and slide the handles into both ends of the T-bar (8) on the steering post. You must hear the locking buttons lock into the designated holes (9).
4. Push the cover flap over the locking buttons.

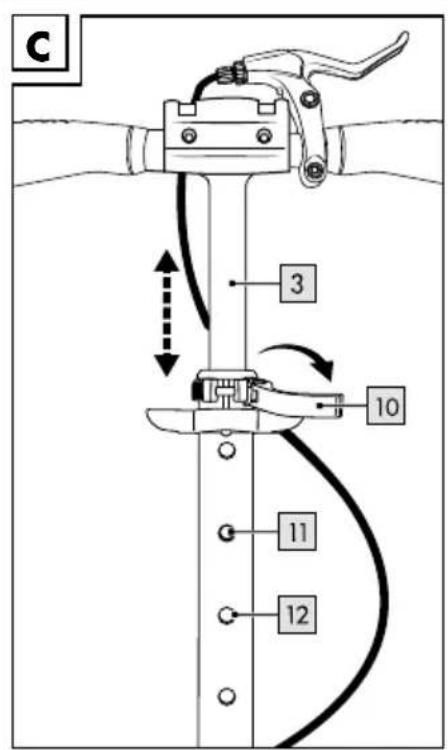

Adjusting the steering post (Fig. C)

The steering post can be adjusted to four different levels. Only use the product with the locking button locked into one of the four designated holes and after securing the steering post with the quick-release connector!

1. Release the quick-release connector (10) on the steering post.
2. Pull up on the steering post (3) until the locking button (11) latches into one of the four holes (12).
3. Secure the steering post by locking the quick-release connector.

Note: If the quick release is not tight against the bar when closed, tighten the knurled screw using the included socket head wrench.

Verify the quick release is locked before tightening.

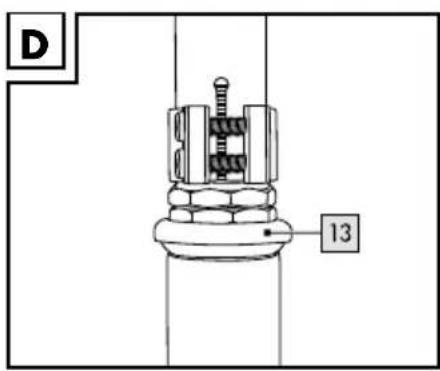

Steering head bearing (Fig. D)

On product delivery the steering head bearing (13) is preset. If the handlebar has too much play after some time or becomes too tight, have the steering head bearing adjusted by a speciality retailer or a bicycle shop.

Brake

Adjusting the brake

ATTENTION!

The brake must be adjusted so the back wheel moves freely when the brake lever is released and locks when engaging the brake lever.

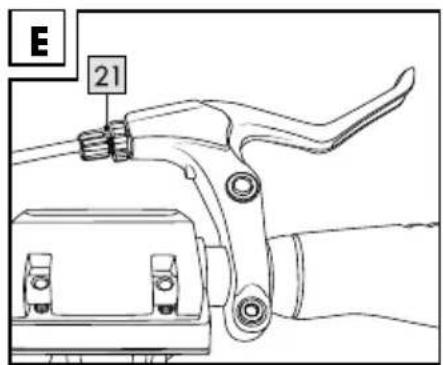

Turn the adjusting and locking nut (21) to the left to reduce the braking force, turn the adjusting and locking nut to the right to increase the braking force (Fig. E).

Readying the product

for transport

1. Release the quick-release lever (10) on the steering post and push in the locking button (11) (Fig. C).
2. Push the steering post (3) in all the way and tighten the quick-release lever (10) (Fig. C).
3. Lift the cover flap (6) (Fig. B).
4. Push in the locking buttons (7) on the handles and pull the handles (4) out of the T-bar (8) (Fig. B).
5. Secure the handles in the holders (5) (Fig. B).

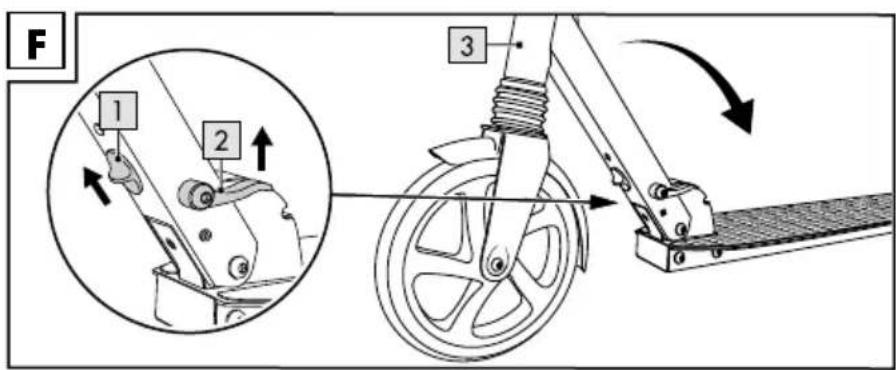

6. Pull the clamping lever (1) up and hold in place (Fig. F). Pull the lever (2) up, then release the clamping lever (1).
7. Move the steering post toward the deck until it locks into place (Fig. F).

Use

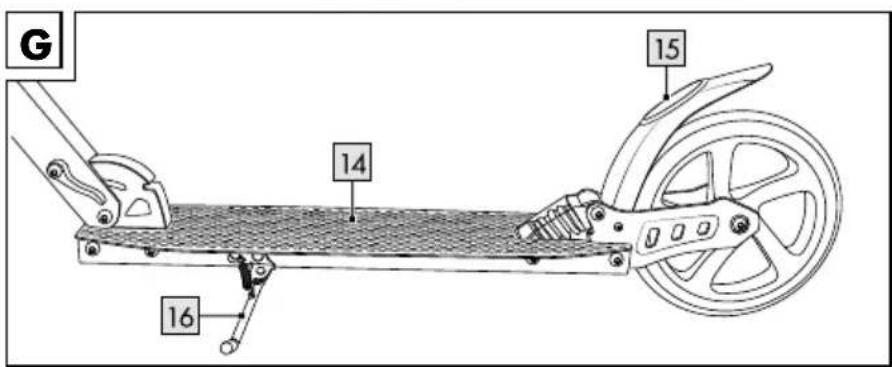

Riding, braking, parking (Fig. G)

• Place one leg on the deck (14) and put into motion by evenly pushing off with the other leg.
• To brake, step on the brake plate (15) or pull the brake lever (Fig. E).
• Swing out the stand (16) to park. Only park the scooter on level surfaces.

Maintenance

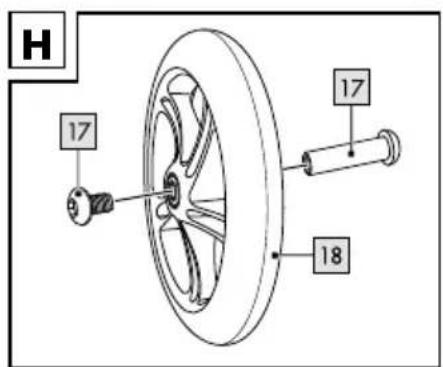

Replacing the rollers (Fig. H)

Important!

Please refer to chapter "Technical Data". Rollers with a different diameter can alter the riding properties and possibly endanger the user.

Do not use rollers which cannot be easily installed. Never install rollers larger than the original rollers on the scooter.

Rollers wear down. This wear depends on many factors, such as the ground, size and weight of the user, weather conditions, and the material and hardness of the rollers. They therefore occasionally need to be replaced.

1. Loosen the axle bolts (17) using two size 5 socket head wrenches.
2. Remove the axle bolts and remove the roller.
3. Install the new roller (18) and secure with the axle bolts.

After replacing:

Do not use if the roller grinds against the side after replacing!

Verify all screws are still tight after the first few minutes of riding and nothing has detached or loosened.

Retighten the roller to ensure it runs smoothly and the bearings are silent.

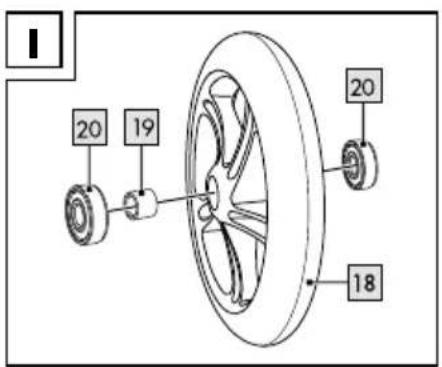

Replacing the ball bearings (Fig. 1)

1. Replace the roller (18) as described in section "Replacing the rollers".
2. Carefully pry out the respective bearing (20) using a socket head wrench.
3. Remove the spacer (19) from the roller and turn it over.
4. Prey out the other bearing using a socket head wrench.
5. Push in a new bearing. Turn the roller over, insert the spacer, then push in a second new bearing.
6. Reattach the roller as described in section "Replacing the rollers".

Storage, cleaning

We recommend thoroughly cleaning and drying the product after use.

Remove small stones or other objects which may be stuck to the rollers. Dry wet or damp ball bearings with a clean cloth. Grease the bearings with suitable bearing grease from the outside to prevent rust forming on the outside.

Always store the product in a dry location.

Disposal

Dispose of the article and the packaging materials in accordance with current local regulations. Packaging materials such as foil bags are not suitable to be given to children. Keep the packaging materials out of the reach of children.

Dispose of the products and the packaging in an environmentally friendly manner.

The recycling code is used to identify various materials for recycling. The code consists of the recycling symbol - which is meant to reflect the recycling cycle - and a number which identifies the material.

Notes on the guarantee and service handling

The product was produced with great care and under constant supervision. You receive a three-year warranty for this product from the date of purchase. Please retain your receipt.

The warranty applies only to material and workmanship and does not apply to misuse or improper handling. Your statutory rights, especially the warranty rights, are not affected by this warranty.

With regard to complaints, please contact the following service hotline or contact us by e-mail. Our service employees will advise as to the subsequent procedure as quickly as possible. We will be personally available to discuss the situation with you.

Any repairs under the warranty, statutory guarantees or through goodwill do not extend the warranty period. This also applies to replaced and repaired parts. Repairs after the warranty are subject to a charge.

IAN:327355_1904

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

DELTA-SPORT HANDELSKONTOR GMBH

Wragekamp 6 • DE-22397 Hamburg

GERMANY

12/2019
